Description And Operation
>>
Transmission Description
>>
Transmission View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Transmission View

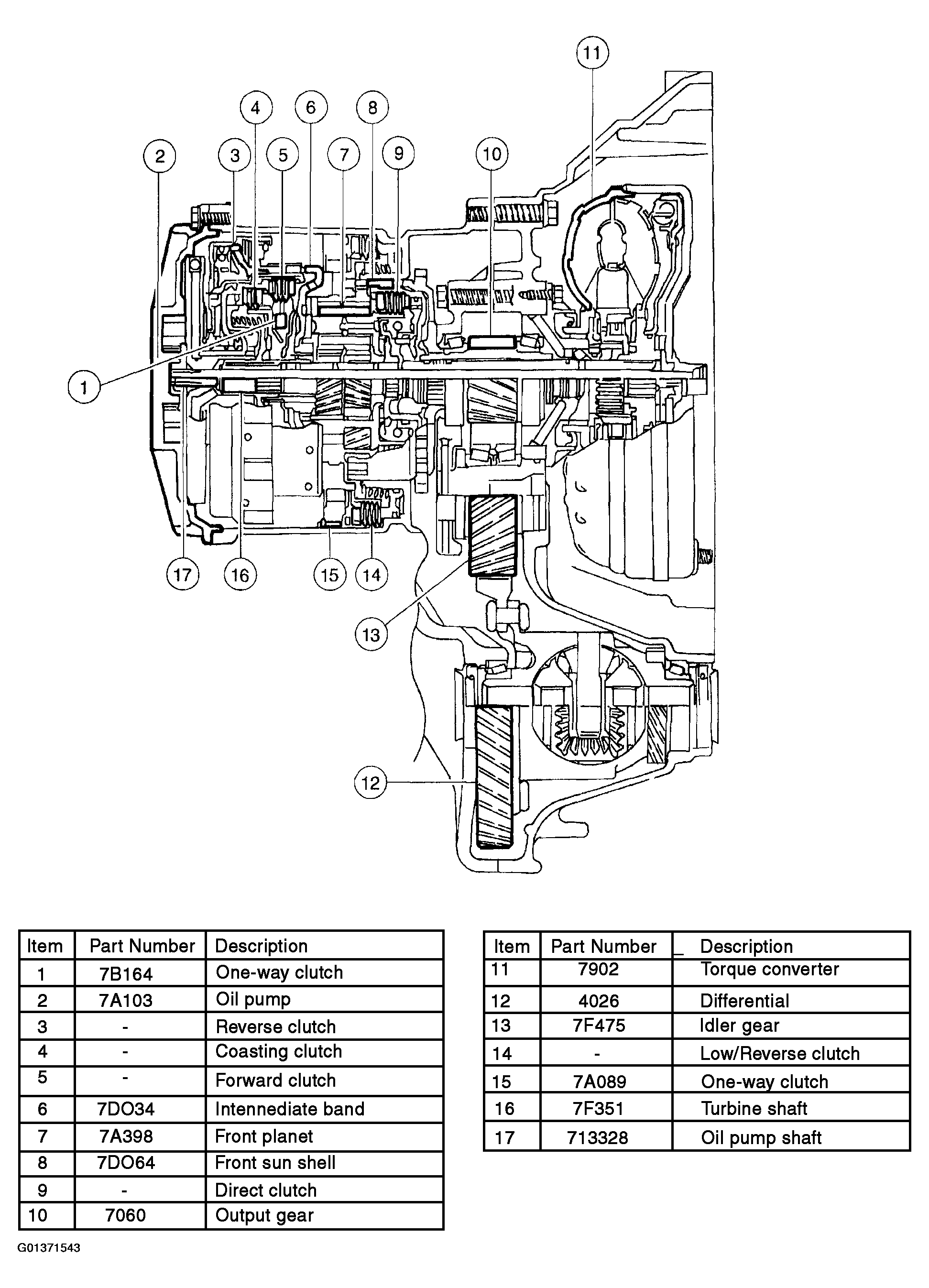

Fig 1: Identifying Transmission Interior View
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
