2-4 Servo: Disassembly

  1. Remove the servo retainer.

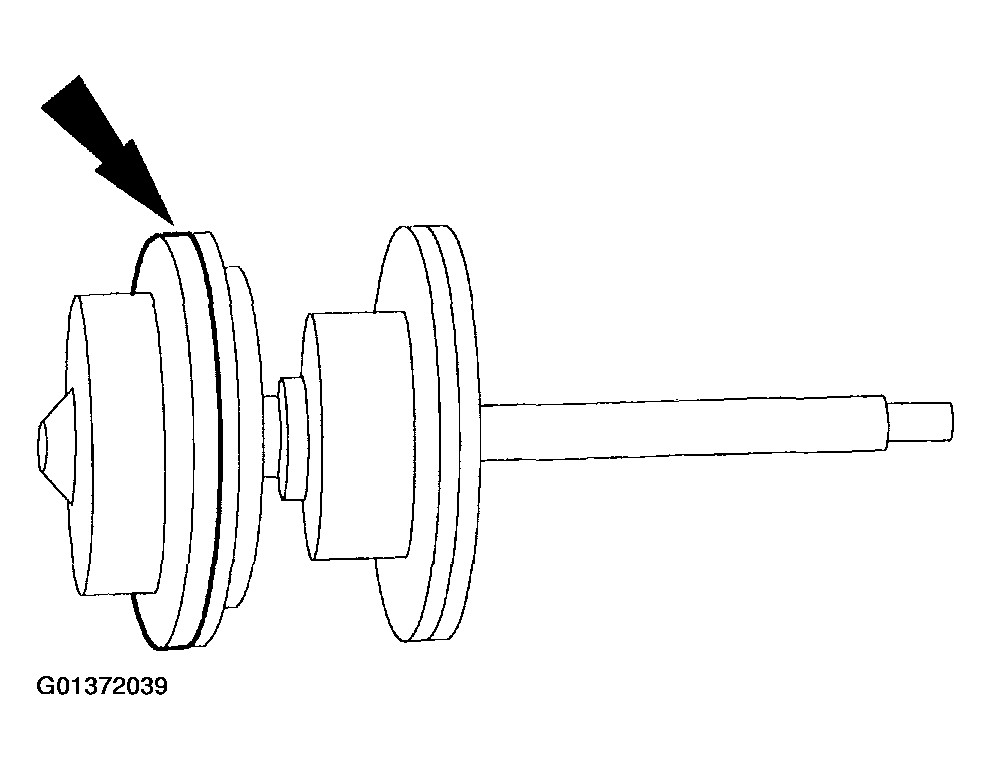

    Fig 1: Removing Servo Retainer
    G01372039Courtesy of FORD MOTOR CO.
  2. Disassemble the servo piston and rod assembly.
    1. Remove the clip.
    2. Remove the rod and spacer.
    3. Remove the spacer.

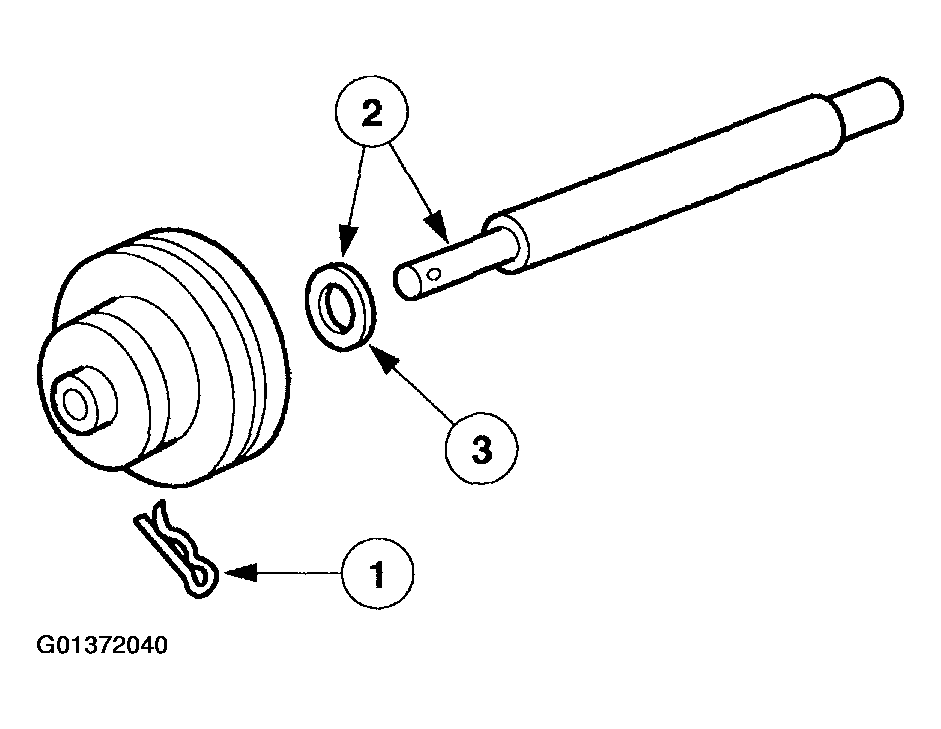

    Fig 2: Disassembled View Of Servo Piston And Rod Assembly
    G01372040Courtesy of FORD MOTOR CO.
  3. Remove and discard the O-ring seals.

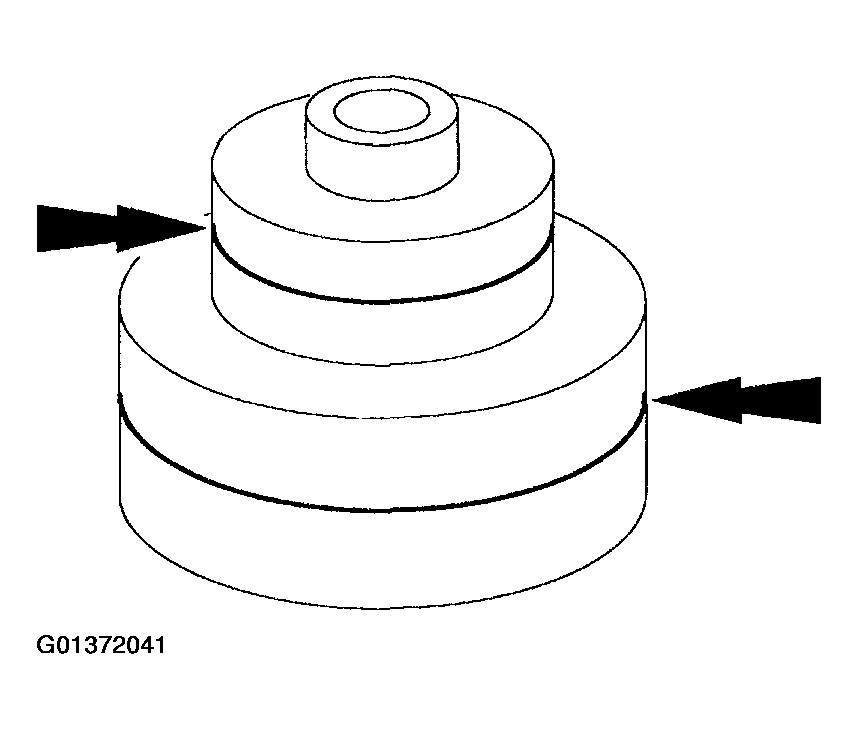

    Fig 3: Removing O-Ring Seals
    G01372041Courtesy of FORD MOTOR CO.
  4. Discard the servo piston cover and seal.

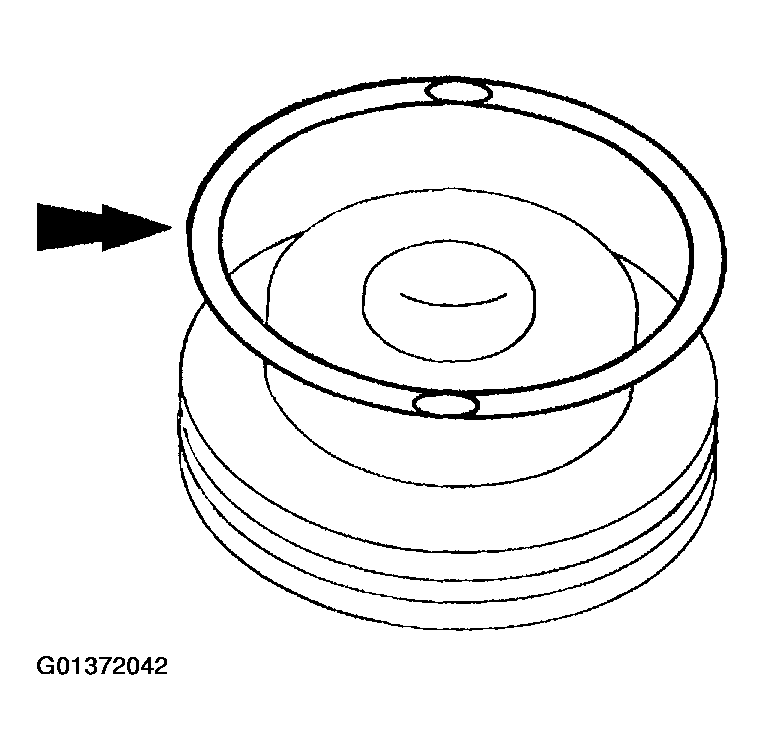

Fig 4: Removing Servo Piston Cover And Seal
G01372042Courtesy of FORD MOTOR CO.
