Disassembly And Assembly Of Subassemblies: Accumulators: Disassembly

NOTE: The removal of all of the accumulator piston retainers, accumulator pistons, and accumulator piston springs from their proper bores in the transmission case is similar. The 1-2 accumulator is given as an example.

Remove the accumulator piston retaining ring while pressing in the accumulator spring retainer.

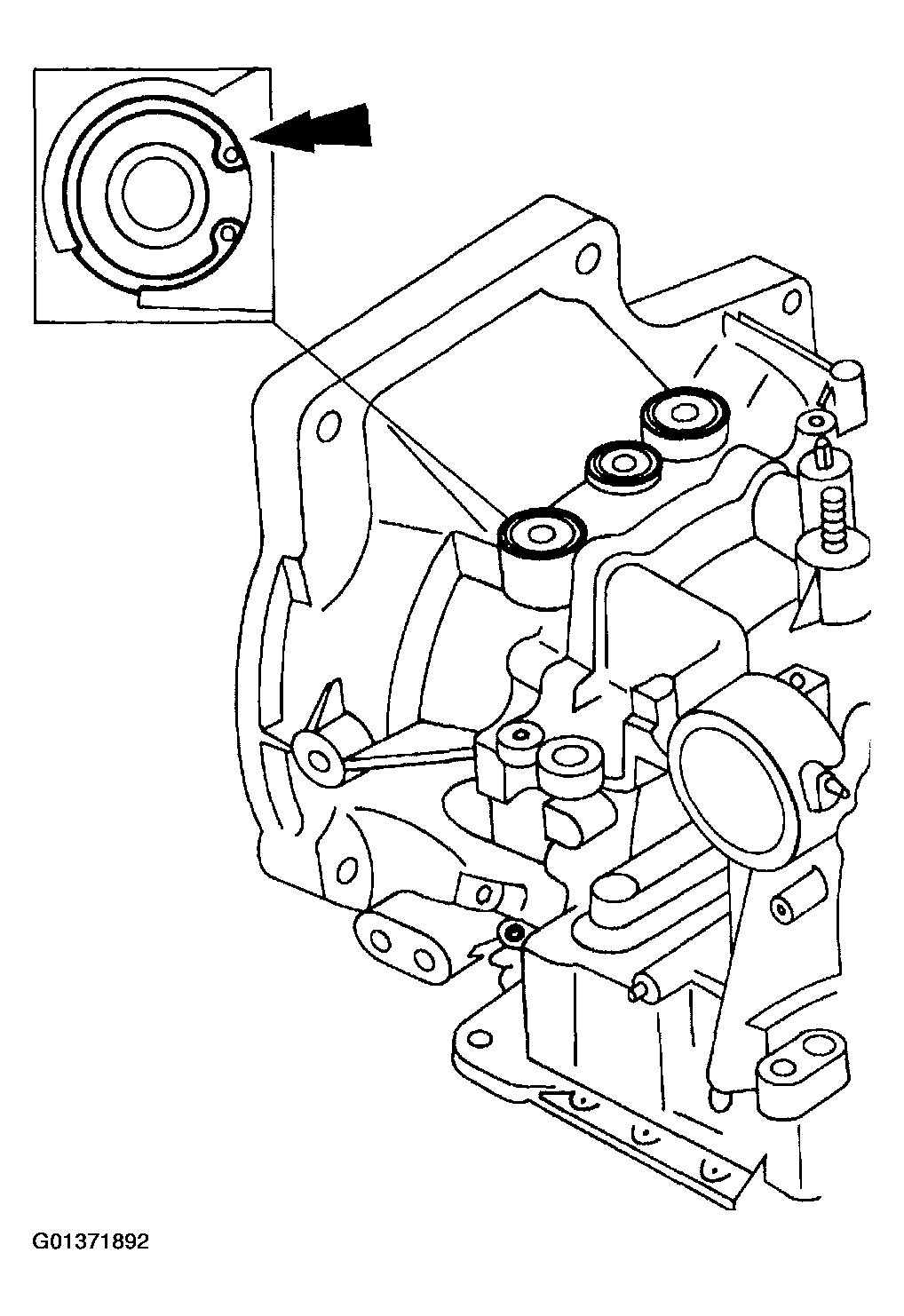

Fig 1: Removing Accumulator Piston Retaining Ring
Courtesy of FORD MOTOR CO.
Remove the accumulator spring retainer.
1. Remove the accumulator spring retainer.
2. Remove the accumulator piston spring.

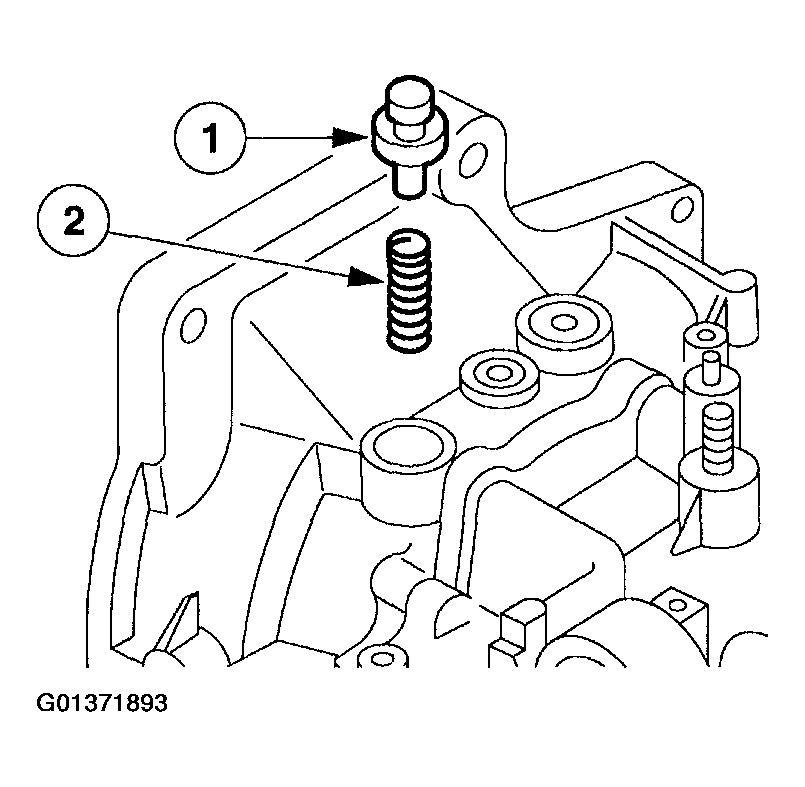

Fig 2: Removing Accumulator Spring Retainer
Courtesy of FORD MOTOR CO.

WARNING: Use caution when removing accumulator pistons from the bore using compressed air to avoid personal injury.

CAUTION: Do not remove the seal rings from the accumulator piston. If necessary, replace them as an assembly for proper transmission operation.

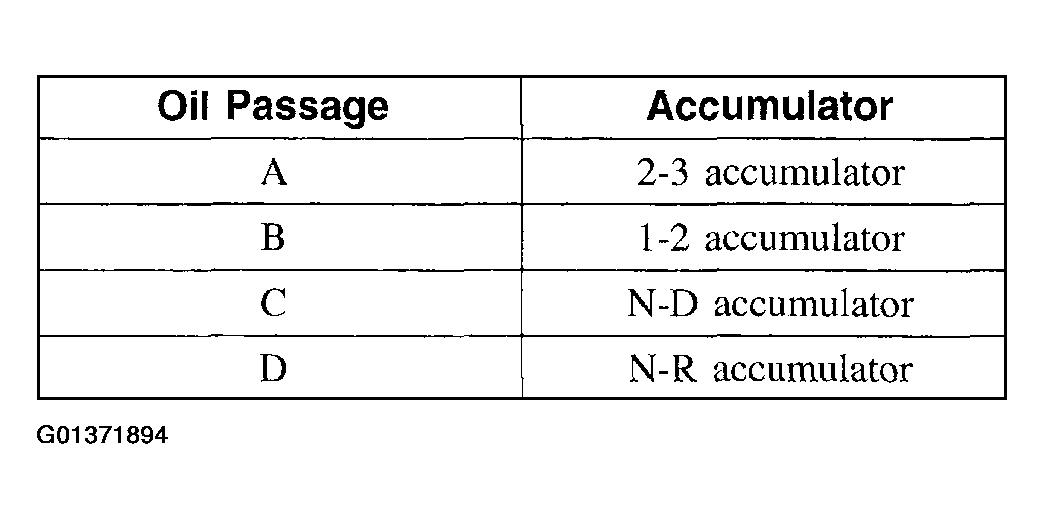

Fig 3: Oil Passage Accumulator Table

Courtesy of FORD MOTOR CO.

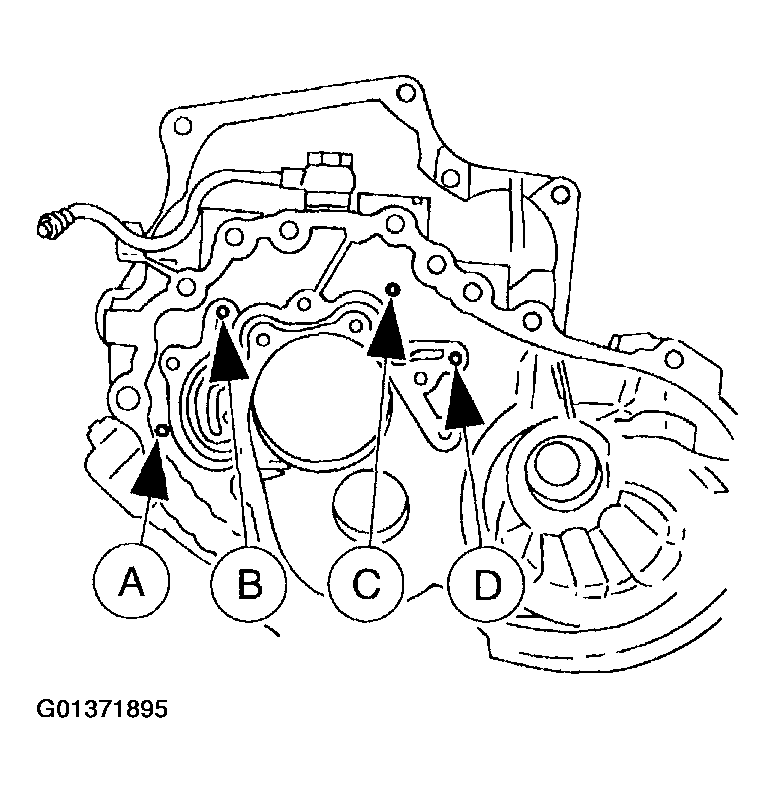

Fig 4: Identifying Accumulator Piston

Courtesy of FORD MOTOR CO.

Remove the accumulator piston from the transmission housing by applying compressed air through the appropriate fluid passage. Apply a maximum air pressure of 392 kPa (57 psi).
