Fluid Pump Assembly: Disassembly

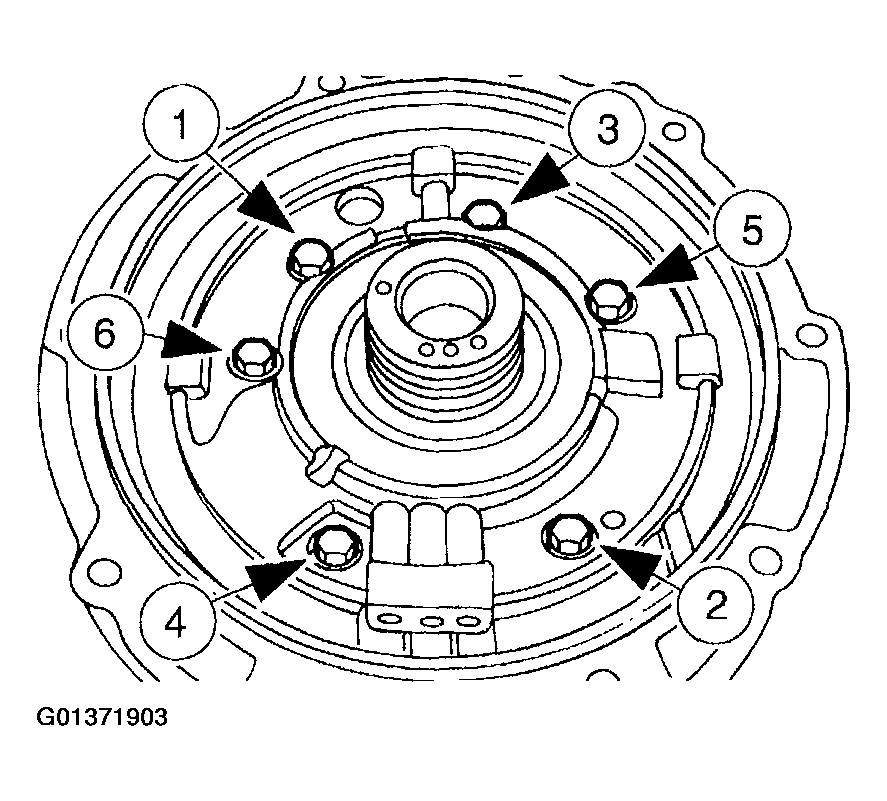

Remove the pump cover bolts in the sequence shown.

Fig 1: Identifying Removal Sequence Of Pump Cover Bolts
Courtesy of FORD MOTOR CO.

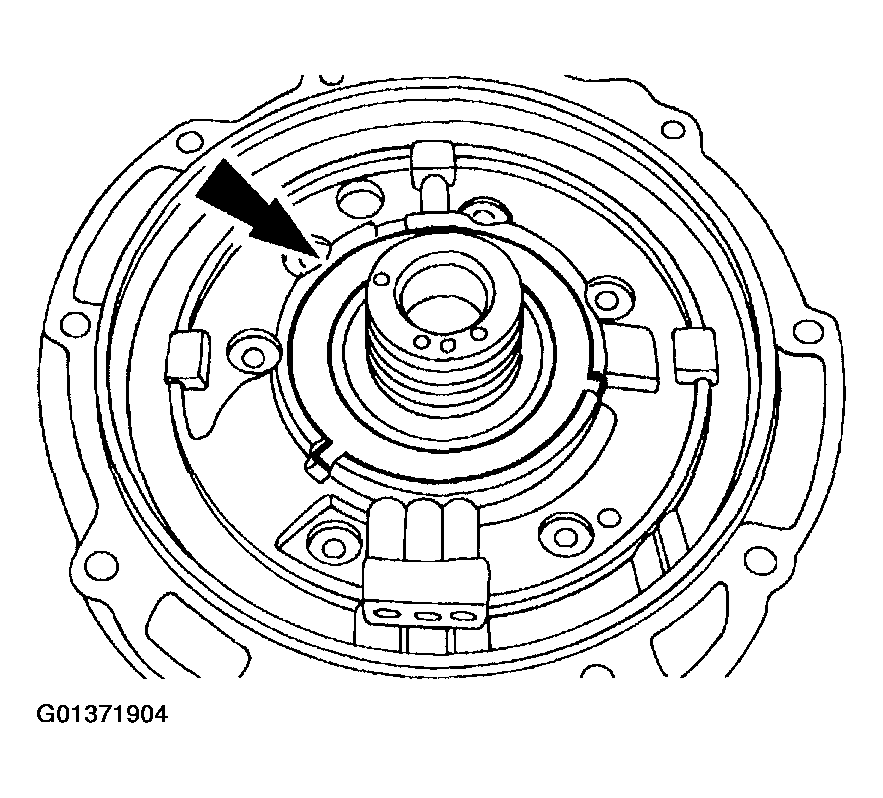

Remove the thrust washer.

Fig 2: Removing Thrust Washer
Courtesy of FORD MOTOR CO.

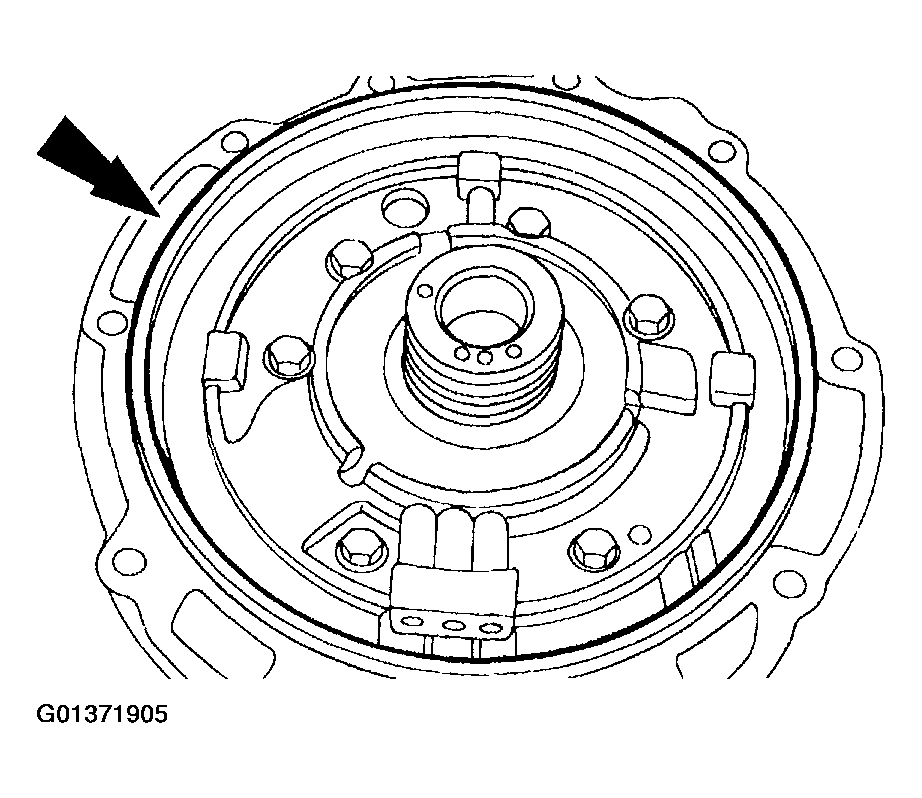

Remove the pump cover.

Fig 3: Removing Pump Cover
Courtesy of FORD MOTOR CO.

NOTE: Make an alignment mark between the inner and outer rotor. Do not use a punch to make the alignment mark.

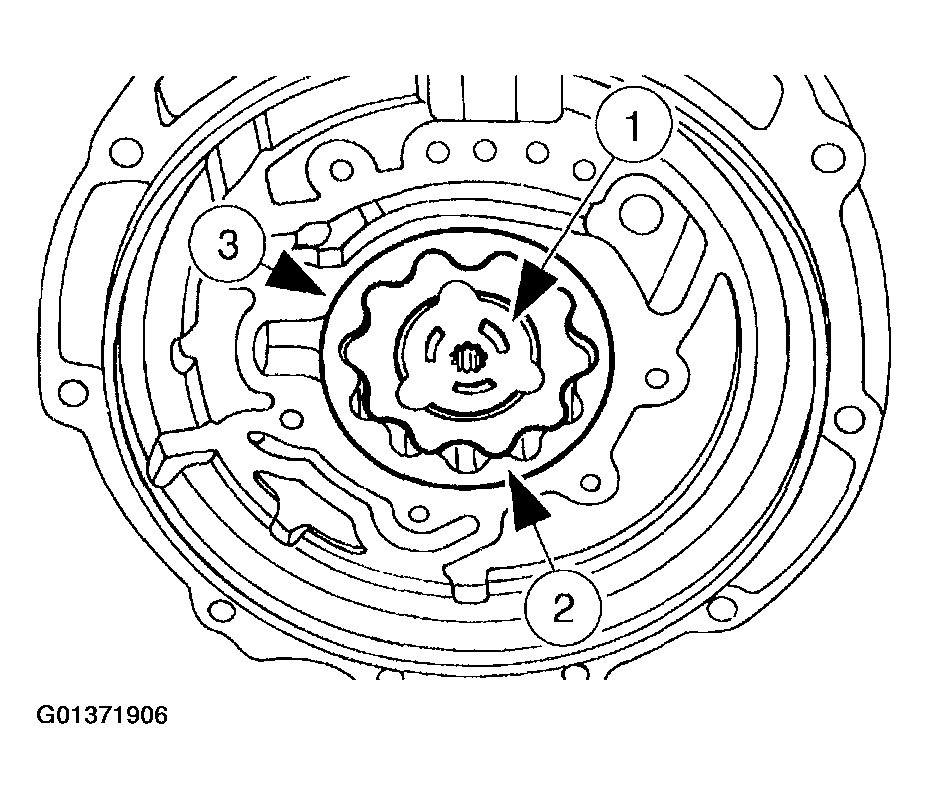

Fig 4: Removing Flange And Inner And Outer Rotors

Courtesy of FORD MOTOR CO.

Remove the flange and the inner and outer rotors.
1. Remove the flange.
2. Remove the inner rotor.
3. Remove the outer rotor.

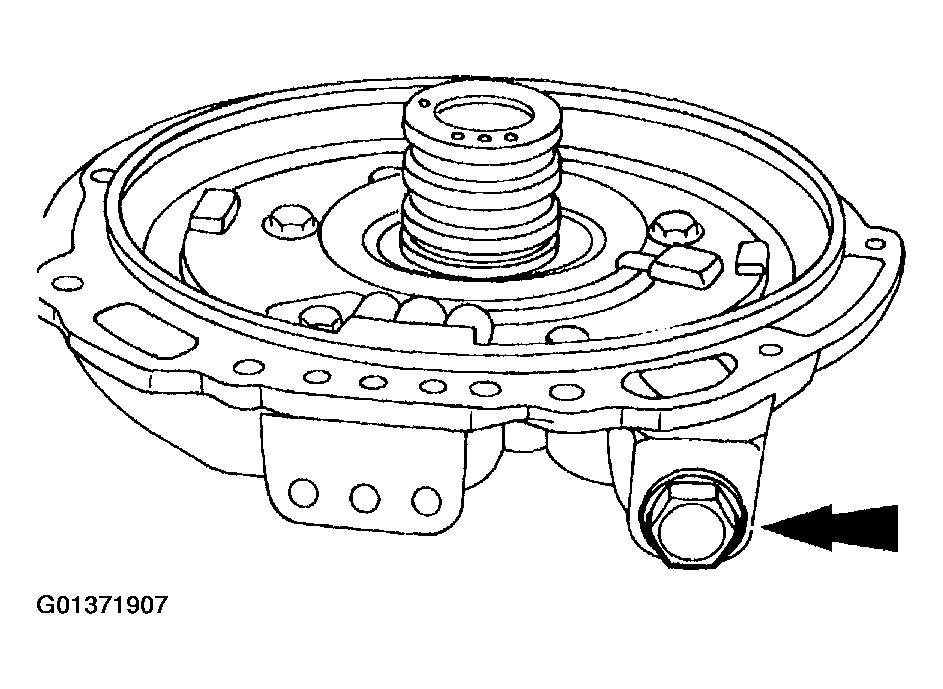

Remove the spool valve plug.

Fig 5: Removing Spool Valve Plug
Courtesy of FORD MOTOR CO.
Remove the spool valve washer.

Fig 6: Removing Spool Valve Washer
Courtesy of FORD MOTOR CO.

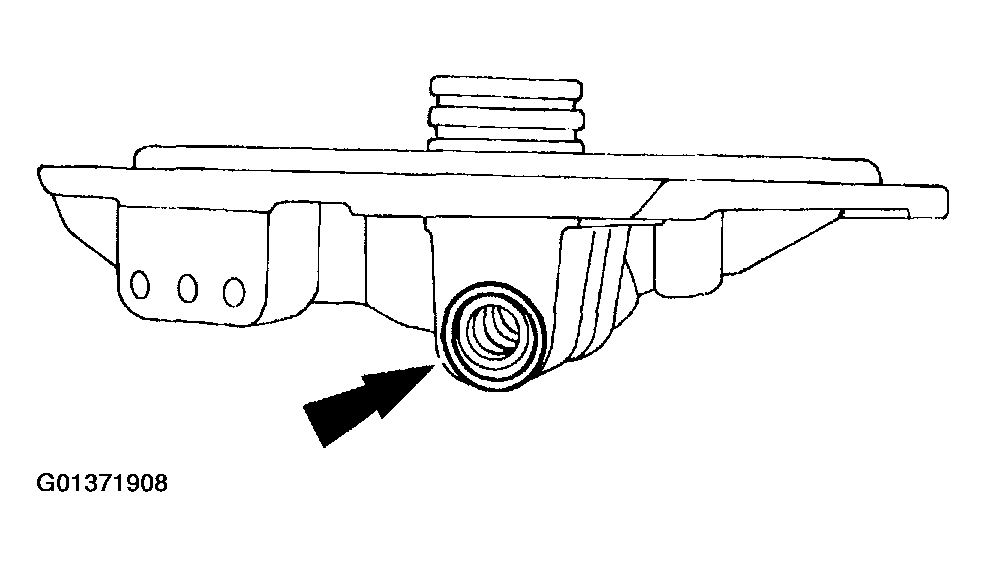

Remove the spool valve spring.

Fig 7: Removing Spool Valve Spring
Courtesy of FORD MOTOR CO.

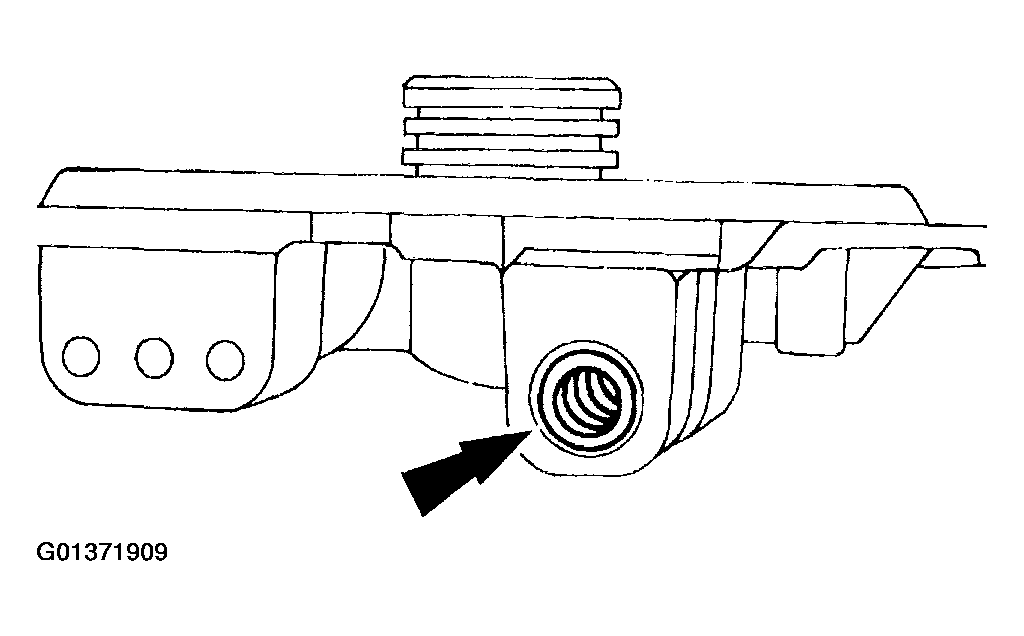

Remove the spool valve.

Fig 8: Removing Spool Valve
Courtesy of FORD MOTOR CO.

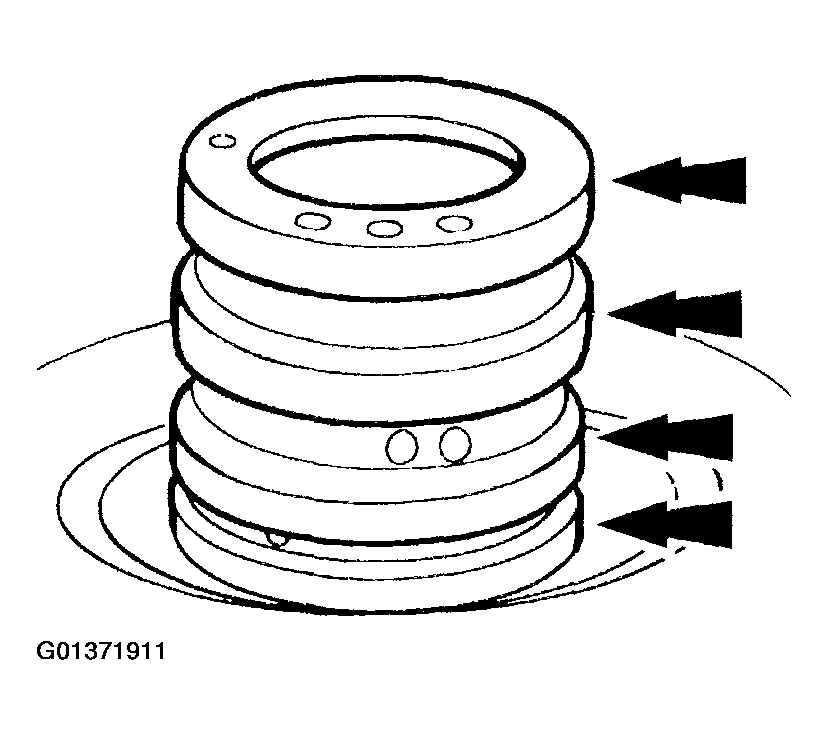

Remove the oil distributor sleeve seals from the pump cover and discard the seals.

Fig 9: Removing Oil Distributor Sleeve Seals
Courtesy of FORD MOTOR CO.
