Main Control - Valve Body Assembly: Installation

Position the main control valve body into the transmission case. Align the (A) manual valve with the pin on the (B) manual valve detent lever (7A115).

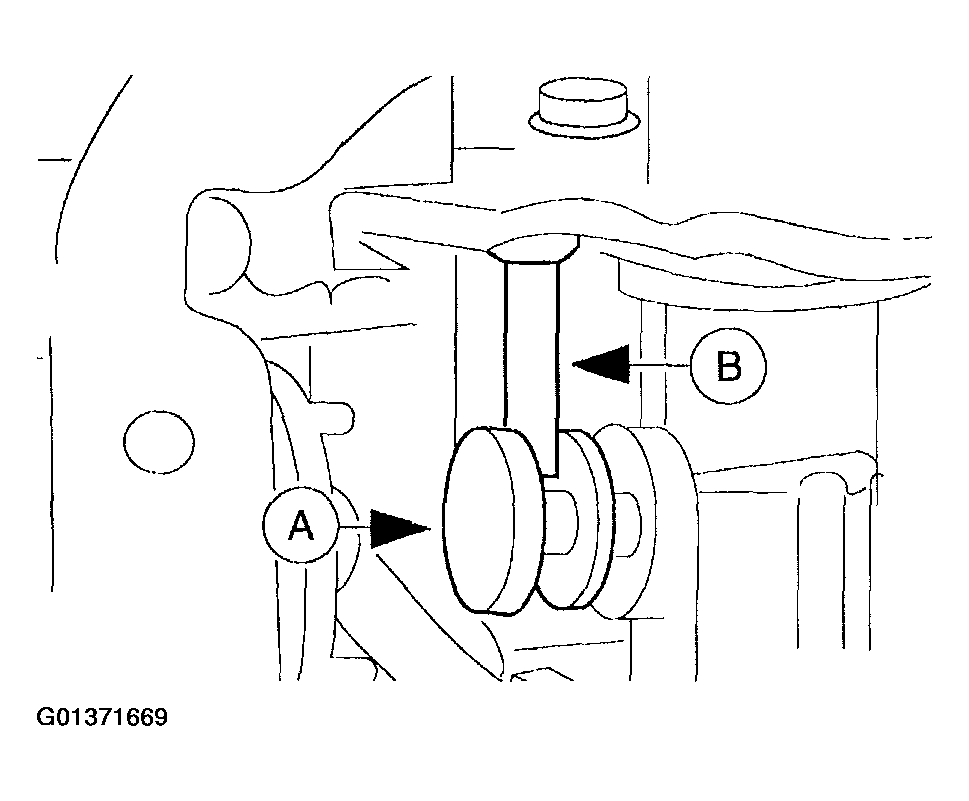

Fig 1: Aligning Manual Valve With Manual Valve Detent Lever
Courtesy of FORD MOTOR CO.

NOTE: The main control valve body bolts are two different lengths.

NOTE: Secure the wire retainers to the main control valve body when the main control valve body is installed.

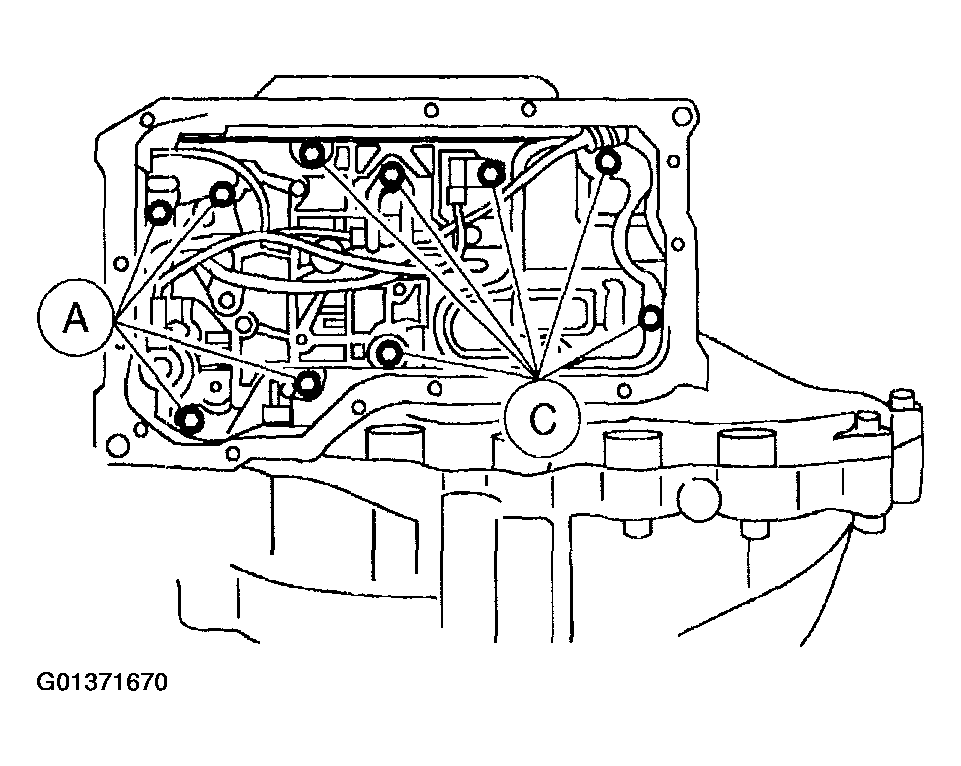

Fig 2: Installing Bolts

Courtesy of FORD MOTOR CO.

Install the main control valve body bolts; then connect the solenoid electrical connectors.
- Bolt length (measured from below the head):
  A: 30 mm (1.18 in).

  C: 50 mm (1.97 in).
Tighten the main control valve body bolts.

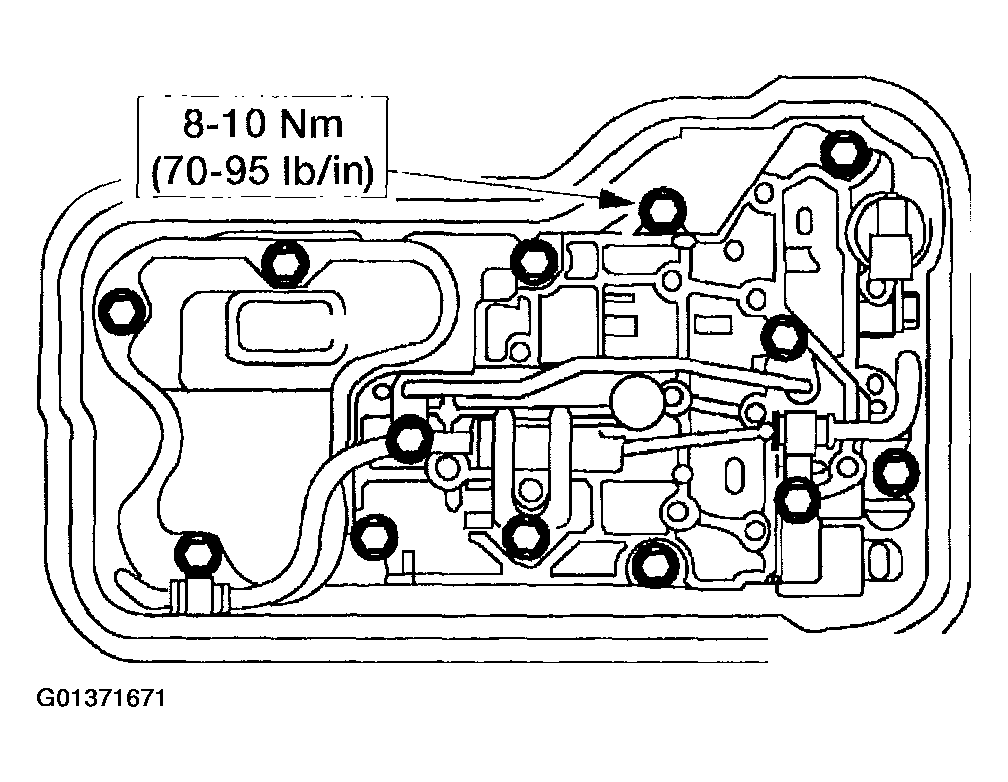

Fig 3: Tightening Bolts
Courtesy of FORD MOTOR CO.
Install the transmission fluid pan with a new oil pan to case gasket.
1. Install the transmission fluid pan and oil pan to case gasket.
2. Install the bolts.

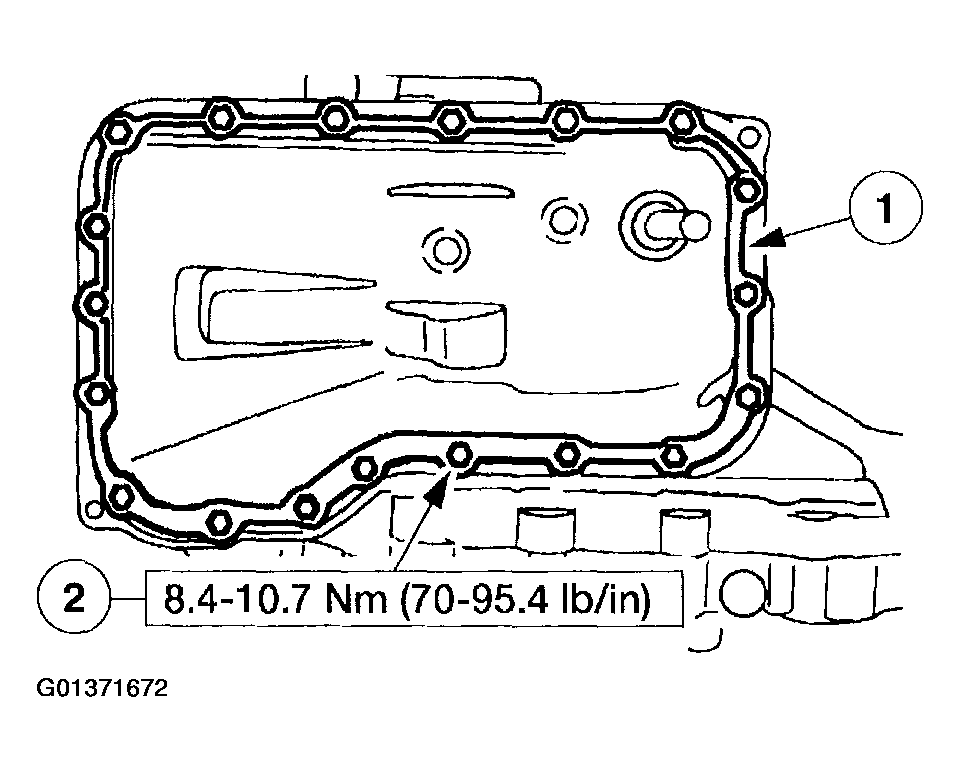

Fig 4: Installing Transmission Fluid Pan And Oil Pan To Case Gasket
Courtesy of FORD MOTOR CO.
Lower the vehicle. Fill with Motorcraft MERCON Multi-Purpose Automatic Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON, and check for leaks.

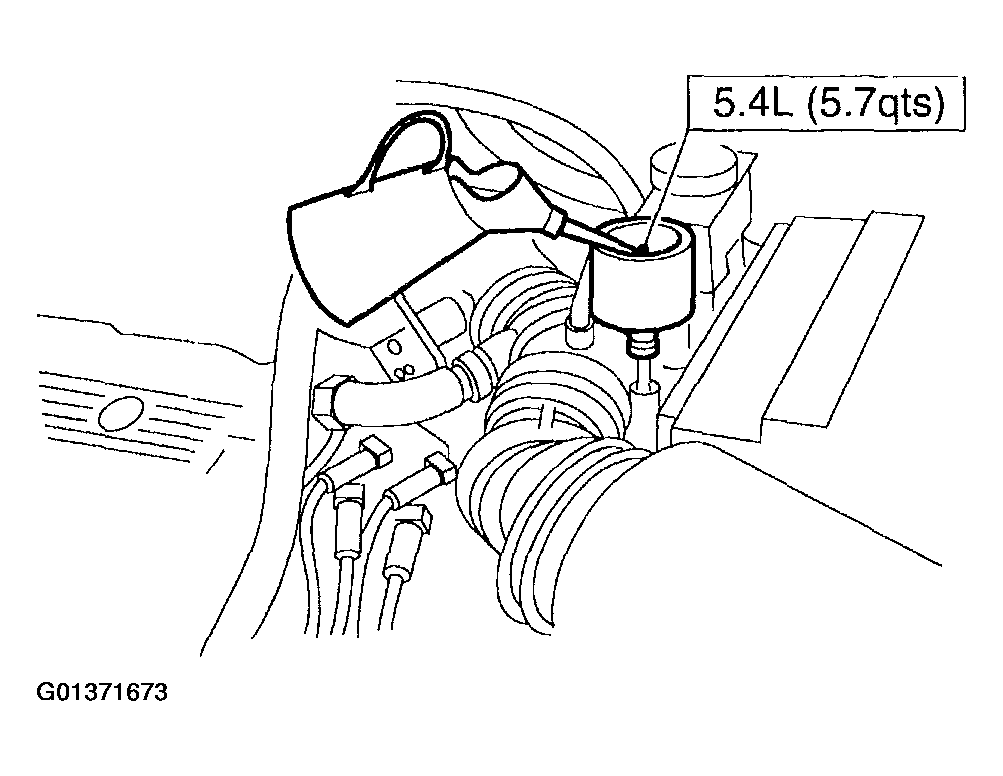

Fig 5: Filling With Automatic Transmission Fluid
Courtesy of FORD MOTOR CO.
Test drive the vehicle and verify that shift points are accurate and precise.
