Automatic Transaxle/Transmission: Installation: Transaxle: Procedure

NOTE: Prior to installation of the transmission assembly, the torque converter pilot hub must be properly lubricated. Use Ford Multi-Purpose Grease DOAZ-19584-AA or equivalent meeting Ford specification ESR-M1C159-A and ESB-M1C93-B.

NOTE: Align the torque converter studs to the flywheel.

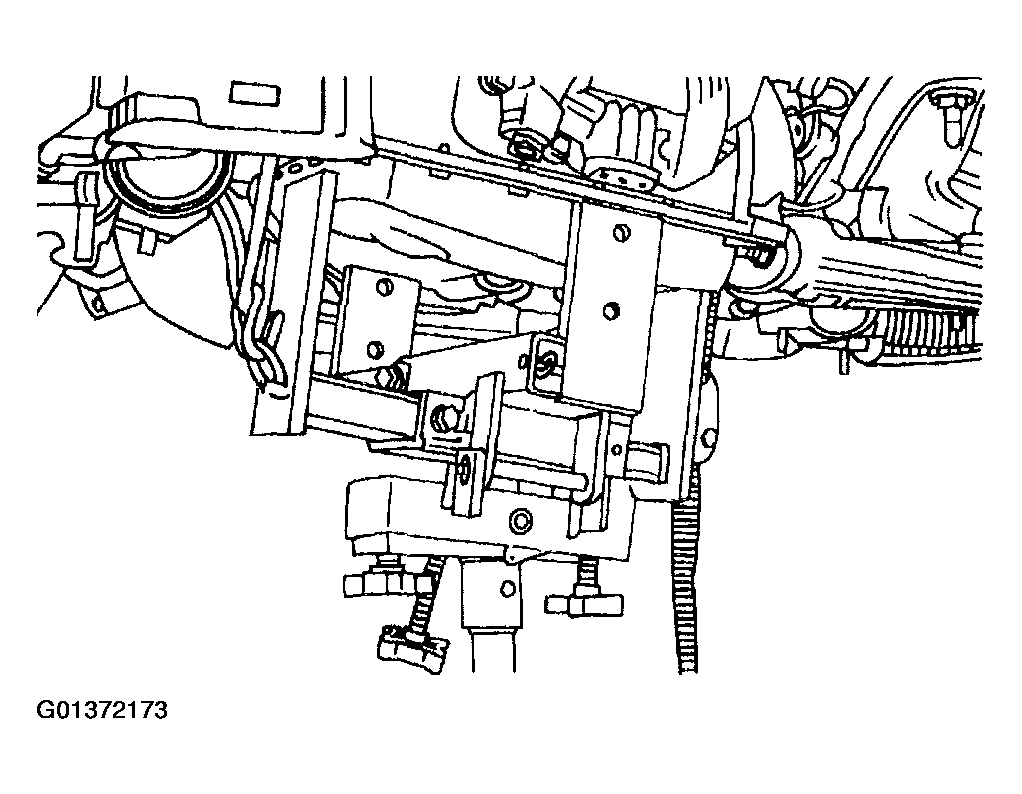

Fig 1: Securing Transmission On Hi-Lift Transmission Jack

Courtesy of FORD MOTOR CO.

Secure the transmission on Hi-Lift Transmission Jack. Raise the transmission to the proper height and position the transmission to the engine.
Install the middle transmission to engine bolts.

Fig 2: Installing Middle Transmission To Engine Bolts
Courtesy of FORD MOTOR CO.
Install the four flywheel to converter retaining nuts.

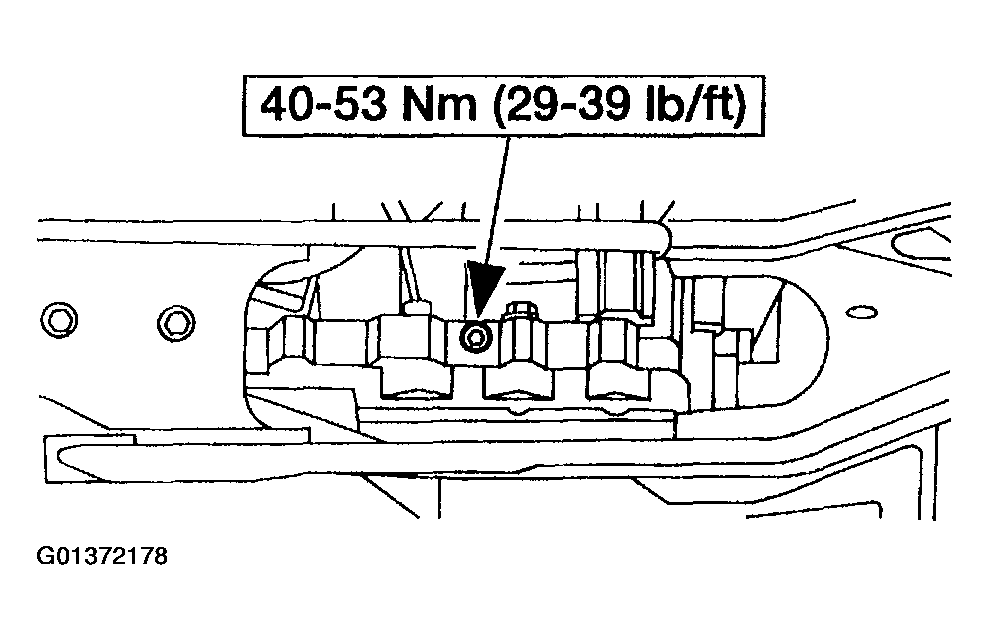

Fig 3: Installing Flywheel To Converter Retaining Nuts
Courtesy of FORD MOTOR CO.

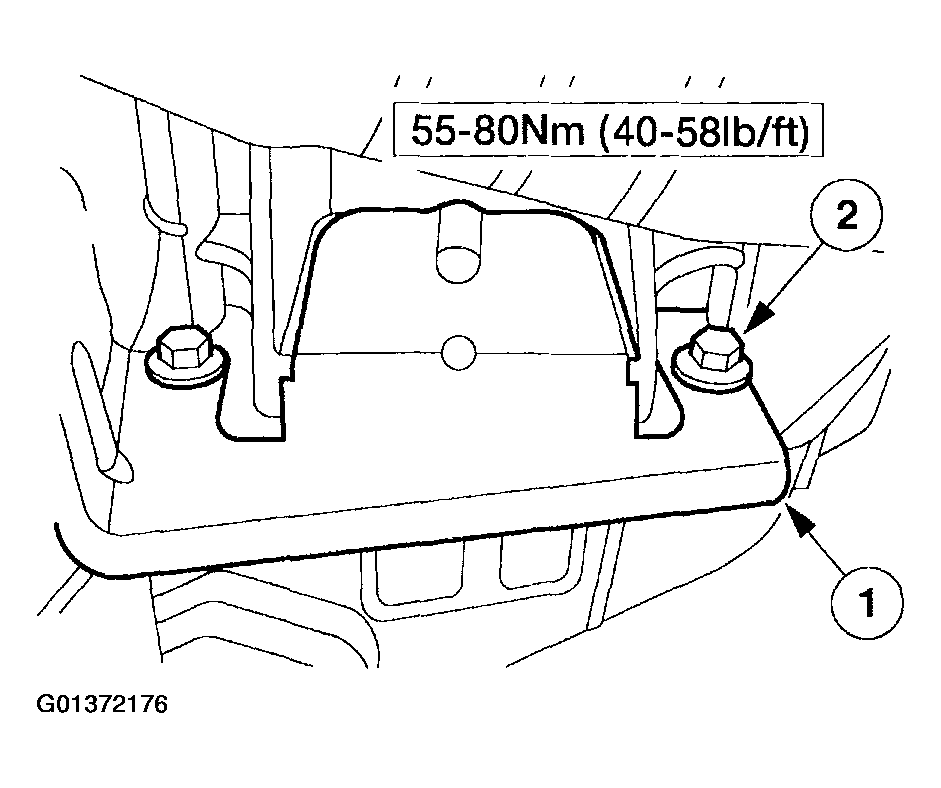

Install the transmission housing cover.
1. Install the housing cover.
2. Install the bolts.
Fig 4: Installing Transmission Housing Cover
Courtesy of FORD MOTOR CO.

NOTE: Connect the A/C line to the retainer located on the front of the engine support crossmember.

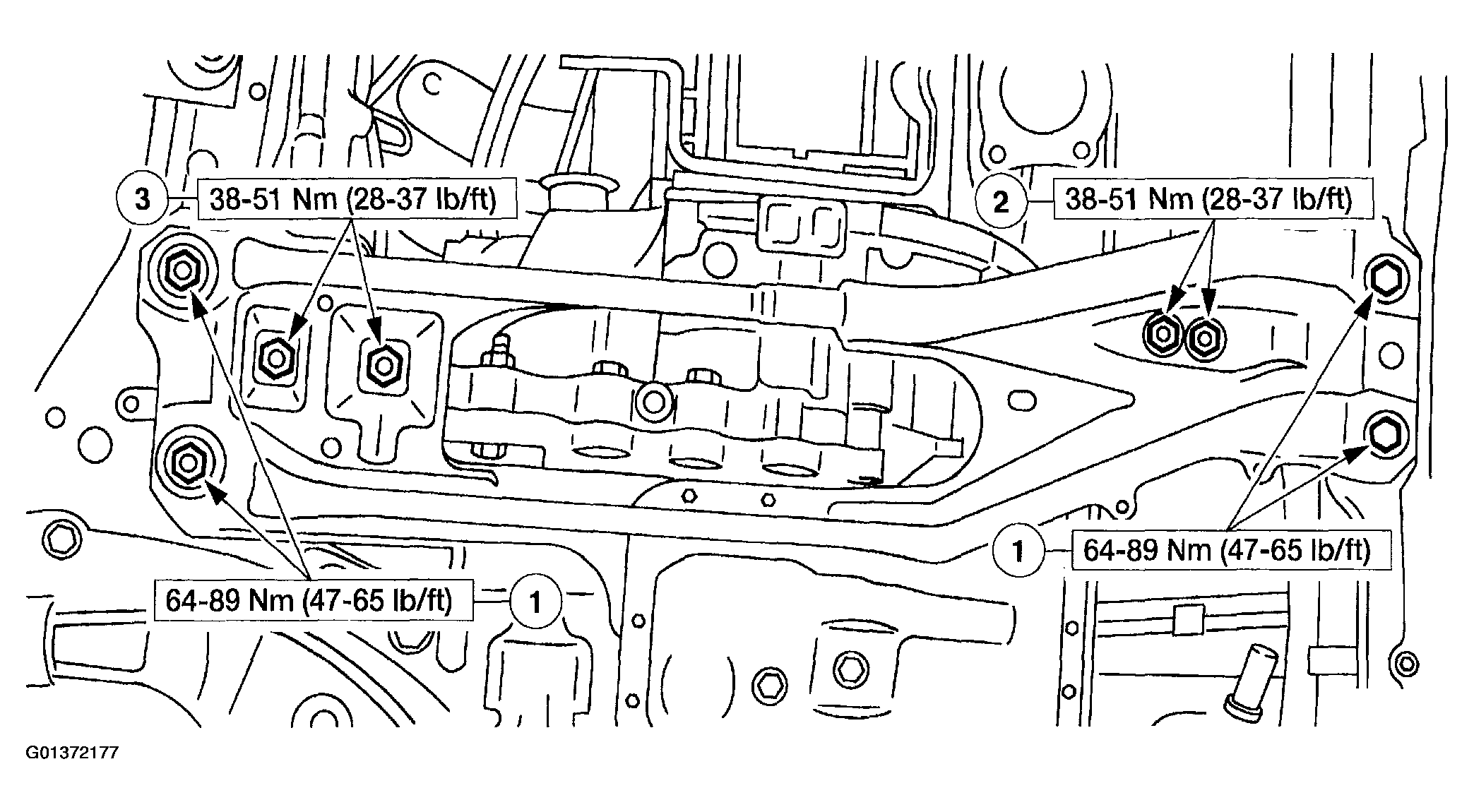

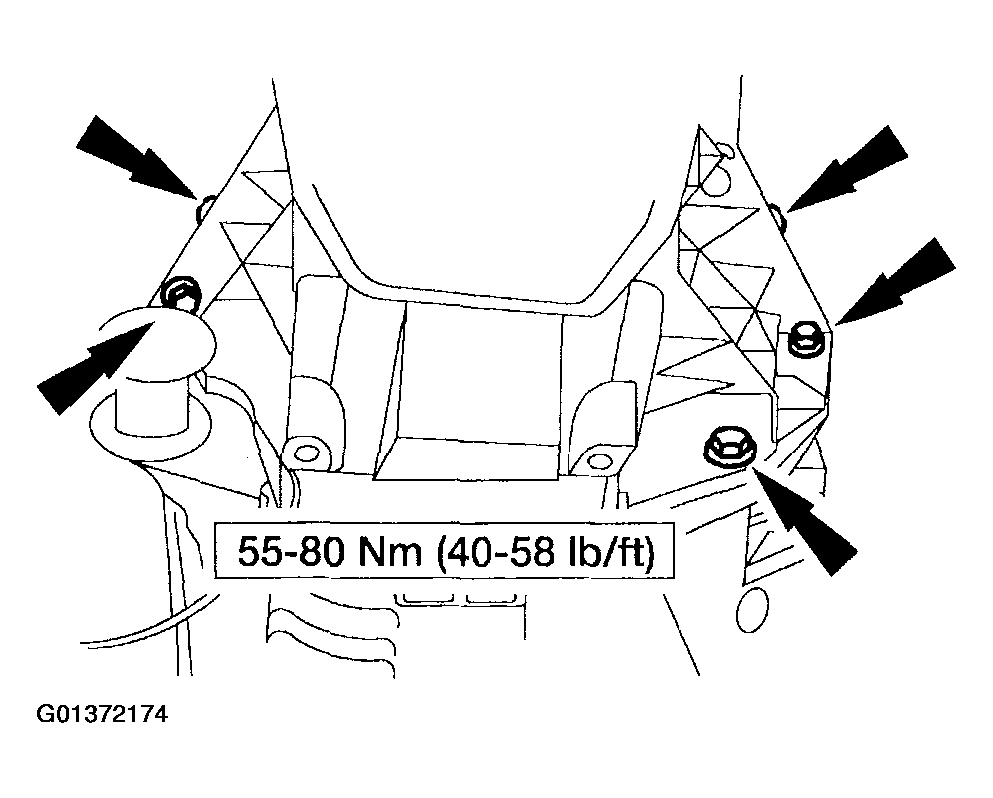

Fig 5: Installing Transmission Support Crossmember

Courtesy of FORD MOTOR CO.

Install the transmission support crossmember.
1. Install the transmission support crossmember bolts and nuts.
2. Install the rear engine isolator nuts.
3. Install the front engine isolator nuts.
Install the drain plug with a new washer.

Fig 6: Installing Drain Plug With Washer
Courtesy of FORD MOTOR CO.

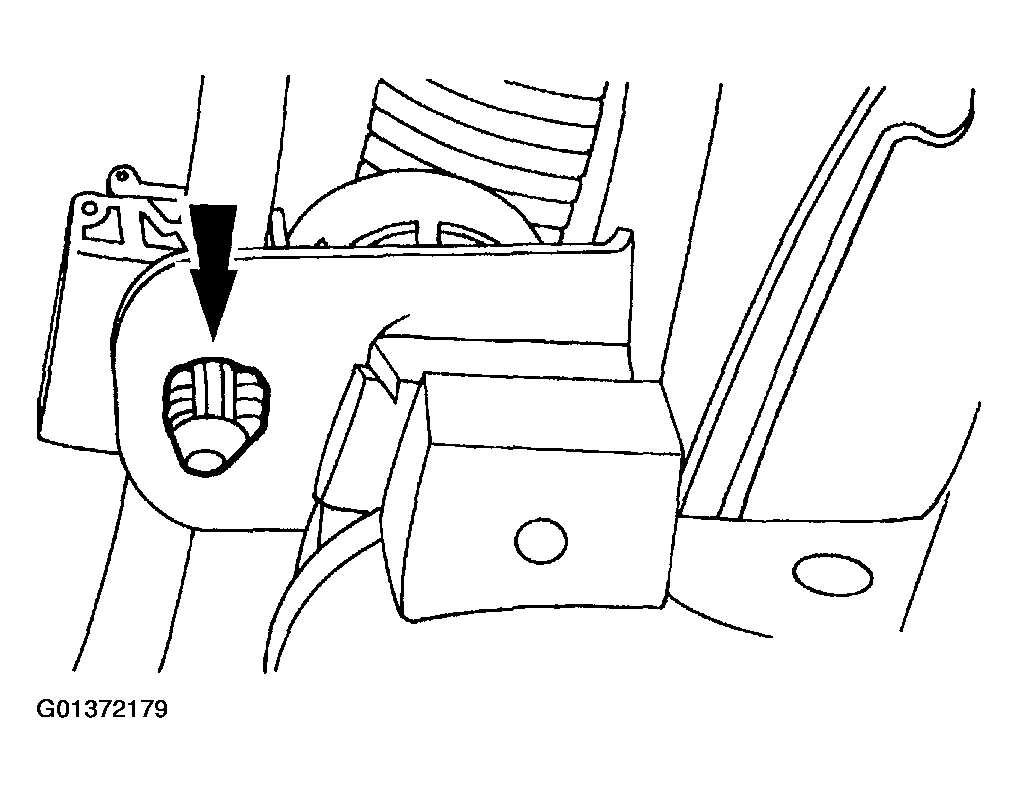

Connect the heated oxygen sensor (HO2S) to the wire clip.

Fig 7: Connecting Heated Oxygen Sensor To Wire Clip
Courtesy of FORD MOTOR CO.
Install the halfshafts; refer to AXLE SHAFTS .
Install the starter motor; refer to STARTERS .
Lower the vehicle.
Install the two upper transmission to engine bolts.

Fig 8: Installing Upper Transmission To Engine Bolts
Courtesy of FORD MOTOR CO.

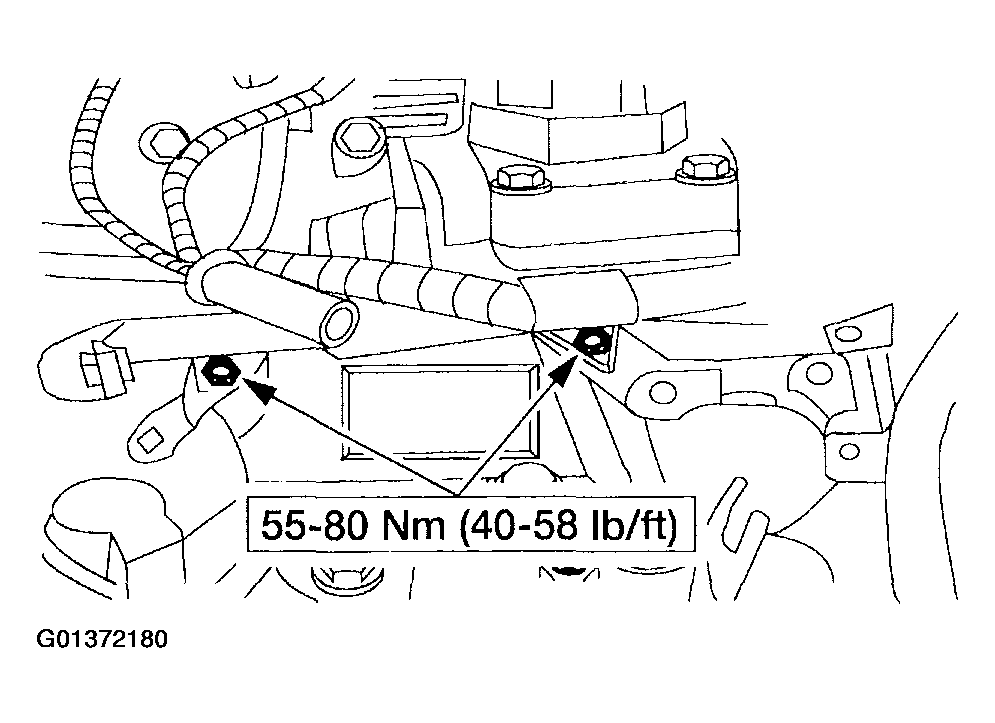

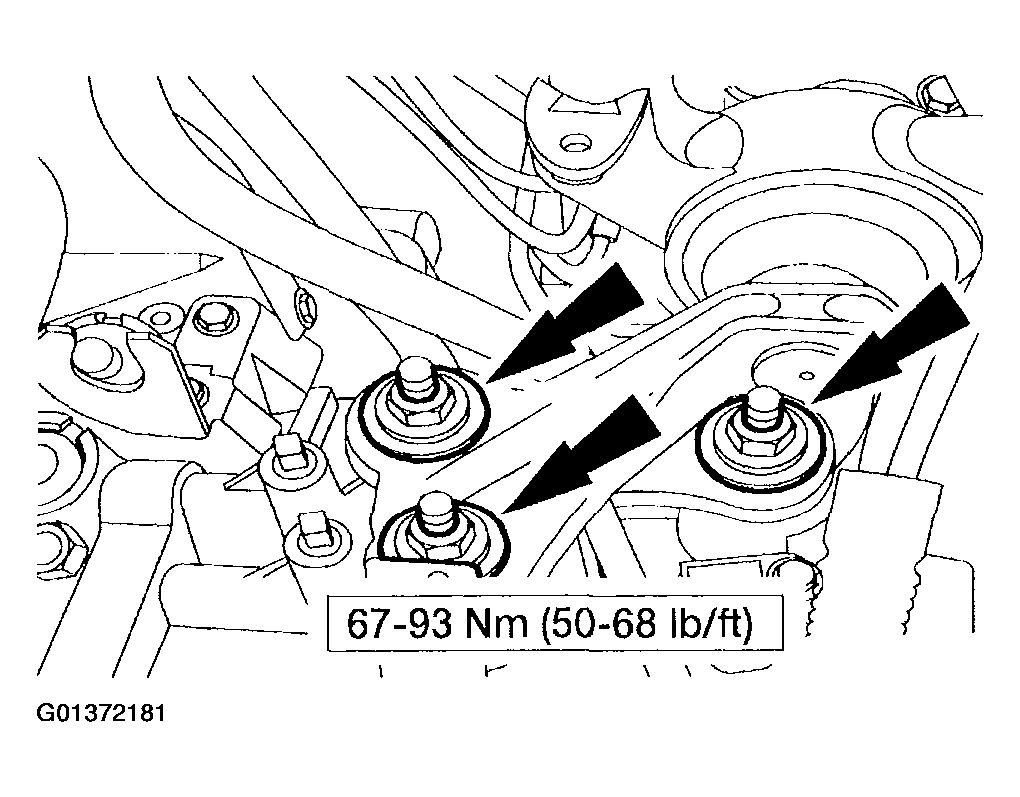

Install the LH engine support insulator nuts and washers.

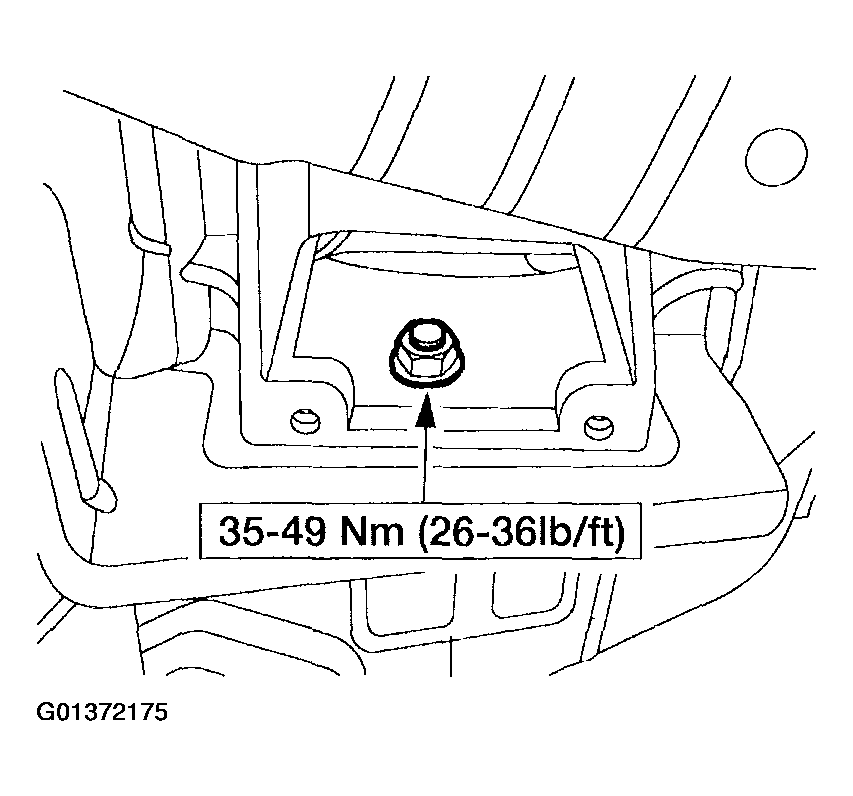

Fig 9: Installing LH Engine Support Insulator Nuts And Washers
Courtesy of FORD MOTOR CO.

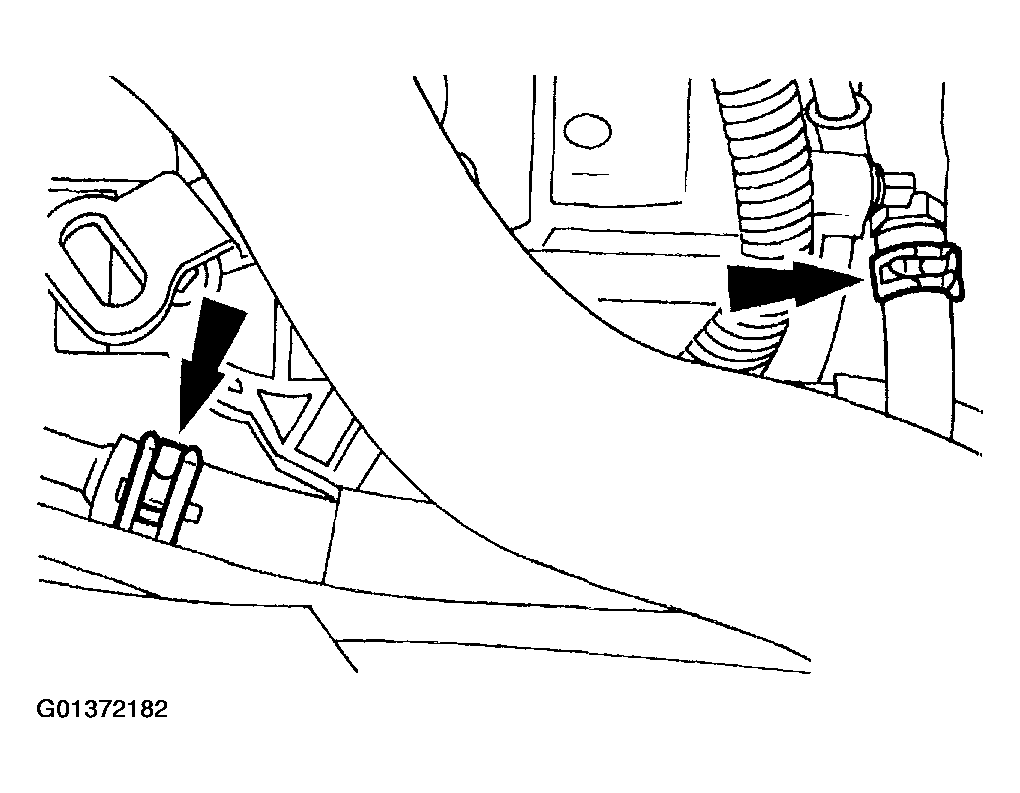

Connect the fluid cooler lines to the transmission.

Fig 10: Connecting Fluid Cooler Lines To Transmission
Courtesy of FORD MOTOR CO.

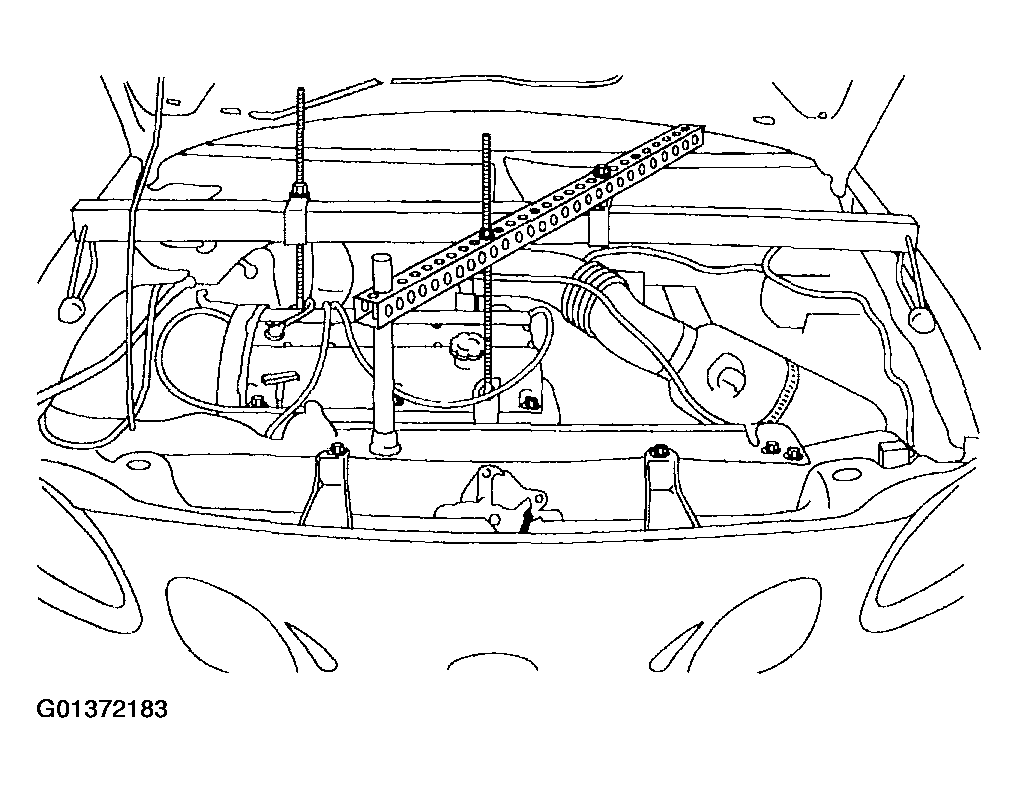

Remove Three-Bar Engine Support.

Fig 11: Removing Three-Bar Engine Support
Courtesy of FORD MOTOR CO.

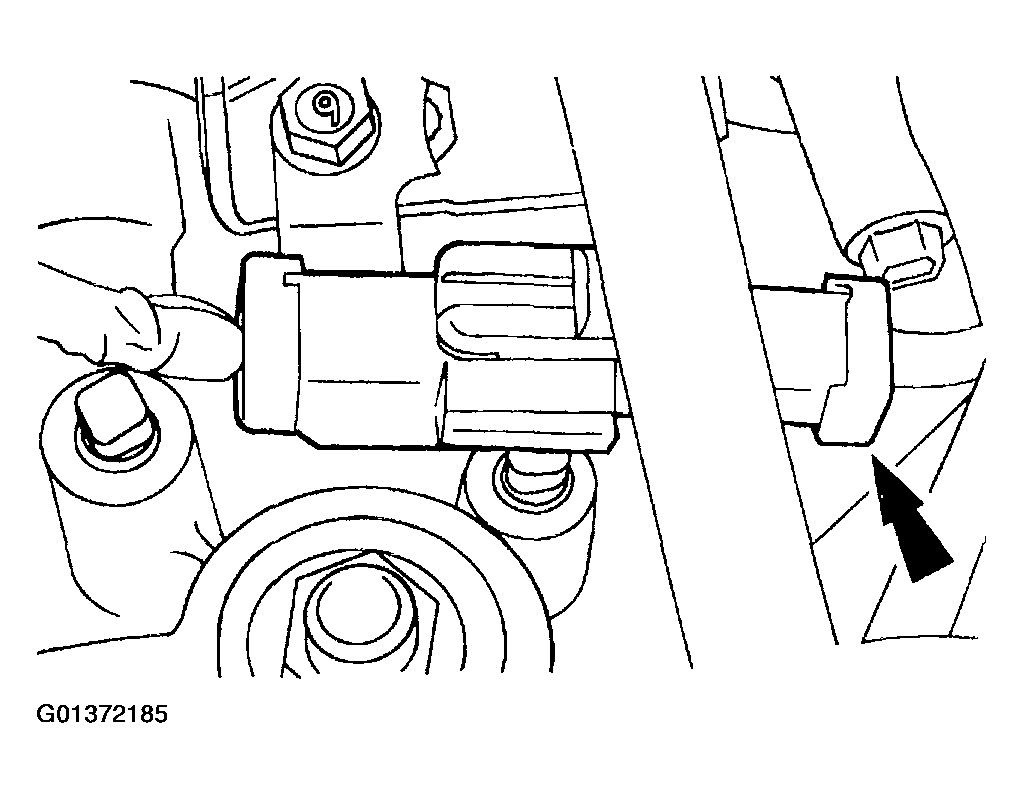

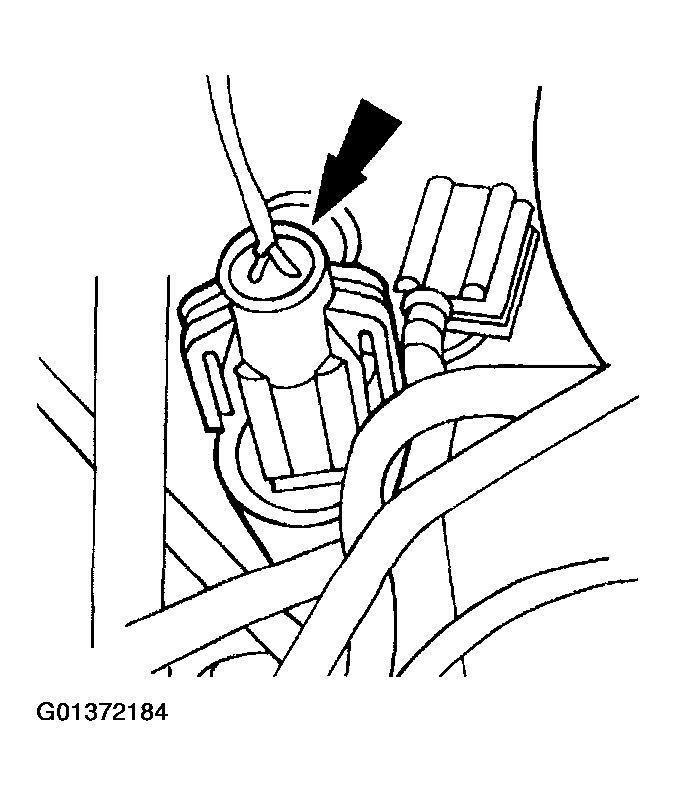

Connect the vehicle speed sensor (VSS) electrical connector.

Fig 12: Connecting Vehicle Speed Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the HO2S electrical connector.

Fig 13: Connecting HO2S Electrical Connector
Courtesy of FORD MOTOR CO.

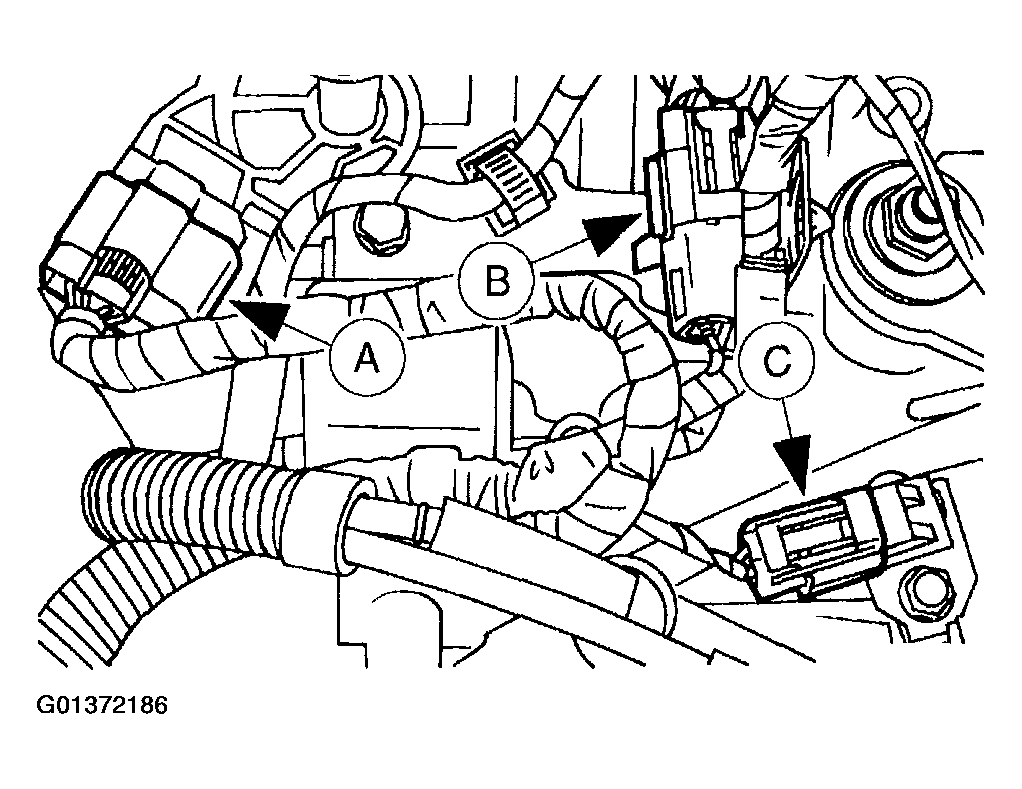

Connect the (A) transmission range selector electrical connector, the (B) transmission solenoid electrical connector, and the (C) turbine signal sensor electrical connector.

Fig 14: Connecting Electrical Connectors
Courtesy of FORD MOTOR CO.

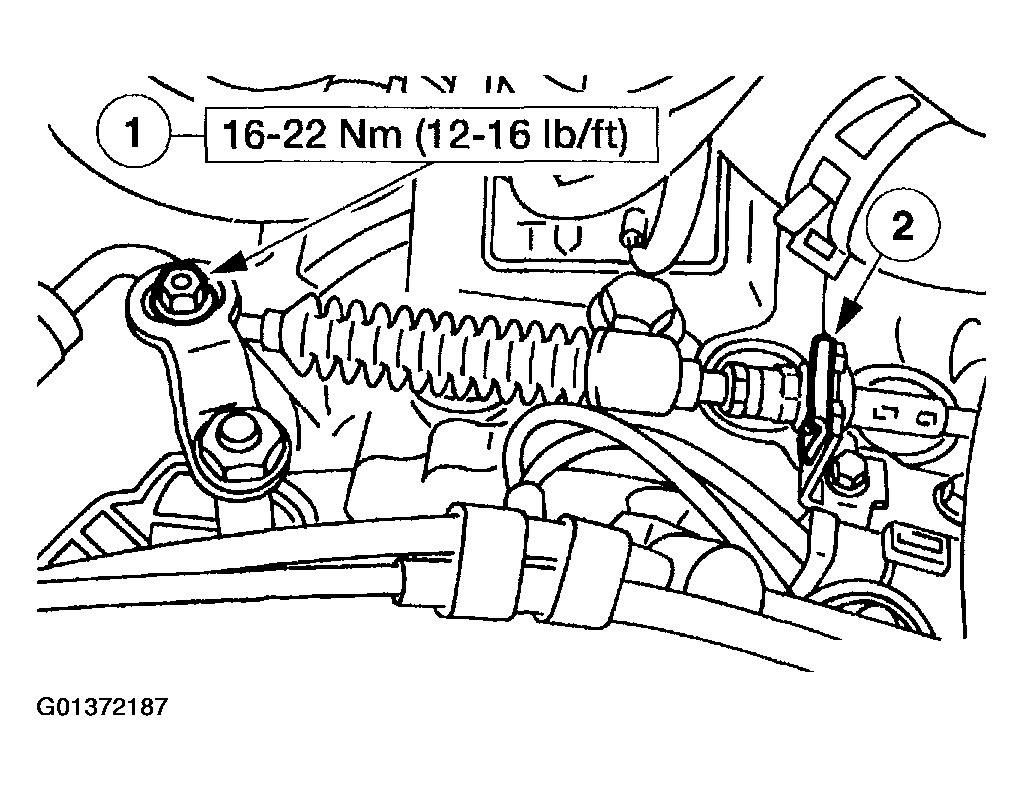

Install the shift cable and bracket.
1. Install the shift cable and bracket nut to the manual control shift lever.
2. Install the shift cable and bracket clip.
- Adjust the shift cable; refer to TRANSAXLE/TRANSMISSION COOLING EXTERNAL CONTROLS .
Fig 15: Installing Shift Cable And Bracket
Courtesy of FORD MOTOR CO.

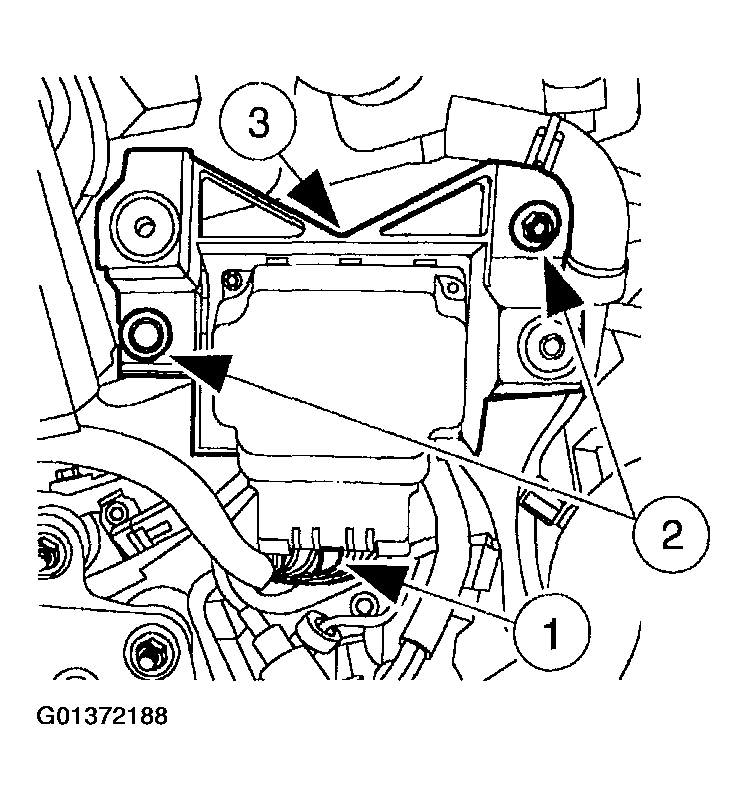

Install the computer control relay module (CCRM).
1. Install the CCRM and bracket as an assembly.
2. Install the CCRM bracket bolt and the CCRM bracket nut.
3. Connect the CCRM electrical connector.
Fig 16: Installing Computer Control Relay Module
Courtesy of FORD MOTOR CO.
Install the engine air cleaner; refer to AIR INDUCTION SYSTEMS .
Install the air cleaner inlet tube; refer to AIR INDUCTION SYSTEMS .
Install the battery tray; refer to BATTERY TRAY .
Add the specified amount of Motorcraft MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON to the proper level and check for leaks. With the engine at operating temperature, recheck the level and for leaks.
Road test the vehicle and check the shift points and shift quality.
