External Controls: Notes

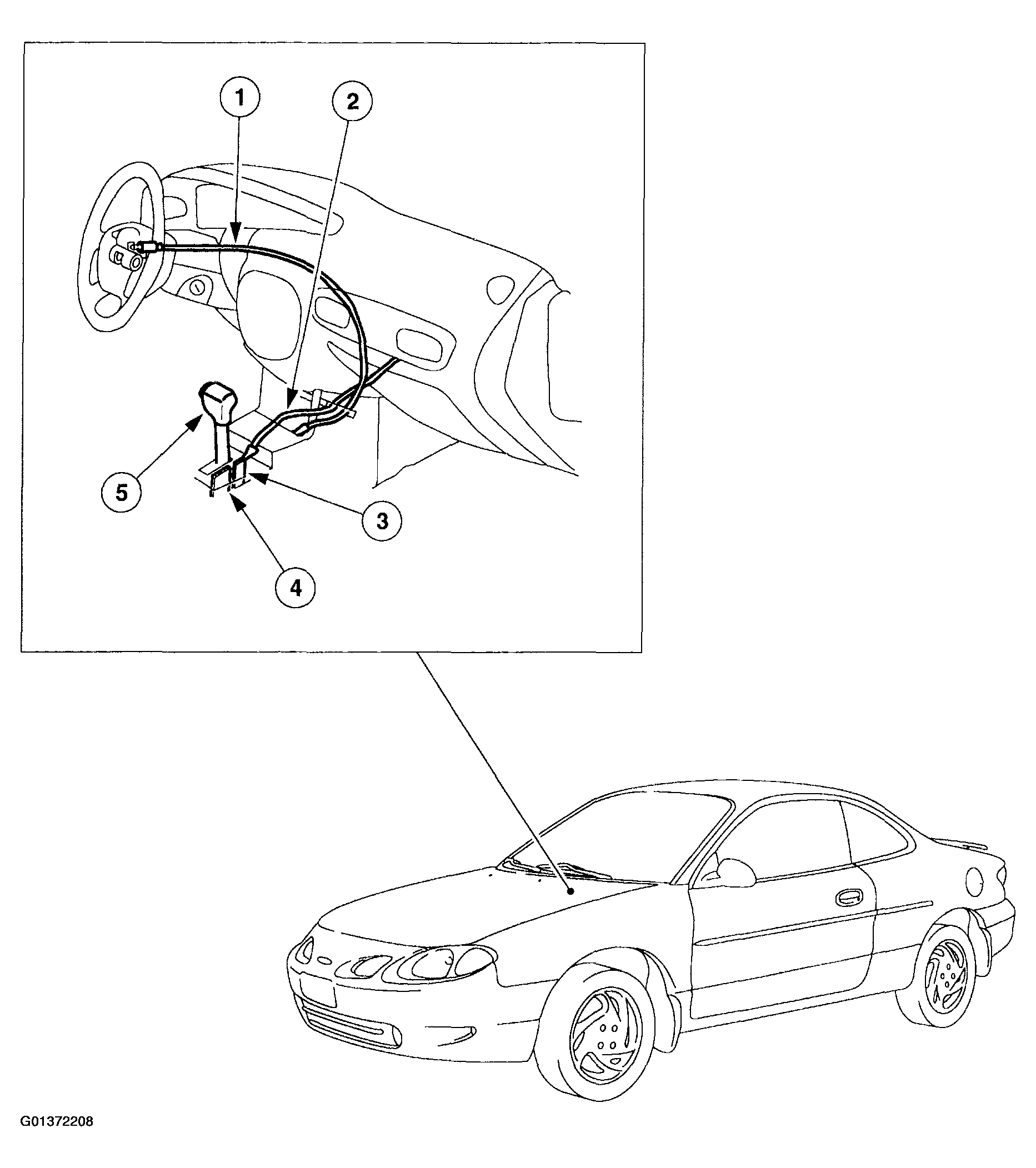

Fig 1: Identifying External Control Components

Courtesy of FORD MOTOR CO.

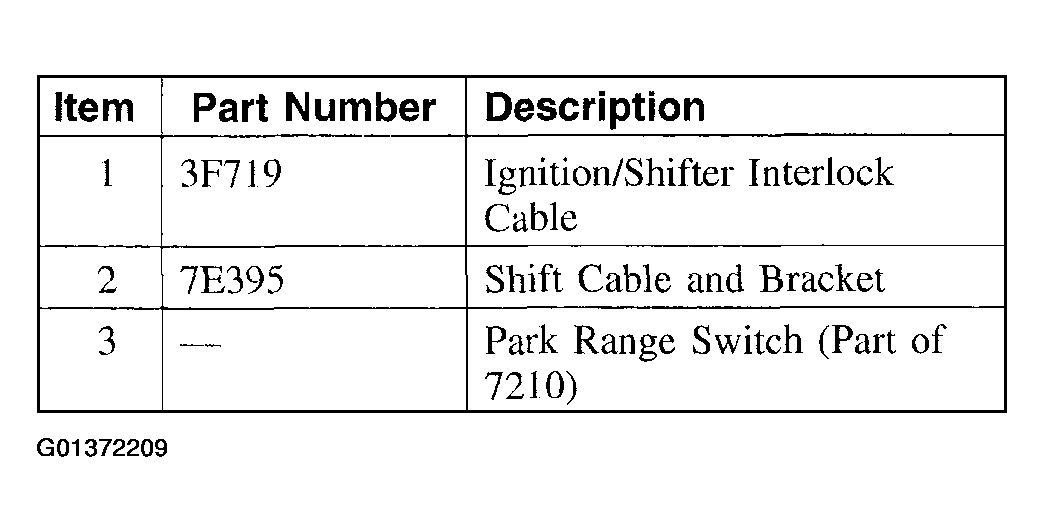

Fig 2: Identifying External Control Components (Items 1-3)

Courtesy of FORD MOTOR CO.

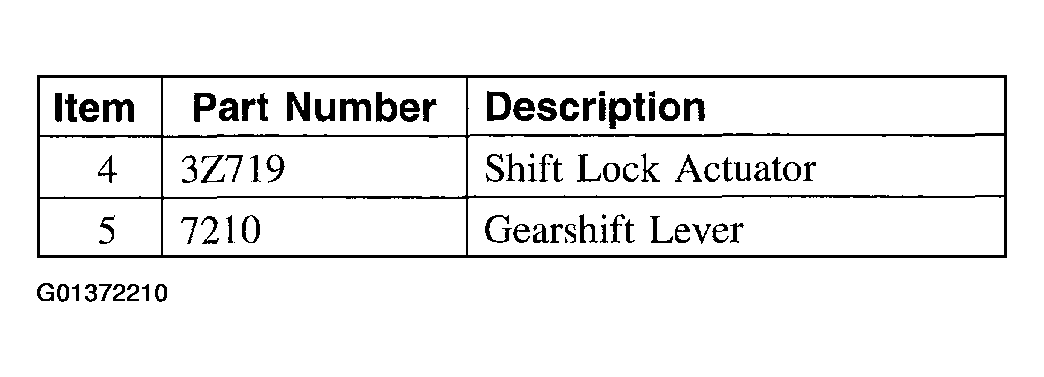

Fig 3: Identifying External Control Components (Items 4 & 5)

Courtesy of FORD MOTOR CO.

The gearshift lever (7210) controls the transaxle gear selection through the shift cable. The cable detent and gearshift lever position locking is controlled by the gearshift lever knob (7213).
