Brake Shift Interlock Actuator: Removal

  1. Remove the transmission control selector dial bezel; refer to BEZEL - TRANSMISSION CONTROL SELECTOR DIAL .
  2. Disconnect the brake shift interlock actuator electrical connector.

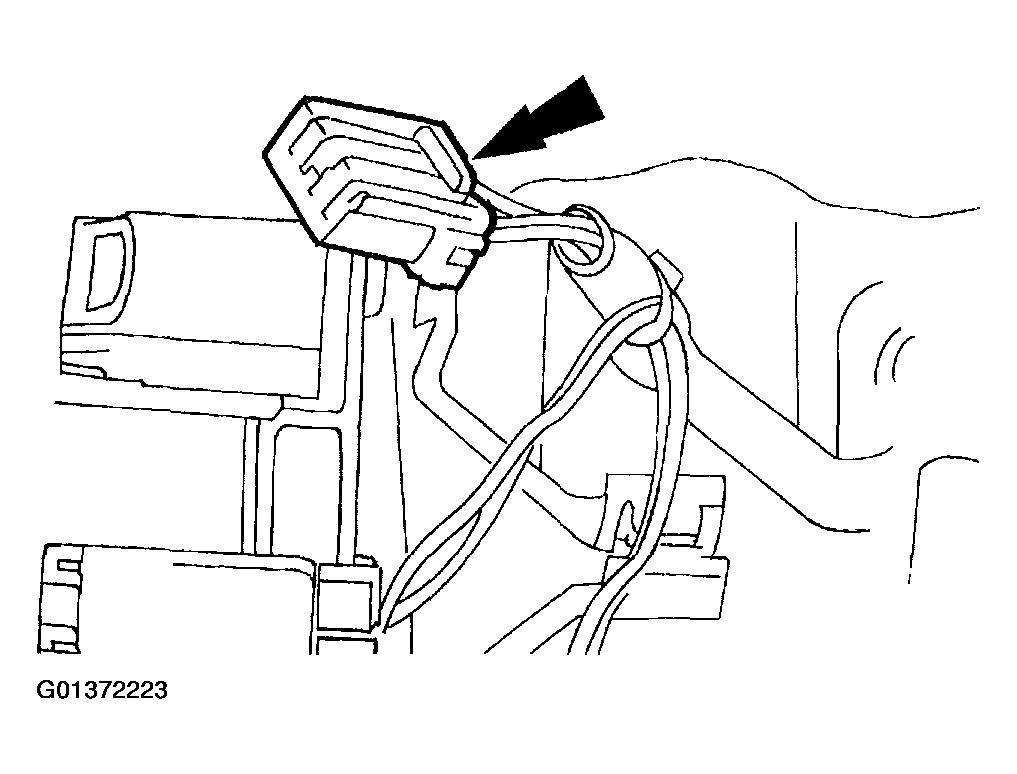

    Fig 1: Disconnecting Brake Shift Interlock Actuator Electrical Connector
    G01372223Courtesy of FORD MOTOR CO.
  3. Disconnect the park range switch electrical connector.

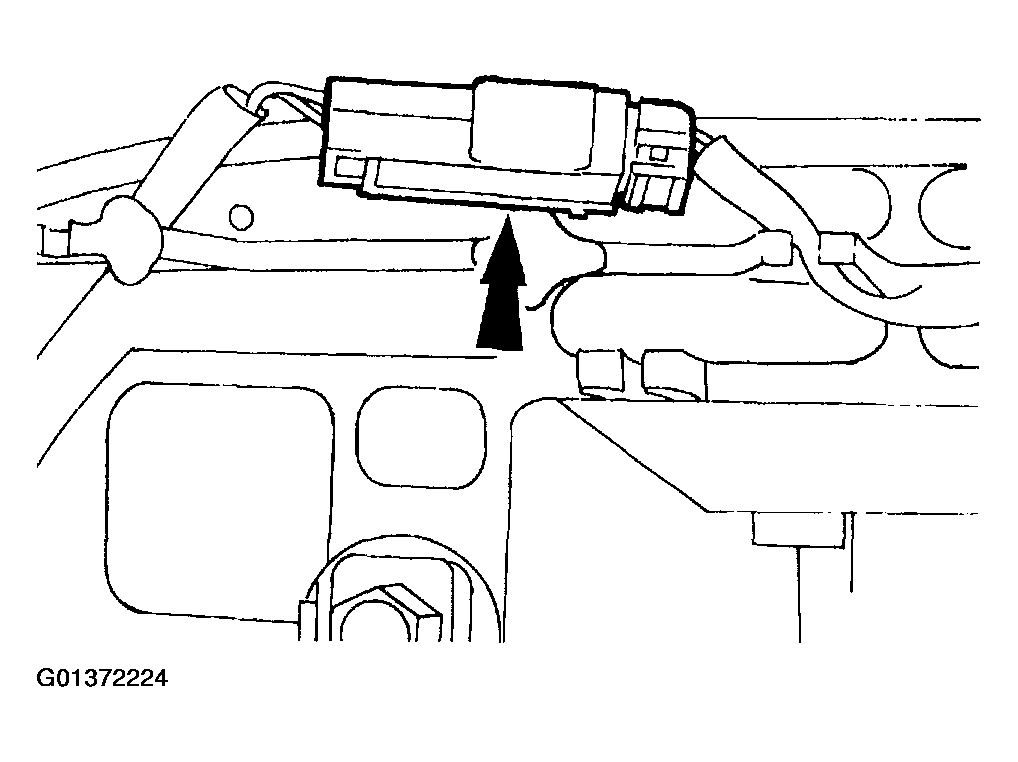

    Fig 2: Disconnecting Park Range Switch Electrical Connector
    G01372224Courtesy of FORD MOTOR CO.
  4. Remove the screws and the brake shift interlock actuator.
    Fig 3: Removing Brake Shift Interlock Actuator
    G01372225Courtesy of FORD MOTOR CO.
