Catalytic Converter: Installation

NOTE: Inspect the three way catalytic converter for cracked joints, broken welds and corrosive damage that could result in exhaust system leaks. If necessary, replace the three way catalytic converter.

NOTE: Use a new exhaust converter inlet gasket between the three way catalyst and exhaust manifold.

NOTE: Use a new exhaust converter outlet gasket between the three way catalyst and the muffler inlet pipe.

To install, reverse the removal procedure.

Fig 1: Installing Three Way Catalyst

Courtesy of FORD MOTOR CO.

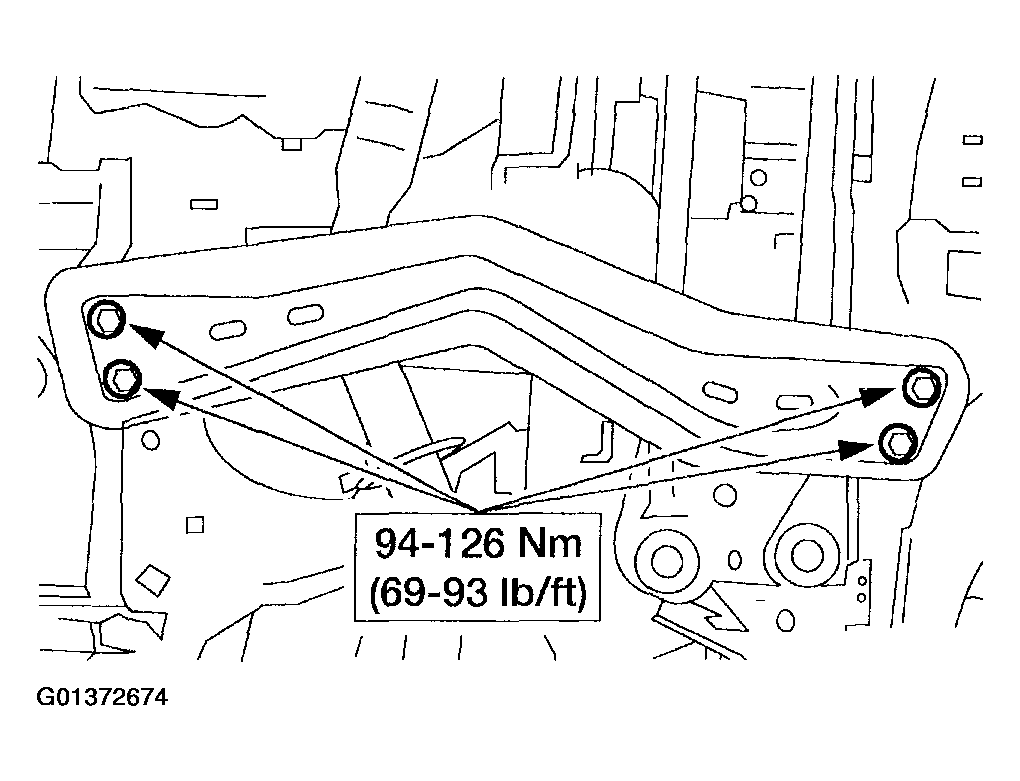

Fig 2: Installing Crossmember

Courtesy of FORD MOTOR CO.

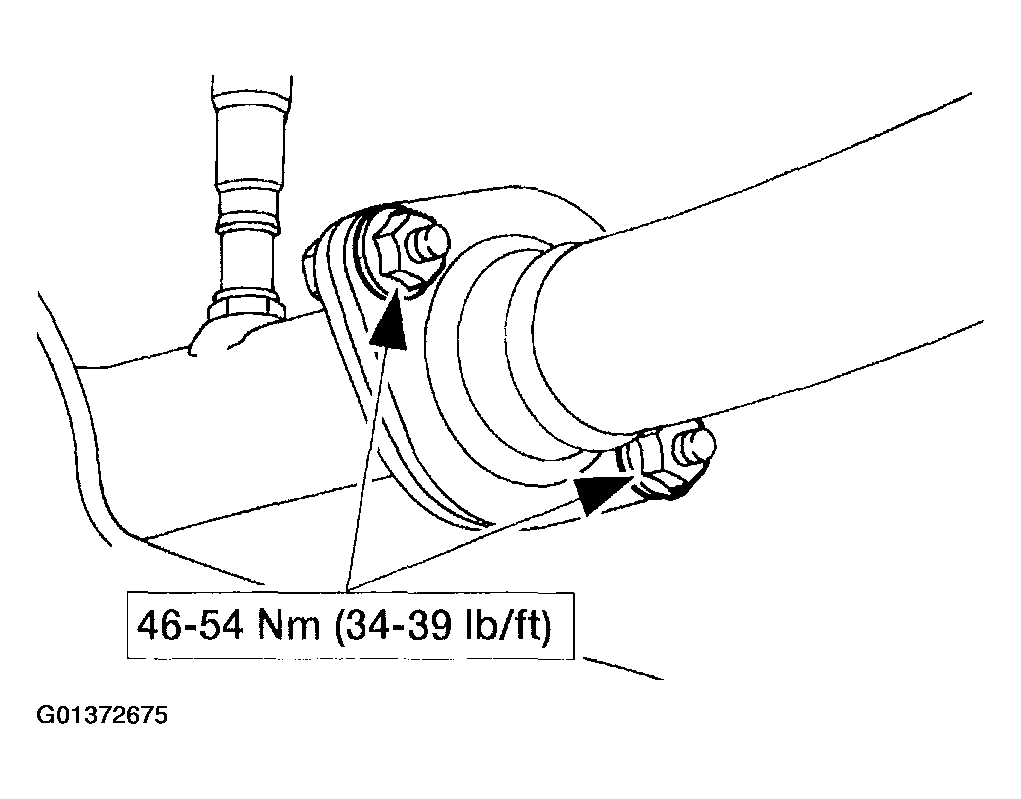

Fig 3: Connecting Converter From Muffler Inlet Pipe

Courtesy of FORD MOTOR CO.

Fig 4: Connecting Converter With Exhaust Manifold

Courtesy of FORD MOTOR CO.
