Removal And Installation: Cable: Installation

  1. To install, reverse the removal procedure.

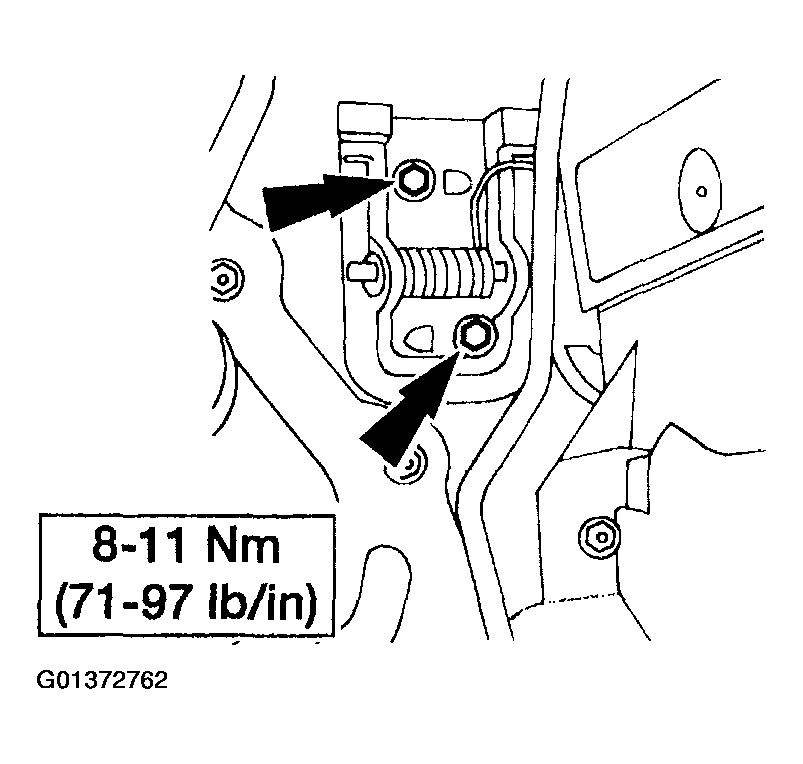

    Fig 1: Installing Accelerator Pedal And Shaft Bolt
    G01372762Courtesy of FORD MOTOR CO.
  2. Adjust the accelerator cable; refer to CABLE ADJUSTMENT .
