Gearshift Stabilizer Bar: Removal

Remove the gearshift lever (7210); refer to SHIFT LEVER .
Remove the console floor insulator (11094).

Fig 1: Removing Console Floor Insulator
Courtesy of FORD MOTOR CO.
Remove the stabilizer support nuts.

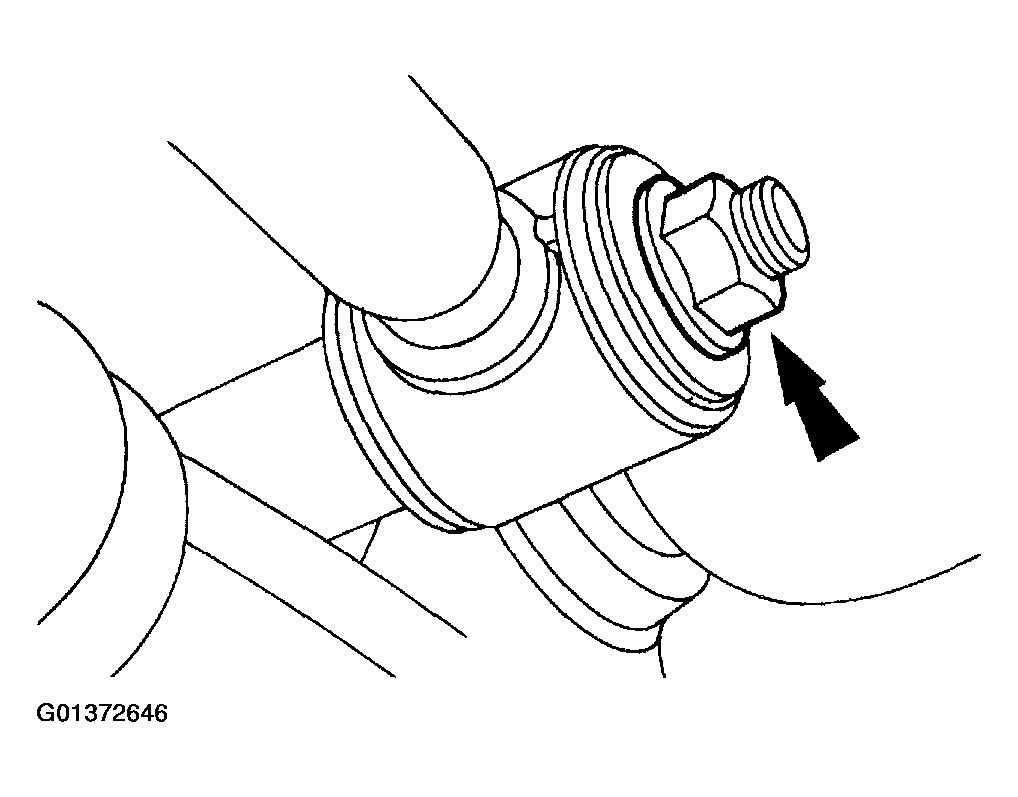

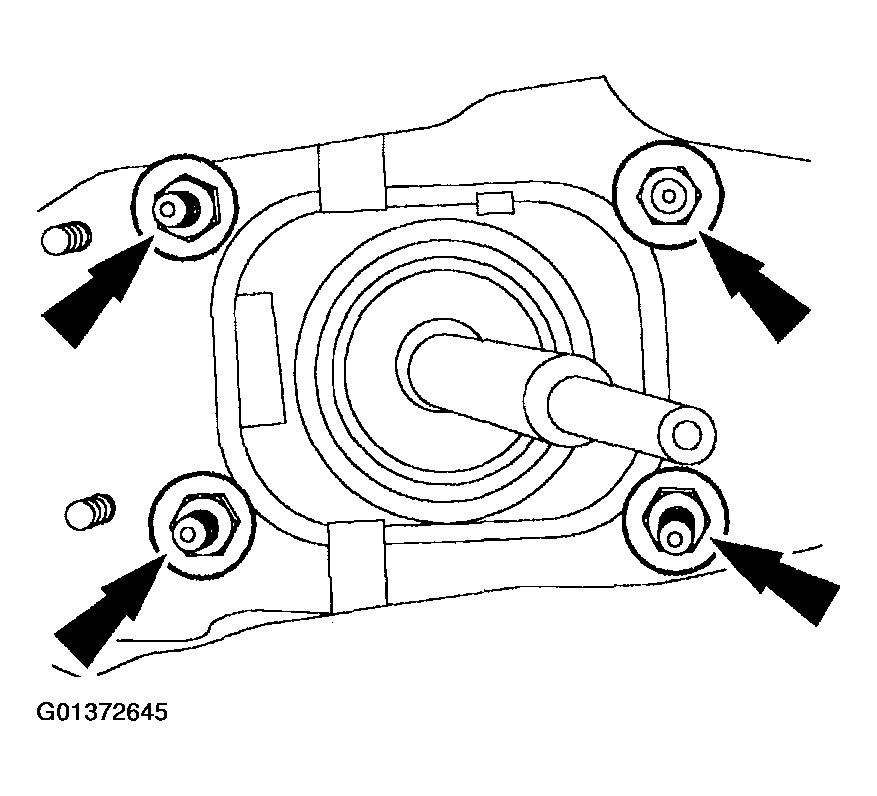

Fig 2: Removing Stabilizer Support Nuts
Courtesy of FORD MOTOR CO.
Remove the stabilizer bar and support nut.

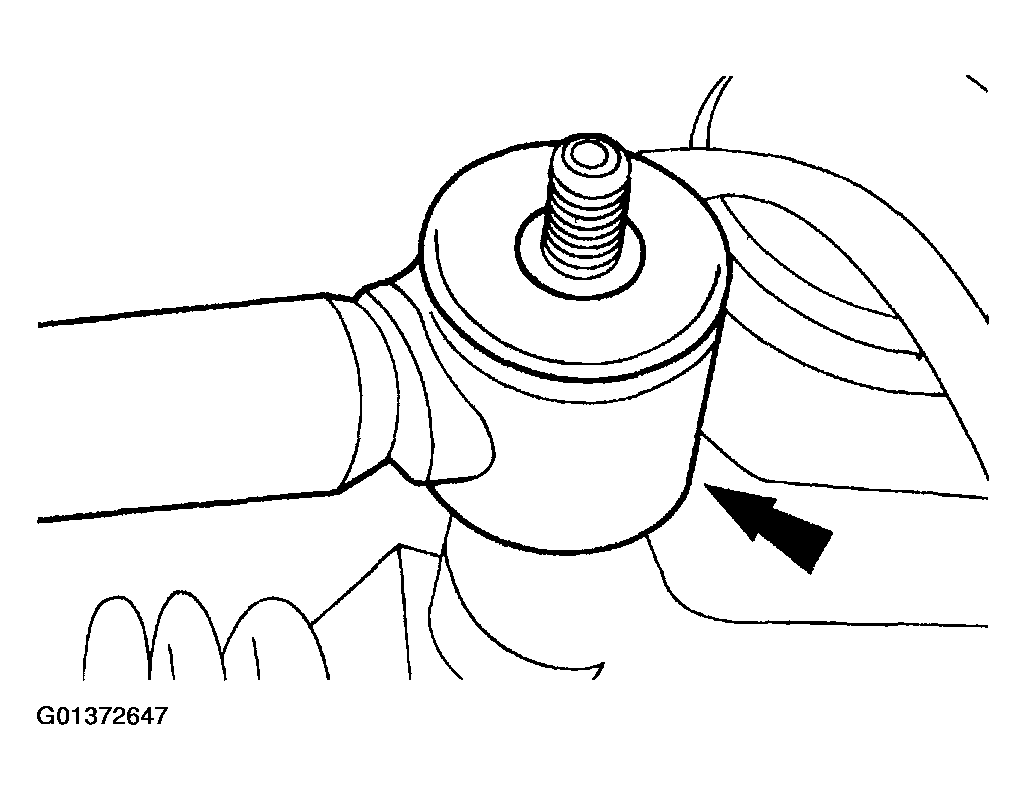

Fig 3: Removing Stabilizer Bar And Support Nut
Courtesy of FORD MOTOR CO.
Remove the stabilizer bar and support from the transaxle and remove from the vehicle.

Fig 4: Removing Stabilizer Bar And Support From Transaxle
Courtesy of FORD MOTOR CO.
