Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Auxiliary Blower Relay Module | Left rear of vehicle, behind trim panel. |

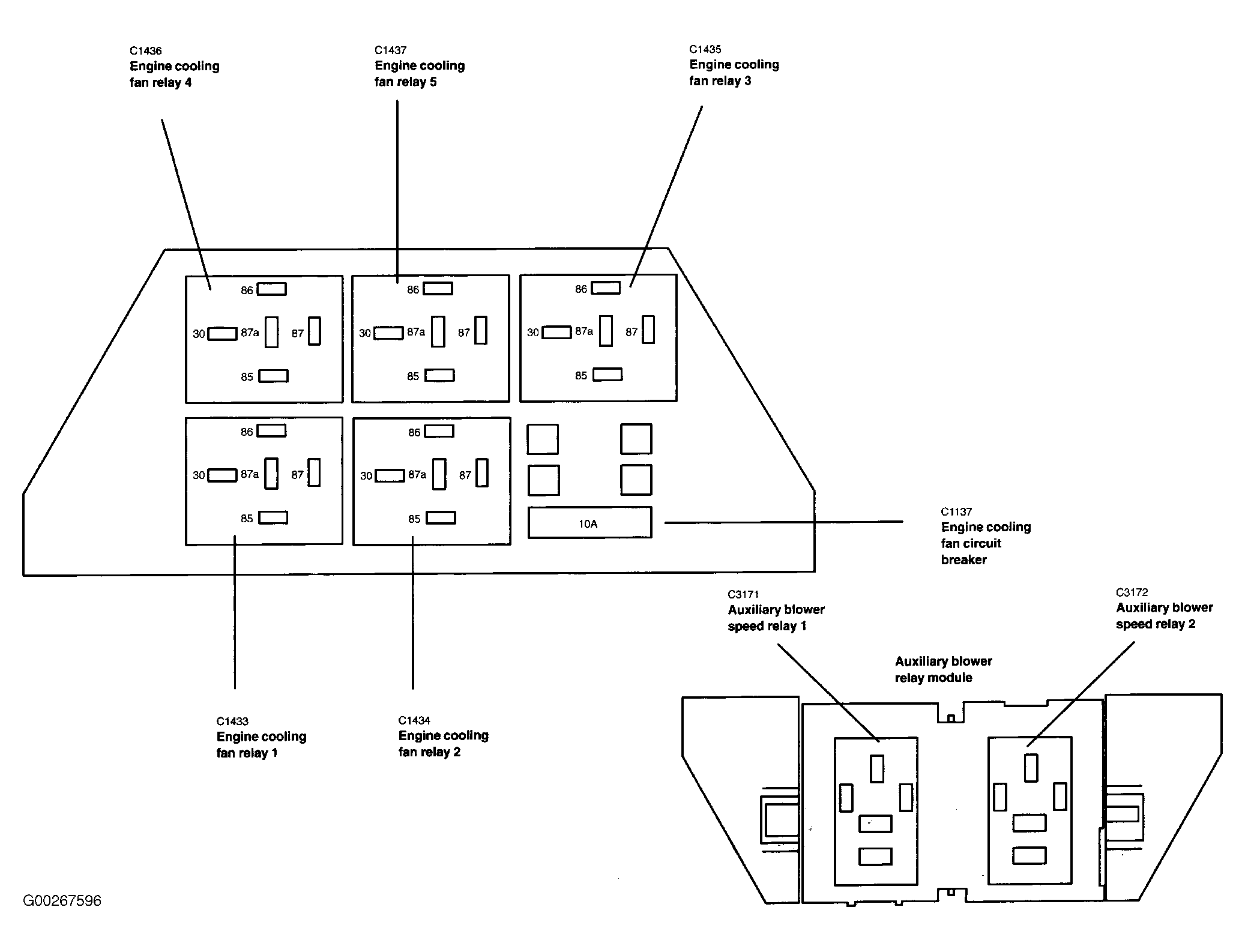

| Auxiliary Relay Box 1 | Right front of engine compartment. See Figure. |

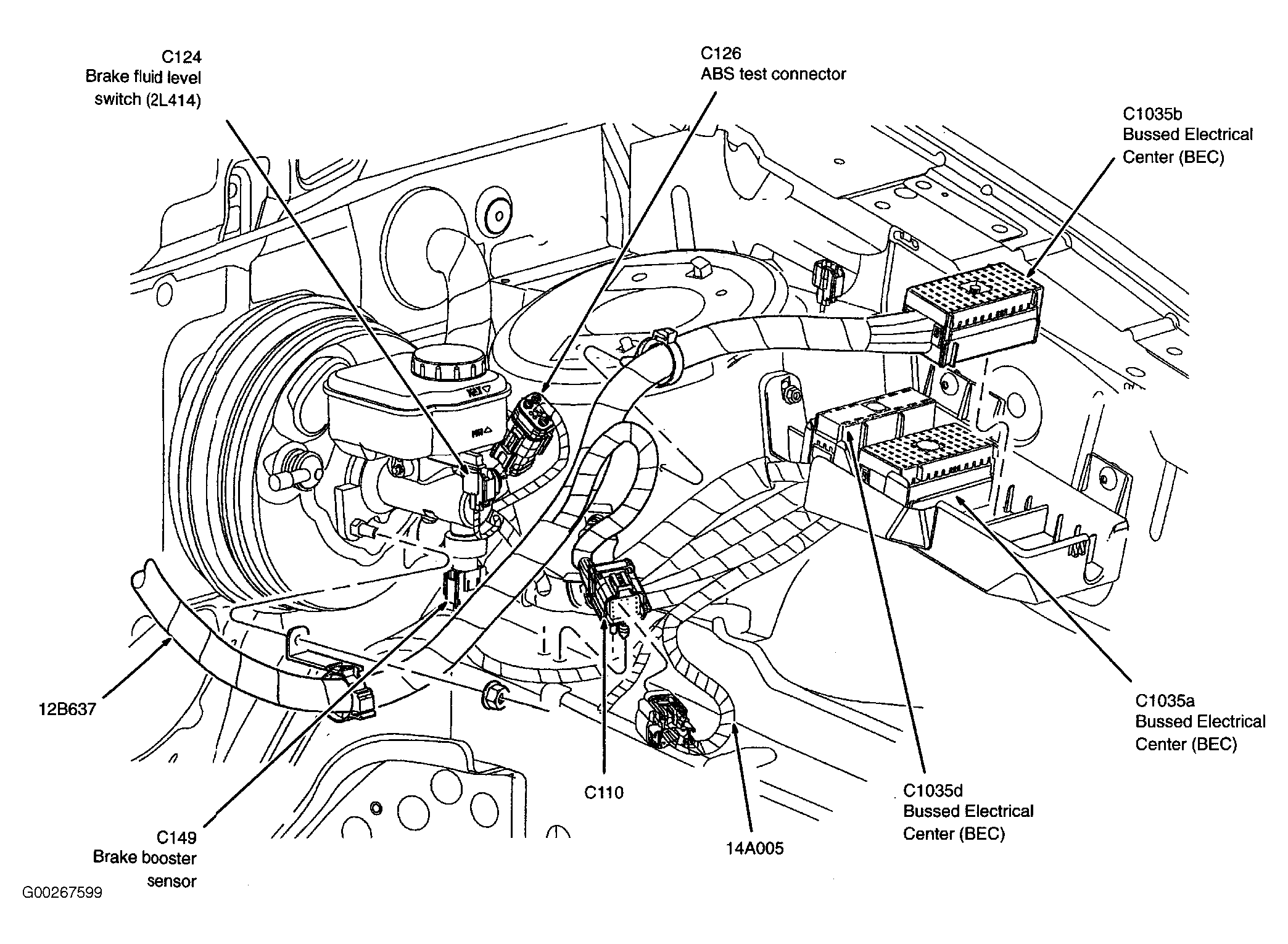

| Bussed Electrical Center (BEC) | At left side of engine compartment. See Figure. |
| Engine Cooling Fan Circuit Breaker | In auxiliary relay box 1. See Figure. |
| Fusible Link A | At left side of engine compartment. |
| Smart Junction Box (SJB) | Behind left side of dash. See Figure. |
