Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

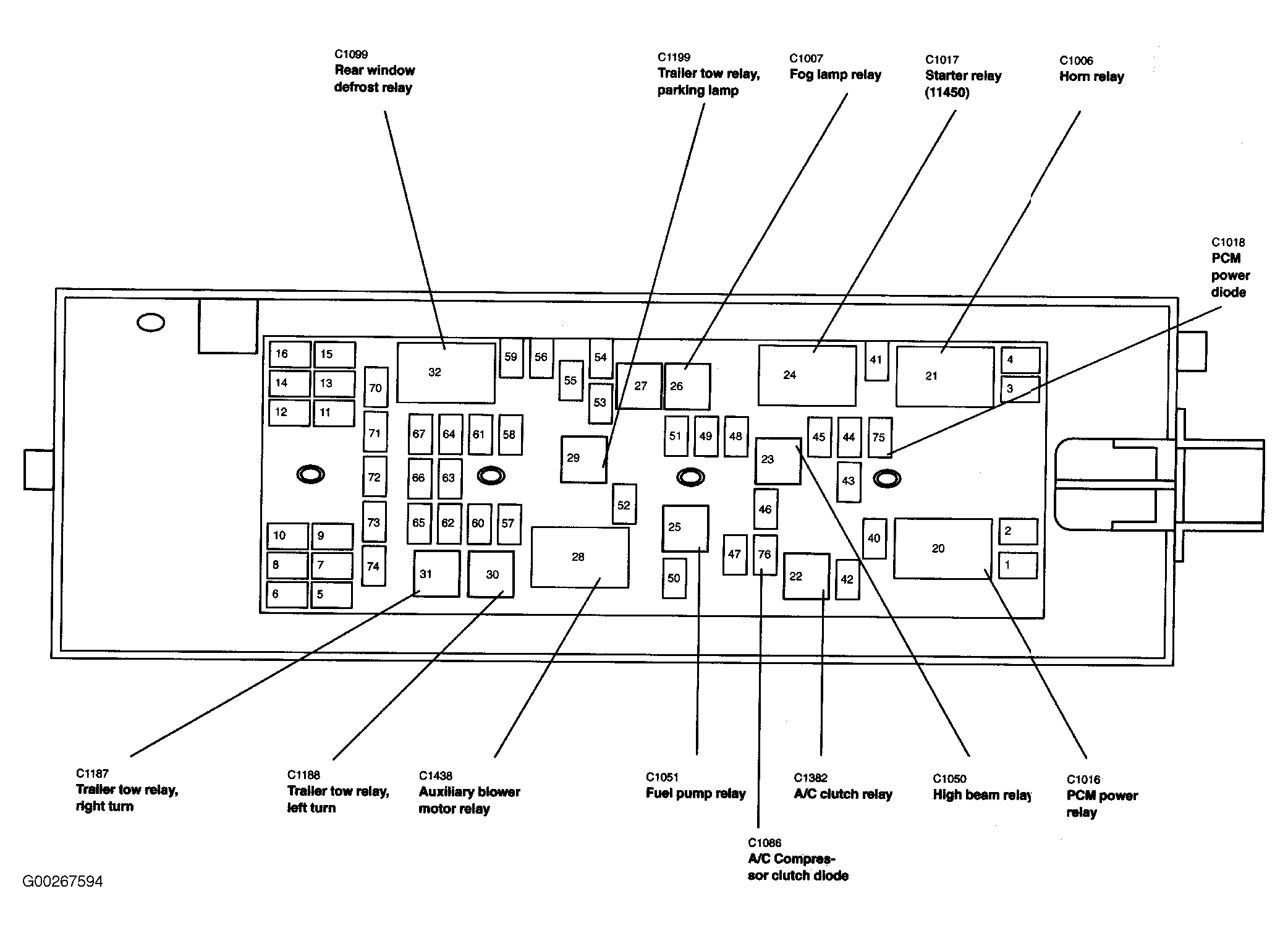

Fig 1: Bussed Electrical Center (BEC)

G00267594

Courtesy of FORD MOTOR CO.

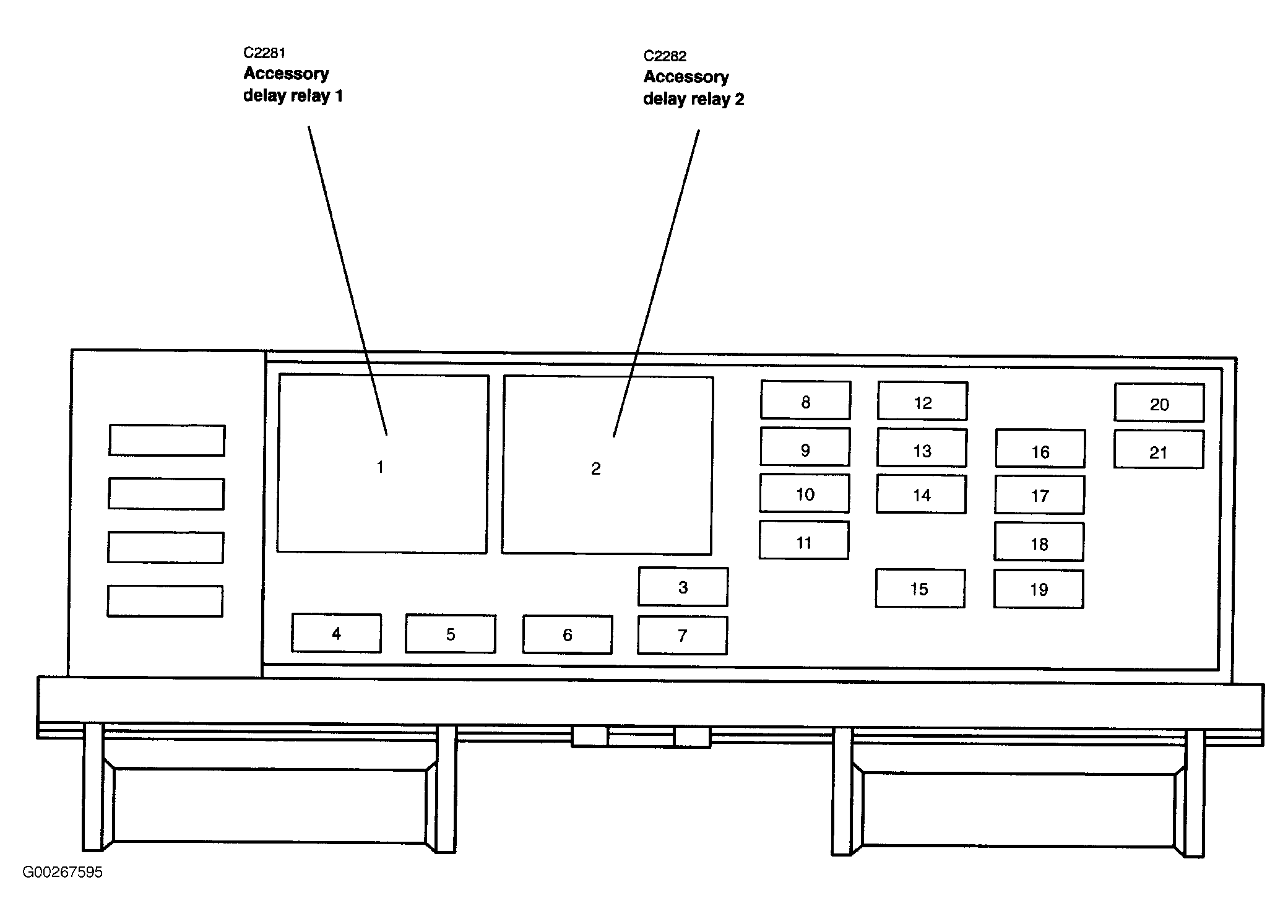

Fig 2: Smart Junction Box (SJB)

G00267595

Courtesy of FORD MOTOR CO.

Fig 3: Auxiliary Relay Box 1

G00267596

Courtesy of FORD MOTOR CO.

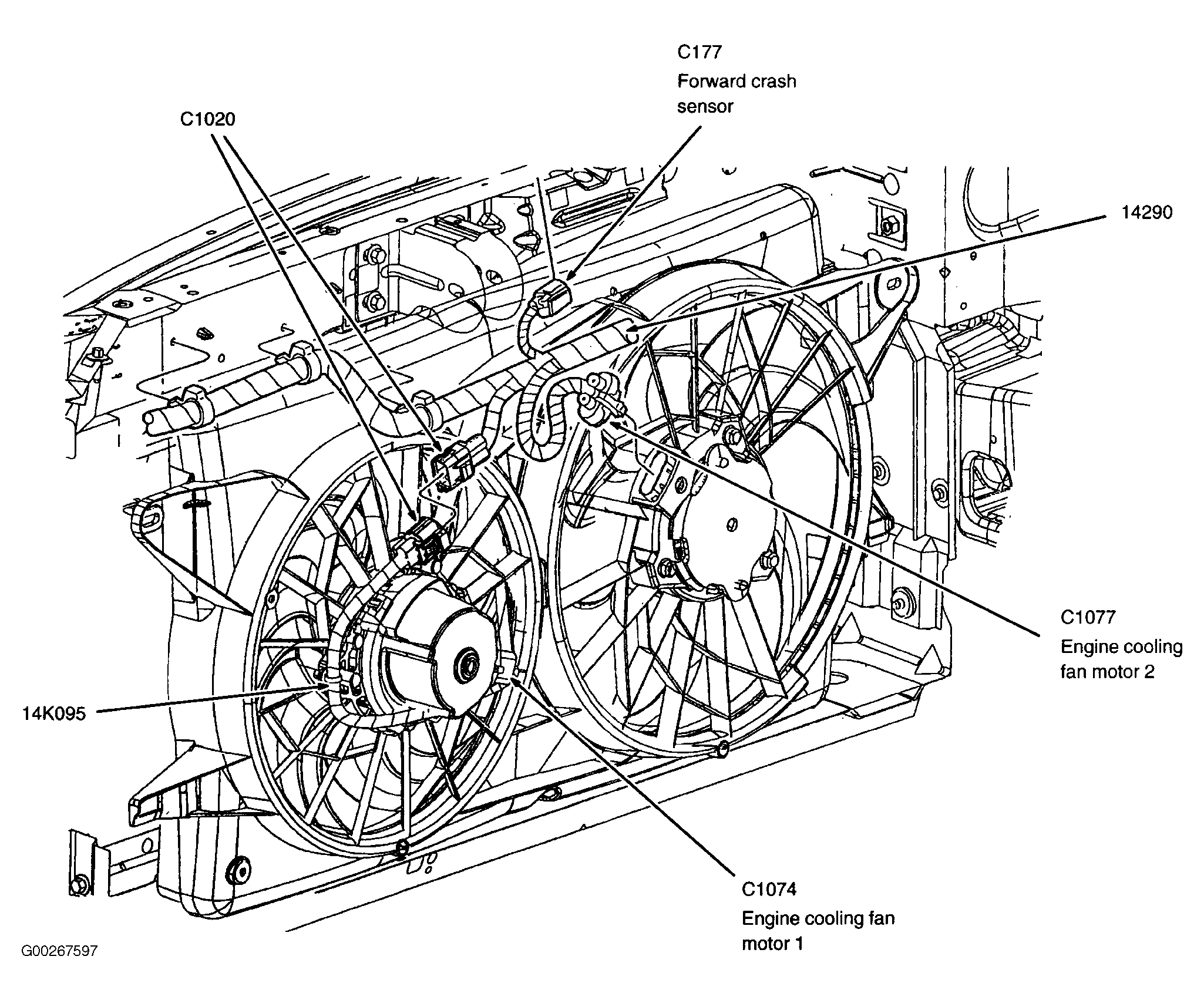

Fig 4: Dual Cooling Fans

G00267597

Courtesy of FORD MOTOR CO.

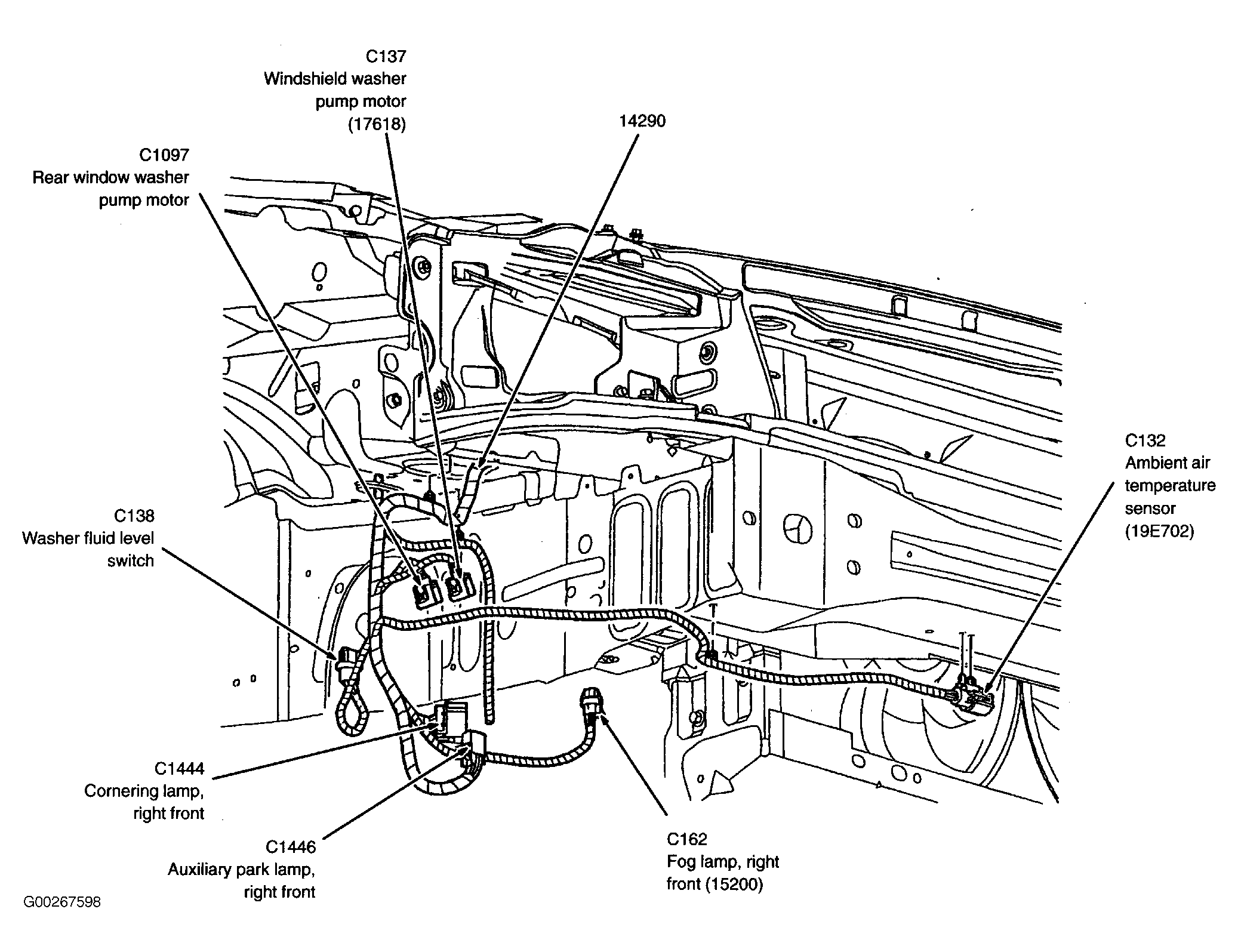

Fig 5: Right Front Of Engine Compartment

G00267598

Courtesy of FORD MOTOR CO.

Fig 6: Left Rear Of Engine Compartment

G00267599

Courtesy of FORD MOTOR CO.

Fig 7: Engine Compartment

G00267600

Courtesy of FORD MOTOR CO.

Fig 8: Front Left Side Of Engine

G00267601

Courtesy of FORD MOTOR CO.

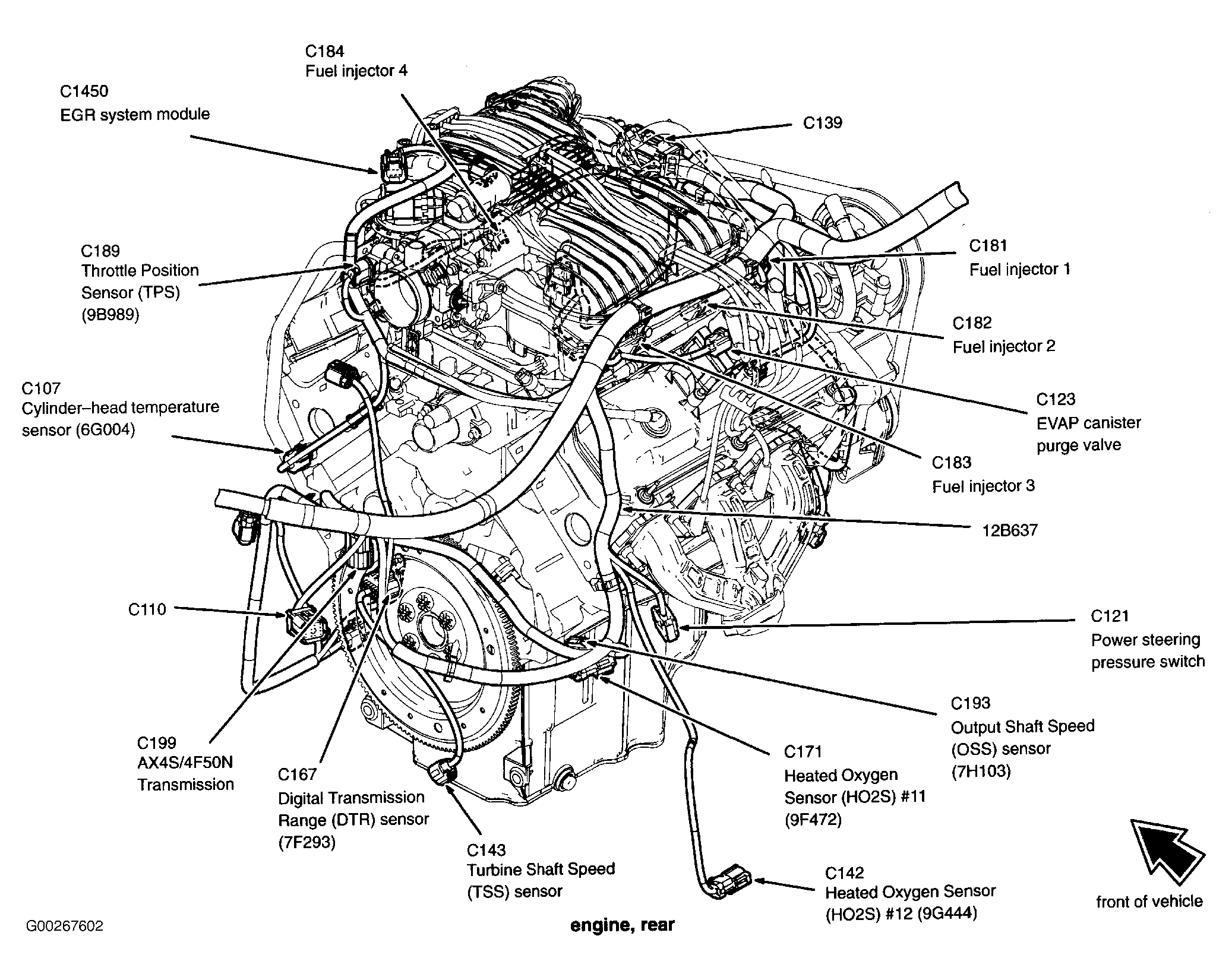

Fig 9: Right Rear Of Engine

G00267602

Courtesy of FORD MOTOR CO.

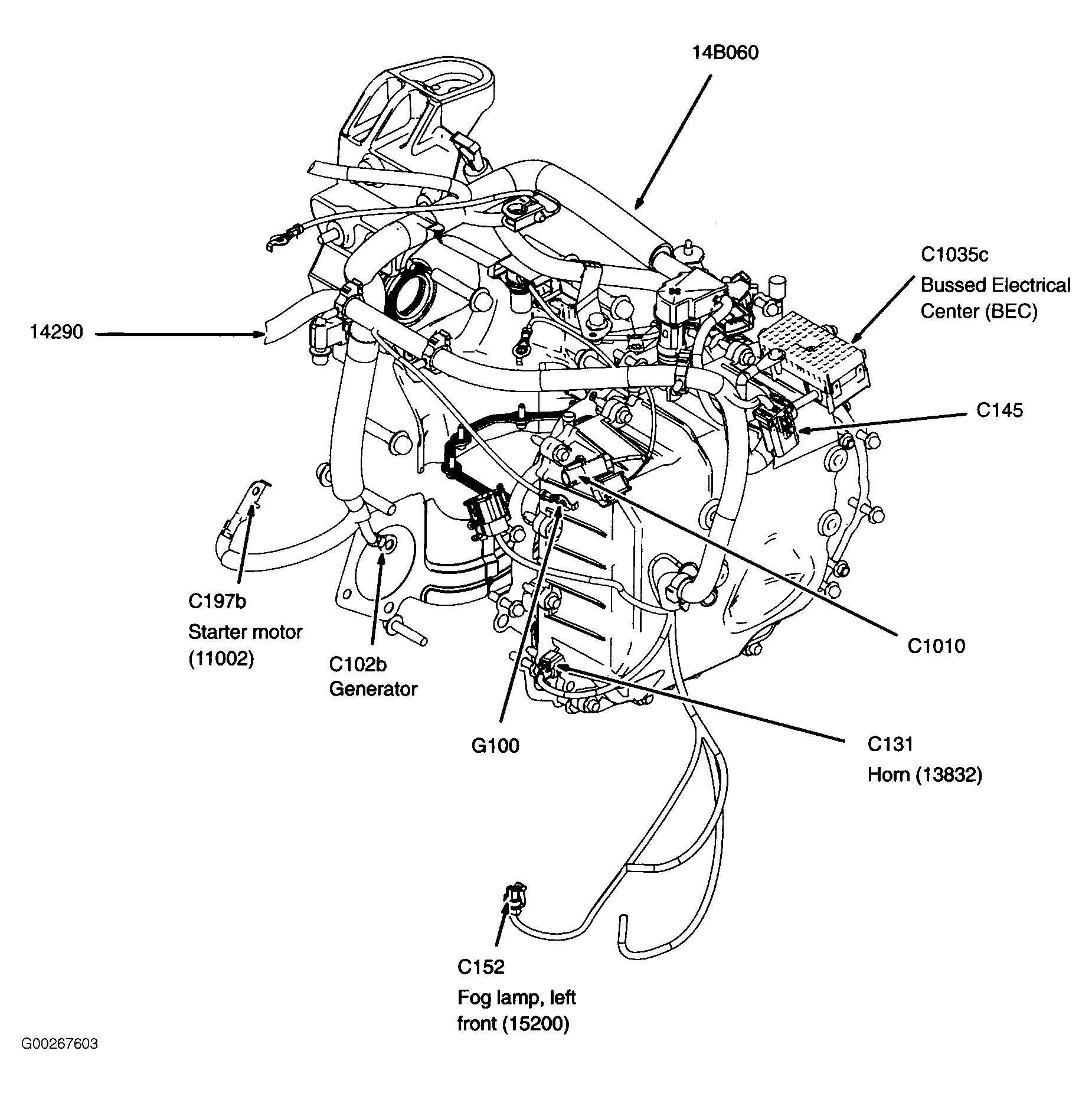

Fig 10: Transmission

G00267603

Courtesy of FORD MOTOR CO.

Fig 11: Rear Of Dash

G00267604

Courtesy of FORD MOTOR CO.

Fig 12: Rear Of Dash

G00267605

Courtesy of FORD MOTOR CO.

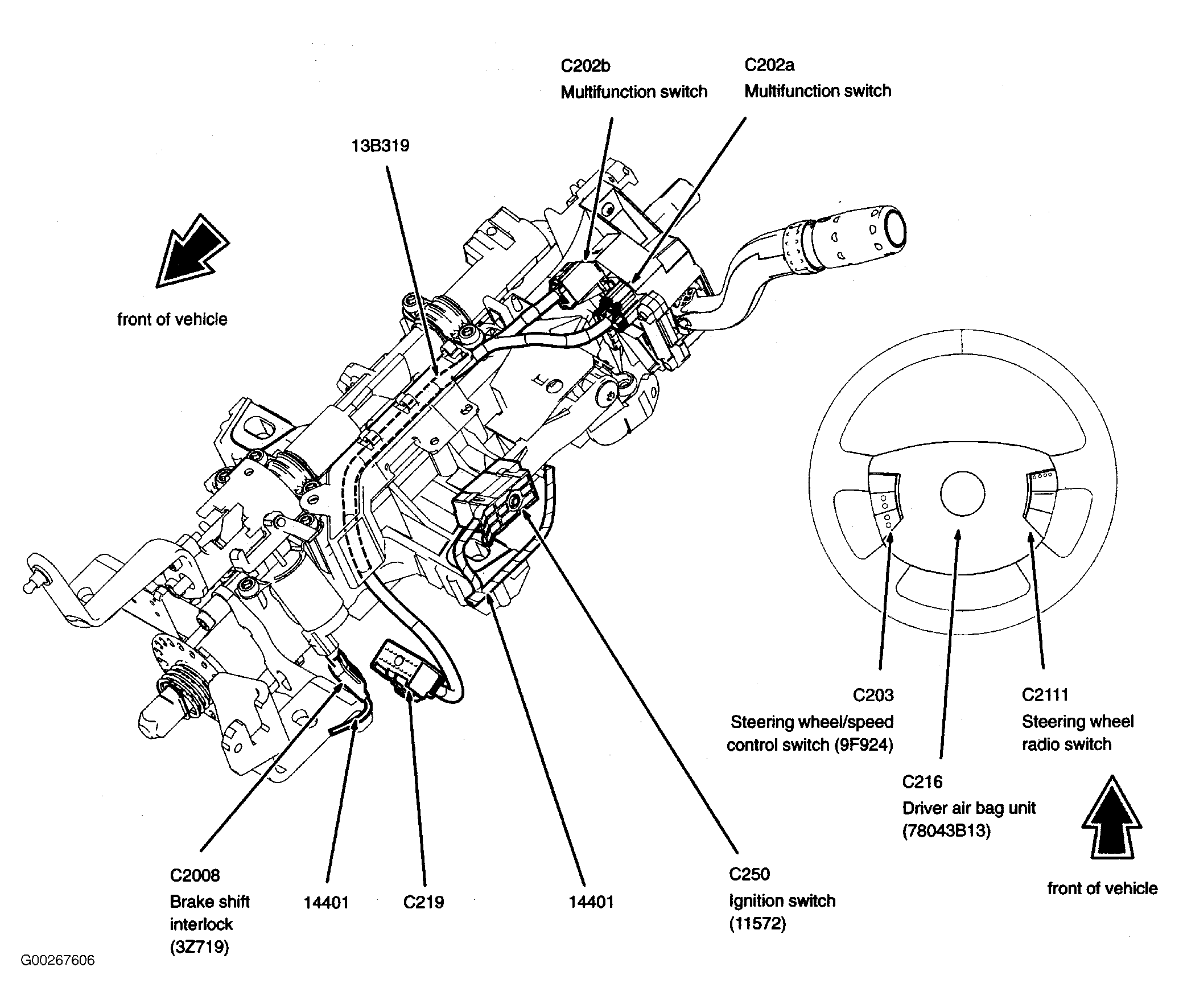

Fig 13: Steering Column

G00267606

Courtesy of FORD MOTOR CO.

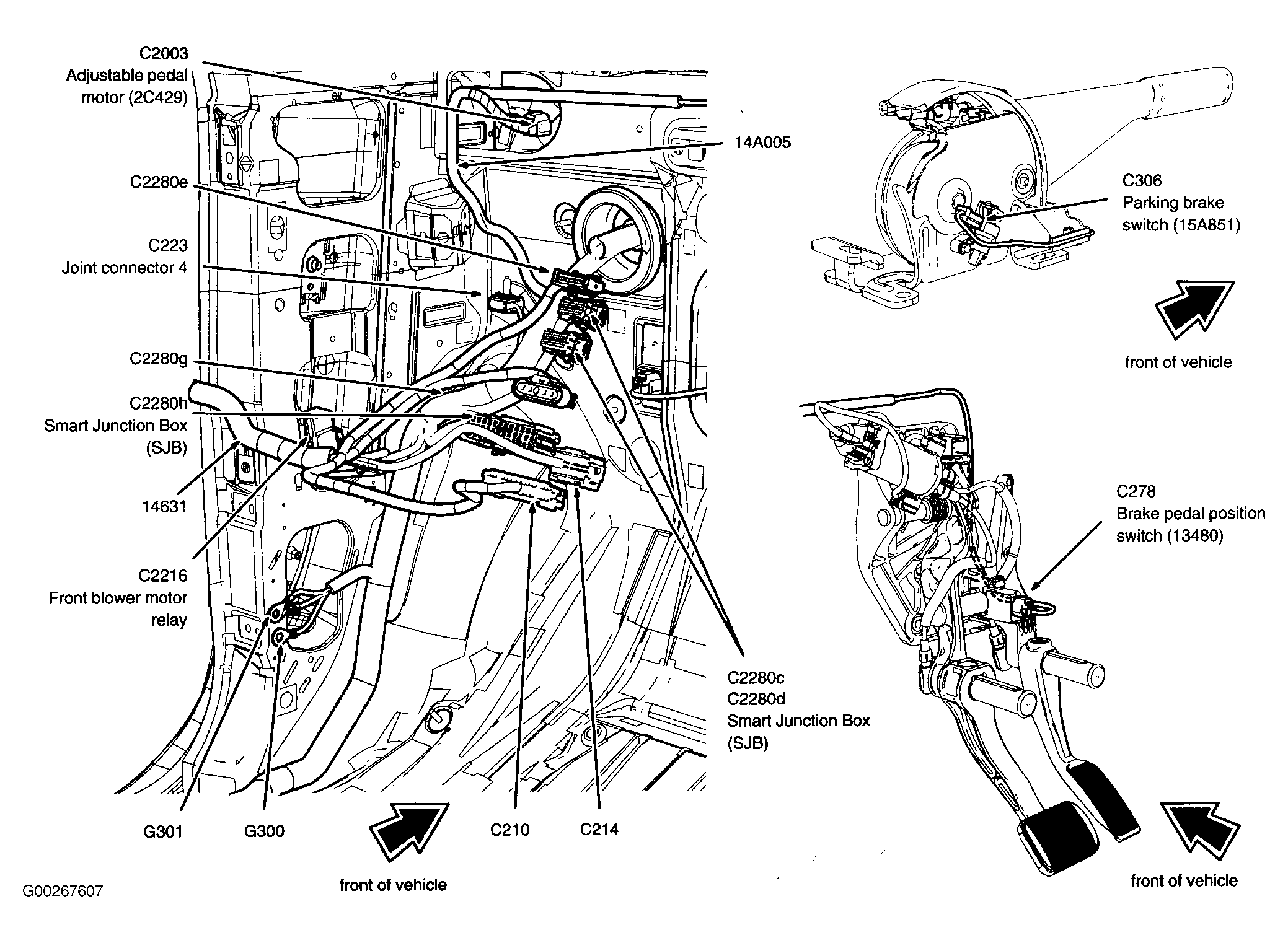

Fig 14: Left Kick Panel

G00267607

Courtesy of FORD MOTOR CO.

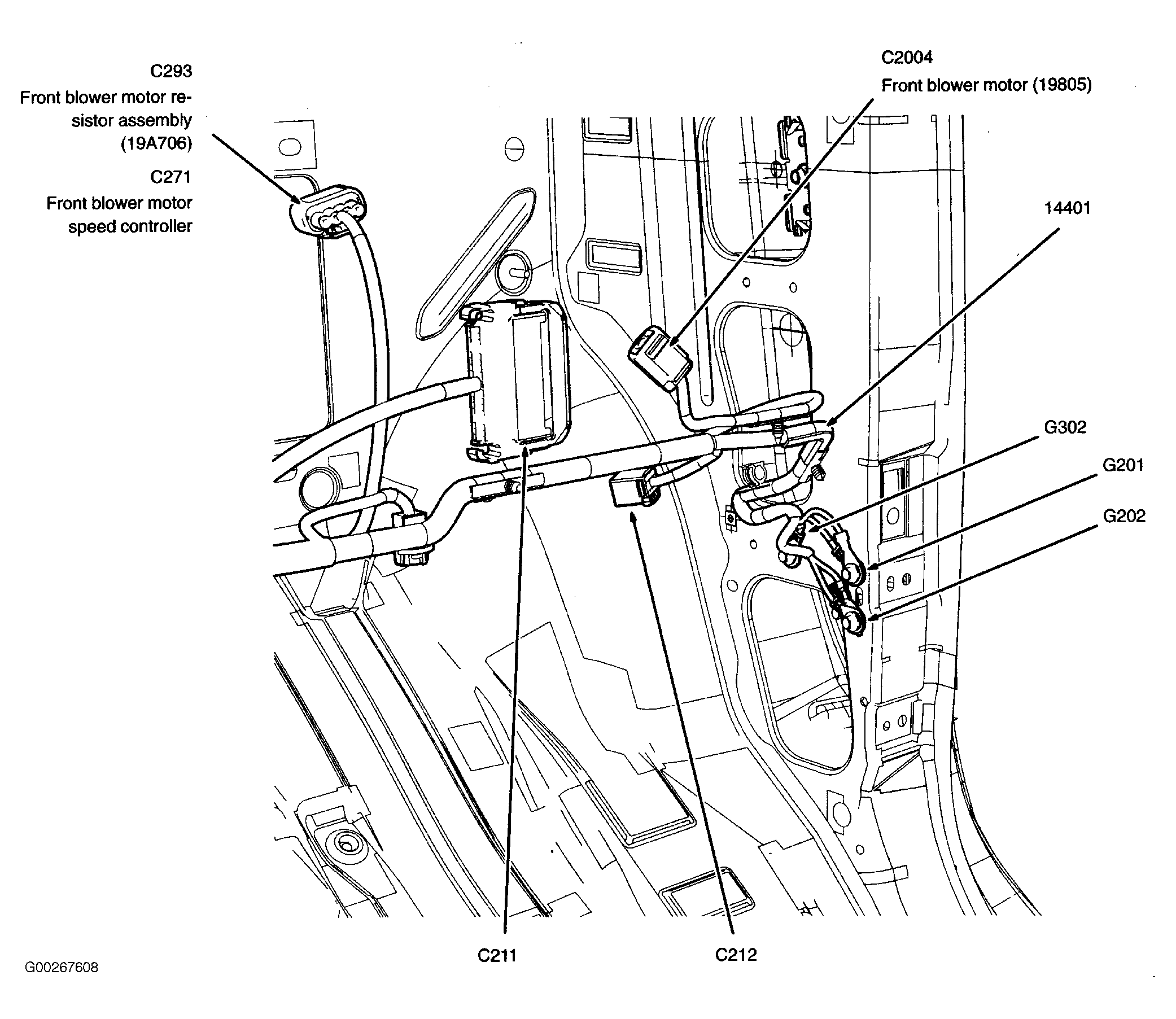

Fig 15: Right Kick Panel

G00267608

Courtesy of FORD MOTOR CO.

Fig 16: Vehicle Overview

G00267609

Courtesy of FORD MOTOR CO.

Fig 17: Vehicle Overview

G00267610

Courtesy of FORD MOTOR CO.

Fig 18: Vehicle Overview

G00267611

Courtesy of FORD MOTOR CO.

Fig 19: Driver Seat

G00267612

Courtesy of FORD MOTOR CO.

Fig 20: Passenger Seat

G00267613

Courtesy of FORD MOTOR CO.

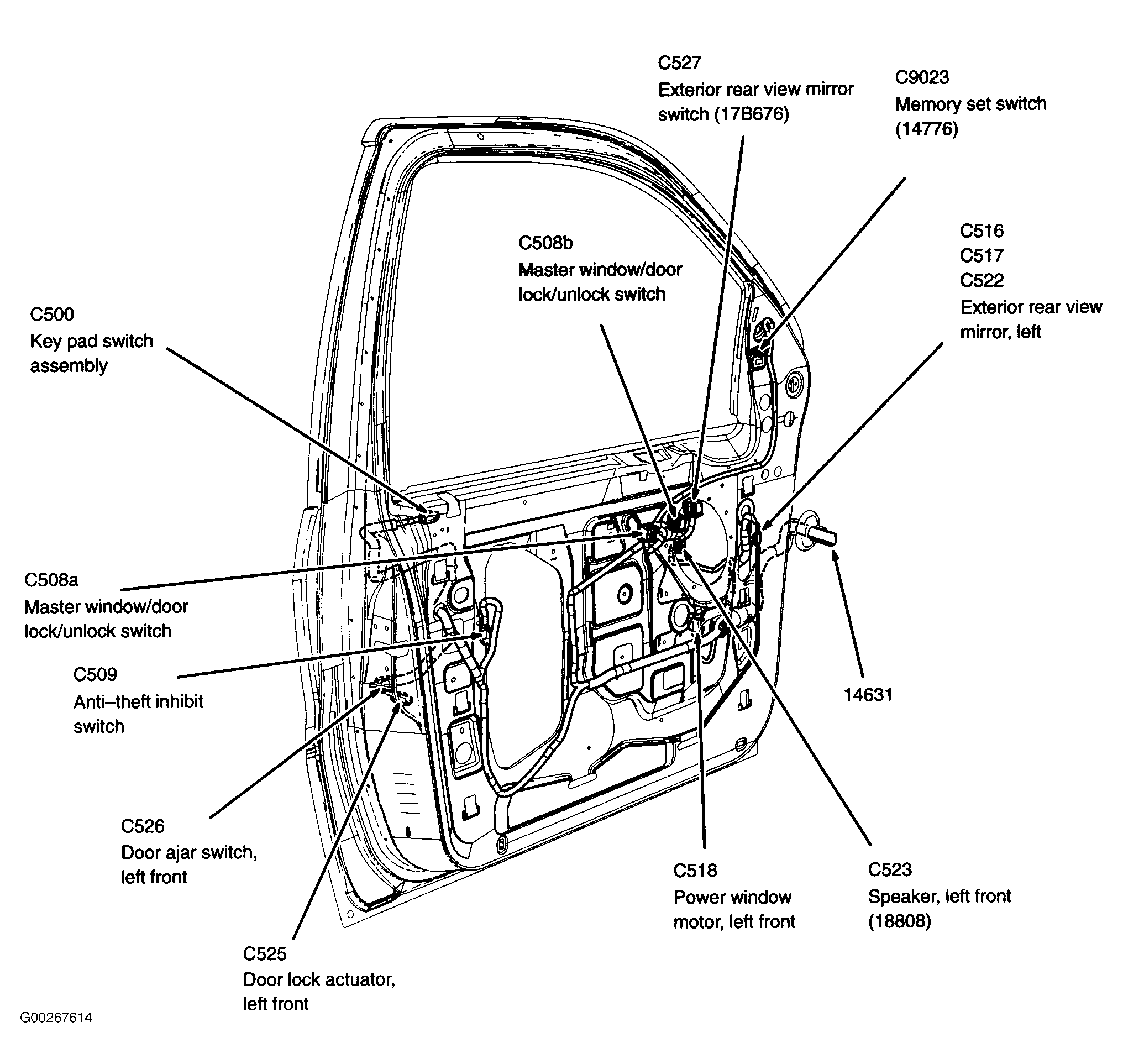

Fig 21: Left Front Door

G00267614

Courtesy of FORD MOTOR CO.

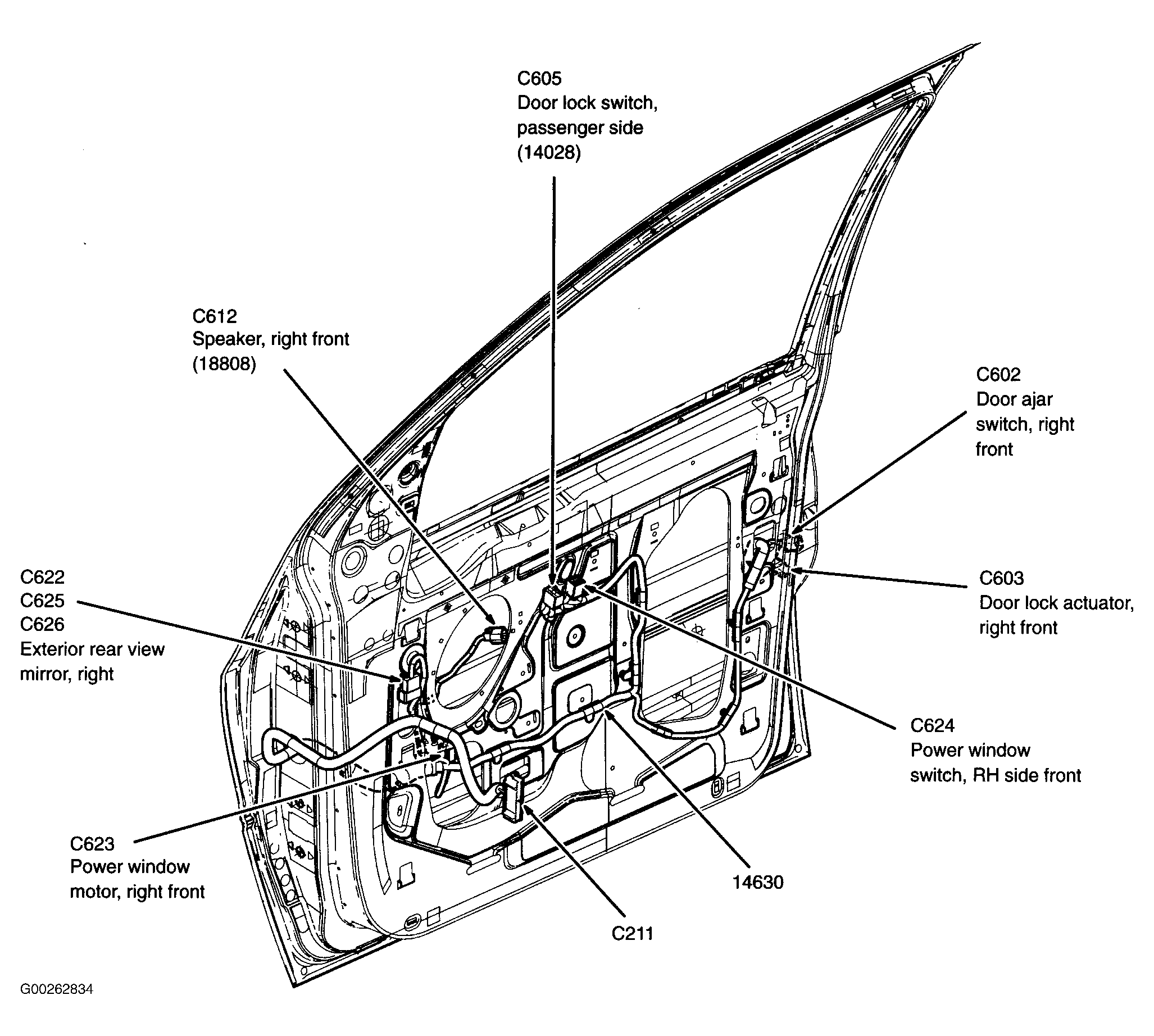

Fig 22: Right Front Door

G00262834

Courtesy of FORD MOTOR CO.

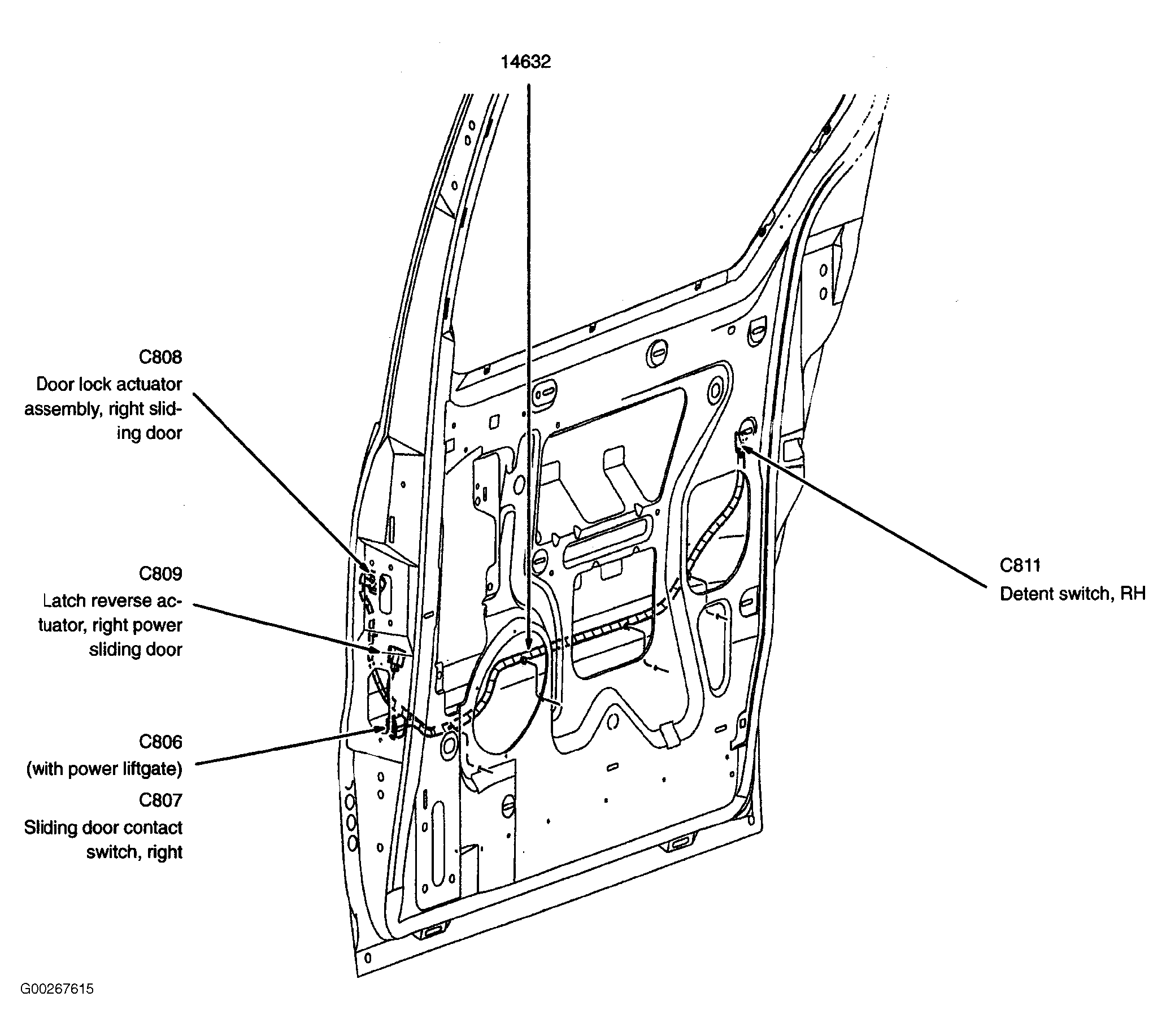

Fig 23: Right Rear Door

G00267615

Courtesy of FORD MOTOR CO.

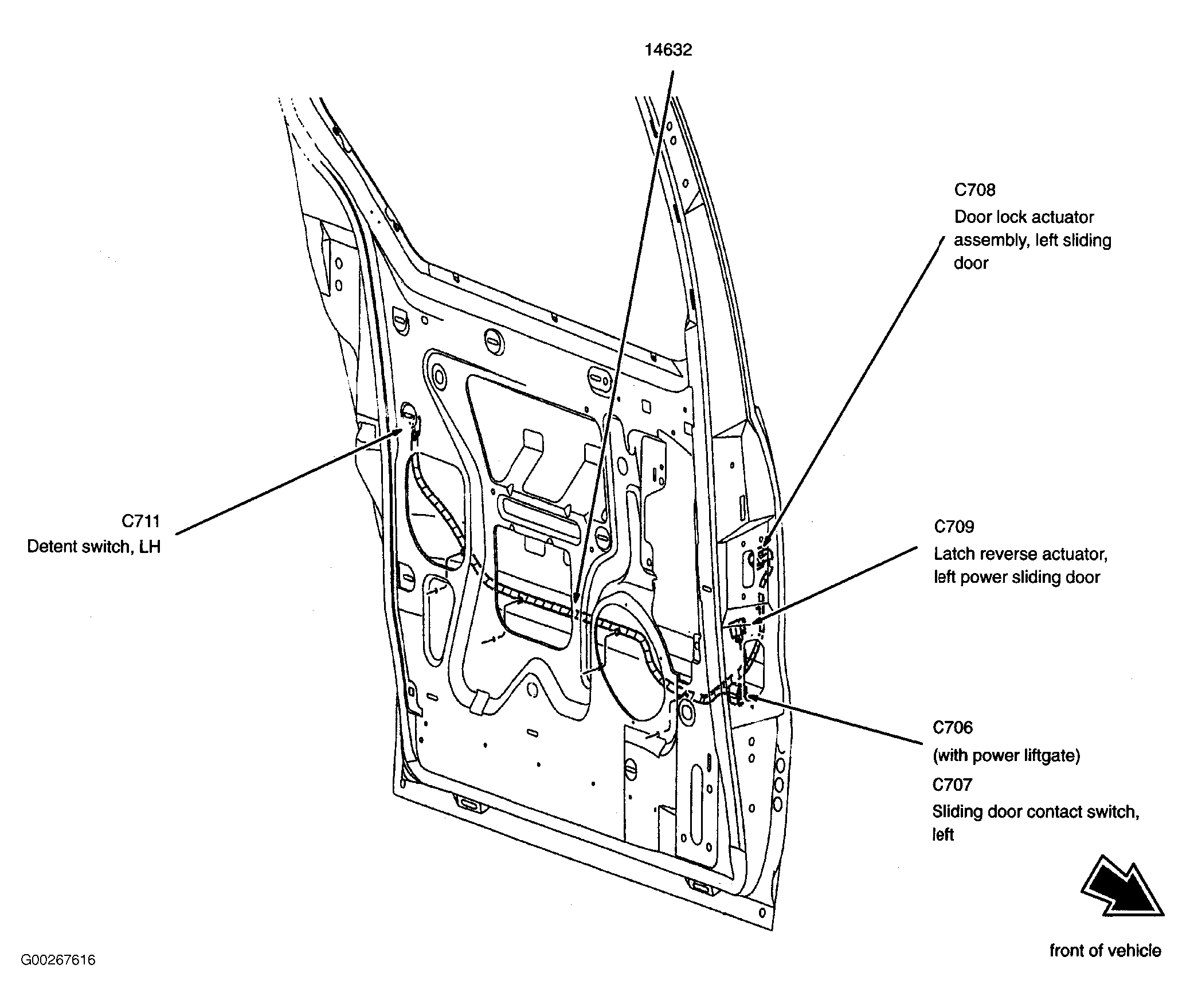

Fig 24: Left Rear Door

G00267616

Courtesy of FORD MOTOR CO.

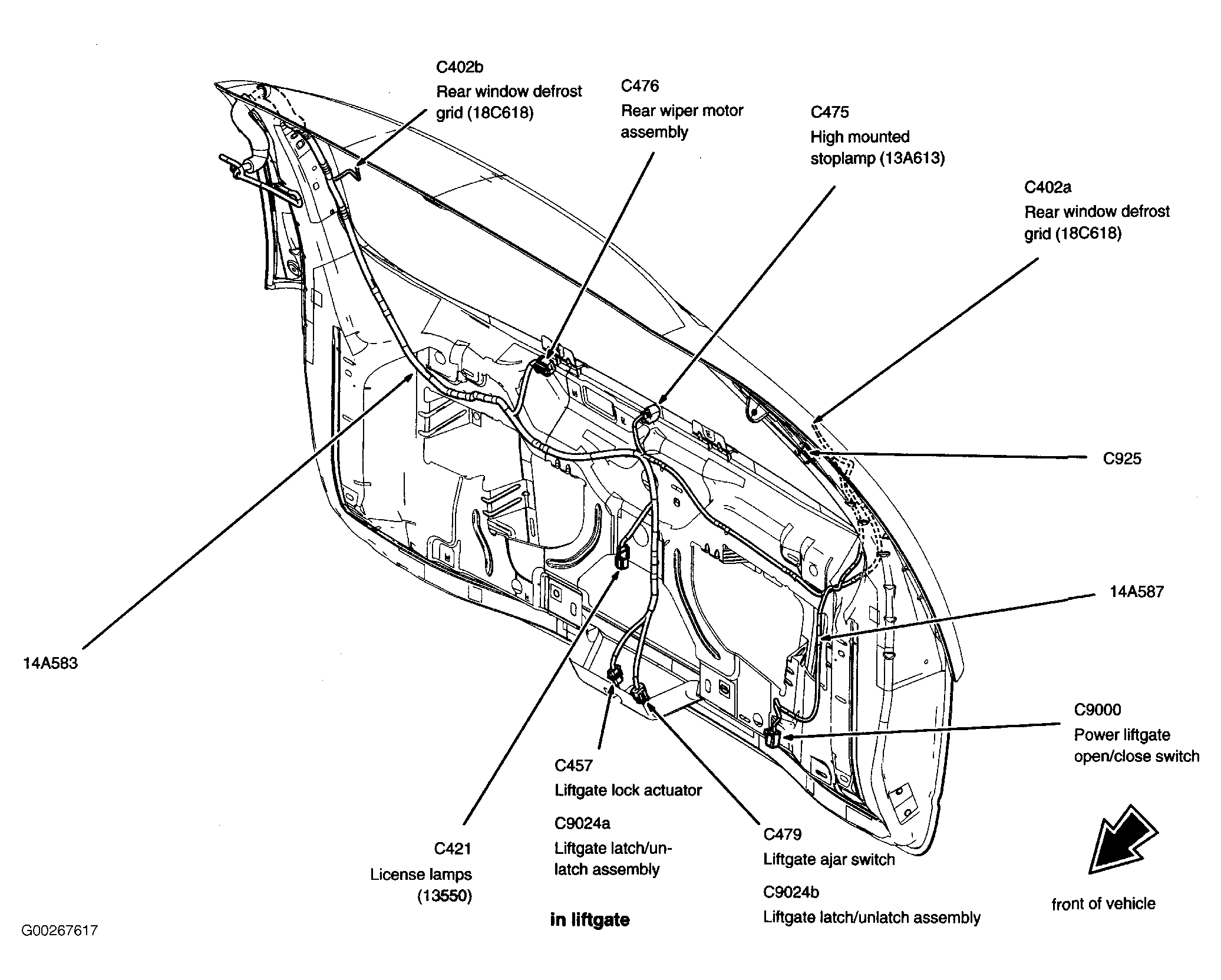

Fig 25: Liftgate

G00267617

Courtesy of FORD MOTOR CO.

Fig 26: Center Of Left "A" Pillar

G00267618

Courtesy of FORD MOTOR CO.

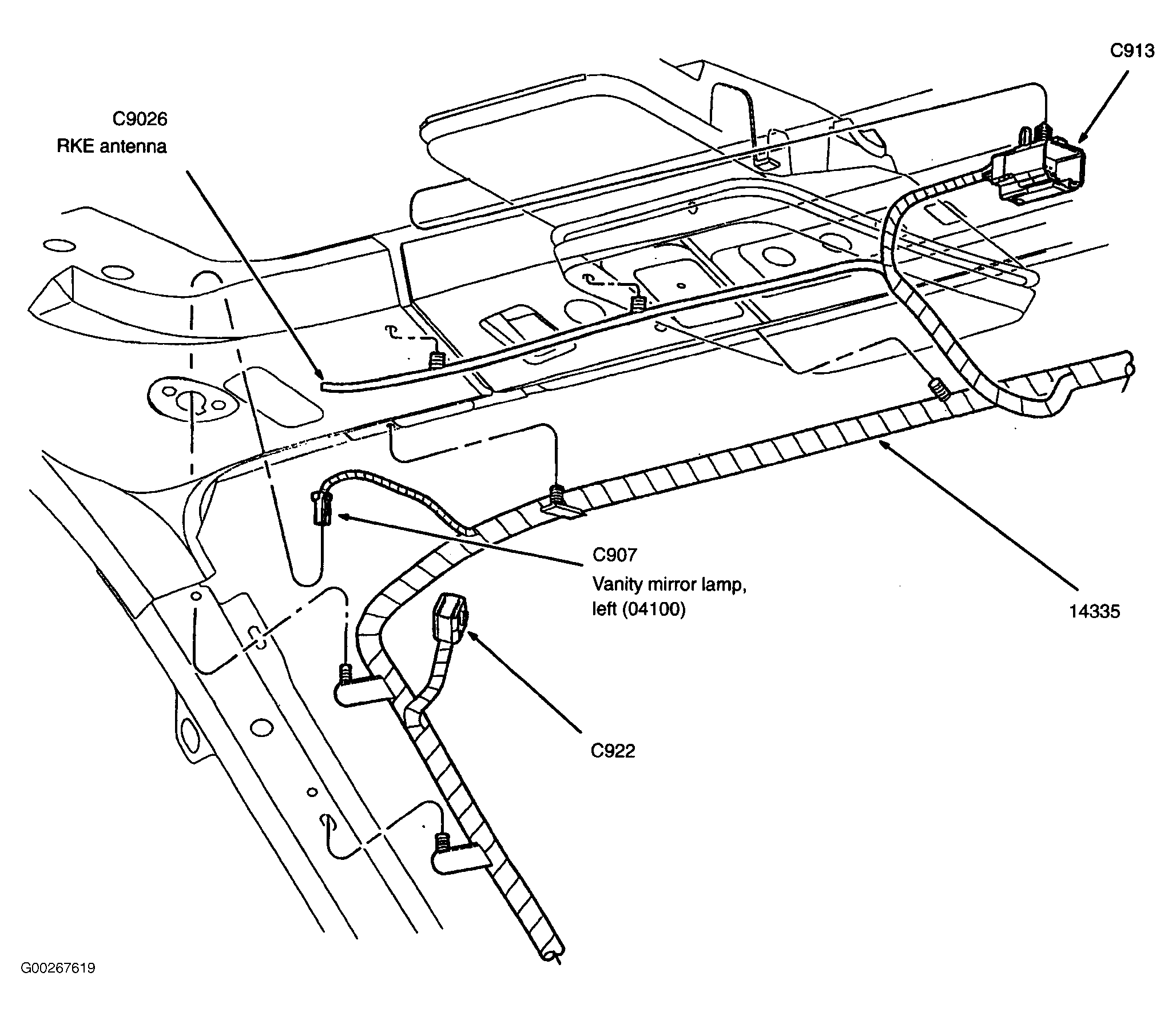

Fig 27: Left Front Roof Panel

G00267619

Courtesy of FORD MOTOR CO.

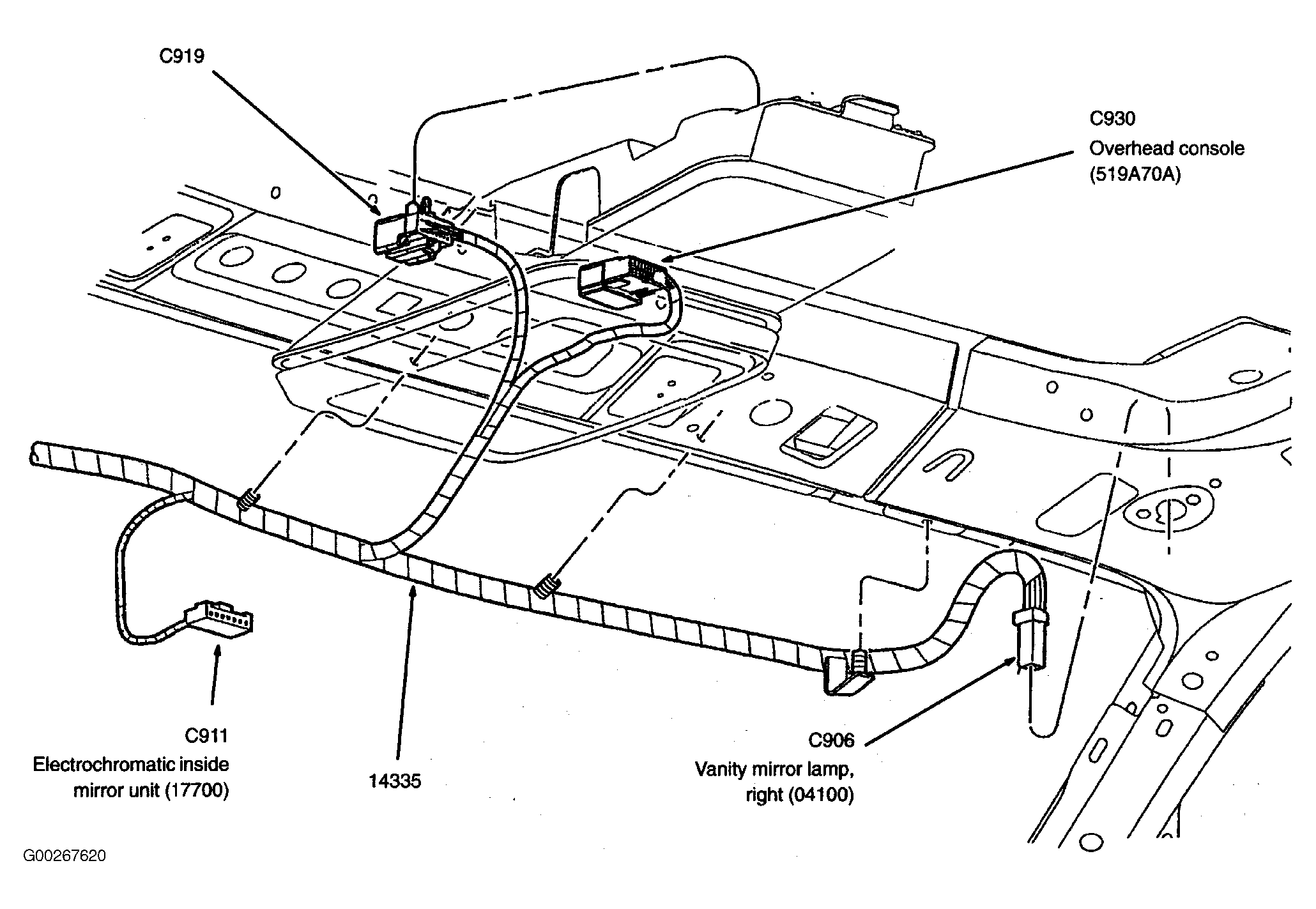

Fig 28: Right Front Roof Panel

G00267620

Courtesy of FORD MOTOR CO.

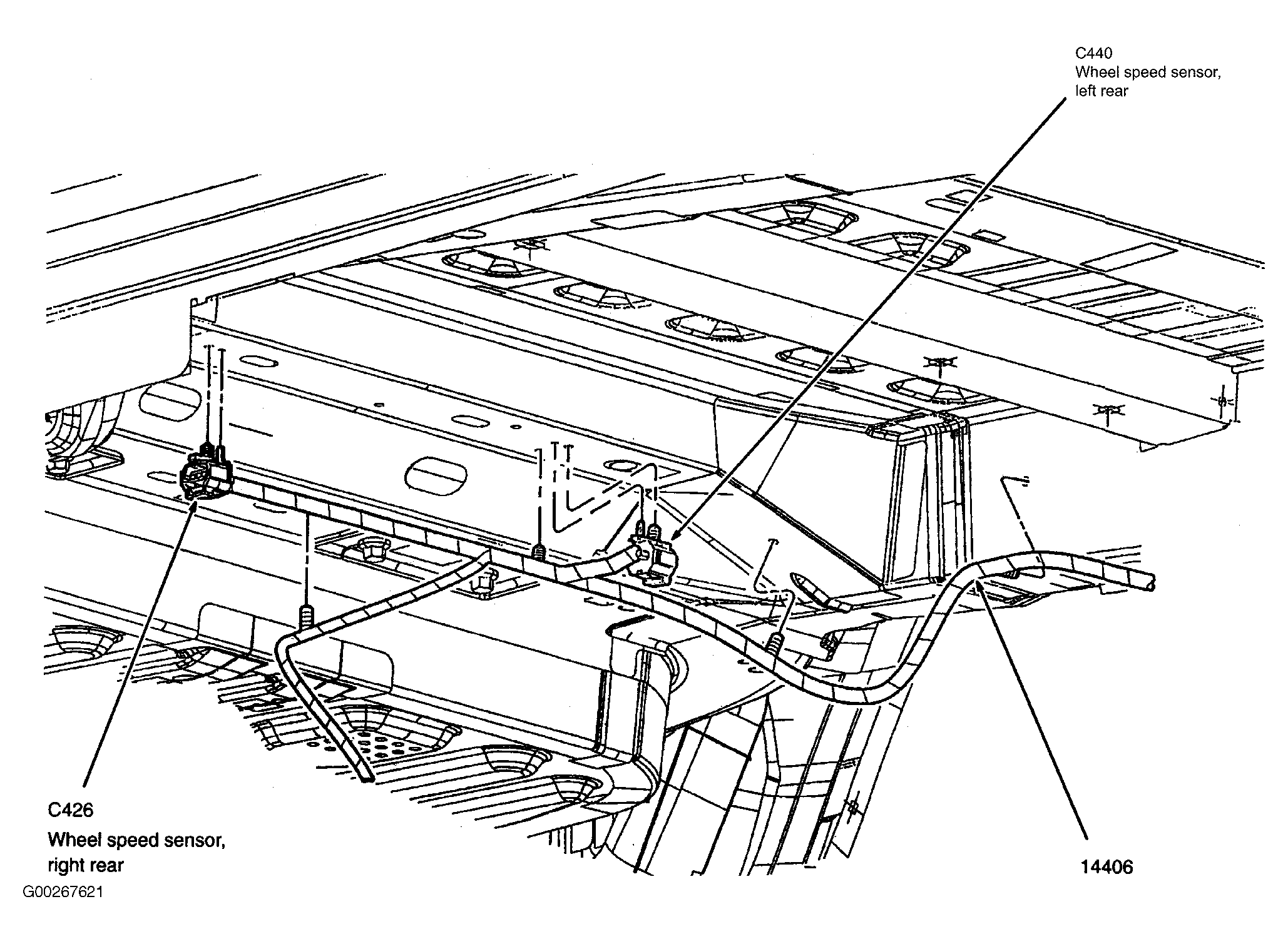

Fig 29: Rear Wheel Speed Sensors

G00267621

Courtesy of FORD MOTOR CO.

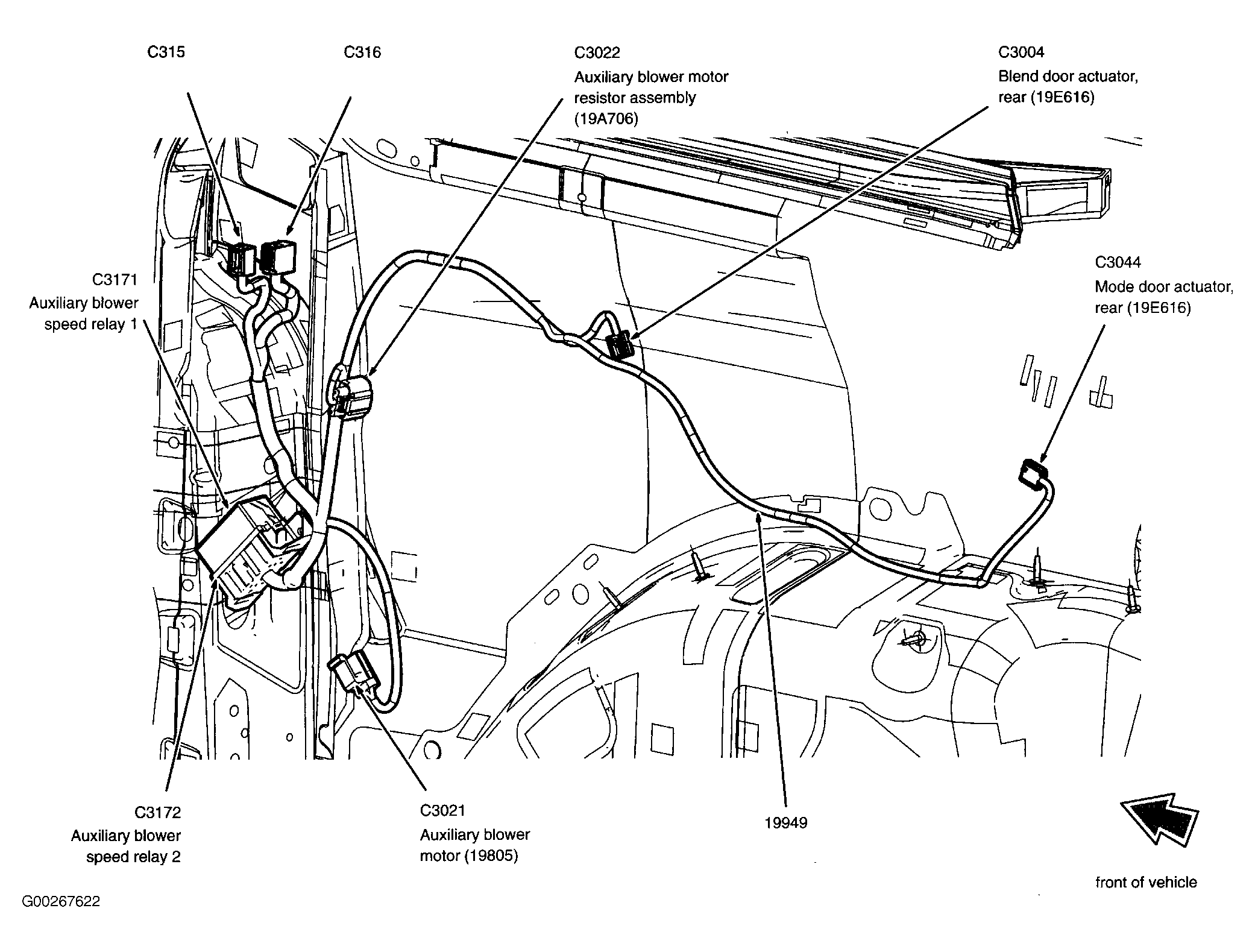

Fig 30: Left Rear Wheelwell

G00267622

Courtesy of FORD MOTOR CO.

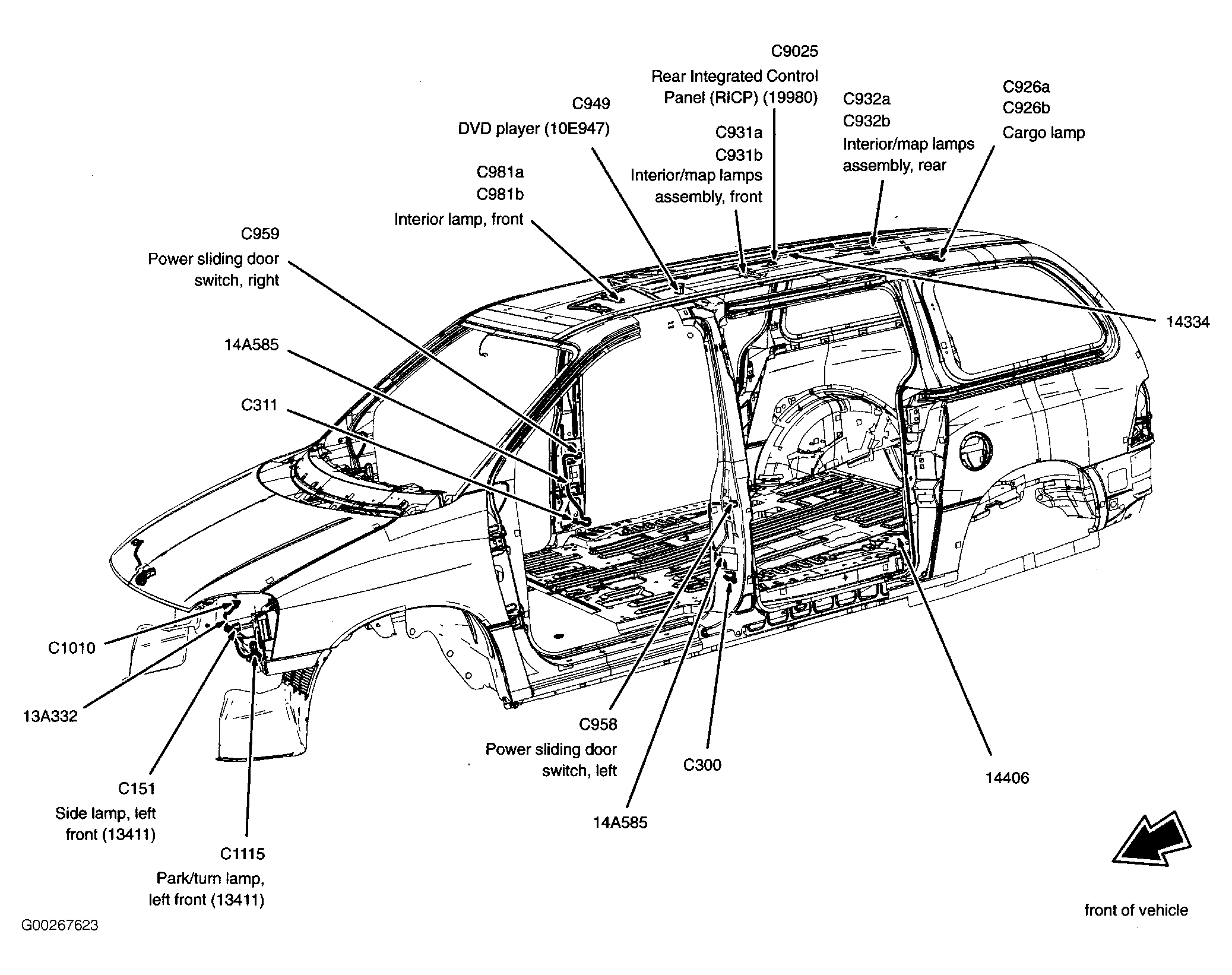

Fig 31: Left Side Of Vehicle

G00267623

Courtesy of FORD MOTOR CO.

Fig 32: Right Rear Of Vehicle

G00267624

Courtesy of FORD MOTOR CO.
