Push Rods - Inspection
- Check the ends of the push rods for nicks, grooves, roughness or excessive wear. Install new push rods as necessary. Refer to the ENGINE - 3.9L & 4.2L
for the procedure
.
- The push rods can be checked for straightness while they are installed in the engine by rotating them with the valve closed.

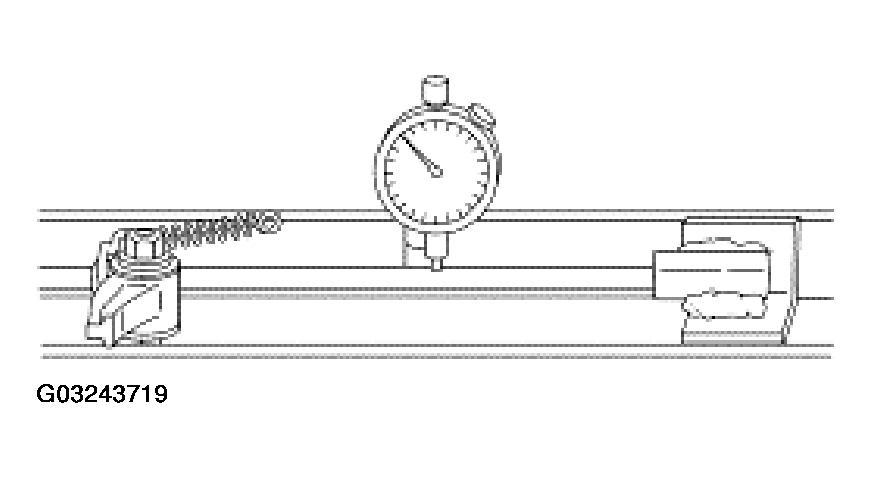

- They also can be checked using a Dial Indicator with Bracketry.
- If the push rod is bent beyond specifications, install a new push rod. Refer to the ENGINE - 3.9L & 4.2L for the procedure .
CAUTION:
Do not attempt to straighten push rods.
