Valve - Spring Squareness

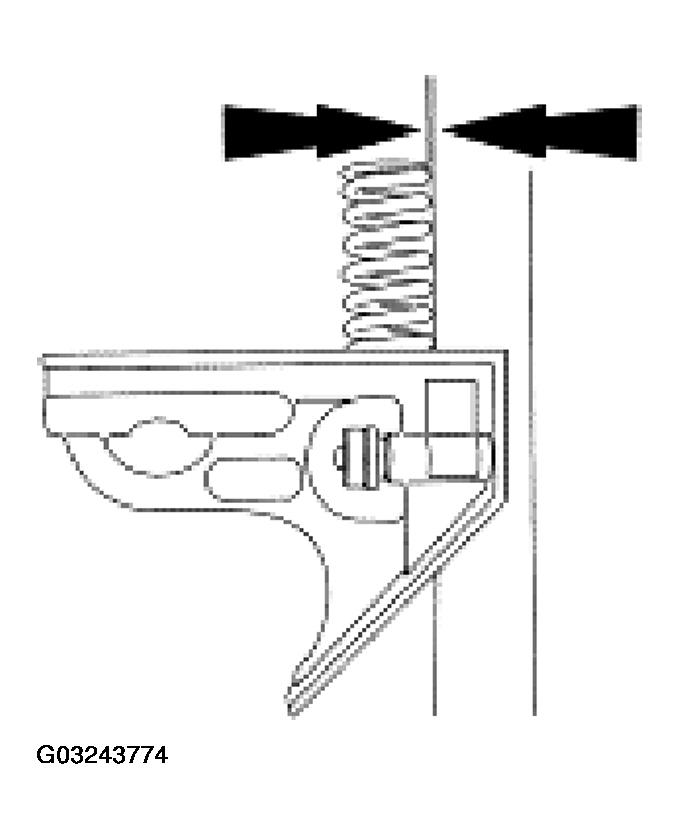

- Measure the out-of-square on each valve spring.
- Turn the valve spring and observe the space between the top of the valve spring and the square. Install a new valve spring if out of square. Refer to ENGINE - 3.9L & 4.2L for the procedure .
