Disassembly And Assembly Of Subassemblies: Piston: Disassembly

  1. Using the special tool, press the piston pin out from the connecting rod and piston assembly.

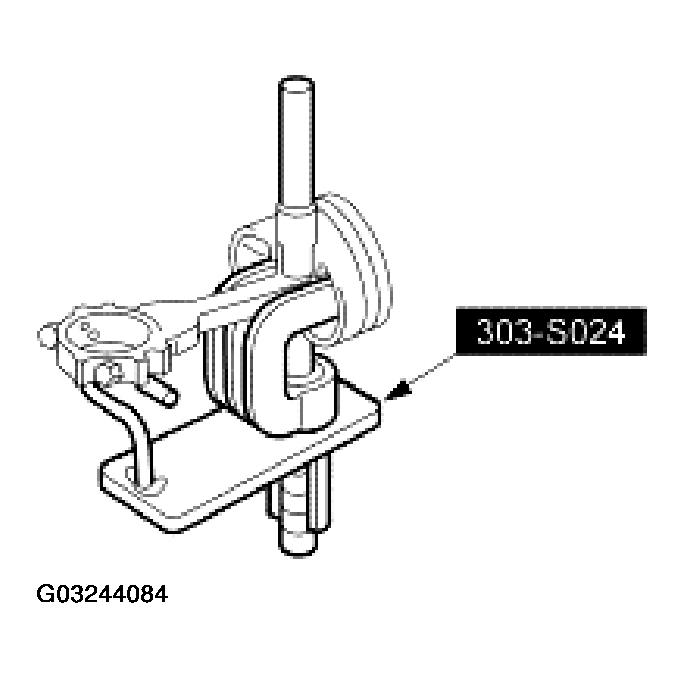

    Fig 1: Removing Piston Pin From Connecting Rod And Piston Assembly
    G03244084Courtesy of FORD MOTOR CO.
  2. Remove the connecting rod from the piston.

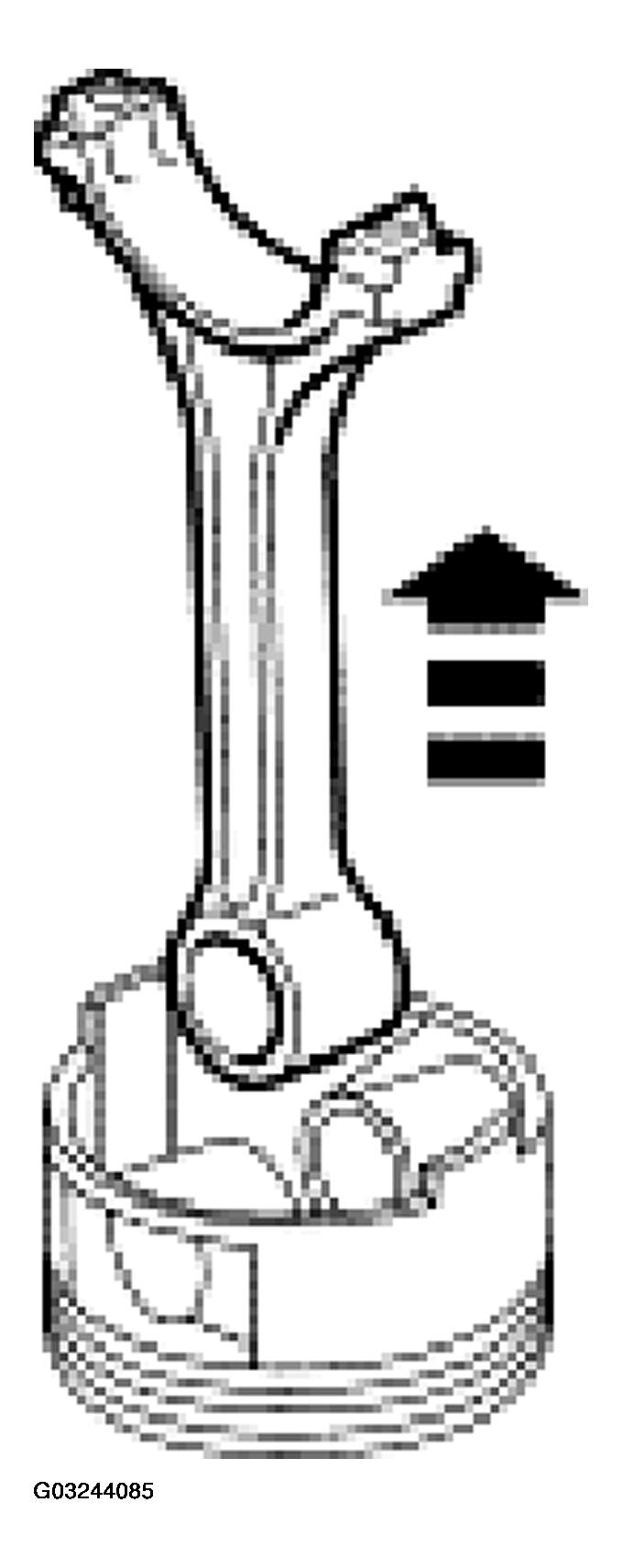

    Fig 2: Removing Connecting Rod From Piston
    G03244085Courtesy of FORD MOTOR CO.
  3. Clean and inspect the connecting rod and piston. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION
