Engine Mount: Notes

Special Tool(s)

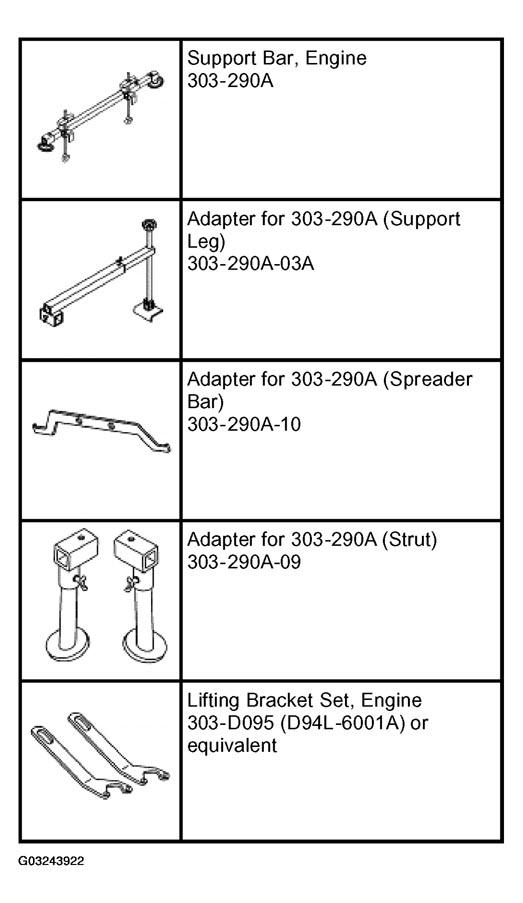

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. If removing the RH, LH or rear engine mount, the vehicle must be lifted on a hoist during this procedure. With the vehicle in neutral, position it on a hoist. For additional information, refer to JACKING & LIFTING .
2. If removing the RH, LH or rear engine mount, remove the hood.
3. If removing the RH, LH or rear engine mount, remove the wiper motor and pivot assembly. For additional information, refer to WINDSHIELD WIPER .
4. Remove the parts in the order indicated in the following illustrations.

   To remove individual parts, only carry out the listed steps:

   Part	Steps
   Engine roll restrictor	1-2
   Rear engine mount	1-7
   RH engine mount	1-5, 8-9
   LH engine mount	1-5, 10-12

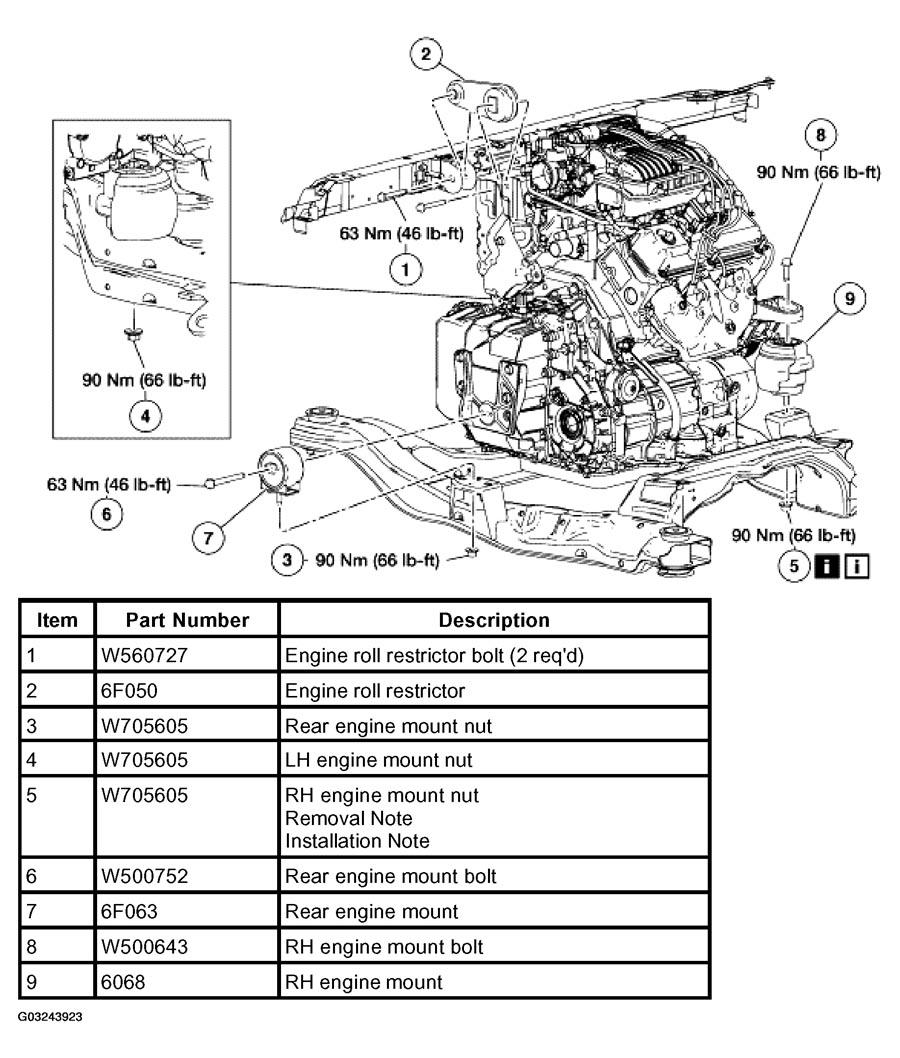

   Fig 2: Engine Mount Parts Removal Sequence (Items 1-9)

   Courtesy of FORD MOTOR CO.

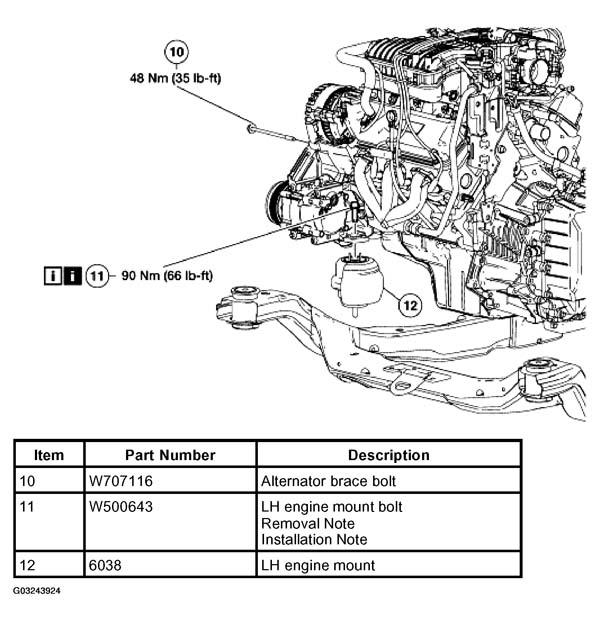

   Fig 3: Engine Mount Parts Removal Sequence (Items 10-12)

   Courtesy of FORD MOTOR CO.
5. To install, reverse the removal procedure.
