Oil Pump: Notes

Special Tool(s)

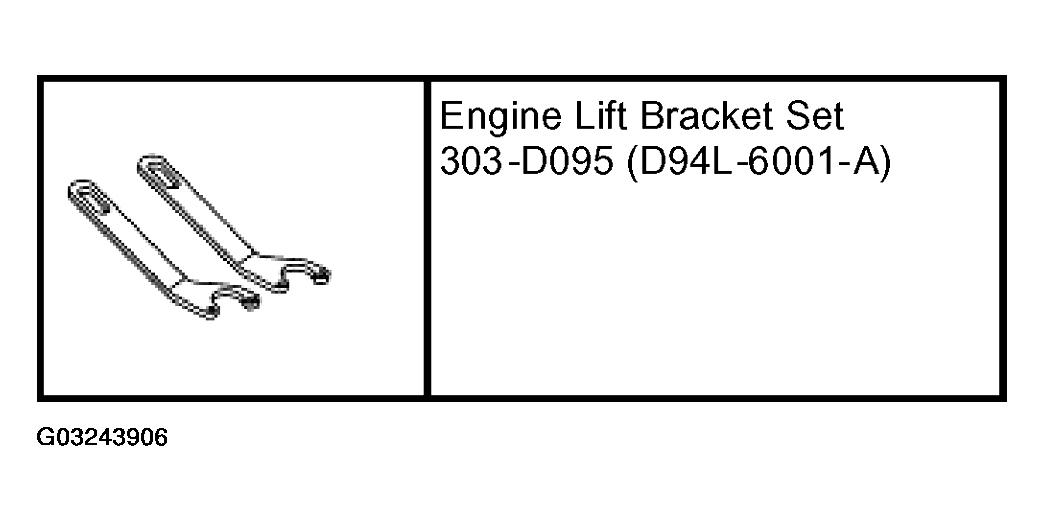

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATION

Item	Specification
SAE 5W-20 Motor Oil XO-5W20-QSP	WSS-M2C153-H

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

With the vehicle in neutral, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the A/C compressor. For additional information, refer to AIR CONDITIONING (A/C) COMPRESSOR .
Remove the drain plug and drain the engine oil.

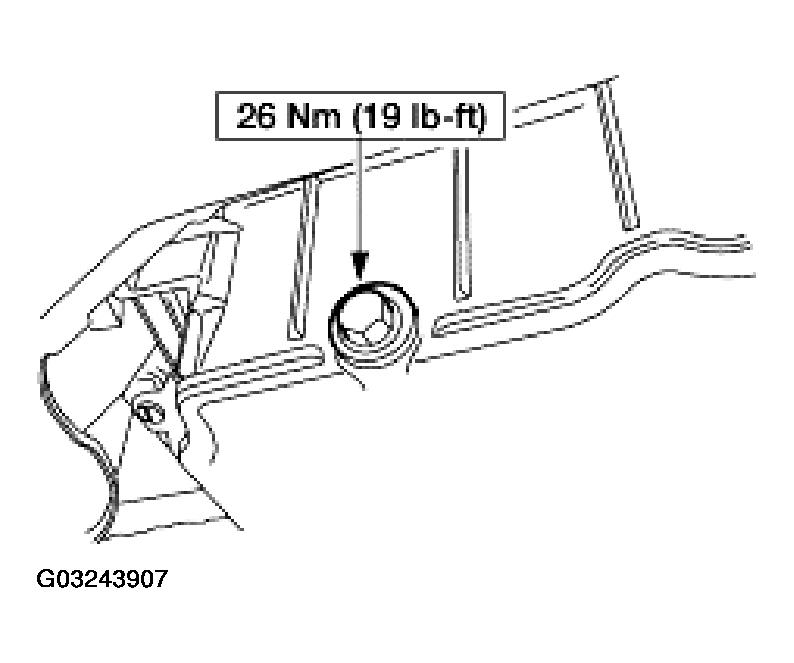

Fig 2: Identifying Engine Oil Drain Plug
Courtesy of FORD MOTOR CO.
Remove the parts in the order indicated in the following illustration.

Fig 3: Identifying Oil Pump Parts Removing Order
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
