Positive Crankcase Ventilation (PCV) Valve: Notes

  1. Remove the parts in the order indicated in the following illustration.

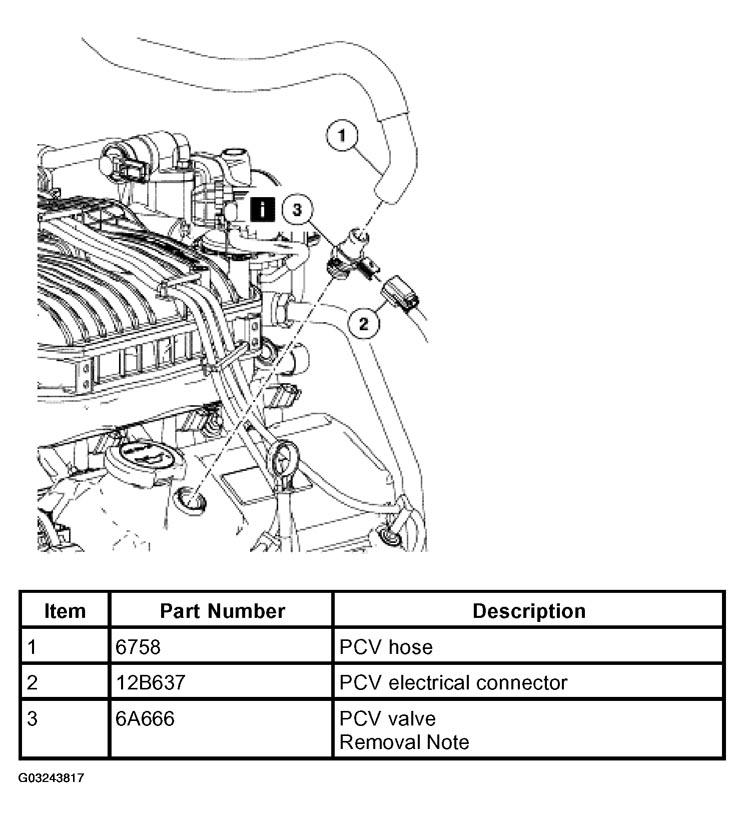

    Fig 1: PCV Valve Parts Removal Sequence
    G03243817Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
