Valve Cover LH: Notes

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. Remove the two nuts and position the auxiliary relay box aside.

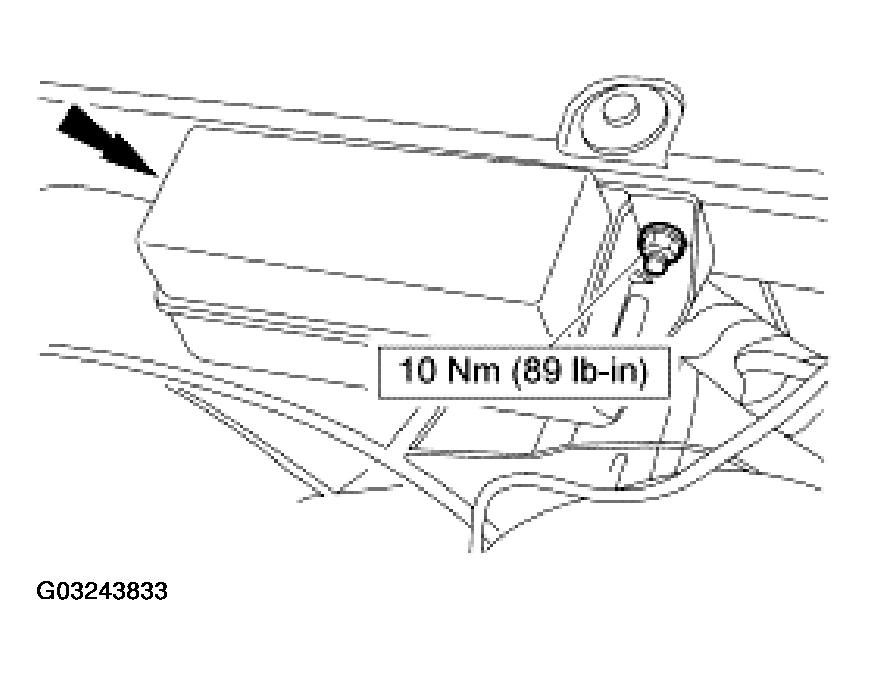

    Fig 1: Removing Two Nuts And Auxiliary Relay Box
    G03243833Courtesy of FORD MOTOR CO.
  2. Remove the parts in the order indicated in the following illustration.

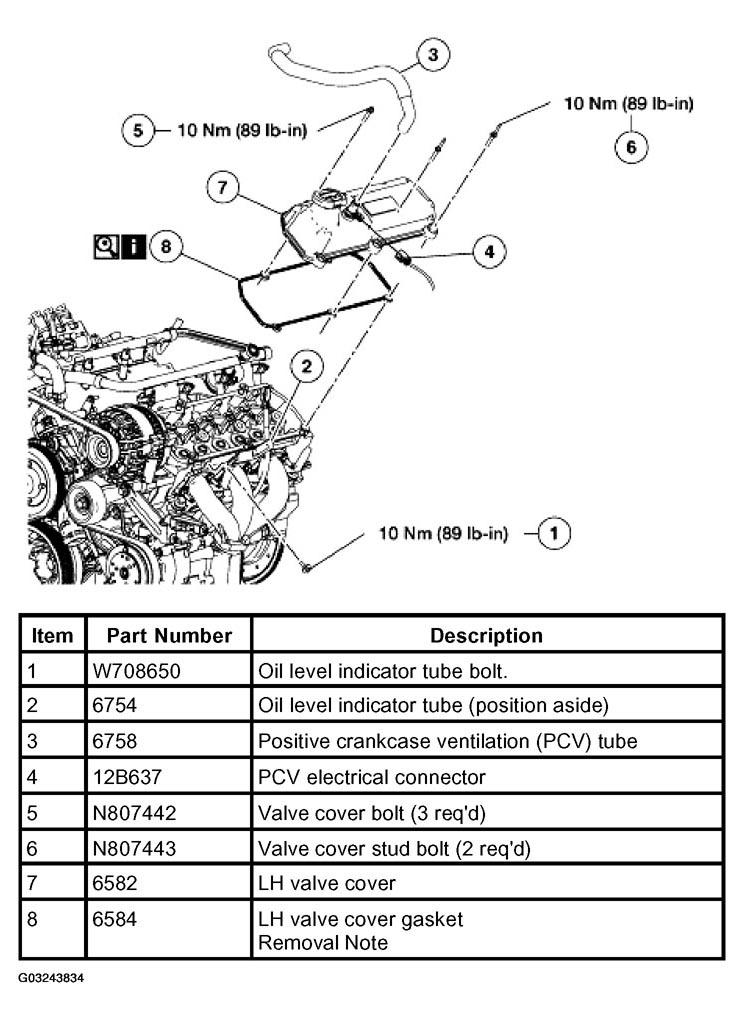

    Fig 2: LH Valve Cover Removal Sequence
    G03243834Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
