Fuel System Pressure Release

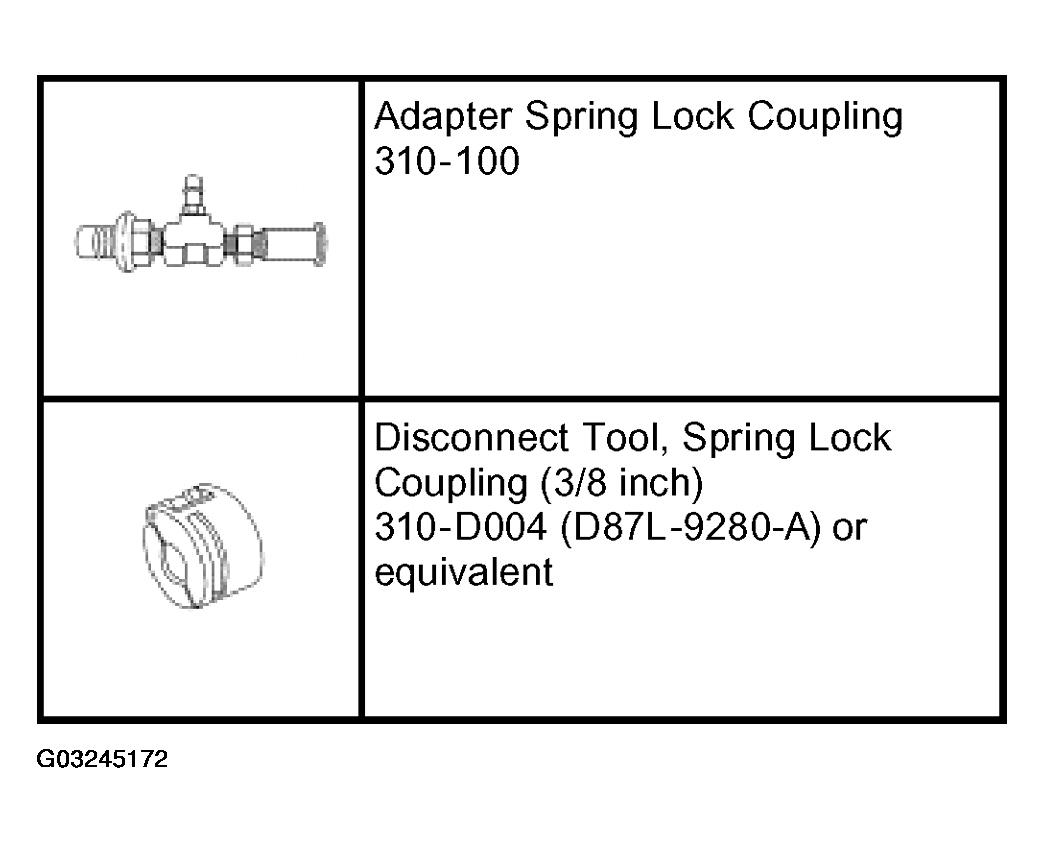

Fig 1: Identifying Special Tool(s)
G03245172Courtesy of FORD MOTOR CO.
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is not running. Before servicing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard.
    NOTE: The fuel pump relay is located in the engine compartment fuse box location K4/C-1051.
  1. Remove the fuel pump relay.
  2. Start the engine and allow it to idle until it stalls.
  3. After the engine stalls, crank the engine for approximately 5 seconds to make sure the fuel injection supply manifold pressure has been released.
  4. Turn the ignition switch to the OFF position.
  5. When fuel system service is complete, install the fuel pump relay.
  6. NOTE: It may take more than one key cycle to pressurize the fuel system.
  7. Cycle the ignition key and wait three seconds to pressurize the fuel system. Check for leaks before starting the engine.
  8. Start the vehicle and check the fuel system for leaks.
    NOTE: If fuel system pressure testing is necessary, carry out the following steps.
  9. Release the fuel tube clip at the fuel supply manifold.

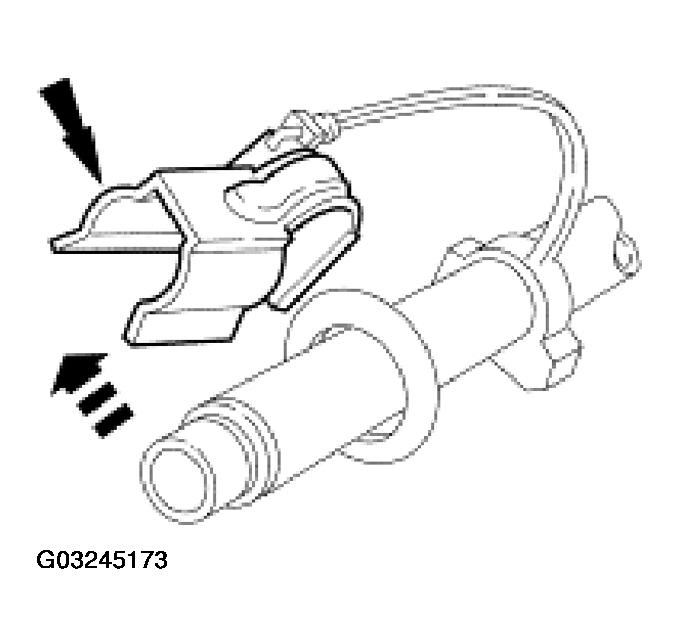

    Fig 2: Releasing Fuel Tube Clip At Fuel Supply Manifold
    G03245173Courtesy of FORD MOTOR CO.
  10. Install the special tool on the spring lock coupling at the fuel supply manifold.

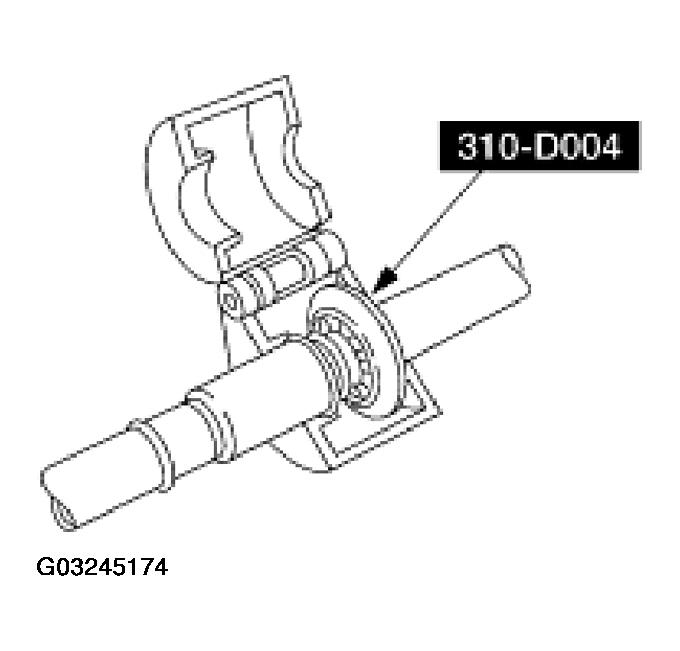

    Fig 3: Installing Special Tool On Spring Lock Coupling At Fuel Supply Manifold
    G03245174Courtesy of FORD MOTOR CO.
  11. Close and push the special tool into the open side of the cage.

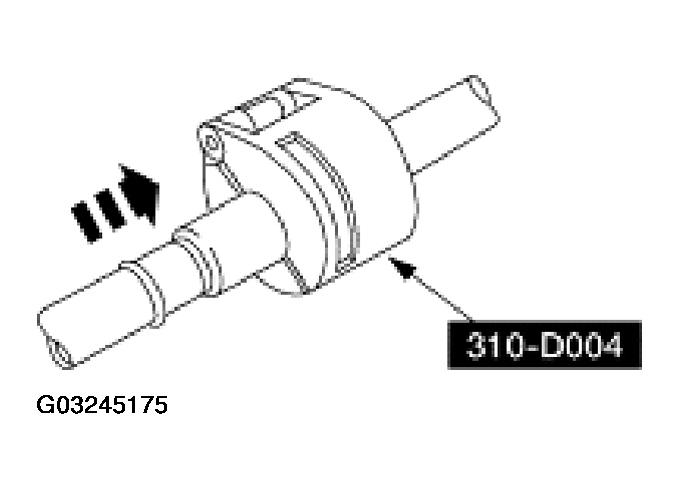

    Fig 4: Pushing Special Tool Into Open Side Of Cage
    G03245175Courtesy of FORD MOTOR CO.
  12. Separate the fuel tube fitting.

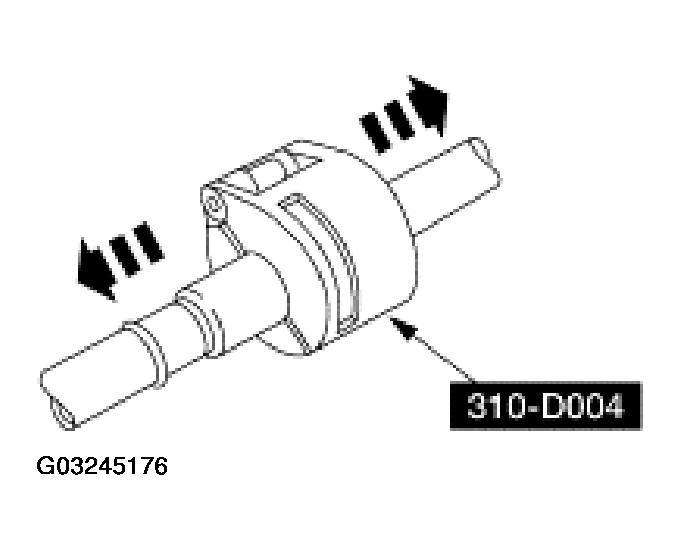

    Fig 5: Separating Fuel Tube Fitting
    G03245176Courtesy of FORD MOTOR CO.
  13. Install the special tool between the fuel supply tube and the fuel supply manifold.

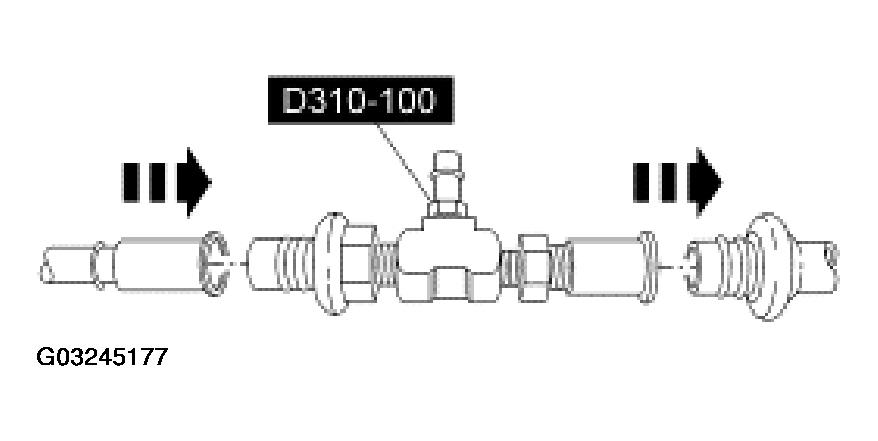

    Fig 6: Installing Special Tool Between Fuel Supply Tube And Fuel Supply Manifold
    G03245177Courtesy of FORD MOTOR CO.
