Communications Network: Notes

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Refer to SYSTEM WIRING DIAGRAMS for schematic and connector information.

SPECIAL TOOLS

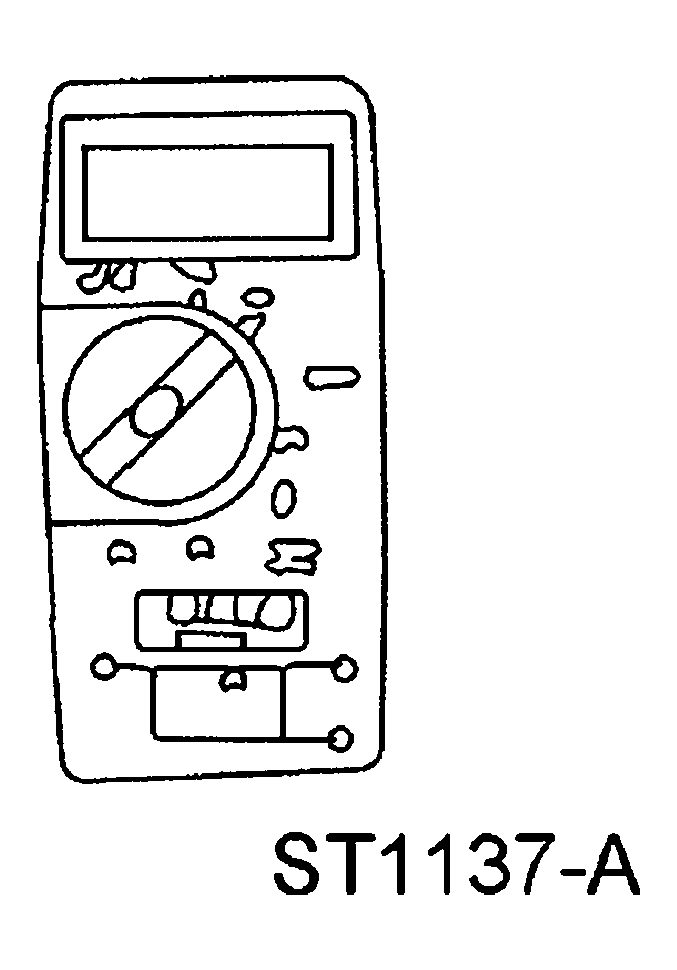

G03879062
73III Automotive Meter 105-R0057 or equivalent
G03878958
Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool
