Shock Absorber And Spring Assembly: Notes
- Remove the shock absorber and spring assembly. For additional information, refer to SHOCK ABSORBER AND SPRING ASSEMBLY - FRONT .
- For reference during assembly, make an index mark on the mount, spring and shock.
- Using a suitable spring compressor, compress the spring until the tension is released from the shock absorber.

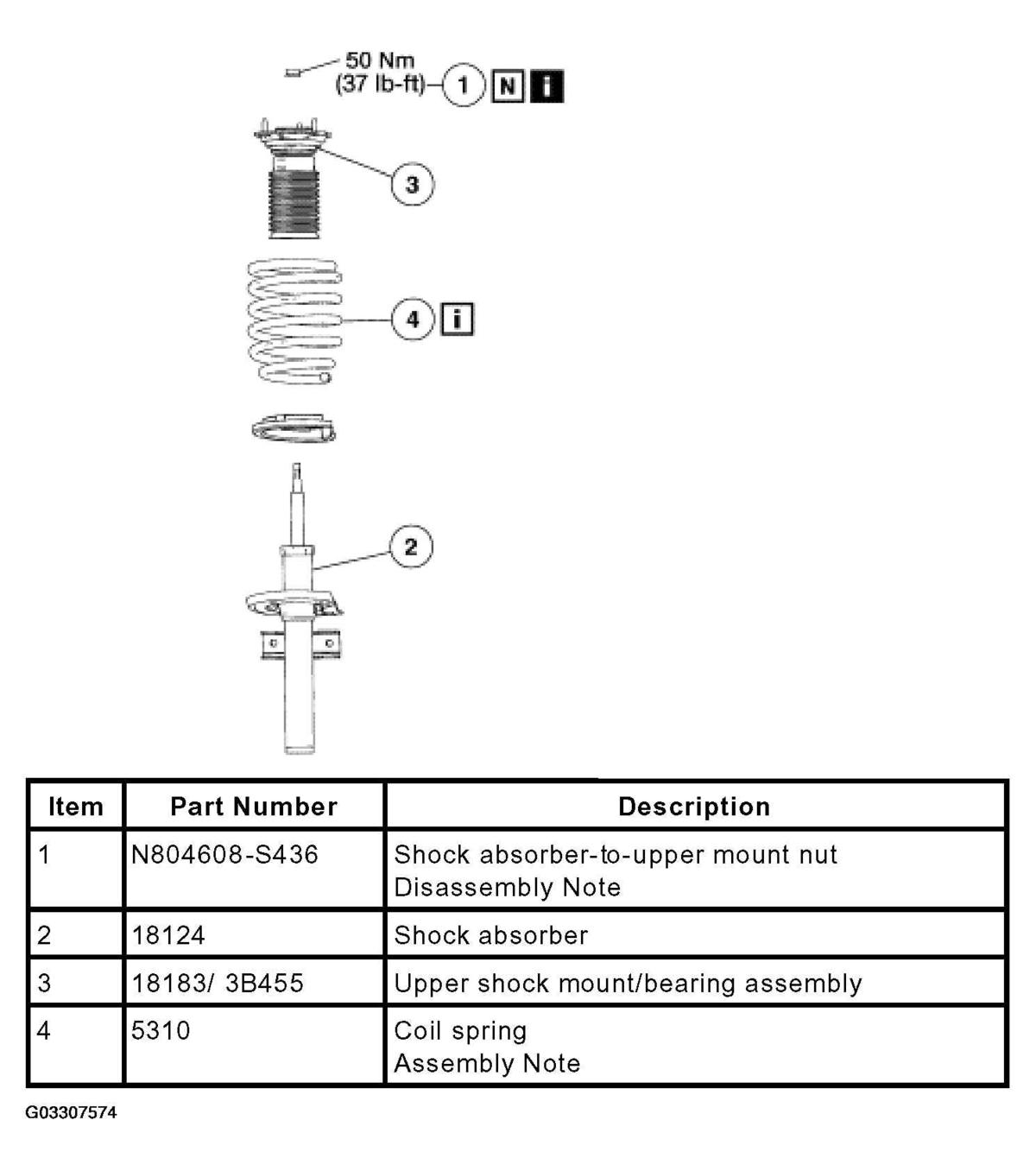

- Disassemble the parts in the order indicated in the following illustration and table.
Courtesy of FORD MOTOR CO.
- To assemble, reverse the disassembly procedure.
