Main Control Components

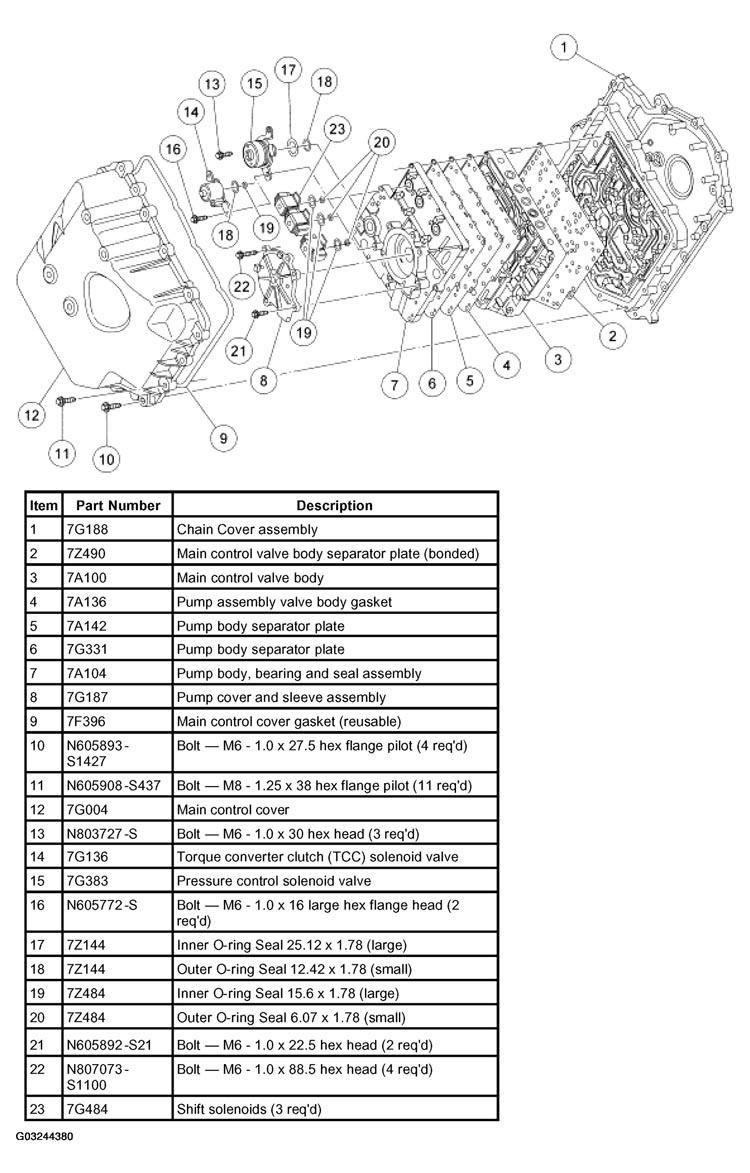

Fig 1: Identifying Main Control Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
