Driven Sprocket: Check

  1. Check the bearing race to verify that it has not moved out of position or become scored. If worn or scored, install a new driven sprocket.

    Inspect the sensor wheel for bent or damaged tabs.

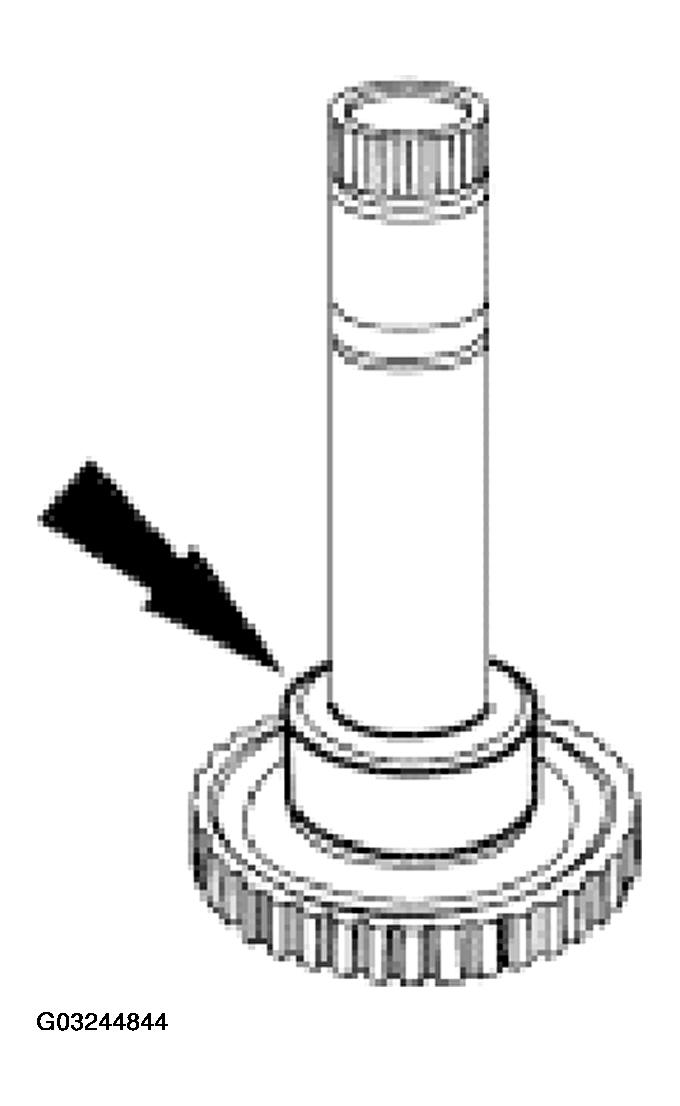

    Fig 1: Inspecting Sensor Wheel For Bent Or Damaged Tabs
    G03244844Courtesy of FORD MOTOR CO.
    2. NOTE: Install a new speed sensor wheel only if damaged.

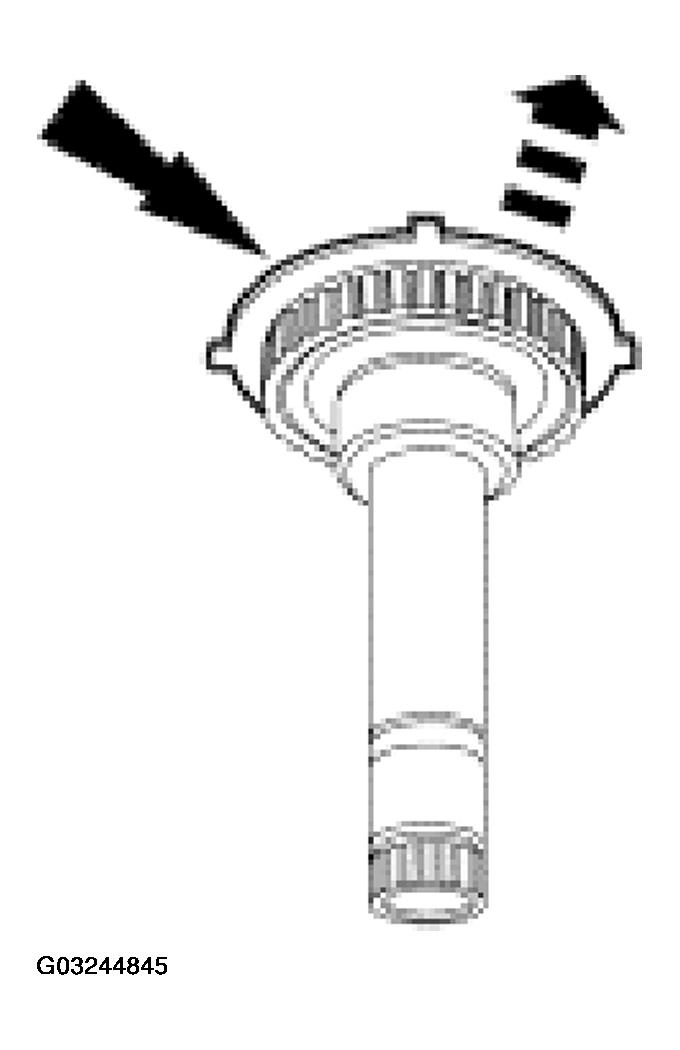

    Fig 2: Removing Speed Sensor Wheel
    G03244845Courtesy of FORD MOTOR CO.
  2. Remove the speed sensor wheel.
  3. Using the special tools, install a new speed sensor ring.

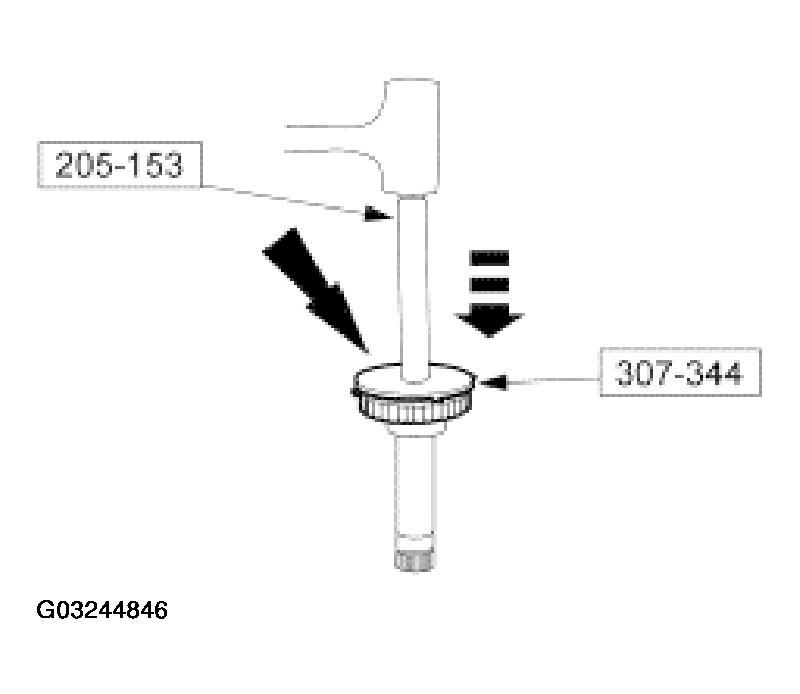

Fig 3: Installing New Speed Sensor Ring
G03244846Courtesy of FORD MOTOR CO.
