Main Control Valve Body: Disassembly

  1. Remove the pump assembly.
    • Remove the bolts.
    • Remove the pump.

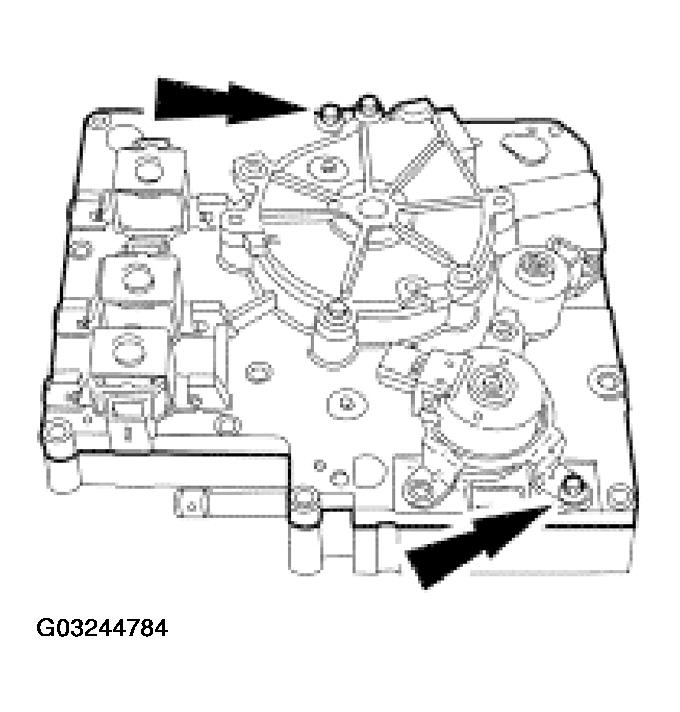

    Fig 1: Removing Pump Assembly
    G03244784Courtesy of FORD MOTOR CO.
    2. NOTE: The valve body separator plate has a bonded gasket.

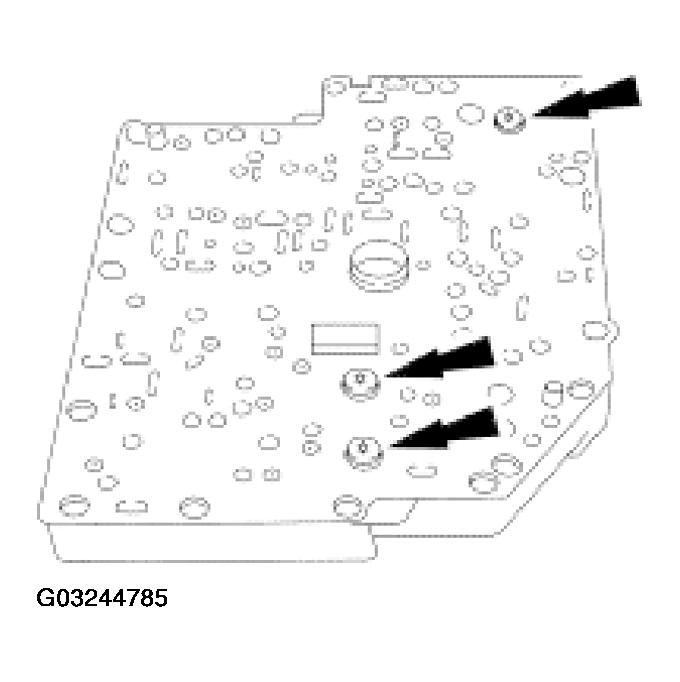

    Fig 2: Removing Separator Plate
    G03244785Courtesy of FORD MOTOR CO.
  2. Remove the bolts and the separator plate.
    3. NOTE: Be sure to note the location of the check balls.
  3. Remove the check balls.

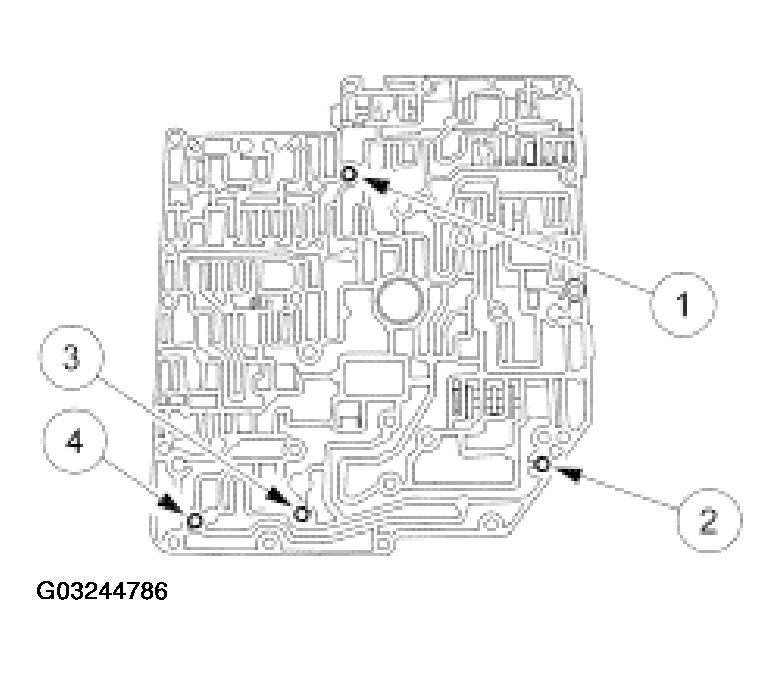

    IDENTIFYING B1-B4 CHECK BALL LOCATIONS

    G03244786
    Item Check Ball Location
    1 B4
    2 B1
    3 B3
    4 B2
    4. NOTE: The relief valve springs are not interchangeable.

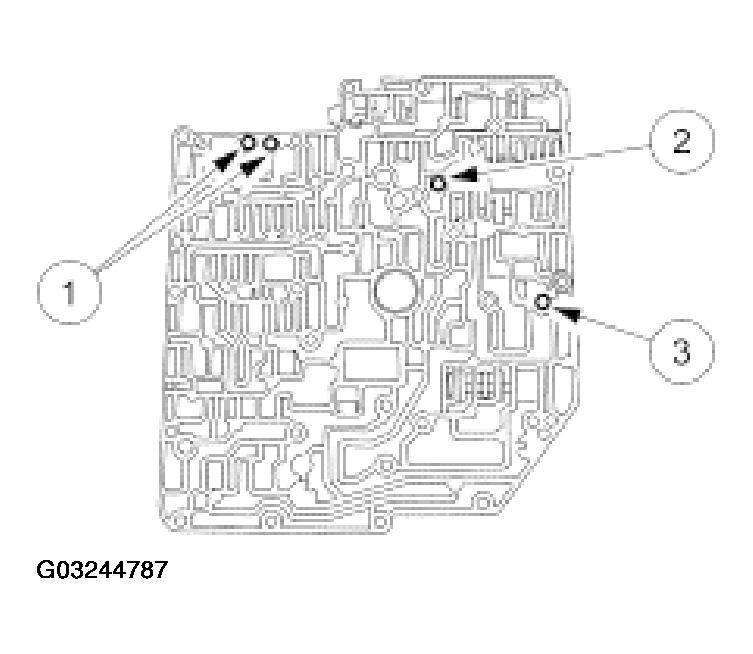

    Fig 3: Locating Relief Valve Springs
    G03244787Courtesy of FORD MOTOR CO.
  4. Tag and mark the location of the relief valve springs.
    1. Remove the modulator check valve and springs.
    2. Remove the modulator check valve and drain back spring.
    3. Remove the manual low relief valve and cooler bypass spring.
  5. Remove and discard the filters.
    1. Remove the solenoid regulator filter.
    2. Remove the torque converter clutch filter.

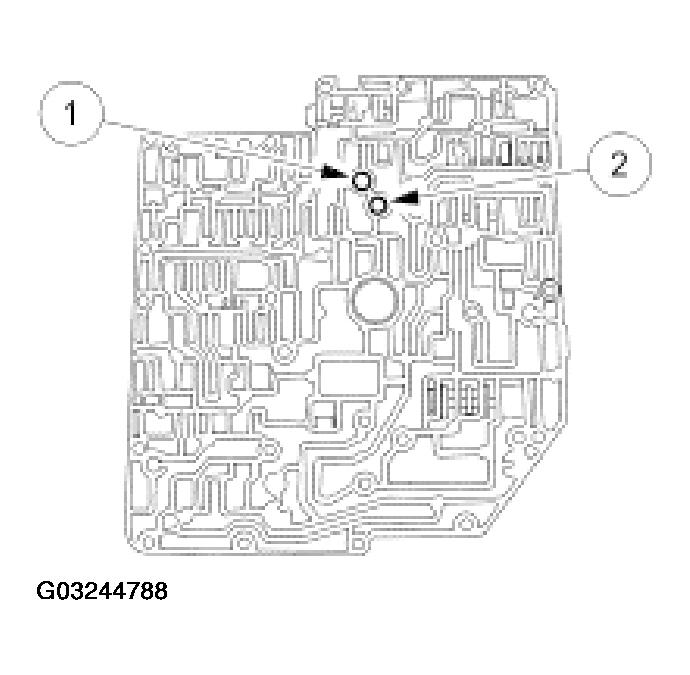

    Fig 4: Removing Solenoid Regulator And Torque Converter Clutch Filters
    G03244788Courtesy of FORD MOTOR CO.
    6. CAUTION: Most valves are aluminum and cannot be removed using a magnet. Remove the valves by tapping valve body on the palm of the hand to slide the valves out of the bores. It may be necessary to remove the valves and springs using a pick. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups. Take special care when handling the main control components, since they are the most precise and delicate parts of the transaxle. Neatly arrange the parts as they are removed to avoid mixing similar pieces.
    CAUTION: Do not stone or polish any valves. If the valves do not move freely, install a new assembly.
  6. Remove the individual valves and springs by removing the retaining clips and bore plugs. See the MAIN CONTROL VALVE BODY ASSEMBLY  illustrations for valve and spring locations. Clean valves, springs and main control valve body.
  7. Inspect the valve body sleeve for wear or damage.
    • Verify that the hole in the valve body sleeve aligns with the hole in the circuit passage.
    • Verify that the edge of the sleeve is 5.5 mm (0.21 in) above the valve body surface.

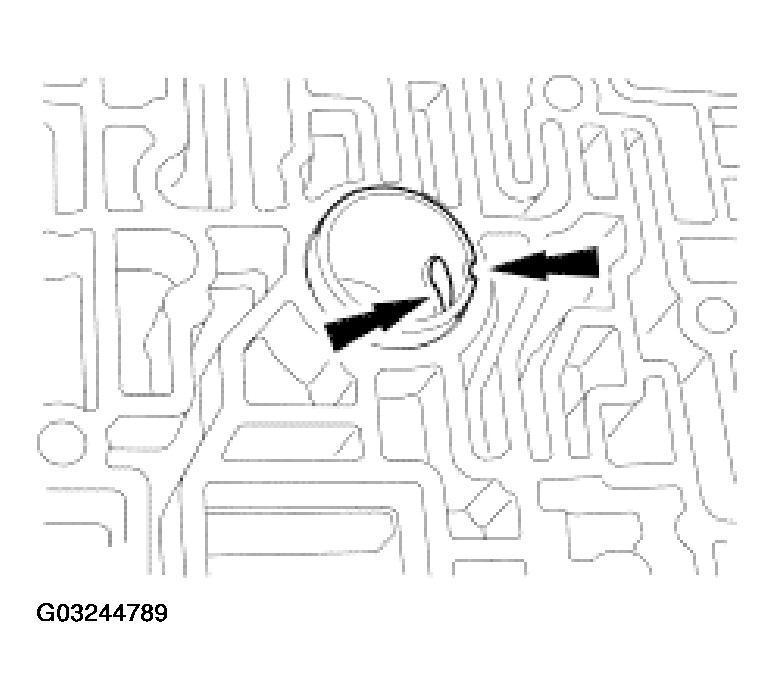

    Fig 5: Inspecting Valve Body Sleeve For Wear Or Damage
    G03244789Courtesy of FORD MOTOR CO.
    8. CAUTION: All the valves must be removed from the valve body during replacement of the sleeve to prevent possible damage.
    CAUTION: The machined passage surfaces of the valve body that contact the press supports should be protected during sleeve replacement.
    CAUTION: Do not press with excessive force when installing a new sleeve.
  8. If a new sleeve is required, use the special tool and a suitable press to push the sleeve from the valve body.

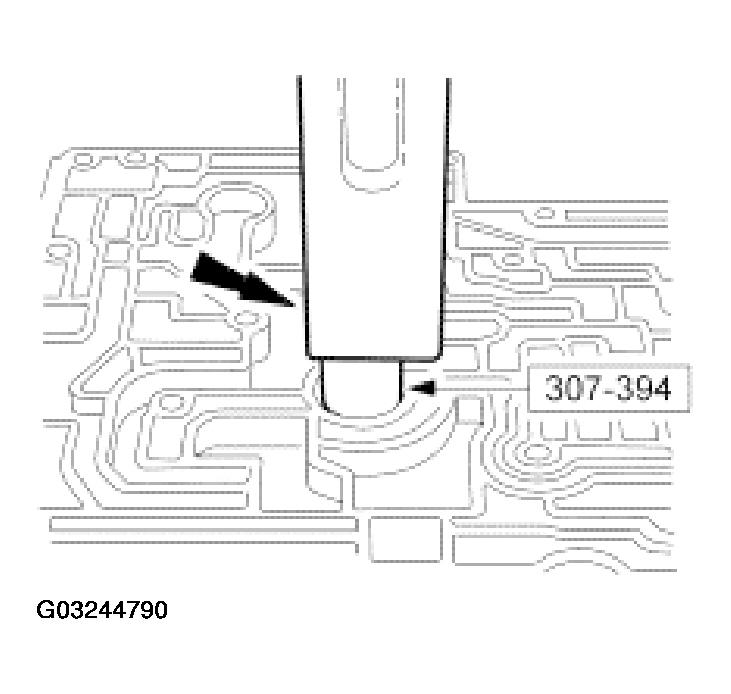

Fig 6: Removing Valve Body Sleeve
G03244790Courtesy of FORD MOTOR CO.
