Planet Assembly: Disassembly

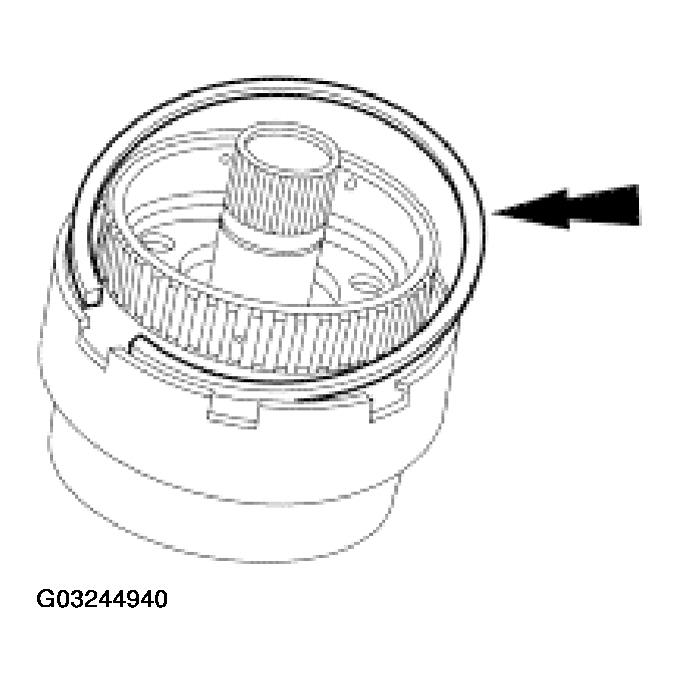

Remove the retaining ring.

Fig 1: Removing Retaining Ring
Courtesy of FORD MOTOR CO.

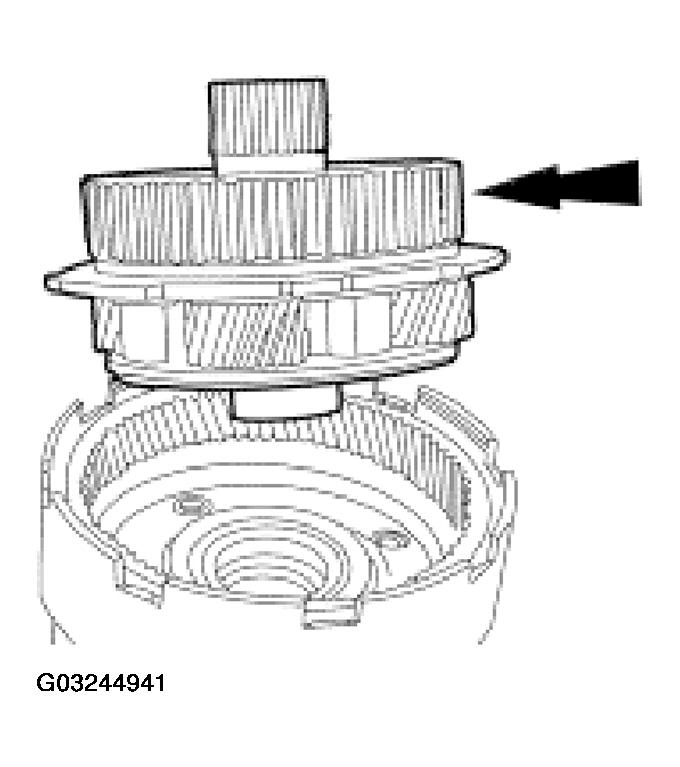

Remove the front planet gear assembly. Clean and inspect for looseness and discoloration of the pinion gears or wear on the bearings. Repair as required.

Fig 2: Removing Front Planet Gear Assembly
Courtesy of FORD MOTOR CO.

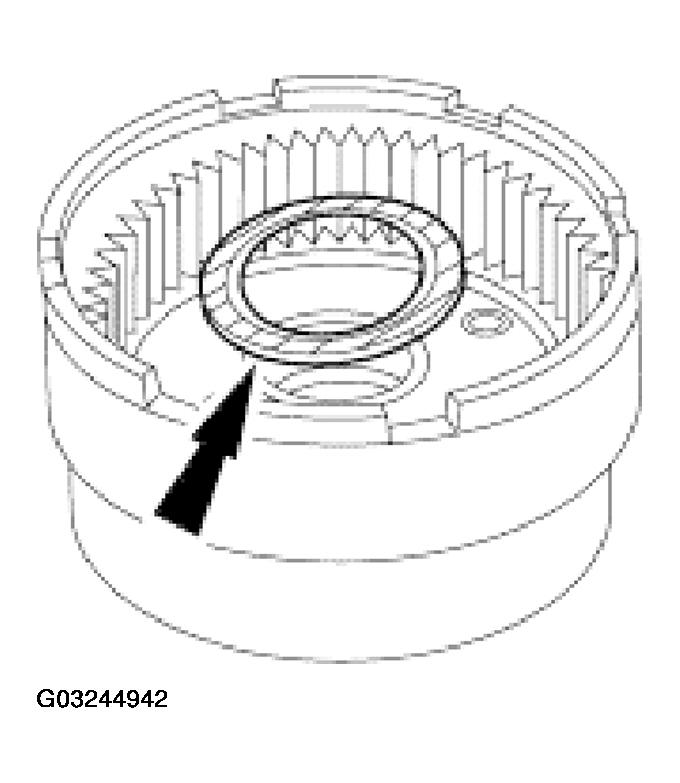

Remove the No. 13 needle bearing.

Fig 3: Removing Needle Bearing
Courtesy of FORD MOTOR CO.

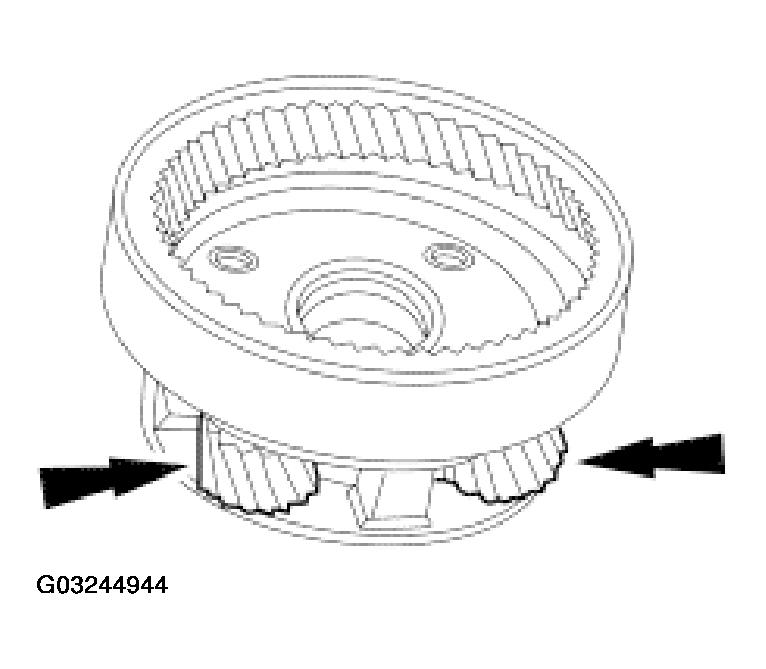

Remove the rear planetary gear assembly.

Fig 4: Removing Rear Planetary Gear Assembly
Courtesy of FORD MOTOR CO.

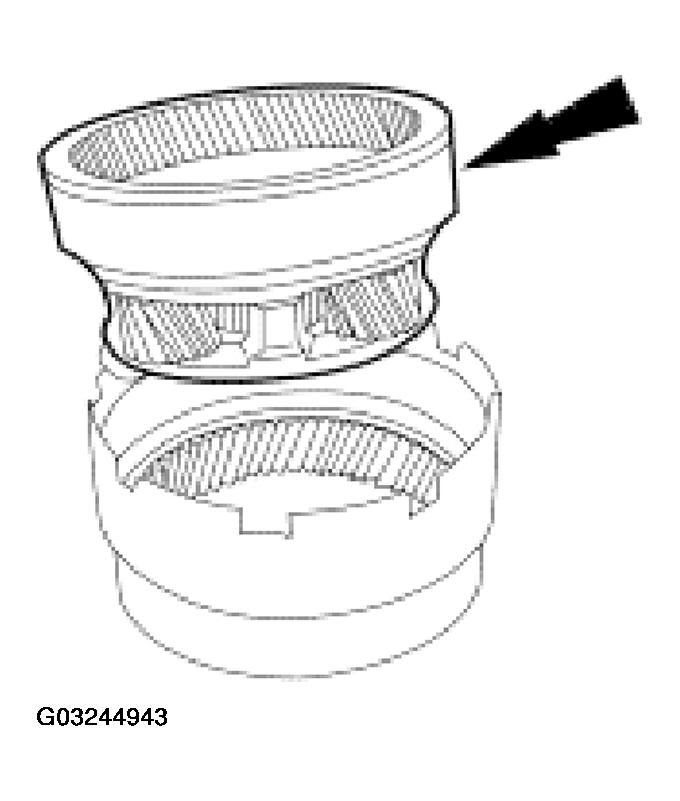

Clean and inspect the rear planetary gear assembly for looseness and/or discoloration of the planet gears or wear on the bushings or bearings. Repair as required.

Fig 5: Inspecting Rear Planetary Gear Assembly

Courtesy of FORD MOTOR CO.
