Main Control Pump Assembly

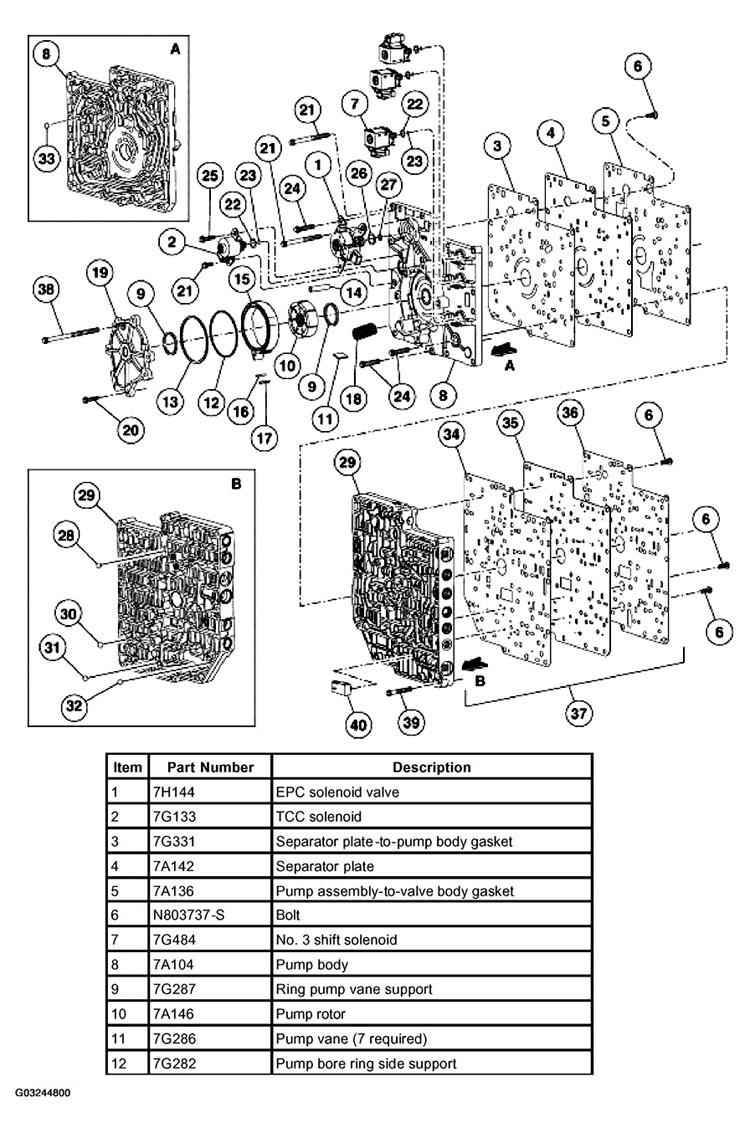

Fig 1: Main Control Pump Components Assembly Sequence (Items 1-12)
G03244800Courtesy of FORD MOTOR CO.

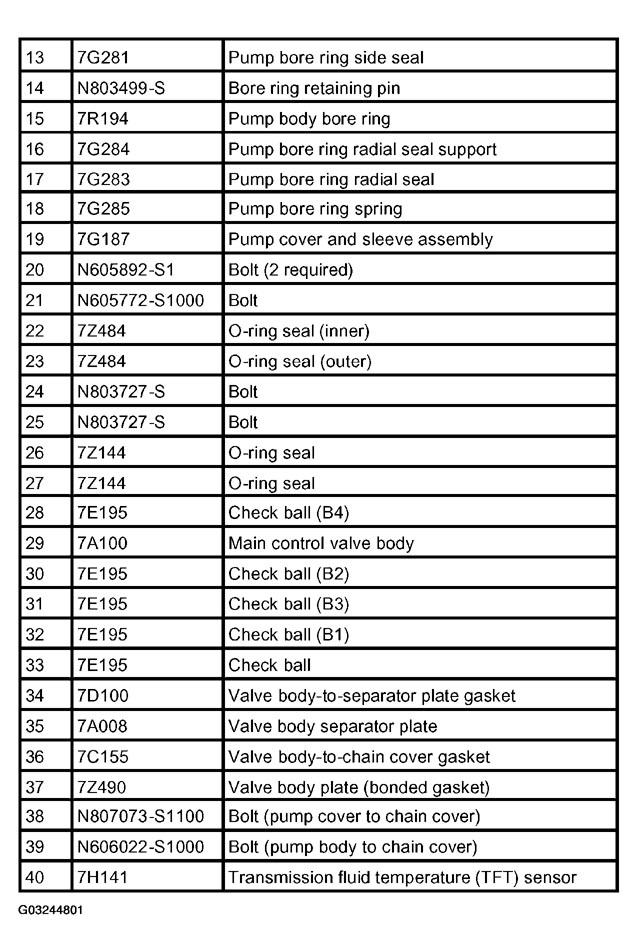

Fig 2: Main Control Pump Components Assembly Sequence (Items 13-40)
G03244801Courtesy of FORD MOTOR CO.
