Sun And Shell Assembly Component Locator

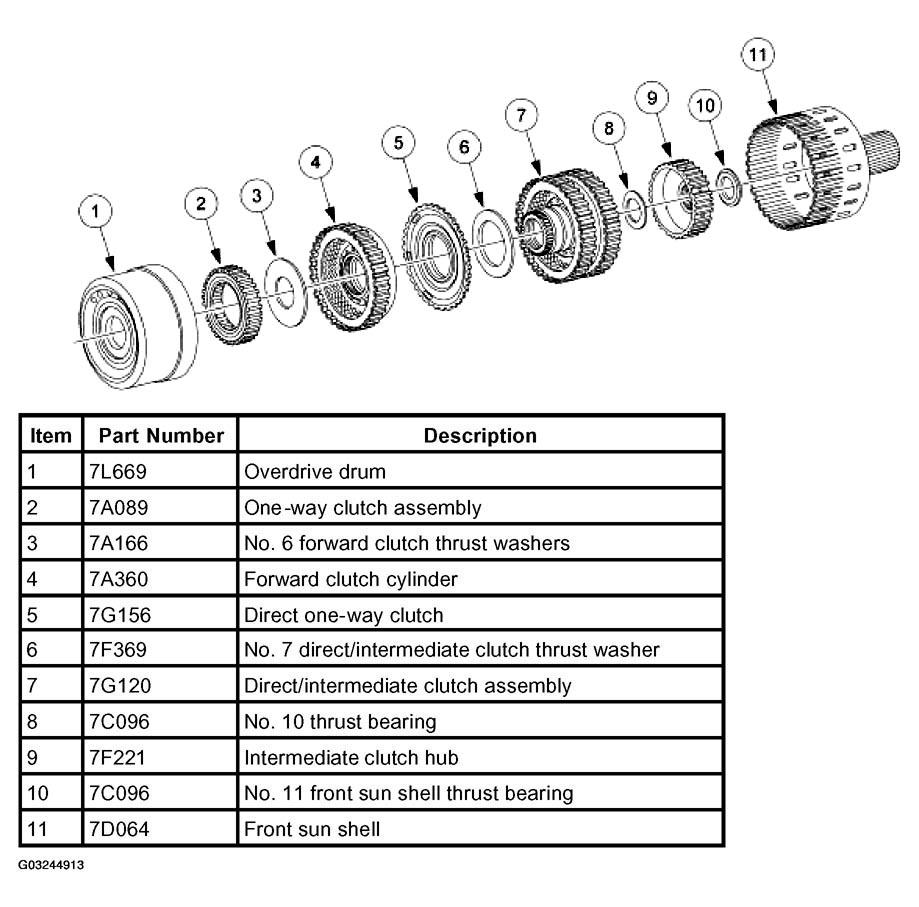

Fig 1: Identifying Sun And Shell Assembly Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
