Sun and Shell Assembly - Disassembly: Notes

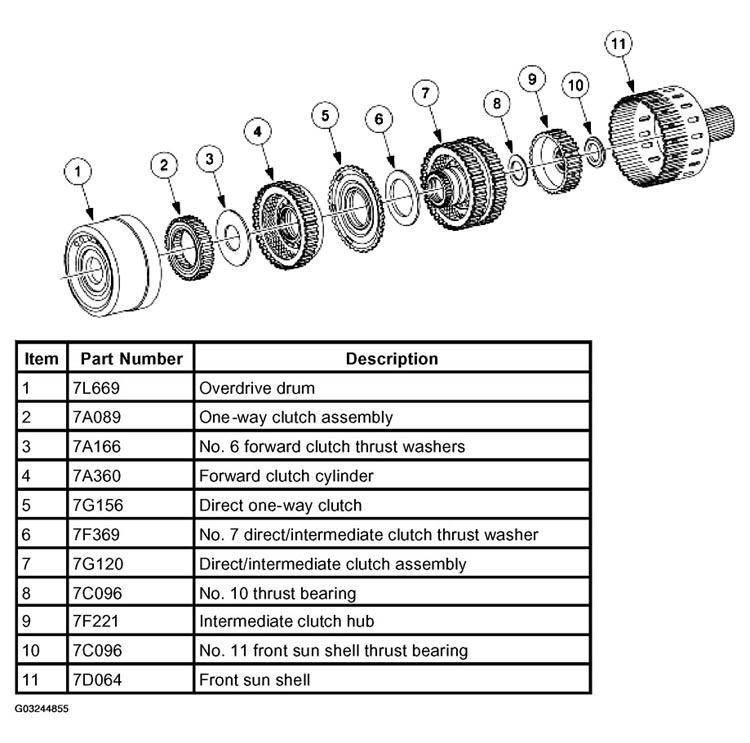

Fig 1: Identifying Sun And Shell Assembly Components
G03244855Courtesy of FORD MOTOR CO.
