Automatic Transmission: Installation: Transaxle

Special Tool(s)

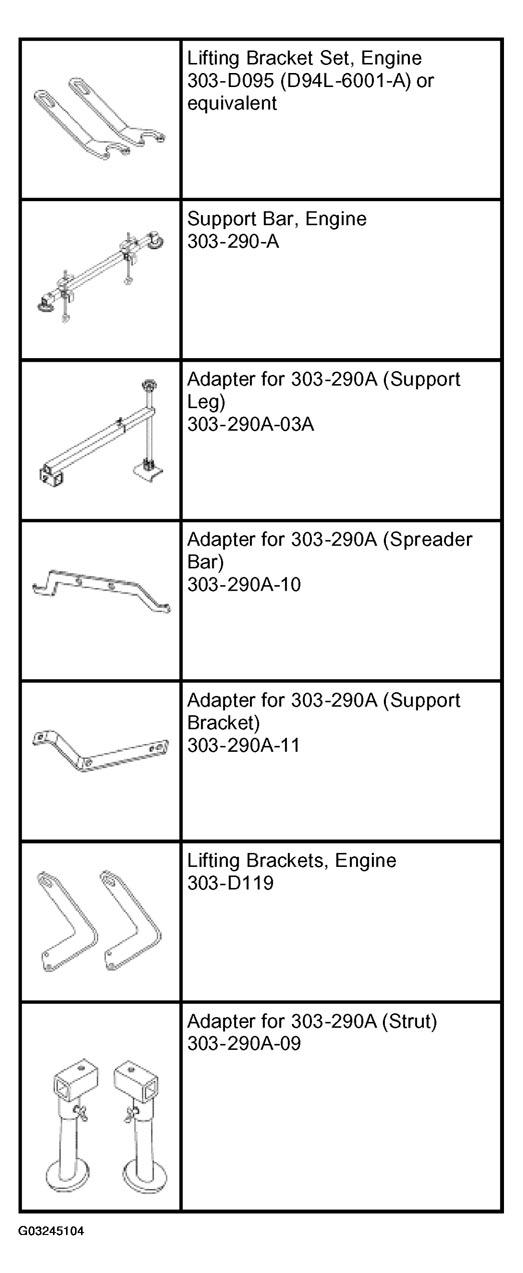

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

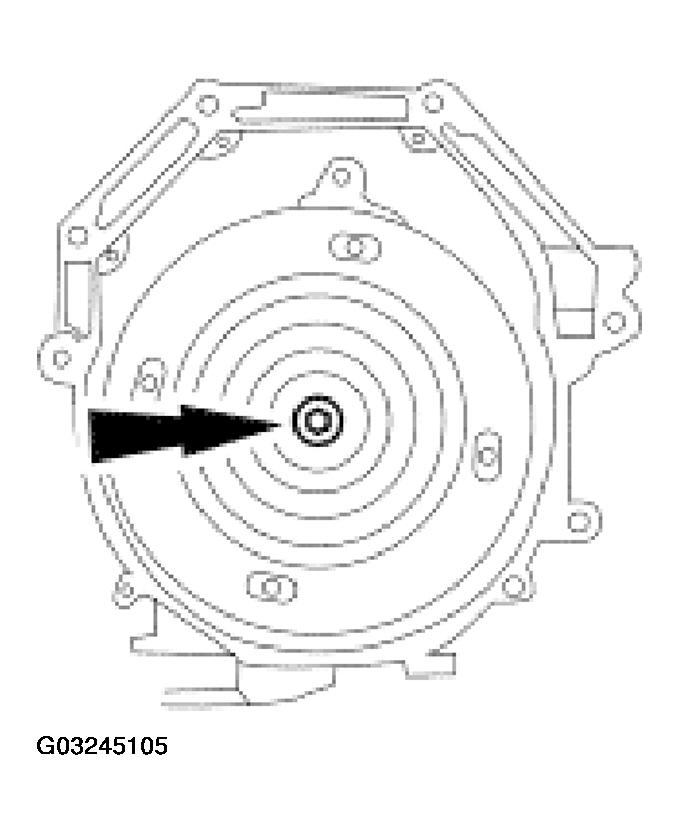

1. Secure the transaxle on a high lift transmission jack. Apply multi-purpose grease to the torque converter pilot hub.
   Fig 2: Applying Multi-Purpose Grease To Torque Converter Pilot Hub

   Courtesy of FORD MOTOR CO.

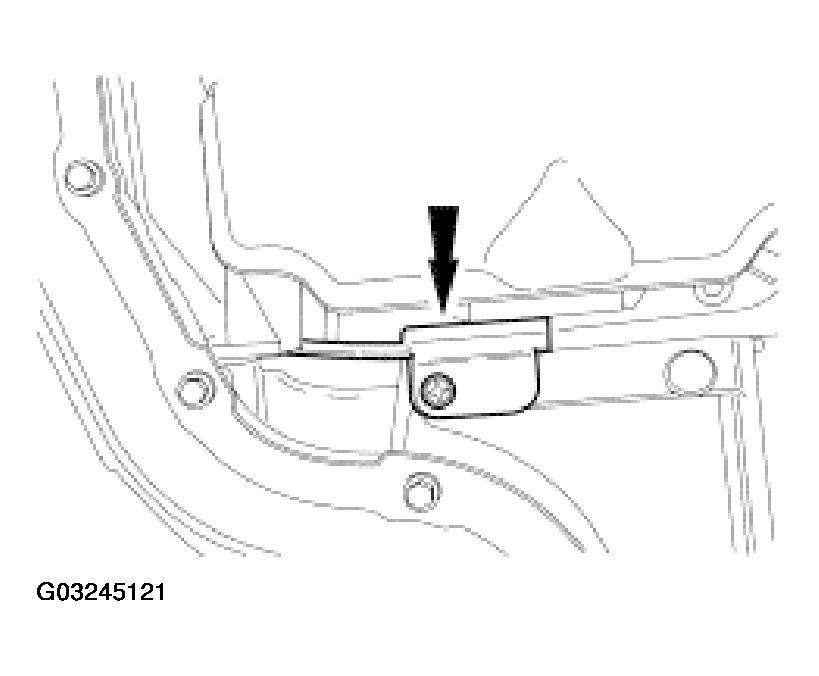

2. Install the shift cable bracket and bolts.
   • Tighten to 23 Nm (17 lb-ft).
   Fig 3: Installing Shift Cable Bracket And Bolts

   Courtesy of FORD MOTOR CO.

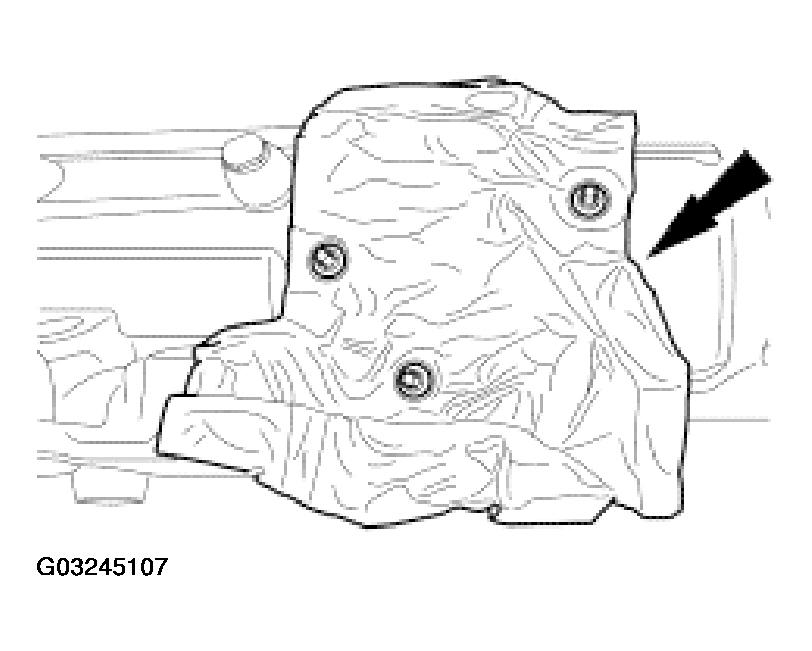

3. If not previously installed, install the heat shield.
   Fig 4: Installing Heat Shield

   Courtesy of FORD MOTOR CO.

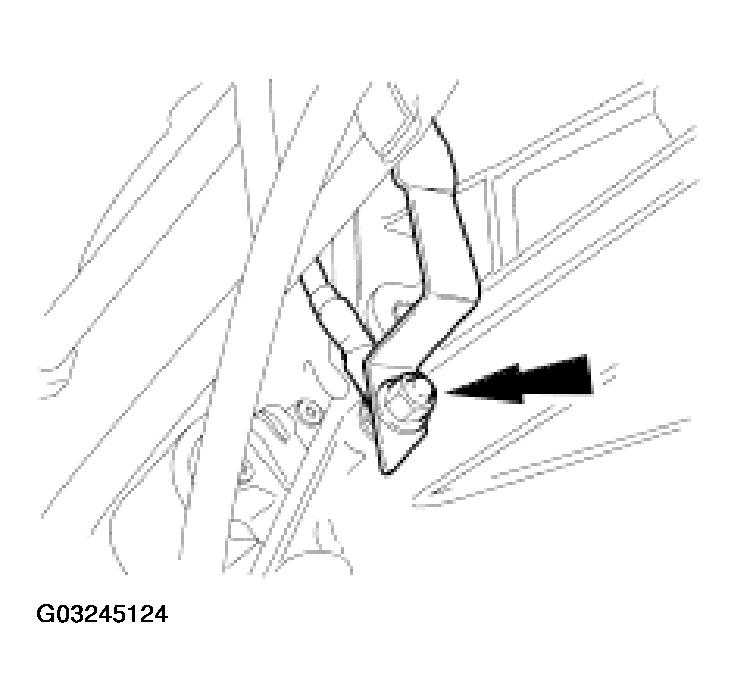

4. If not previously installed, install the rear engine support bracket.
   • Tighten to 62 Nm (46 lb-ft).
   Fig 5: Installing Rear Engine Support Bracket

   Courtesy of FORD MOTOR CO.

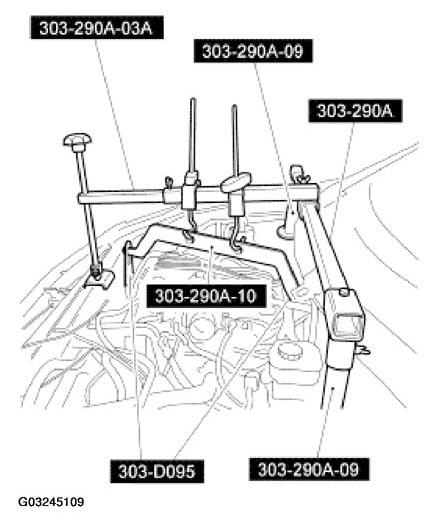

5. Verify the position of the special tools.
   Fig 6: Verifying Position Of Special Tools

   Courtesy of FORD MOTOR CO.
6. Position the transaxle to the back of the engine.
7. Position the transaxle to the engine assembly, and install the transaxle retaining bolts.
   • Tighten to 47 Nm (35 lb-ft).
   Fig 7: Installing Transaxle Retaining Bolts

   Courtesy of FORD MOTOR CO.

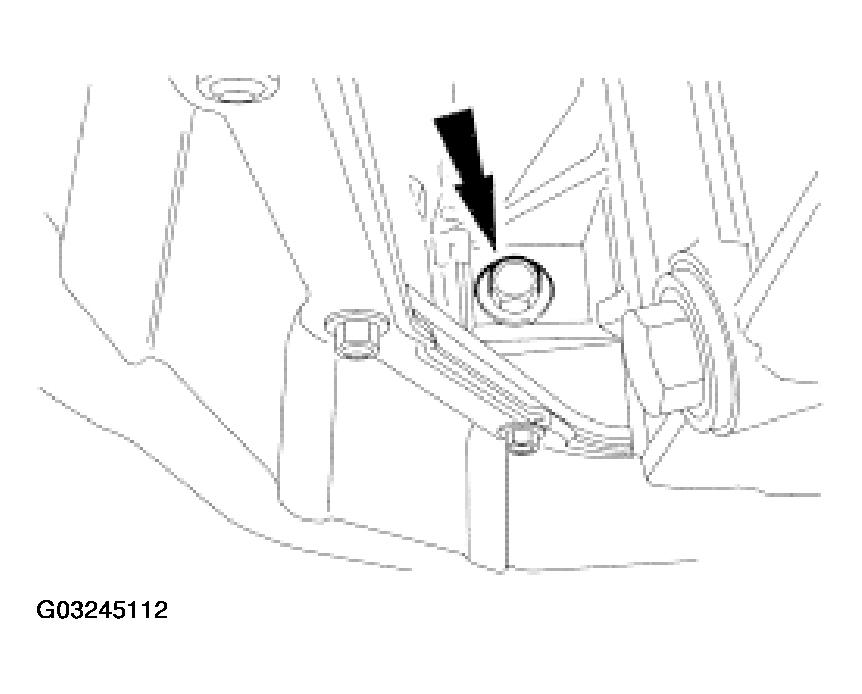

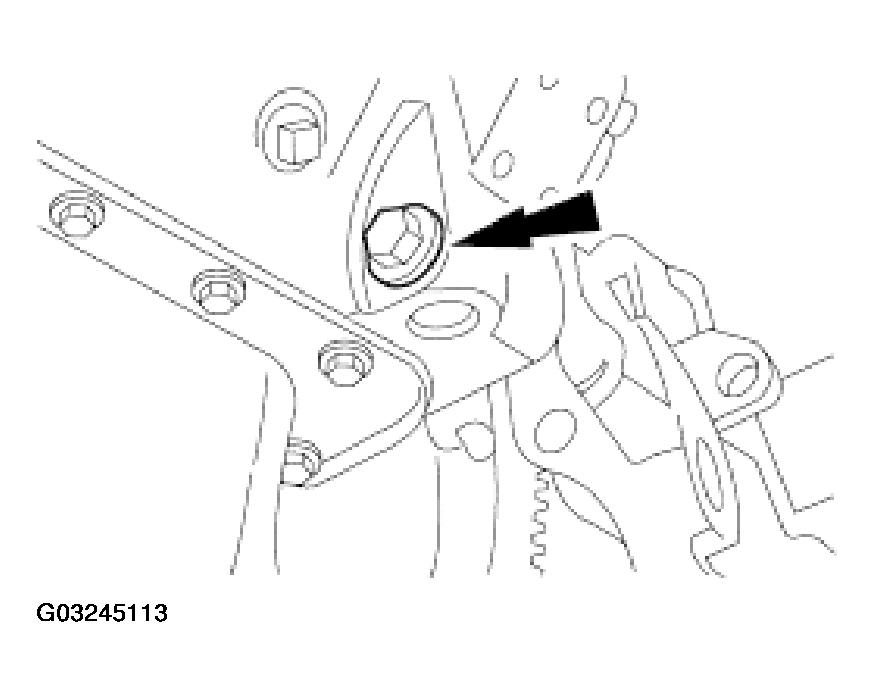

8. Install the oil pan-to-transaxle case bolt.
   • Tighten to 62 Nm (46 lb-ft).

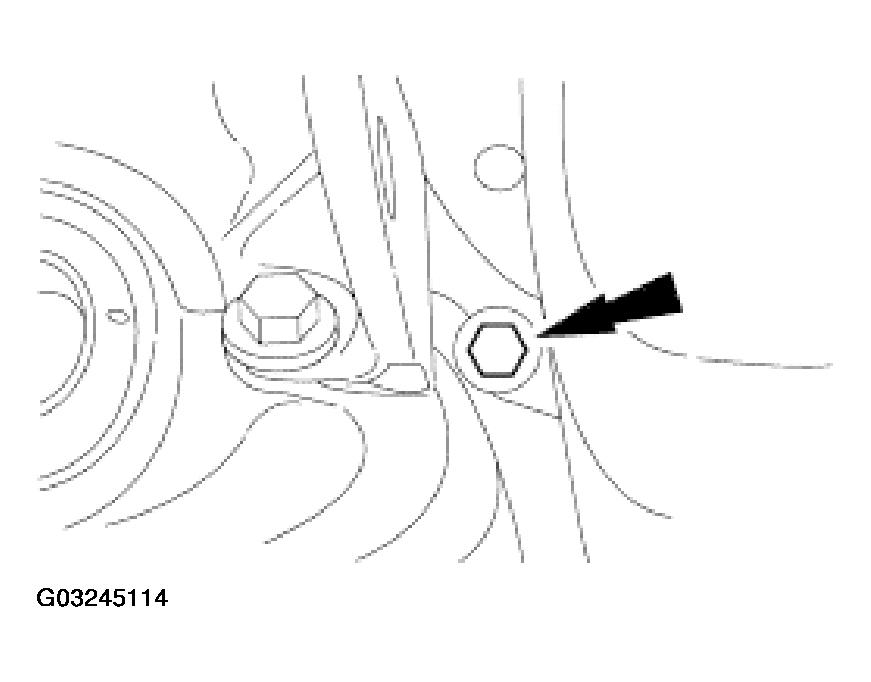

   Fig 8: Installing Oil Pan-To-Transaxle Case Bolt

   Courtesy of FORD MOTOR CO.

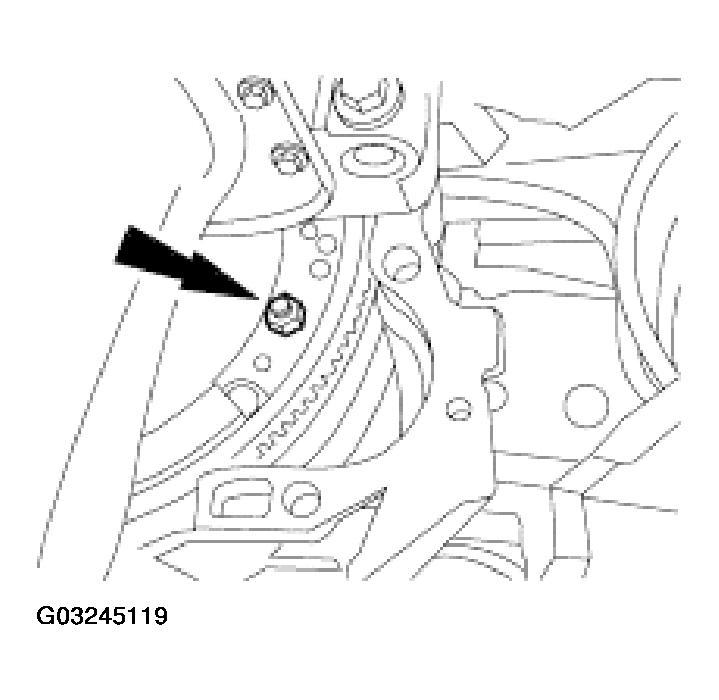

9. Install the oil pan-to-transaxle case bolt.
   • Tighten to 62 Nm (46 lb-ft).
   Fig 9: Installing Oil Pan-To-Transaxle Case Bolt

   Courtesy of FORD MOTOR CO.

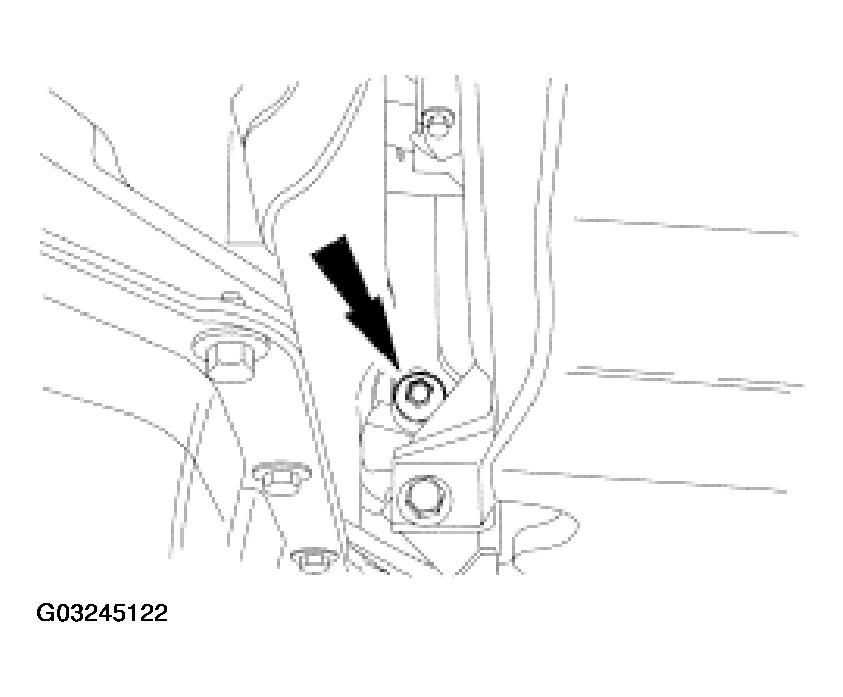

10. Install the front lower retaining bolt.
    • Tighten to 62 Nm (46 lb-ft).

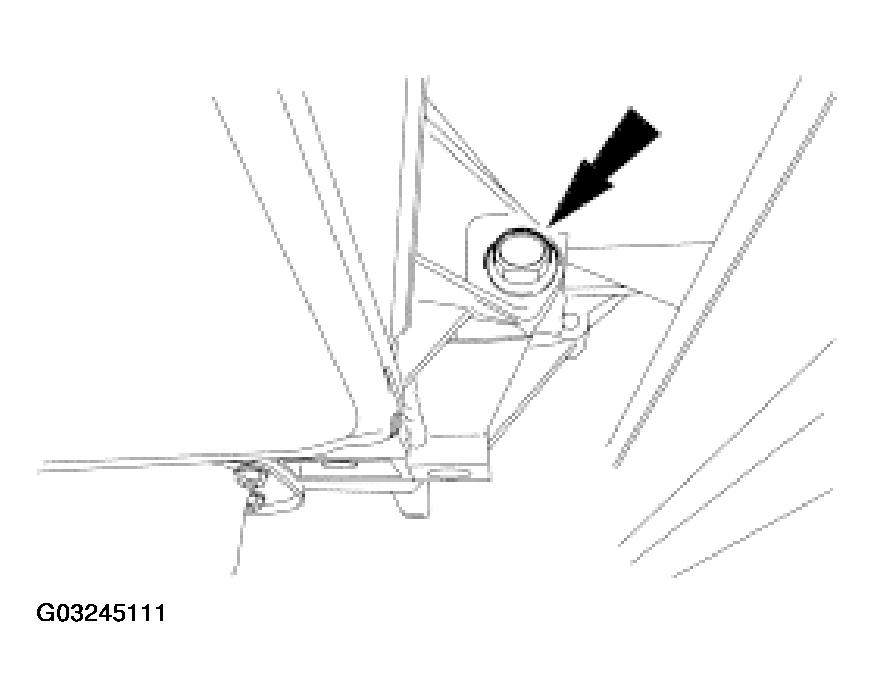

    Fig 10: Installing Front Lower Retaining Bolt

    Courtesy of FORD MOTOR CO.
11. Install the rear lower retaining bolt.
    • Tighten to 62 Nm (46 lb-ft).
    Fig 11: Installing Rear Lower Retaining Bolt

    Courtesy of FORD MOTOR CO.
12. Remove the high-lift transmission jack.

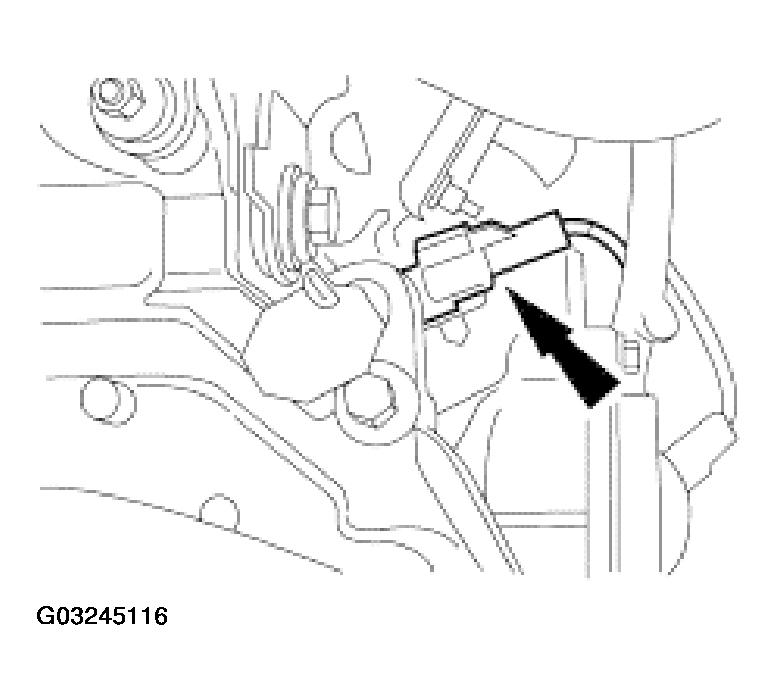

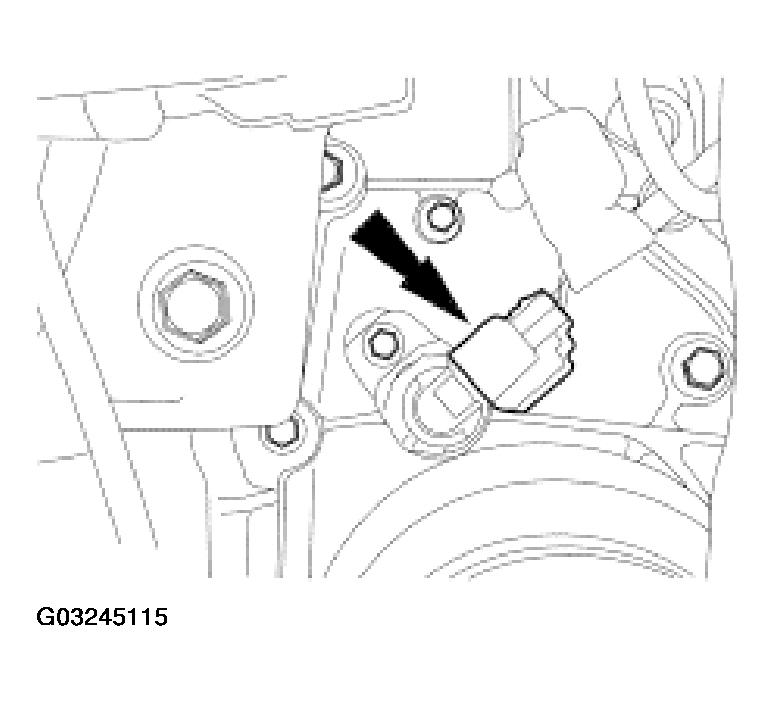

13. Connect the turbine shaft speed (TSS) sensor electrical connector.
    Fig 12: Connecting Turbine Shaft Speed (TSS) Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
14. Connect the output shaft speed (OSS) sensor electrical connector.
    Fig 13: Connecting Output Shaft Speed (OSS) Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.

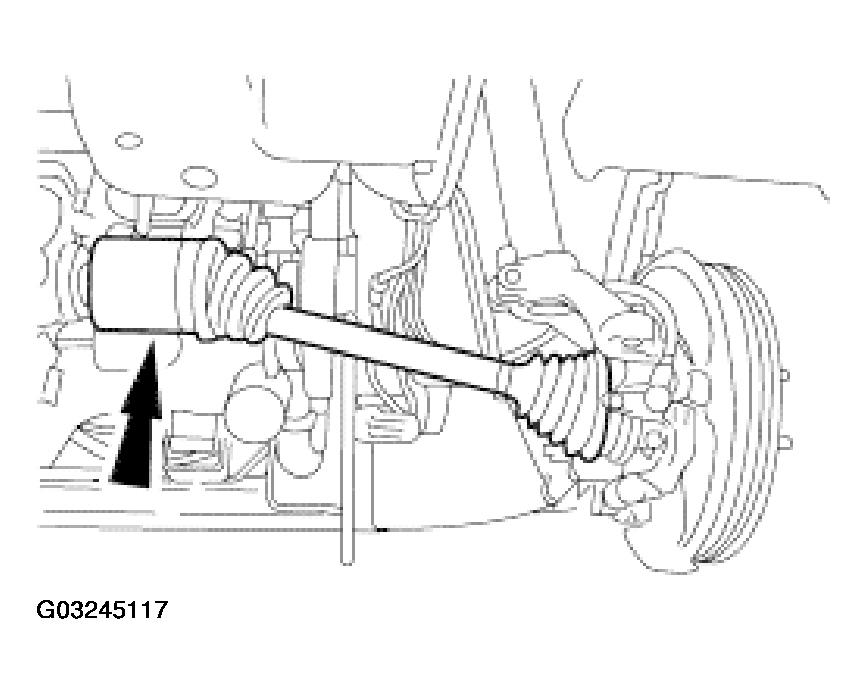

15. Install the RH halfshaft.
    Fig 14: Installing RH Halfshaft

    Courtesy of FORD MOTOR CO.

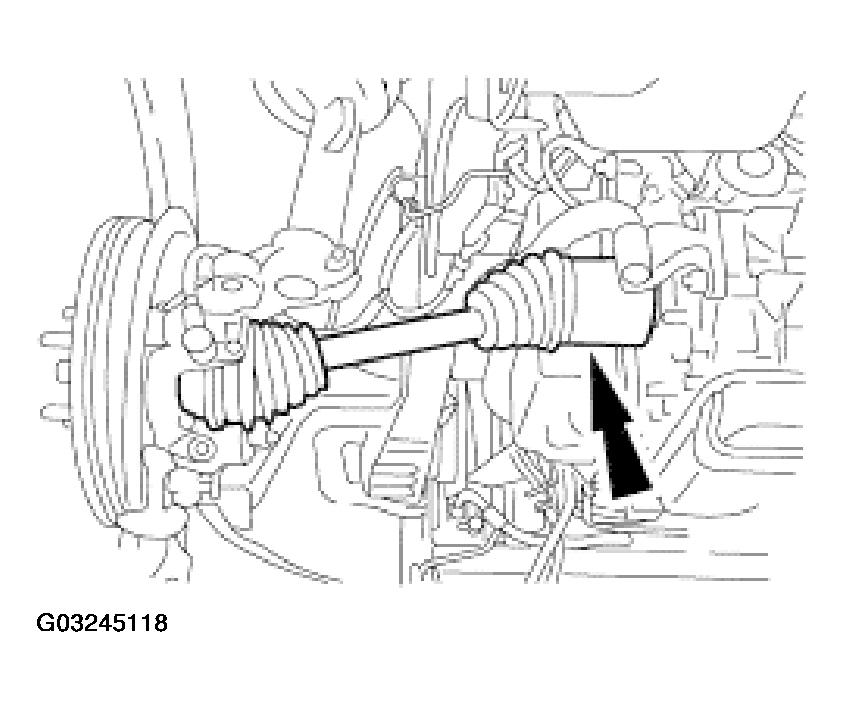

16. Install the LH halfshaft.
    Fig 15: Installing LH Halfshaft

    Courtesy of FORD MOTOR CO.
NOTE: Locate and align the orange dot adjacent to the stud on the torque converter with the orange dot on the flexplate.
Fig 16: Installing Torque Converter Nuts
Courtesy of FORD MOTOR CO.
17. Install 4 new torque converter nuts.
    • Tighten to 35 Nm (26 lb-ft).

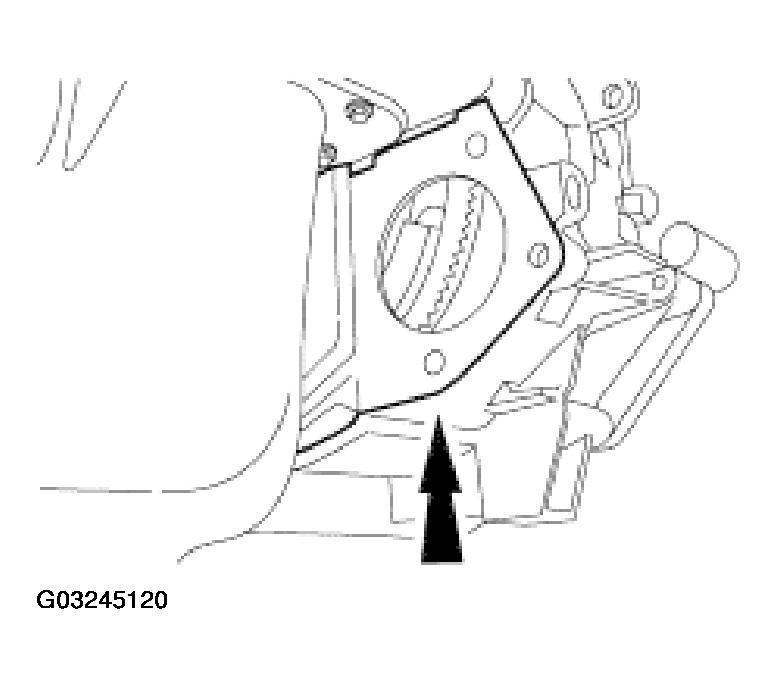

18. Install the 2-piece transaxle housing cover.
    Fig 17: Installing Transaxle Housing Cover

    Courtesy of FORD MOTOR CO.
19. Install the pushpin for the inspection cover.
    Fig 18: Installing Pushpin For Inspection Cover

    Courtesy of FORD MOTOR CO.
20. Tighten the transaxle inspection cover bolt and pushpin.
    • Tighten to 10 Nm (89 lb-in).
    Fig 19: Tightening Transaxle Inspection Cover Bolt And Pushpin

    Courtesy of FORD MOTOR CO.

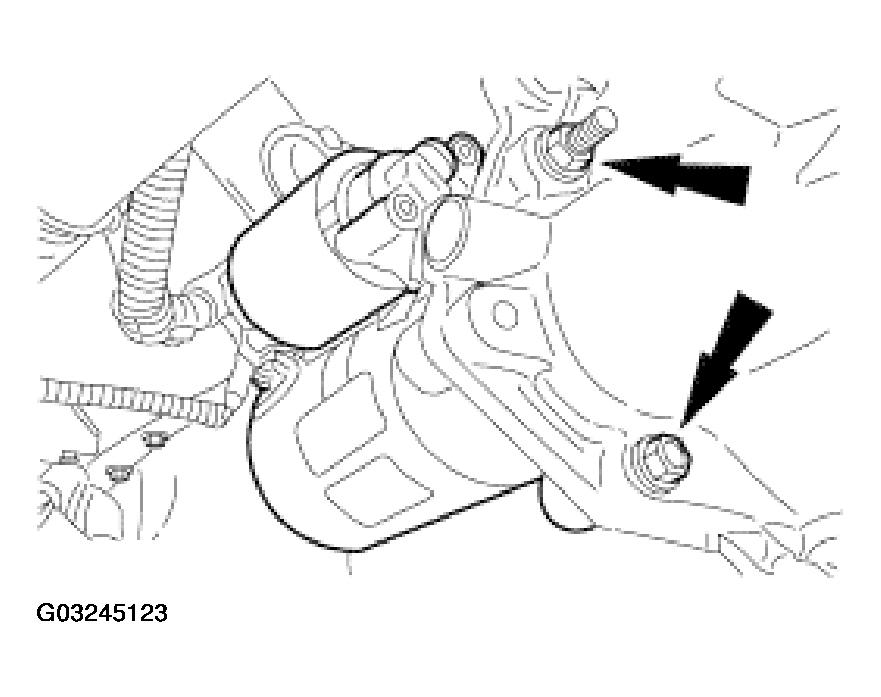

21. Install the starter motor.
    • Tighten to 25 Nm (18 lb-ft).
    Fig 20: Installing Starter Motor

    Courtesy of FORD MOTOR CO.
22. Install the ground strap.
    • Tighten to 20 Nm (15 lb-ft).
    Fig 21: Installing Ground Strap

    Courtesy of FORD MOTOR CO.
23. Raise the subframe assembly into position. Connect the heat shield to the subframe.

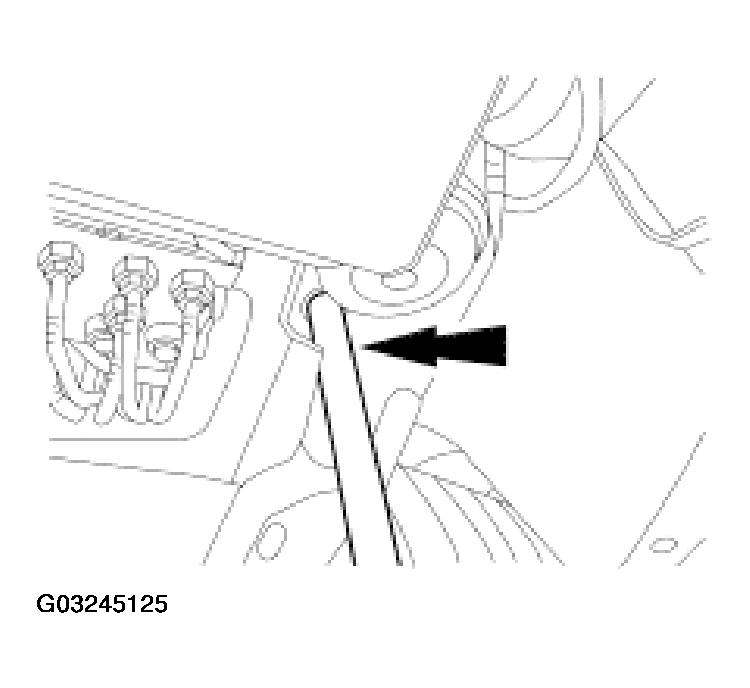

24. Using a 19 mm (0.76 in) dowel, check the front subframe alignment.
    • The dowel should slide directly through the front subframe and body without tilting.
    Fig 22: Checking Front Subframe Alignment

    Courtesy of FORD MOTOR CO.

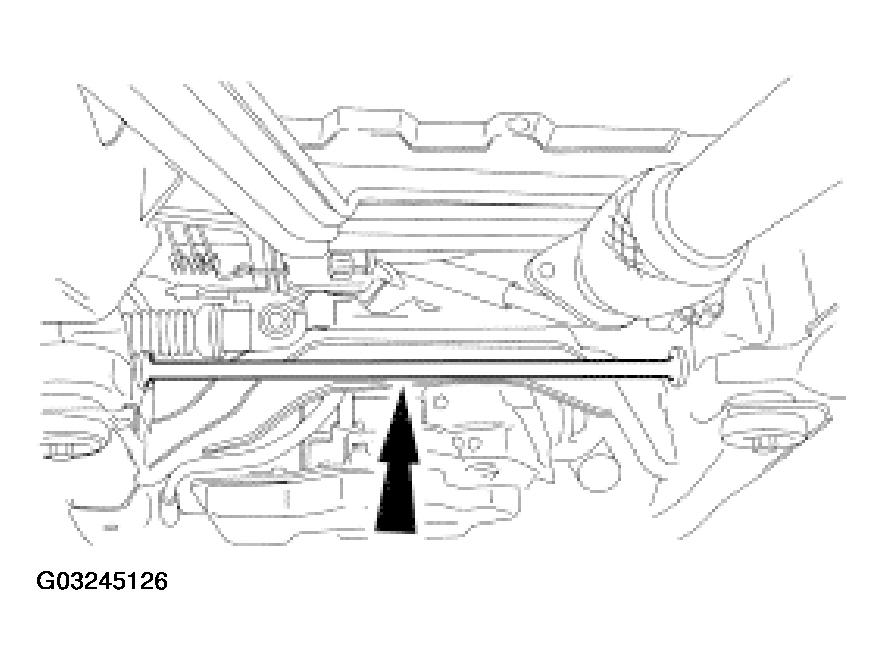

25. Install the sway bar assembly.
    Fig 23: Installing Sway Bar Assembly

    Courtesy of FORD MOTOR CO.
26. Install 2 bolts for the RH sway bar retainer.
    • Tighten to 62 Nm (46 lb-ft).
    Fig 24: Installing Bolts For RH Sway Bar Retainer

    Courtesy of FORD MOTOR CO.
27. Install 2 bolts for the LH sway bar retainer.
    • Tighten to 62 Nm (46 lb-ft).
    Fig 25: Installing Bolts For LH Sway Bar Retainer

    Courtesy of FORD MOTOR CO.

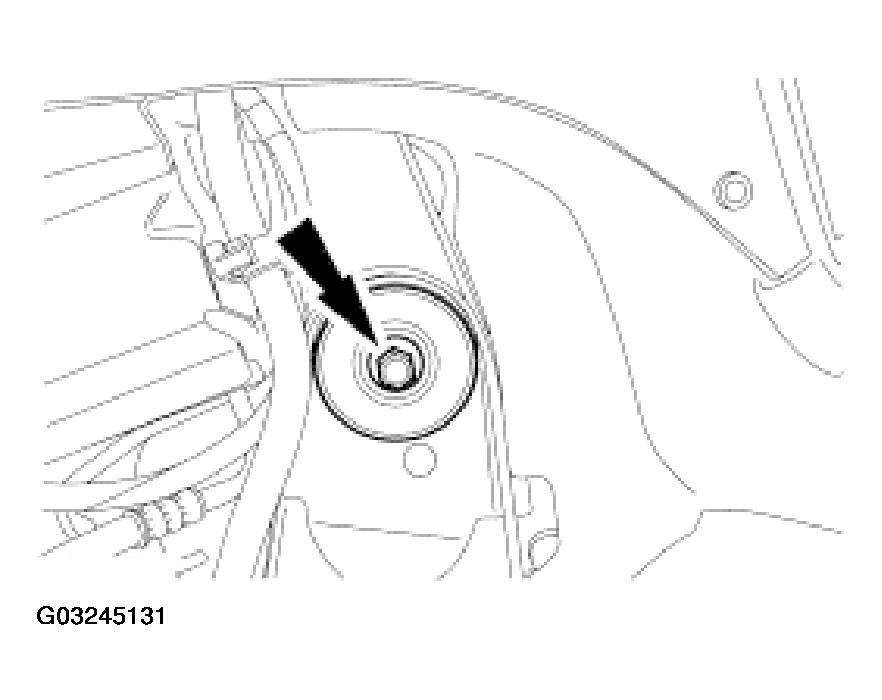

28. Install the right rear subframe bolt.
    • Tighten to 90 Nm (66 lb-ft).

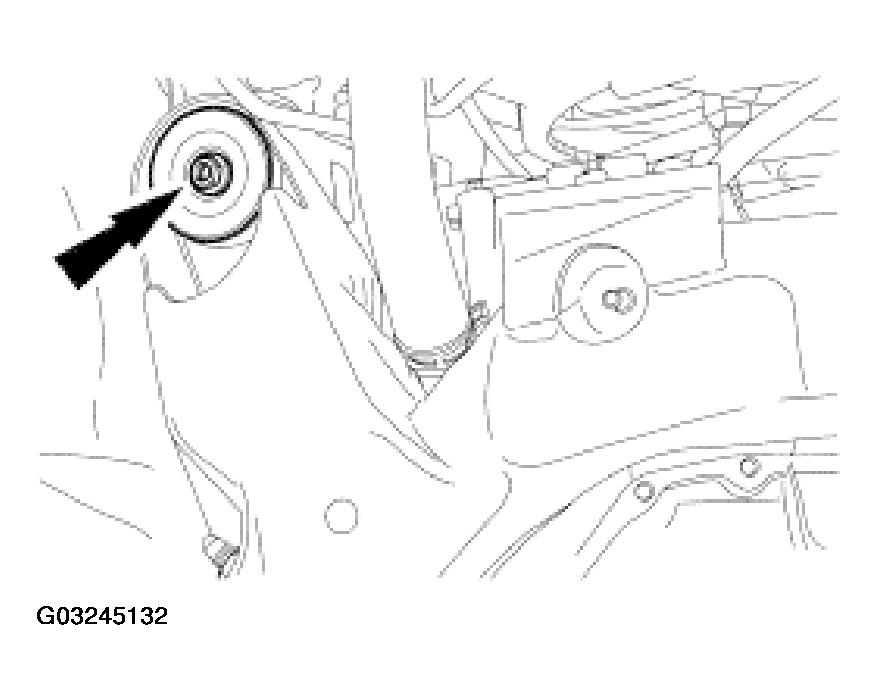

    Fig 26: Installing Right Rear Subframe Bolt

    Courtesy of FORD MOTOR CO.
29. Install the left rear subframe bolt.
    • Tighten to 90 Nm (66 lb-ft).
    Fig 27: Installing Left Rear Subframe Bolt

    Courtesy of FORD MOTOR CO.
30. Install the right front subframe bolt.
    • Tighten to 90 Nm (66 lb-ft).

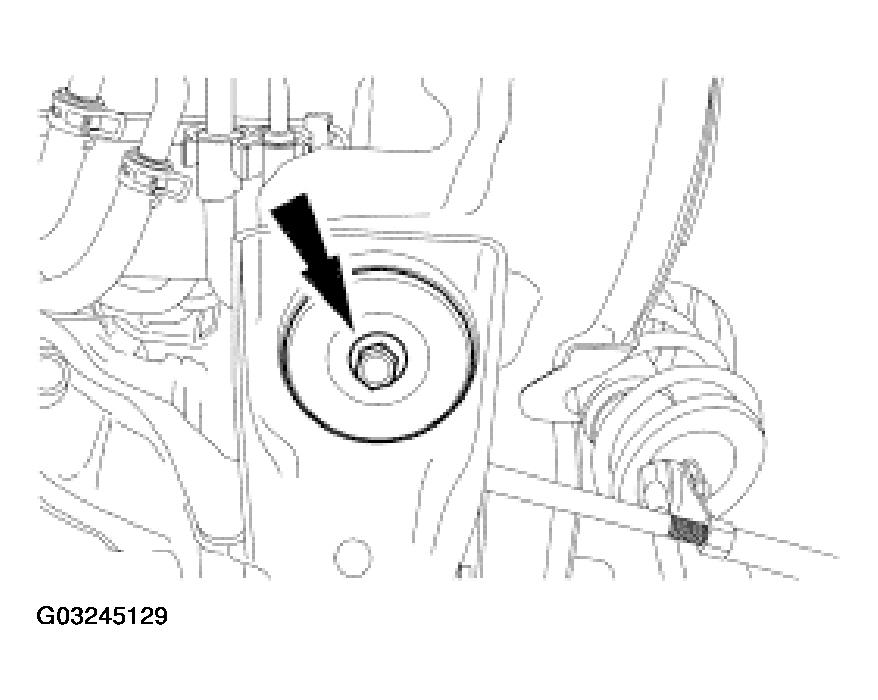

    Fig 28: Installing Right Front Subframe Bolt

    Courtesy of FORD MOTOR CO.
31. Install the left front subframe bolt.
    • Tighten to 90 Nm (66 lb-ft).
    Fig 29: Installing Left Front Subframe Bolt

    Courtesy of FORD MOTOR CO.

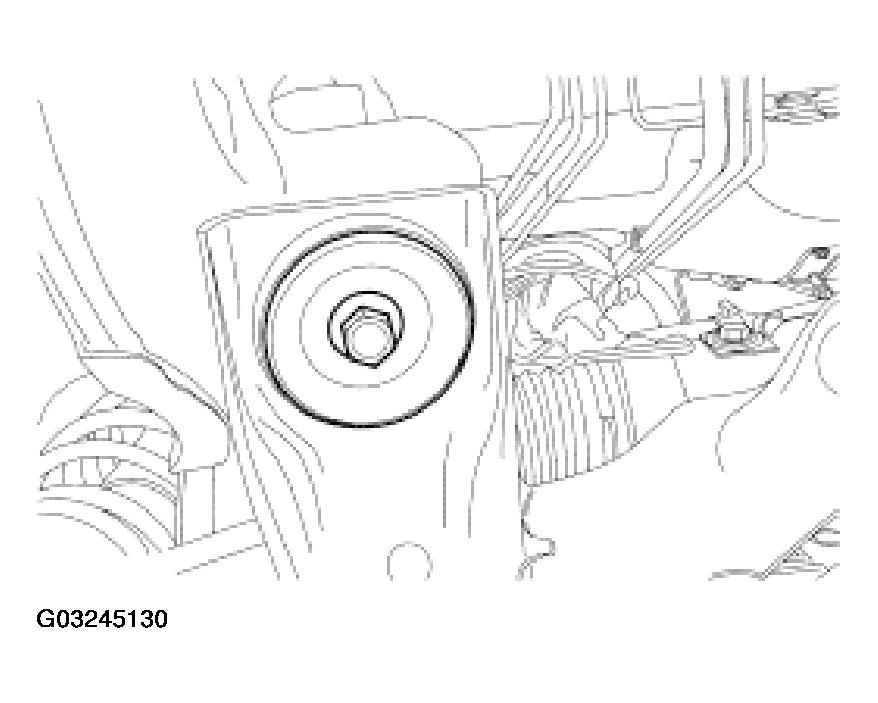

32. Install the rear engine mount.
    • Tighten to 90 Nm (66 lb-ft).

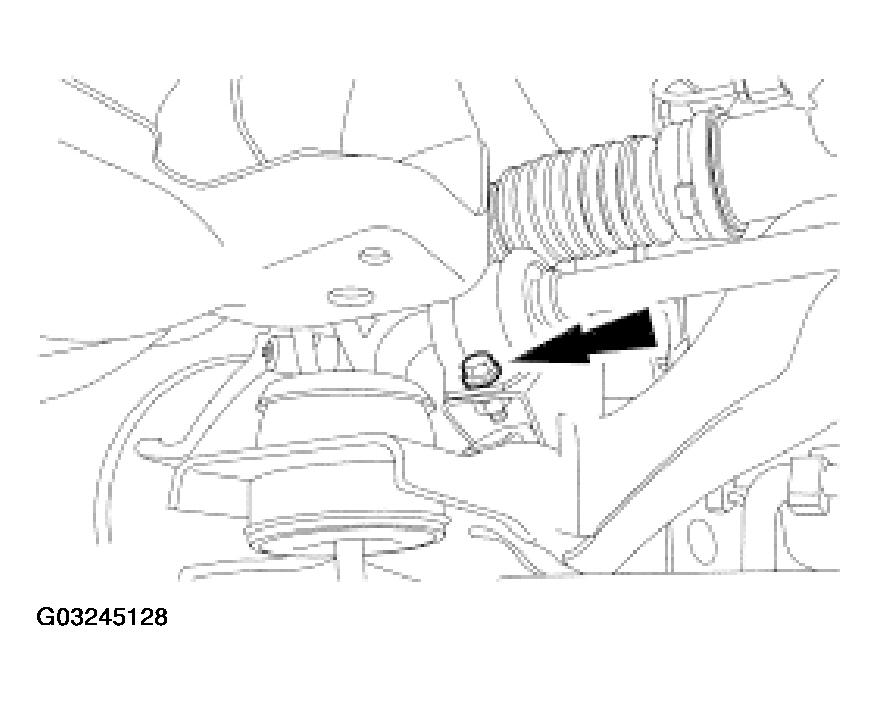

    Fig 30: Installing Rear Engine Mount

    Courtesy of FORD MOTOR CO.
33. Install the front engine mount.
    • Tighten to 90 Nm (66 lb-ft).

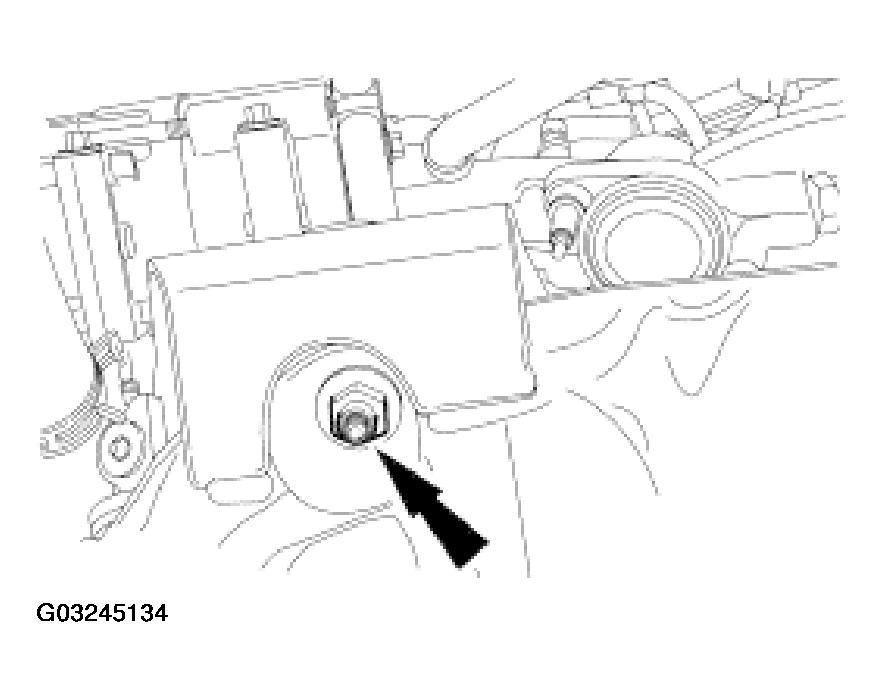

    Fig 31: Installing Front Engine Mount

    Courtesy of FORD MOTOR CO.

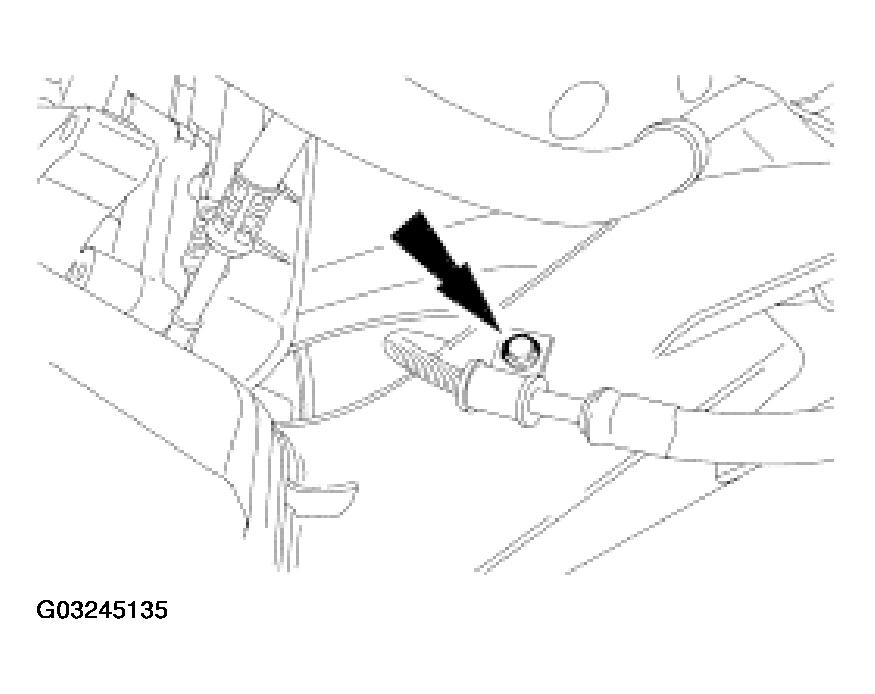

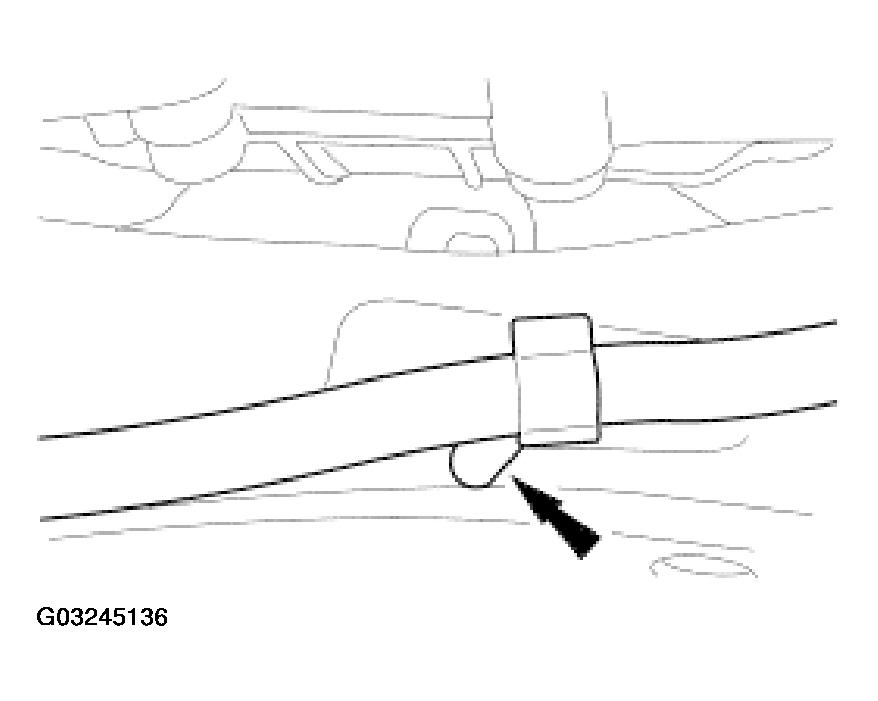

34. Install the retainer for the power steering line.
    • Tighten to 6 Nm (53 lb-in).
    Fig 32: Installing Retainer For Power Steering Line

    Courtesy of FORD MOTOR CO.
35. Install the retainer for the power steering hose.
    Fig 33: Installing Retainer For Power Steering Hose

    Courtesy of FORD MOTOR CO.
36. Install the nuts for the power steering rack.
    • Tighten to 133 Nm (98 lb-ft).
    Fig 34: Installing Nuts For Power Steering Rack

    Courtesy of FORD MOTOR CO.

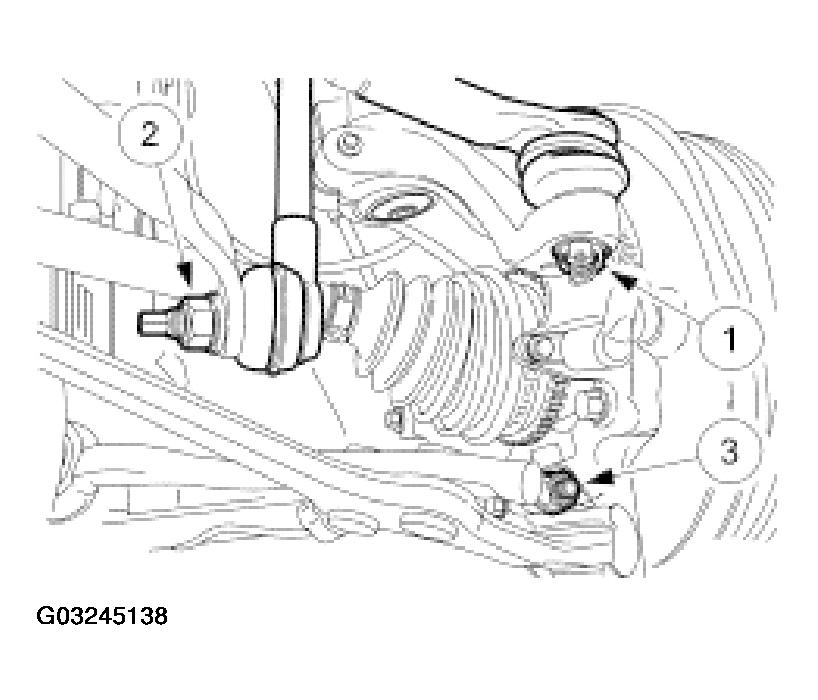

37. Connect the RH knuckle assembly.
    1. Connect the RH tie rod assembly.
       • Tighten to 55 Nm (41 lb-ft).
    2. Connect the RH sway bar assembly.
       • Tighten to 55 Nm (41 lb-ft).

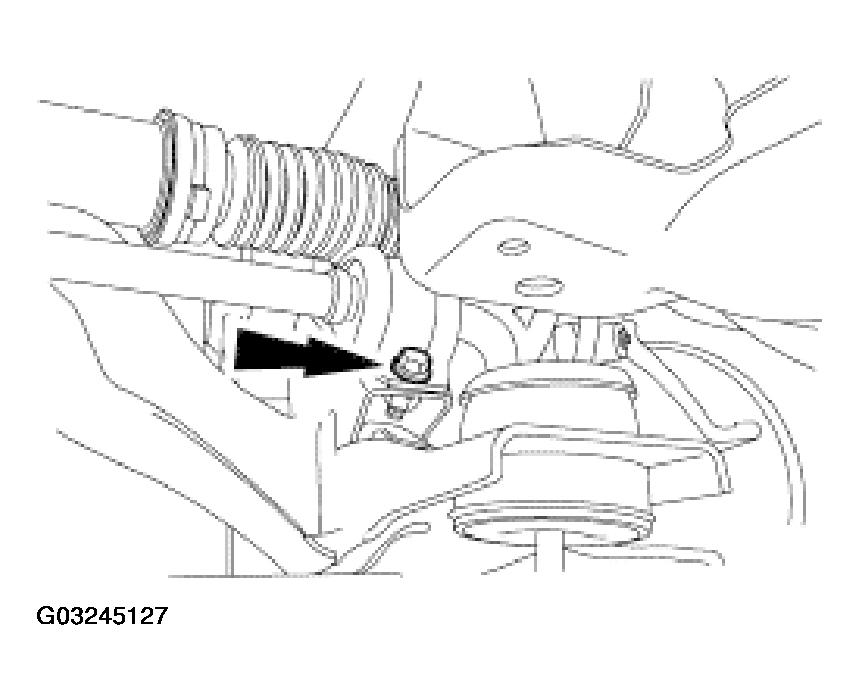

    3. Install the RH pinch bolt.
       • Tighten to 62 Nm (46 lb-ft).
    Fig 35: Installing RH Pinch Bolt

    Courtesy of FORD MOTOR CO.

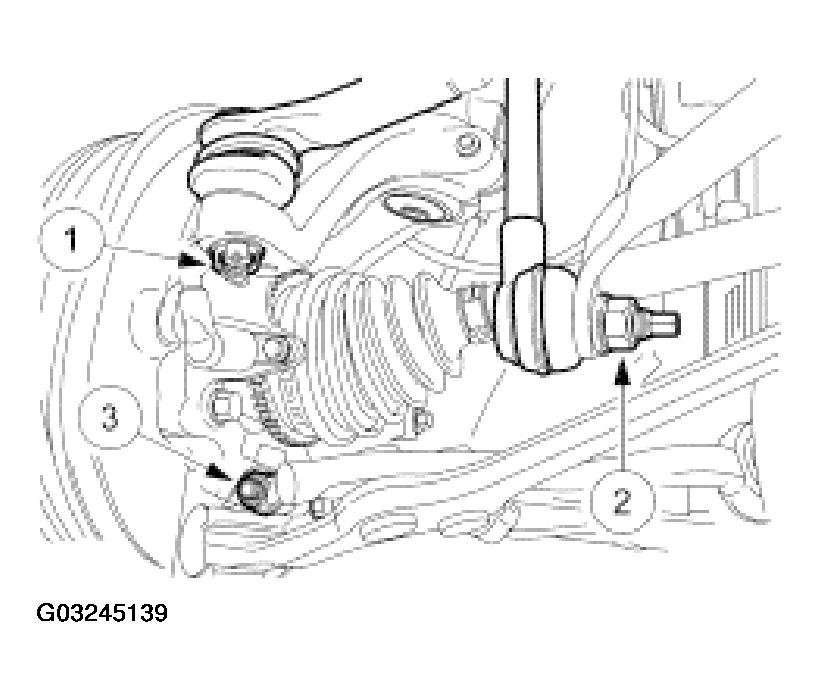

38. Connect the LH knuckle assembly.
    1. Connect the LH tie rod assembly.
       • Tighten to 55 Nm (41 lb-ft).
    2. Connect the LH sway bar assembly.
       • Tighten to 55 Nm (41 lb-ft).
    3. Install the LH pinch bolt.
       • Tighten to 62 Nm (46 lb-ft).
    Fig 36: Installing LH Pinch Bolt

    Courtesy of FORD MOTOR CO.
39. Install the catalytic converter assembly. For additional information, refer to EXHAUST SYSTEM .

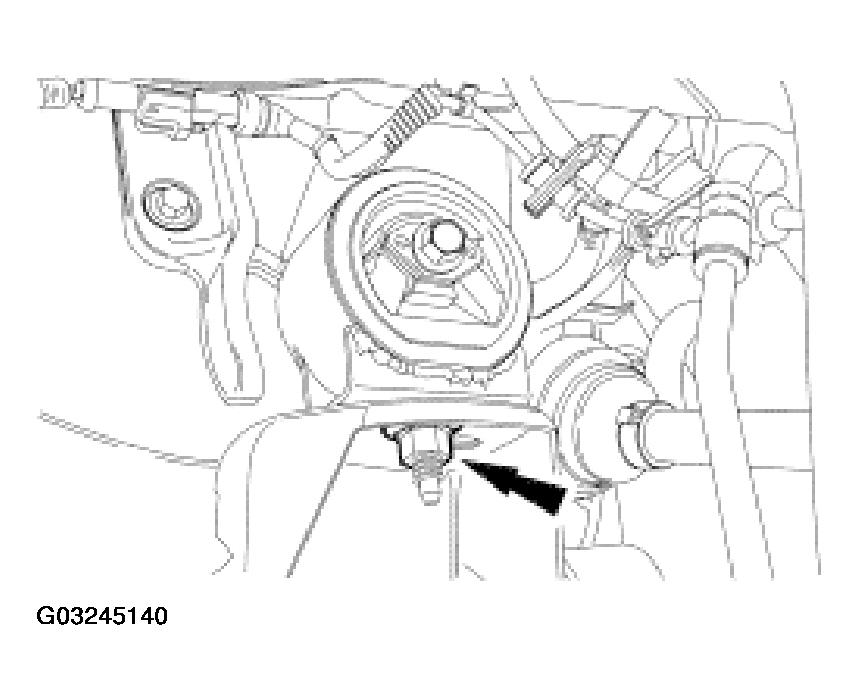

40. Install the rear transaxle mount nut.
    • Tighten to 90 Nm (66 lb-ft).

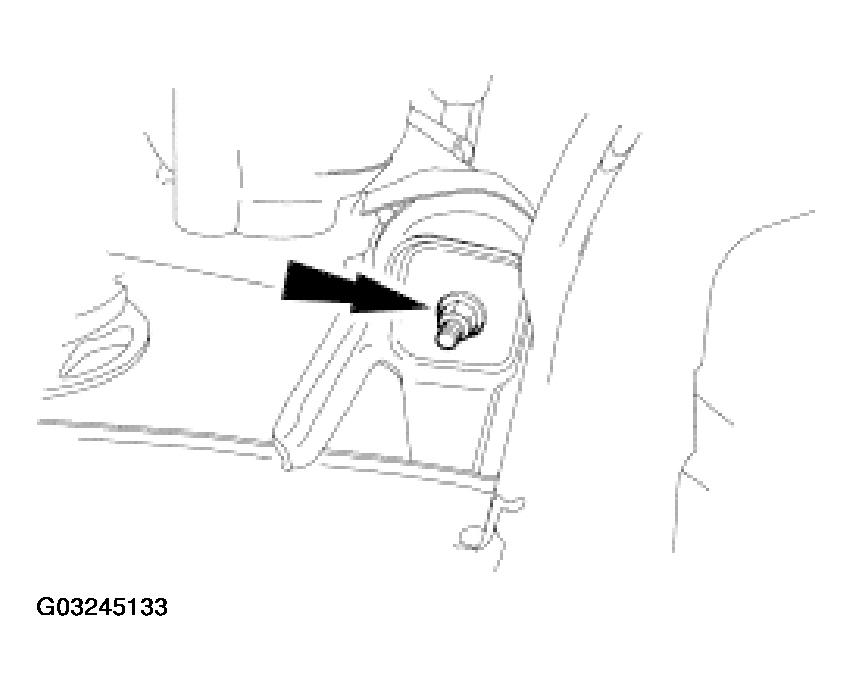

    Fig 37: Installing Rear Transaxle Mount Nut

    Courtesy of FORD MOTOR CO.

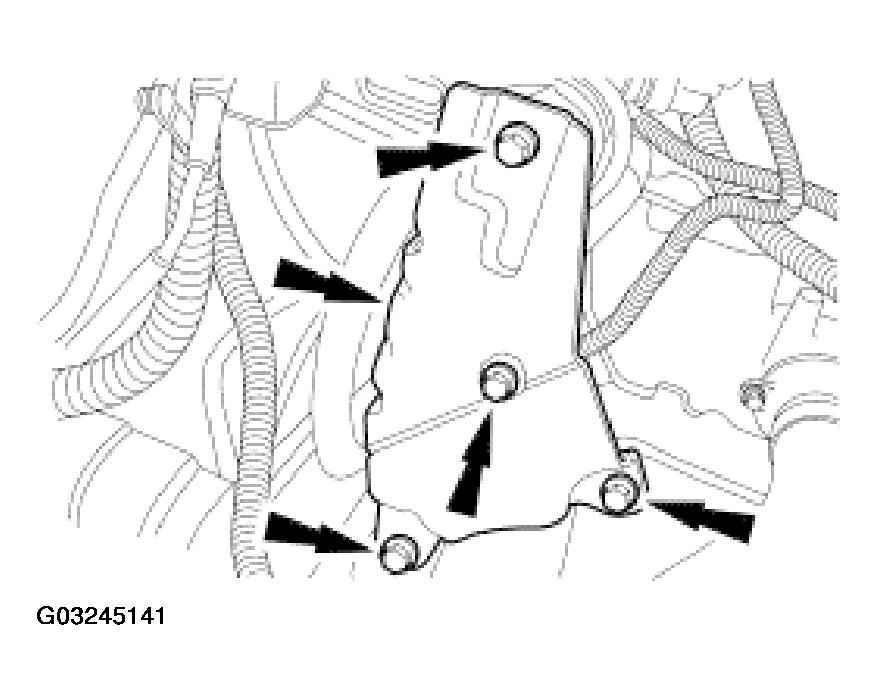

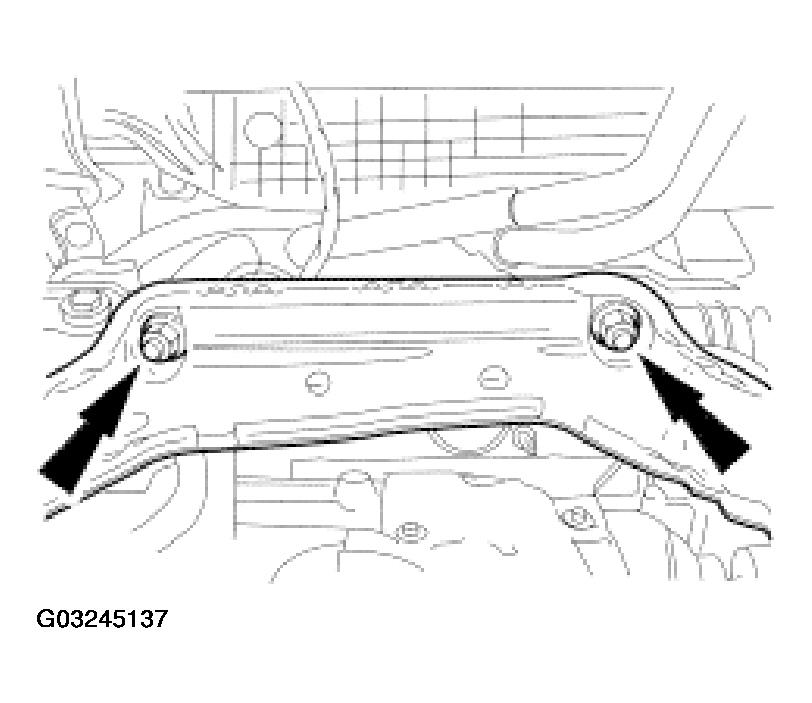

41. Install the anti-roll bracket and the 4 bolts.
    • Tighten to 62 Nm (46 lb-ft).

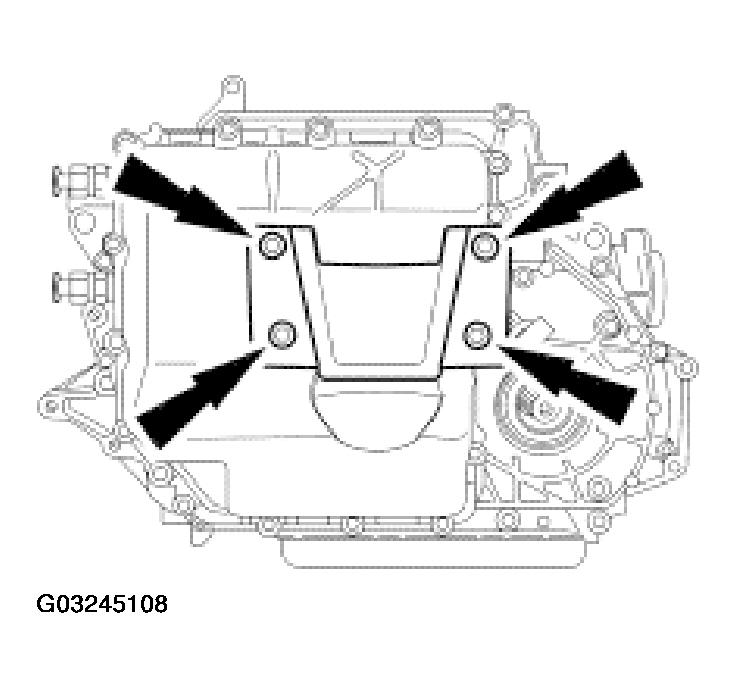

    Fig 38: Installing Anti-Roll Bracket And Bolts

    Courtesy of FORD MOTOR CO.

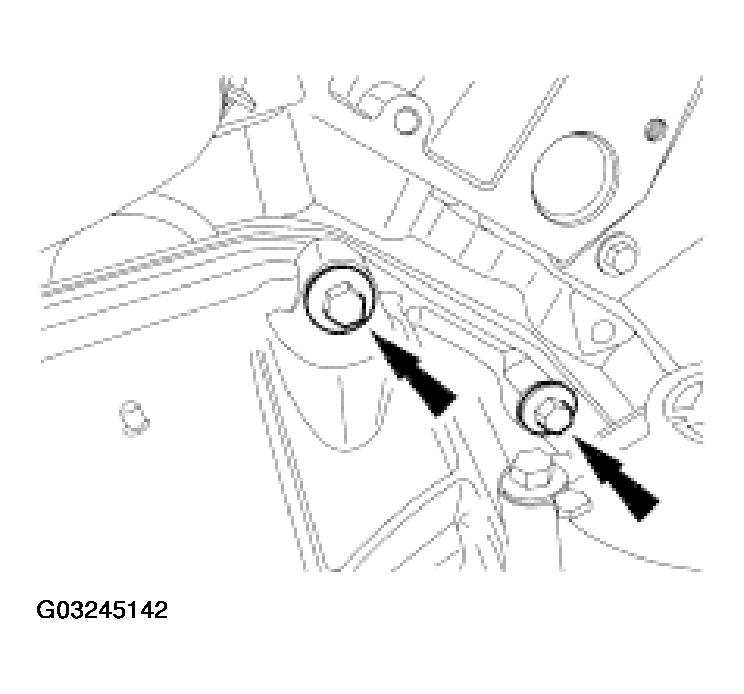

42. Install the 2 transaxle retaining bolts.
    • Tighten to 62 Nm (46 lb-ft).
    Fig 39: Installing Transaxle Retaining Bolts

    Courtesy of FORD MOTOR CO.

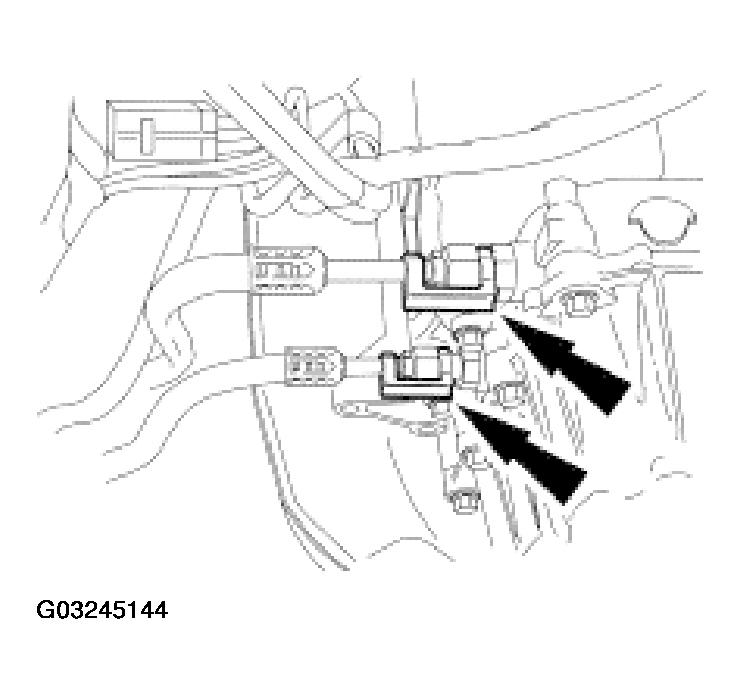

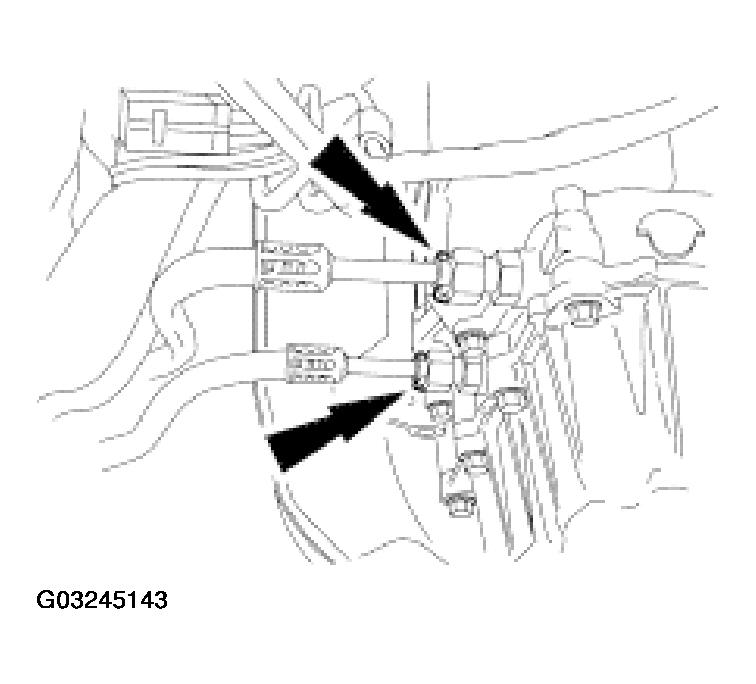

43. Connect the transaxle fluid cooler tubes.
    Fig 40: Connecting Transaxle Fluid Cooler Tubes

    Courtesy of FORD MOTOR CO.
44. Install the retaining clips.
    Fig 41: Installing Retaining Clips

    Courtesy of FORD MOTOR CO.

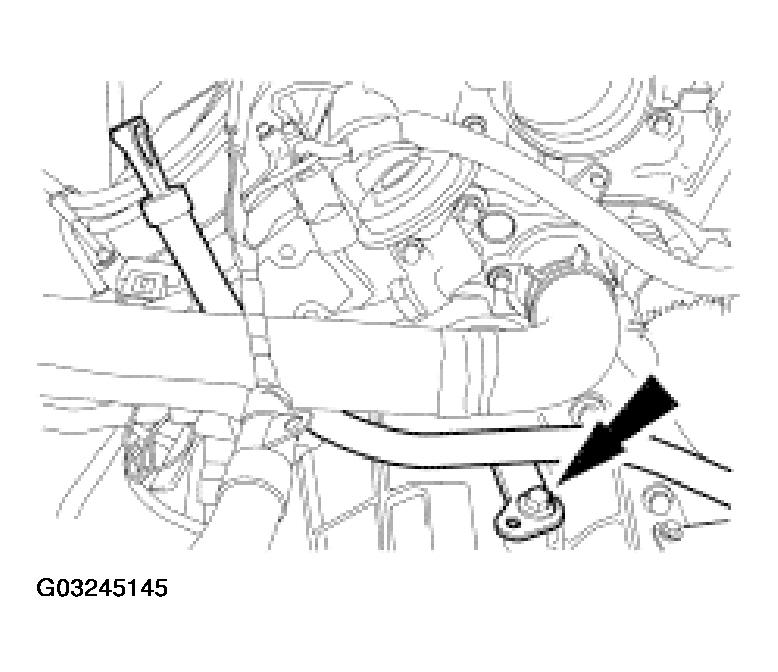

45. Install the upper transaxle fluid filler tube and bolt.
    • Tighten to 14 Nm (10 lb-ft).
    Fig 42: Installing Upper Transaxle Fluid Filler Tube And Bolt

    Courtesy of FORD MOTOR CO.

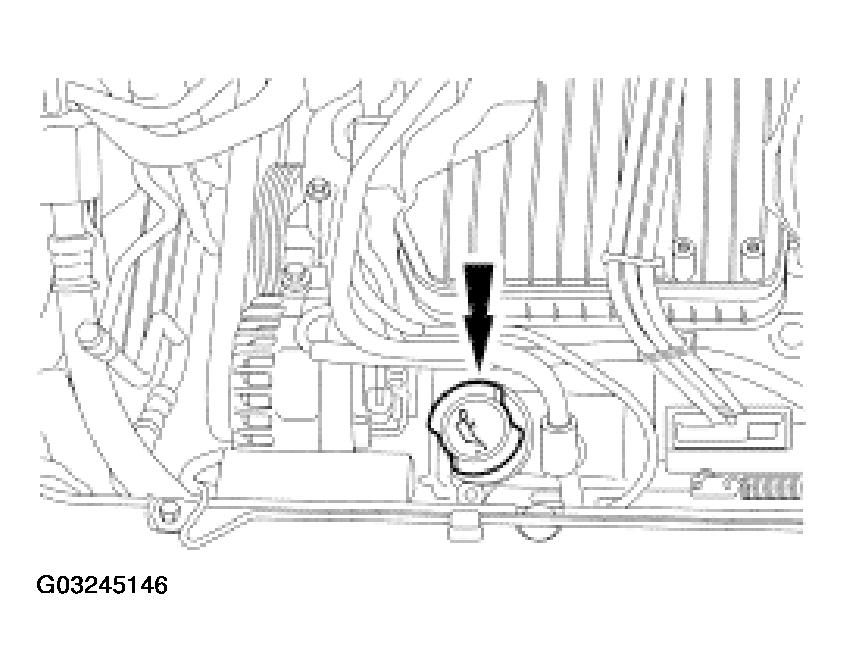

46. Install the oil filler cap.
    Fig 43: Installing Oil Filler Cap

    Courtesy of FORD MOTOR CO.

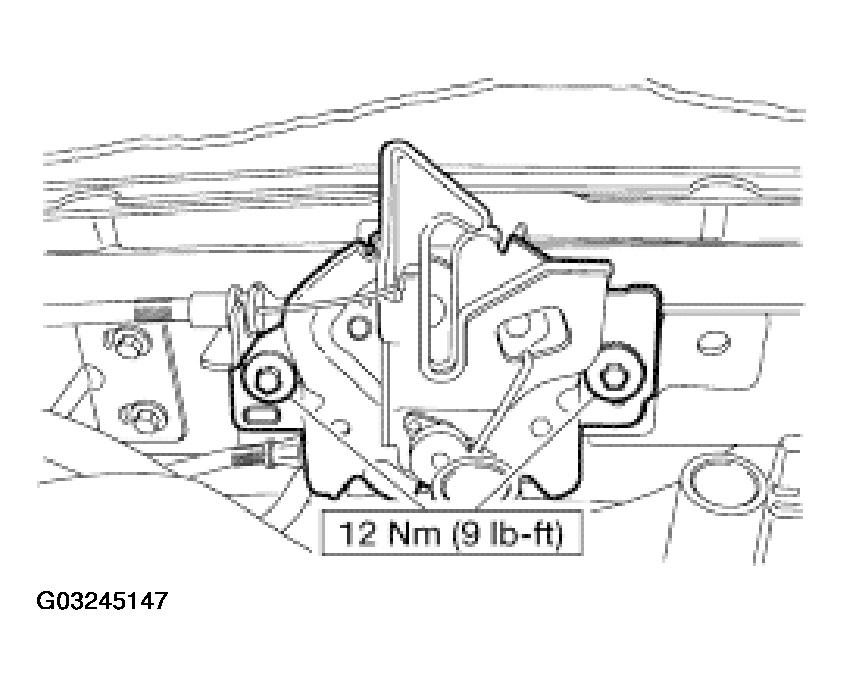

47. Install the hood latch.
    • Tighten to 12 Nm (9 lb-ft).
    Fig 44: Installing Hood Latch

    Courtesy of FORD MOTOR CO.

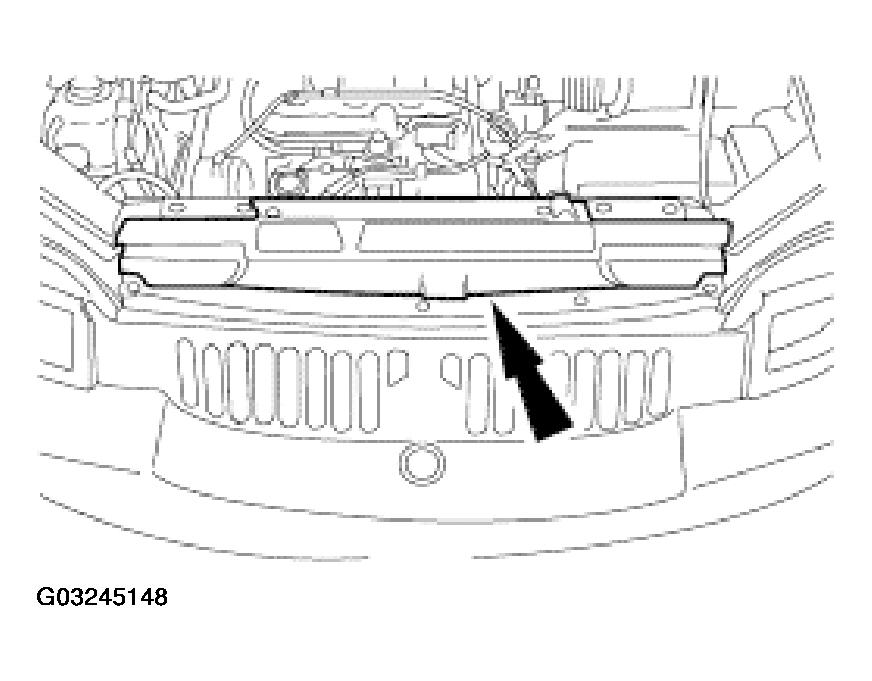

48. Install the front upper radiator shield.
    Fig 45: Installing Front Upper Radiator Shield

    Courtesy of FORD MOTOR CO.
49. Install the air intake tube.
    Fig 46: Installing Air Intake Tube

    Courtesy of FORD MOTOR CO.

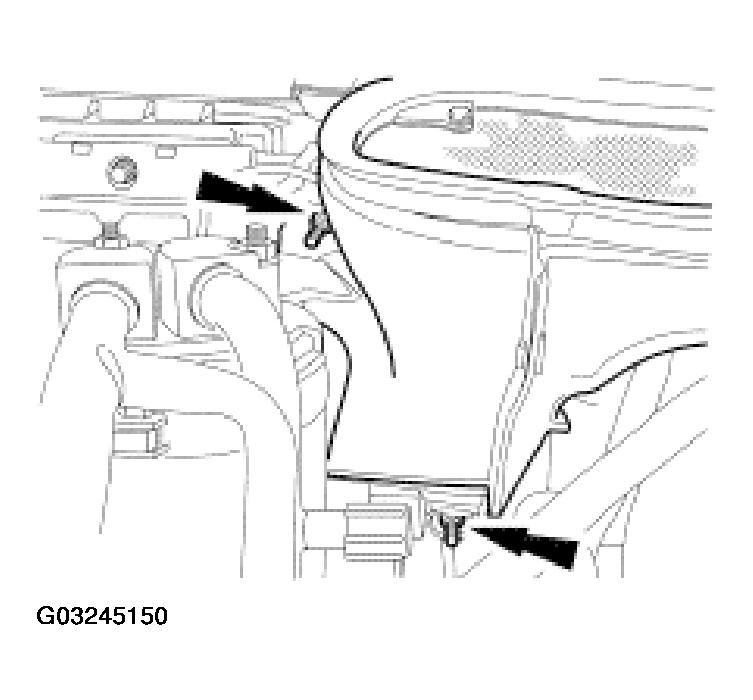

50. Install the passenger compartment air intake box.
    Fig 47: Installing Passenger Compartment Air Intake Box

    Courtesy of FORD MOTOR CO.
51. Install the wiper arm and pivot assembly. For additional information, refer to WINDSHIELD WIPER .
52. Install the hood.
53. Verify that the digital transmission range (TR) sensor is correctly adjusted. For additional information, refer to TRANSMISSION RANGE (TR) SENSOR ADJUSTMENT .

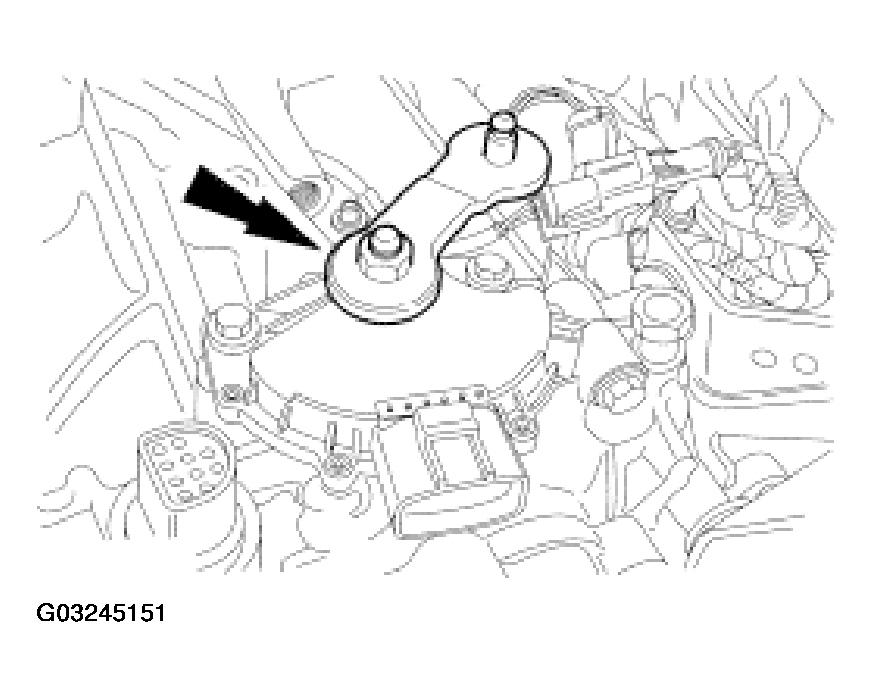

54. Install the manual control lever and nut.
    • Tighten to 13 Nm (10 lb-ft).
    Fig 48: Installing Manual Control Lever And Nut

    Courtesy of FORD MOTOR CO.

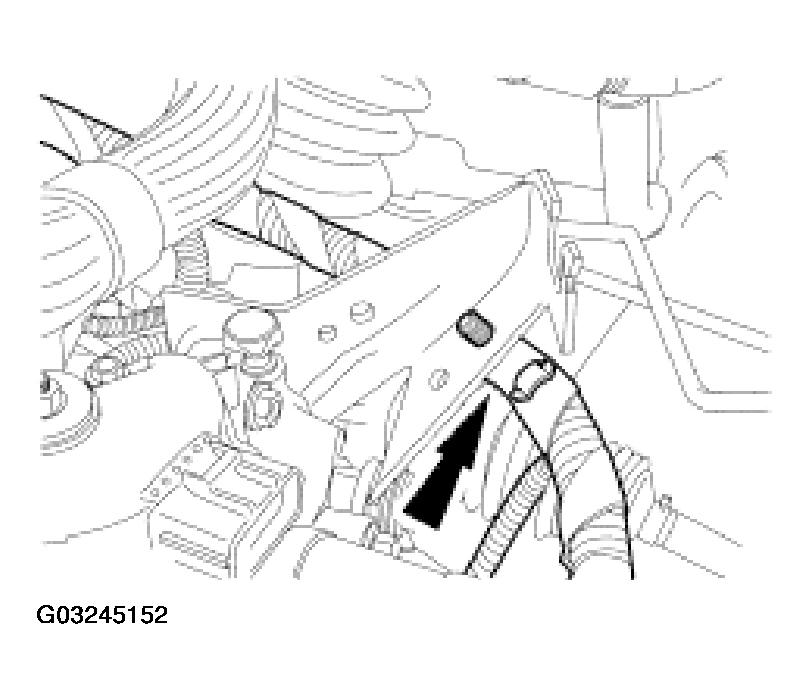

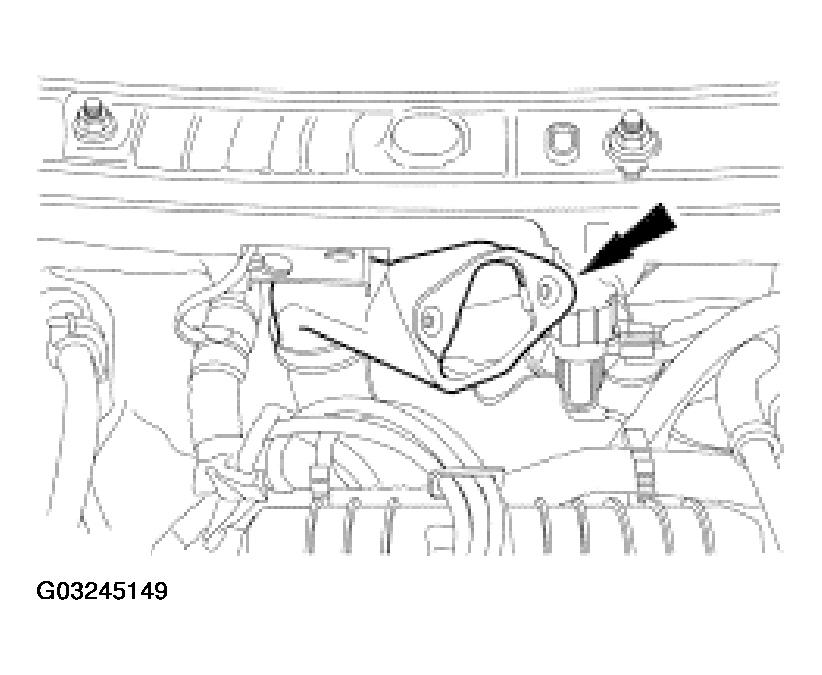

55. Reconnect the harness retainer.
    Fig 49: Reconnecting Harness Retainer

    Courtesy of FORD MOTOR CO.

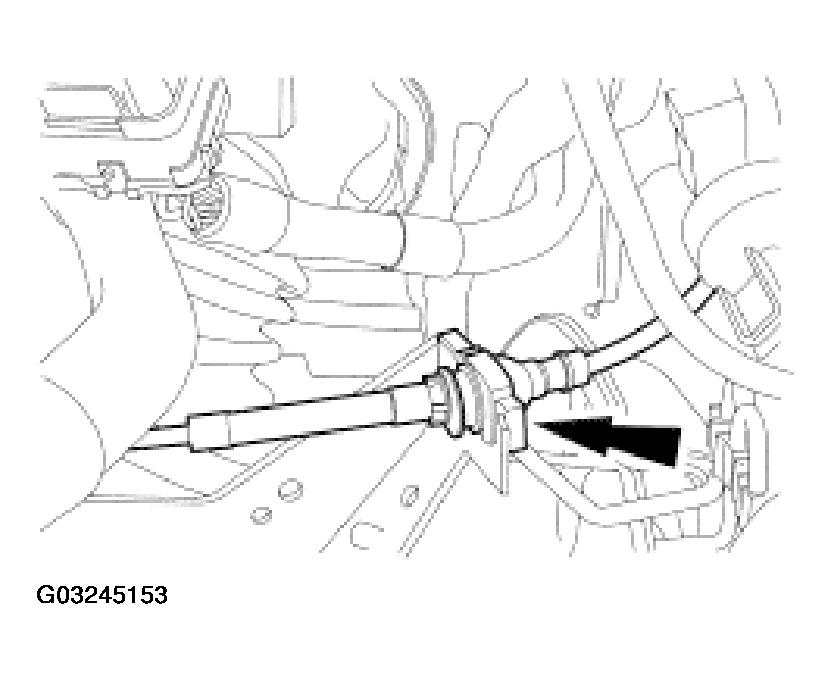

56. Install the shift cable in the bracket.
    Fig 50: Installing Shift Cable In Bracket

    Courtesy of FORD MOTOR CO.

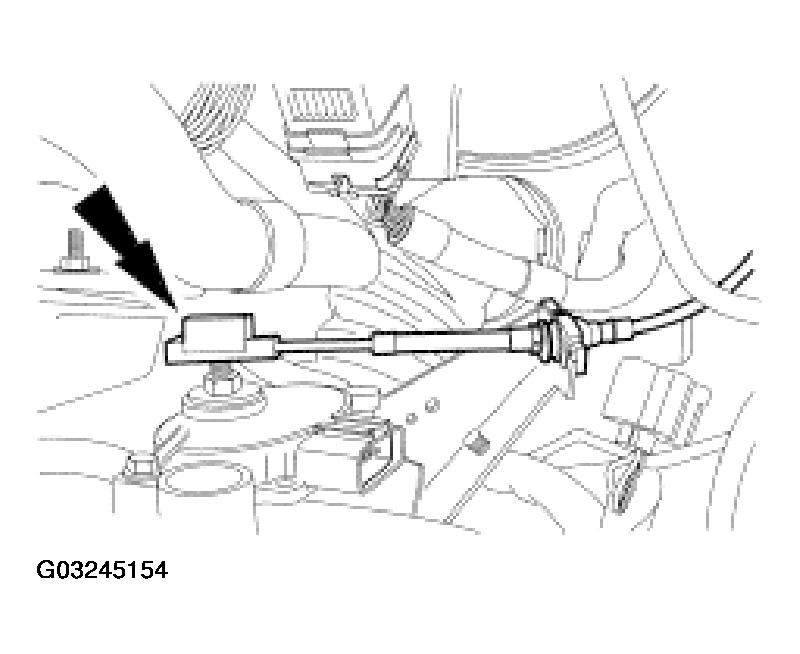

57. Connect the shift cable to the manual control lever.
    Fig 51: Connecting Shift Cable To Manual Control Lever

    Courtesy of FORD MOTOR CO.

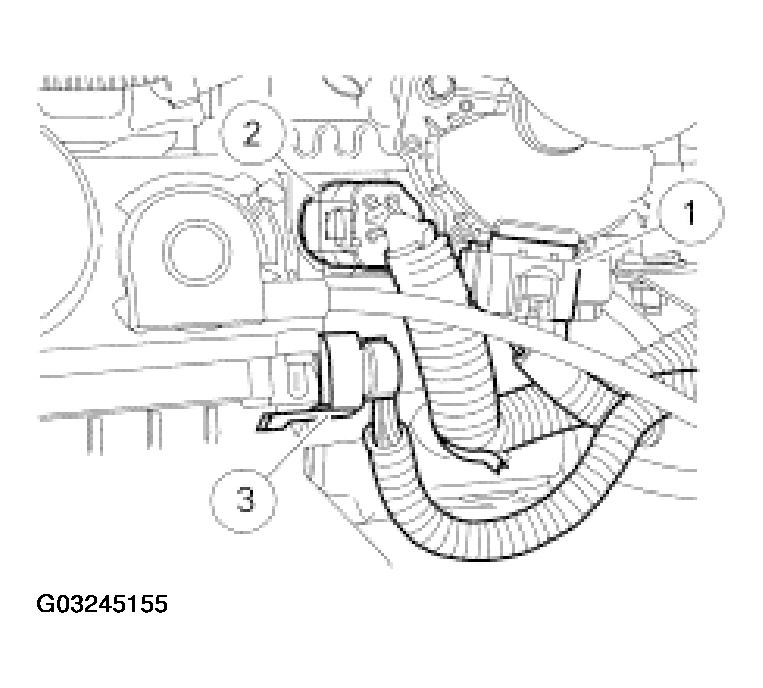

58. Connect the electrical connectors.
    1. Connect the TR sensor electrical connector.
    2. Connect the transaxle electrical connector
    3. Connect the speed control electrical connector.
    Fig 52: Connecting Electrical Connector

    Courtesy of FORD MOTOR CO.

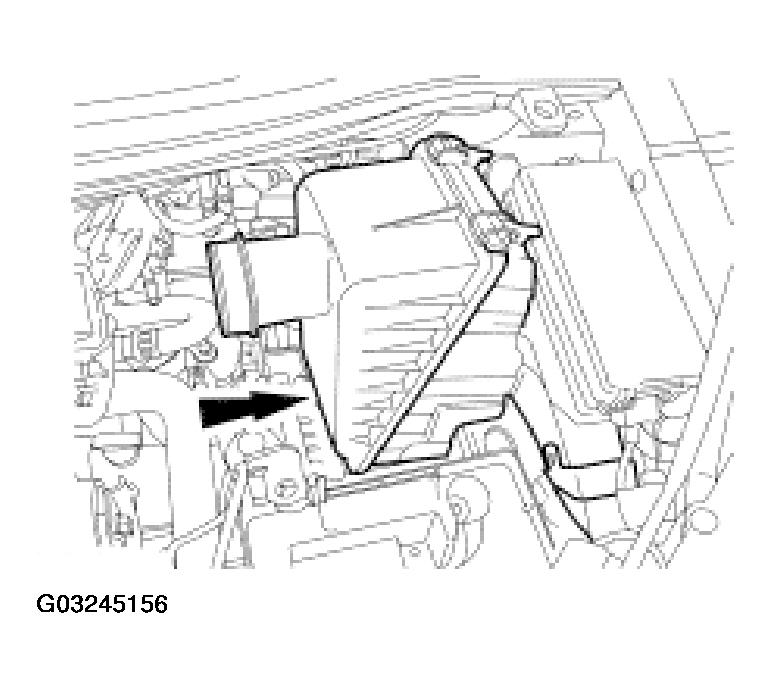

59. Install the air cleaner assembly. For additional information, refer to AIR CLEANER ASSEMBLY .
    Fig 53: Installing Air Cleaner Assembly

    Courtesy of FORD MOTOR CO.

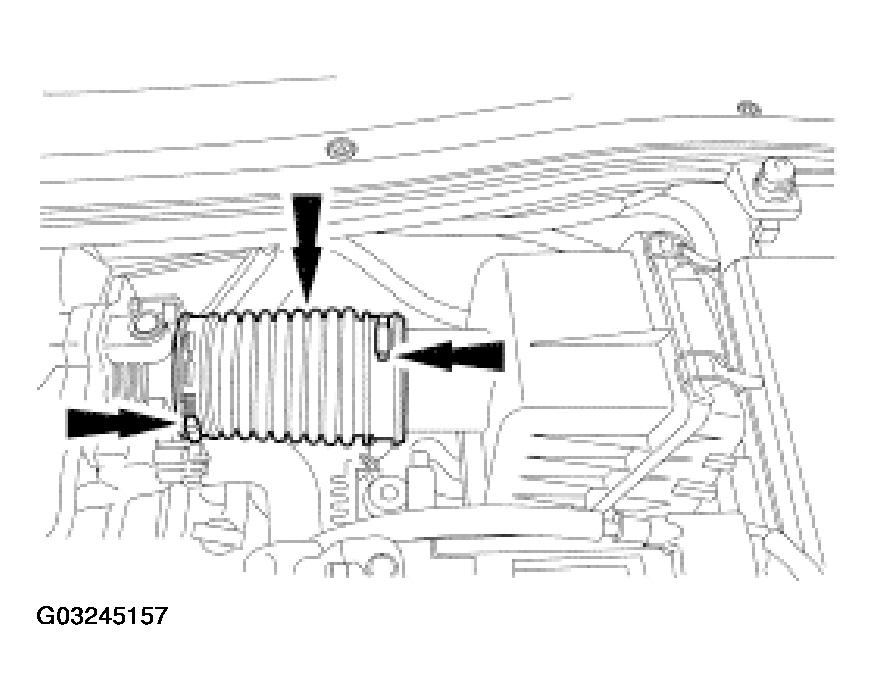

60. Install the air cleaner tube and tighten the hose clamps.
    Fig 54: Installing Air Cleaner Tube

    Courtesy of FORD MOTOR CO.
NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive shift strategy.
61. Install the battery. For additional information, refer to BATTERY & CHARGING SYSTEM .
62. Fill the transaxle using clean automatic transmission fluid.
63. Start the engine. Move the transaxle range selector lever through all positions. Check the fluid level. For additional information, refer to PRELIMINARY INSPECTION .
