Hydraulic Control Unit: Removal

Disconnect the battery ground cable(14301).
Disconnect the anti-lock-brake control module electrical connector.

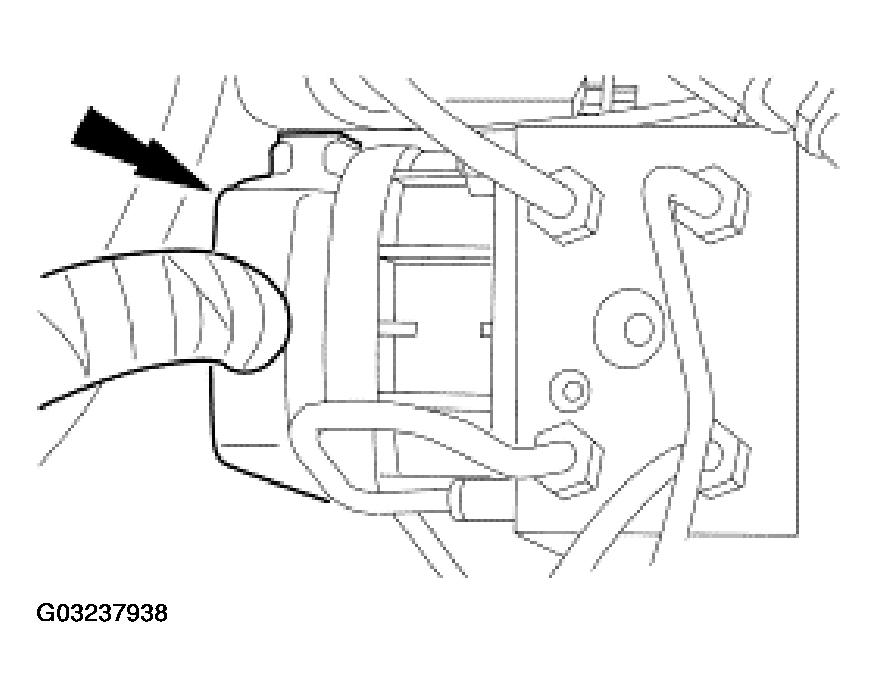

Fig 1: Disconnecting Anti-Lock-Brake Control Module Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: The 4 wheel anti -lock brake system (4WABS) with traction control is shown, the 4WABS without traction control system is similar with one less hydraulic line.

NOTE: Plug brake lines to prevent any brake fluid loss.

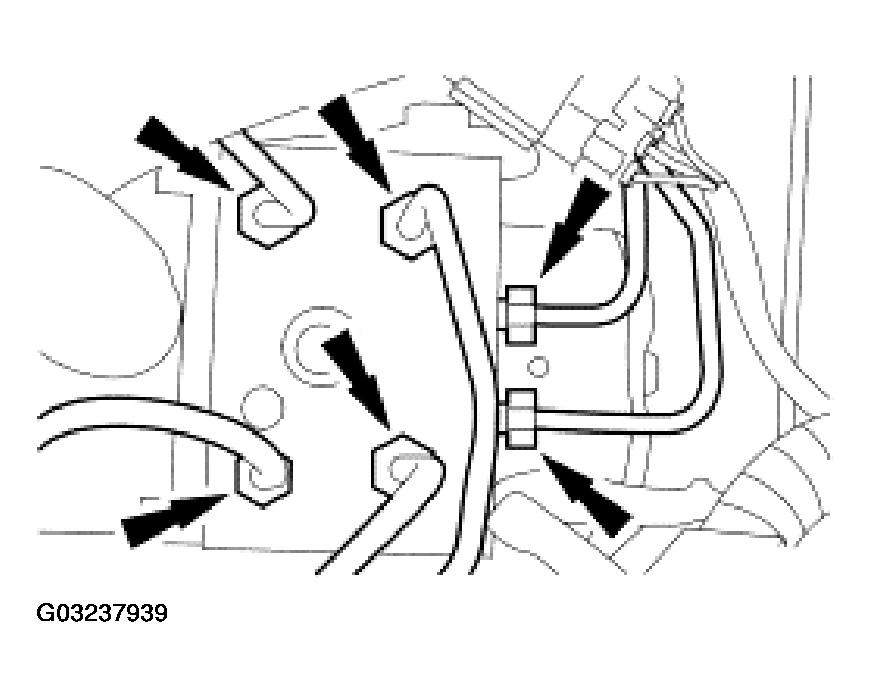

Fig 2: Disconnecting Brake Lines From Hydraulic Control Unit

Courtesy of FORD MOTOR CO.

Disconnect the brake lines from the hydraulic control unit (HCU).
Remove the HCU bracket nuts to HCU.

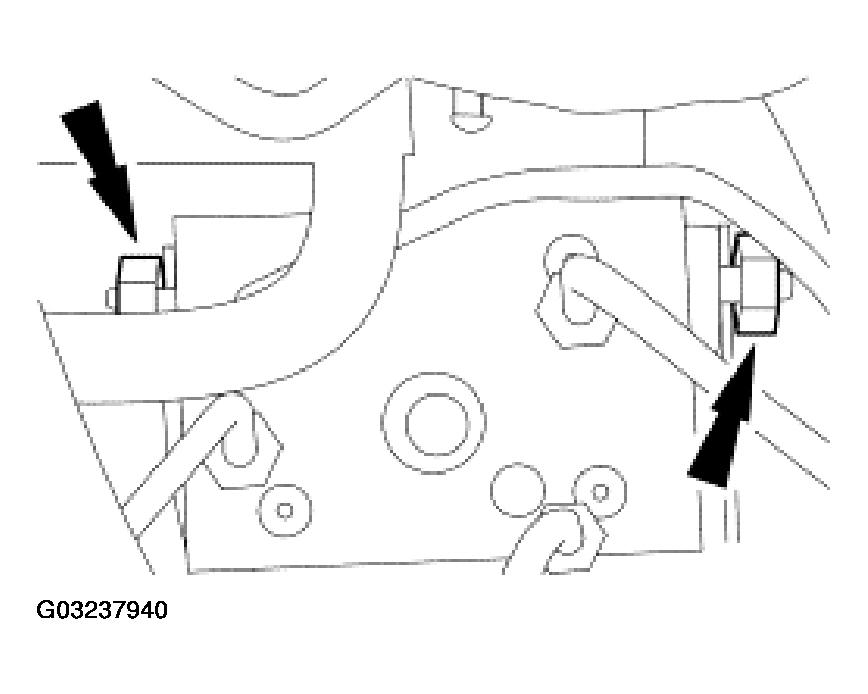

Fig 3: Removing HCU Bracket Nuts To HCU
Courtesy of FORD MOTOR CO.
Remove the HCU.

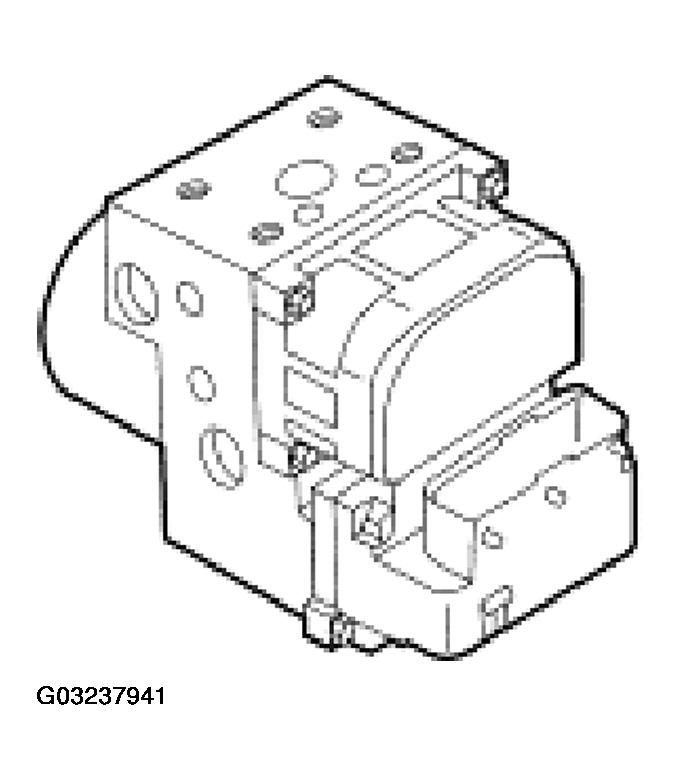

Fig 4: Removing HCU
Courtesy of FORD MOTOR CO.
Remove the pump motor electrical connector.

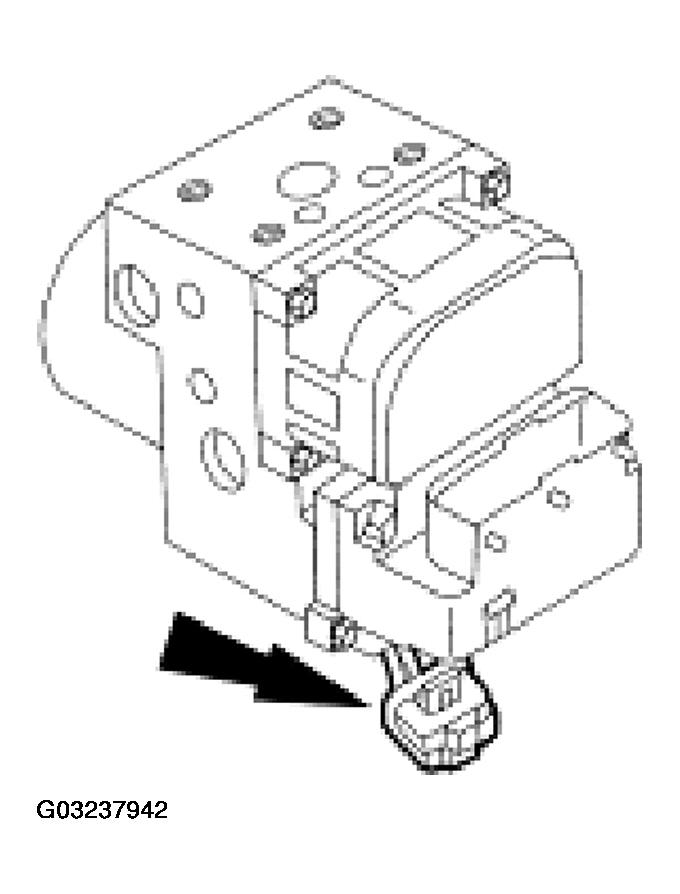

Fig 5: Removing Pump Motor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the anti-lock-brake control module screws.

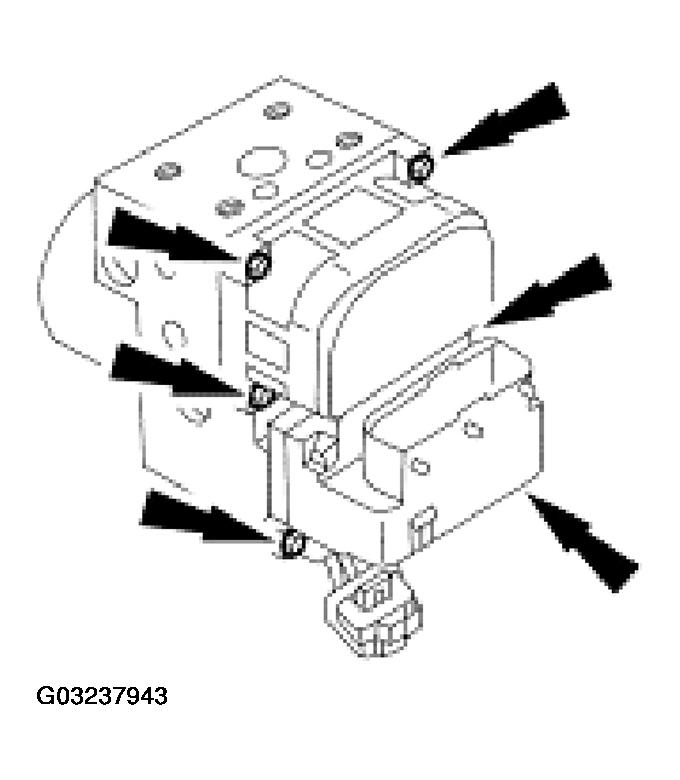

Fig 6: Removing Anti-Lock-Brake Control Module From HCU
Courtesy of FORD MOTOR CO.
Remove the anti-lock-brake control module from the HCU.
