Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

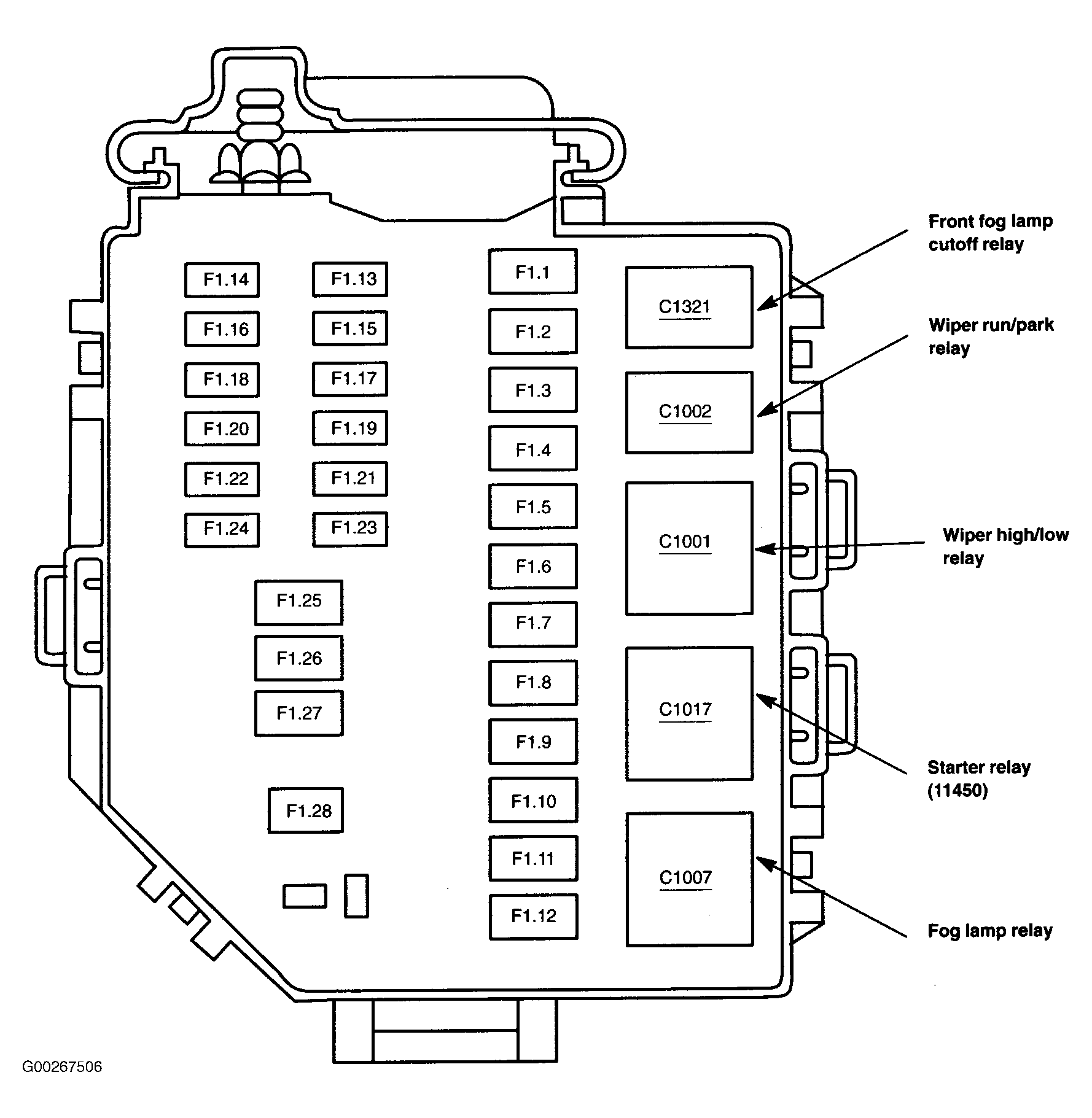

Fig 1: Battery Junction Box (BJB)

G00267506

Courtesy of FORD MOTOR CO.

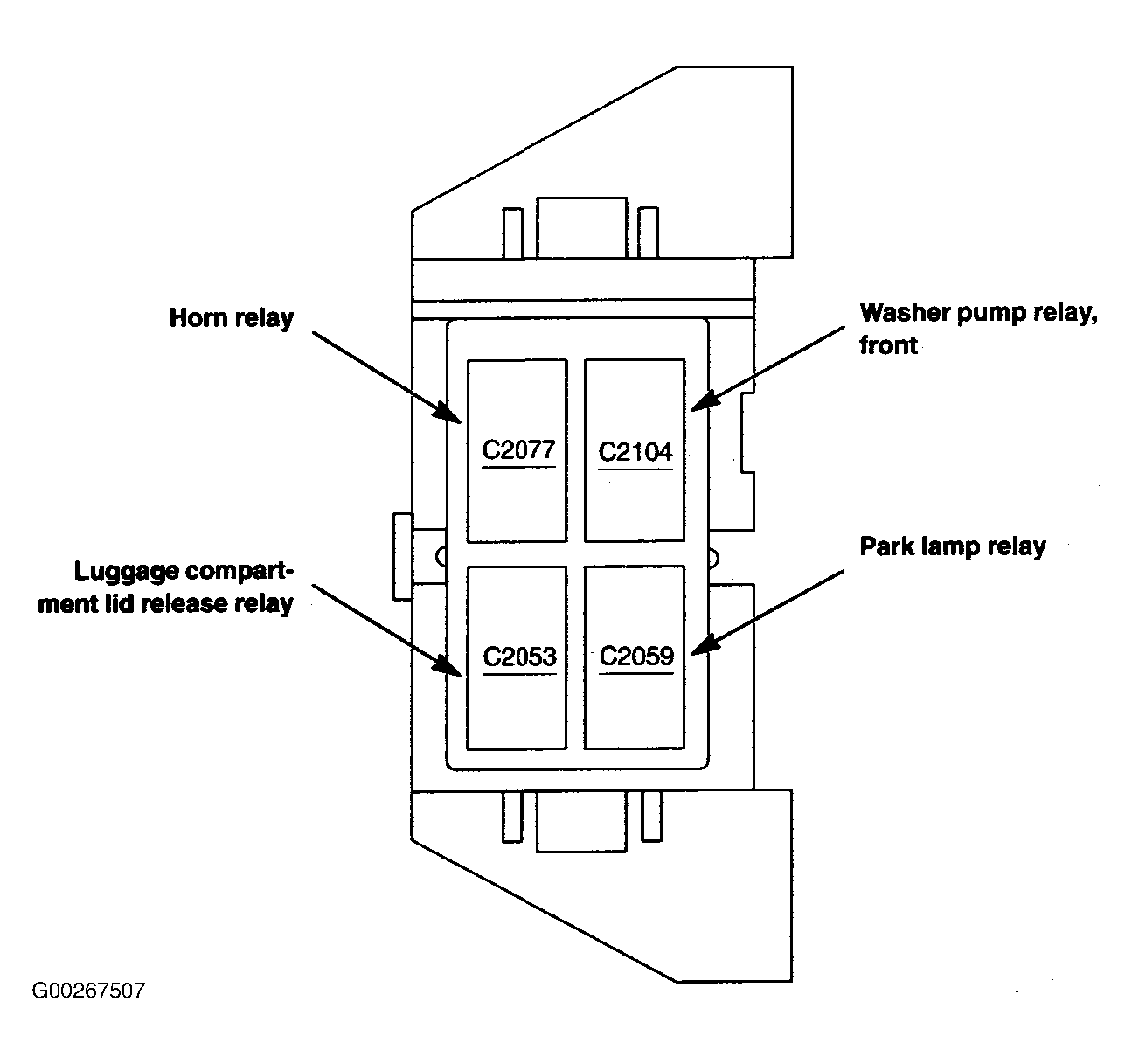

Fig 2: Relay Box

G00267507

Courtesy of FORD MOTOR CO.

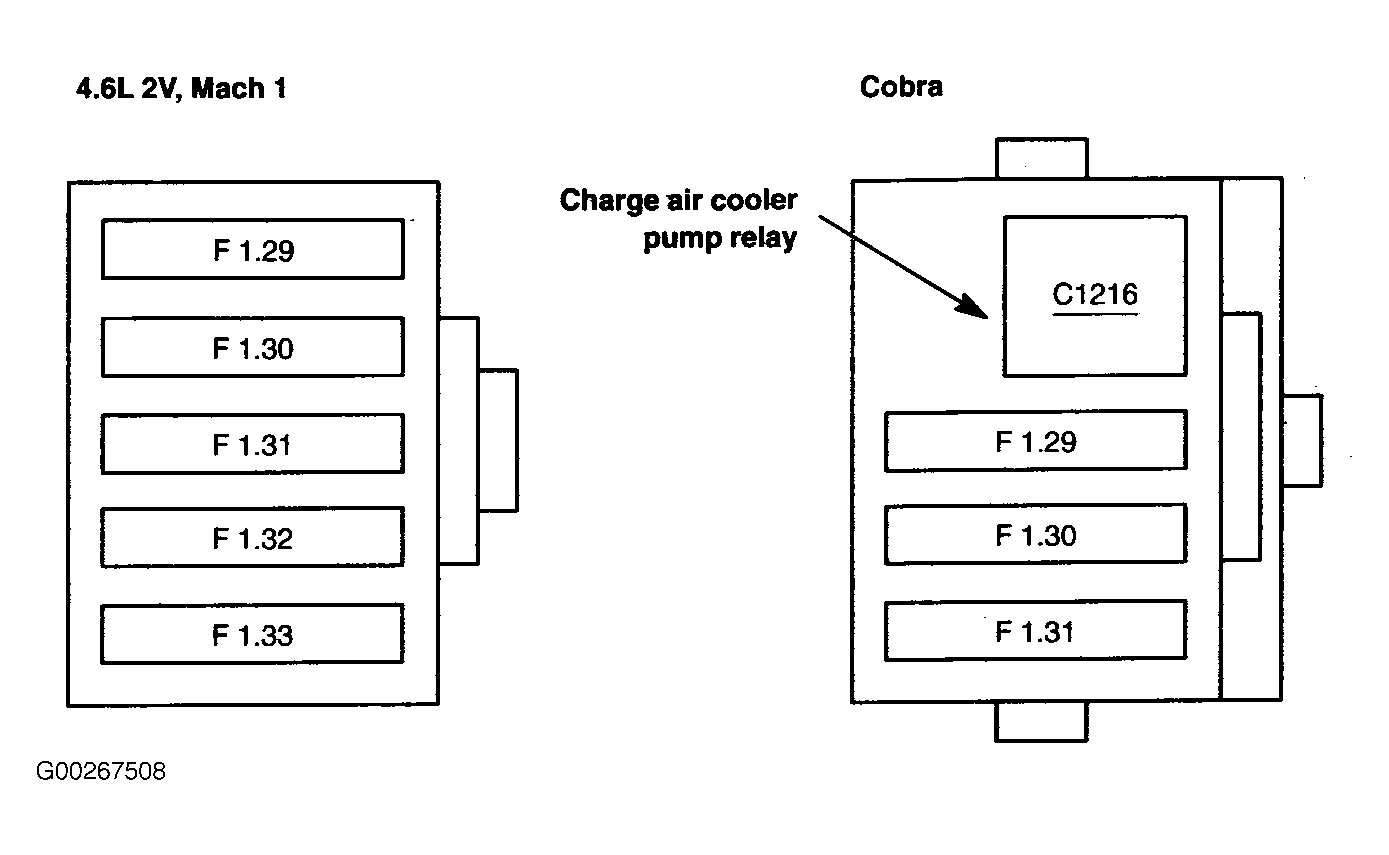

Fig 3: Auxiliary Fuse Box

G00267508

Courtesy of FORD MOTOR CO.

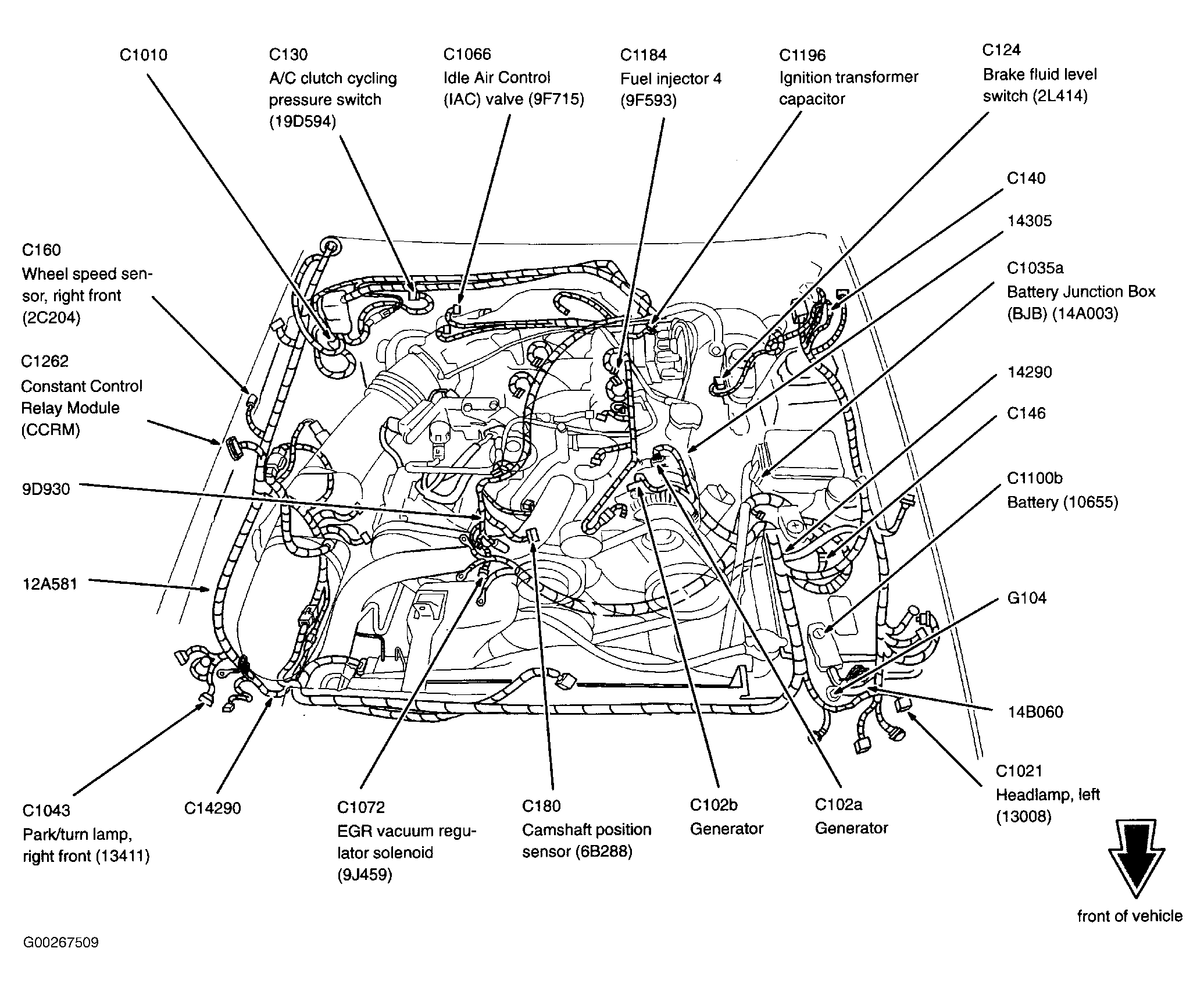

Fig 4: Engine Compartment (3.8L)

G00267509

Courtesy of FORD MOTOR CO.

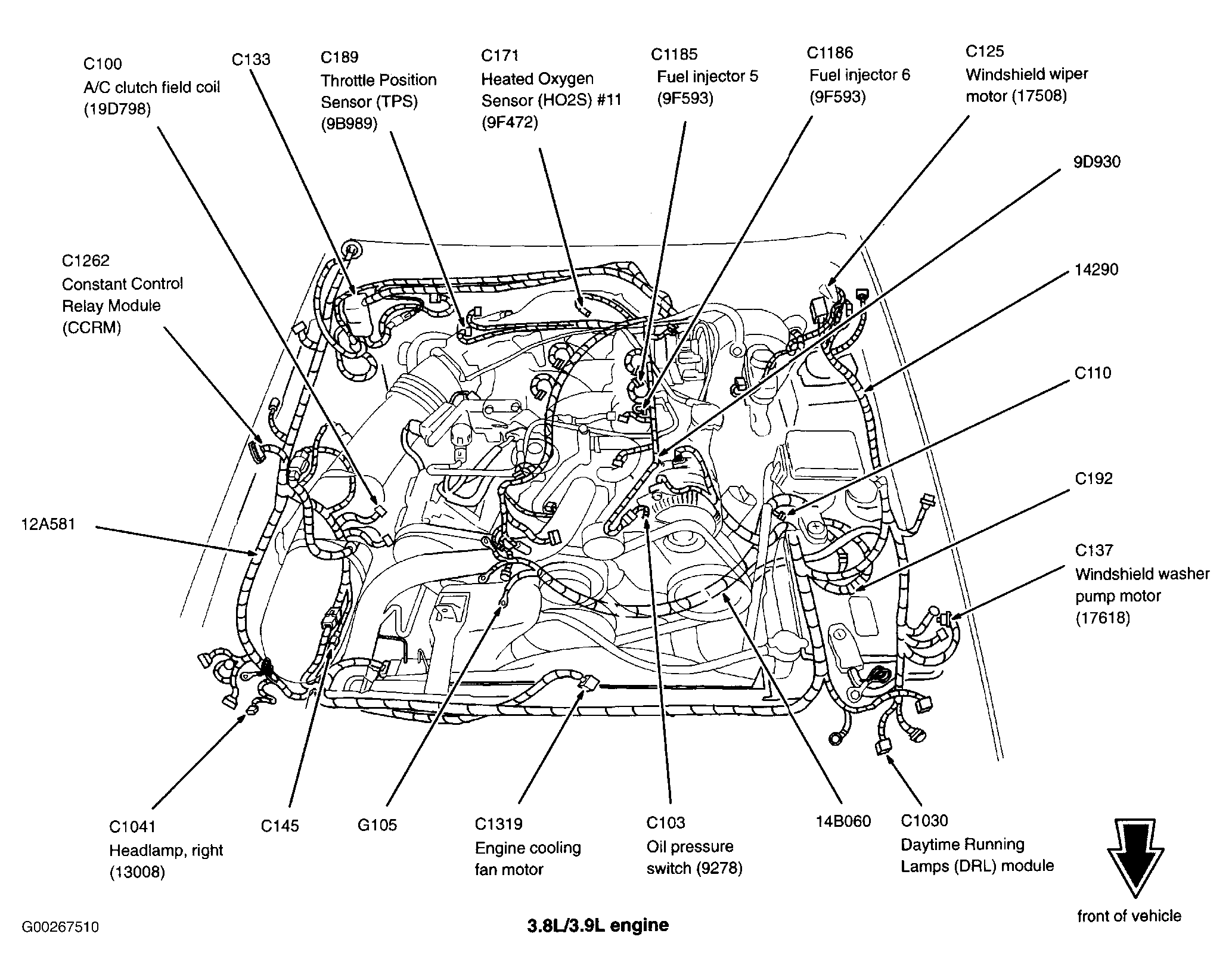

Fig 5: Engine Compartment (3.8L)

G00267510

Courtesy of FORD MOTOR CO.

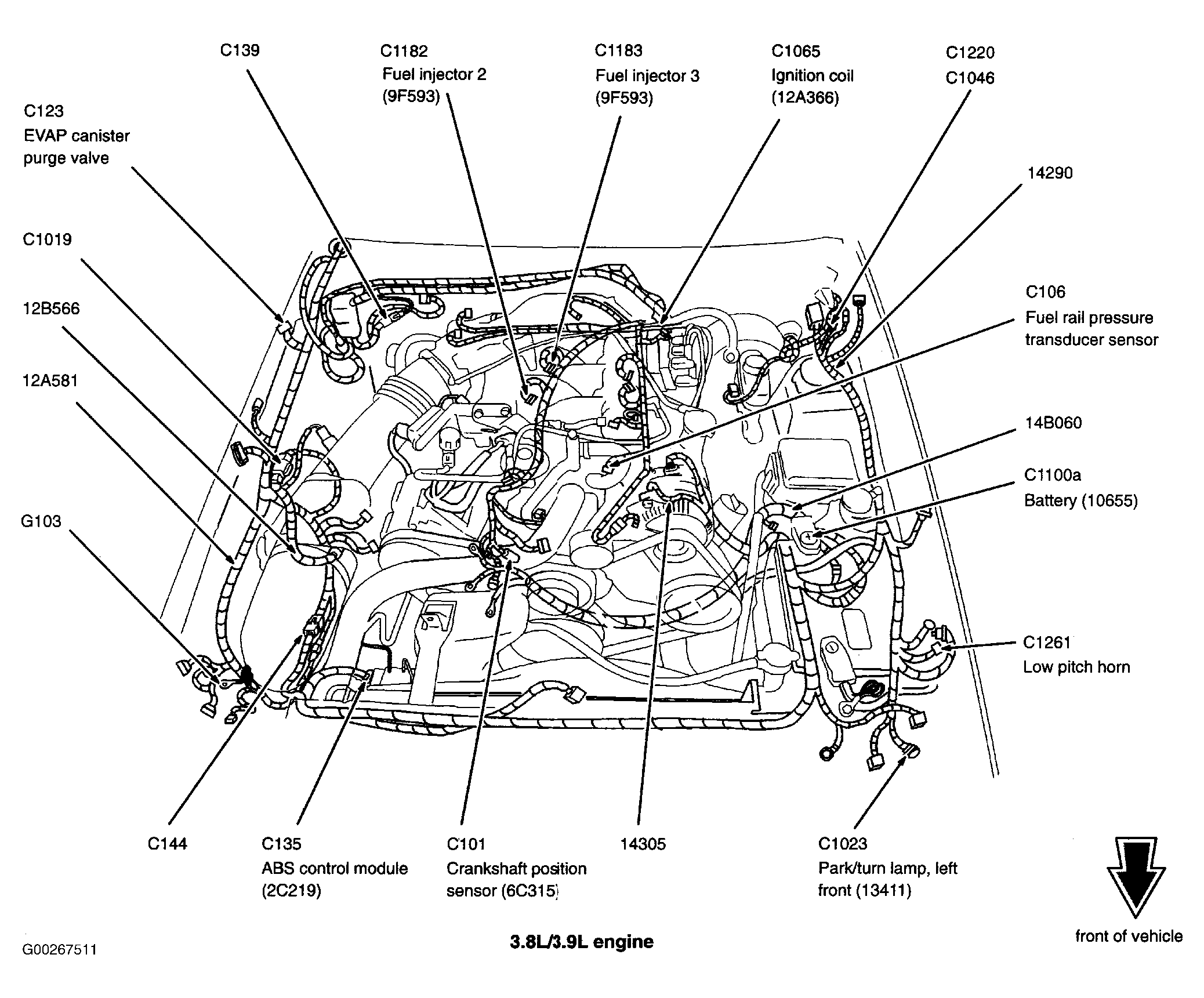

Fig 6: Engine Compartment (3.8L)

G00267511

Courtesy of FORD MOTOR CO.

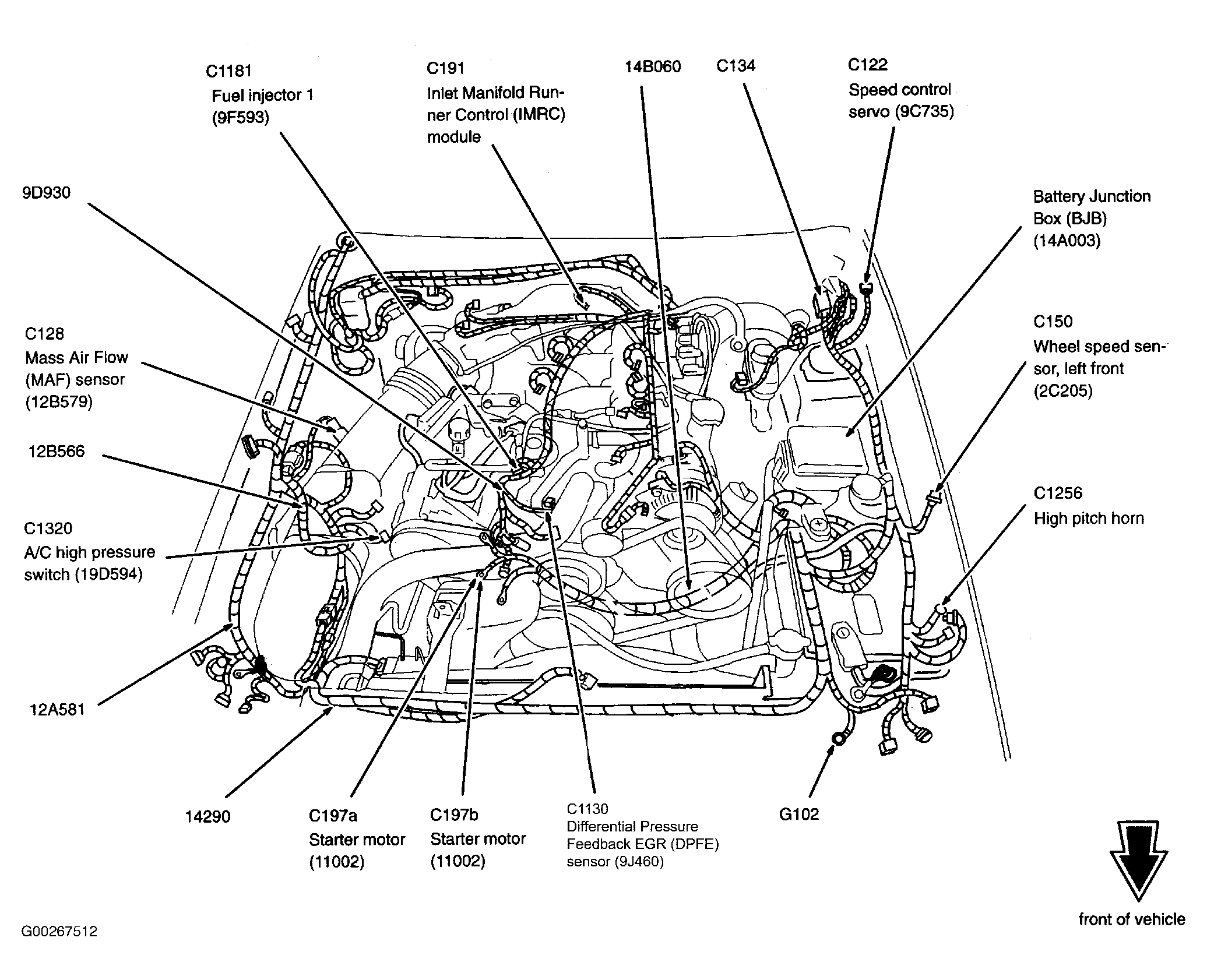

Fig 7: Engine Compartment (3.8L)

G00267512

Courtesy of FORD MOTOR CO.

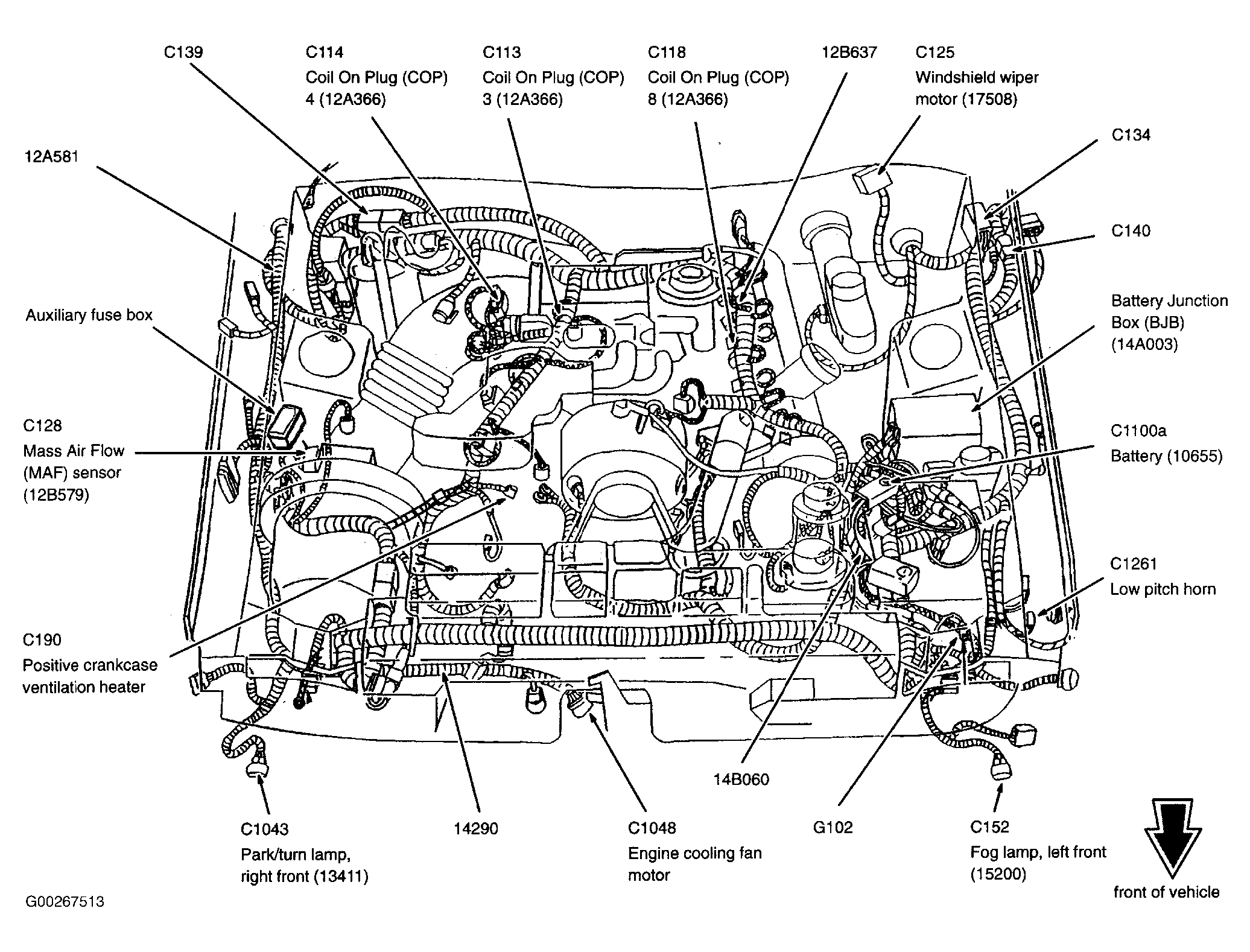

Fig 8: Engine Compartment (4.6L 2V)

G00267513

Courtesy of FORD MOTOR CO.

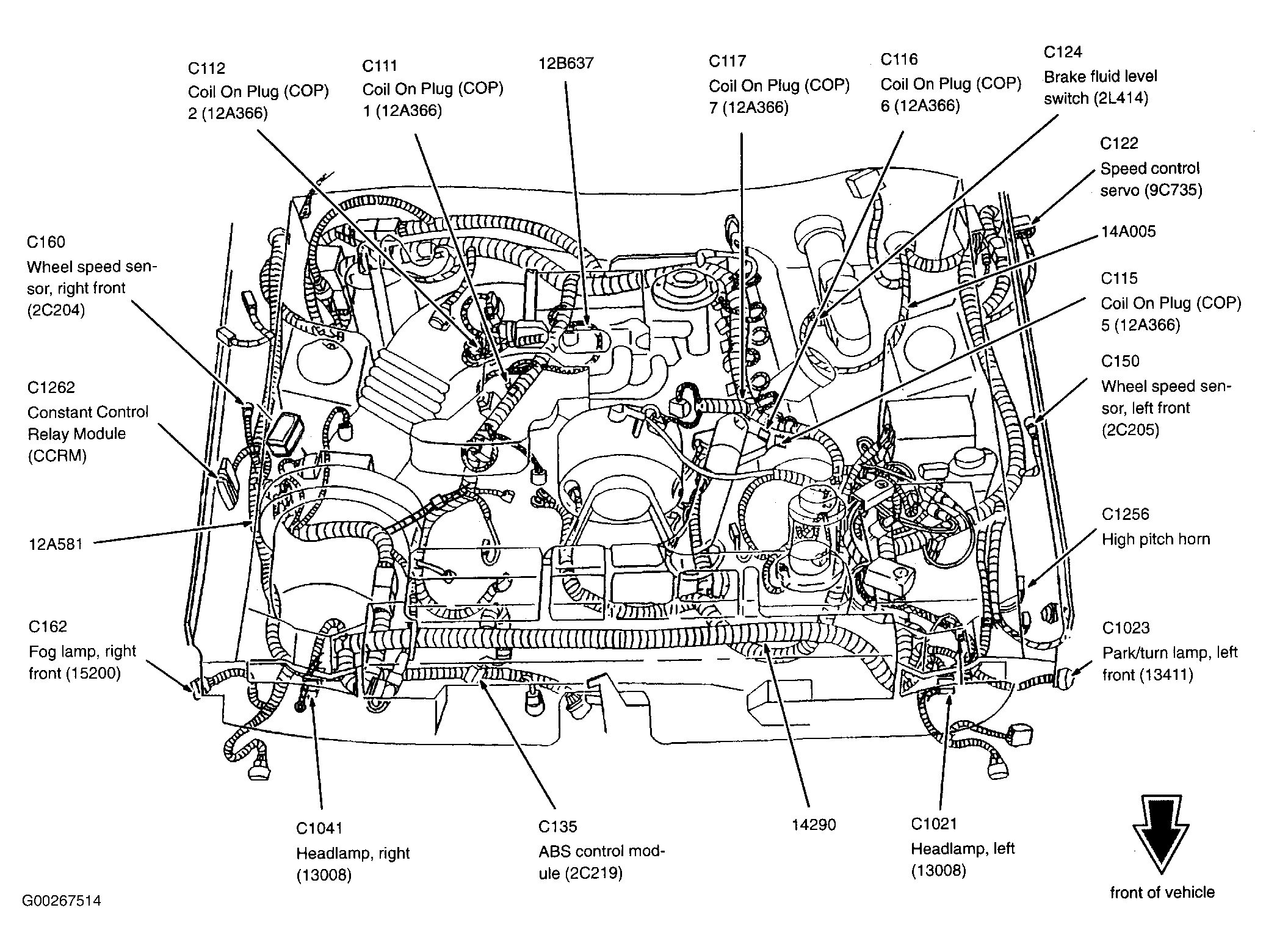

Fig 9: Engine Compartment (4.6L 2V)

G00267514

Courtesy of FORD MOTOR CO.

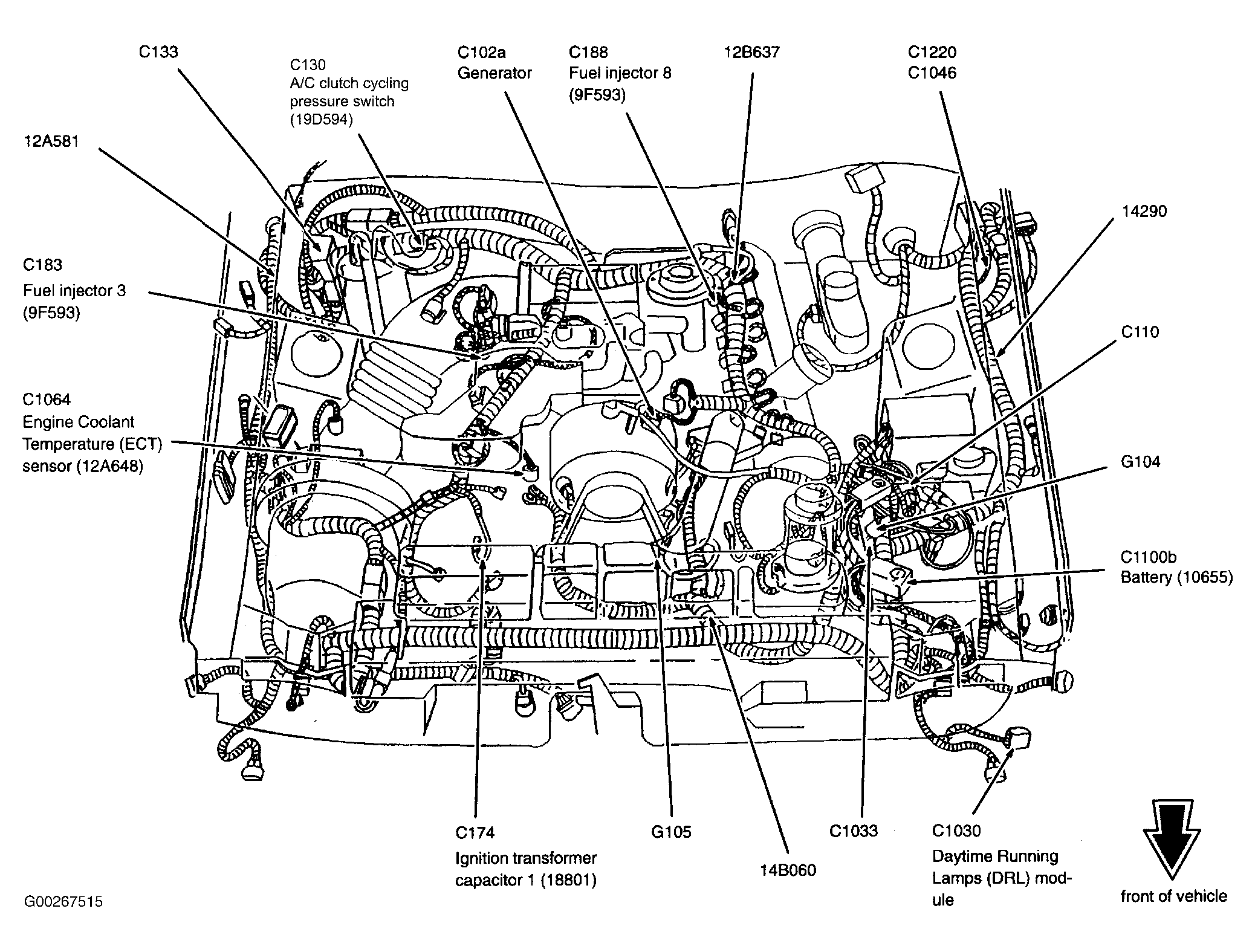

Fig 10: Engine Compartment (4.6L 2V)

G00267515

Courtesy of FORD MOTOR CO.

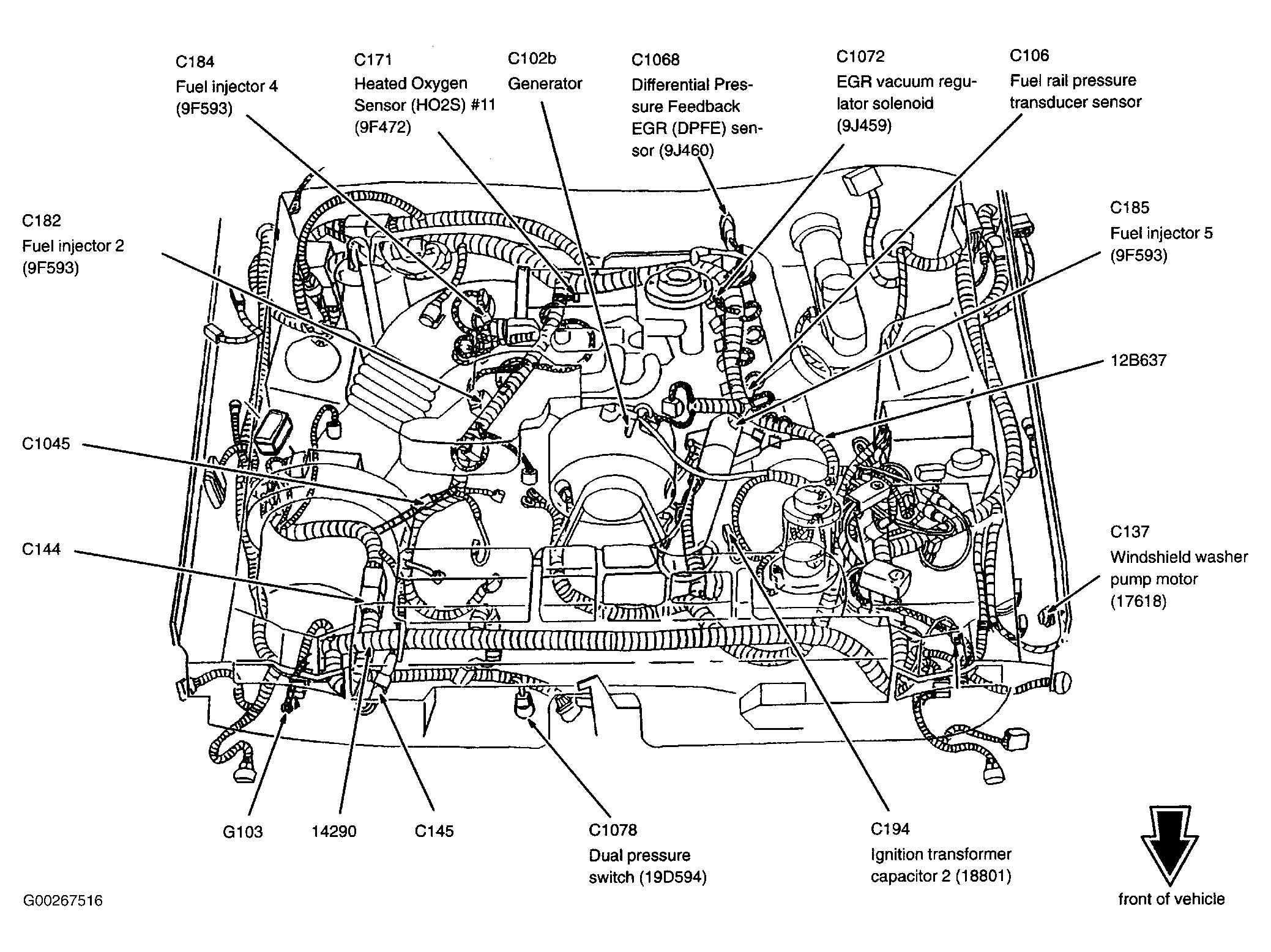

Fig 11: Engine Compartment (4.6L 2V)

G00267516

Courtesy of FORD MOTOR CO.

Fig 12: Engine Compartment (4.6L 2V)

G00267517

Courtesy of FORD MOTOR CO.

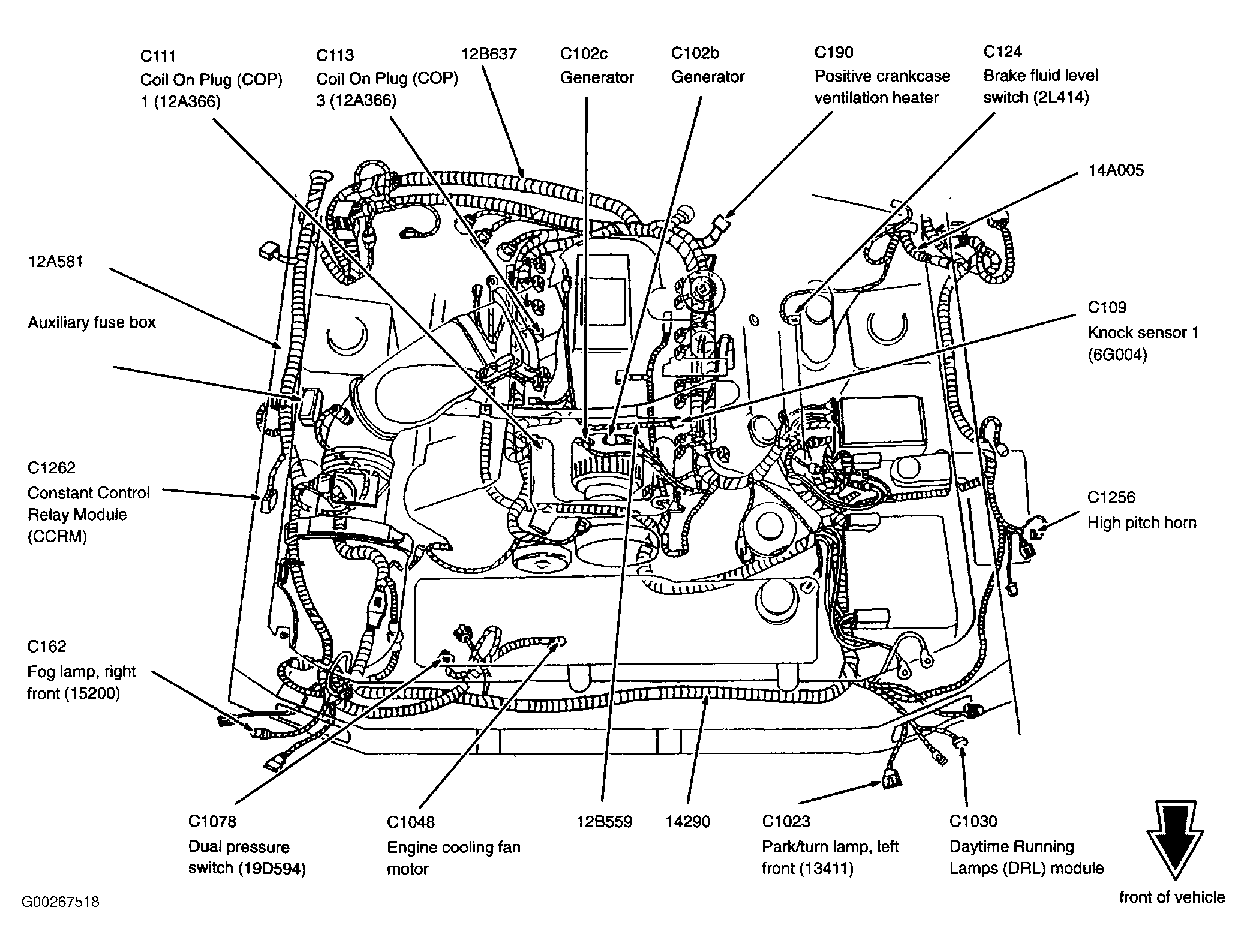

Fig 13: Engine Compartment (Mach 1)

G00267518

Courtesy of FORD MOTOR CO.

Fig 14: Engine Compartment (Mach 1)

G00267519

Courtesy of FORD MOTOR CO.

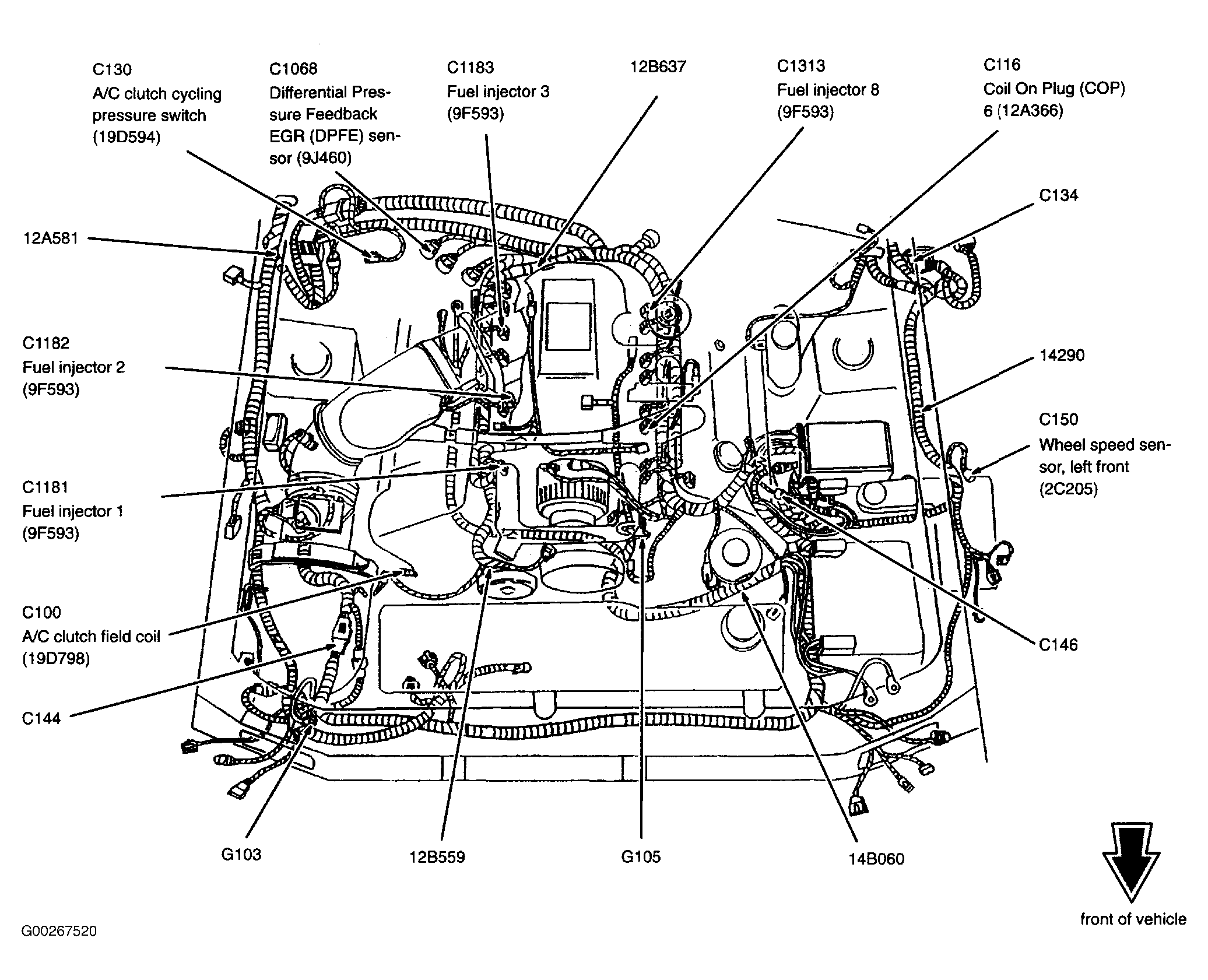

Fig 15: Engine Compartment (Mach 1)

G00267520

Courtesy of FORD MOTOR CO.

Fig 16: Engine Compartment (Mach 1)

G00267521

Courtesy of FORD MOTOR CO.

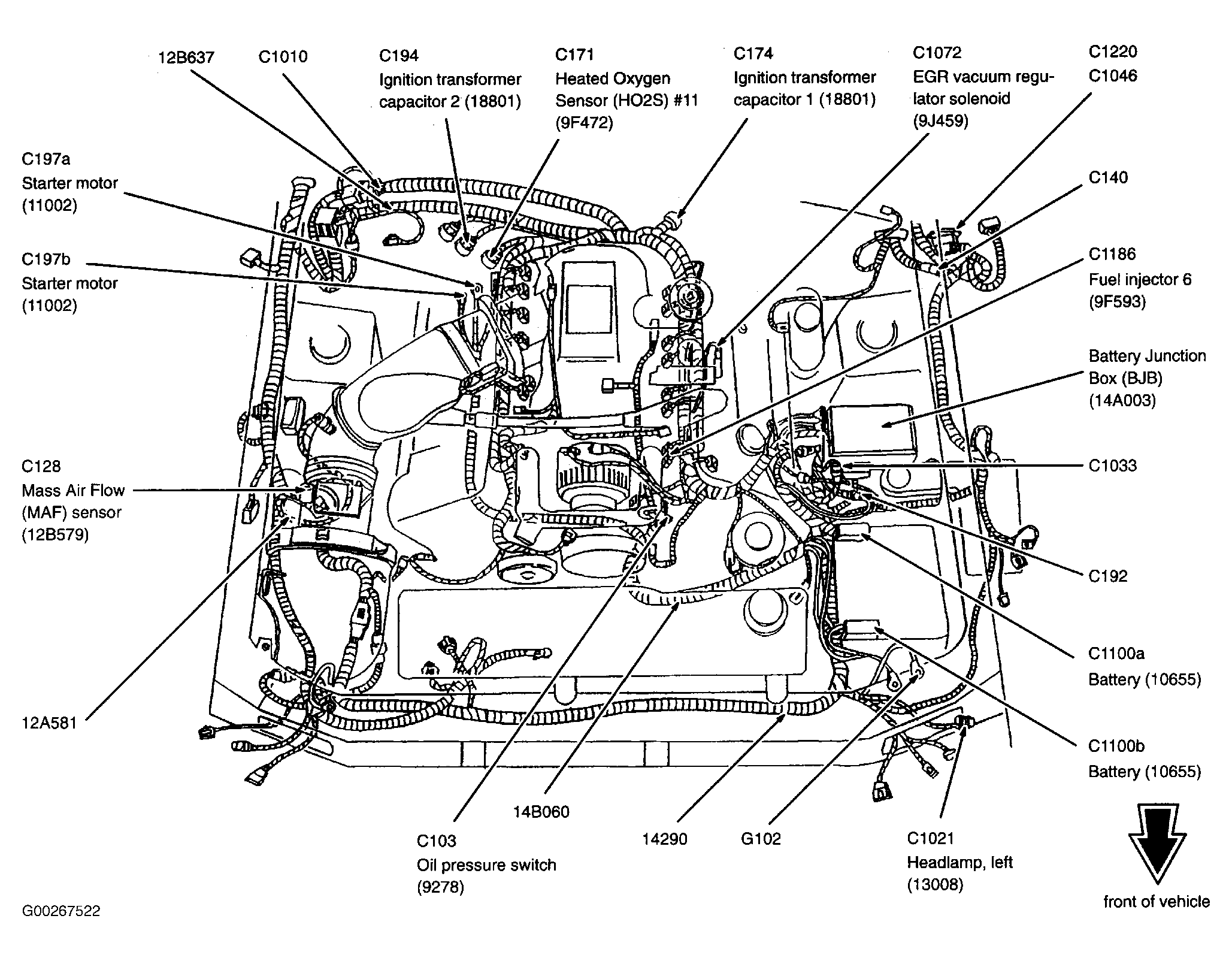

Fig 17: Engine Compartment (Mach 1)

G00267522

Courtesy of FORD MOTOR CO.

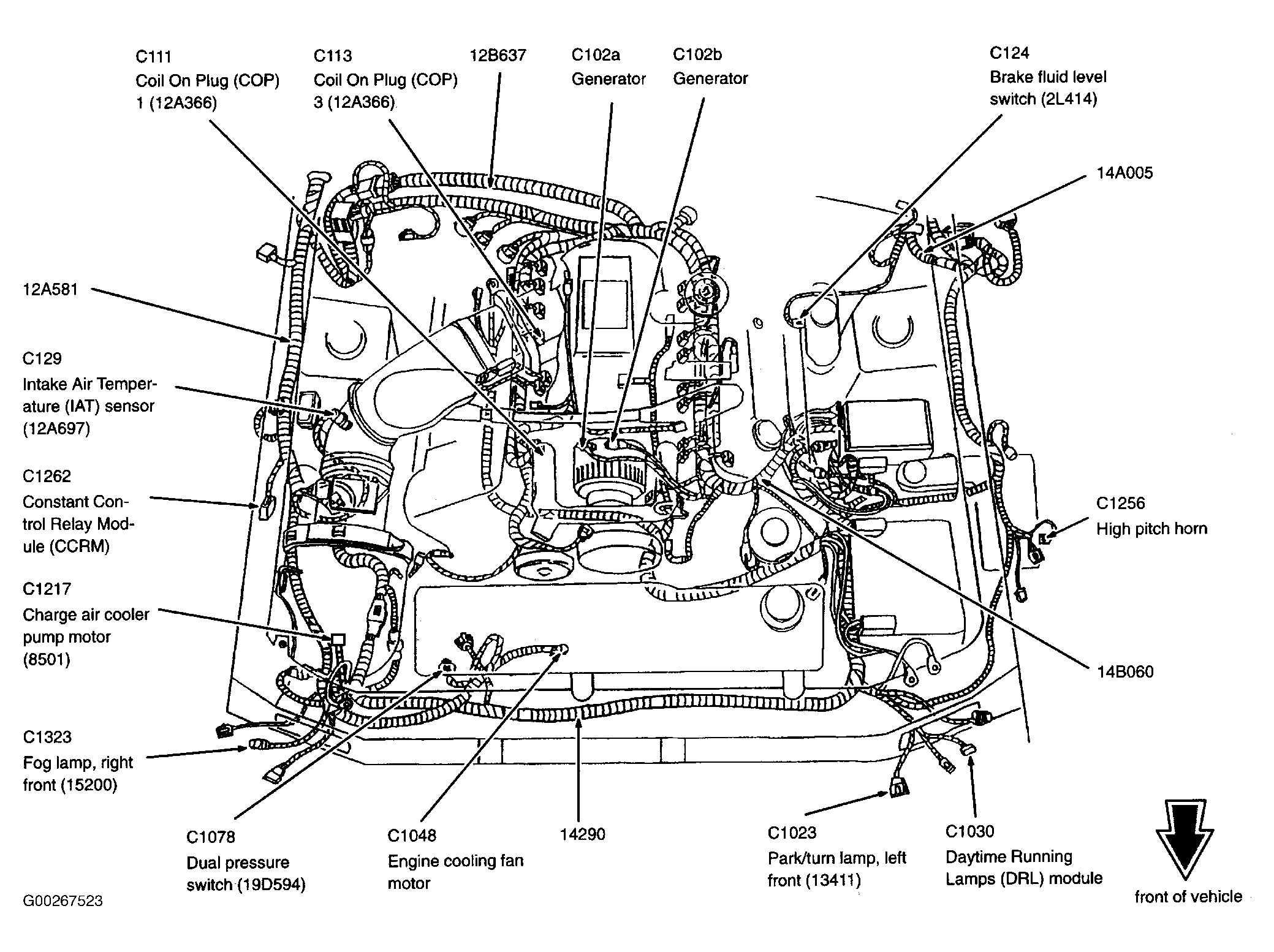

Fig 18: Engine Compartment (Cobra)

G00267523

Courtesy of FORD MOTOR CO.

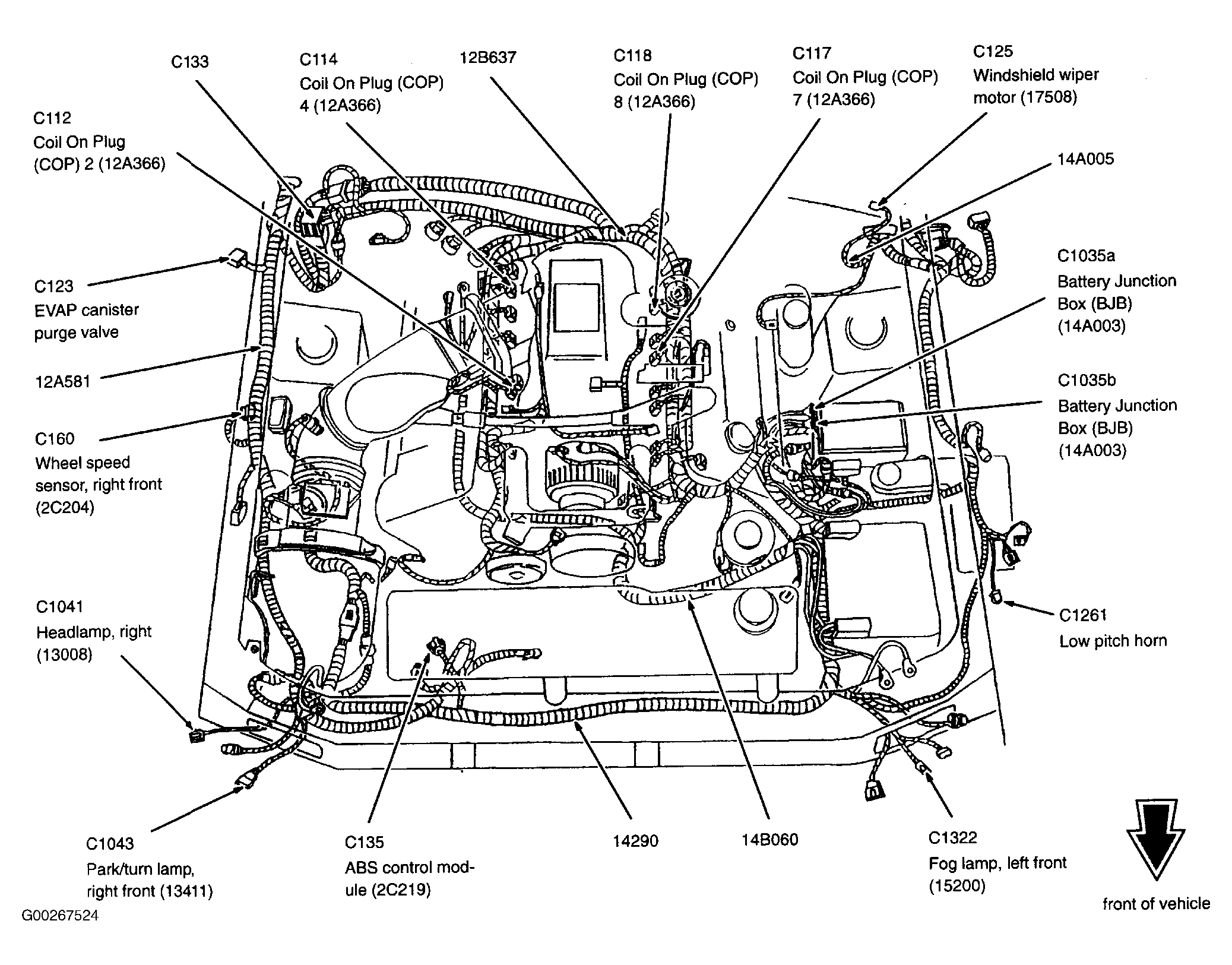

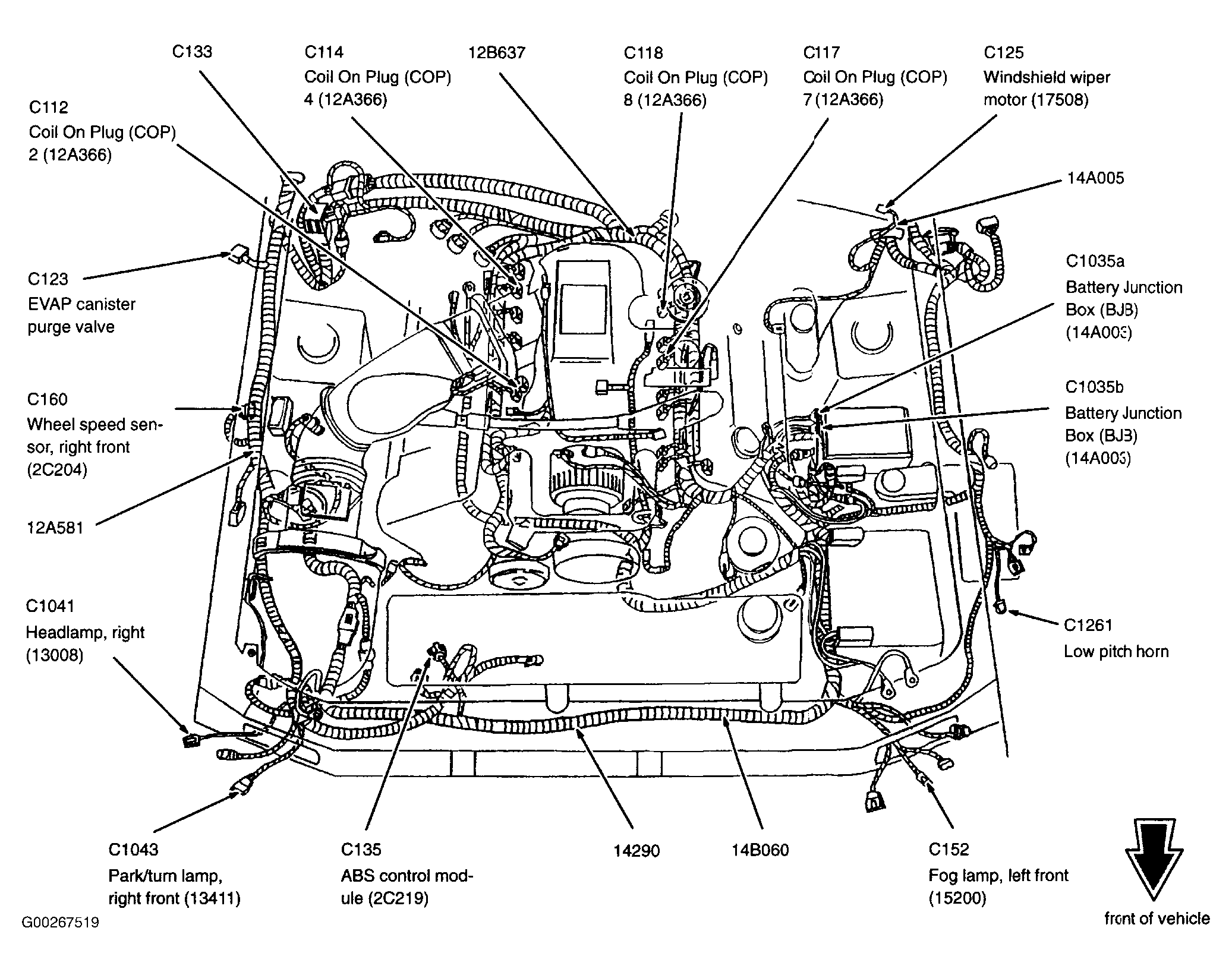

Fig 19: Engine Compartment (Cobra)

G00267524

Courtesy of FORD MOTOR CO.

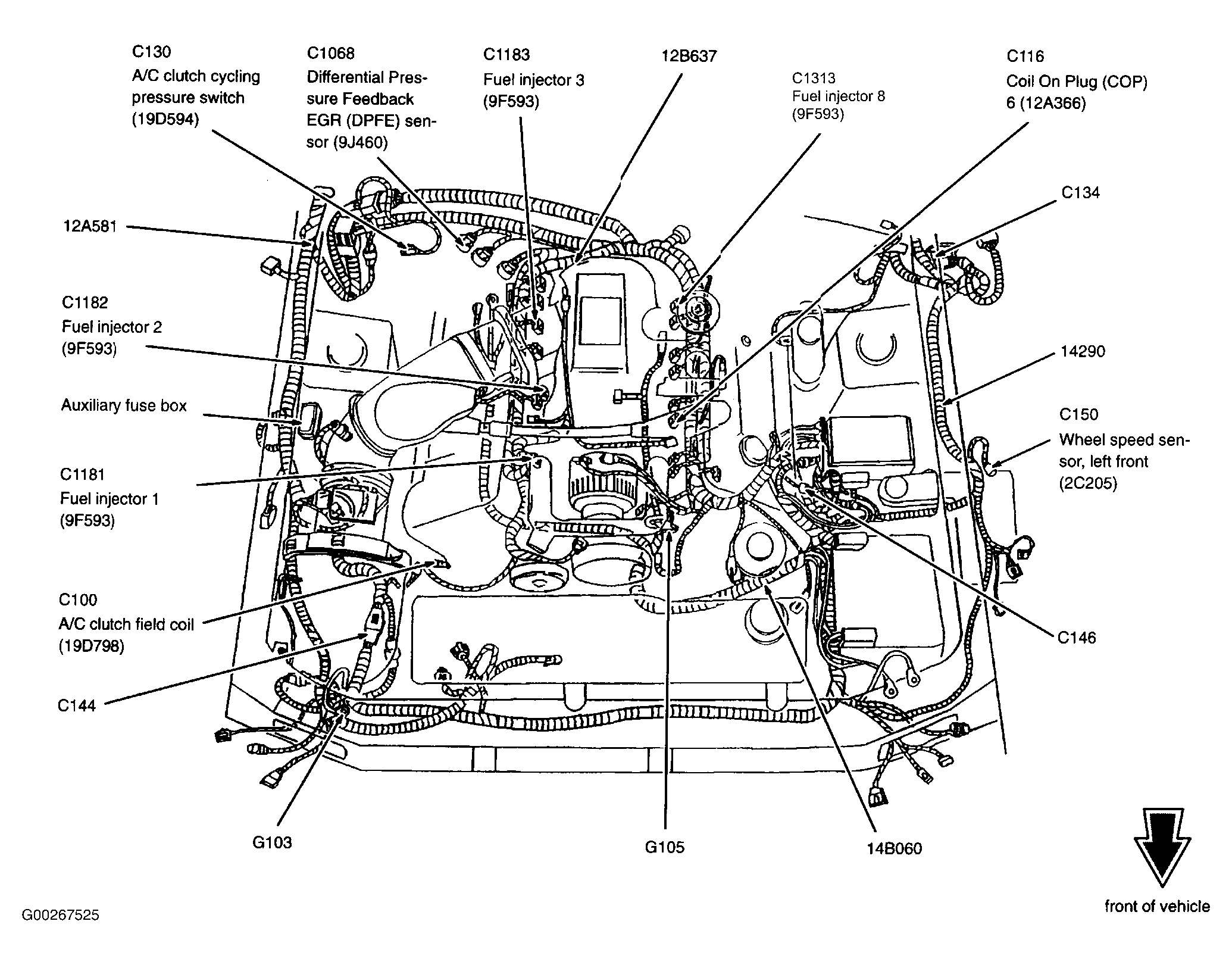

Fig 20: Engine Compartment (Cobra)

G00267525

Courtesy of FORD MOTOR CO.

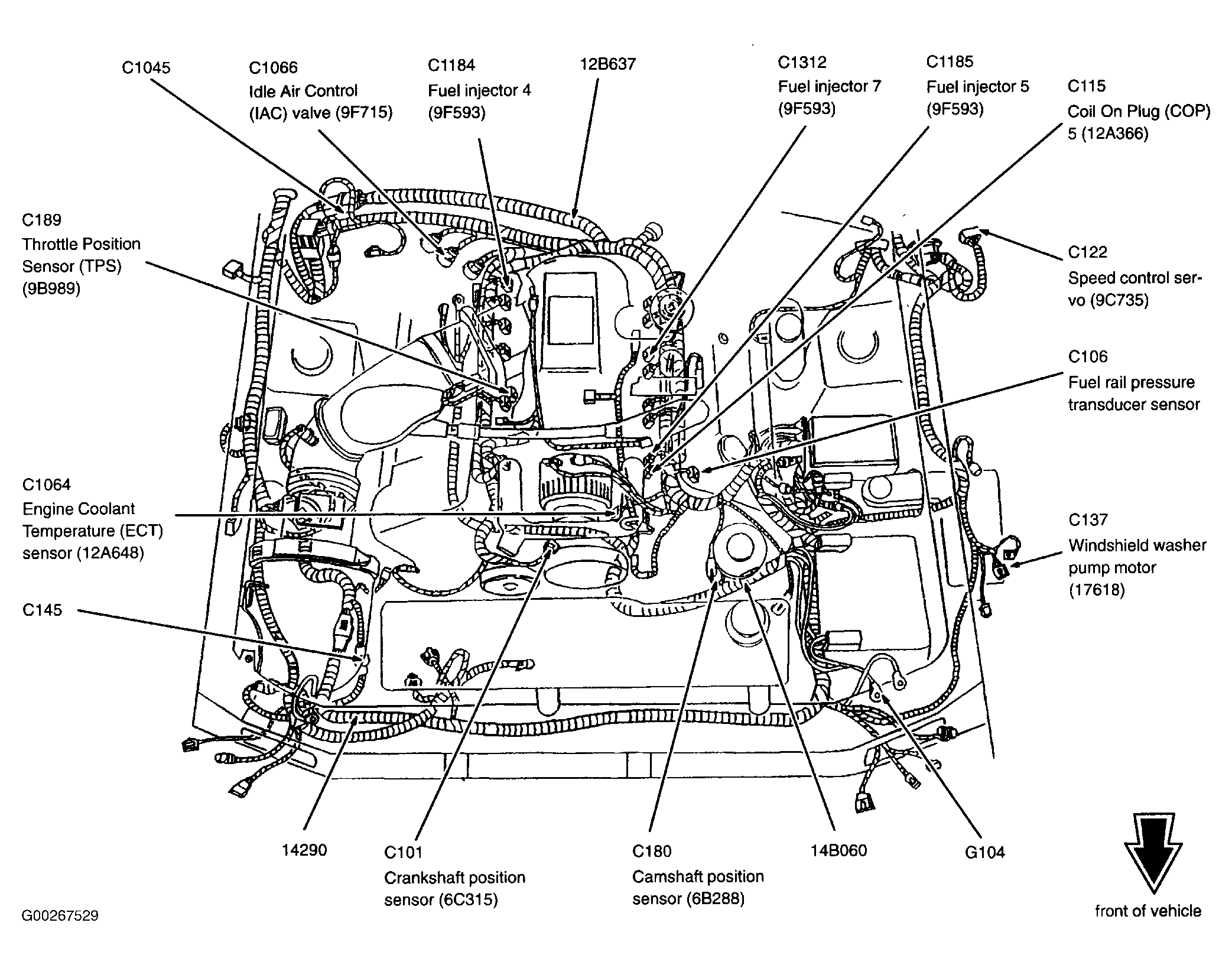

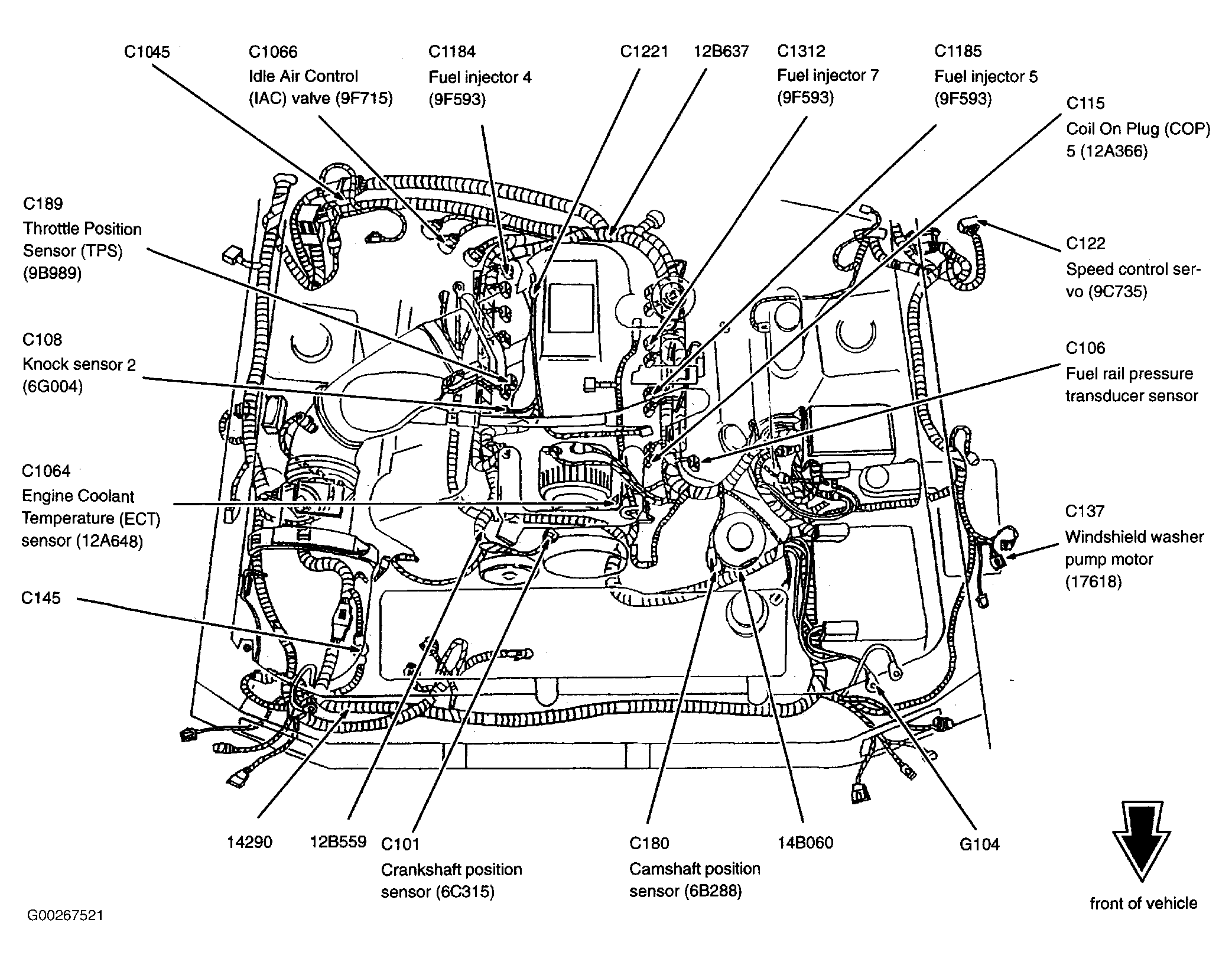

Fig 21: Engine Compartment (Cobra)

G00267529

Courtesy of FORD MOTOR CO.

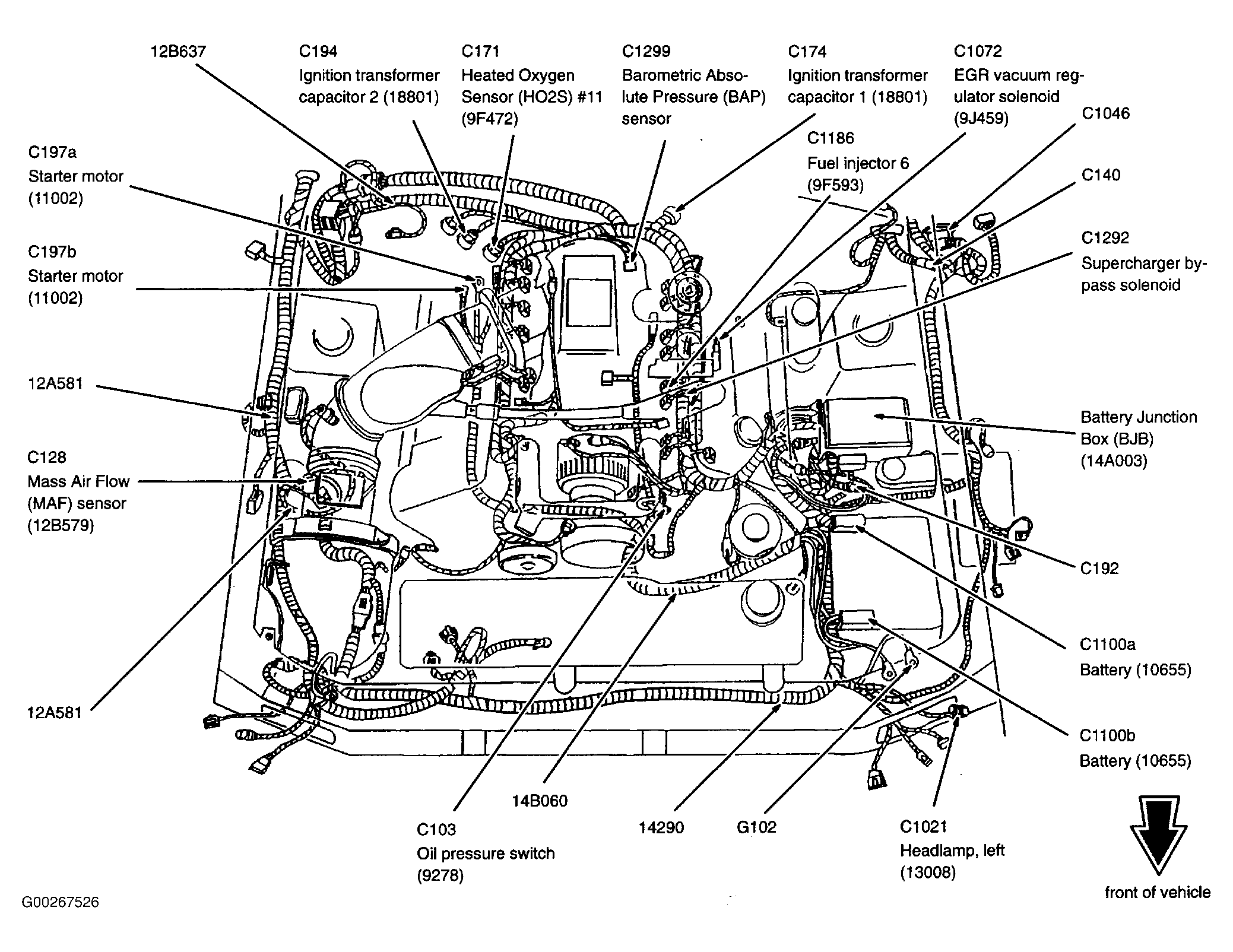

Fig 22: Engine Compartment (Cobra)

G00267526

Courtesy of FORD MOTOR CO.

Fig 23: Automatic Transmission

G00267527

Courtesy of FORD MOTOR CO.

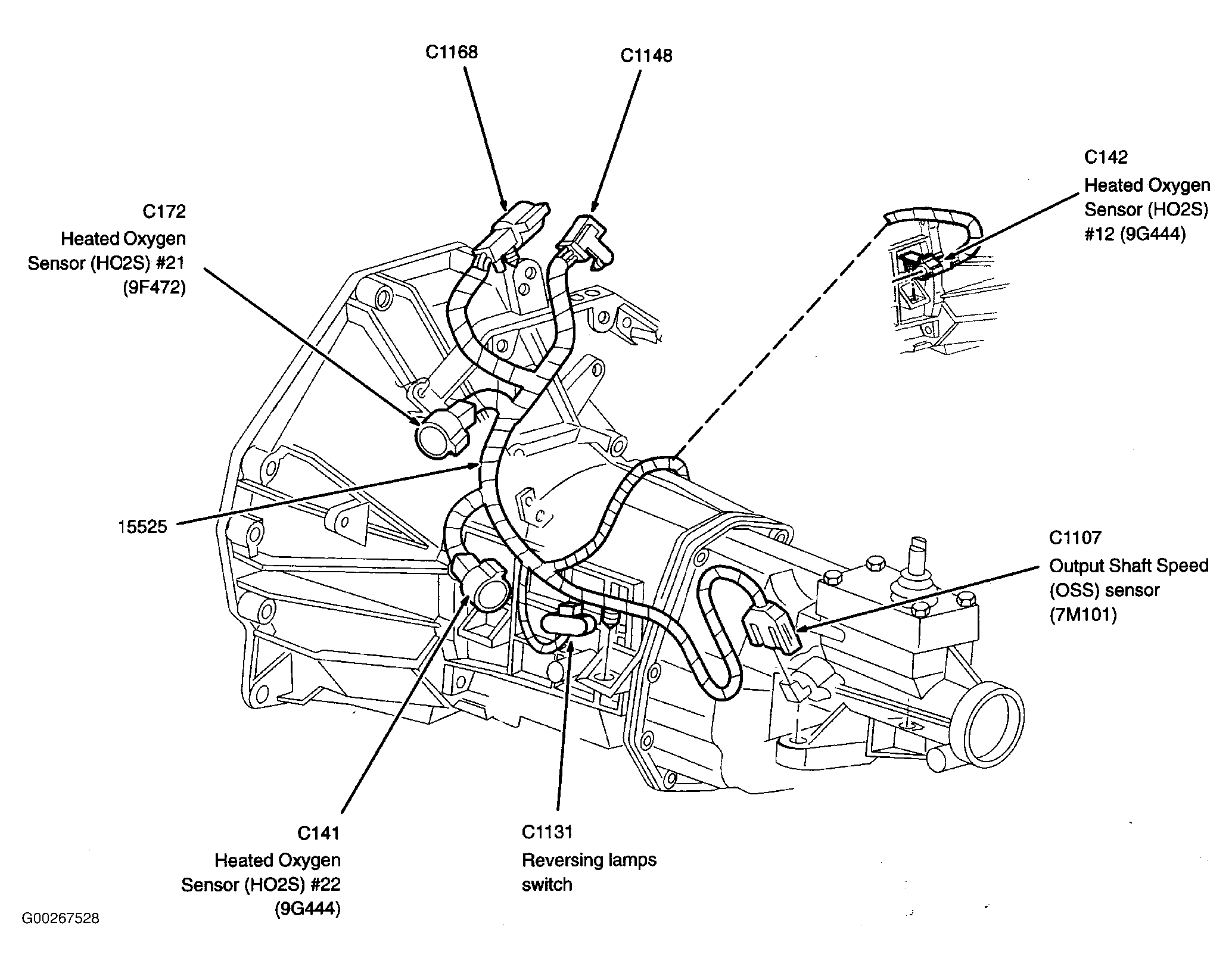

Fig 24: Manual Transmission (4.6L)

G00267528

Courtesy of FORD MOTOR CO.

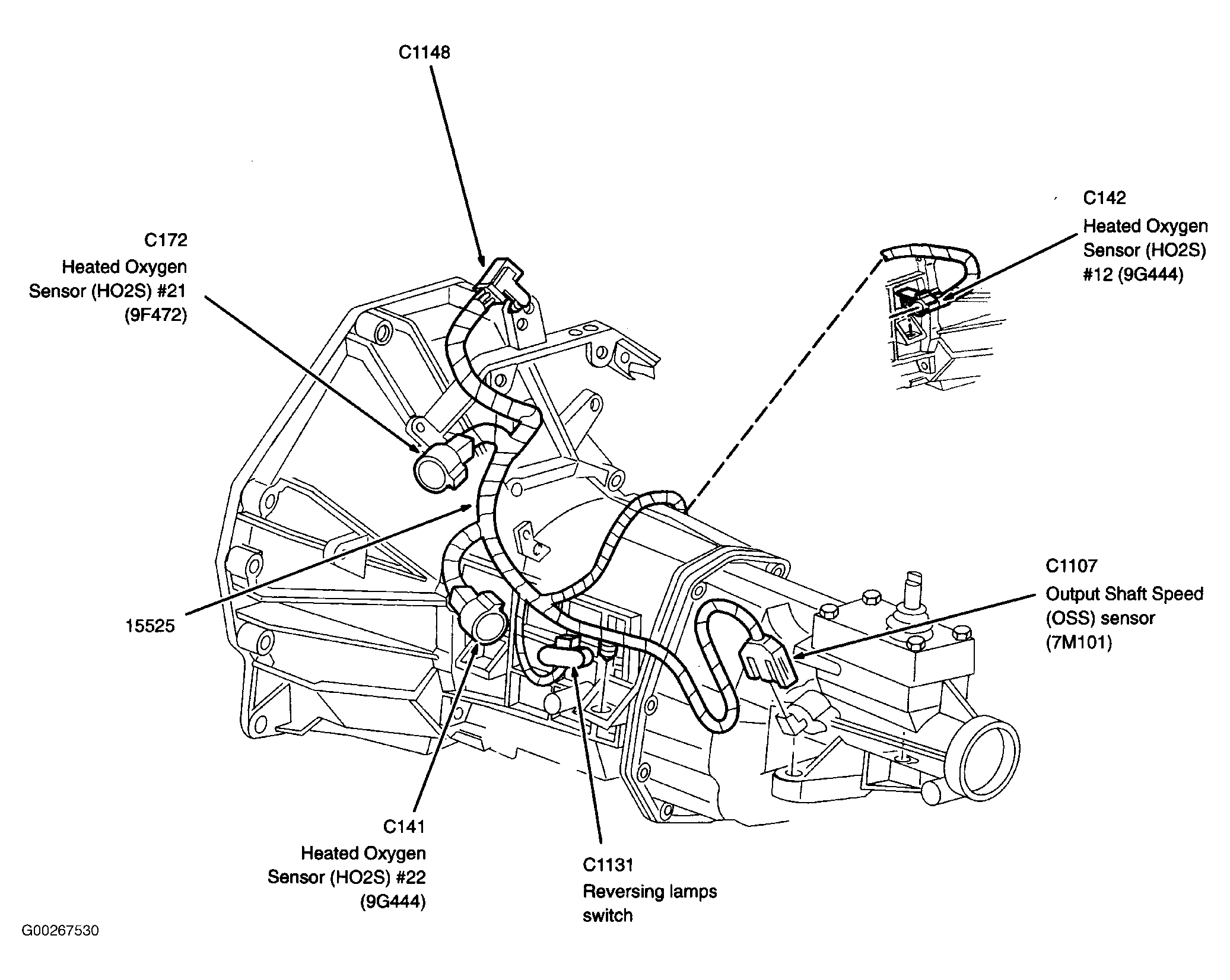

Fig 25: Manual Transmission (Mach 1)

G00267530

Courtesy of FORD MOTOR CO.

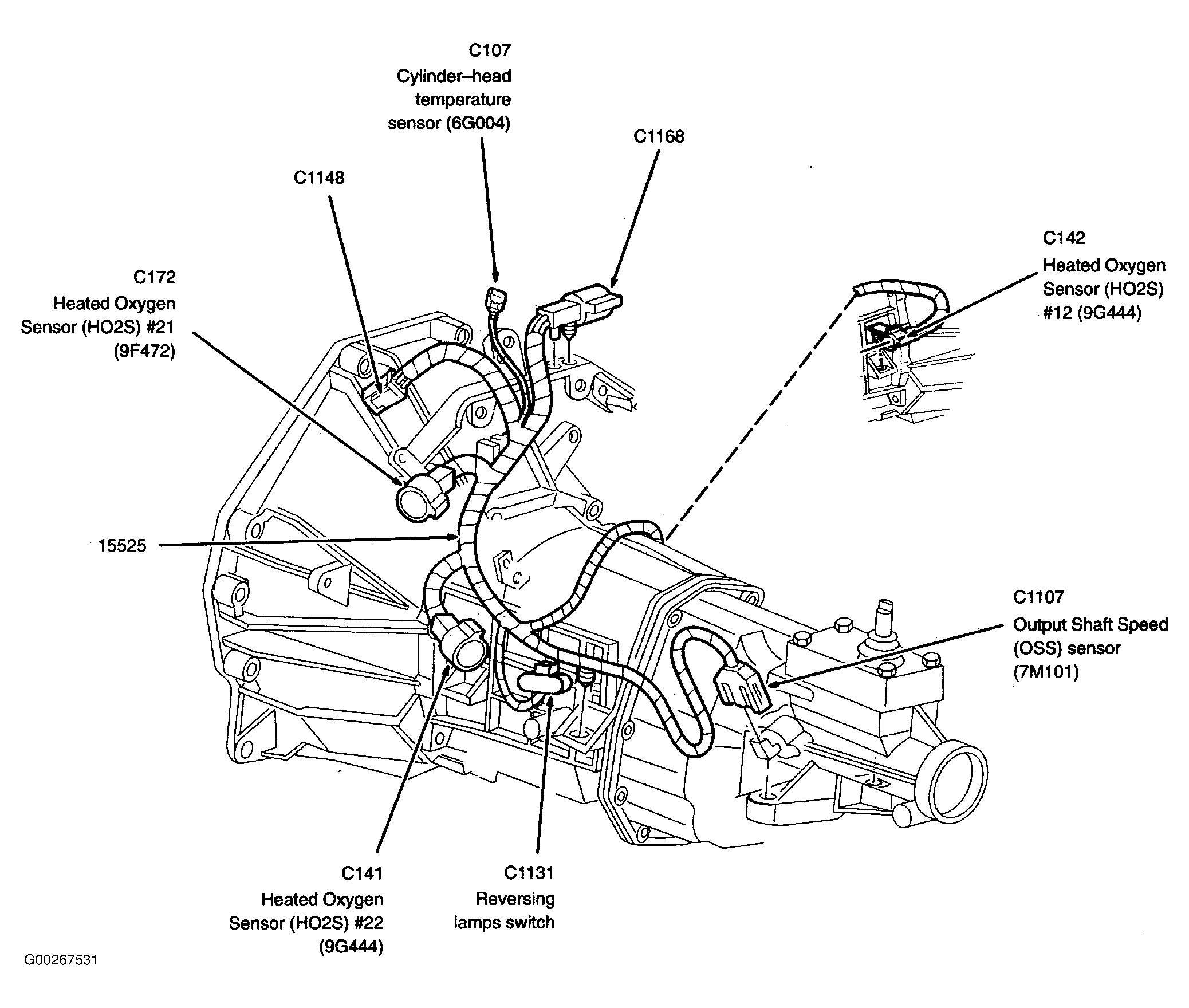

Fig 26: Manual Transmission (3.8L)

G00267531

Courtesy of FORD MOTOR CO.

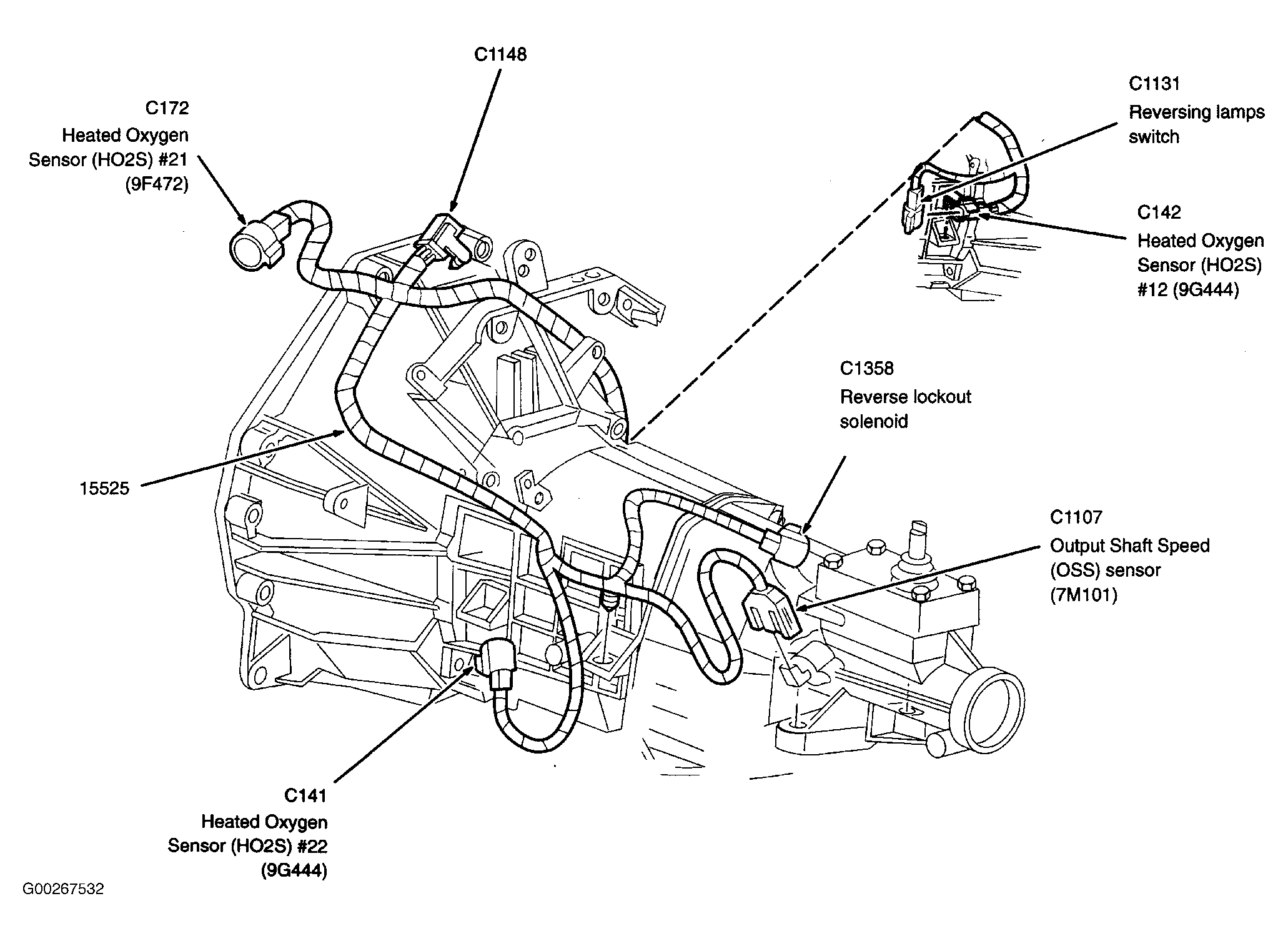

Fig 27: Manual Transmission (Cobra)

G00267532

Courtesy of FORD MOTOR CO.

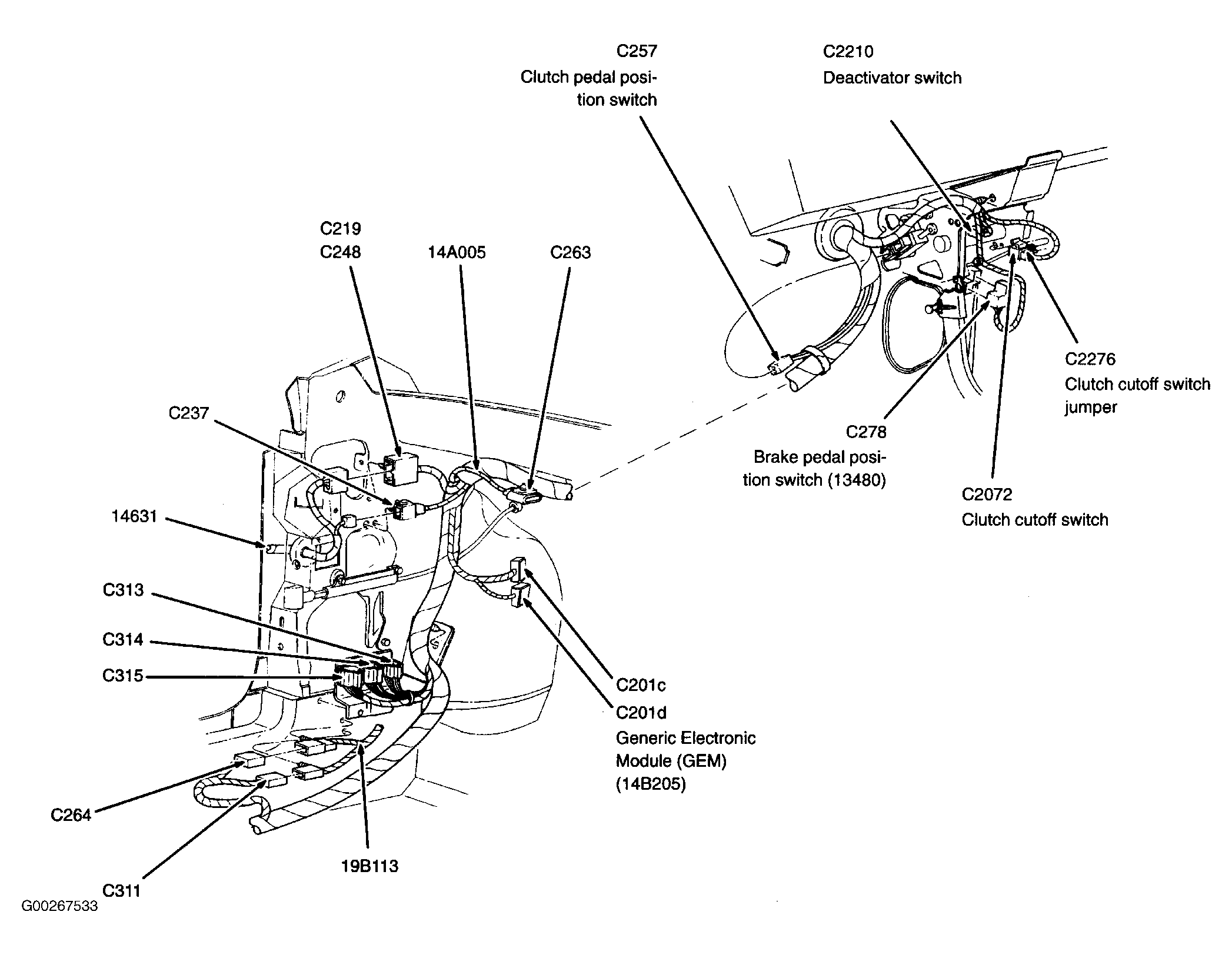

Fig 28: Left Kick Panel

G00267533

Courtesy of FORD MOTOR CO.

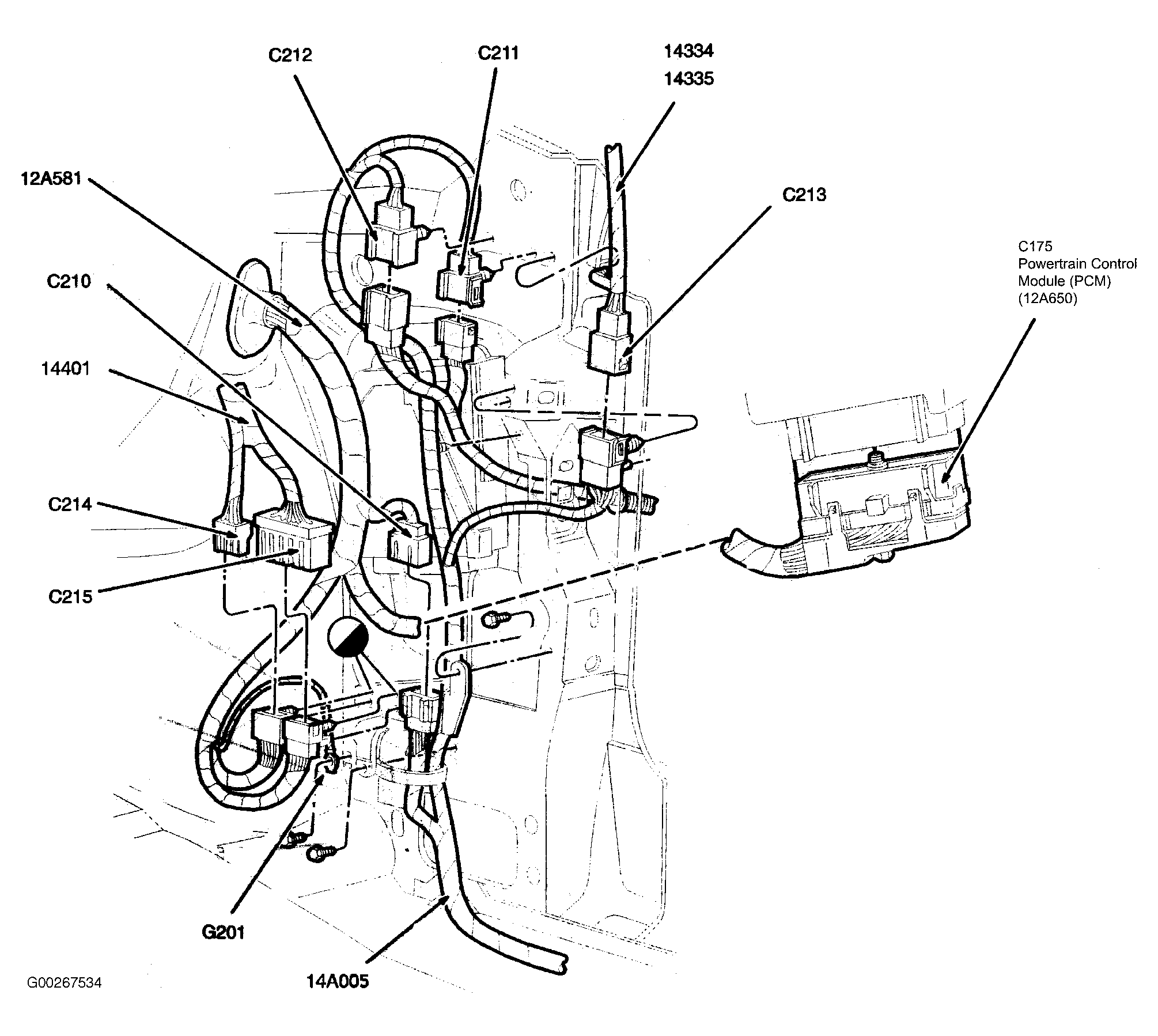

Fig 29: Right Kick Panel

G00267534

Courtesy of FORD MOTOR CO.

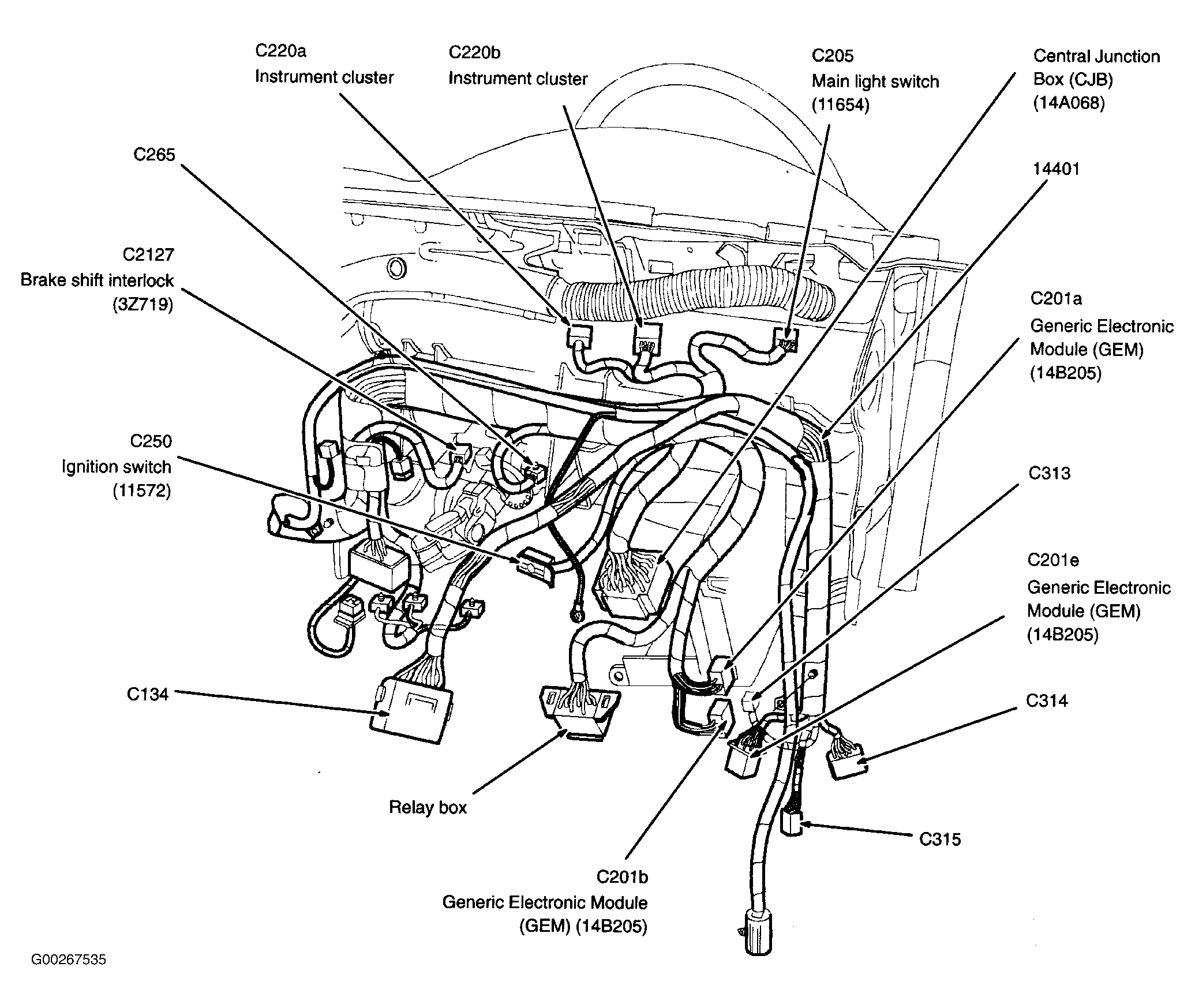

Fig 30: Behind Left Side Of Dash

G00267535

Courtesy of FORD MOTOR CO.

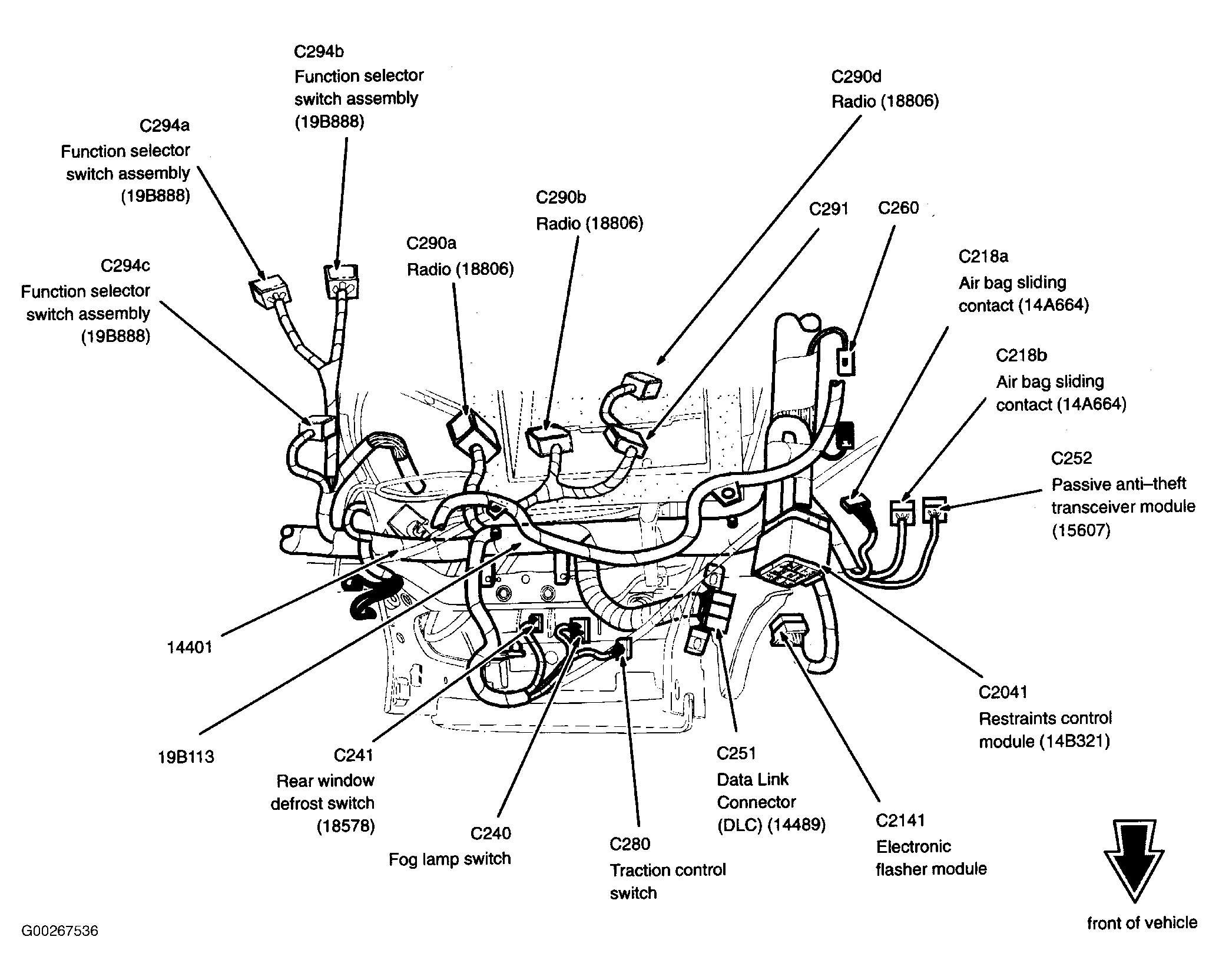

Fig 31: Behind Center Of Dash

G00267536

Courtesy of FORD MOTOR CO.

Fig 32: Behind Right Side Of Dash

G00267537

Courtesy of FORD MOTOR CO.

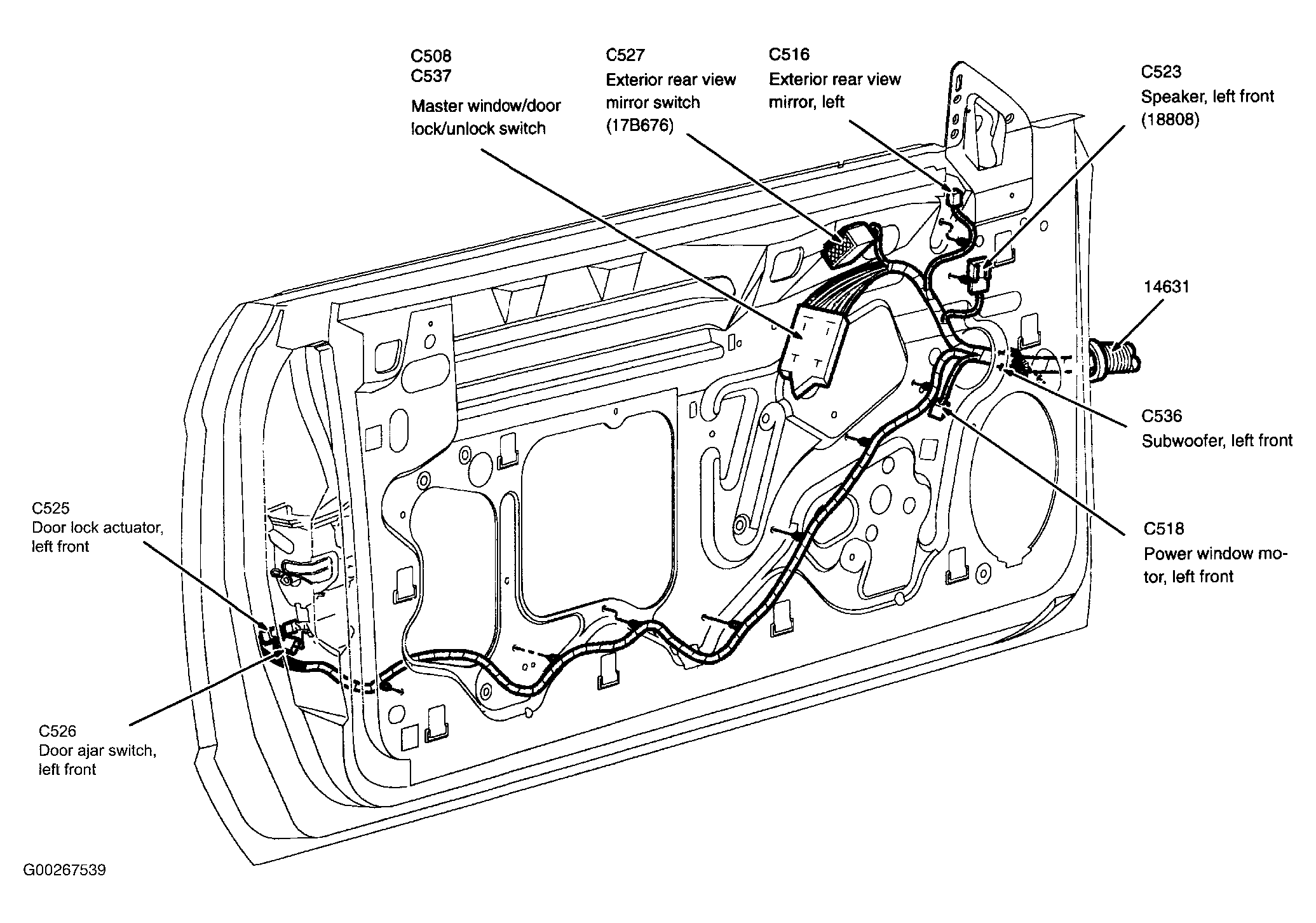

Fig 33: Left Front Door

G00267539

Courtesy of FORD MOTOR CO.

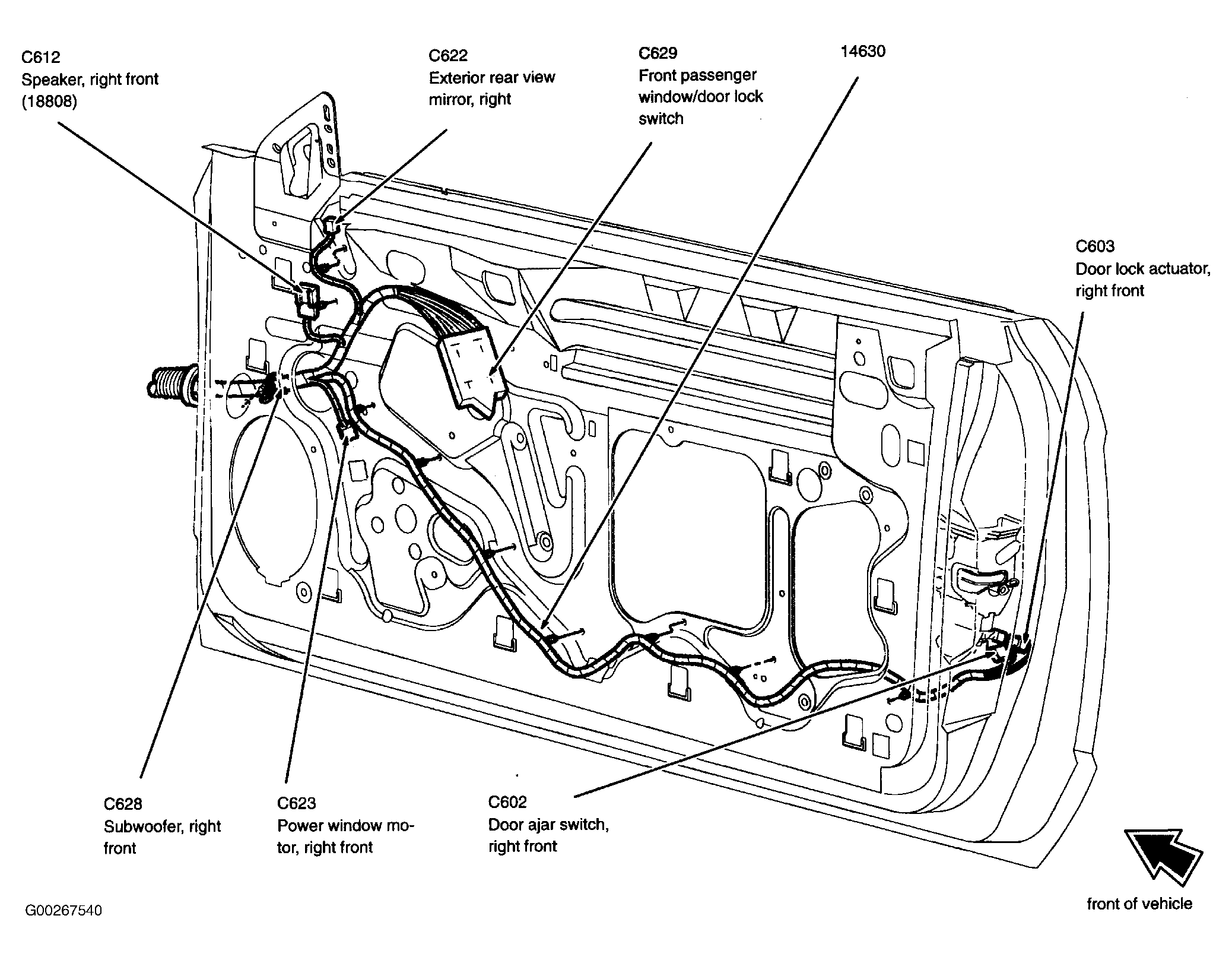

Fig 34: Right Front Door

G00267540

Courtesy of FORD MOTOR CO.

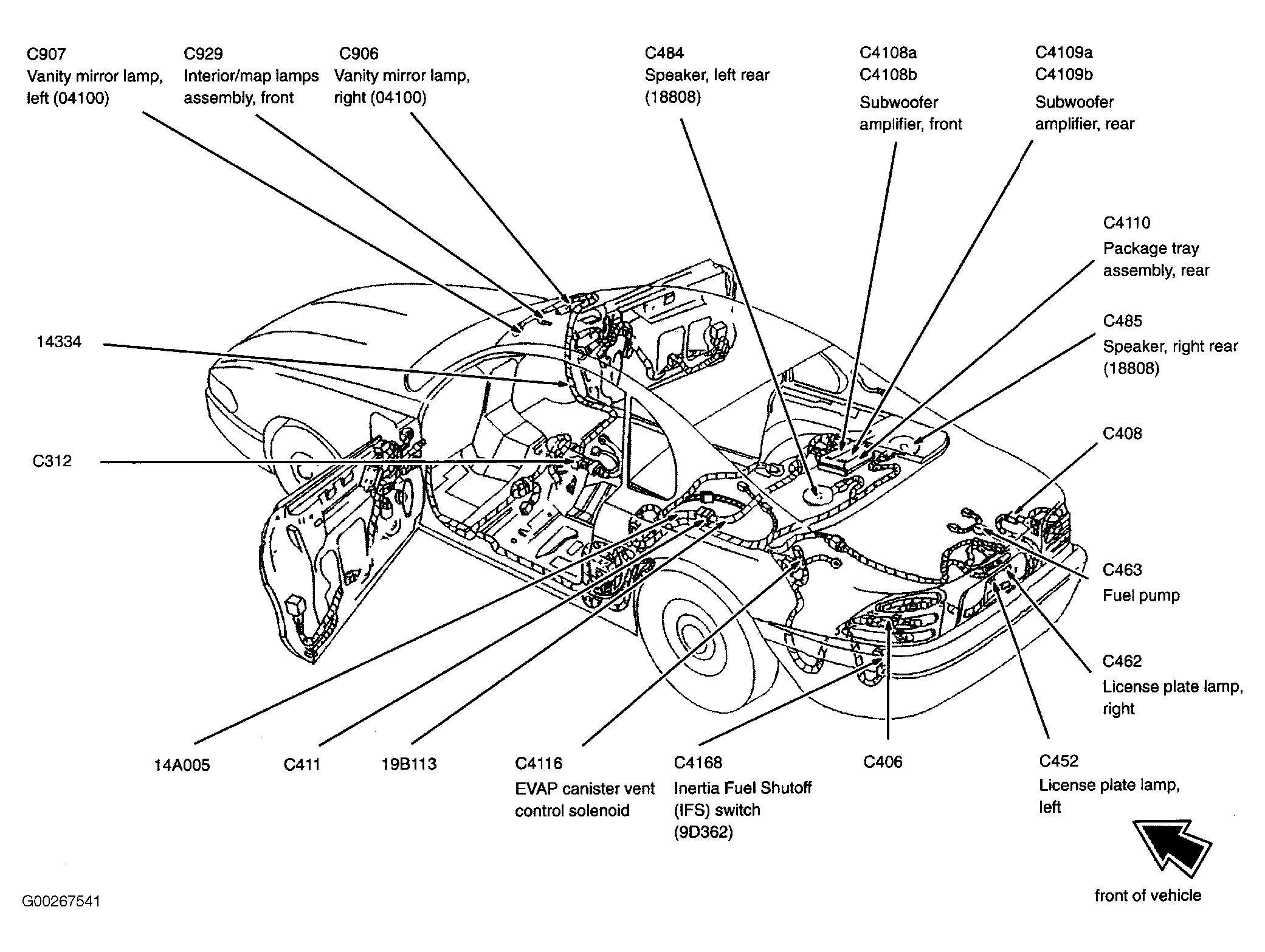

Fig 35: Vehicle Overview (Coupe)

G00267541

Courtesy of FORD MOTOR CO.

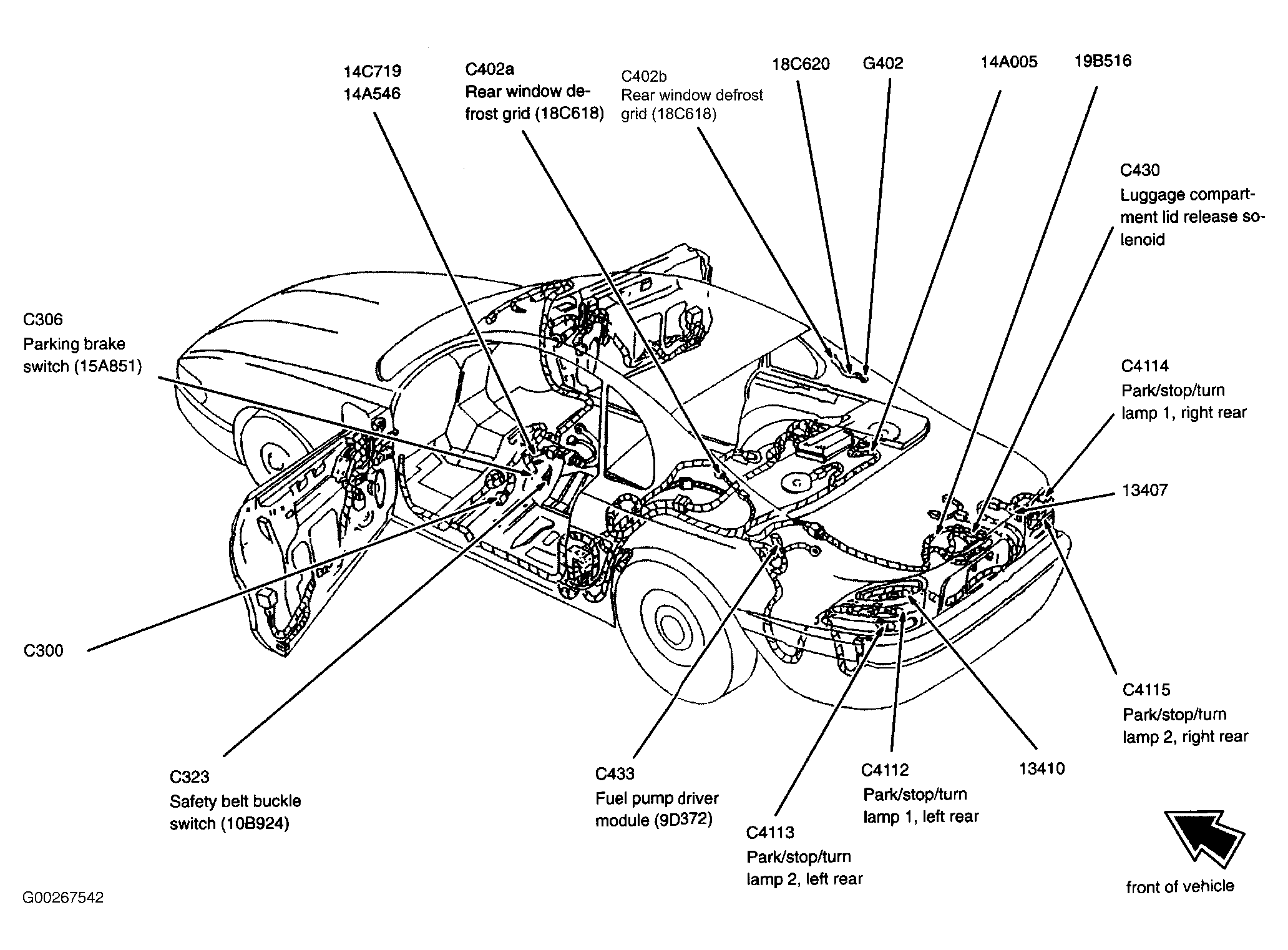

Fig 36: Vehicle Overview (Coupe)

G00267542

Courtesy of FORD MOTOR CO.

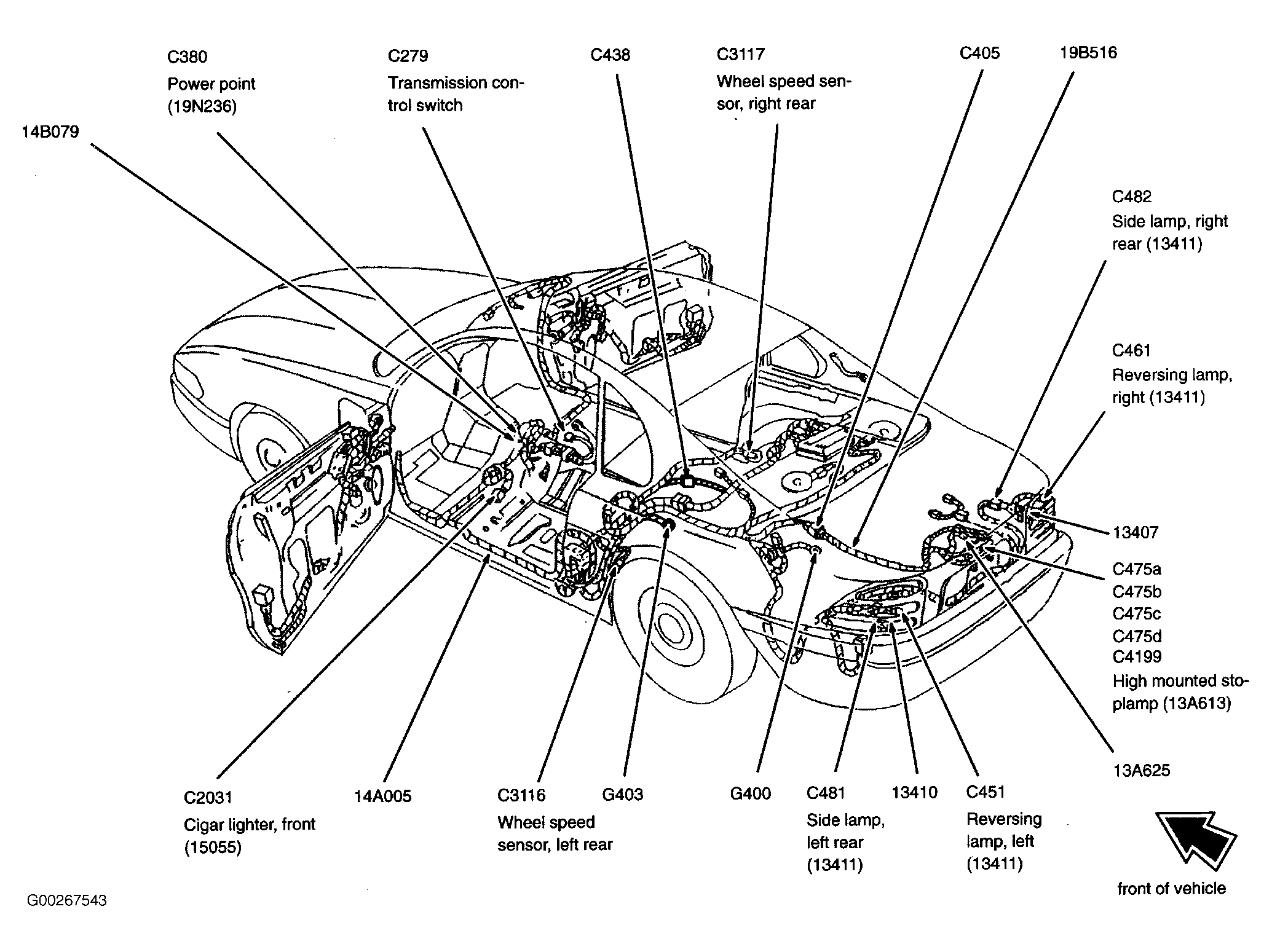

Fig 37: Vehicle Overview (Coupe)

G00267543

Courtesy of FORD MOTOR CO.

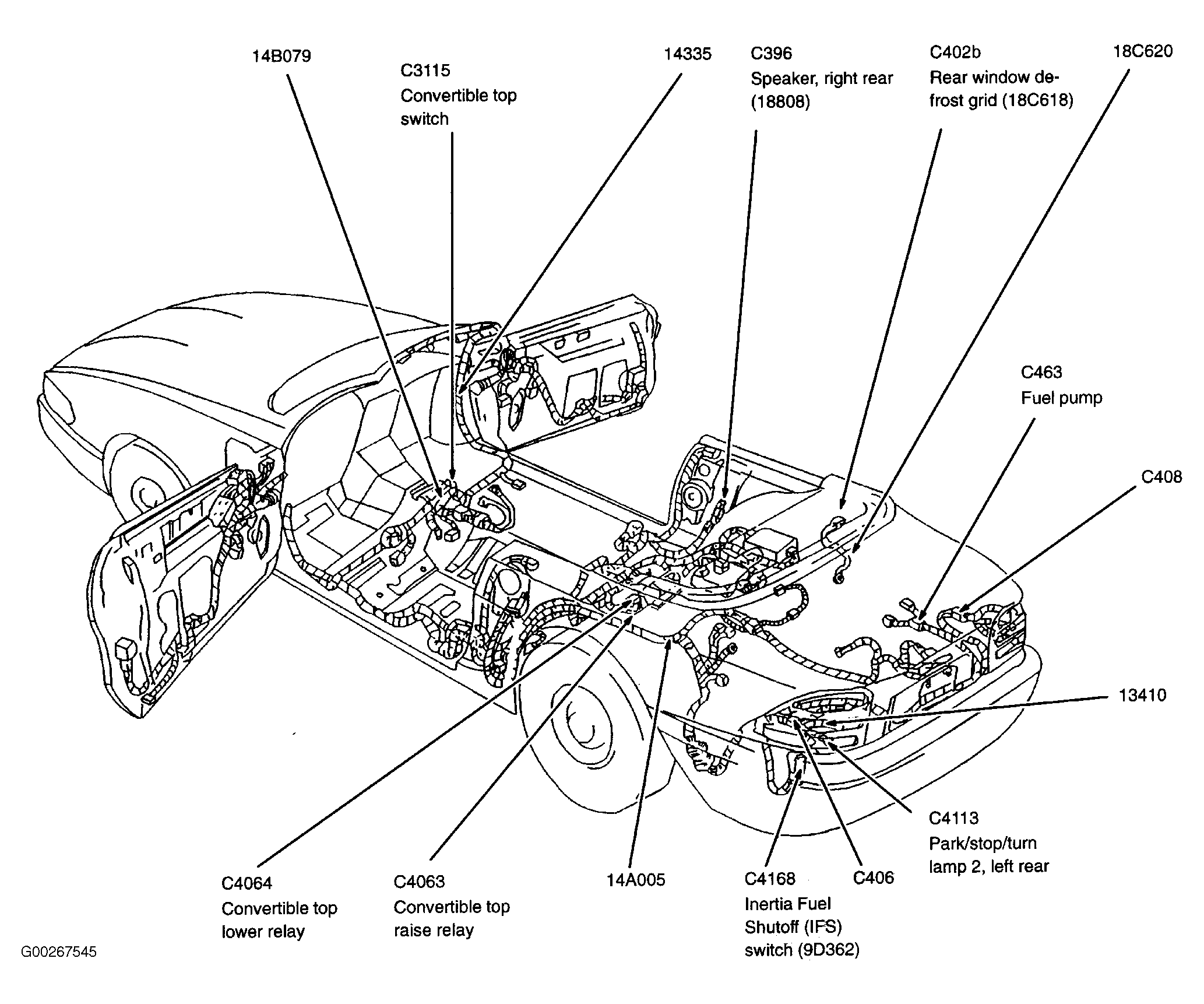

Fig 38: Vehicle Overview (Convertible)

G00267545

Courtesy of FORD MOTOR CO.

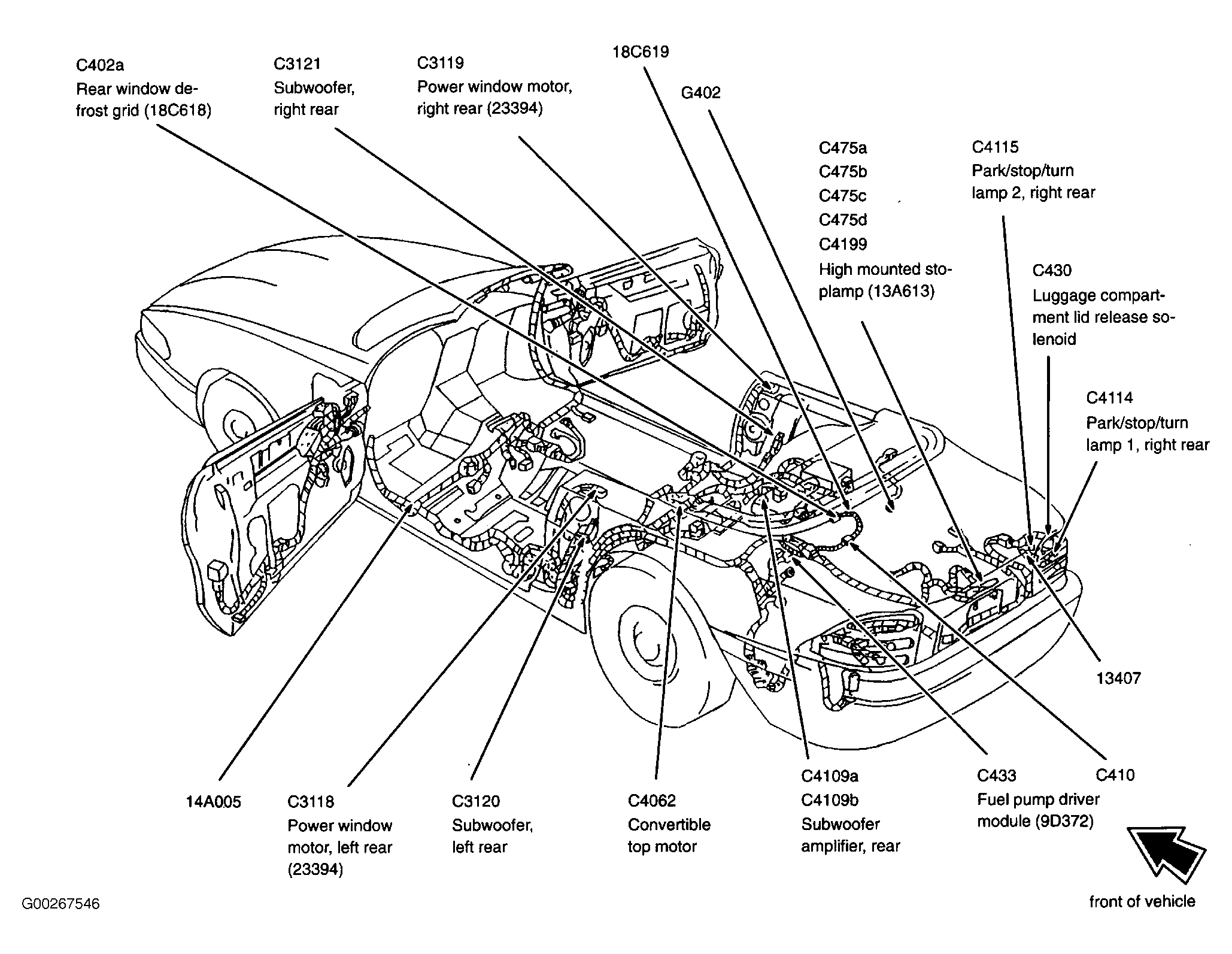

Fig 39: Vehicle Overview (Convertible)

G00267546

Courtesy of FORD MOTOR CO.

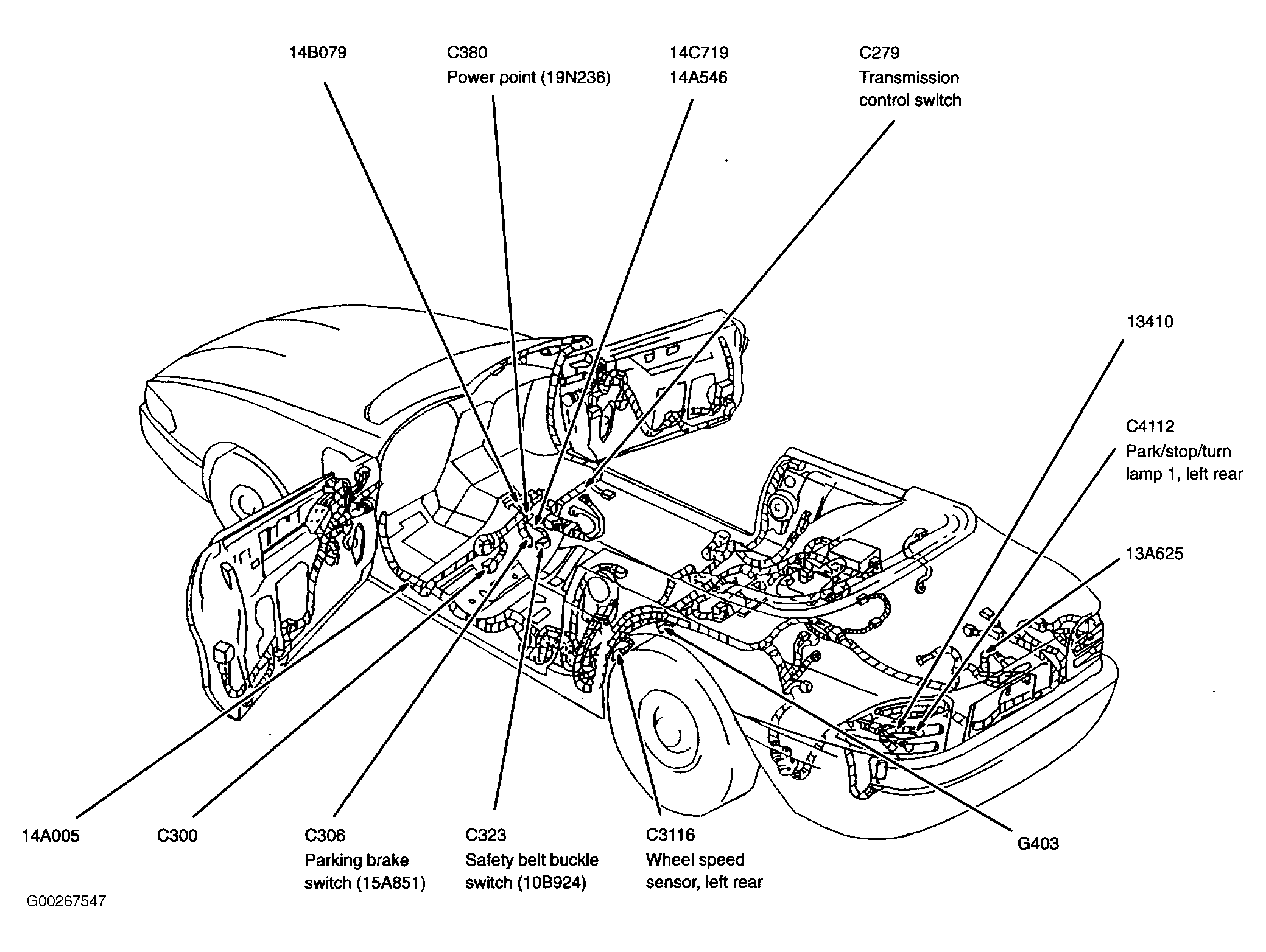

Fig 40: Vehicle Overview (Convertible)

G00267547

Courtesy of FORD MOTOR CO.

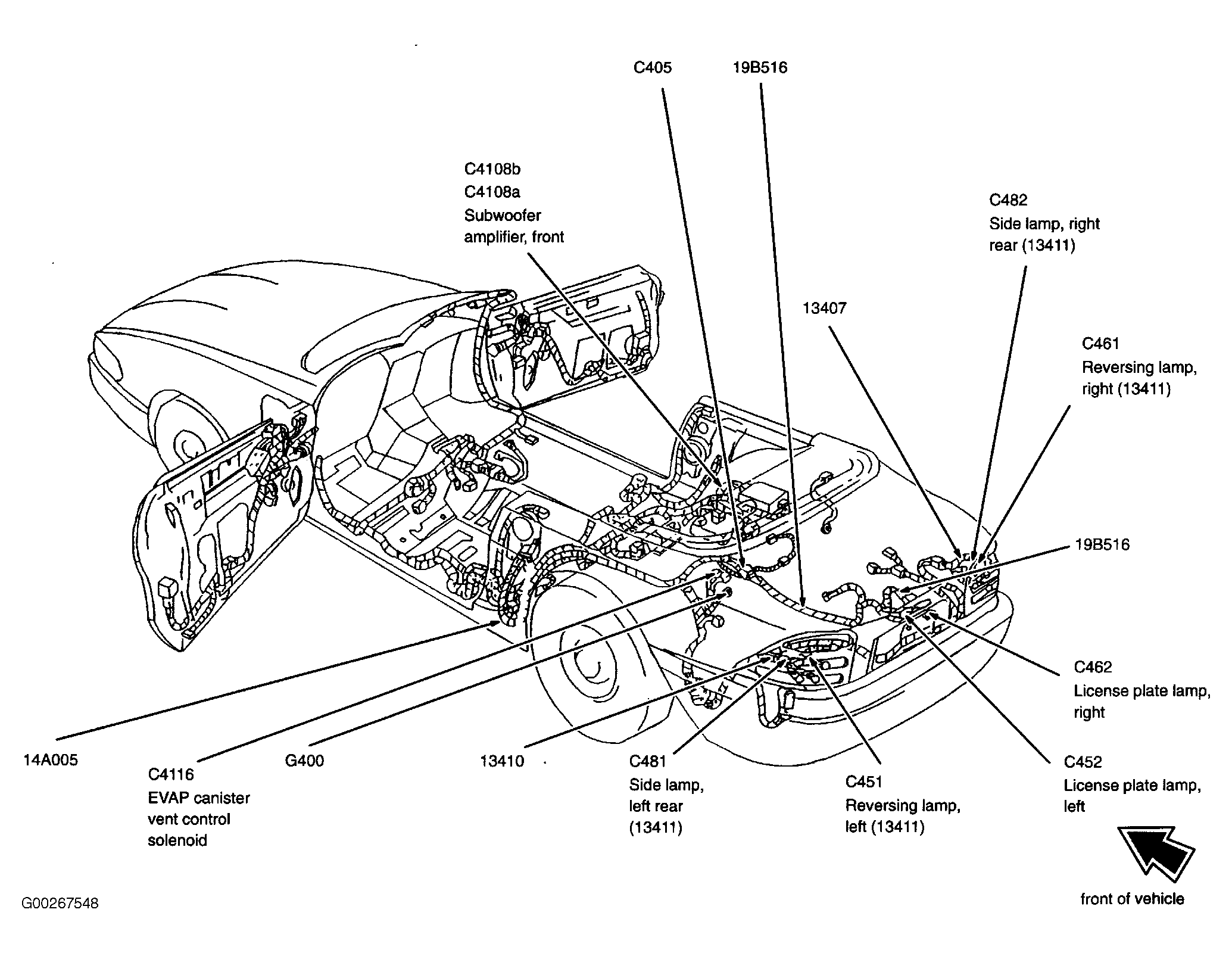

Fig 41: Vehicle Overview (Convertible)

G00267548

Courtesy of FORD MOTOR CO.

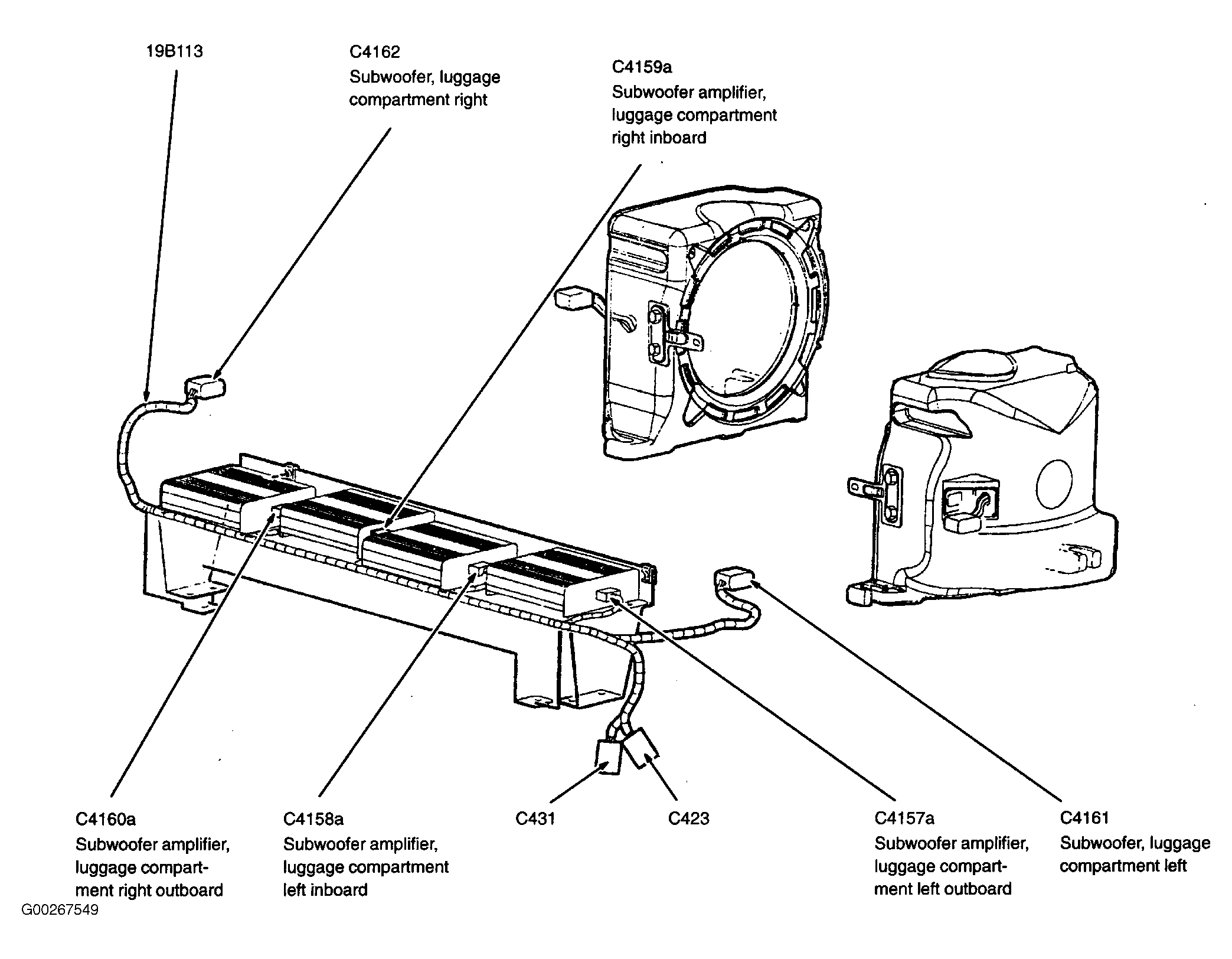

Fig 42: Behind Rear Seats (Mach 1000)

G00267549

Courtesy of FORD MOTOR CO.
