Powertrain Control Module (PCM): Removal

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the RH front door scuff plate.

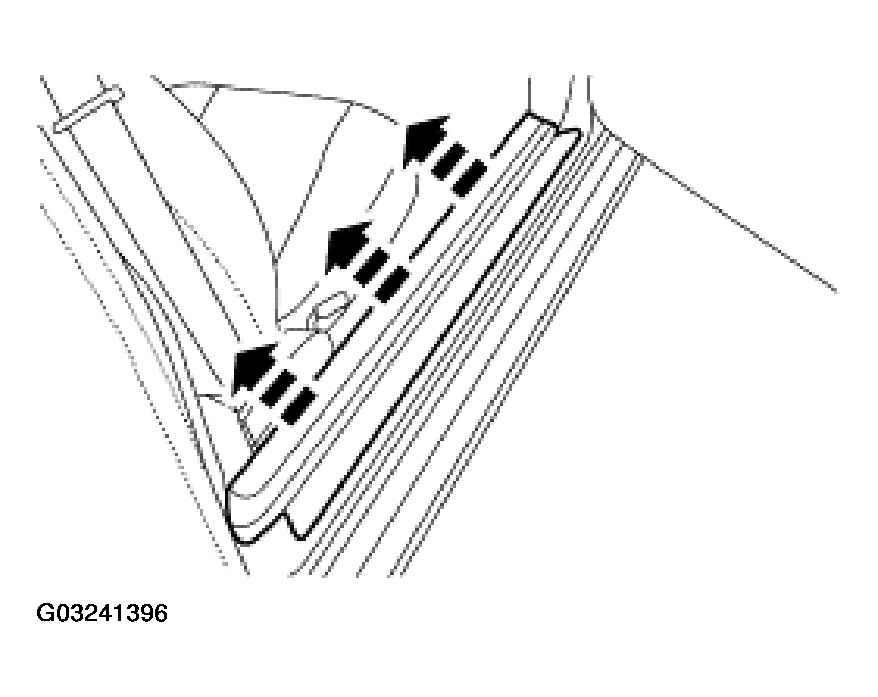

Fig 1: Removing RH Front Door Scuff Plate
Courtesy of FORD MOTOR CO.
Remove the RH cowl side trim panel.
- Remove the pin-type retainer.
- Remove the panel.

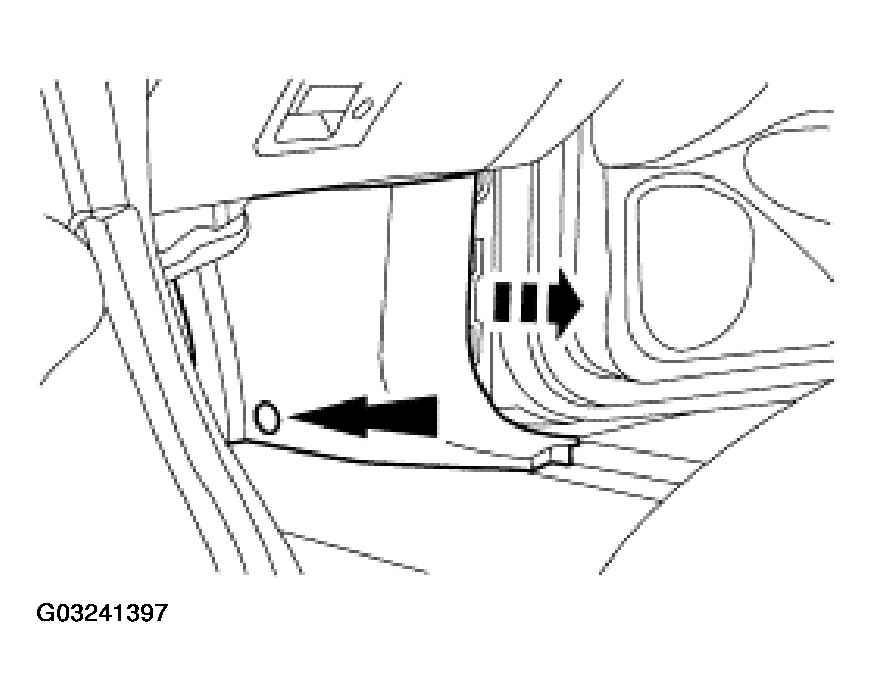

  Fig 2: Removing Pin-Type Retainer
  Courtesy of FORD MOTOR CO.
Disconnect the connectors and position them aside.

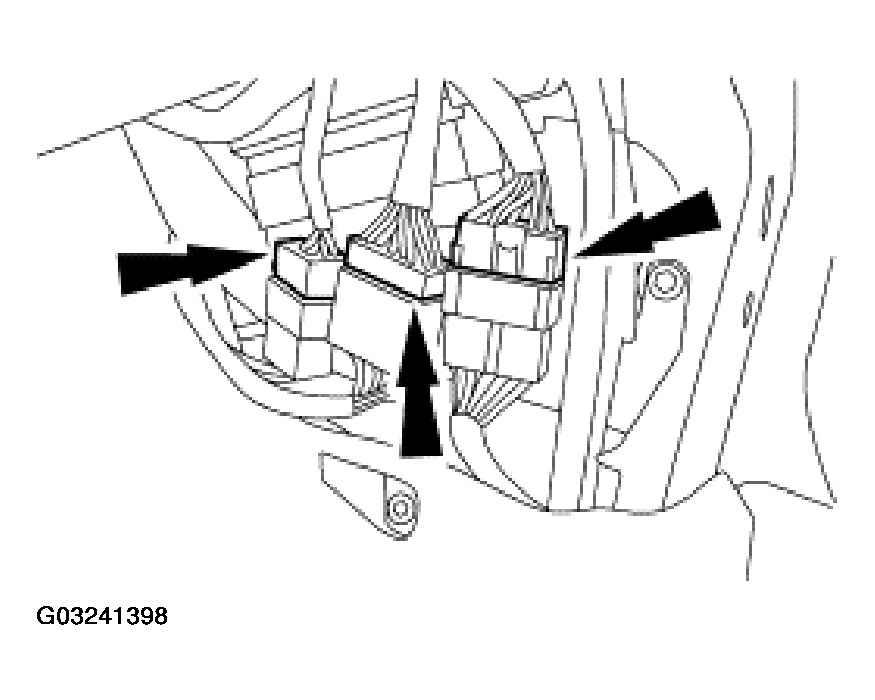

Fig 3: Disconnecting Connectors
Courtesy of FORD MOTOR CO.
Remove the bolts and the bracket.

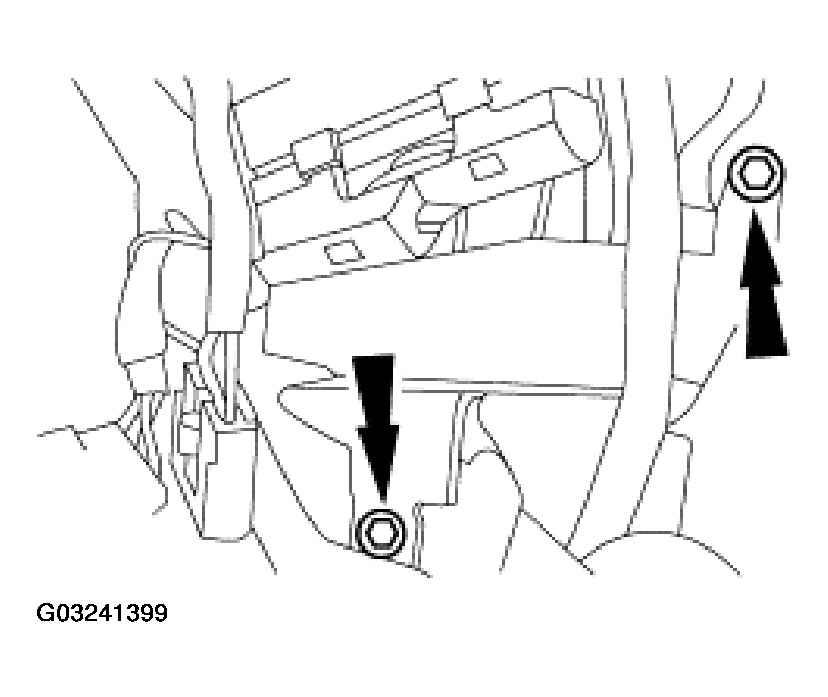

Fig 4: Removing Bolts
Courtesy of FORD MOTOR CO.
Loosen the bolt and remove the connector.

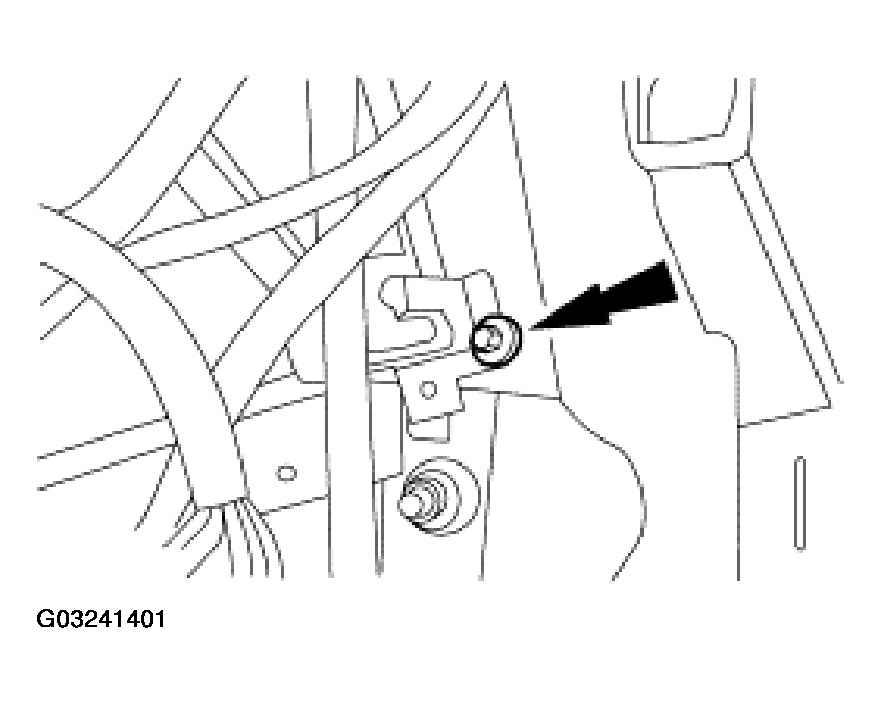

Fig 5: Removing Connector
Courtesy of FORD MOTOR CO.
Remove the bolt and the powertrain control module (PCM).

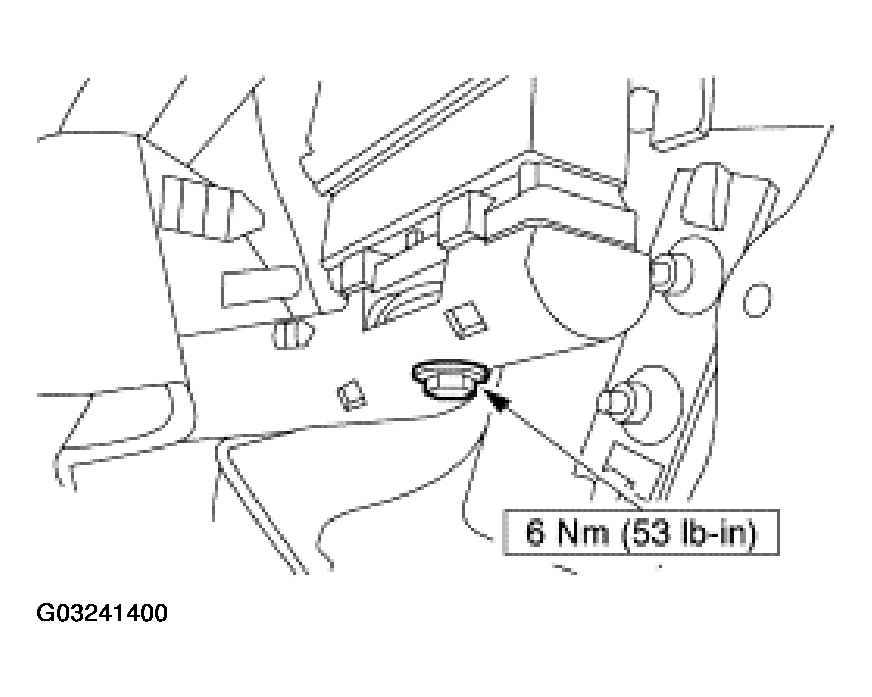

Fig 6: Removing Bolt And Powertrain Control Module (PCM)
Courtesy of FORD MOTOR CO.
