Digital Transmission Range (TR) Sensor: Removal

1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
2. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & HOISTING .
3. Disconnect the connector.

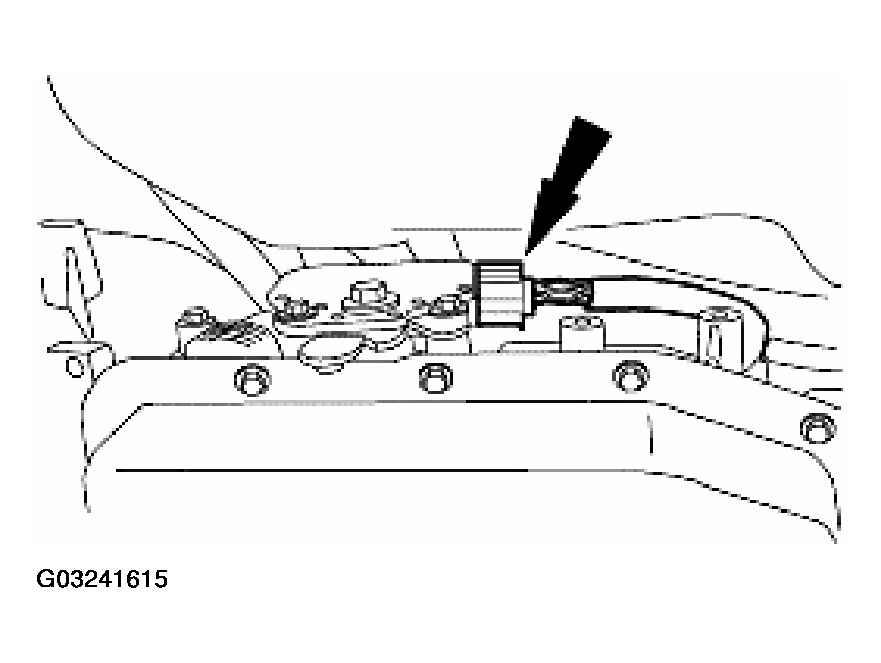

   Fig 1: Disconnecting Digital TR Sensor Electrical Connector

   Courtesy of FORD MOTOR CO.
4. Disconnect the manual lever shift control cable.

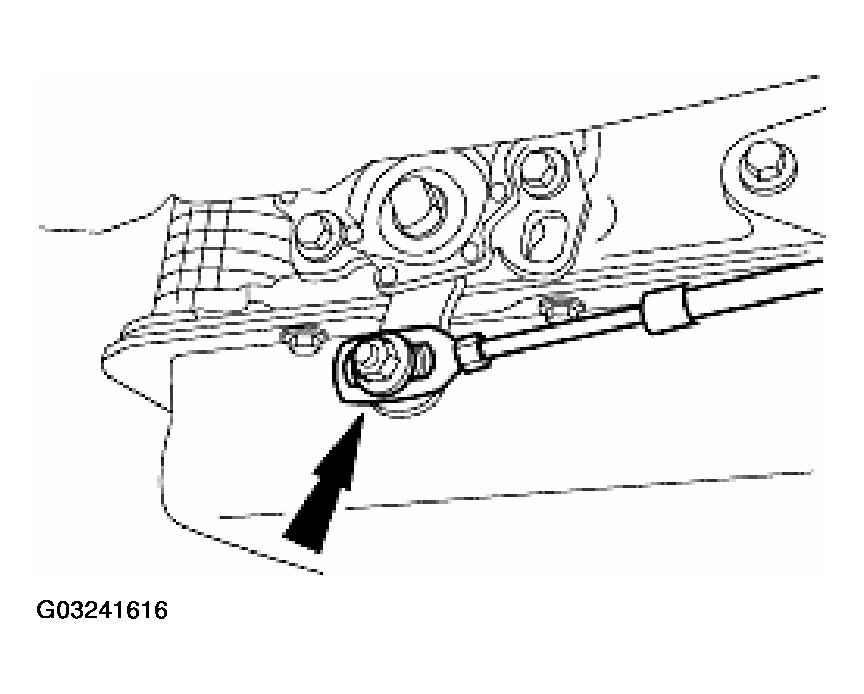

   Fig 2: Disconnecting Manual Lever Shift Control Cable

   Courtesy of FORD MOTOR CO.
5. Remove the digital TR bolts and the TR sensor.

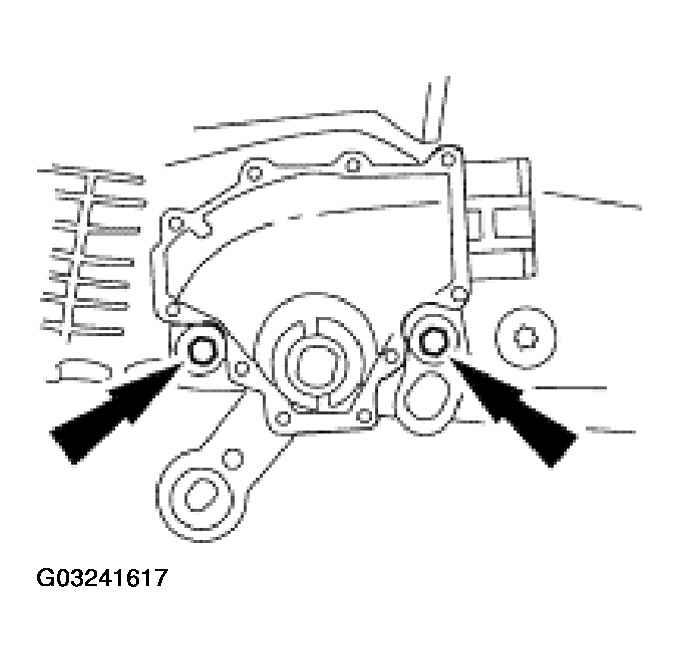

Fig 3: Removing Digital TR Sensor

Courtesy of FORD MOTOR CO.
