Spring Lock Couplings: Connect

    NOTE: Inspect and clean both the coupling ends. Lubricate the O-ring seals with clean engine oil.
  1. Connect the fitting.
    • Pull on the fitting to make sure it is fully engaged.
    • Install the safety clip.

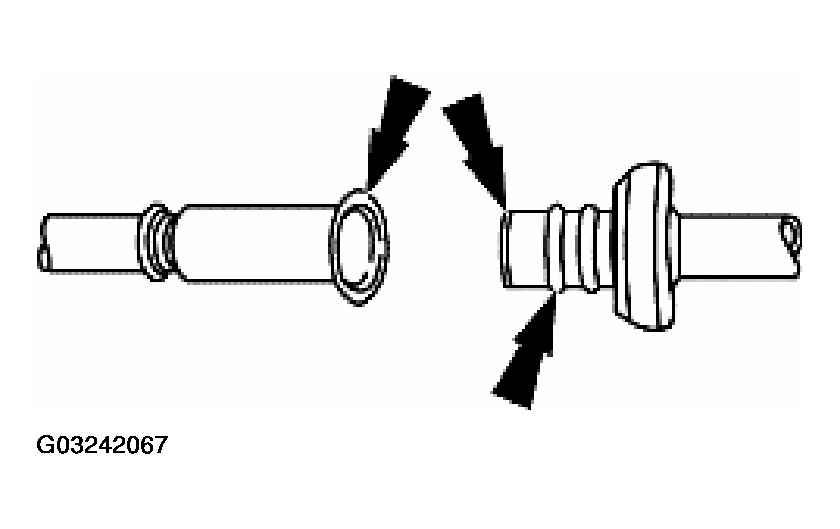

      Fig 1: Connecting Fitting
      G03242067Courtesy of FORD MOTOR CO.
