Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

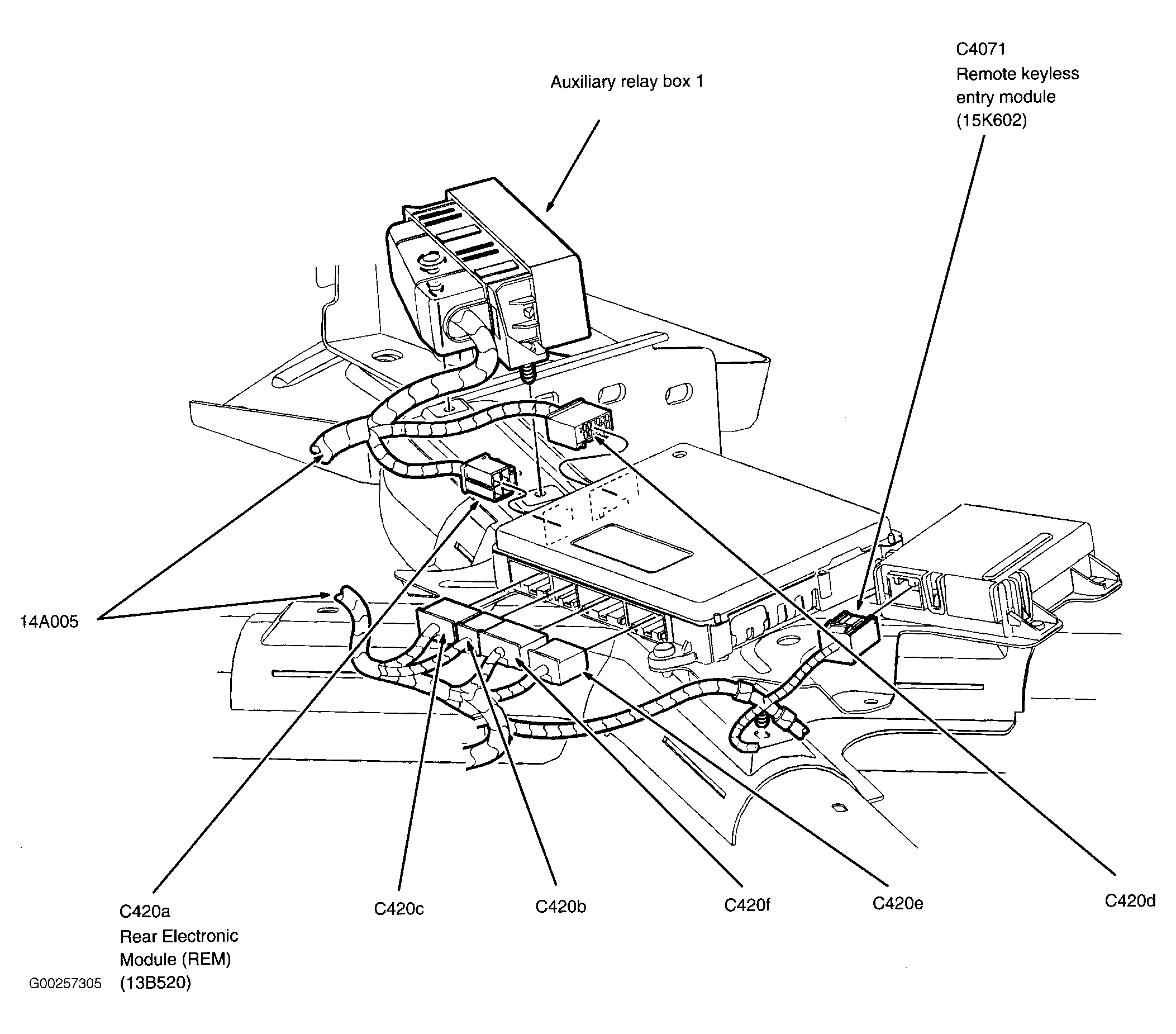

| Auxiliary Relay Box 1 | Behind seats, on vehicle crossbeam. See Figure. |

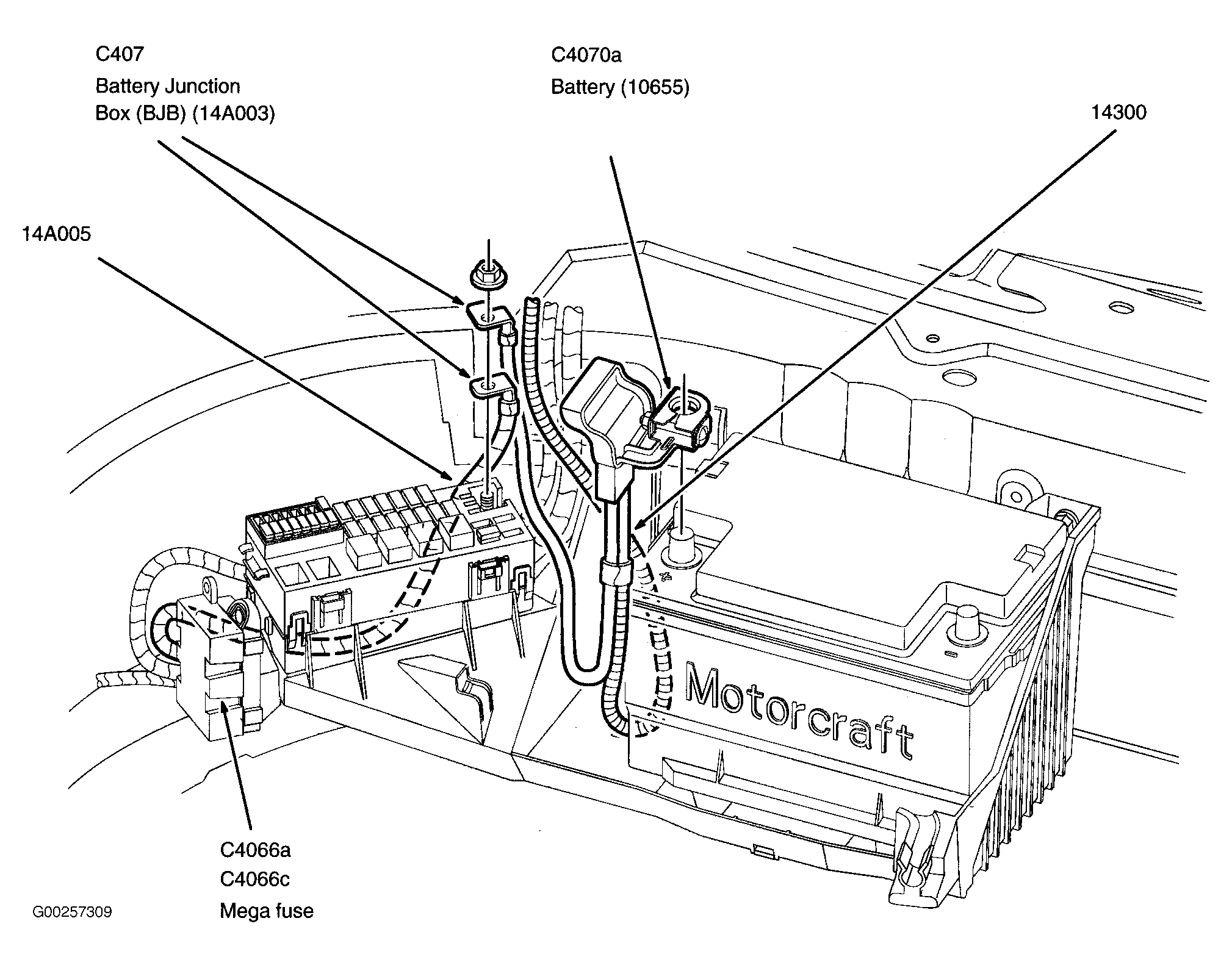

| Battery Junction Box | In luggage compartment, near battery. See Figure. |

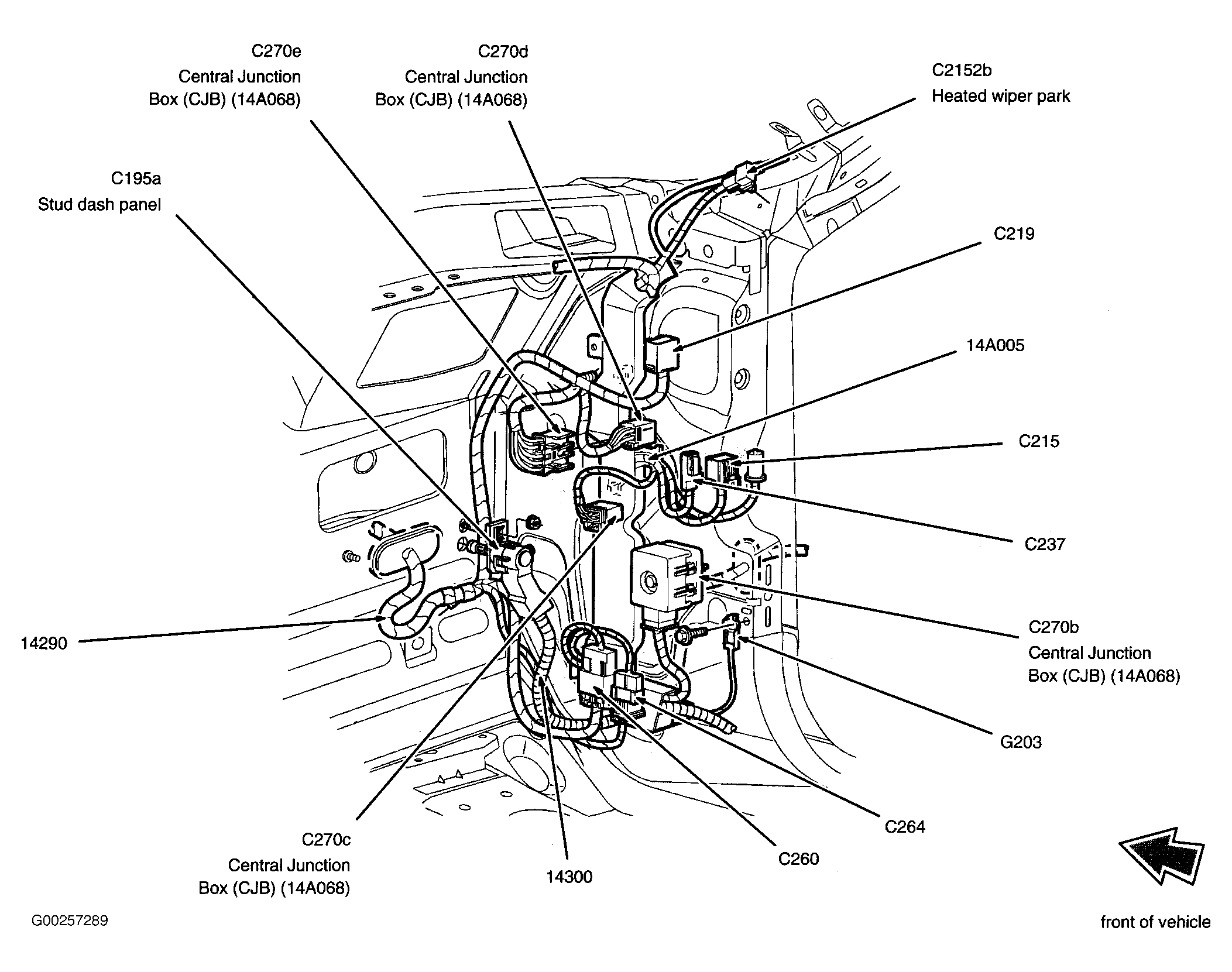

| Central Junction Box | Behind right kick panel. See Figure. |

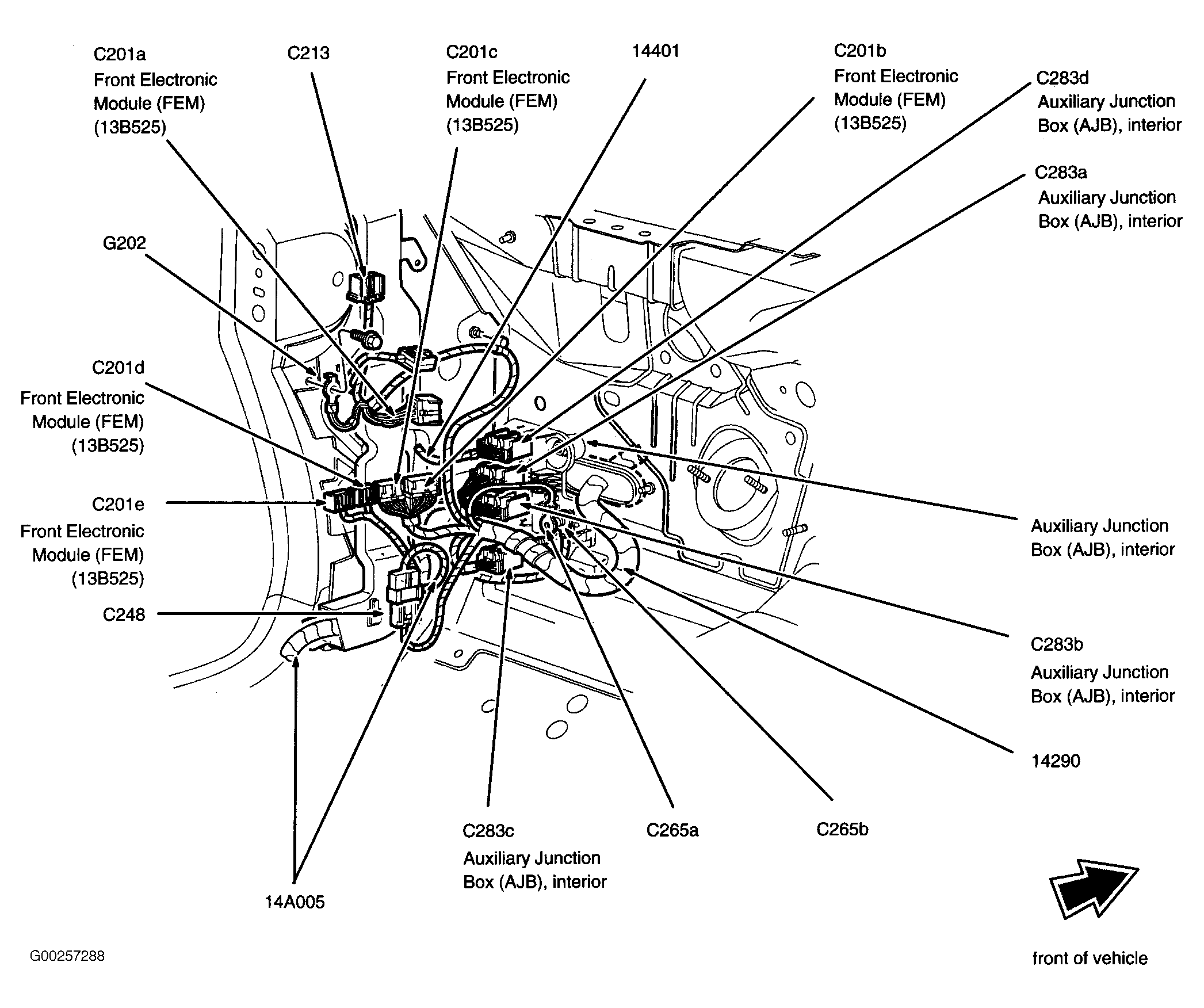

| Interior Auxiliary Junction Box | Under left side of dash. See Figure. |
| Mega Fuse | In luggage compartment, near battery junction box. See Figure. |

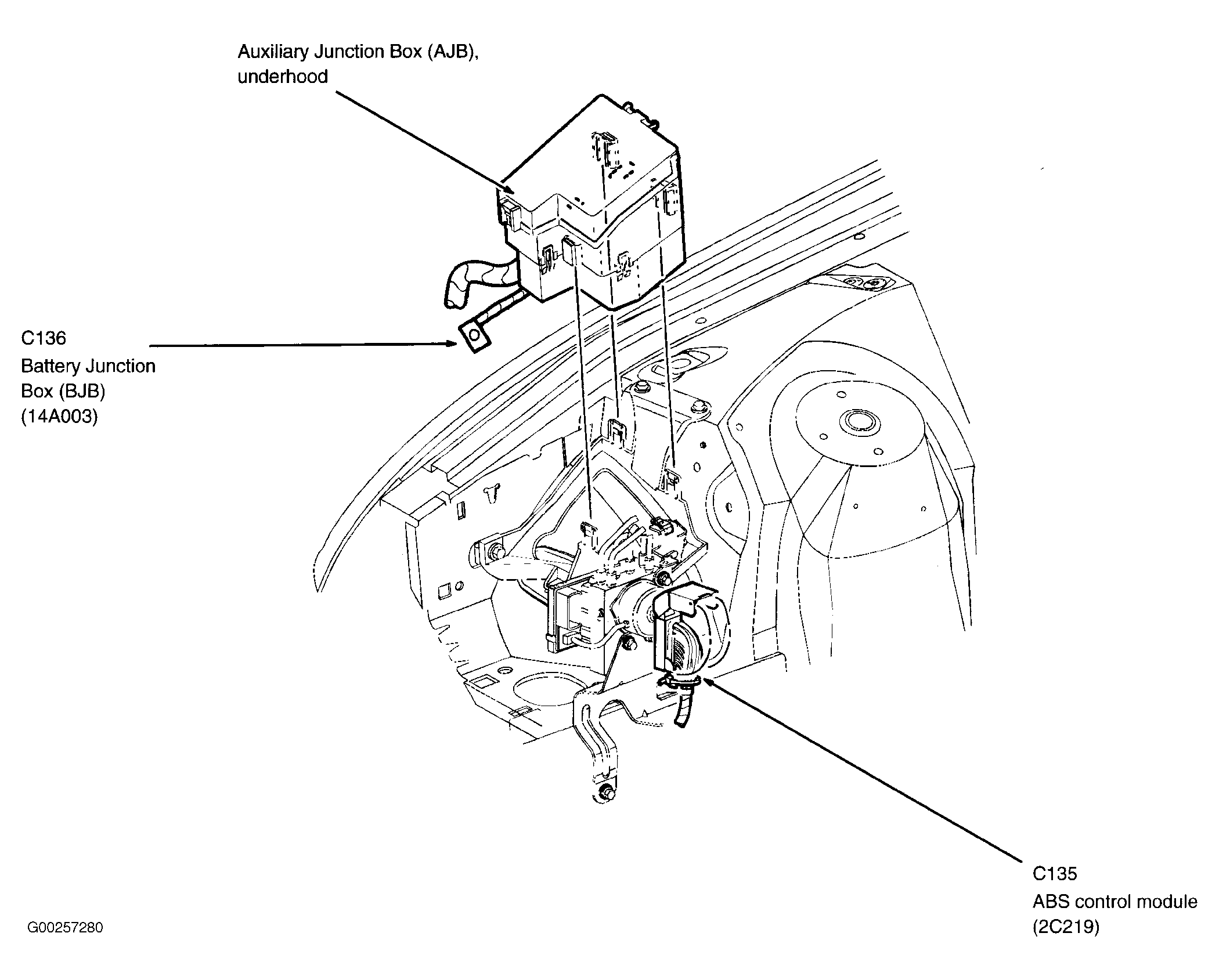

| Underhood Auxiliary Junction Box | In right front of engine compartment. See Figure. |
