Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | On right front of engine compartment. See Figure. |

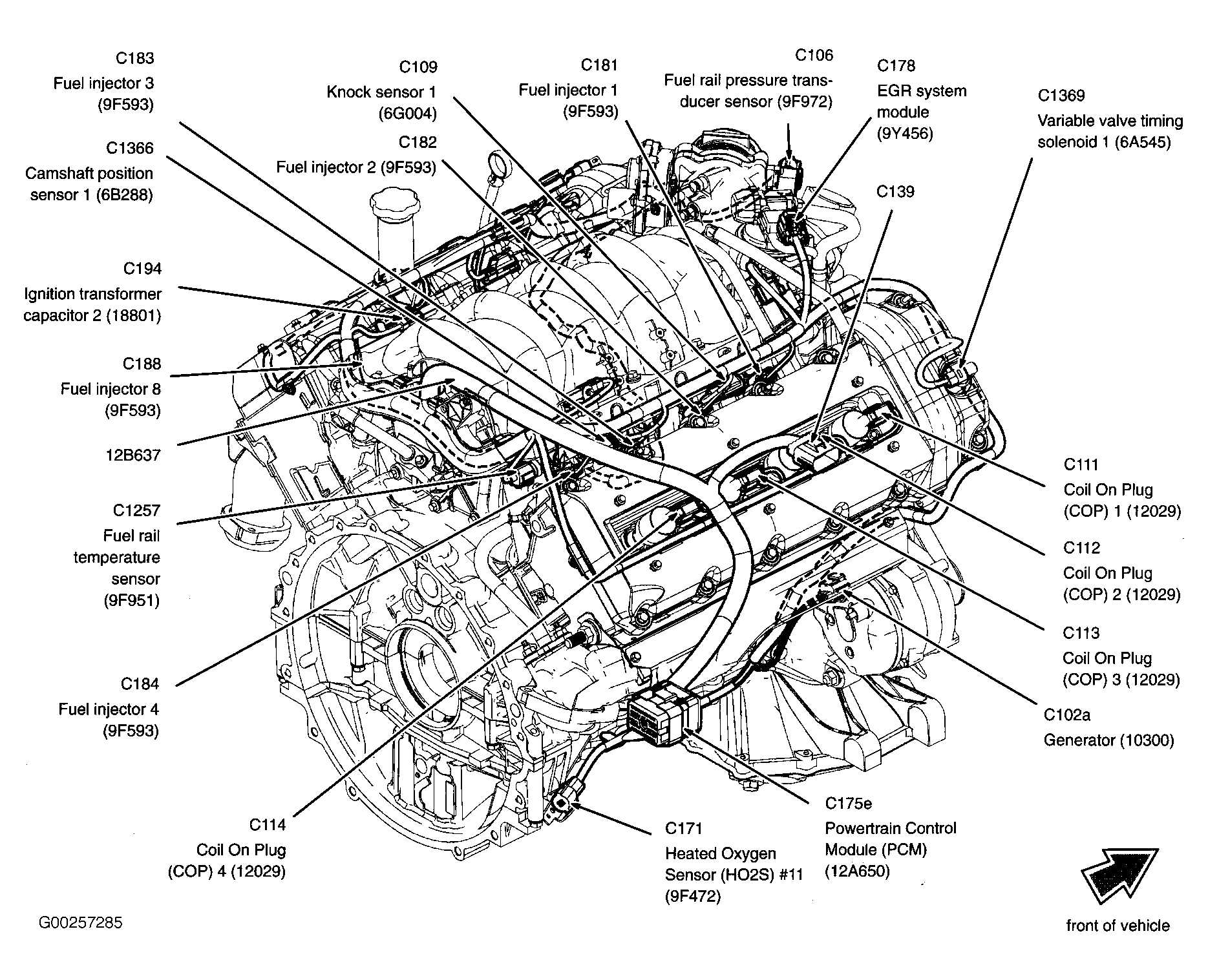

| EGR System Module | Top front of engine. See Figure. |

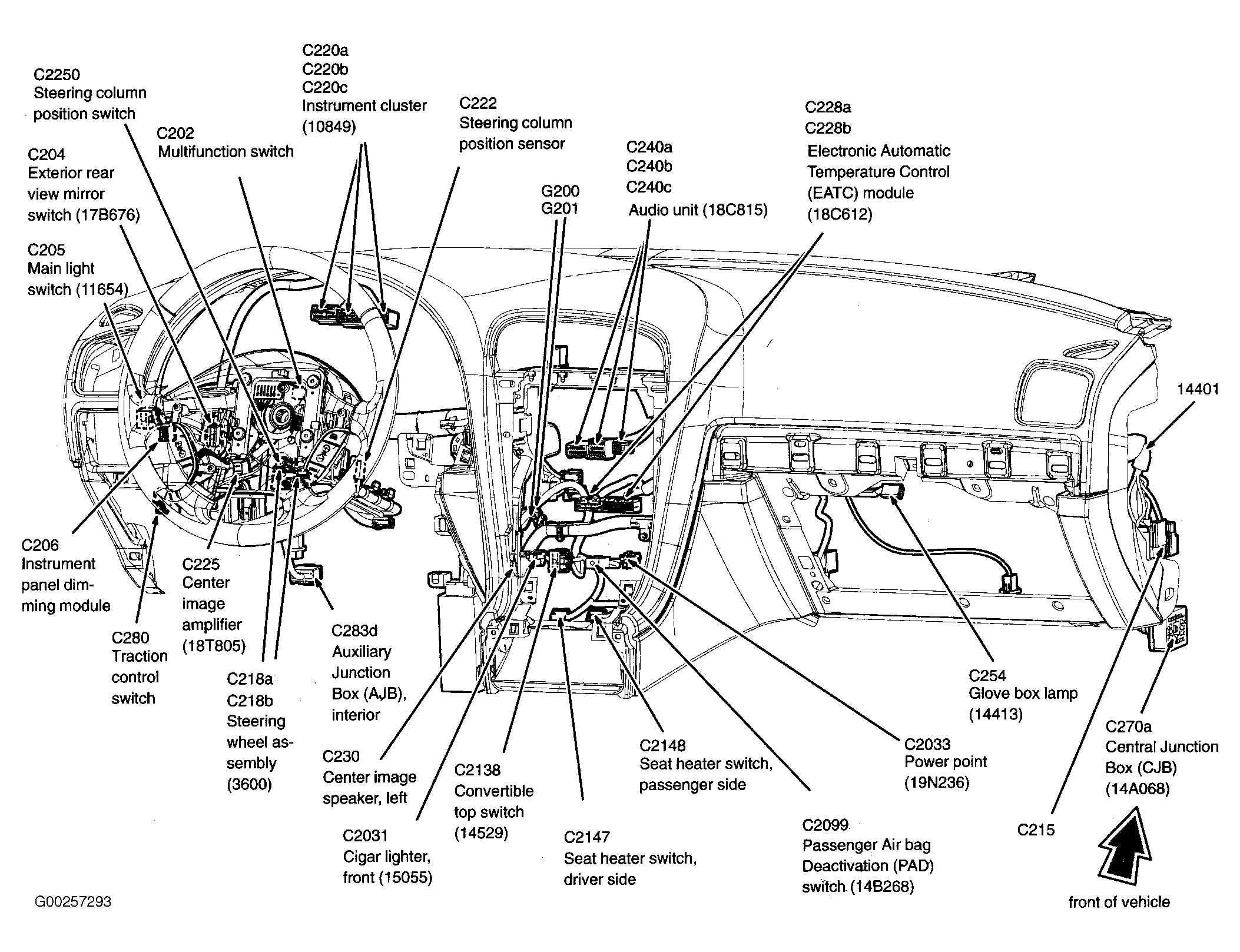

| Electronic Automatic Temperature Control Module | Behind center of dash. See Figure. |

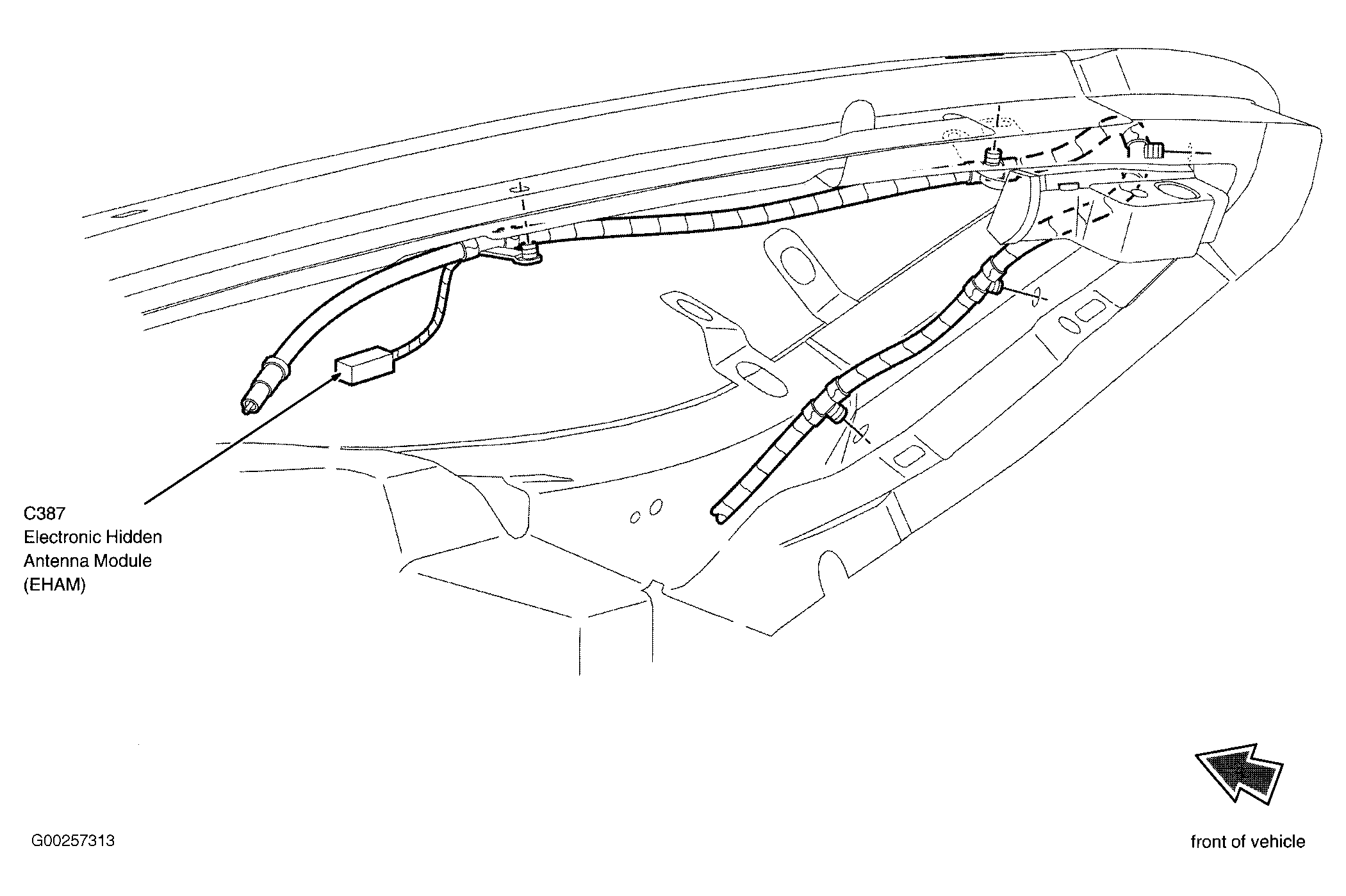

| Electronic Hidden Antenna Module | In right "A" pillar. See Figure. |

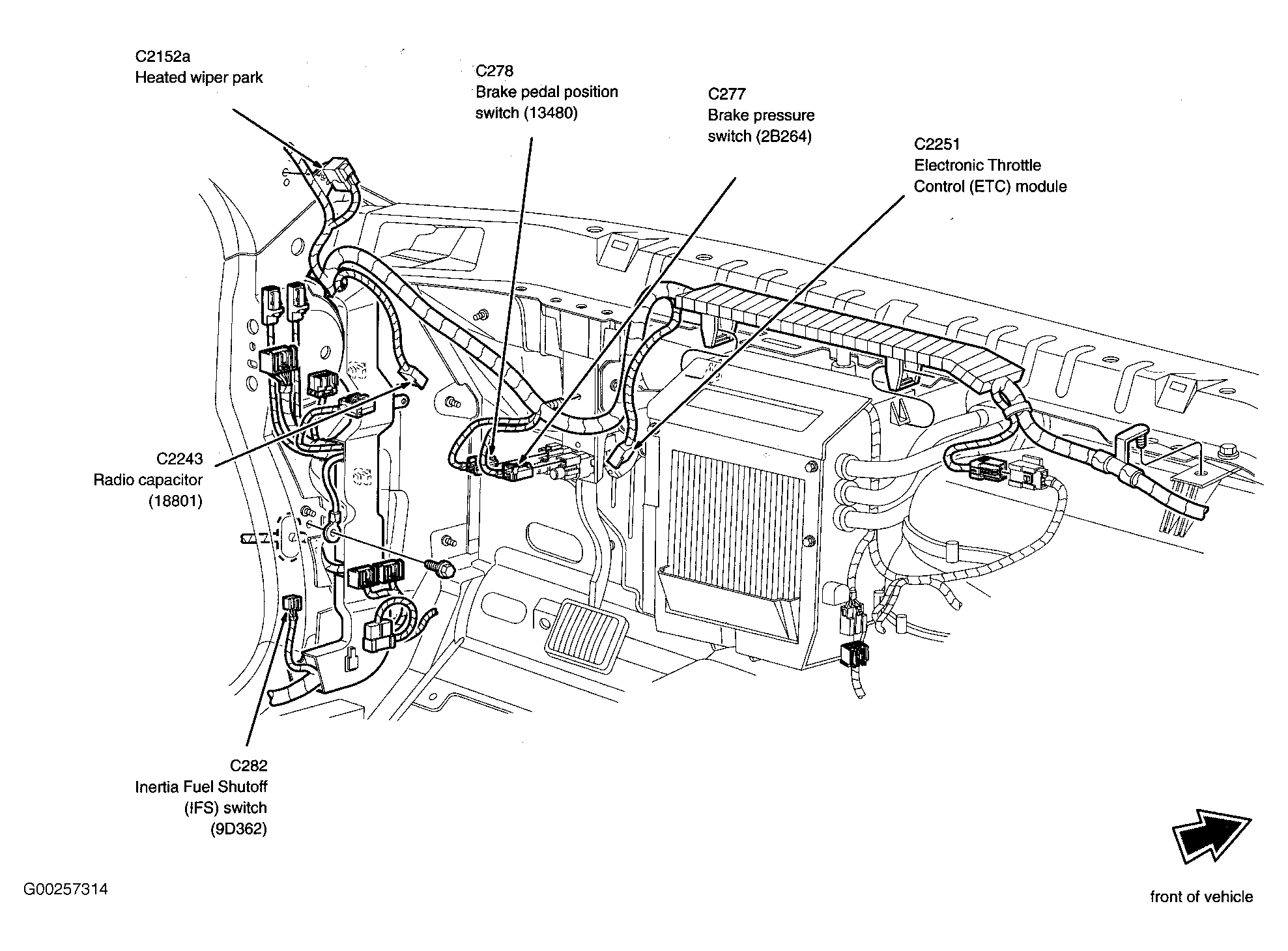

| Electronic Throttle Control Module | Behind left center of dash. See Figure. |
| Front Electronic Module | Behind left kick panel.. See Figure. |
| Front Heated Seat Module (Driver) | Under driver seat. See Figure. |
| Front Heated Seat Module (Passenger) | Under passenger seat. See Figure. |

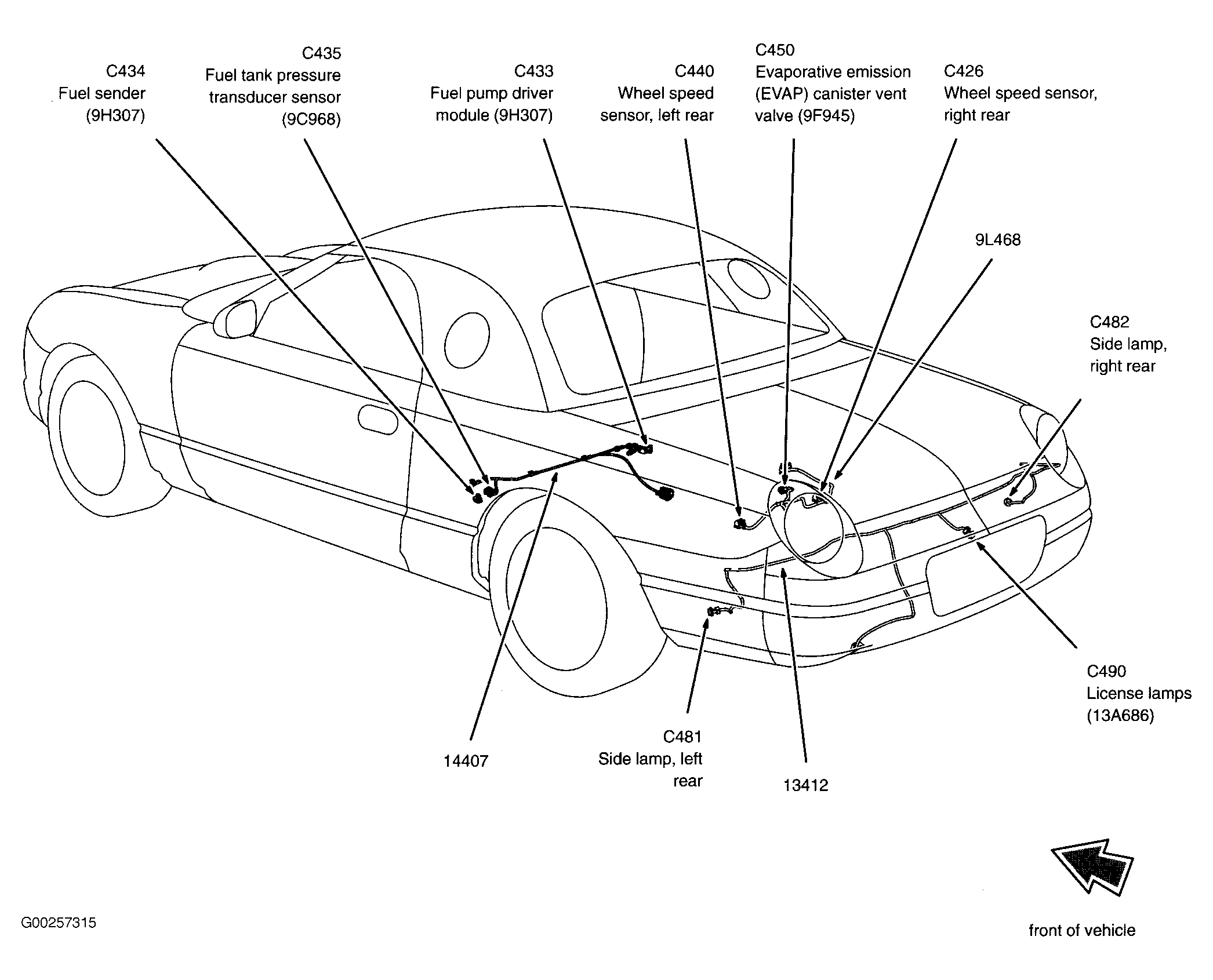

| Fuel Pump Driver Module | Under rear of vehicle. See Figure. |

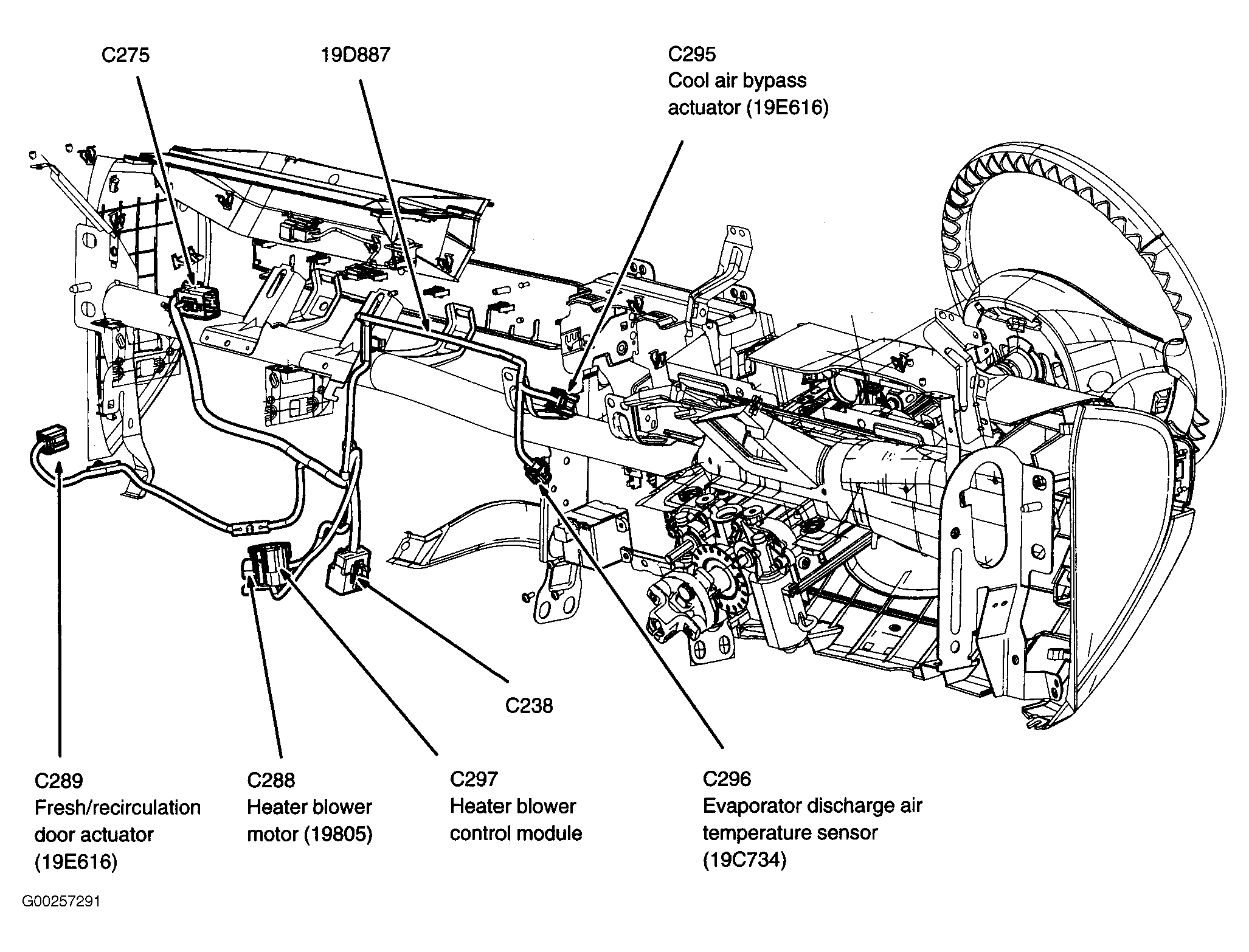

| Heater Blower Control Module | Behind left side of dash. See Figure. |
| Instrument Panel Dimming Module | Behind left side of dash. See Figure. |

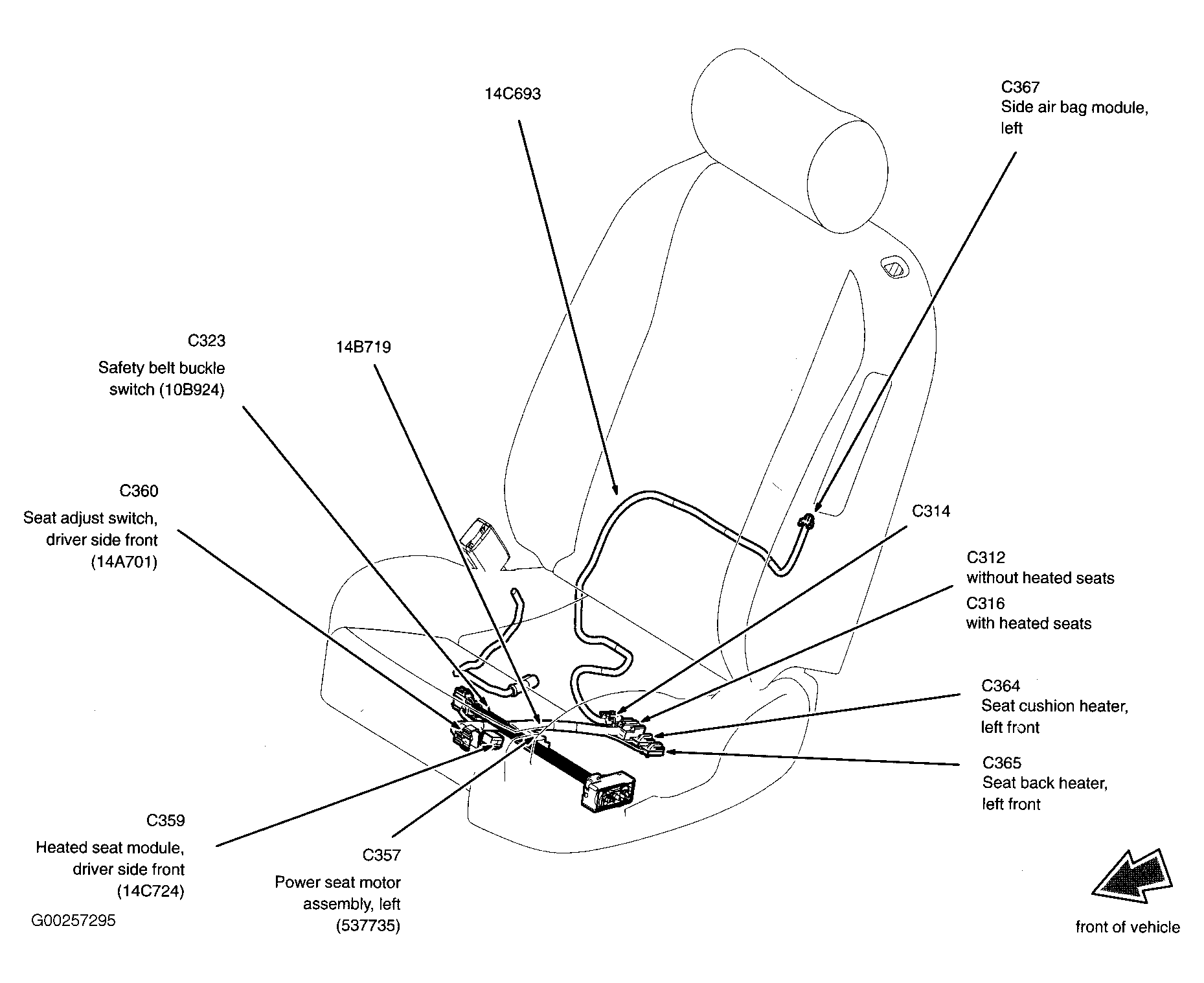

| Left Side Air Bag Module | Left side of driver seat. See Figure. |

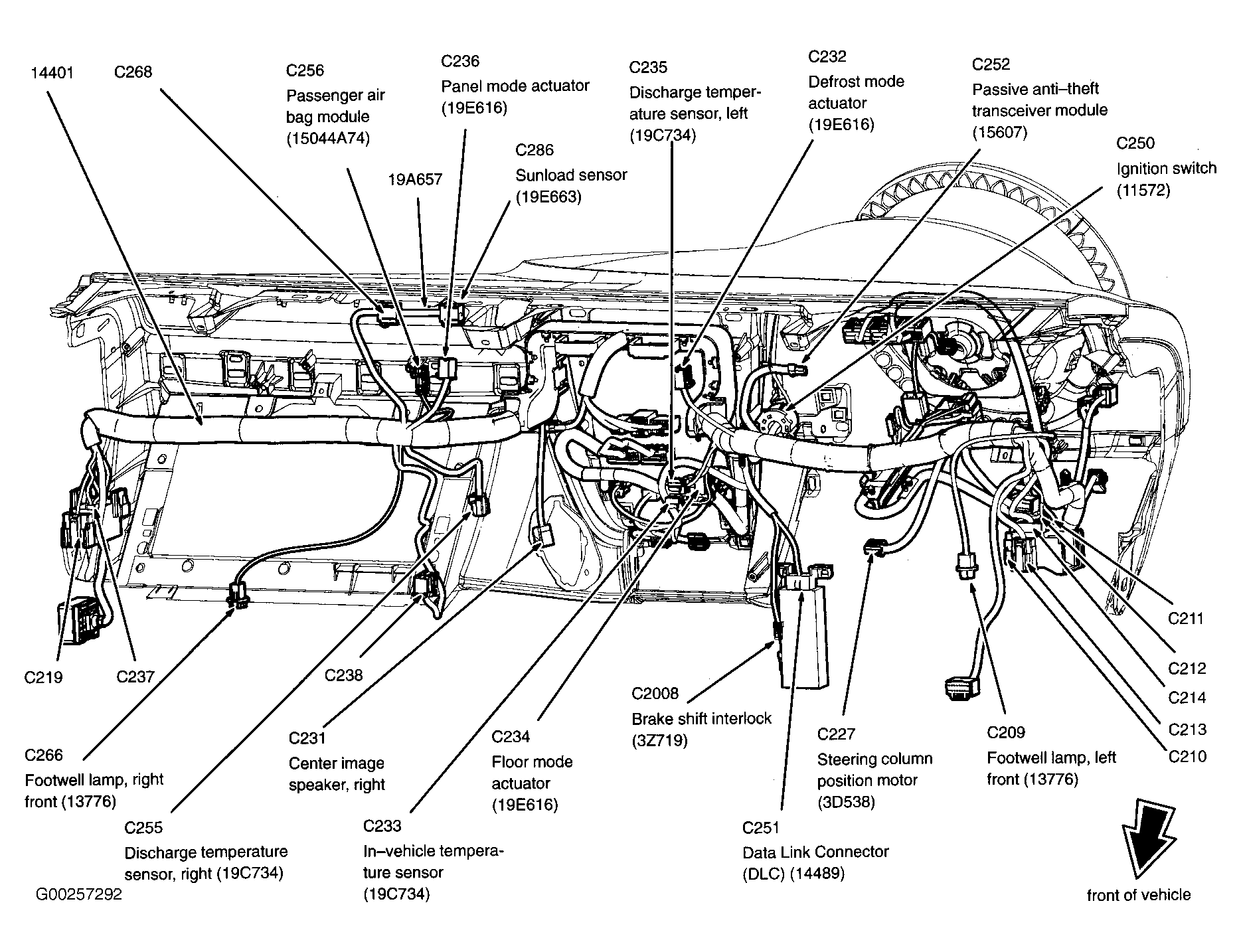

| Passenger Air Bag Module | Behind right side of dash. See Figure. |
| Passive Anti-Theft Transceiver Module | Behind center of dash. See Figure. |

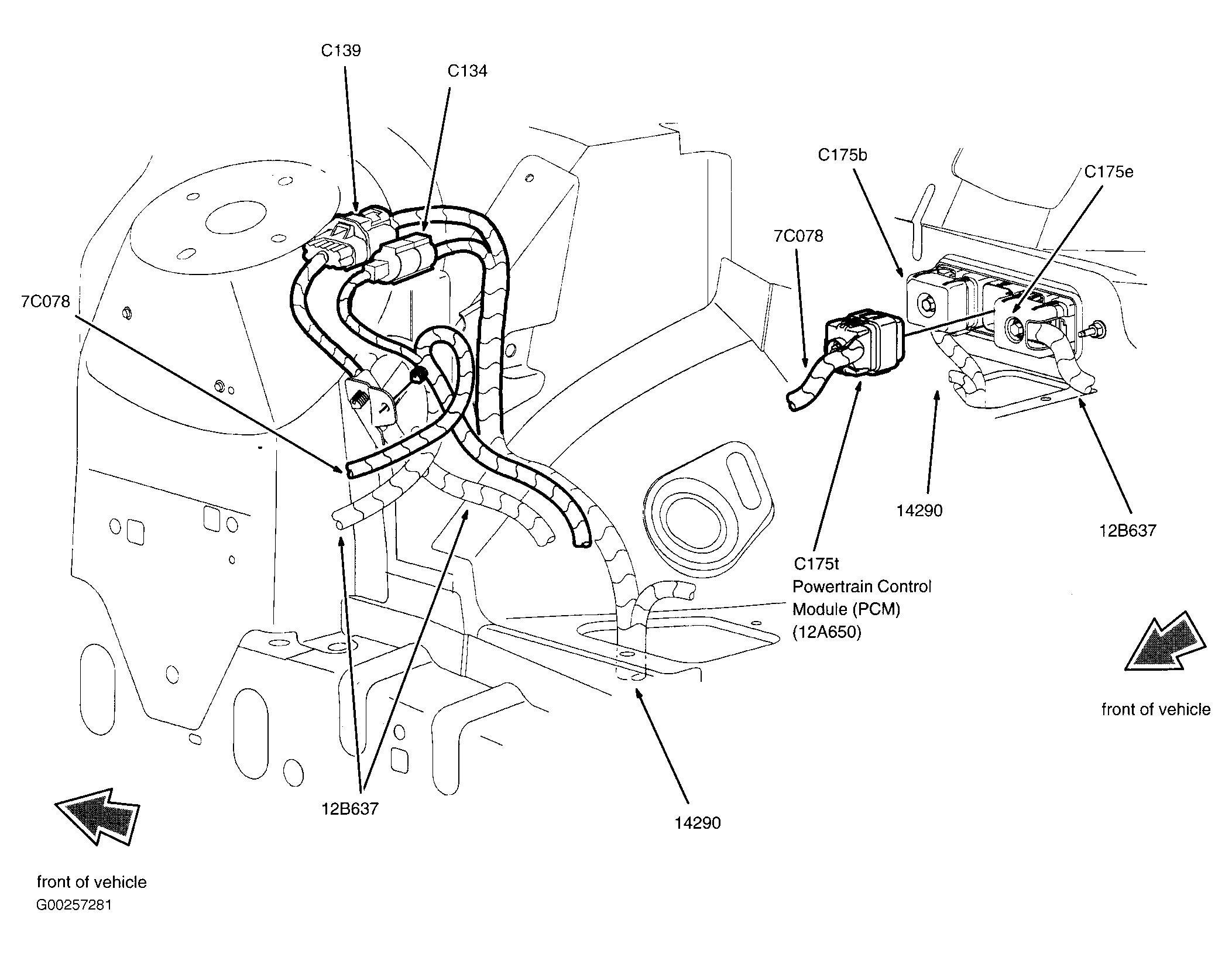

| Powertrain Control Module | Right rear of engine compartment. See Figure. |
| Rear Electronic Module (REM) | Behind seats, on vehicle crossbeam. See Figure. |
| Remote Keyless Entry Module | Behind seats, on vehicle crossbeam. See Figure. |

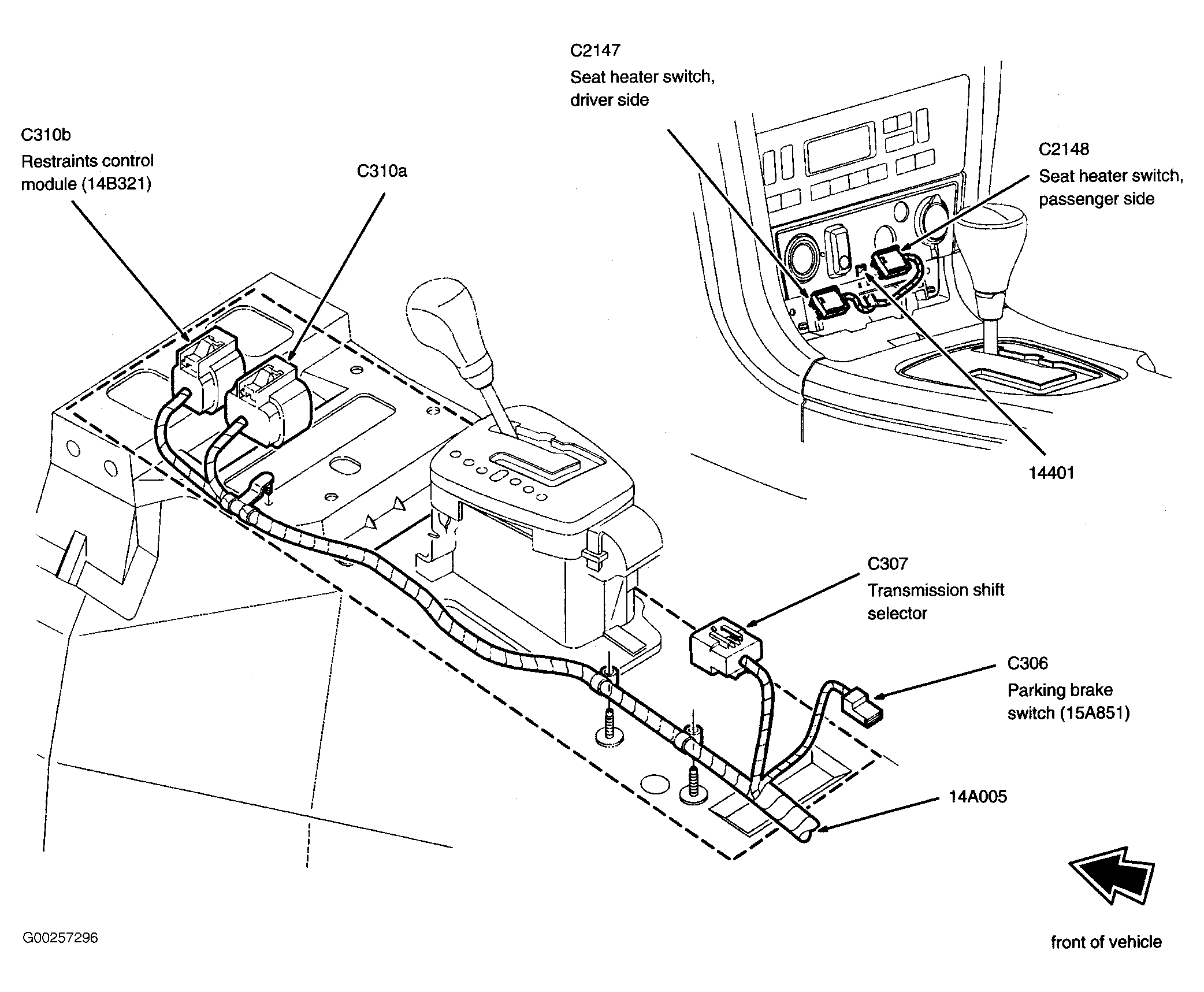

| Restraints Control Module | In center console. See Figure. |

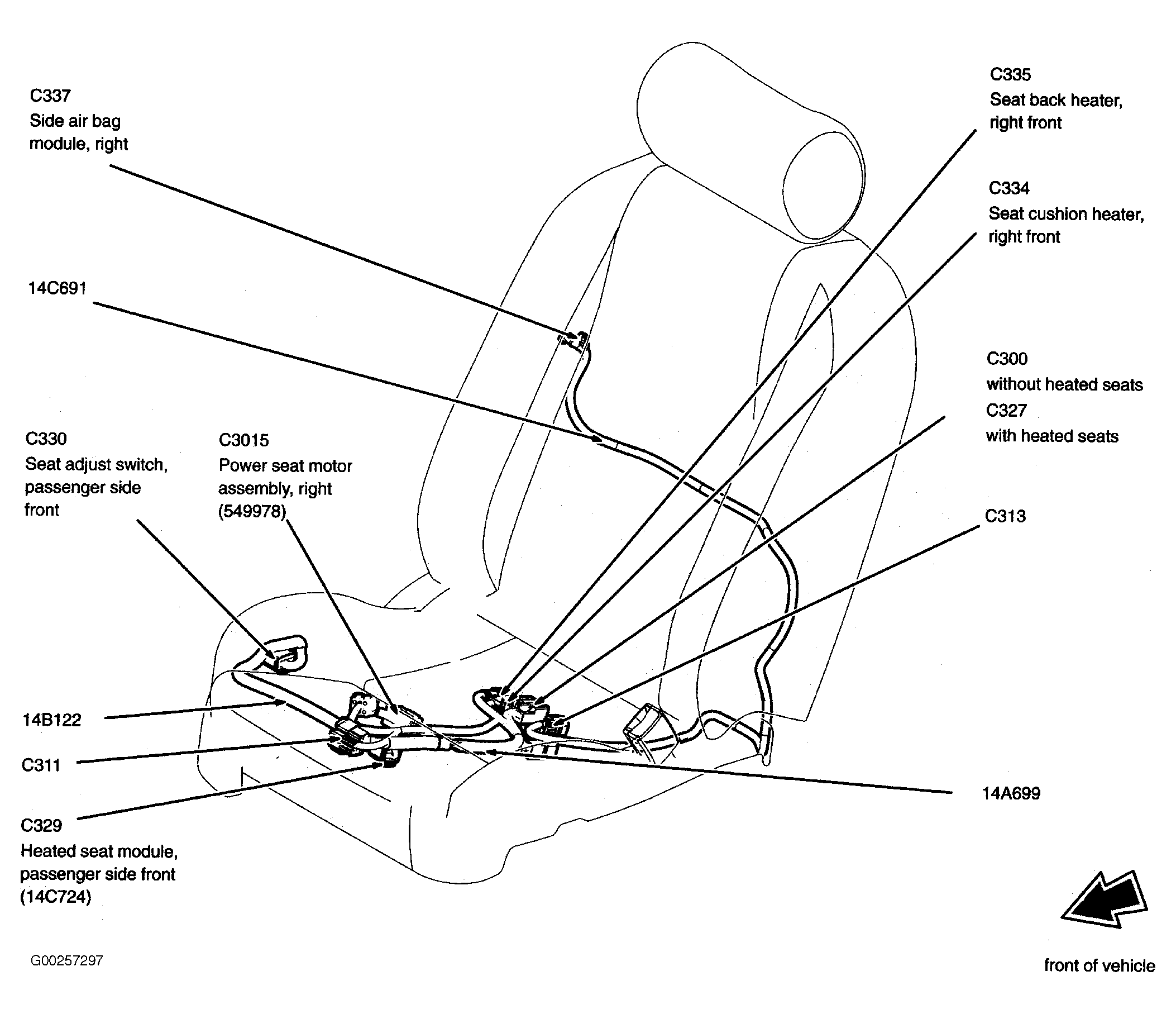

| Right Side Air Bag Module | Right side of passenger seat. See Figure. |
