Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

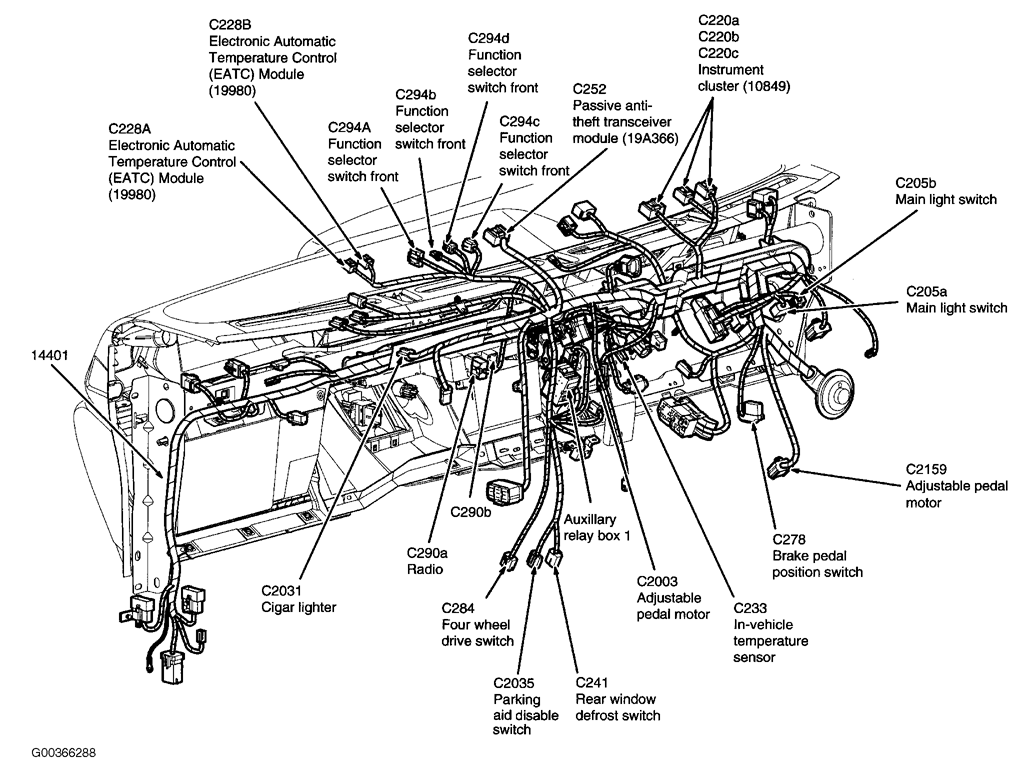

| Auxiliary Relay Box 1 | Behind center of dash. See Figure. |

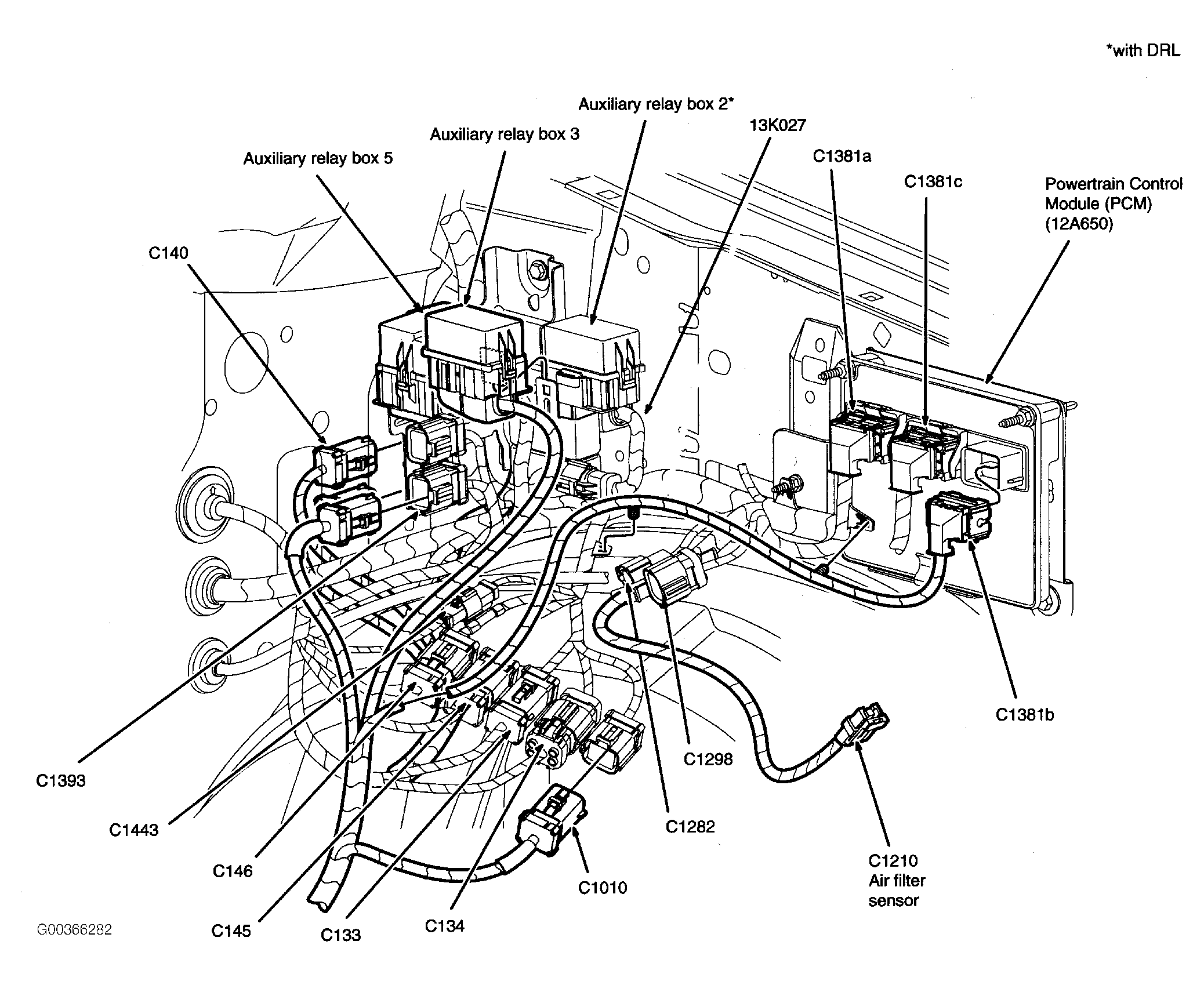

| Auxiliary Relay Box 2 | At left rear side of engine compartment. See Figure. |
| Auxiliary Relay Box 3 (Diesel) | Left side of engine compartment. See Figure. |

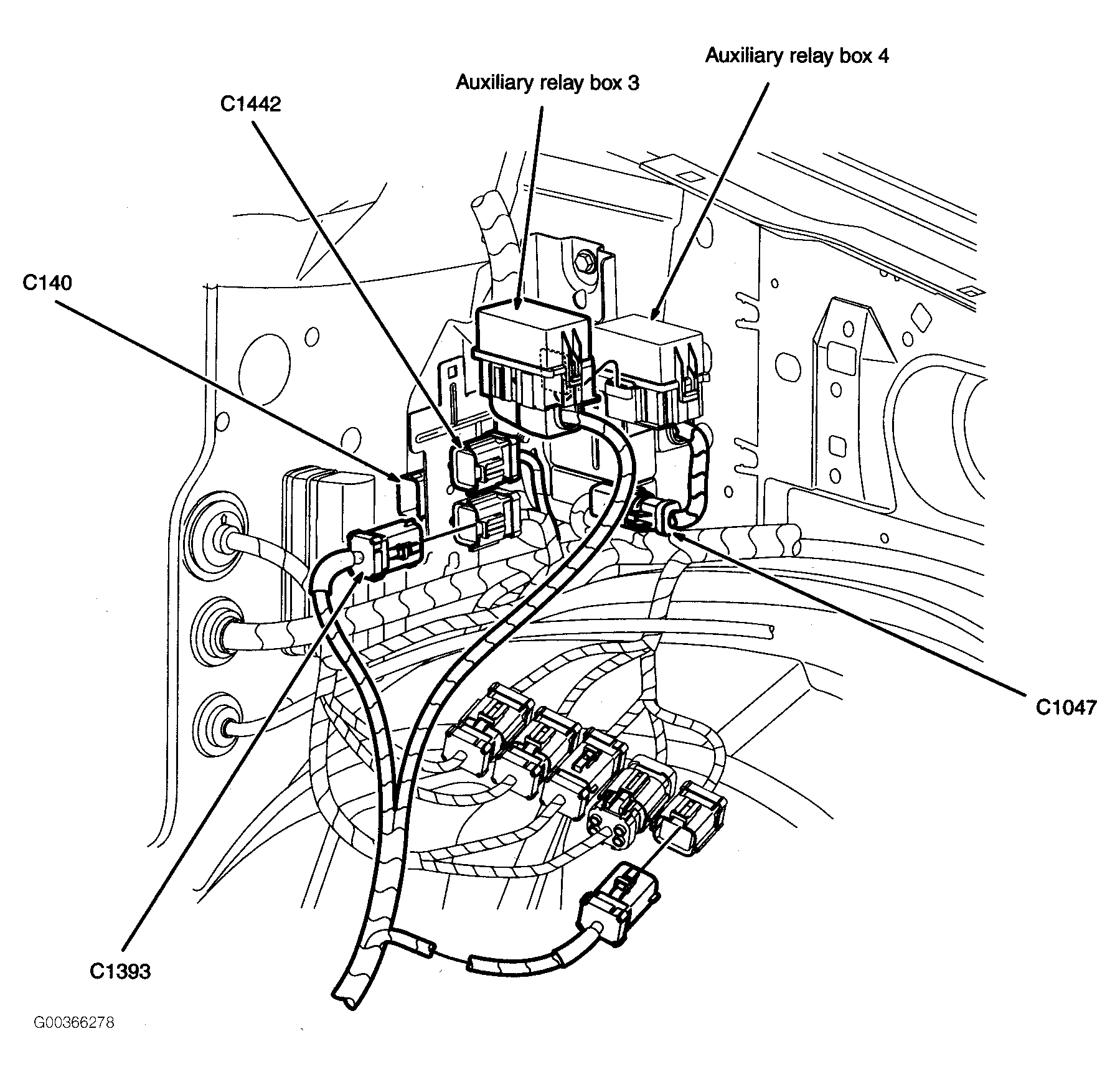

| Auxiliary Relay Box 3 (Gasoline) | At left rear of engine compartment. See Figure. |
| Auxiliary Relay Box 4 | At left rear side of engine compartment. See Figure. |
| Auxiliary Relay Box 5 | At left rear side of engine compartment. See Figure. |

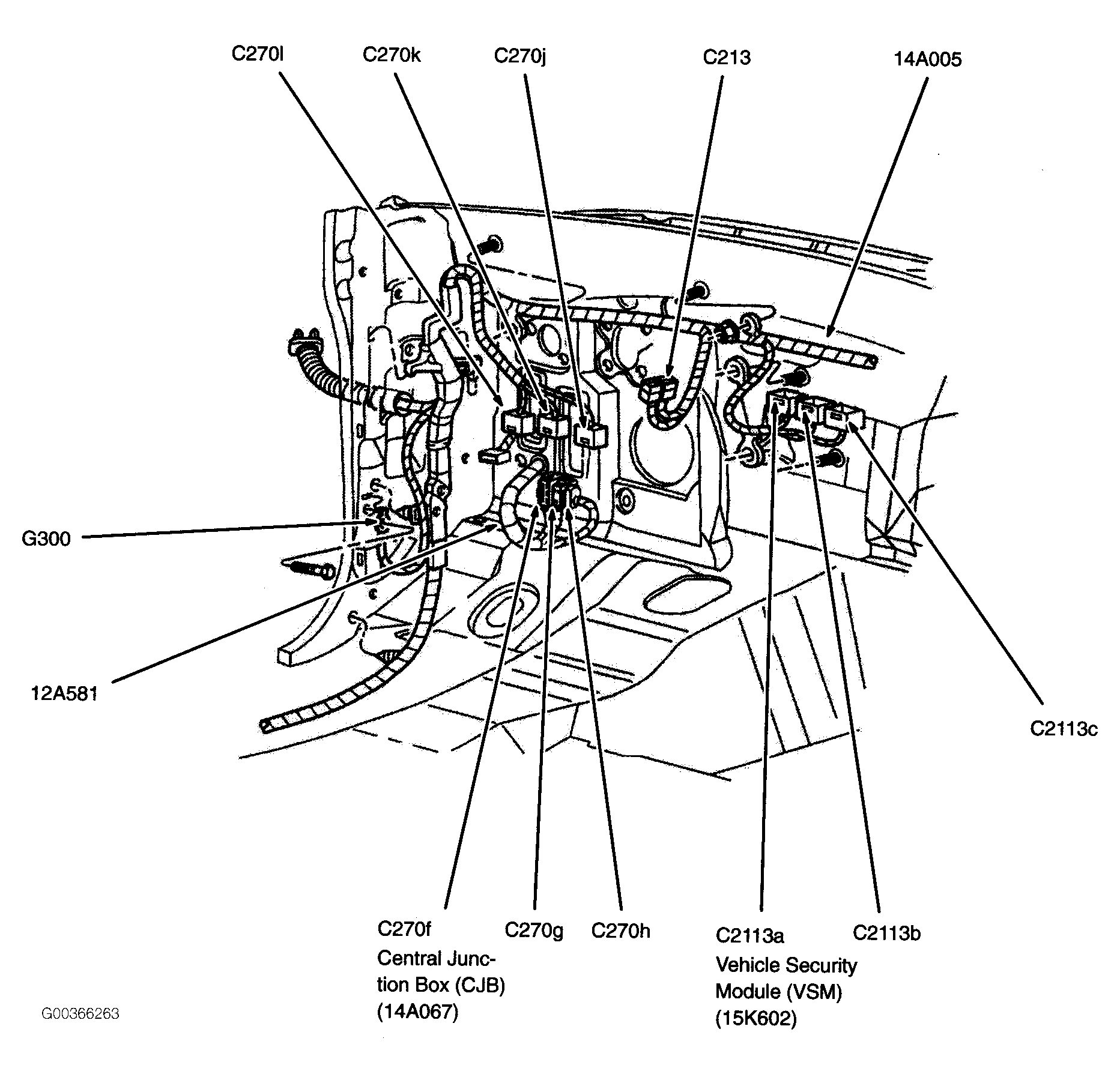

| Central Junction Box (CJB) | Behind lower left side of dash. See Figure. |
| Fusible Link A | At left rear side of engine compartment. |
| Fusible Link B | At left rear side of engine compartment. |
| Fusible Link C | At rear of engine compartment. |
| Fusible Link D | At right side of engine compartment. |
| Fusible Link E | At right side of engine compartment. |
| Fusible Link F | At top of engine. |
| Fusible Link G | At top of engine. |
