Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Left Side Of Dash

G00366263

Courtesy of FORD MOTOR CO.

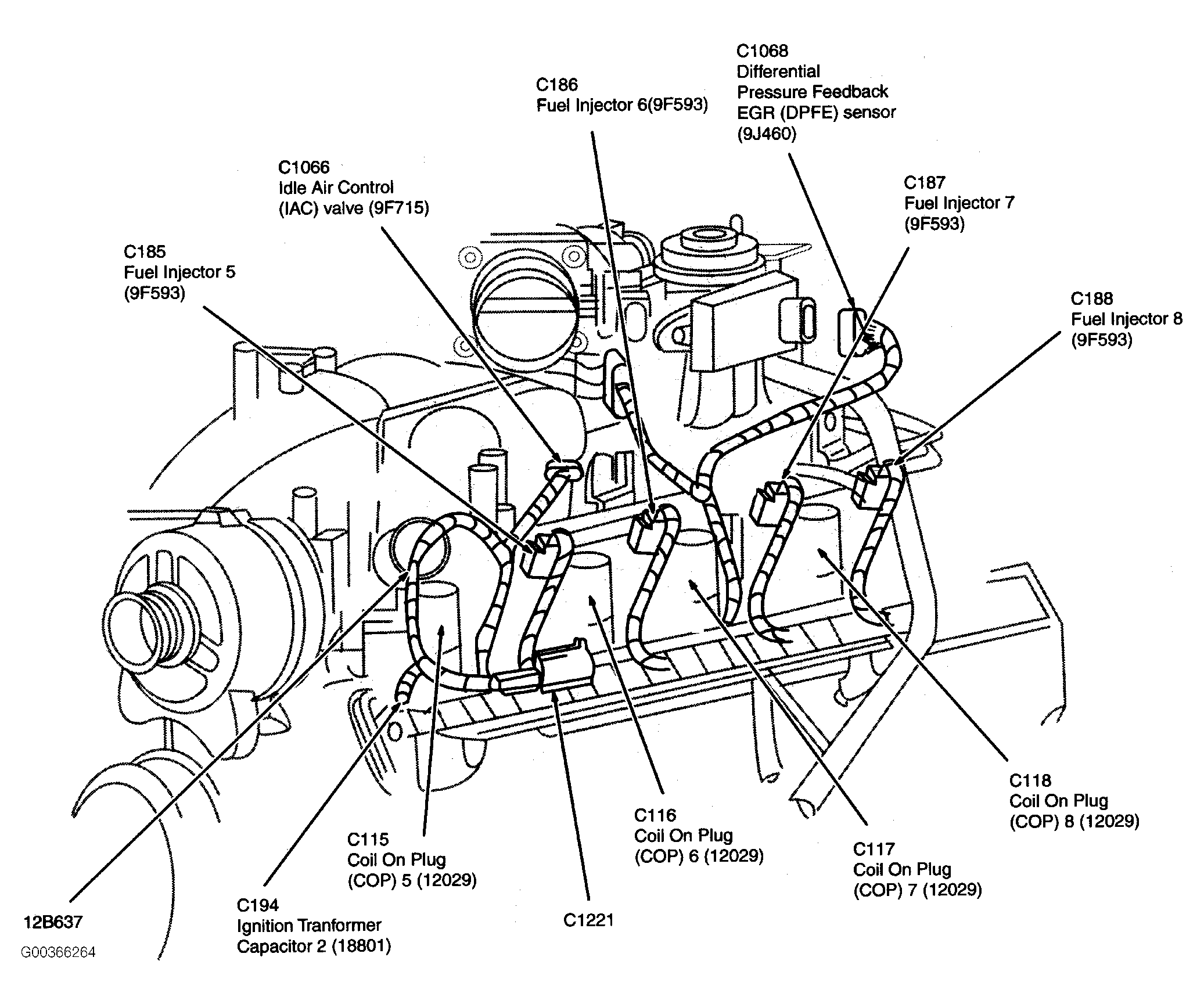

Fig 2: Left Side Of Engine (5.4L)

G00366264

Courtesy of FORD MOTOR CO.

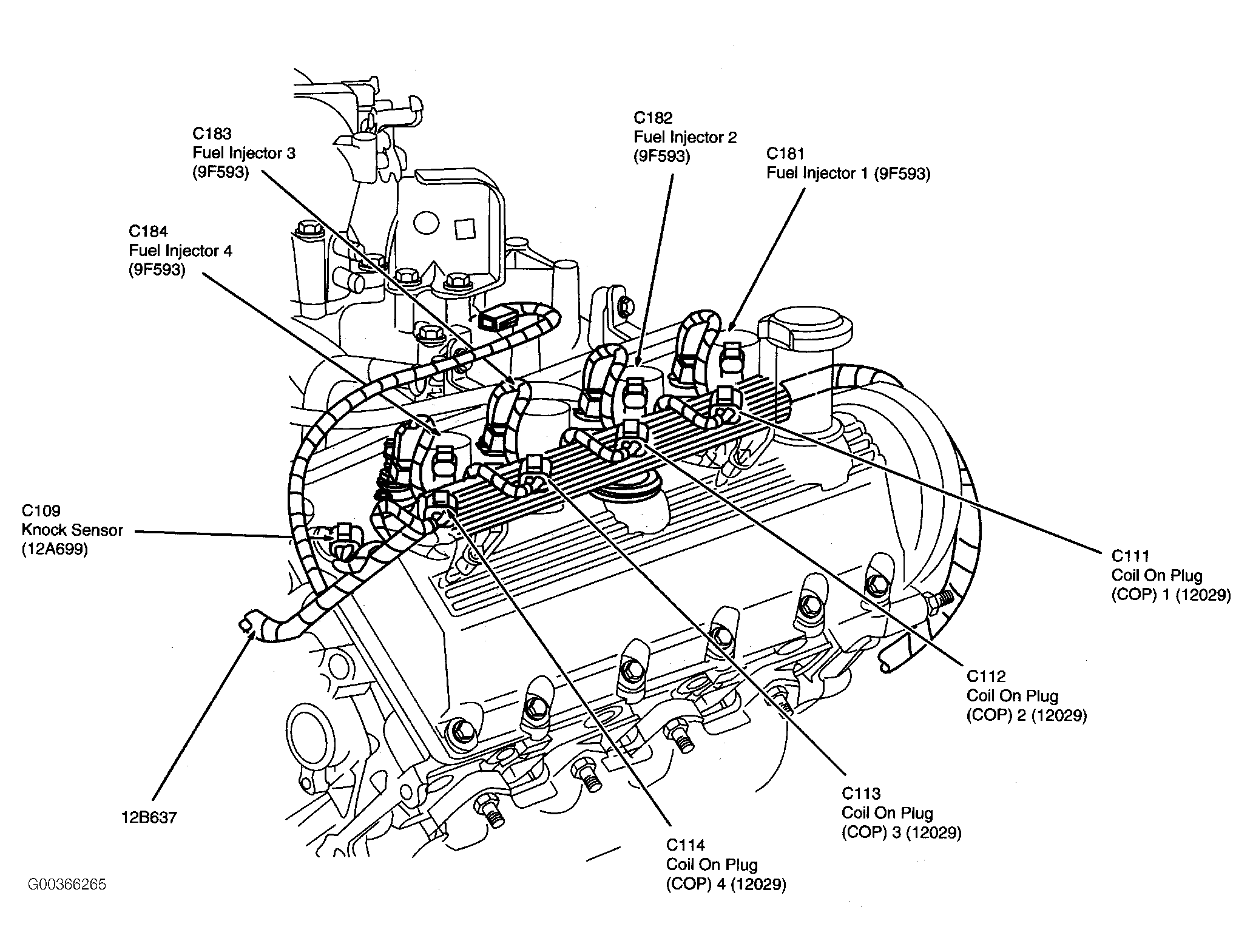

Fig 3: Right Side Of Engine (5.4L)

G00366265

Courtesy of FORD MOTOR CO.

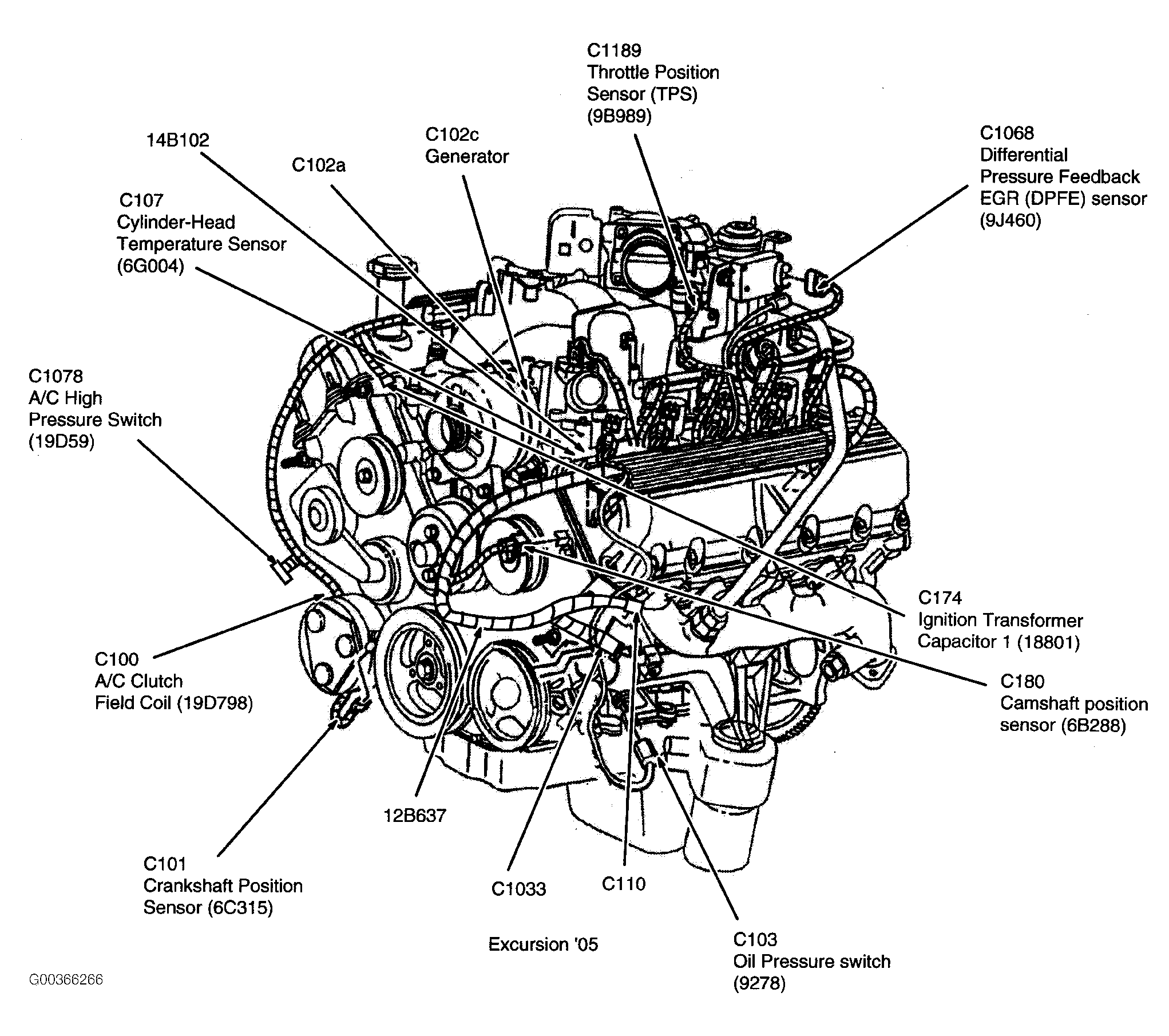

Fig 4: Front Of Engine (5.4L)

G00366266

Courtesy of FORD MOTOR CO.

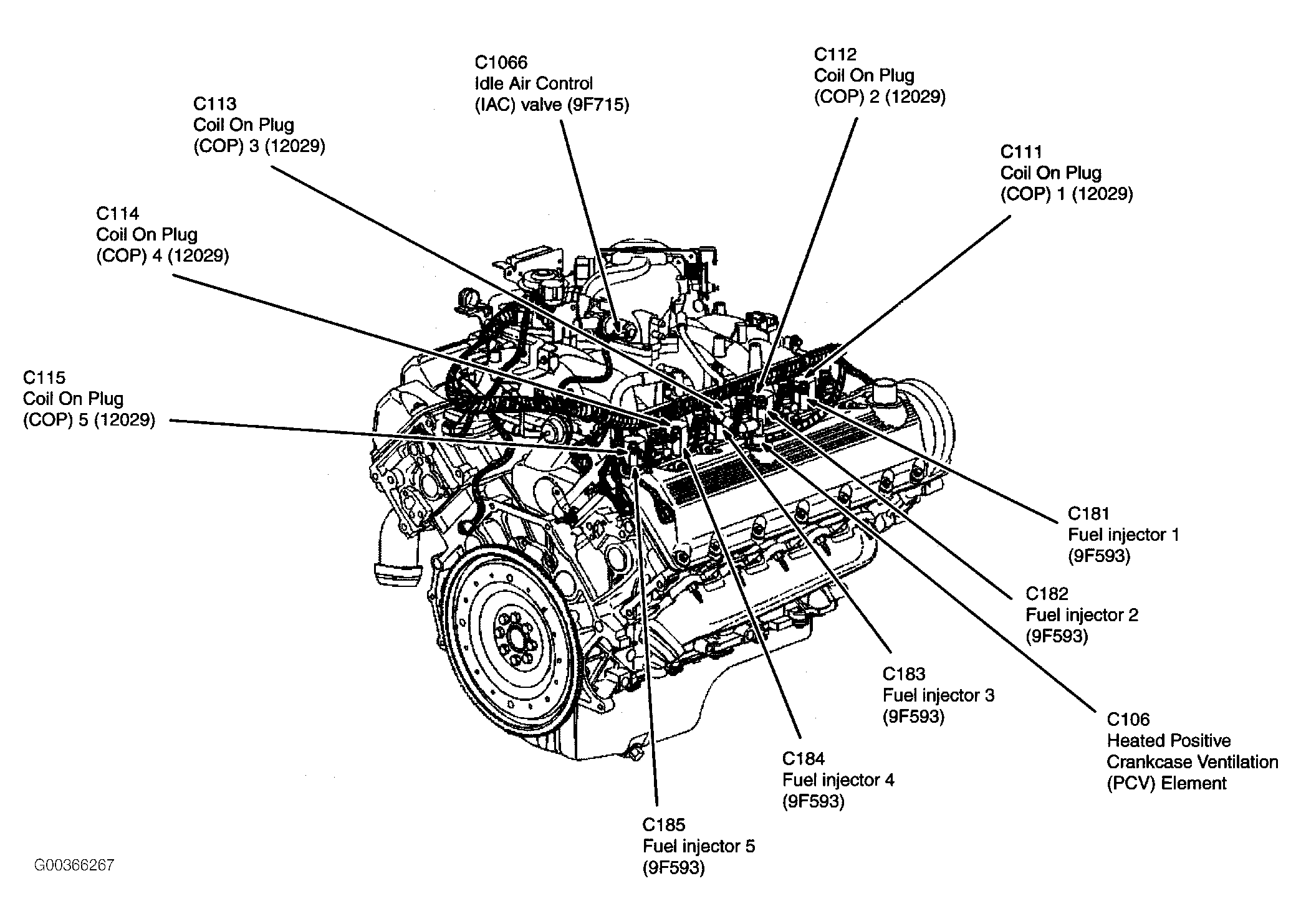

Fig 5: Rear Of Engine (6.8L)

G00366267

Courtesy of FORD MOTOR CO.

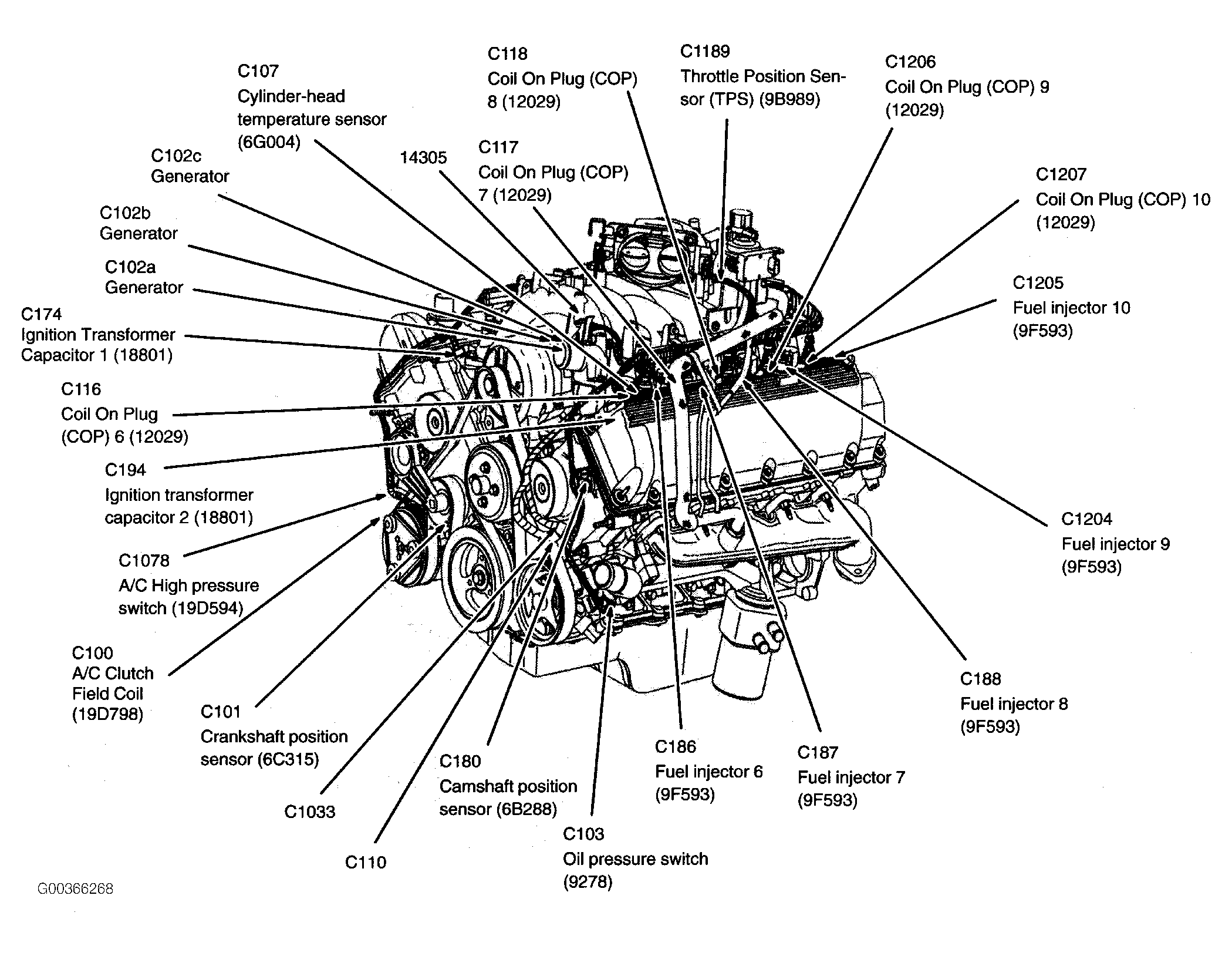

Fig 6: Front Of Engine (6.8L)

G00366268

Courtesy of FORD MOTOR CO.

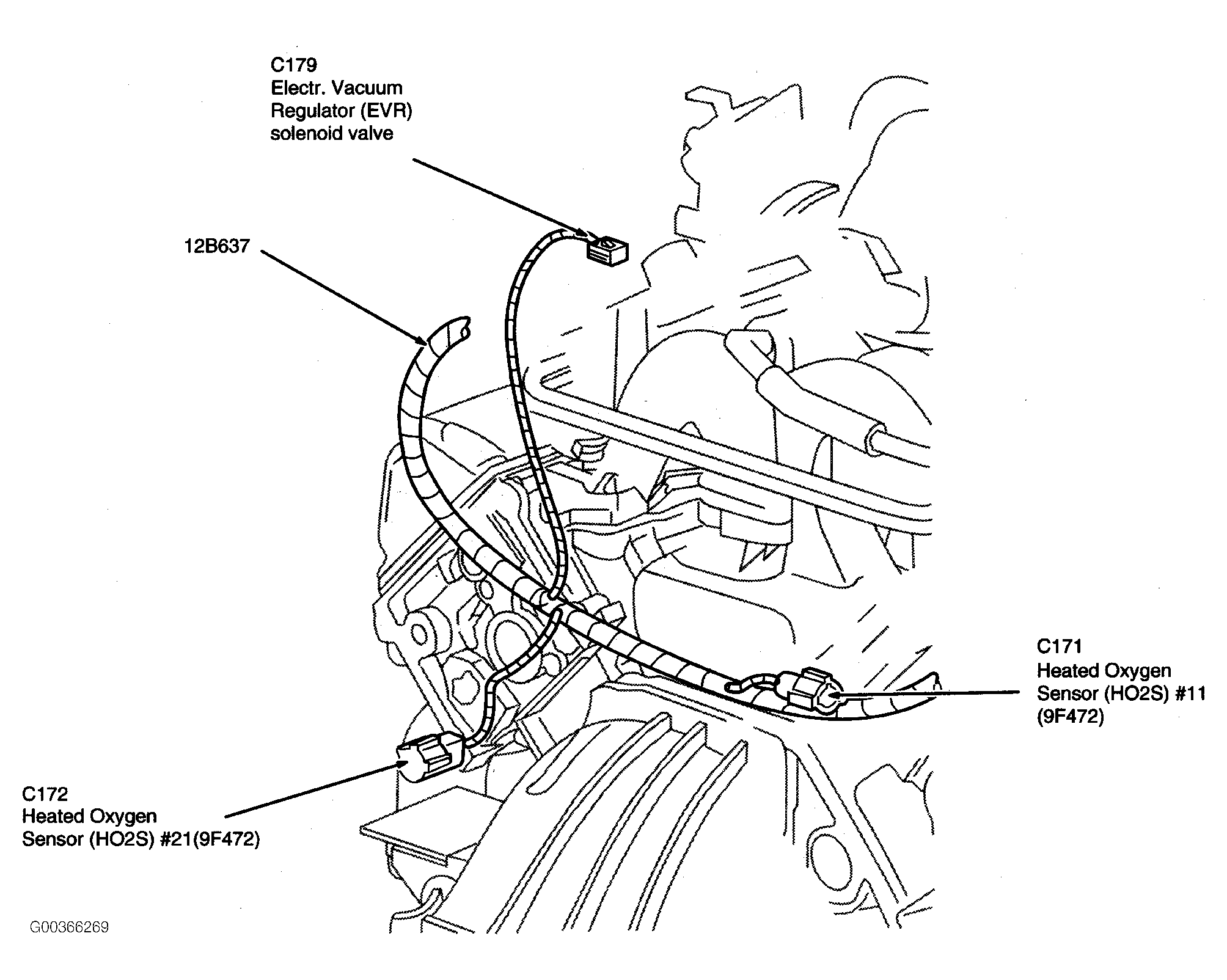

Fig 7: Rear Of Engine (6.8L)

G00366269

Courtesy of FORD MOTOR CO.

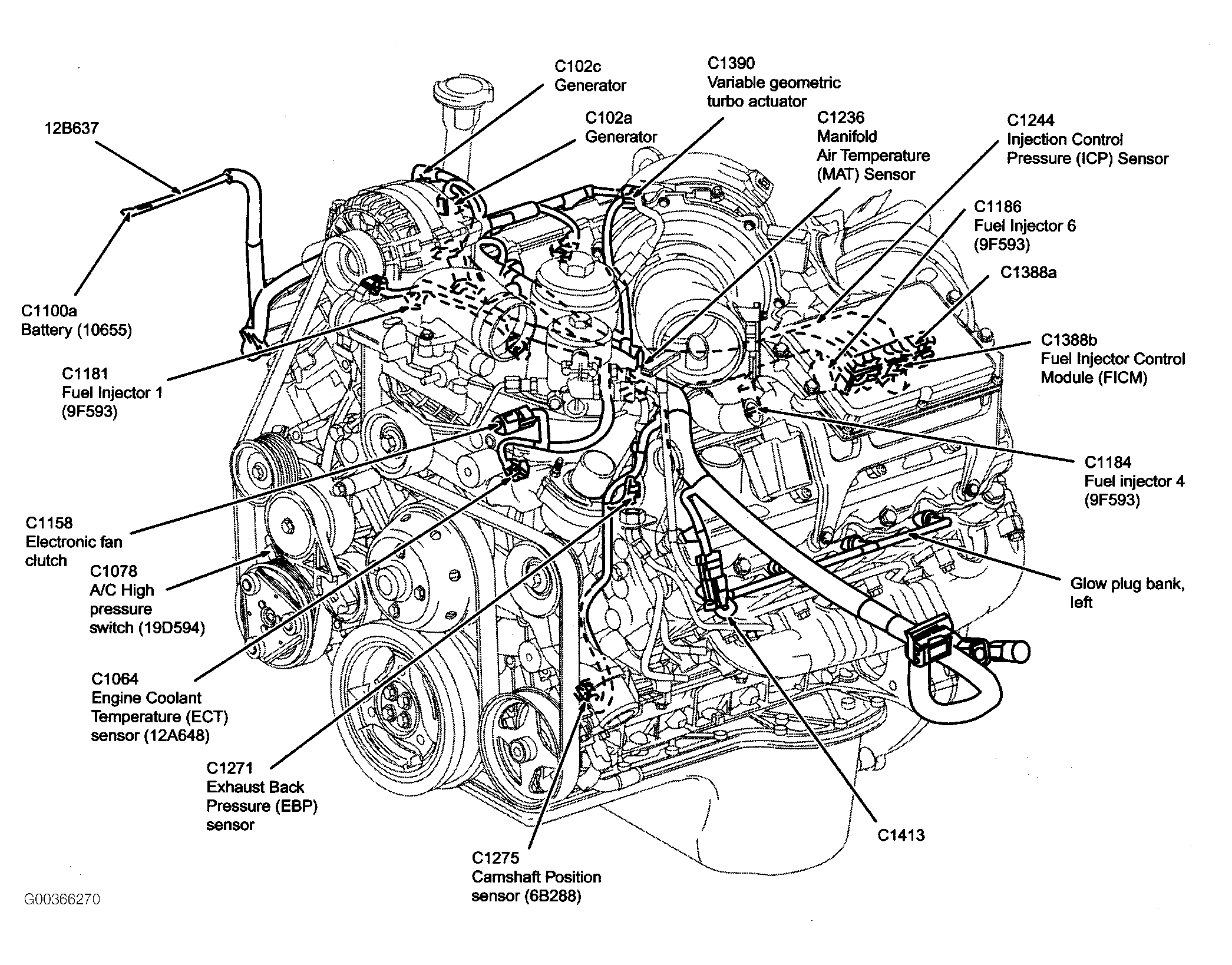

Fig 8: Left Side Of Engine (6.0L)

G00366270

Courtesy of FORD MOTOR CO.

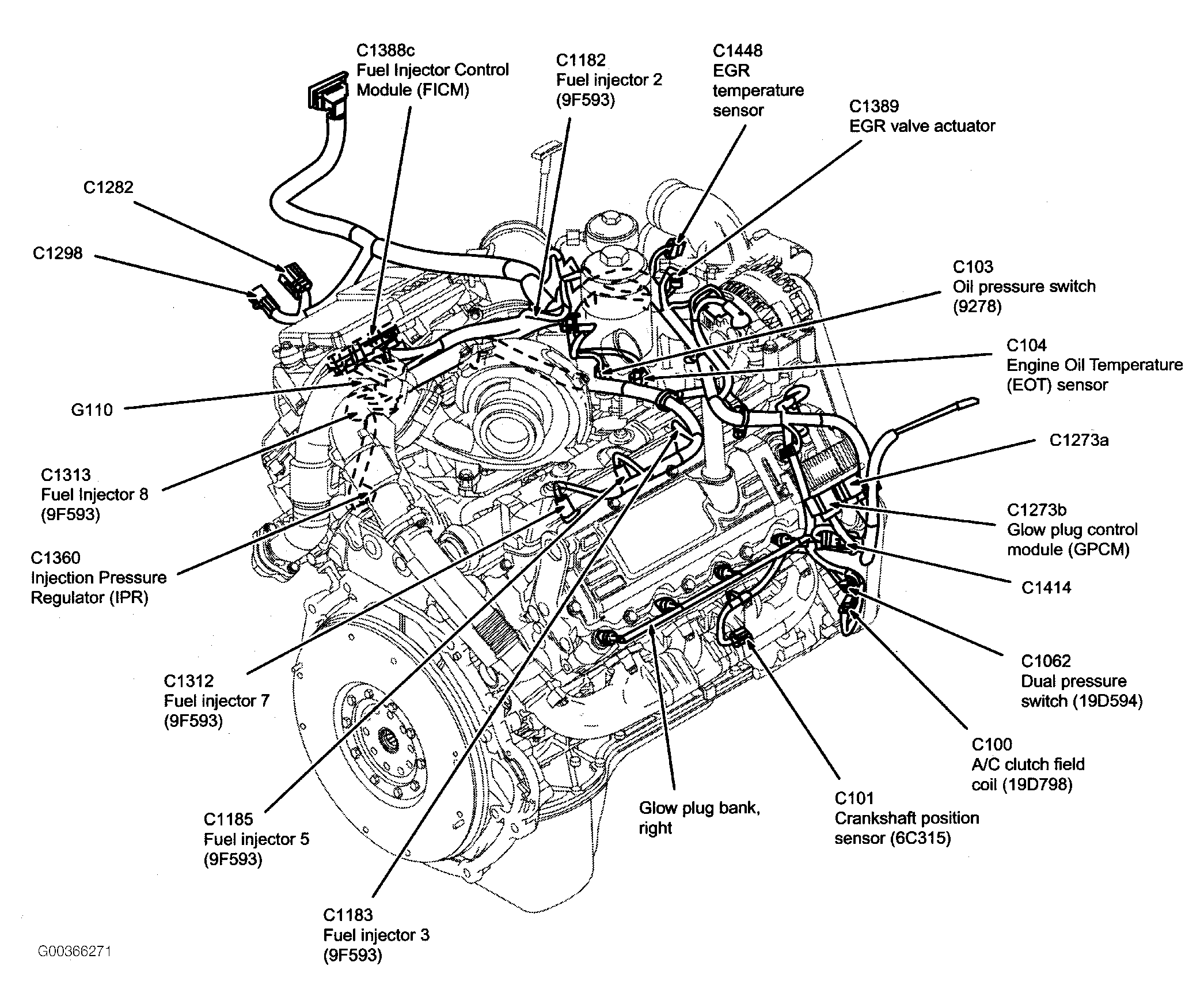

Fig 9: Right Side Of Engine (6.0L)

G00366271

Courtesy of FORD MOTOR CO.

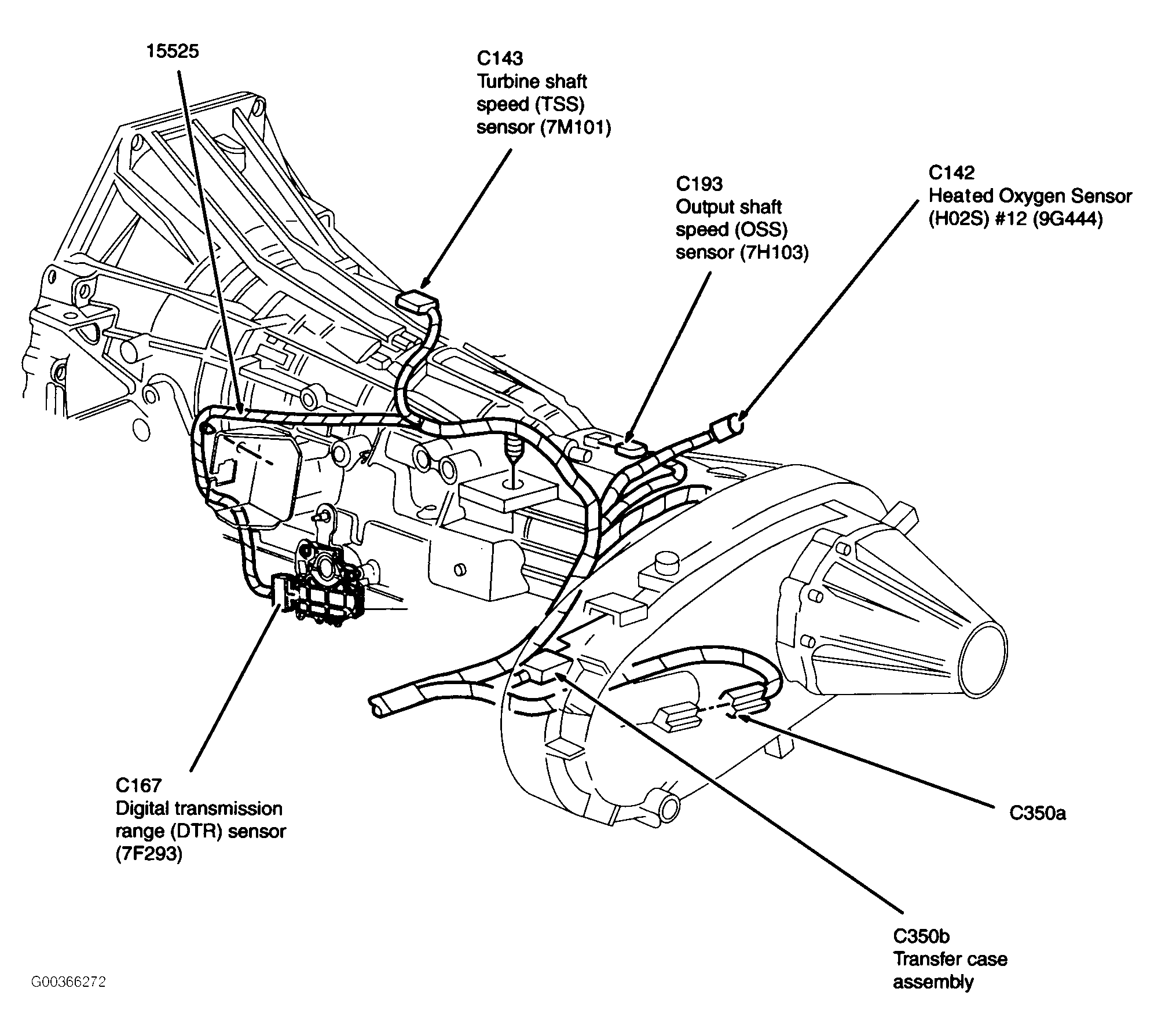

Fig 10: Transmission (4X4)

G00366272

Courtesy of FORD MOTOR CO.

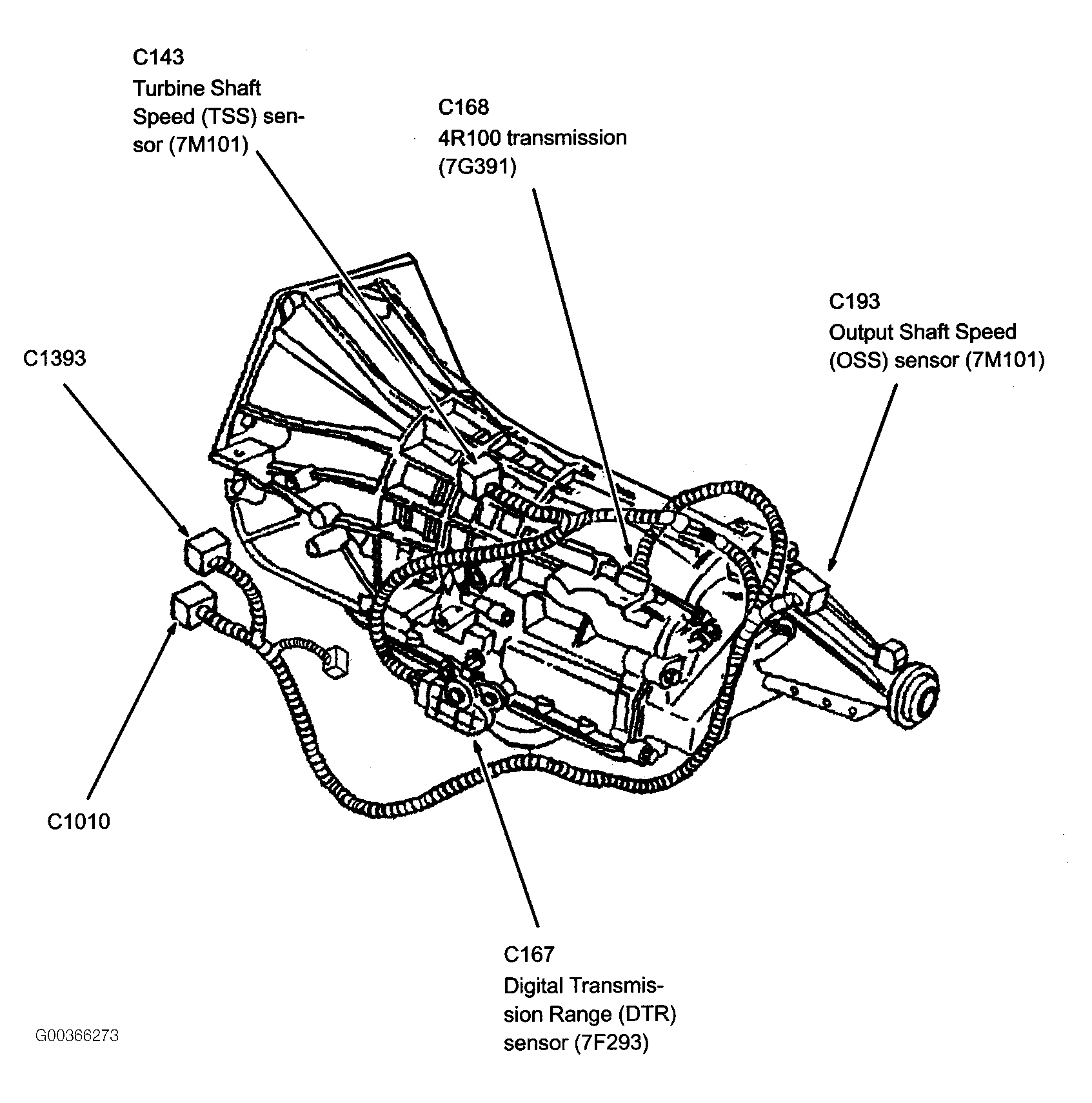

Fig 11: Transmission (4x2)

G00366273

Courtesy of FORD MOTOR CO.

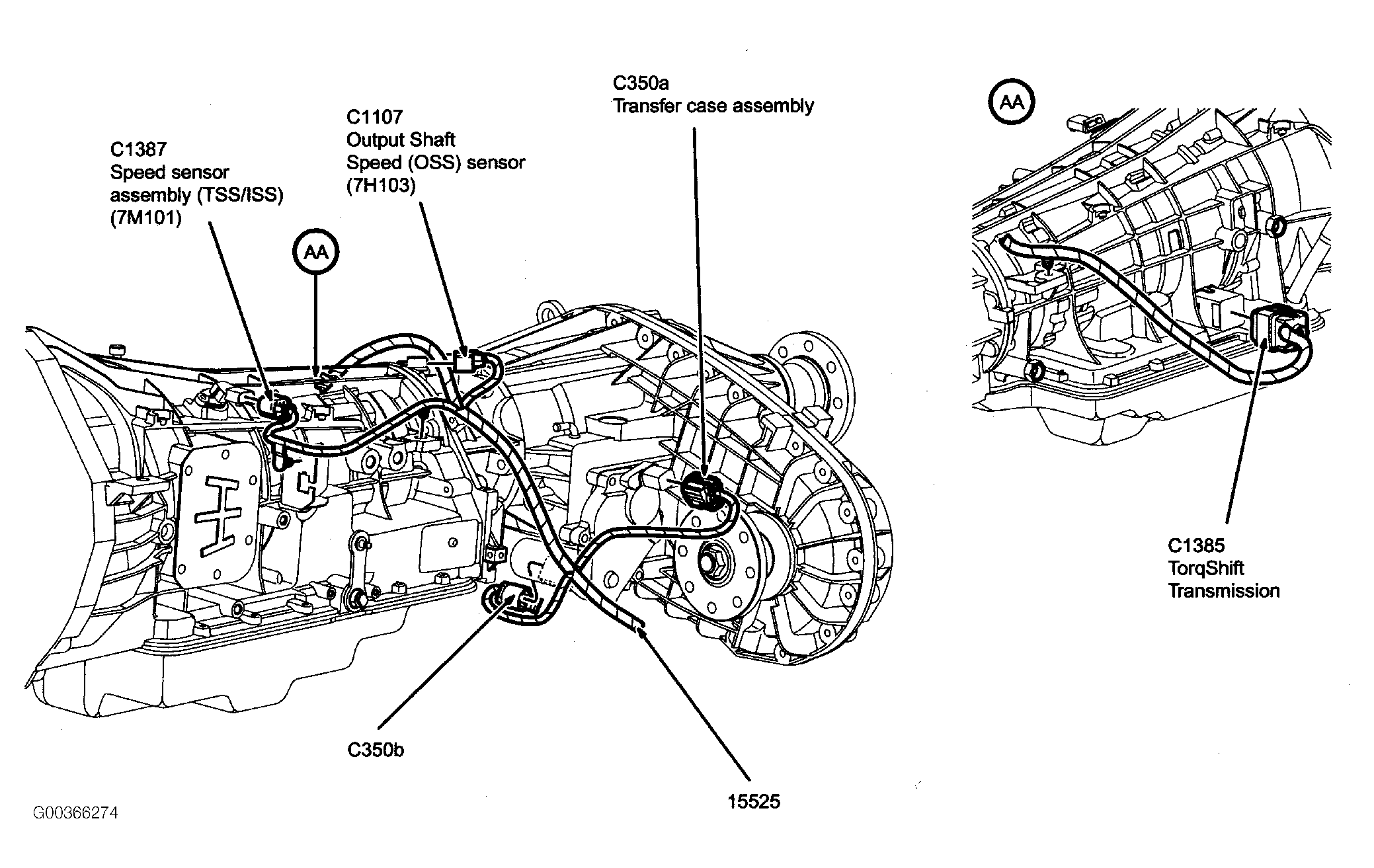

Fig 12: Transmission (TorqShift)

G00366274

Courtesy of FORD MOTOR CO.

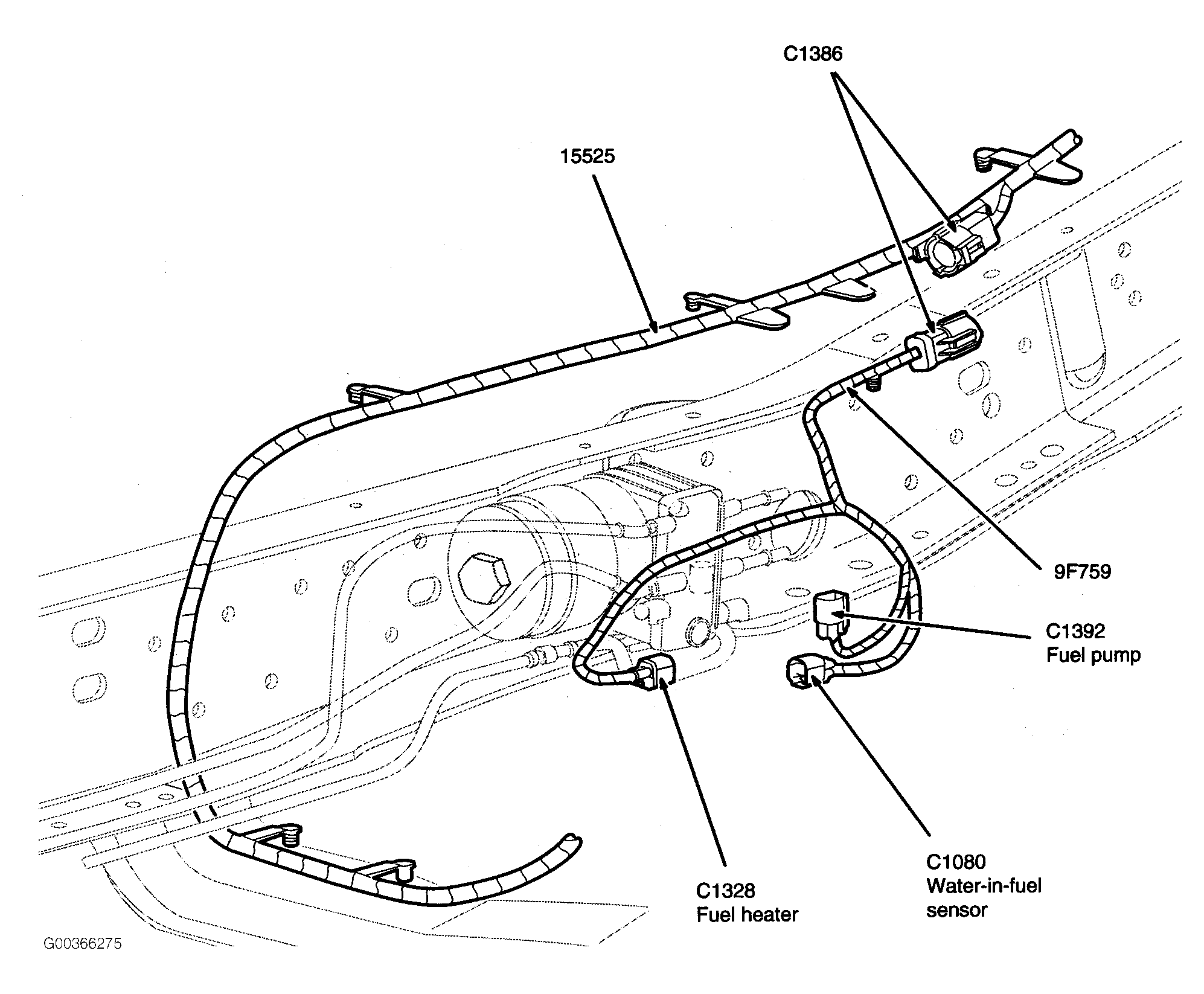

Fig 13: Left Frame Rail (6.0L)

G00366275

Courtesy of FORD MOTOR CO.

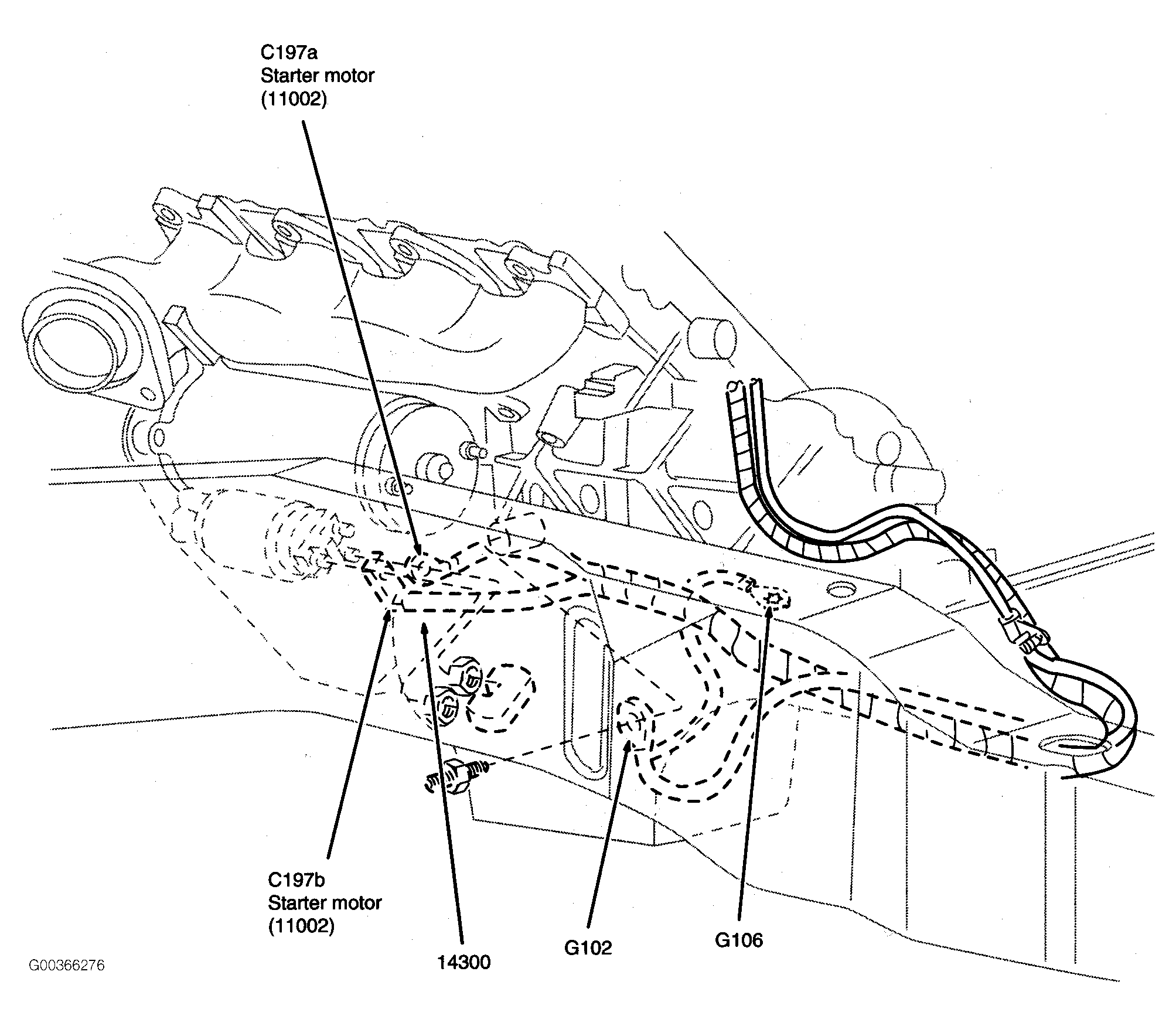

Fig 14: Bottom Of Engine

G00366276

Courtesy of FORD MOTOR CO.

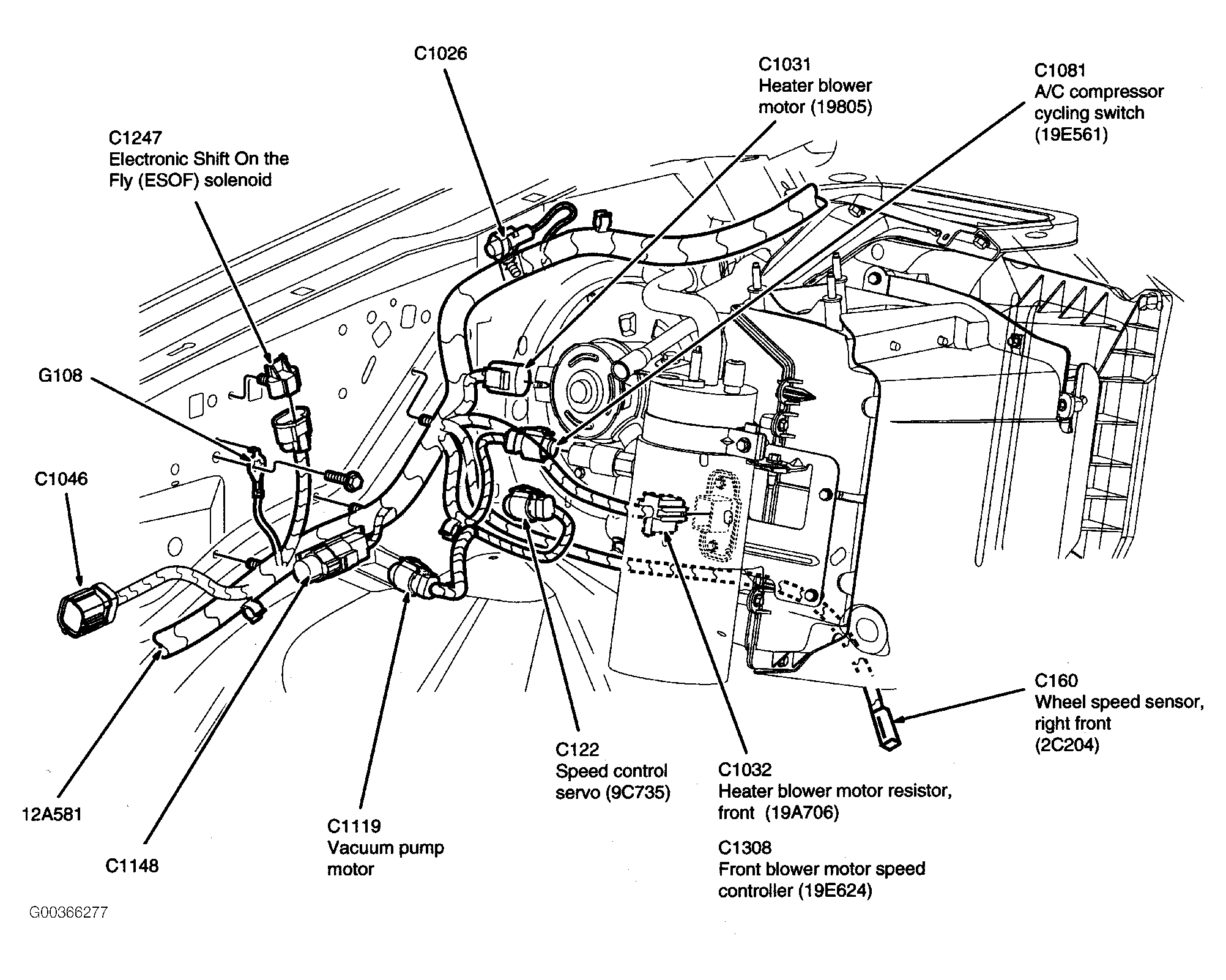

Fig 15: Right Side Of Engine Compartment

G00366277

Courtesy of FORD MOTOR CO.

Fig 16: Left Rear Of Engine Compartment (Gasoline)

G00366278

Courtesy of FORD MOTOR CO.

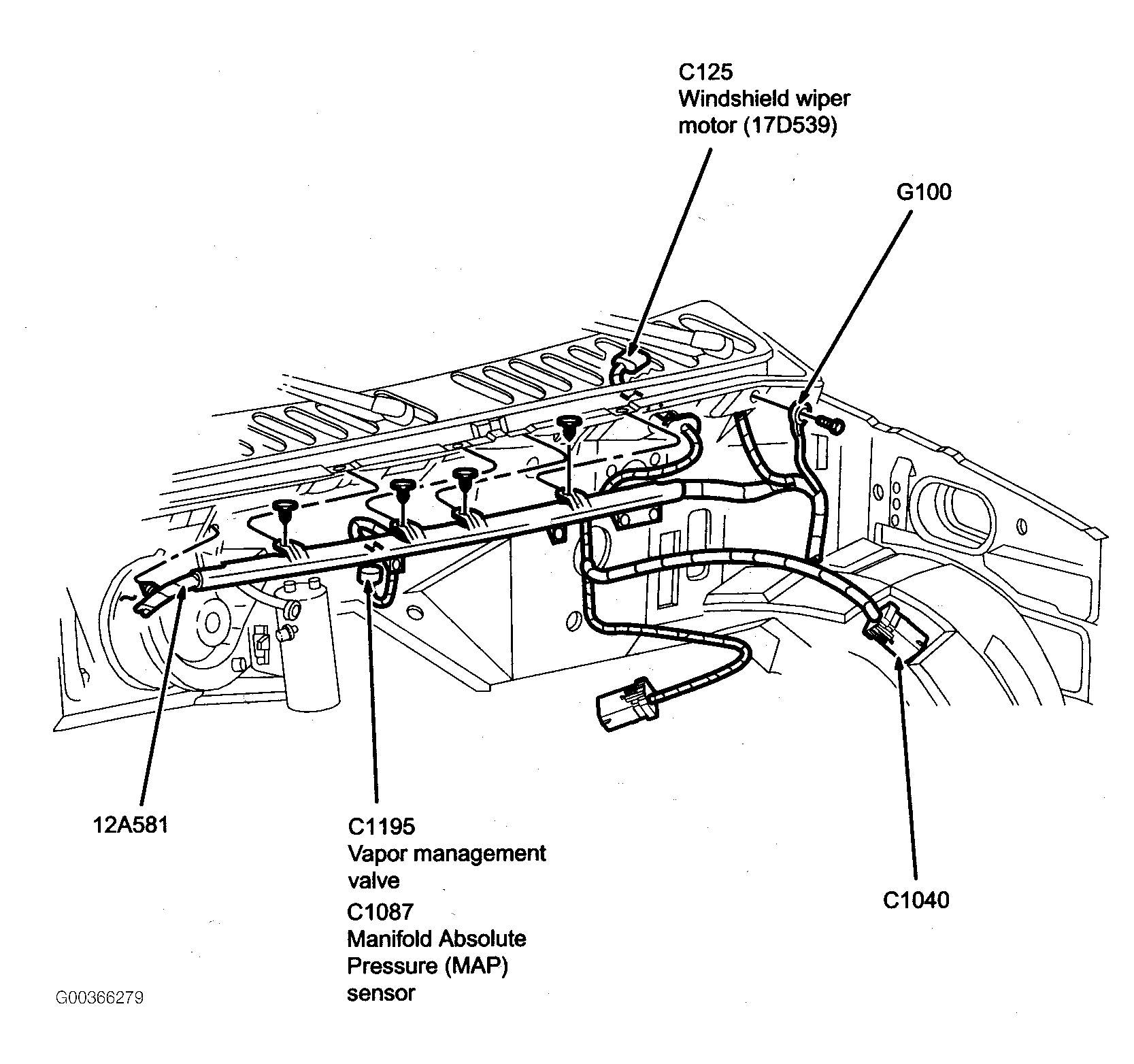

Fig 17: Rear Of Engine Compartment

G00366279

Courtesy of FORD MOTOR CO.

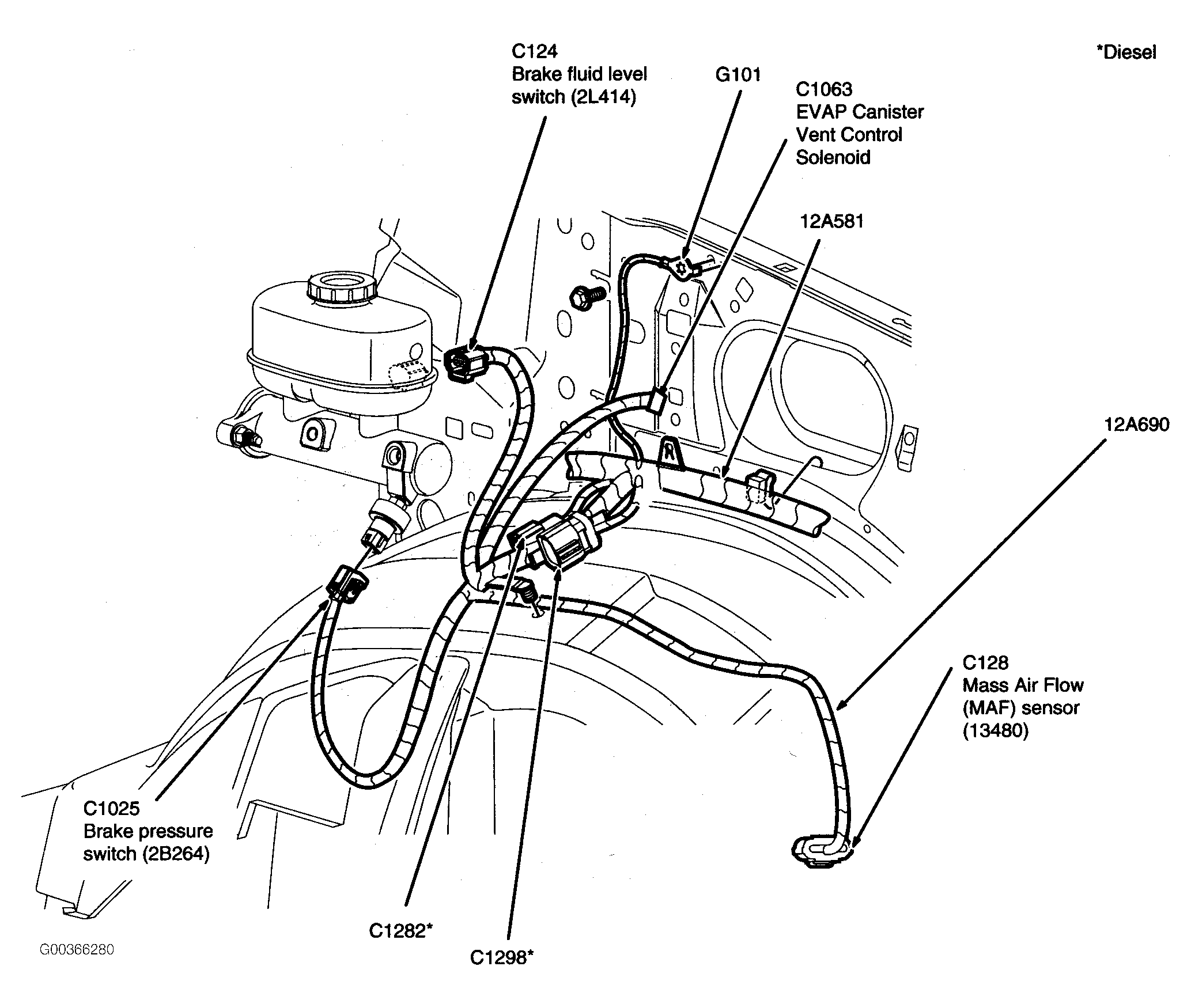

Fig 18: Left Rear Of Engine Compartment

G00366280

Courtesy of FORD MOTOR CO.

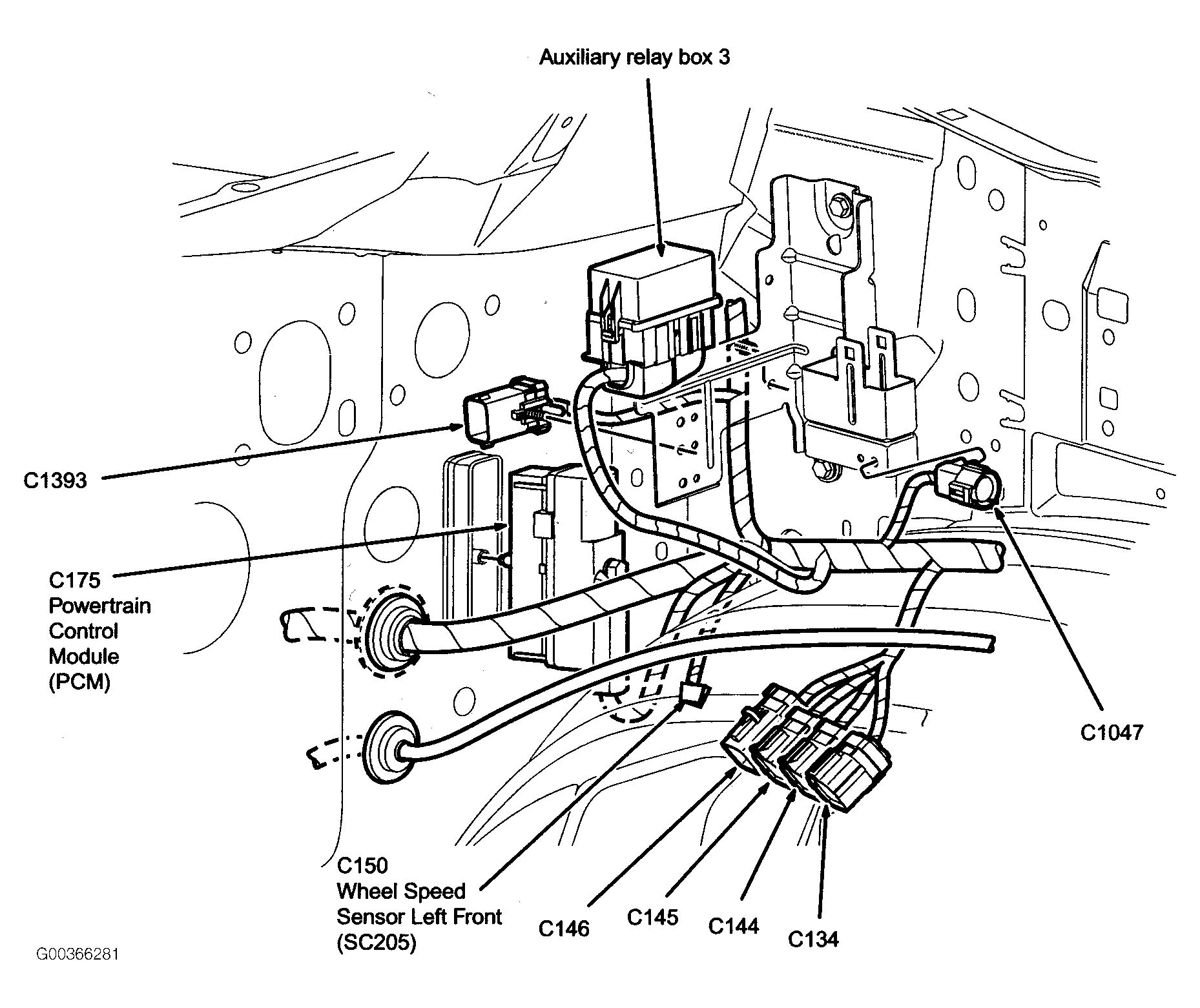

Fig 19: Left Rear Of Engine Compartment (Gasoline)

G00366281

Courtesy of FORD MOTOR CO.

Fig 20: Left Side Of Engine Compartment (6.0L)

G00366282

Courtesy of FORD MOTOR CO.

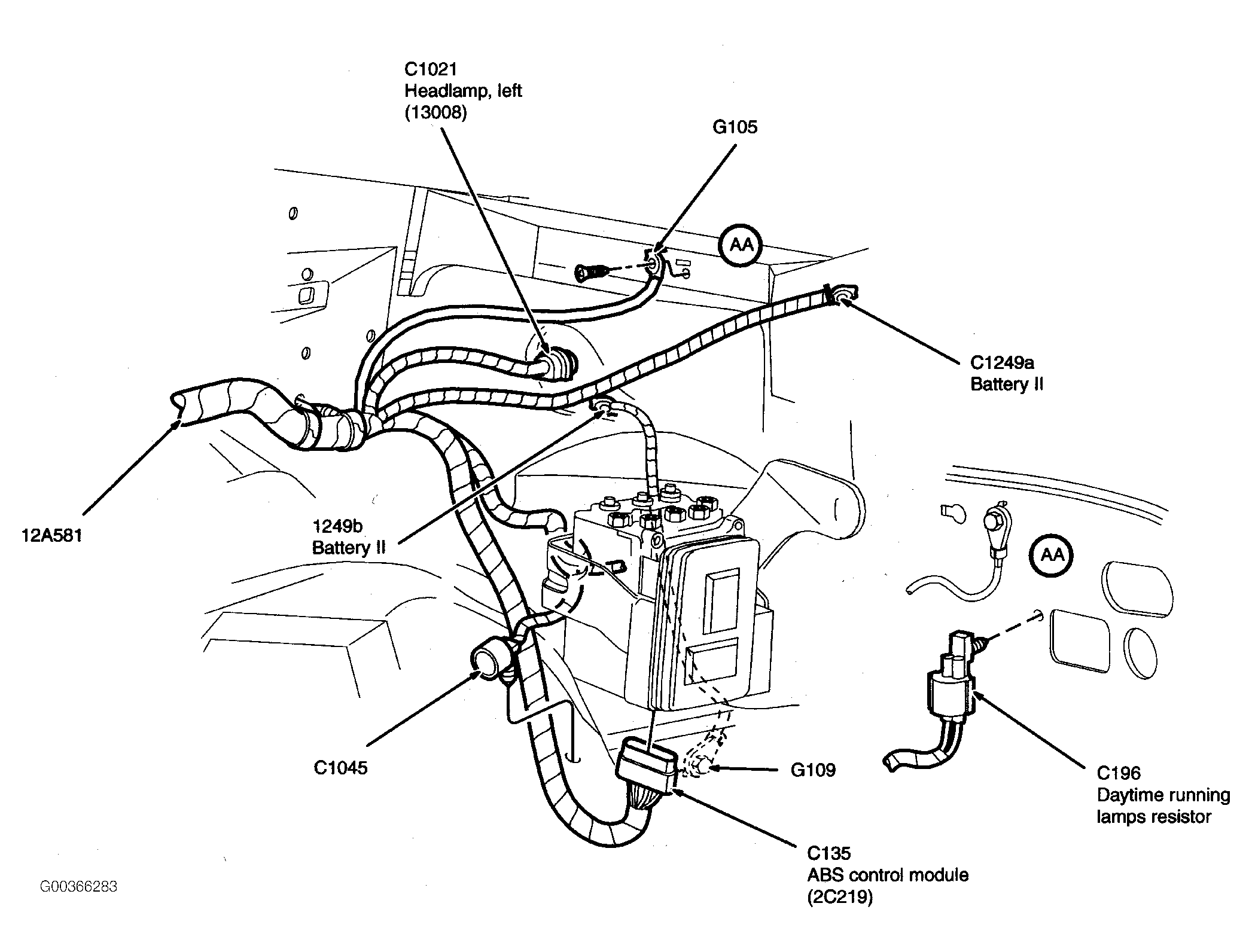

Fig 21: Left Side Of Engine Compartment

G00366283

Courtesy of FORD MOTOR CO.

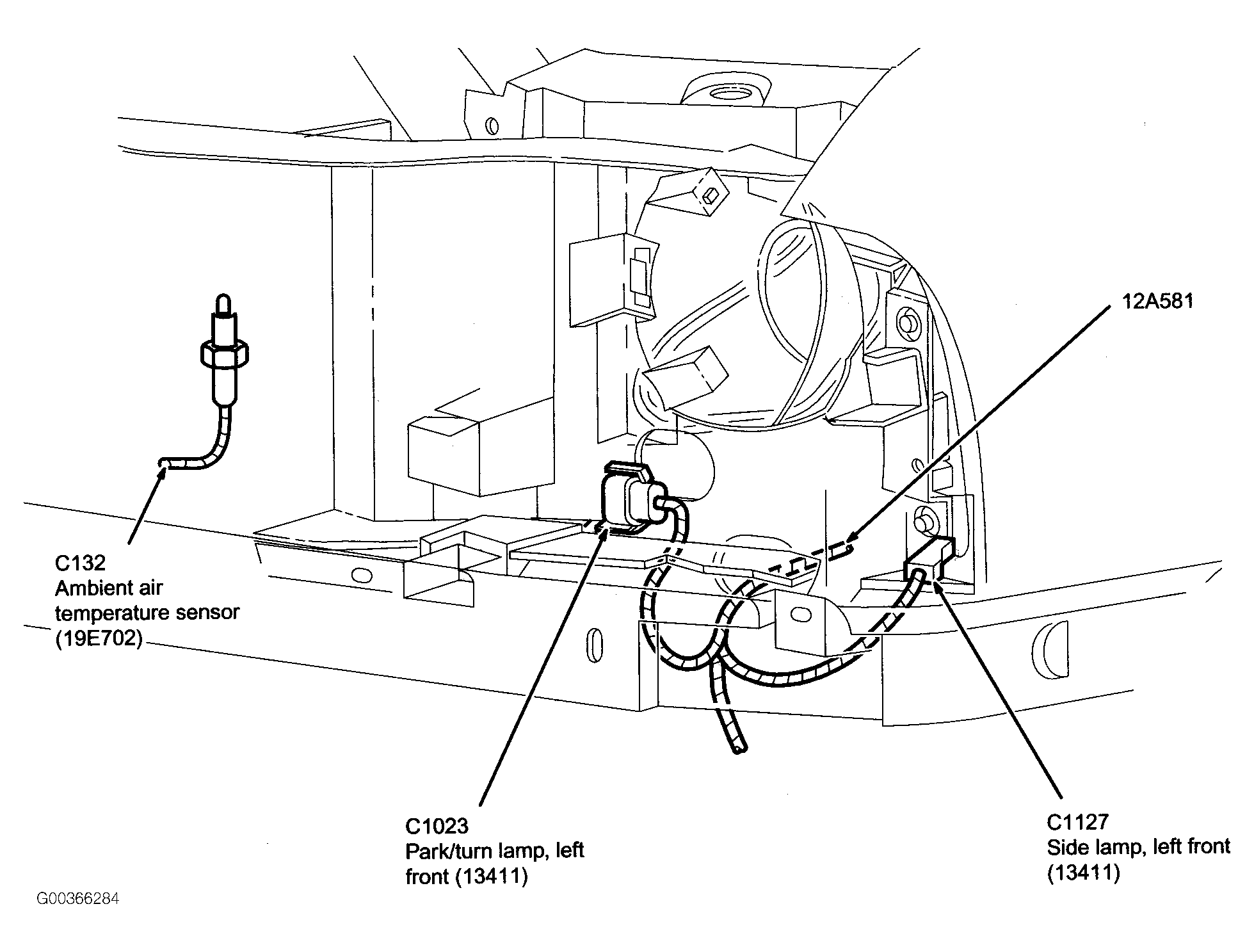

Fig 22: Left Front Of Vehicle

G00366284

Courtesy of FORD MOTOR CO.

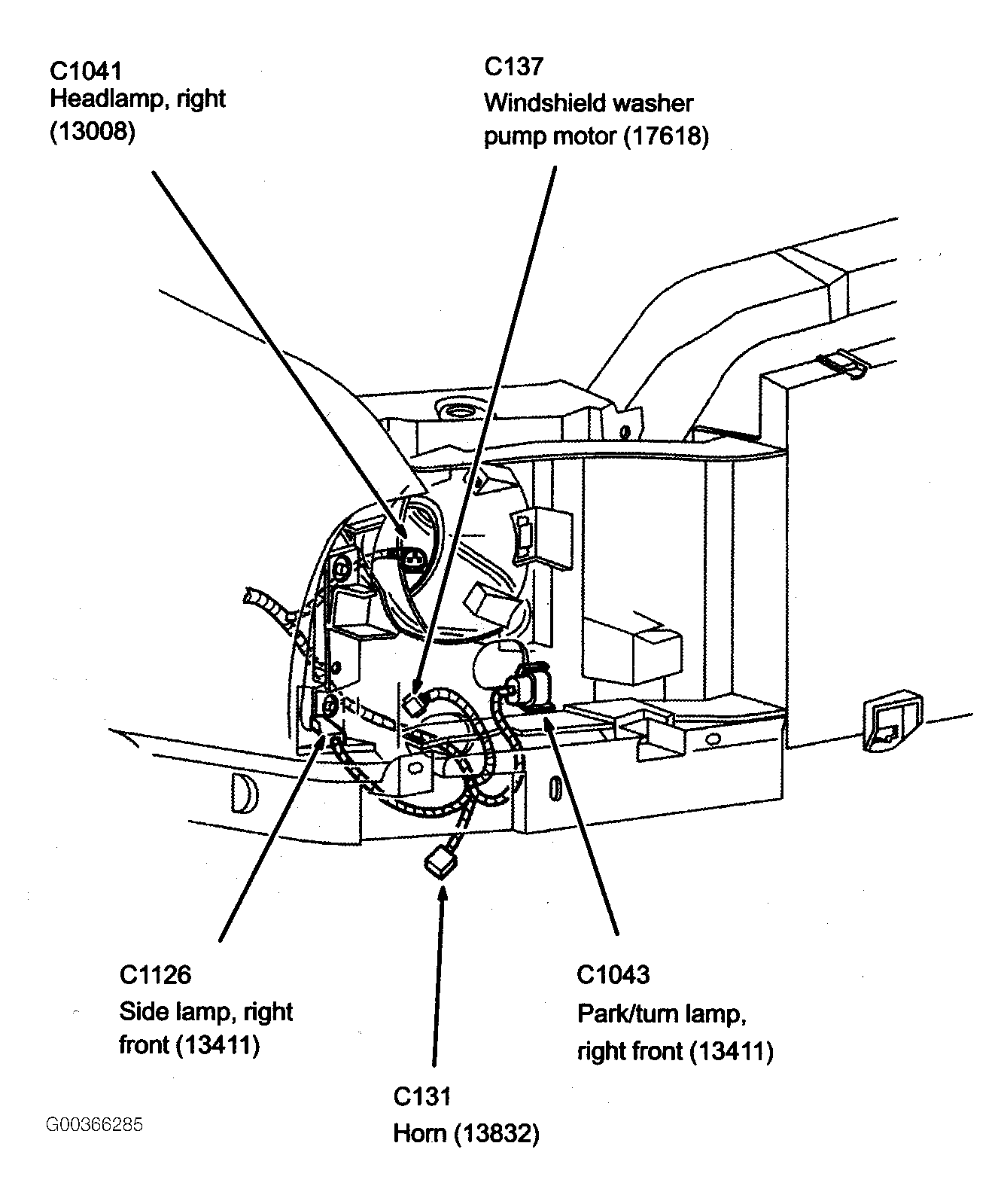

Fig 23: Right Front Of Vehicle

G00366285

Courtesy of FORD MOTOR CO.

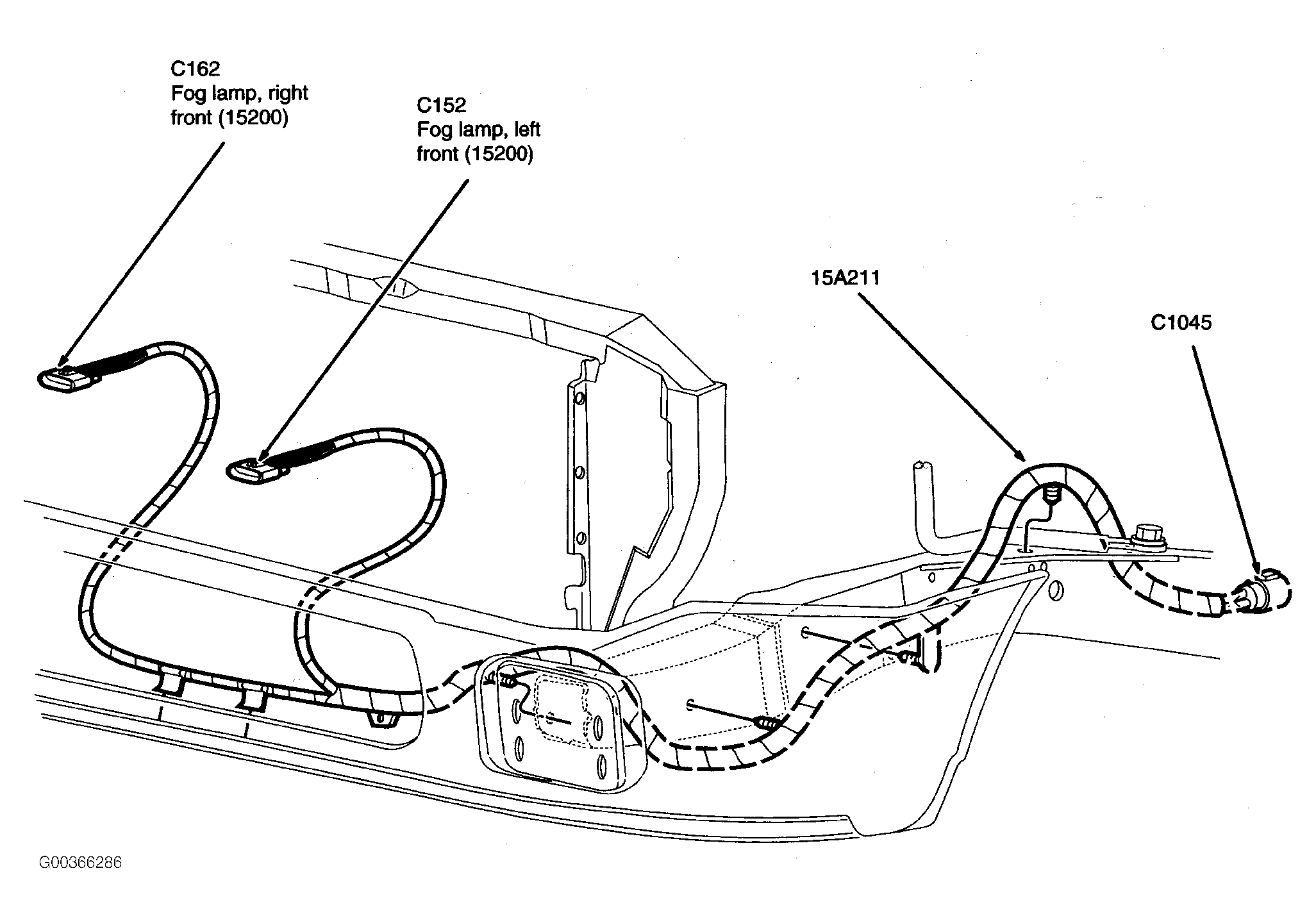

Fig 24: Front Of Vehicle

G00366286

Courtesy of FORD MOTOR CO.

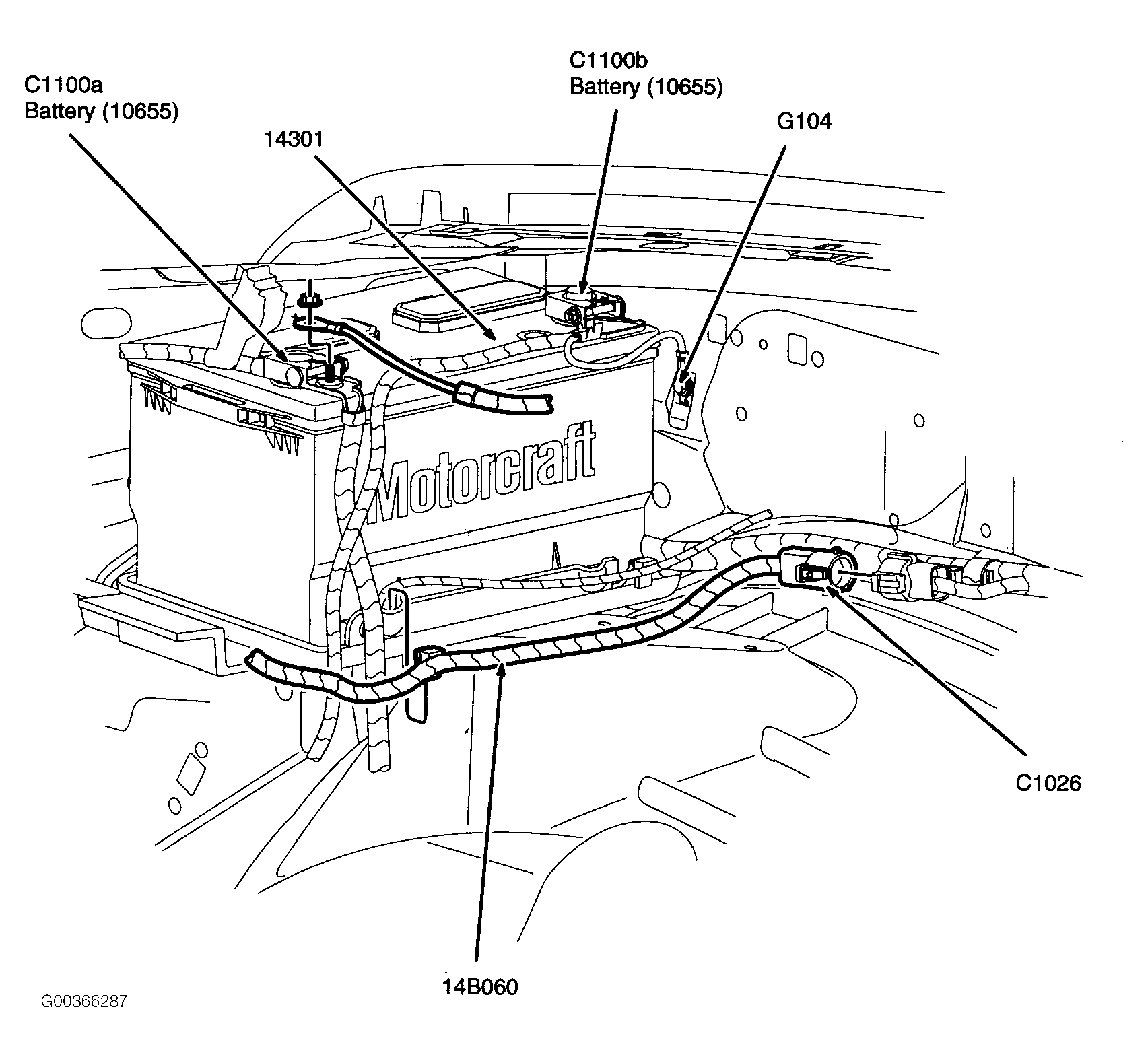

Fig 25: Right Side Of Engine Compartment

G00366287

Courtesy of FORD MOTOR CO.

Fig 26: Rear Of Dashboard

G00366288

Courtesy of FORD MOTOR CO.

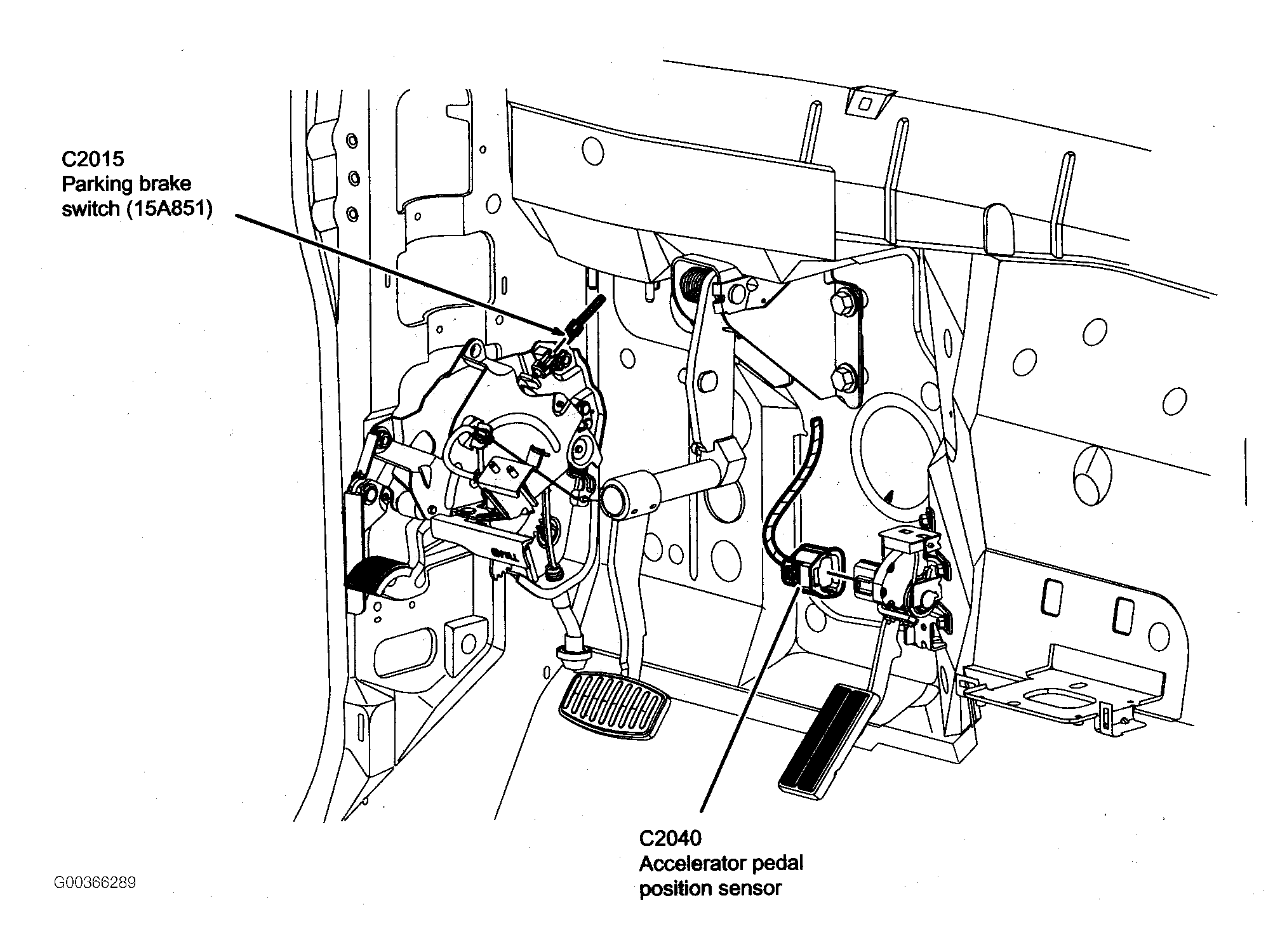

Fig 27: Left Footwell

G00366289

Courtesy of FORD MOTOR CO.

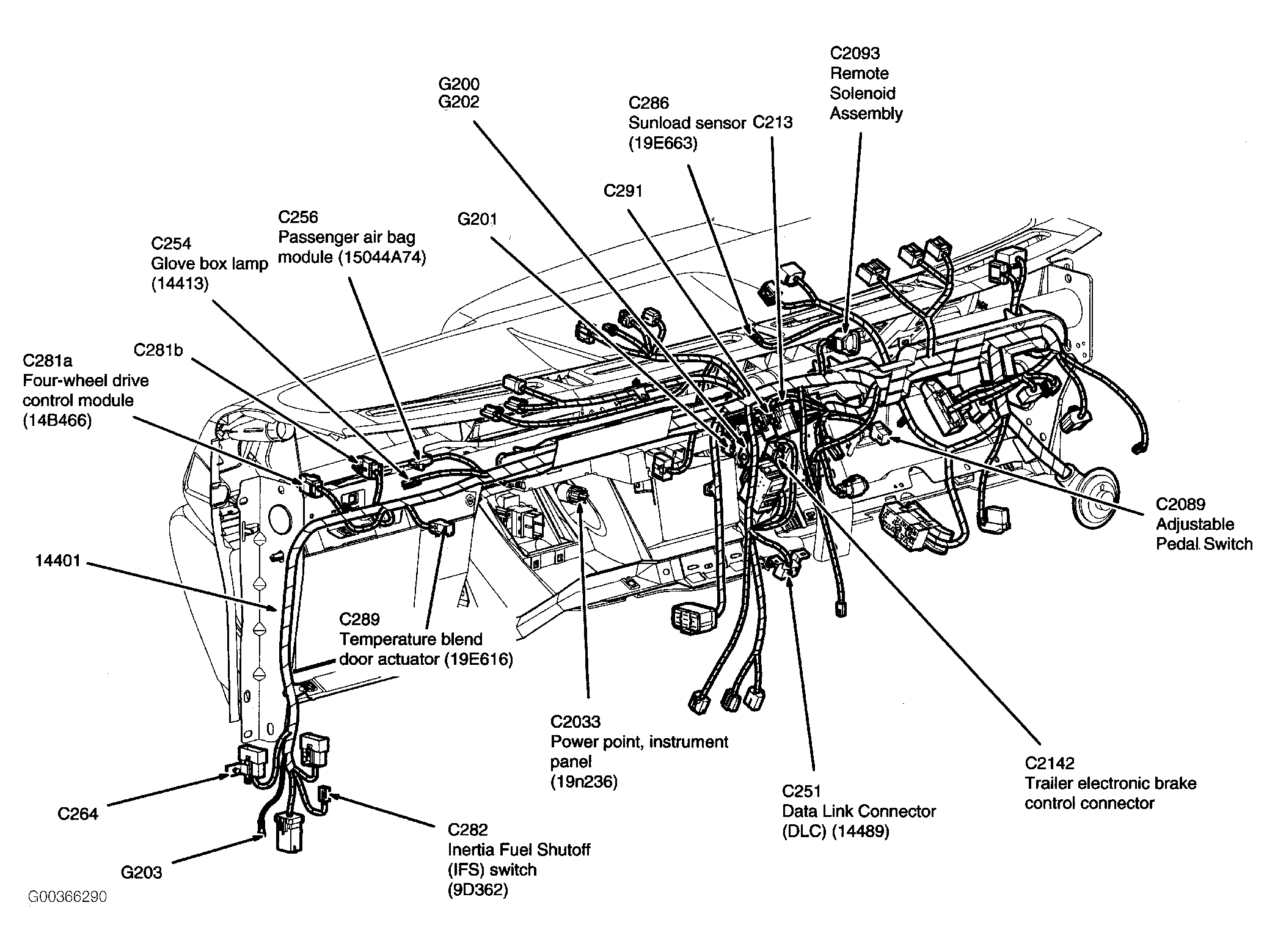

Fig 28: Rear Of Dashboard

G00366290

Courtesy of FORD MOTOR CO.

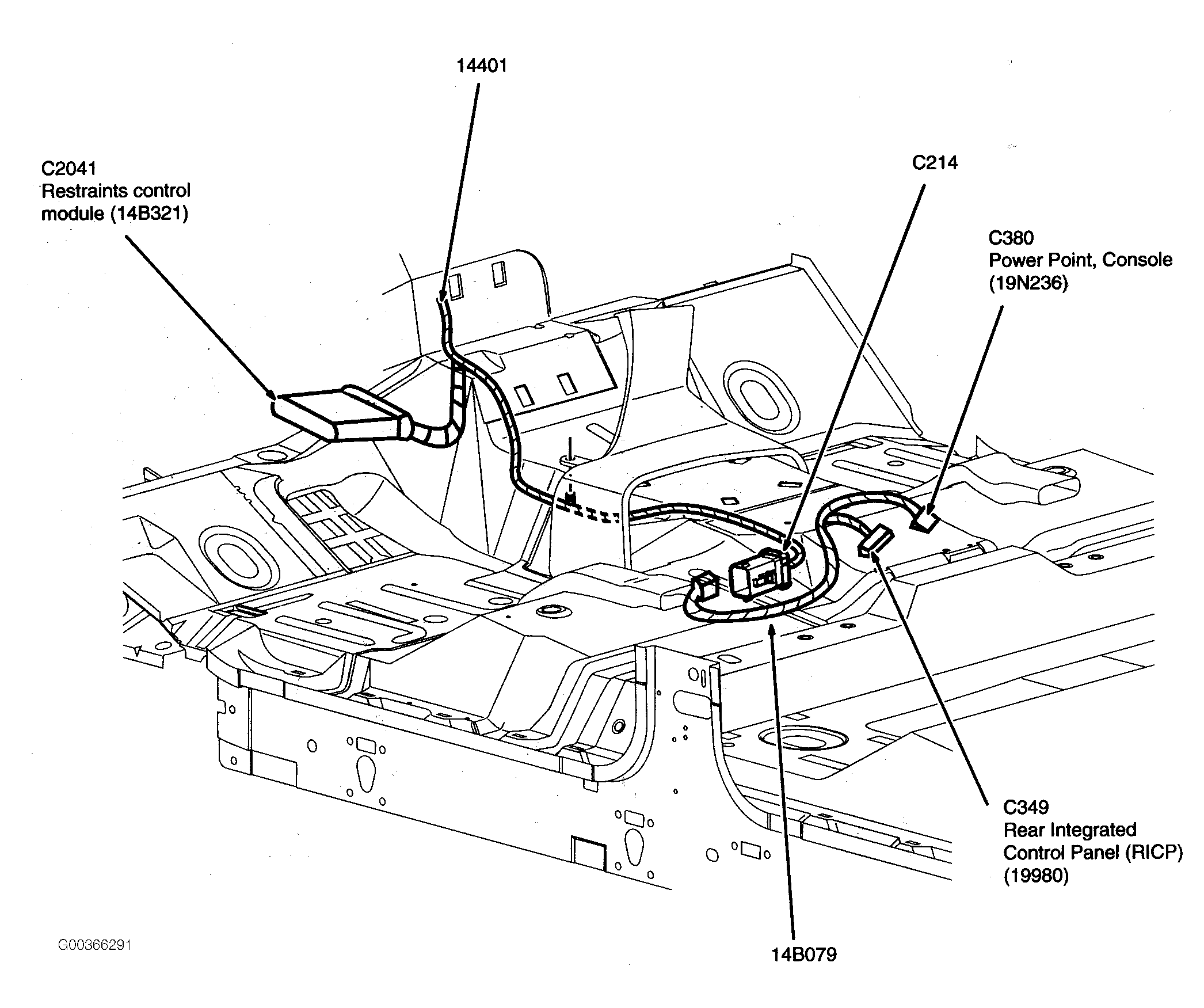

Fig 29: Under Center Console

G00366291

Courtesy of FORD MOTOR CO.

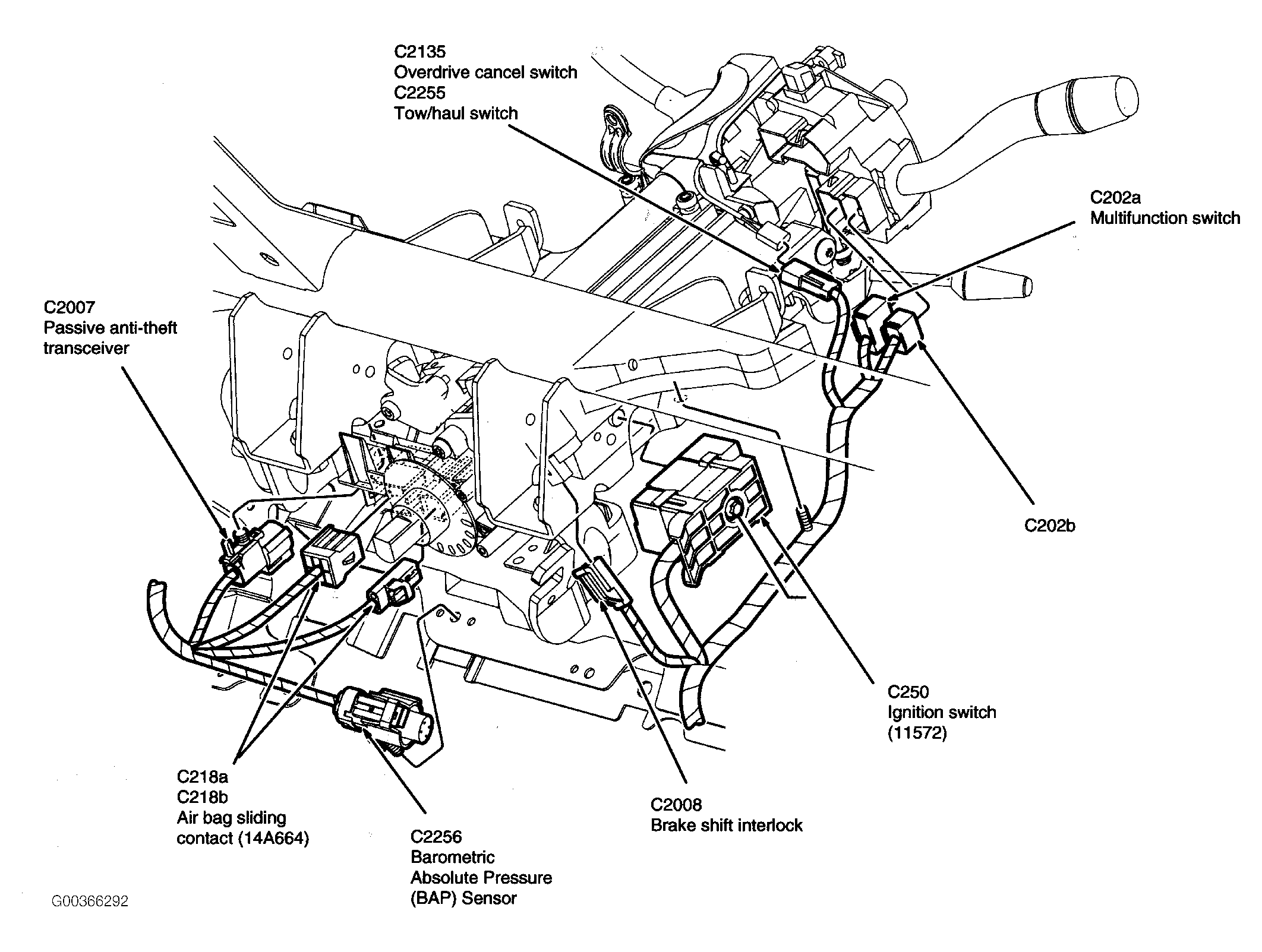

Fig 30: Steering Column

G00366292

Courtesy of FORD MOTOR CO.

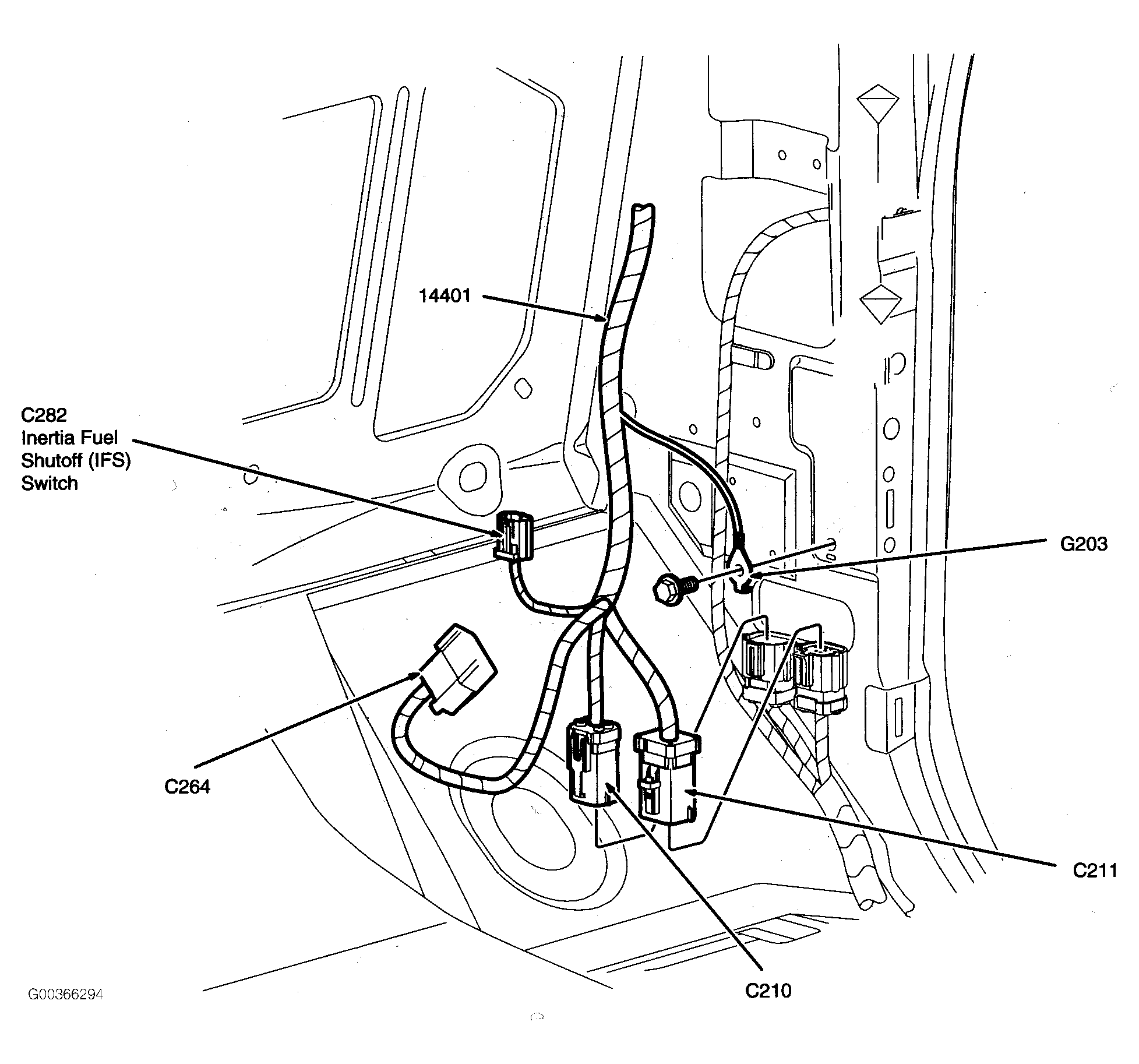

Fig 31: Right Kick Panel

G00366294

Courtesy of FORD MOTOR CO.

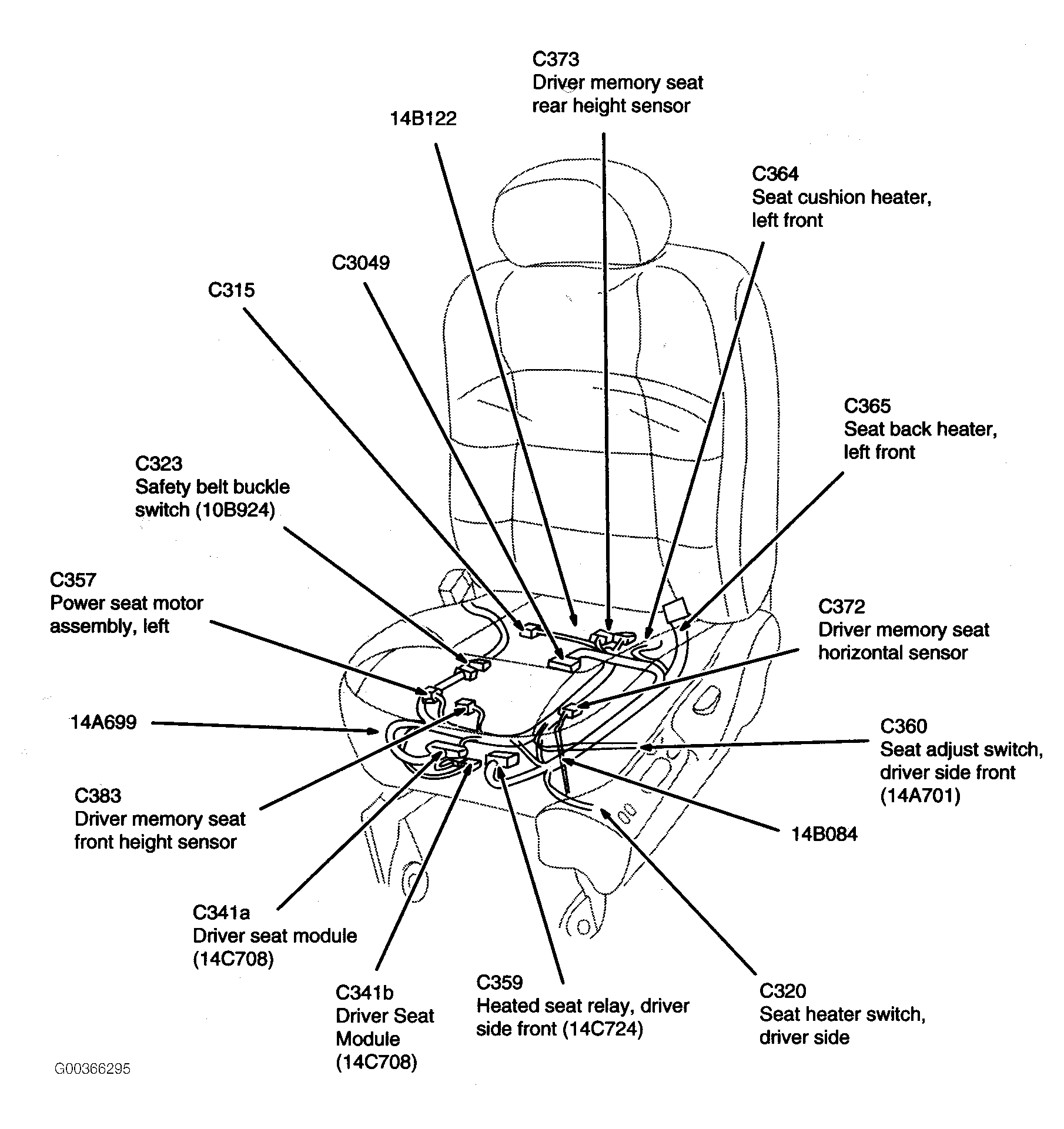

Fig 32: Driver's Seat

G00366295

Courtesy of FORD MOTOR CO.

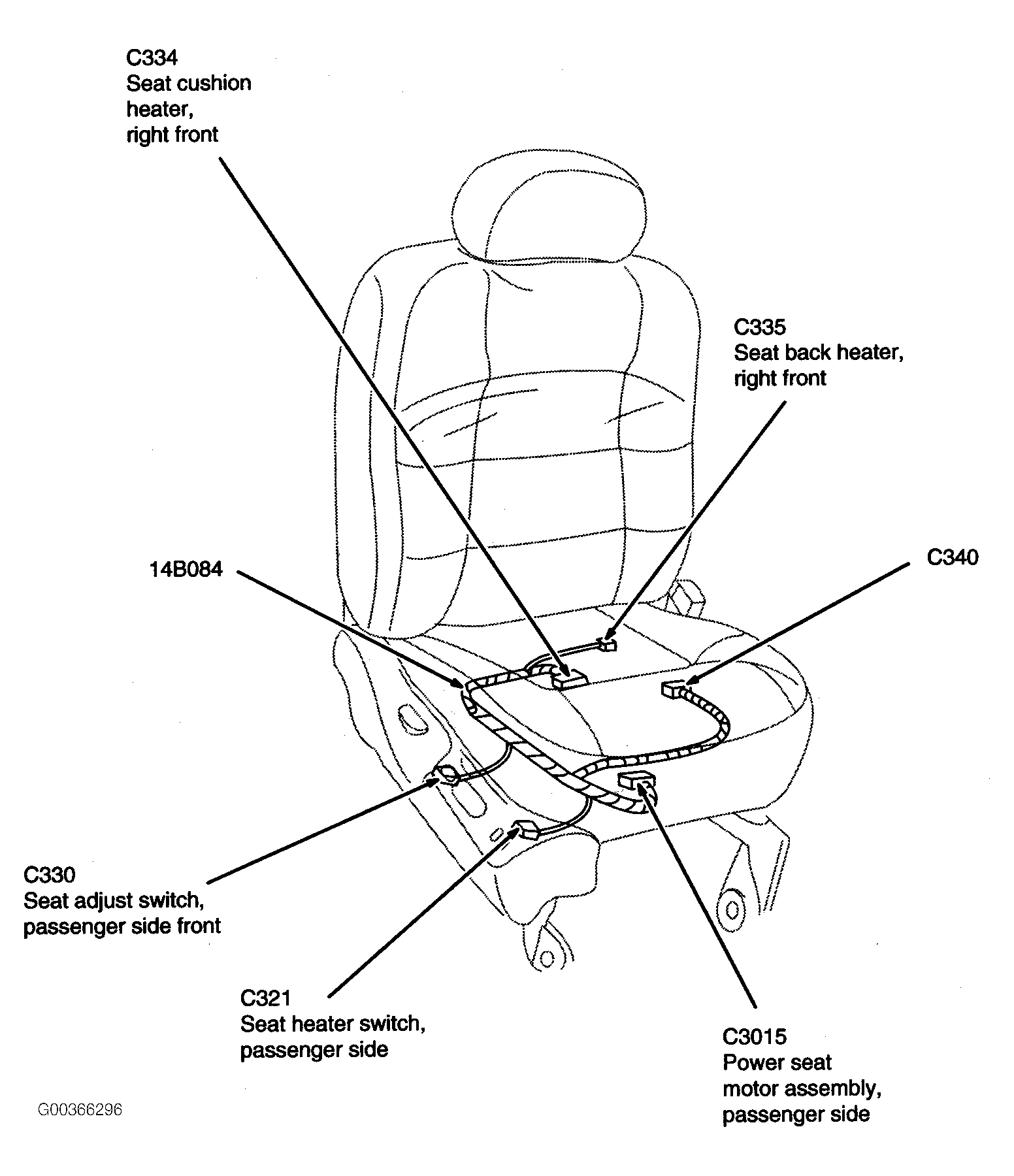

Fig 33: Passenger's Seat

G00366296

Courtesy of FORD MOTOR CO.

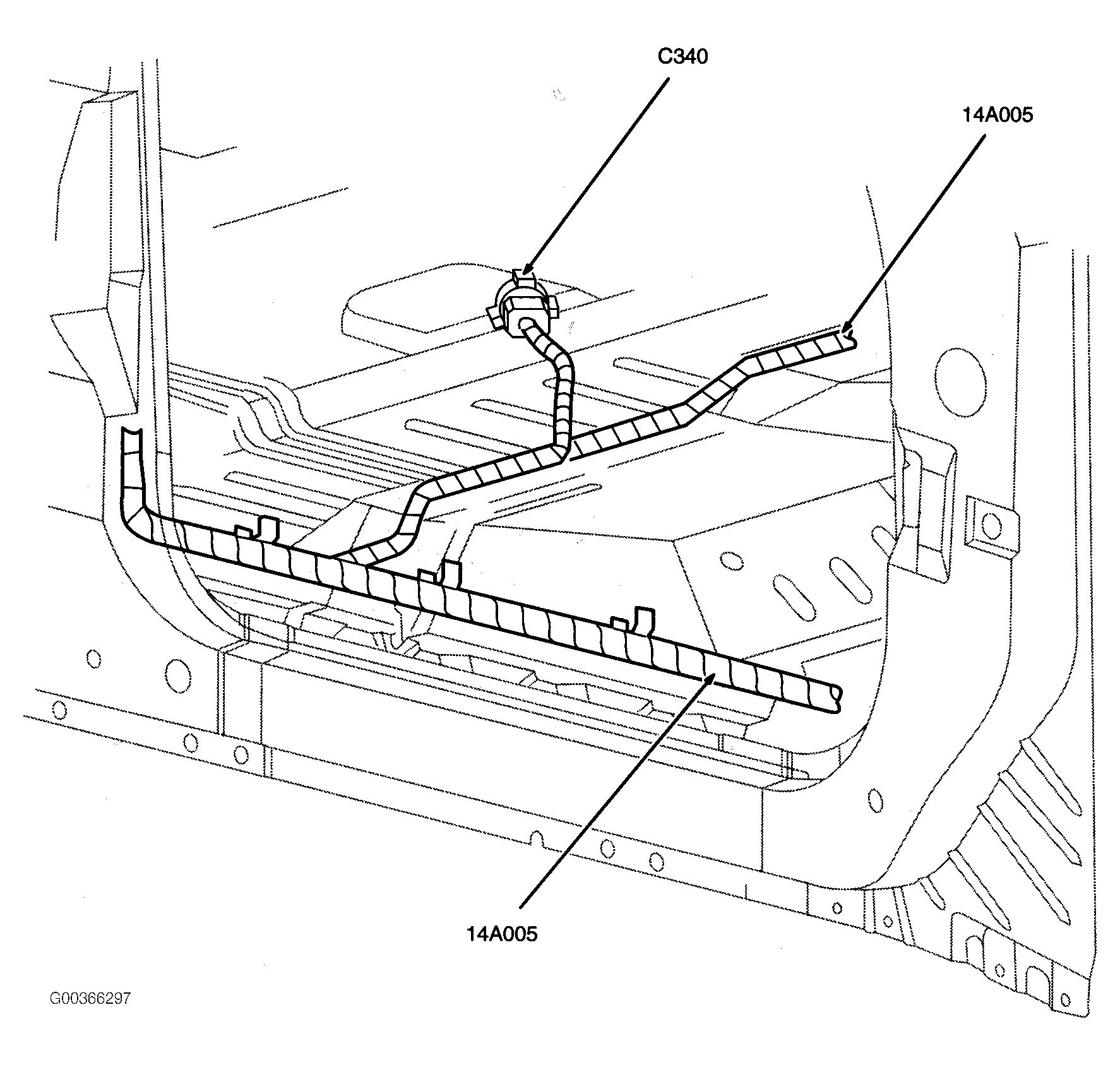

Fig 34: Under Right Front Seat

G00366297

Courtesy of FORD MOTOR CO.

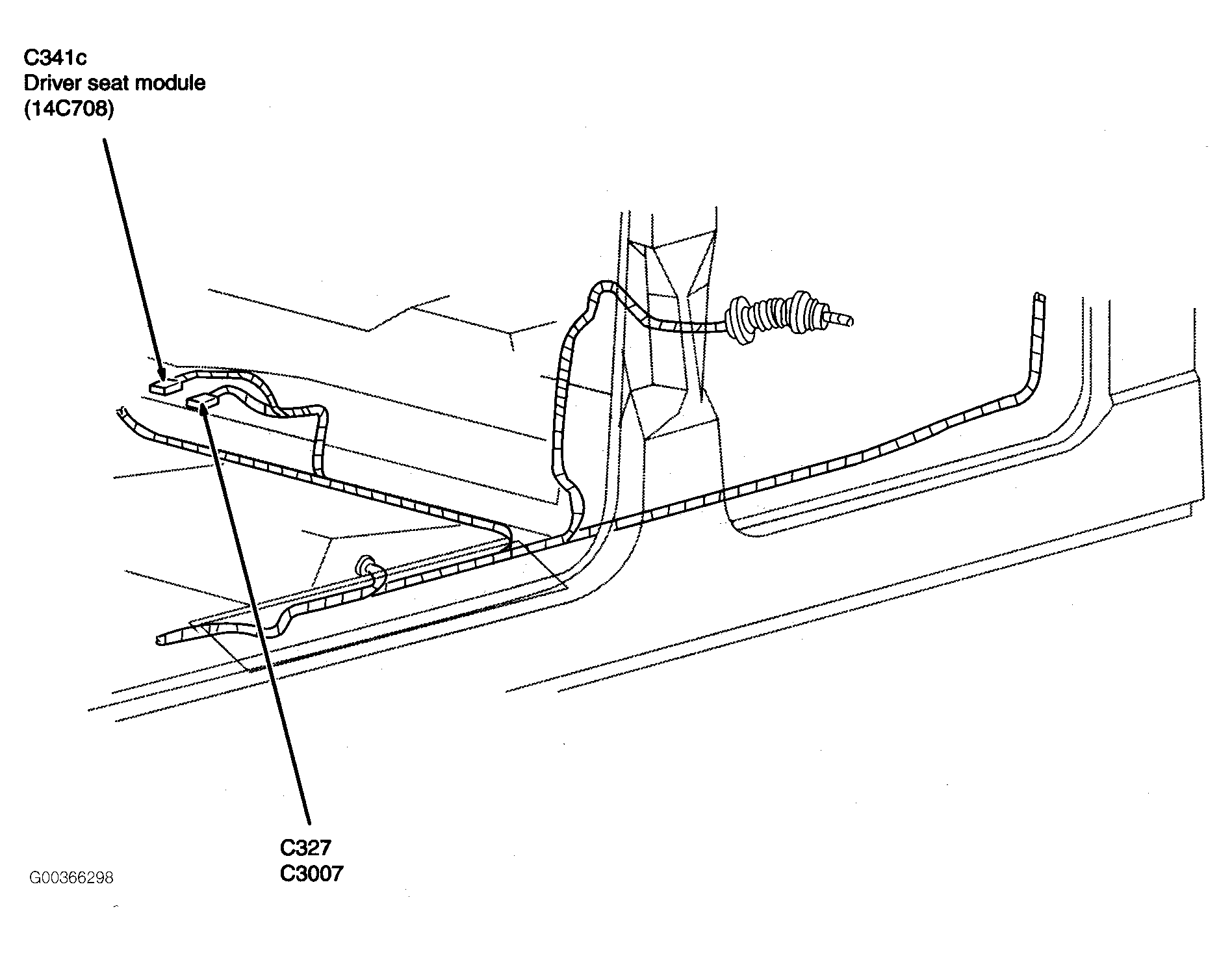

Fig 35: Under Driver's Seat

G00366298

Courtesy of FORD MOTOR CO.

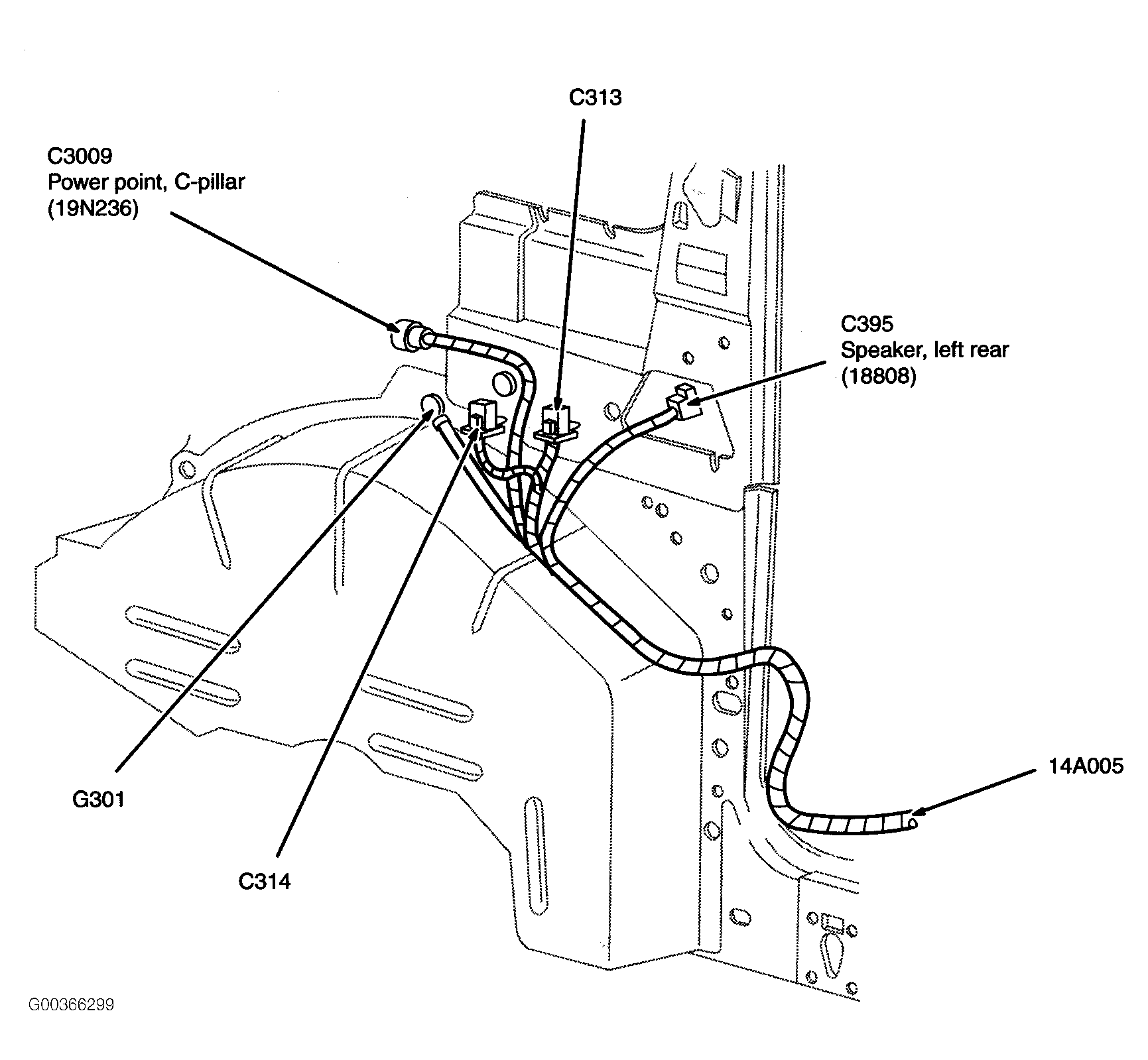

Fig 36: Above Left Rear Wheelwell

G00366299

Courtesy of FORD MOTOR CO.

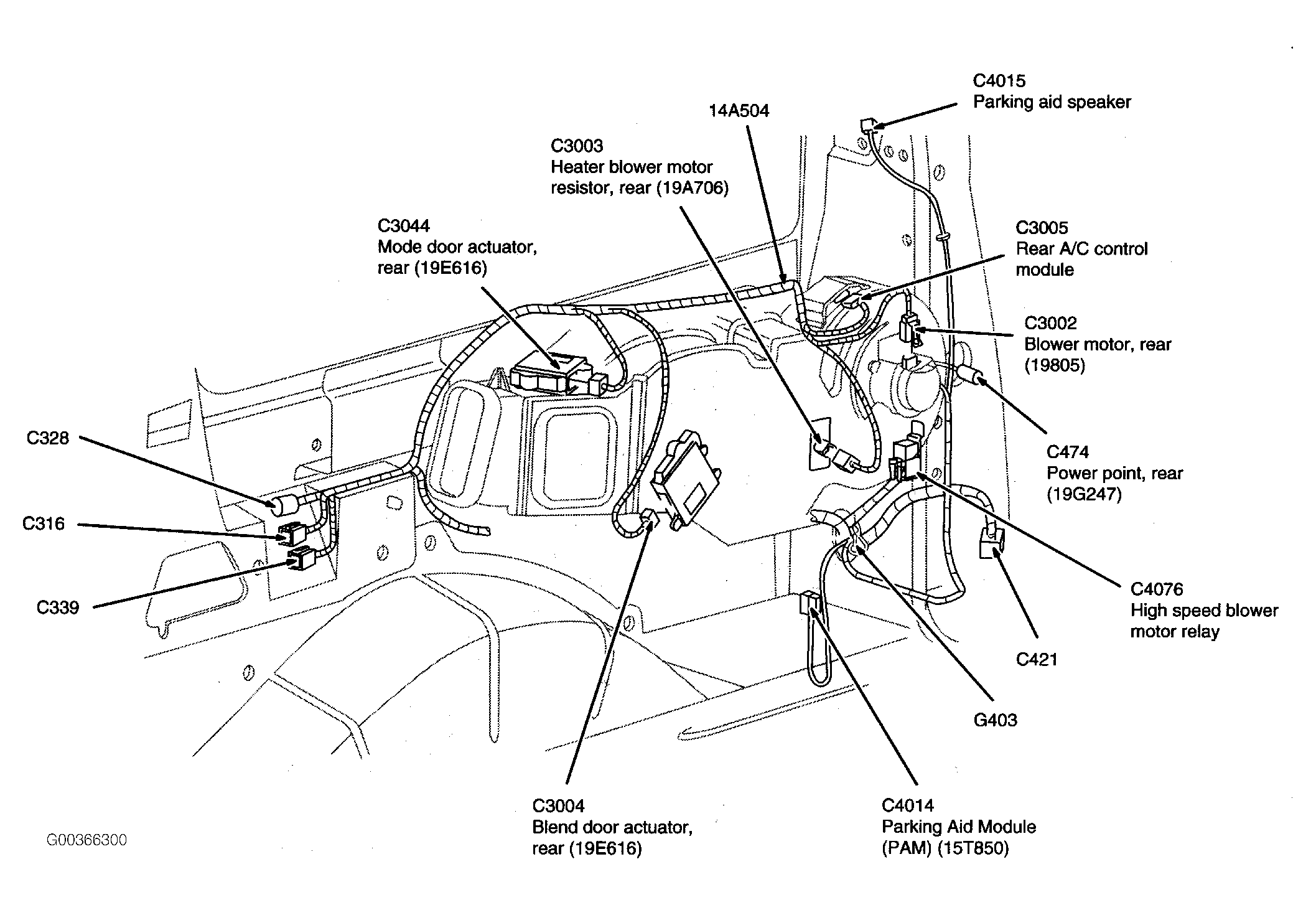

Fig 37: Right Rear Of Cargo Area

G00366300

Courtesy of FORD MOTOR CO.

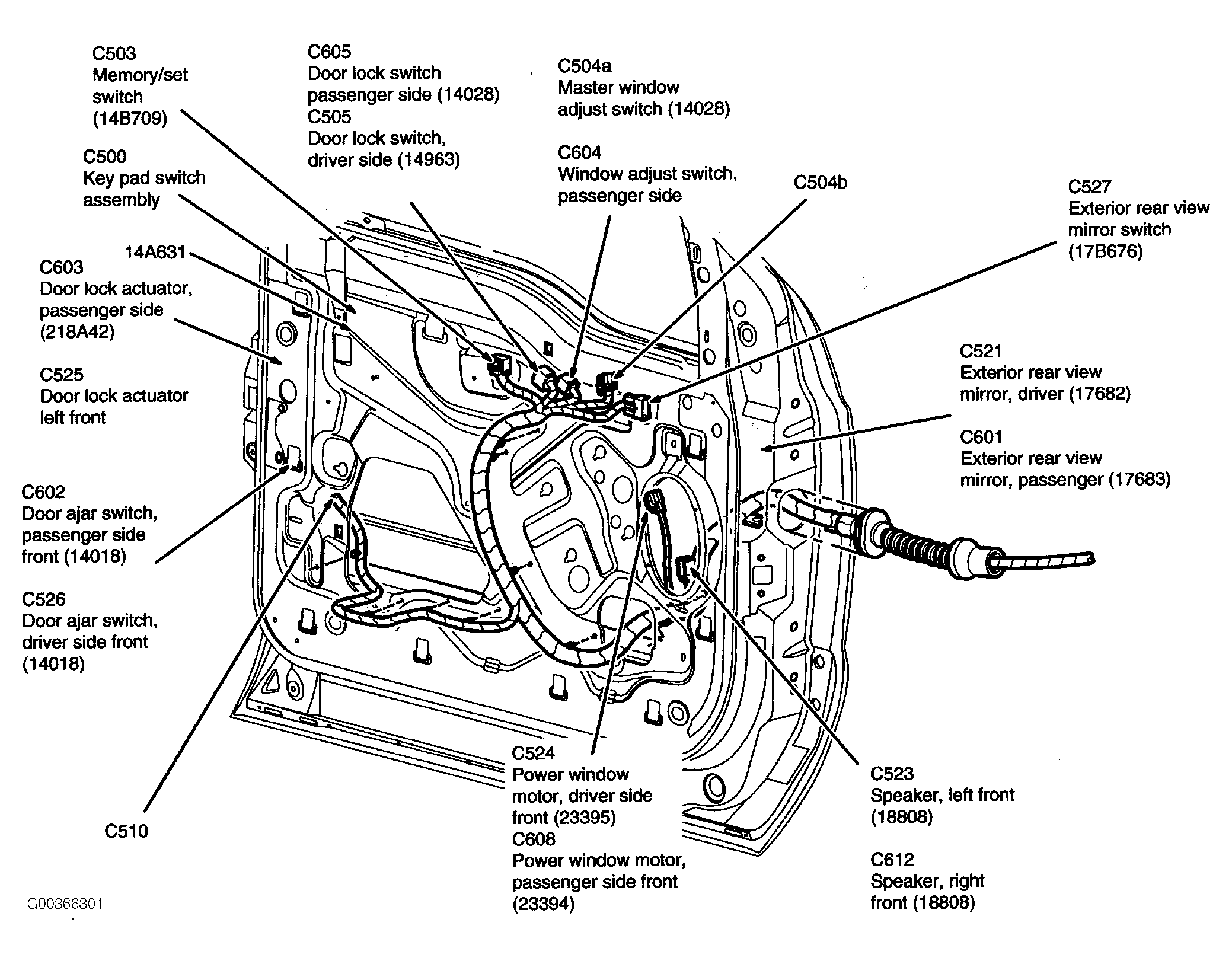

Fig 38: Left Front Door (Right Front Similar)

G00366301

Courtesy of FORD MOTOR CO.

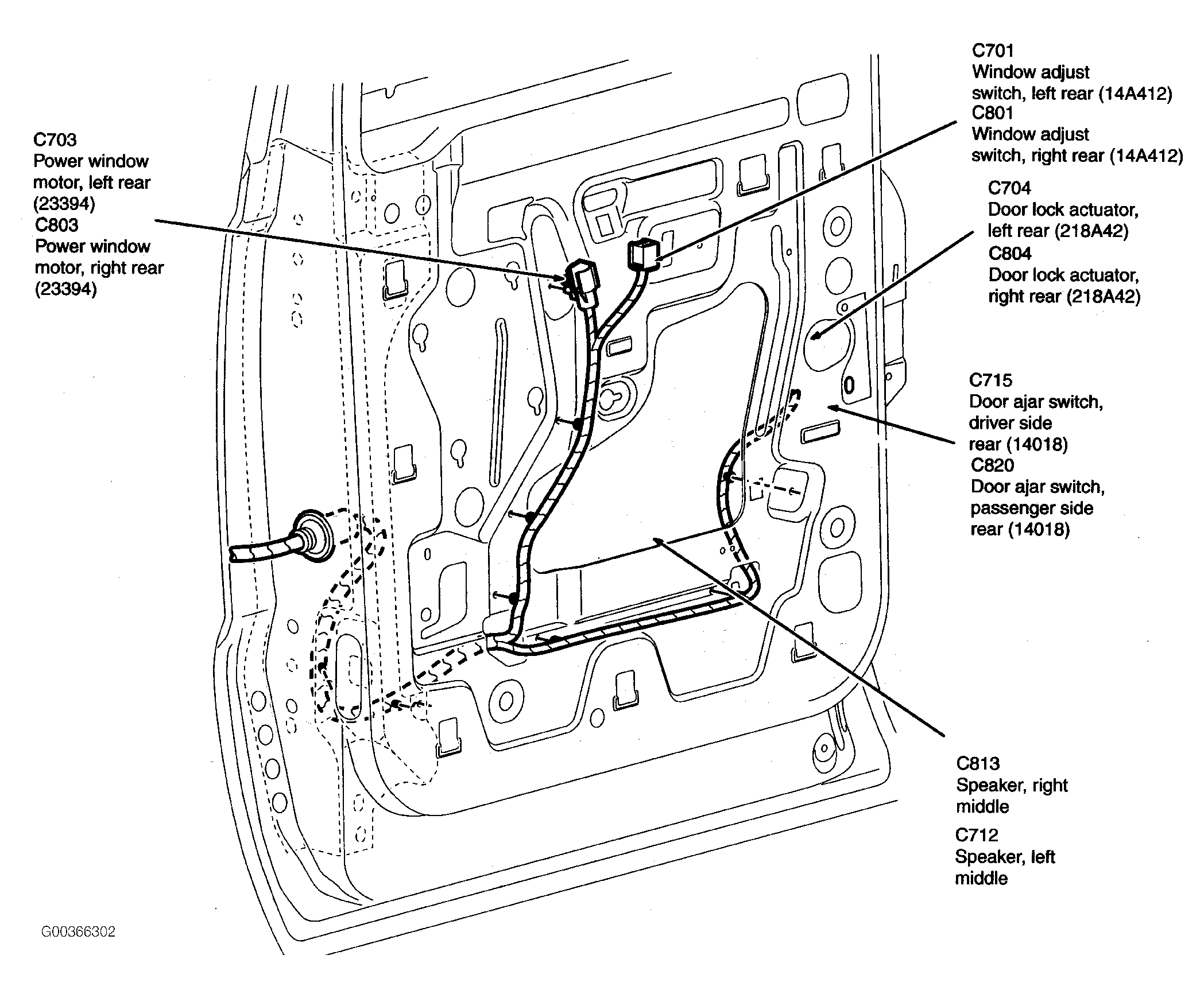

Fig 39: Right Rear Door (Left Rear Similar)

G00366302

Courtesy of FORD MOTOR CO.

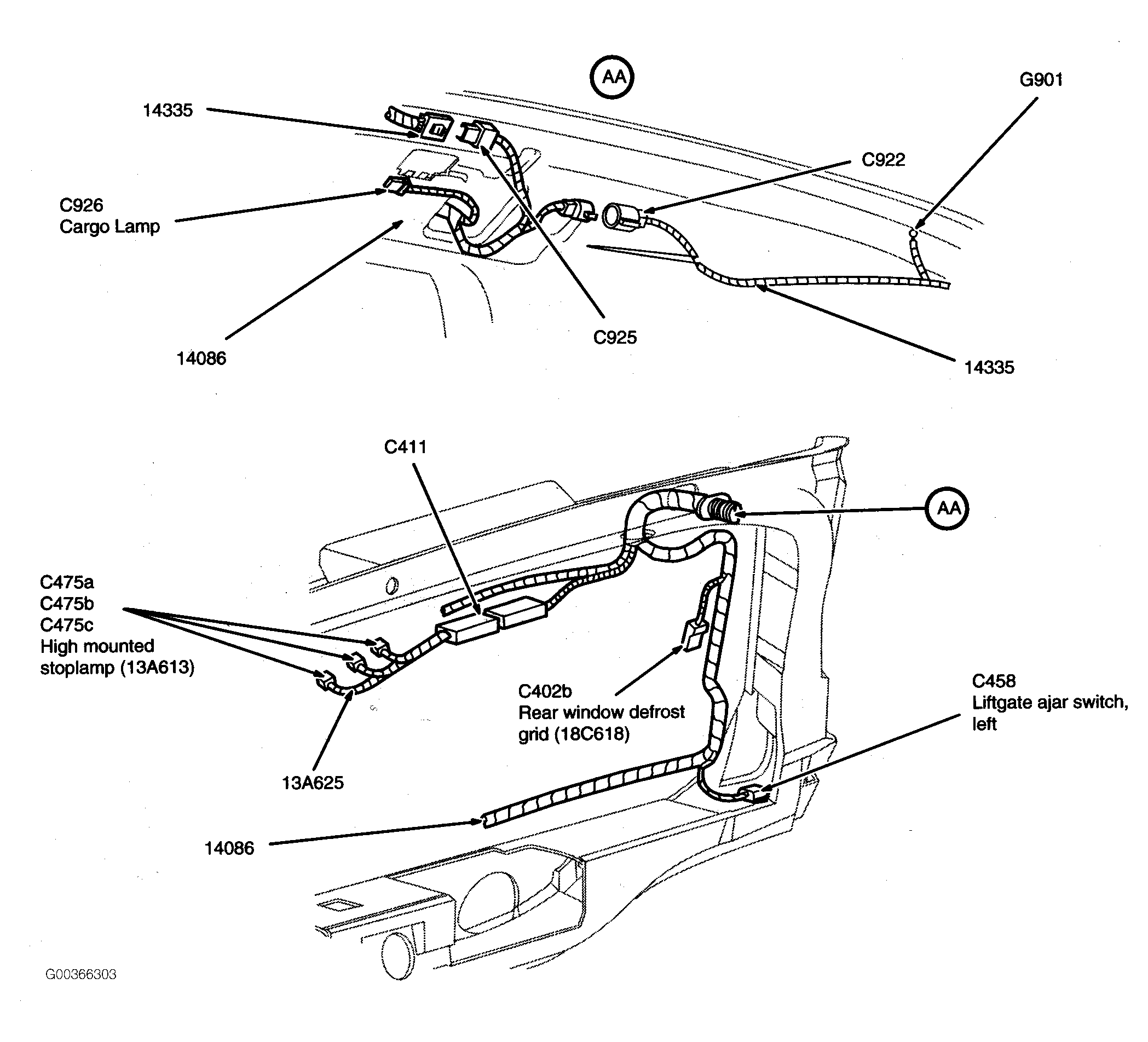

Fig 40: Liftgate

G00366303

Courtesy of FORD MOTOR CO.

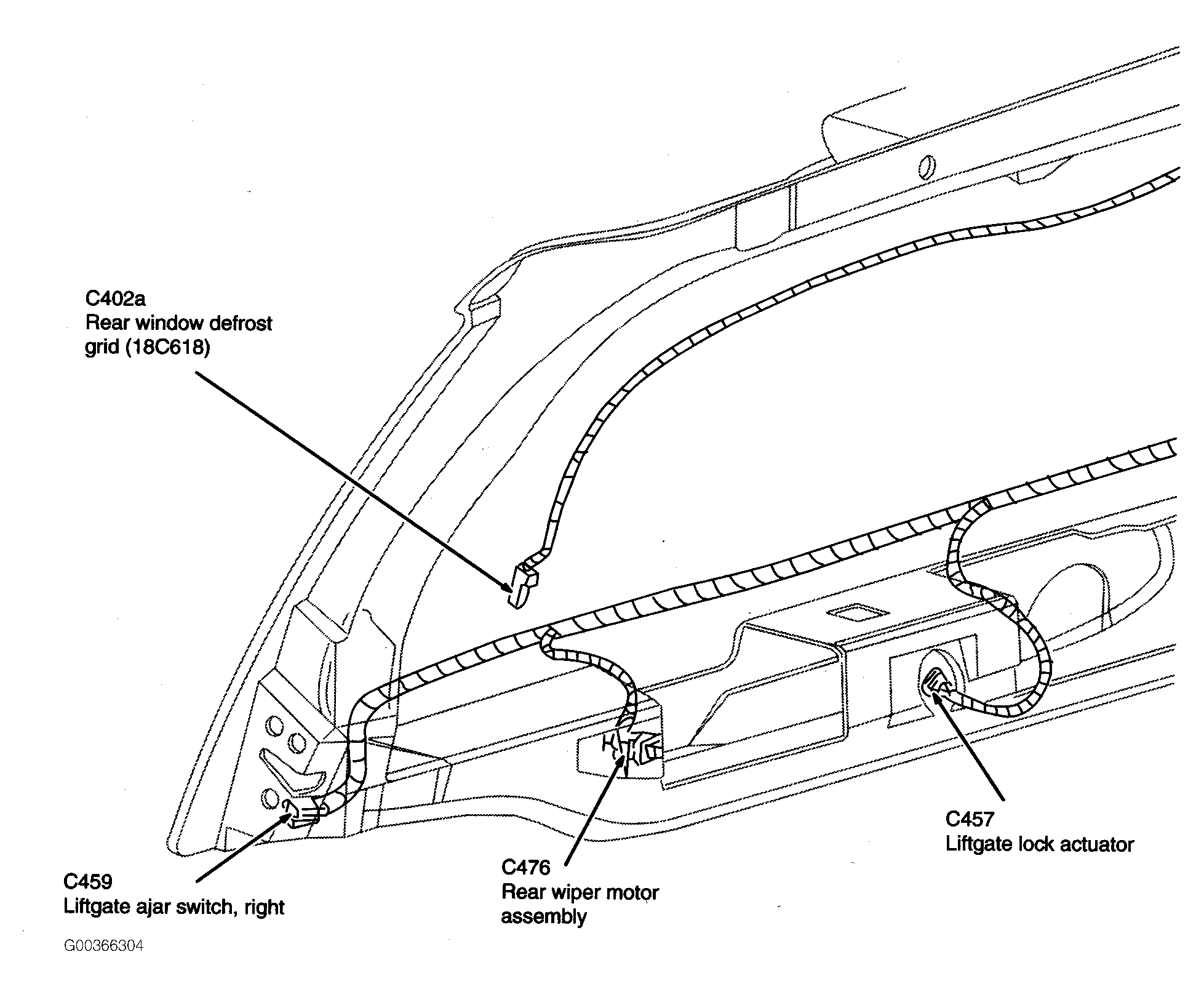

Fig 41: Liftgate

G00366304

Courtesy of FORD MOTOR CO.

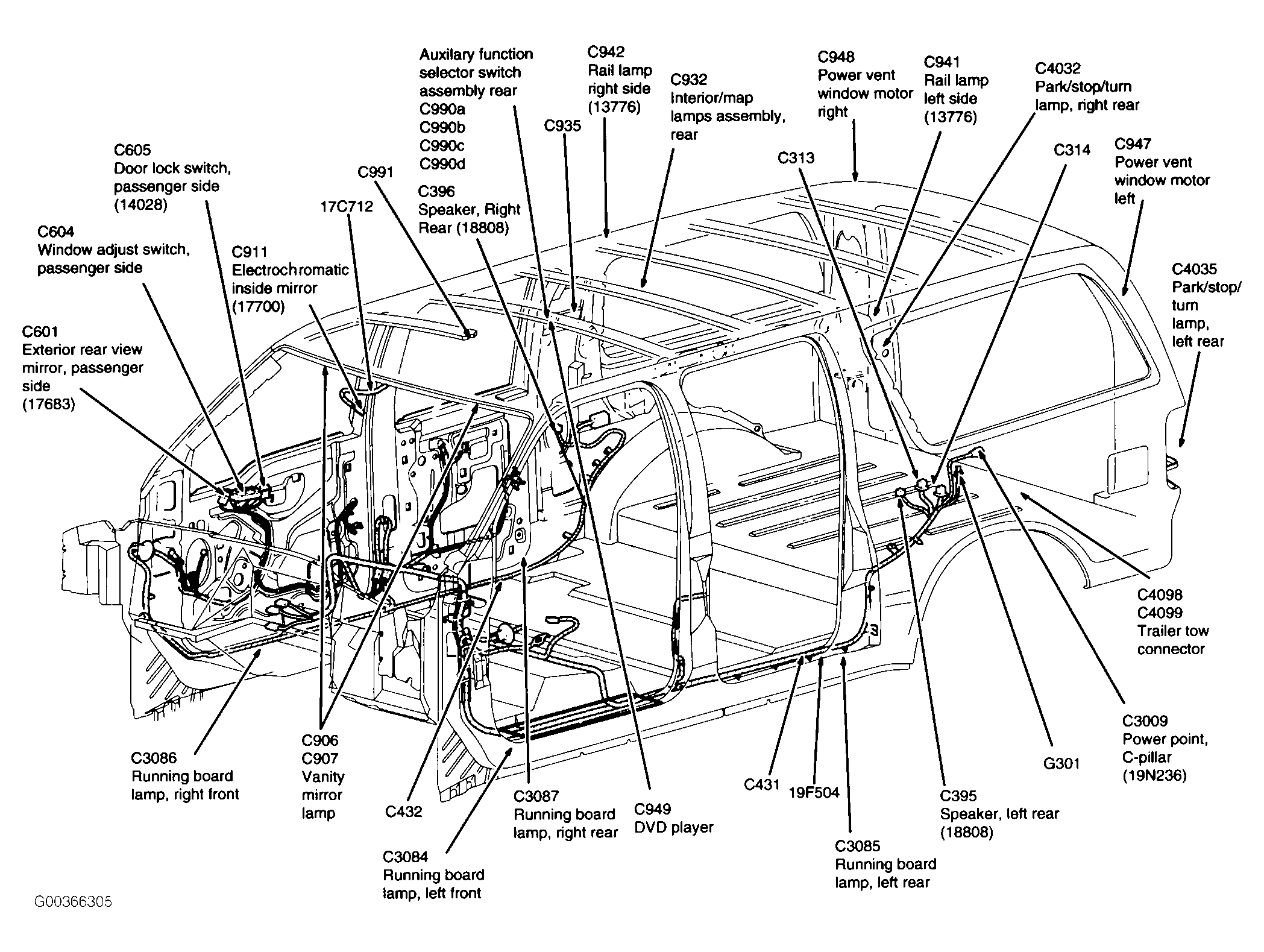

Fig 42: Vehicle Overview

G00366305

Courtesy of FORD MOTOR CO.

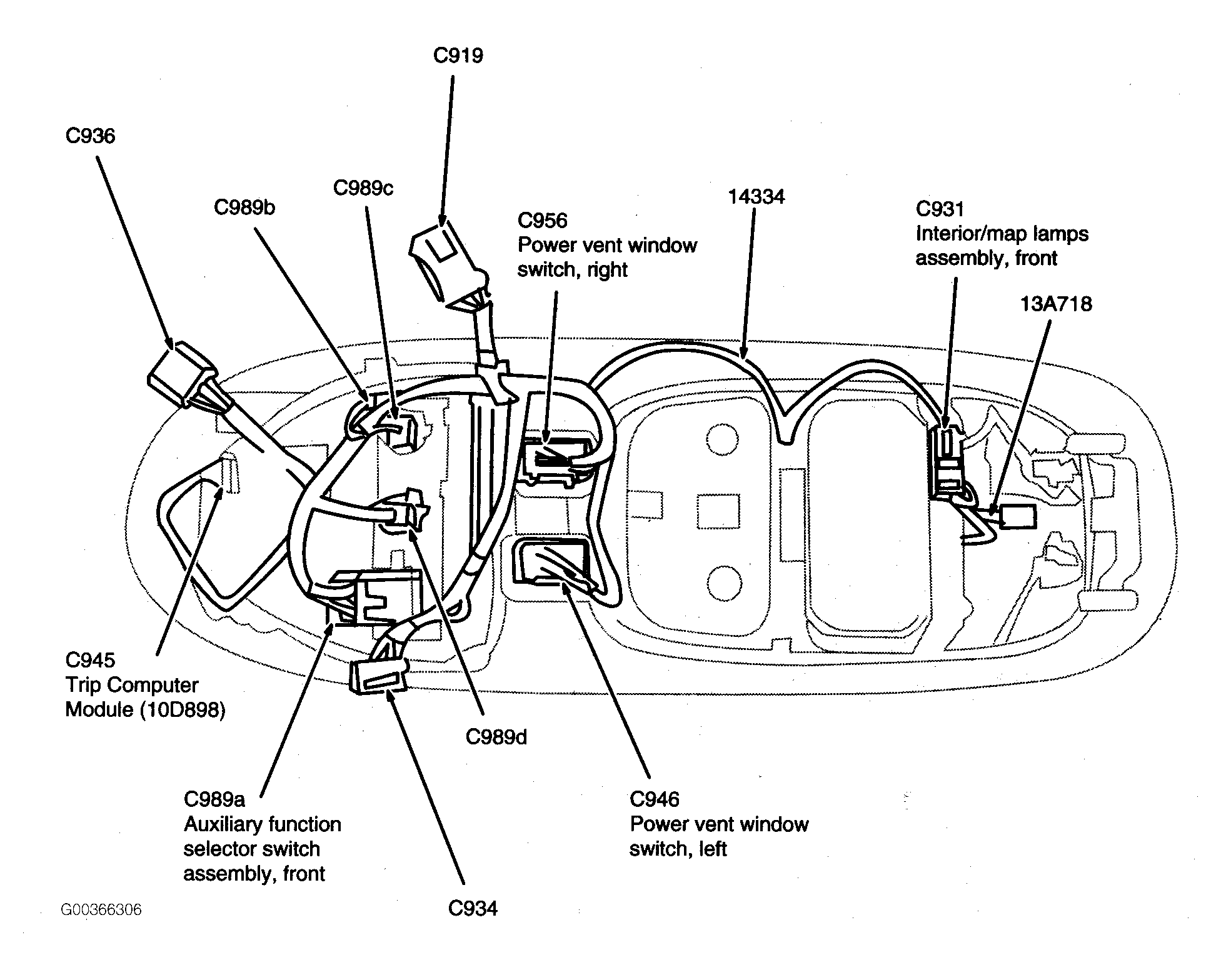

Fig 43: Top Of Overhead Console

G00366306

Courtesy of FORD MOTOR CO.

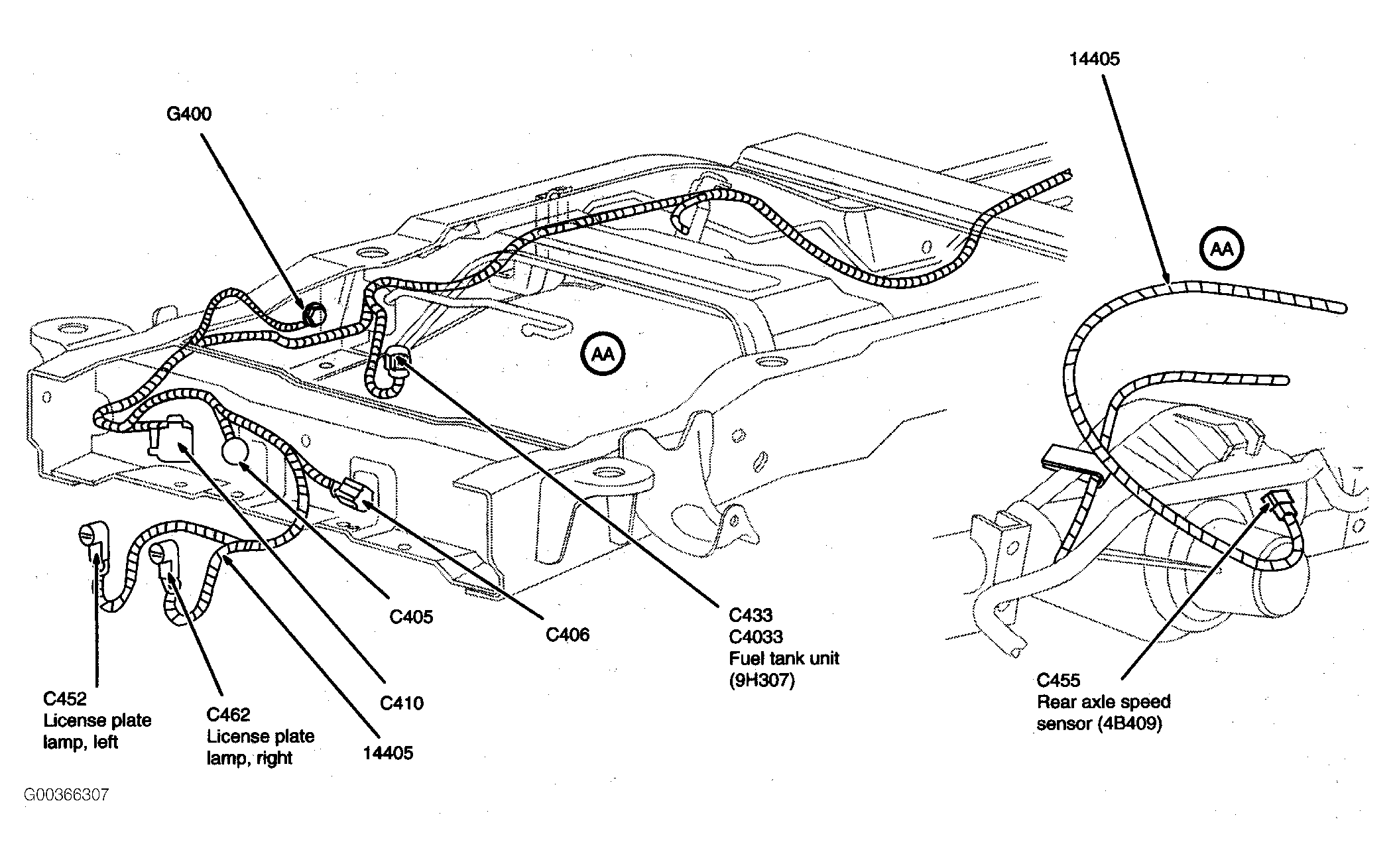

Fig 44: Under Rear Of Vehicle

G00366307

Courtesy of FORD MOTOR CO.
