Spring Lock Couplings: Connect

  1. Connect the fitting.
    • Inspect and clean both the coupling ends.
    • Lubricate the O-rings with clean engine oil.
    • Connect the fitting.
    • Pull on the fitting to make sure it is fully engaged.
    • Install the safety clip.

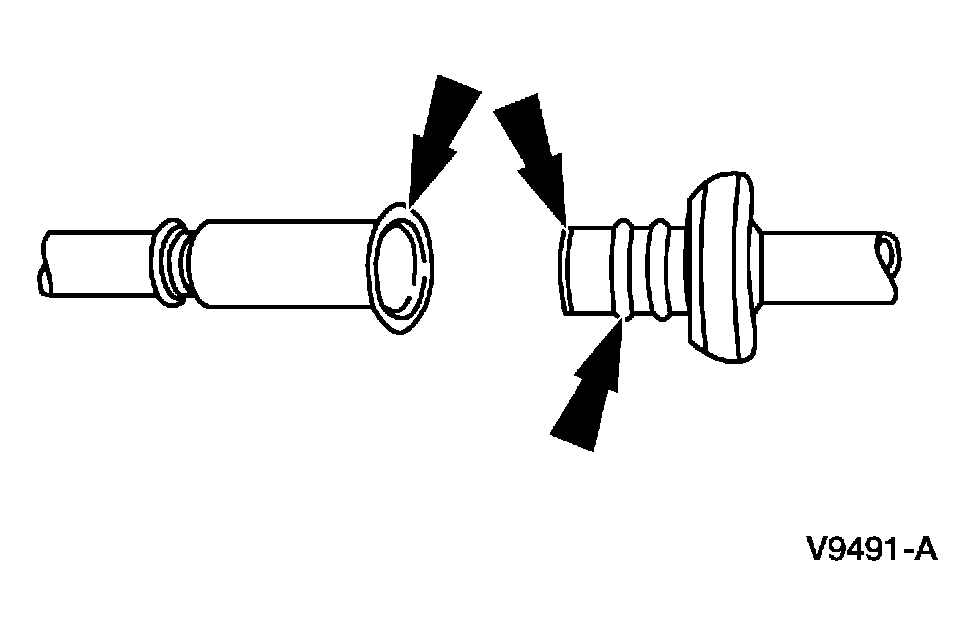

    Fig 1: Identifying Coupling Components
    G03883086Courtesy of FORD MOTOR CO.
