Fuel Conditioning Module - 6.0L Diesel: Assembly

Install the fuel conditioning mounting bracket and screws.

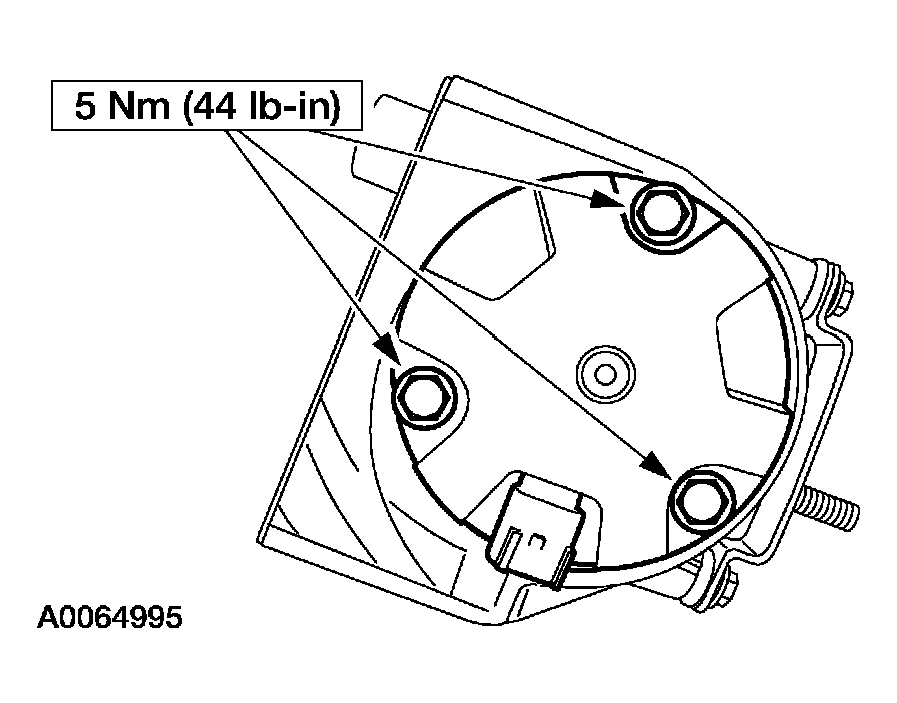

Fig 1: Installing Fuel Conditioning Mounting Bracket With Torque Specification
Courtesy of FORD MOTOR CO.
Install new O-rings on the fuel pump and lubricate with clean engine oil.

Fig 2: Installing New O-Rings On Fuel Pump
Courtesy of FORD MOTOR CO.
Install the fuel pump and mounting screws.

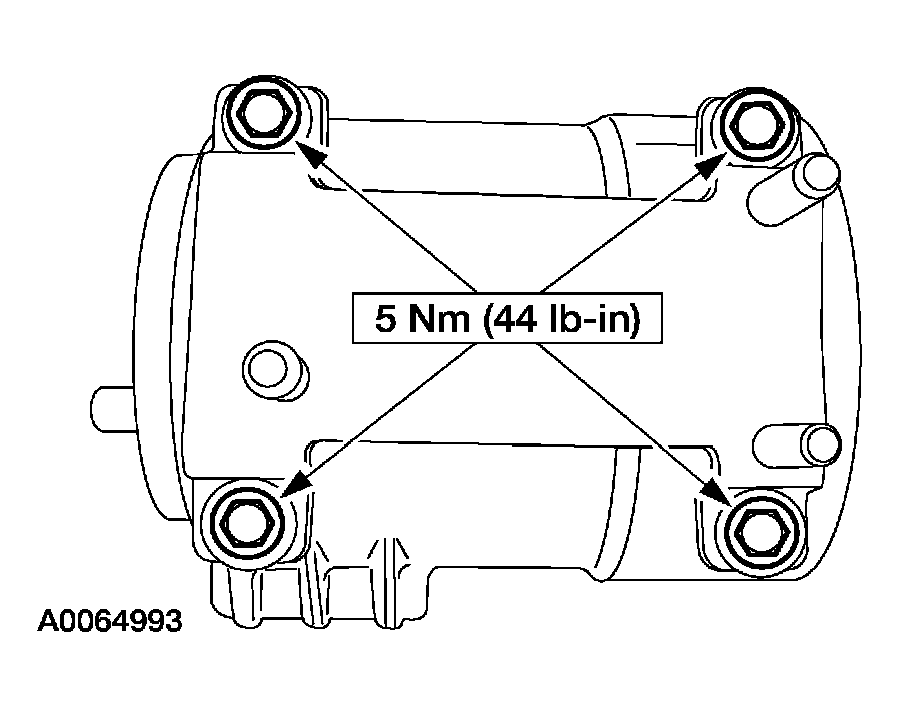

Fig 3: Installing Fuel Pump And Mounting Screws With Torque Specification
Courtesy of FORD MOTOR CO.
Install the return valve assembly.

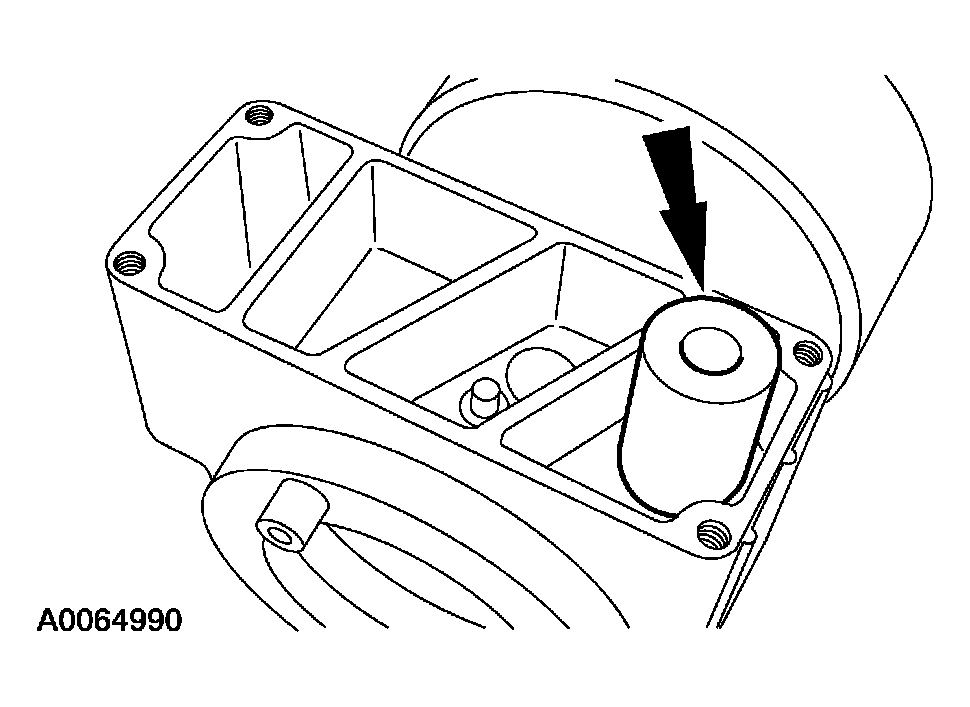

Fig 4: Installing Return Valve Assembly
Courtesy of FORD MOTOR CO.
Install a new press-in-place gasket in the fuel manifold.

Fig 5: Installing New Press-In-Place Gasket In Fuel Manifold
Courtesy of FORD MOTOR CO.
Install the fuel manifold and screws.

Fig 6: Installing Fuel Manifold With Torque Specification
Courtesy of FORD MOTOR CO.
Lubricate the O-ring and install the fuel filter.

Fig 7: Installing O-Ring On Fuel Filter
Courtesy of FORD MOTOR CO.
Install a new O-ring on the fuel filter cover and lubricate with clean engine oil.

Fig 8: Installing New O-Ring On Fuel Filter Cover
Courtesy of FORD MOTOR CO.
Install the fuel filter cover.

Fig 9: Installing Fuel Filter Cover With Torque Specification
Courtesy of FORD MOTOR CO.
