Removal and Installation

  1. Disconnect the battery ground cable. On vehicles equipped with dual batteries, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the push pin retainer, injection control pressure (ICP) electrical connector and the glow plug electrical connectors.
    Fig 1: Locating Injection Control Pressure (ICP) Electrical Connector And Glow Plug Connectors
    G03906822Courtesy of FORD MOTOR CO.
  3. Remove the nuts and the glow plug control module.

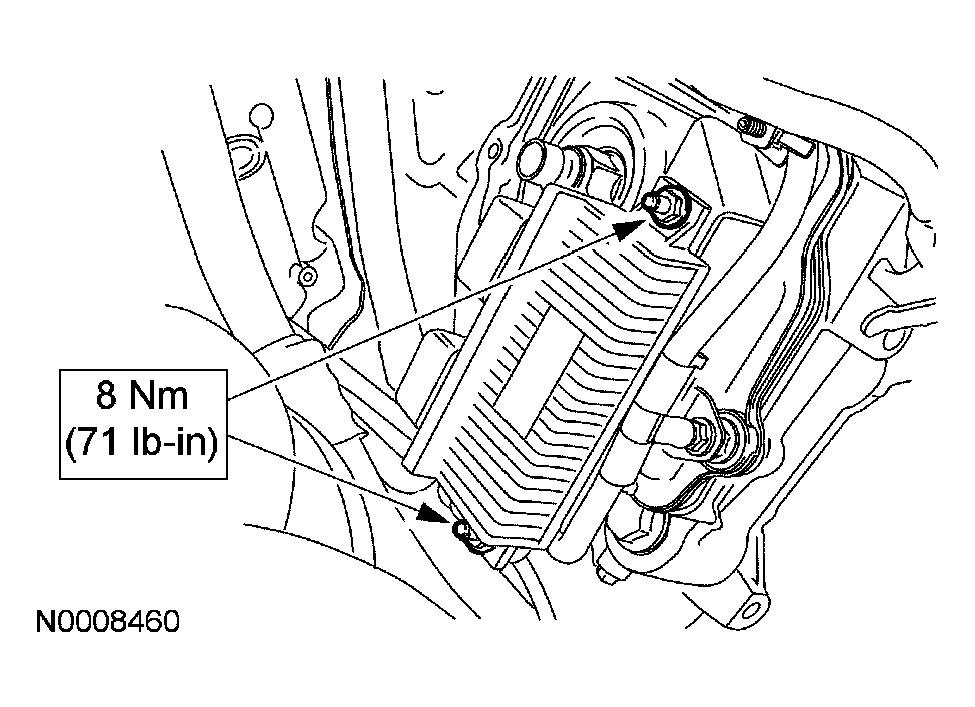

    Fig 2: Removing Nuts And Glow Plug Control Module With Torque Specifications
    G03907978Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
