Glow Plug: Installation

    Both sides

  1. Install the glow plug.

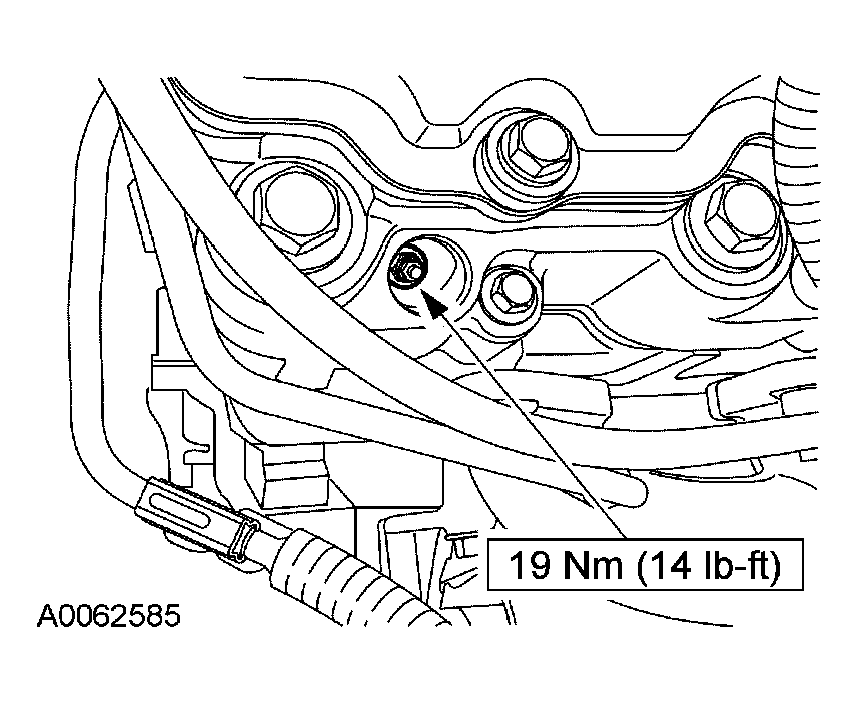

    Fig 1: Installing Glow Plug With Torque Specifications
    G03888206Courtesy of FORD MOTOR CO.
  2. Clean and apply clean engine oil to the O-ring seals.
    Fig 2: Locating O-Ring Seal
    G03888207Courtesy of FORD MOTOR CO.
  3. Using the special tool, install the glow plug harness.

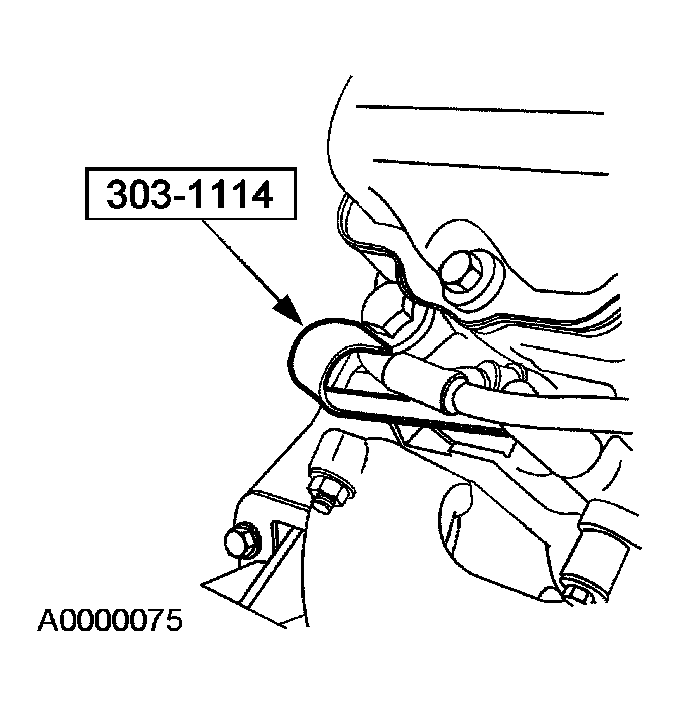

    Fig 3: View Of Glow Plug Harness And Special Tool
    G03887483Courtesy of FORD MOTOR CO.

    4. RH side

  4. Install the RH fender splash shield. For additional information, refer to FRONT END BODY PANELS .
