Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

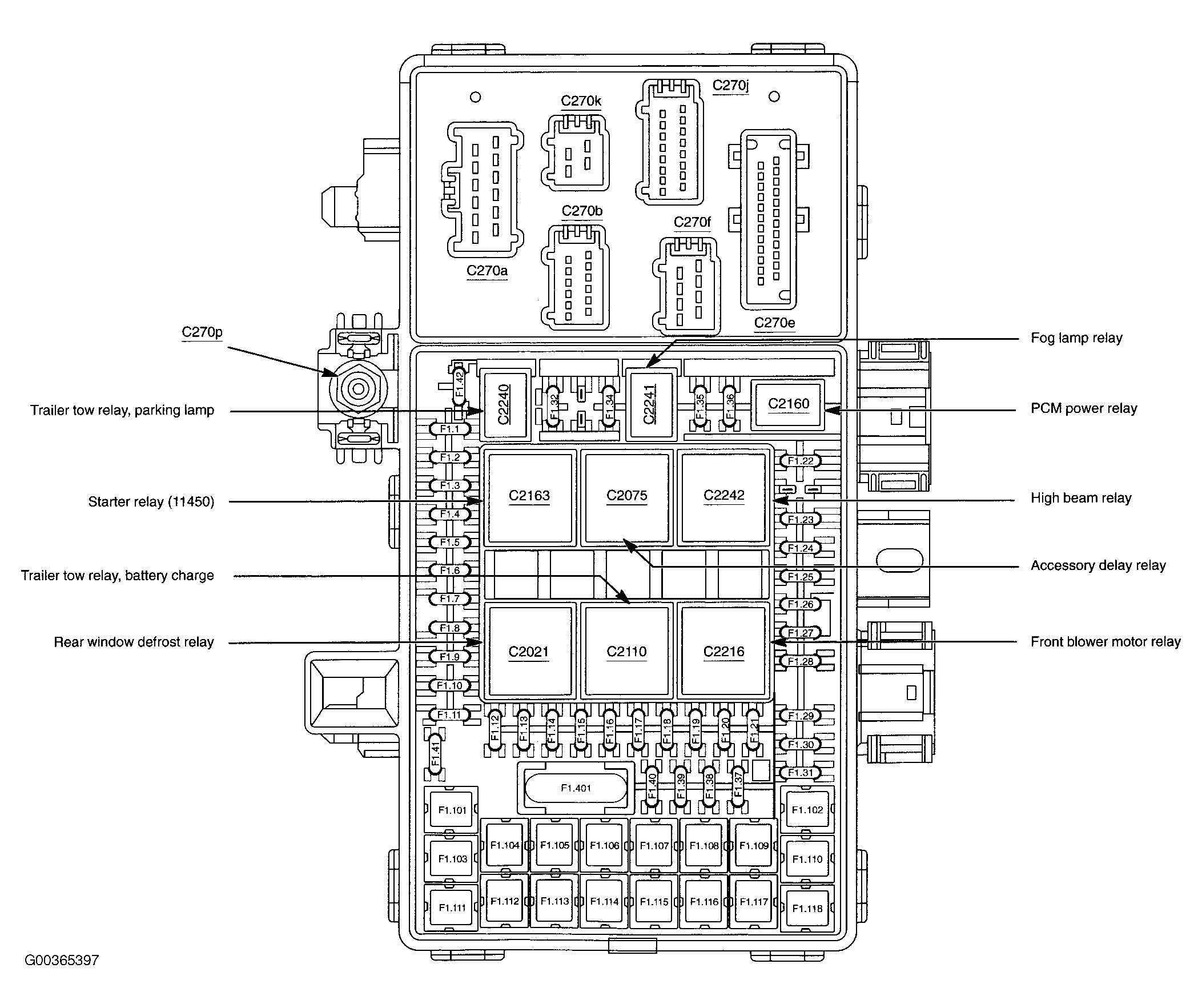

Fig 1: Central Junction Box (CJB)

G00365397

Courtesy of FORD MOTOR CO.

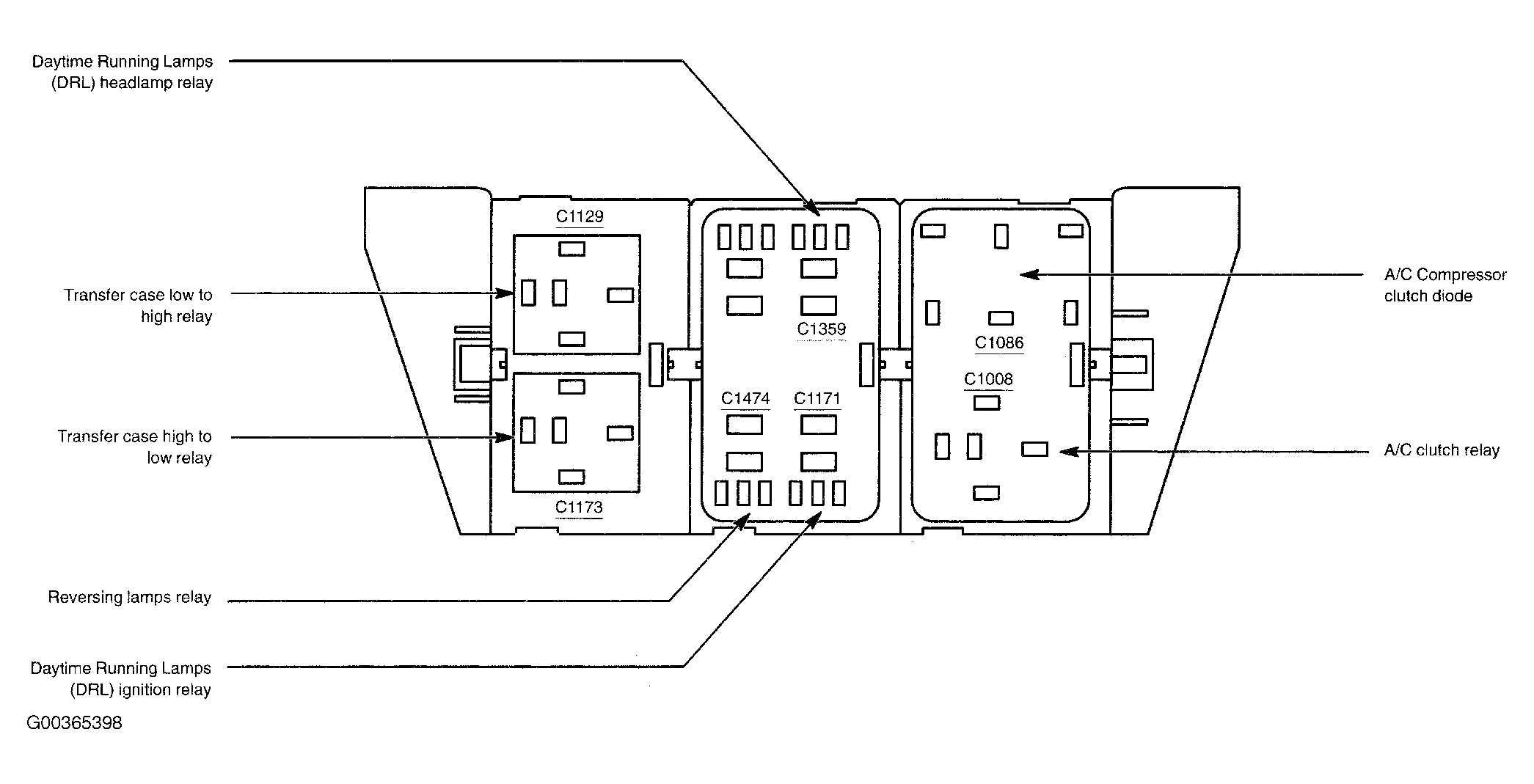

Fig 2: Auxiliary Relay Box 1

G00365398

Courtesy of FORD MOTOR CO.

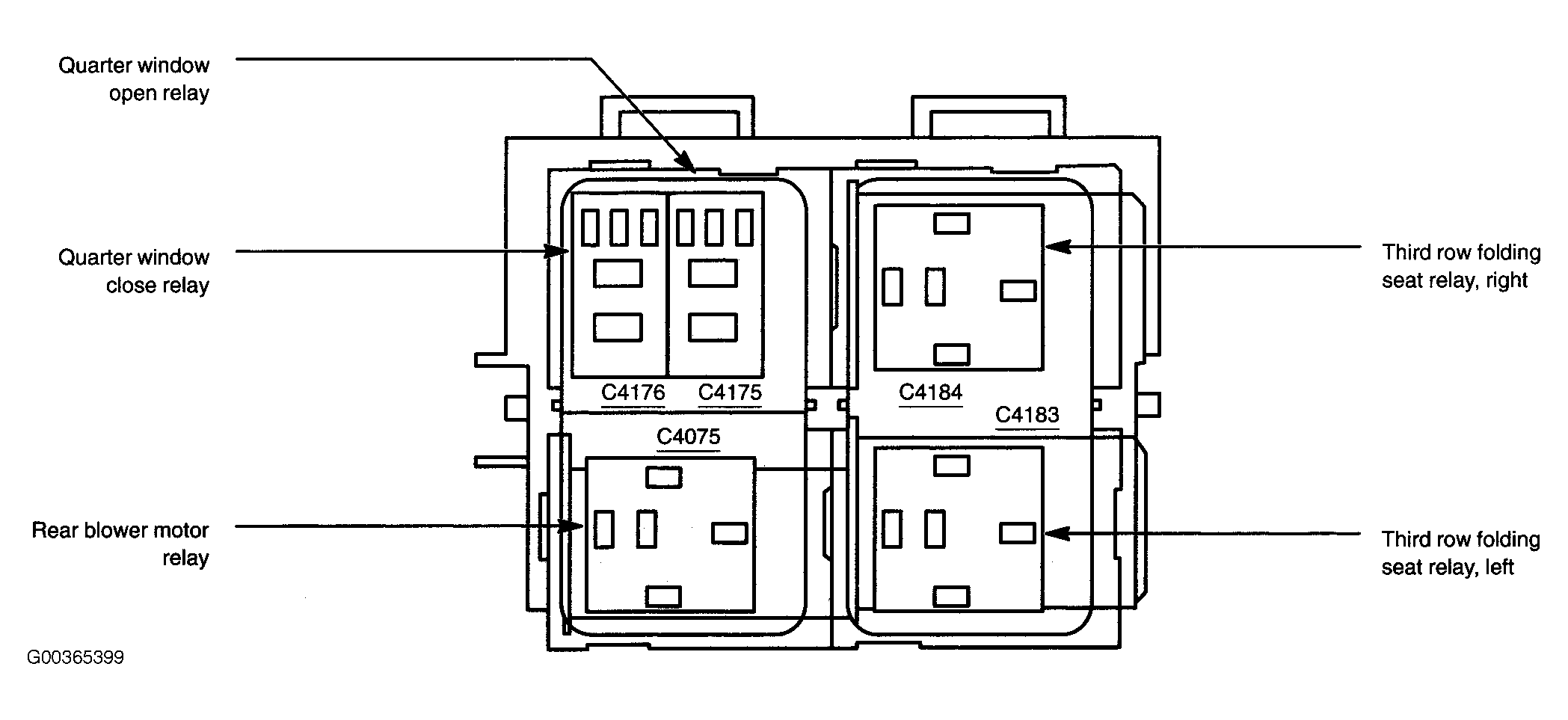

Fig 3: Auxiliary Relay Box 2

G00365399

Courtesy of FORD MOTOR CO.

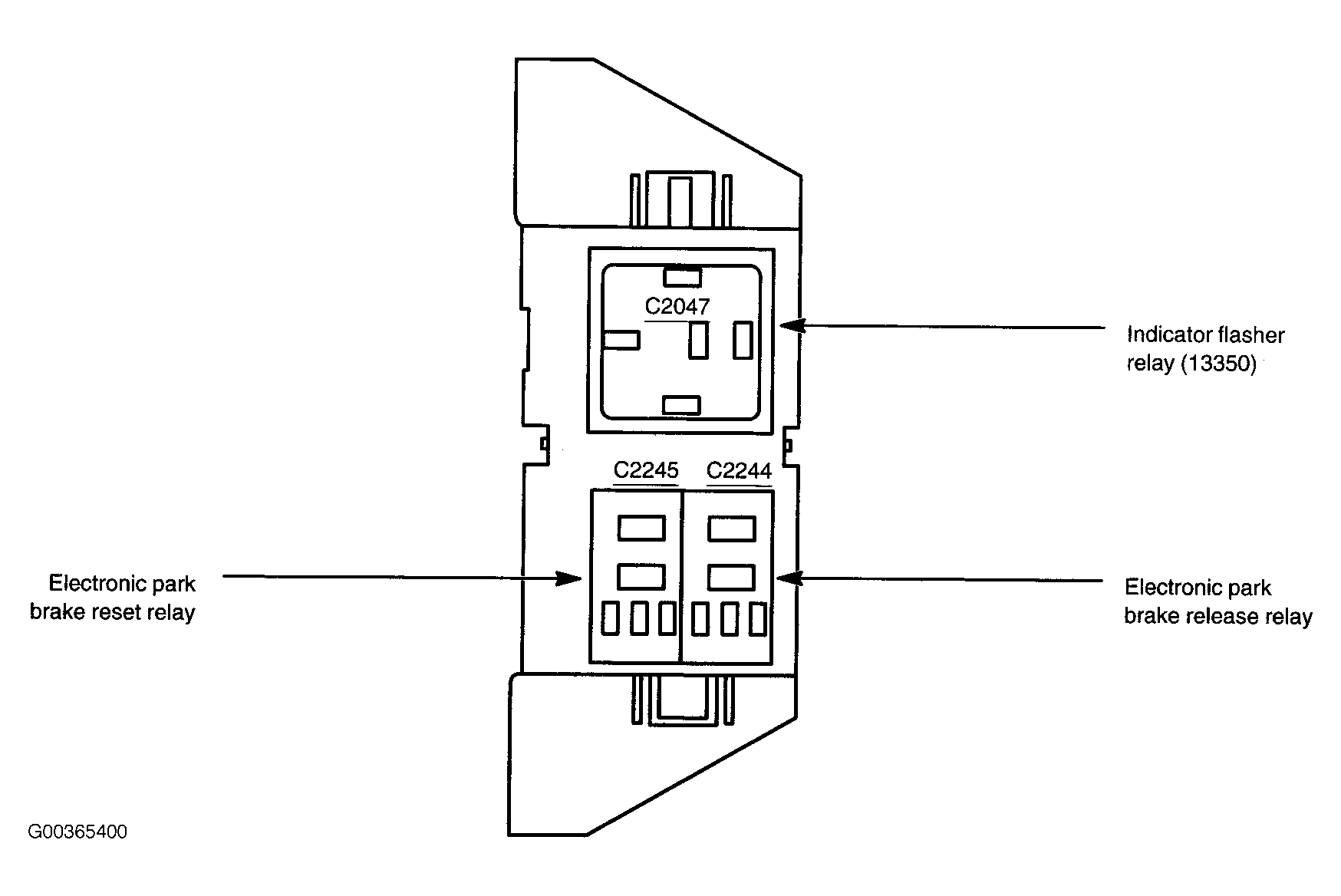

Fig 4: Auxiliary Relay Box 3

G00365400

Courtesy of FORD MOTOR CO.

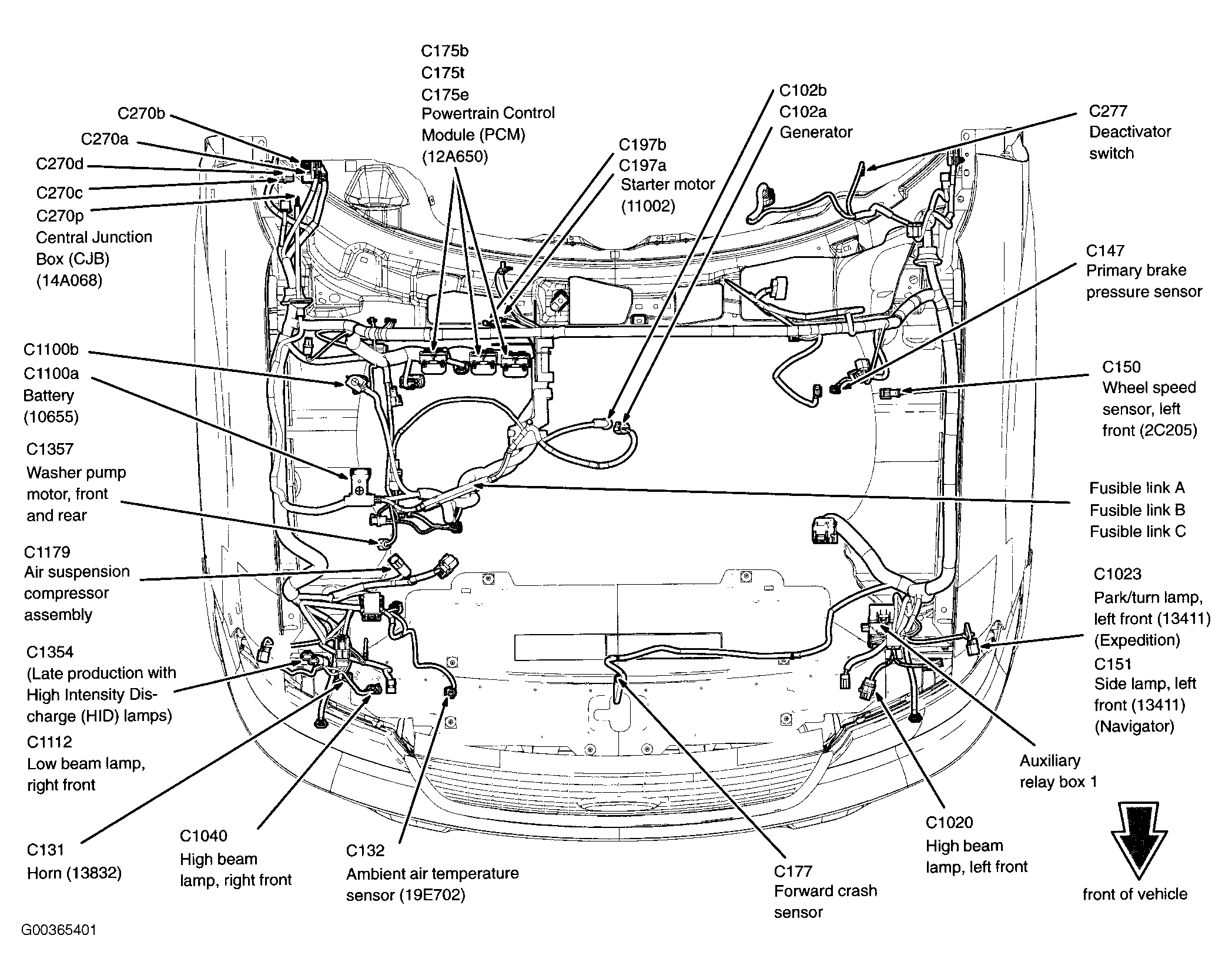

Fig 5: Engine Compartment

G00365401

Courtesy of FORD MOTOR CO.

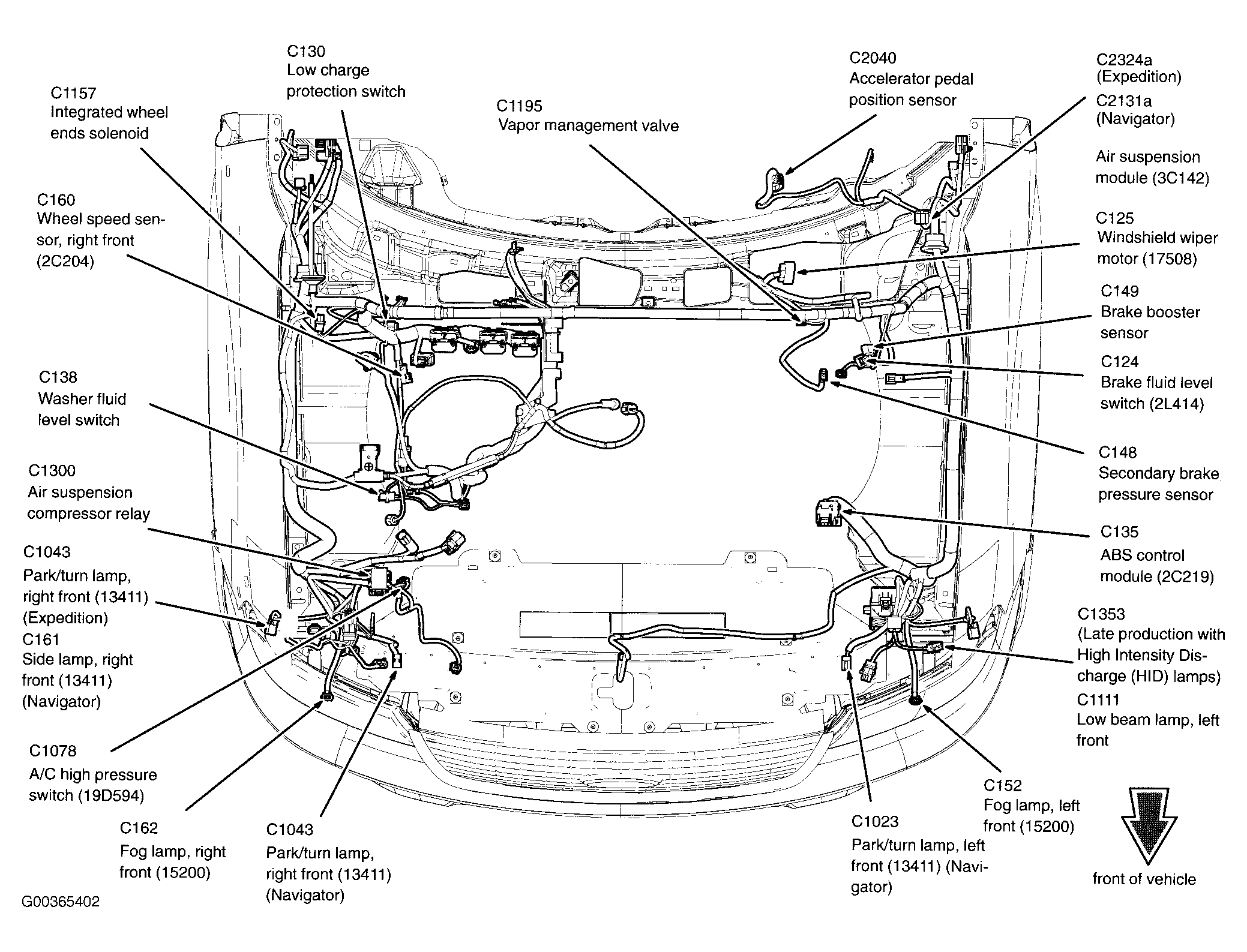

Fig 6: Engine Compartment

G00365402

Courtesy of FORD MOTOR CO.

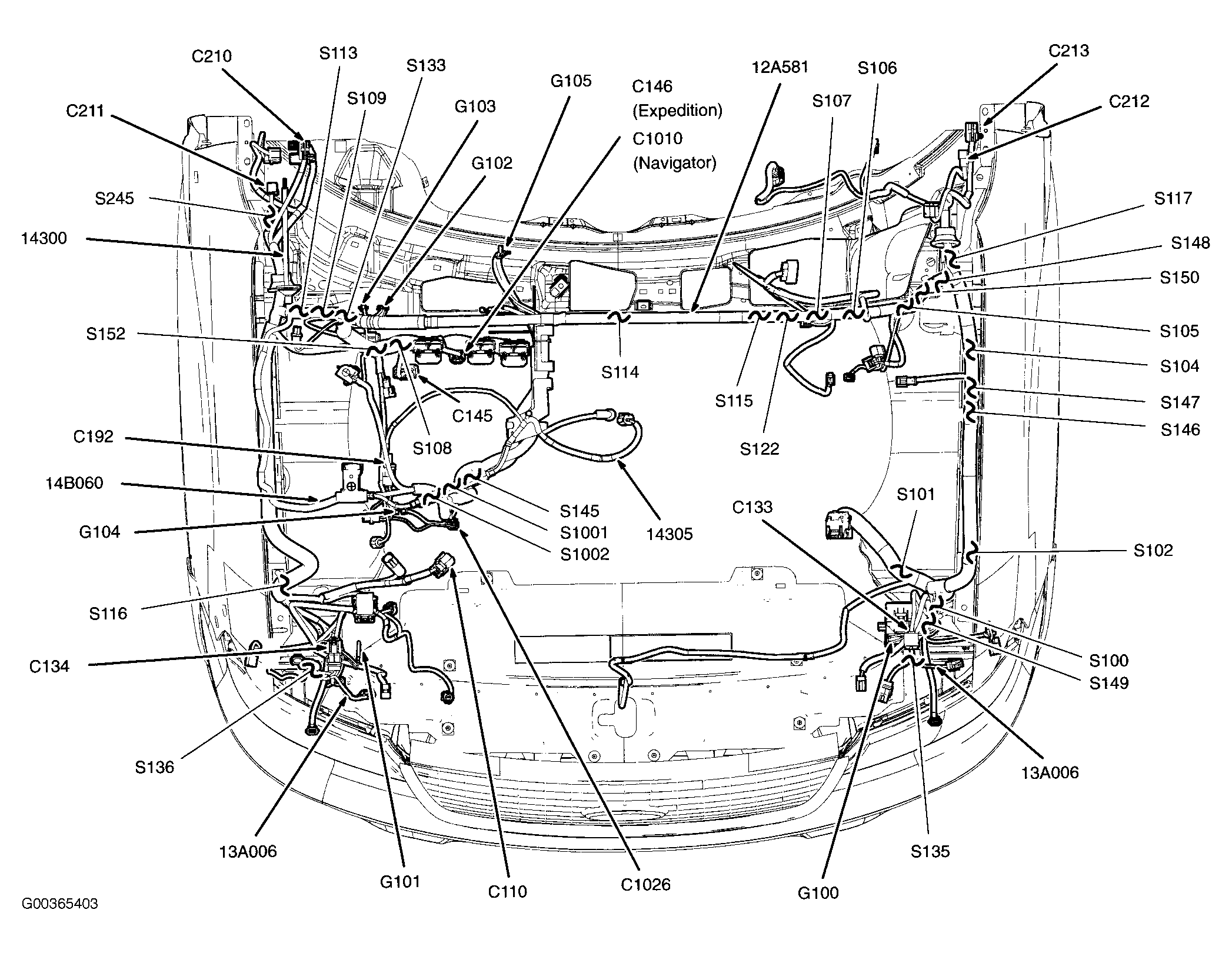

Fig 7: Engine Compartment

G00365403

Courtesy of FORD MOTOR CO.

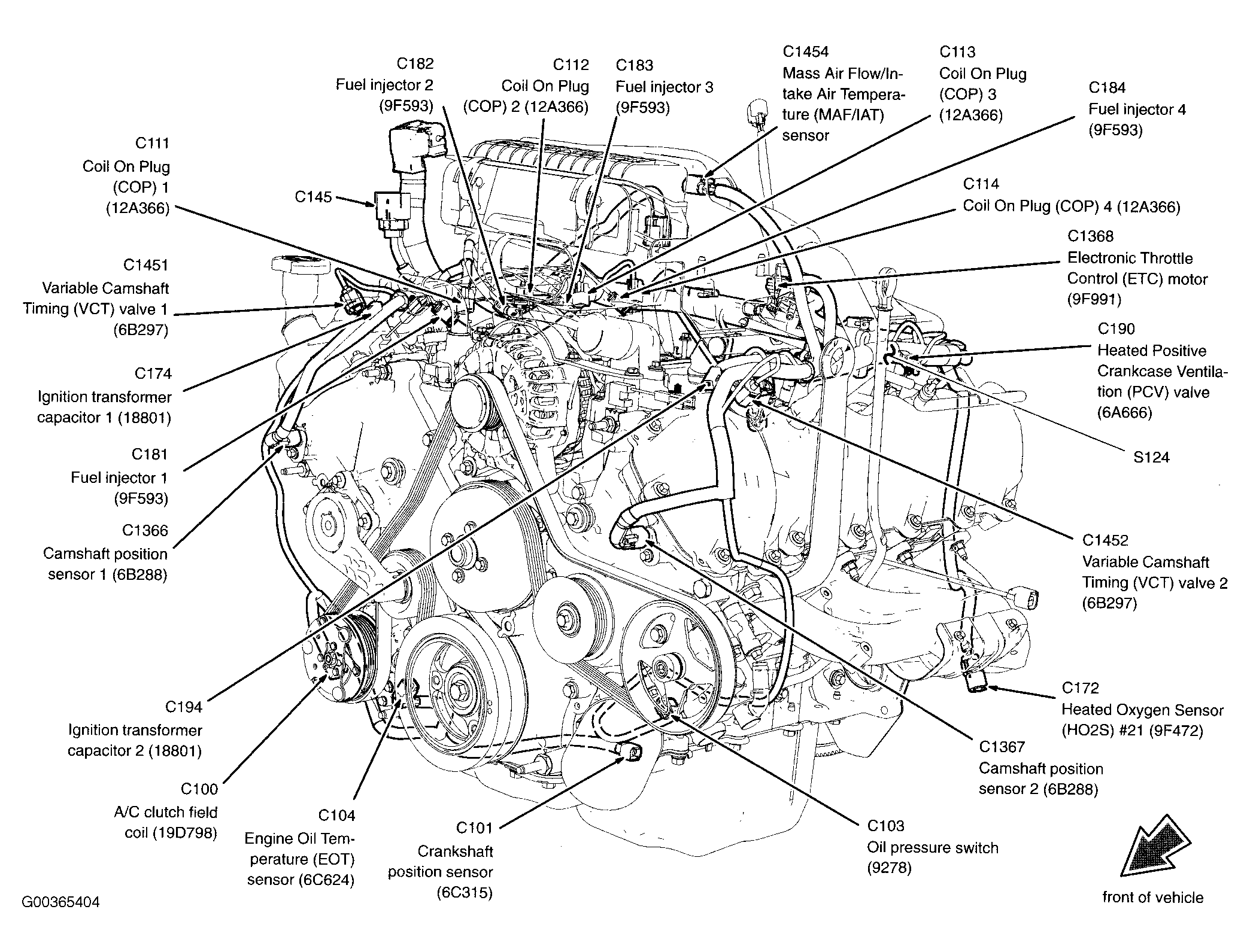

Fig 8: Front Of Engine

G00365404

Courtesy of FORD MOTOR CO.

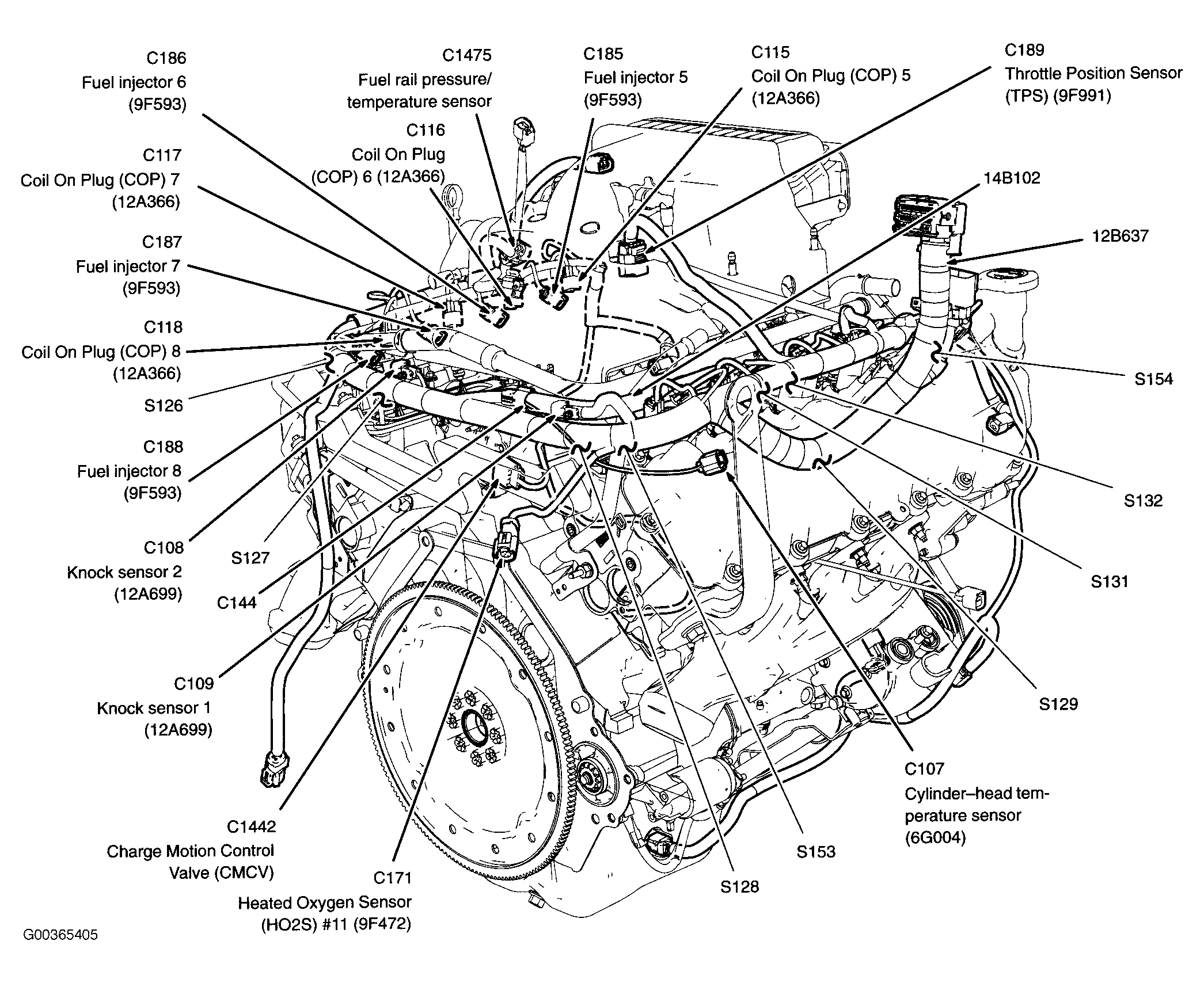

Fig 9: Rear Of Engine

G00365405

Courtesy of FORD MOTOR CO.

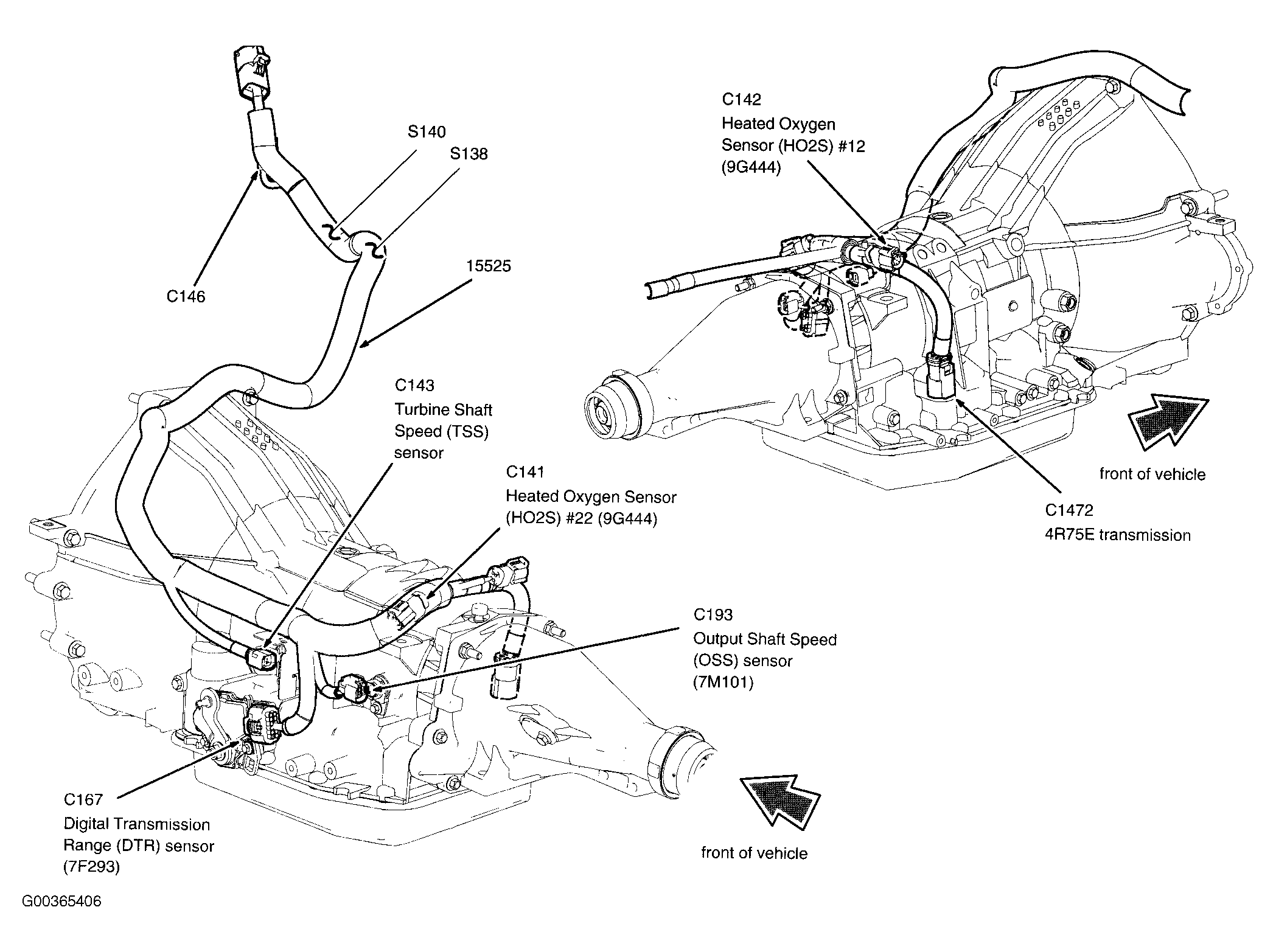

Fig 10: 4R75E Transmission (W/O 4WD)

G00365406

Courtesy of FORD MOTOR CO.

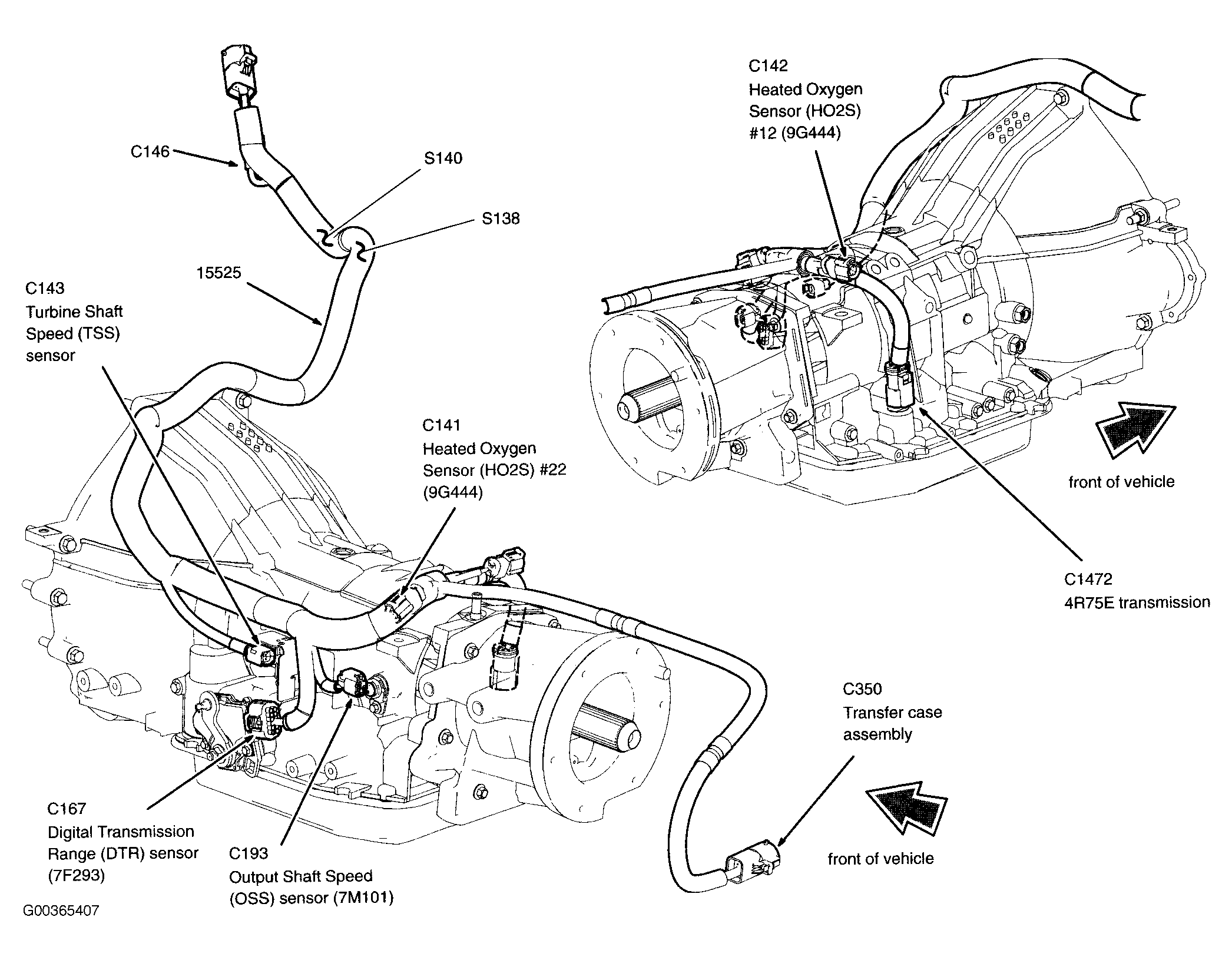

Fig 11: 4R75E Transmission (W/4WD)

G00365407

Courtesy of FORD MOTOR CO.

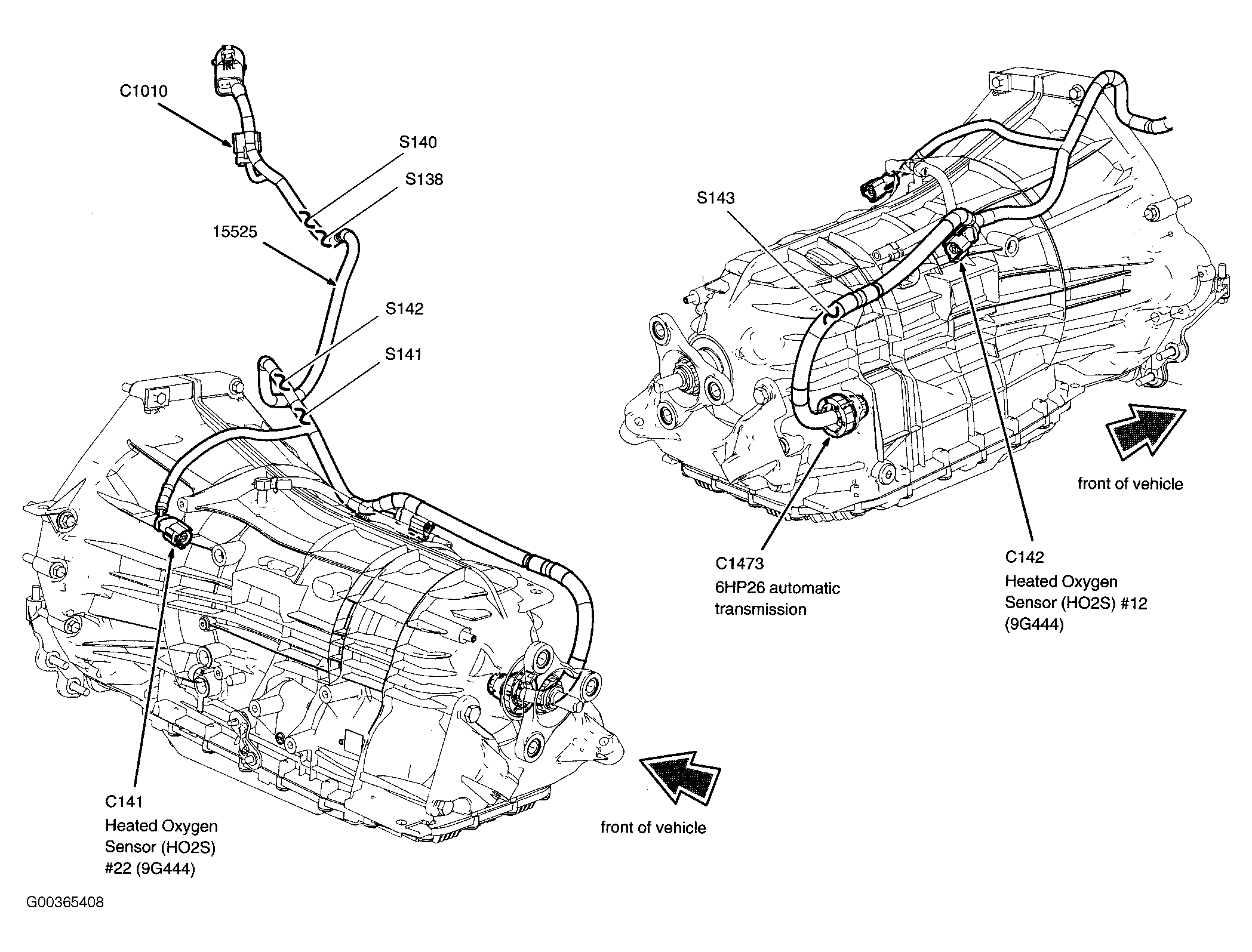

Fig 12: 6HP26 Transmission (W/O 4WD)

G00365408

Courtesy of FORD MOTOR CO.

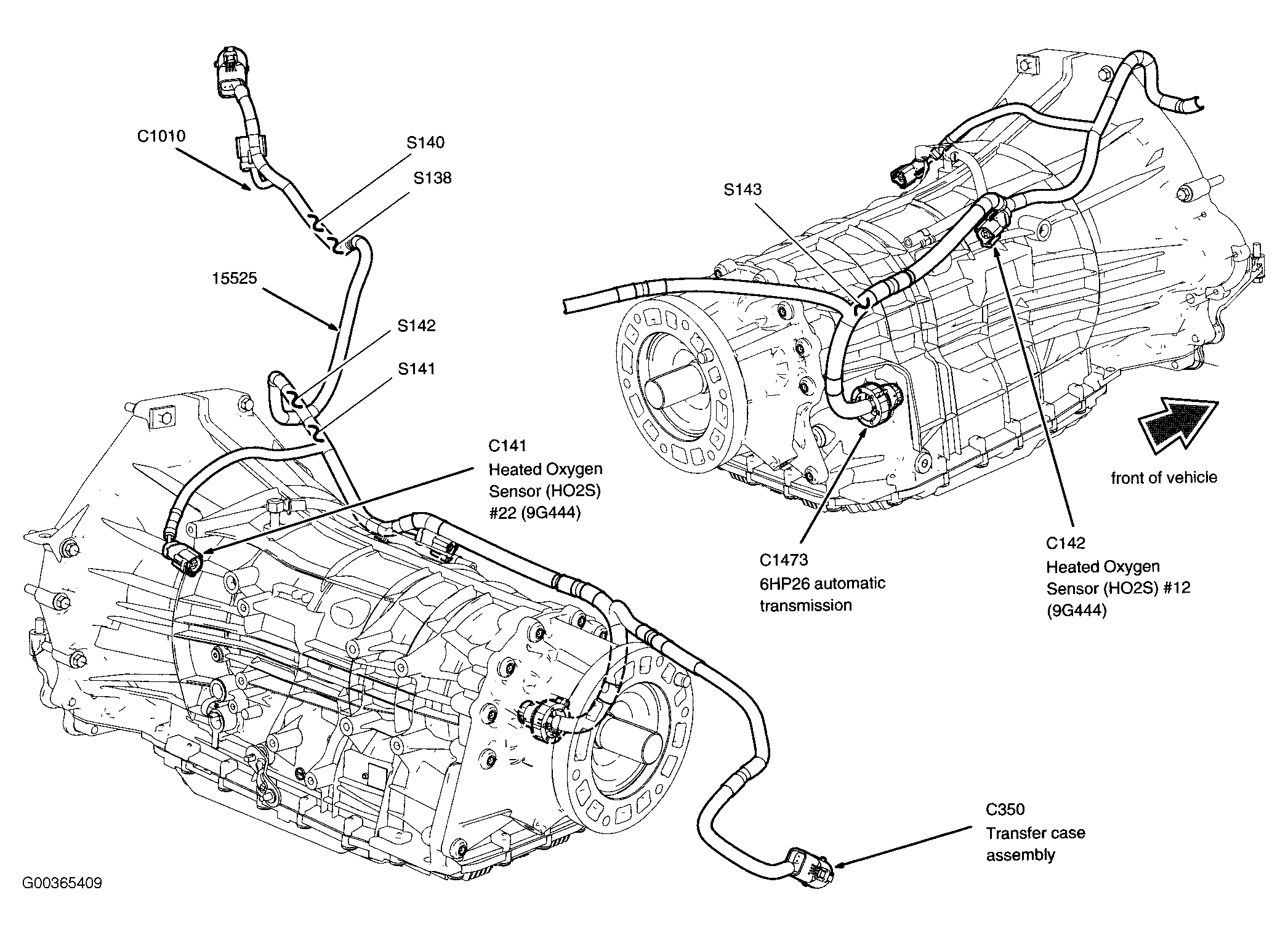

Fig 13: 6HP26 Transmission (W/4WD)

G00365409

Courtesy of FORD MOTOR CO.

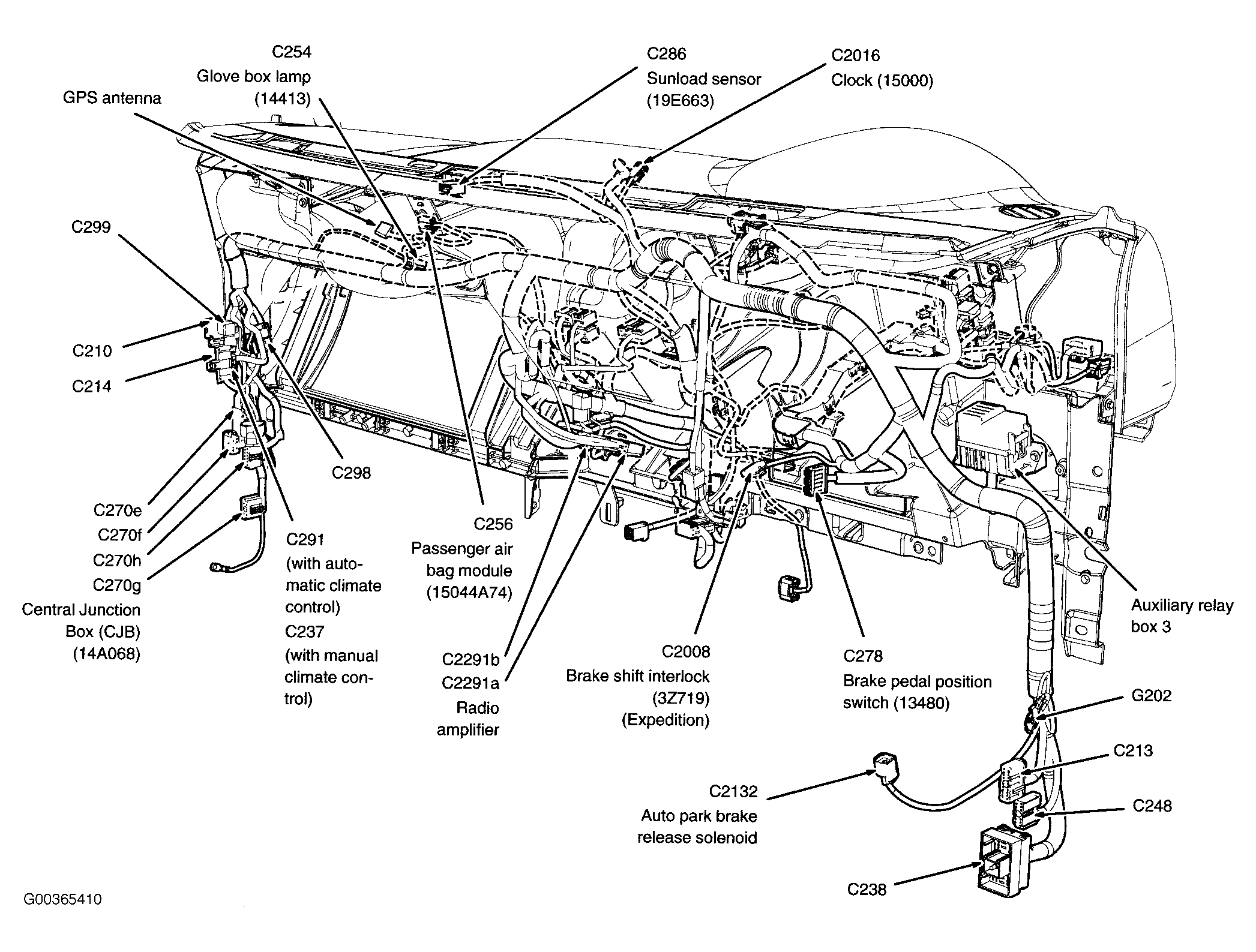

Fig 14: Rear Of Dash

G00365410

Courtesy of FORD MOTOR CO.

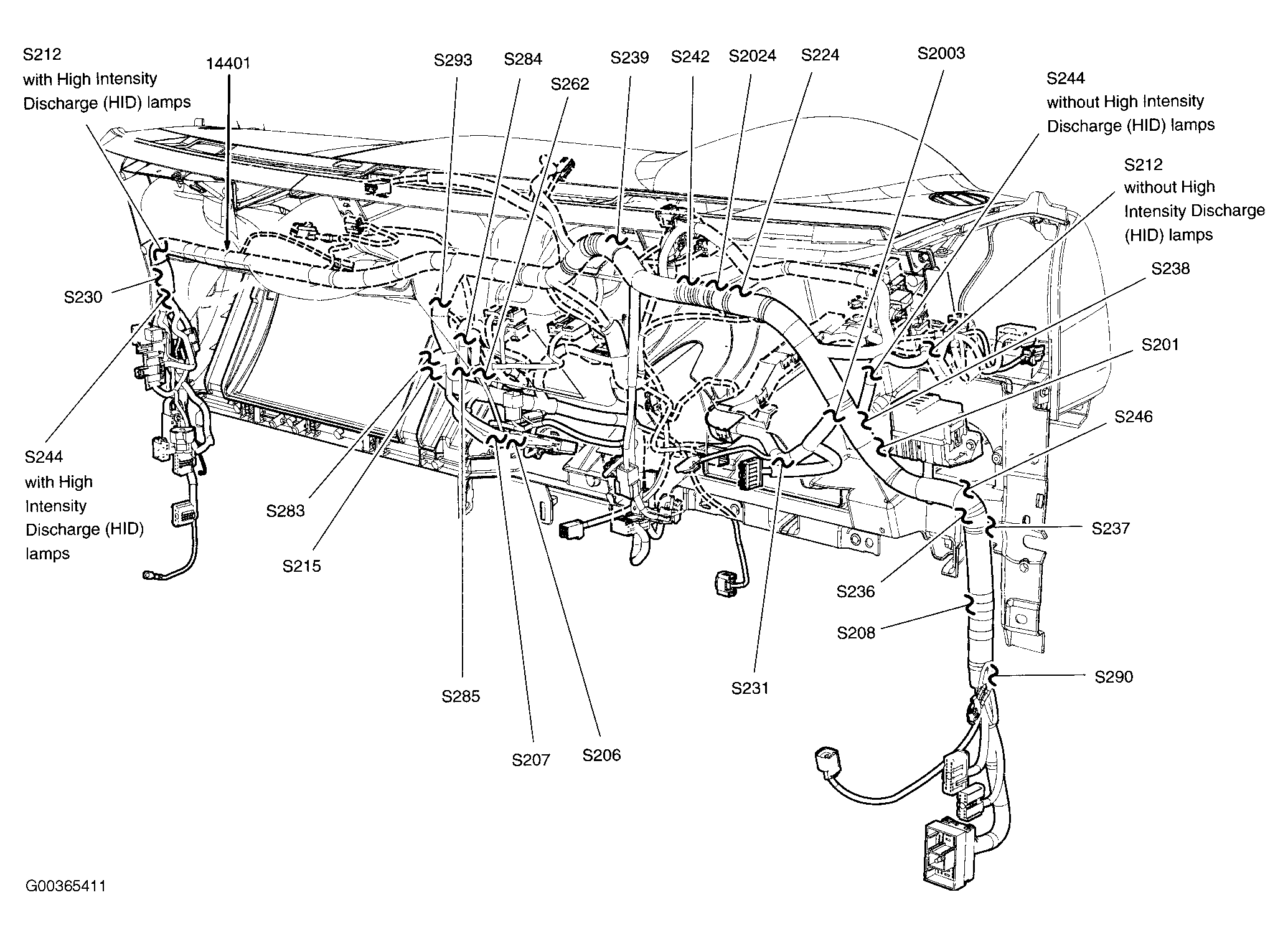

Fig 15: Rear Of Dash

G00365411

Courtesy of FORD MOTOR CO.

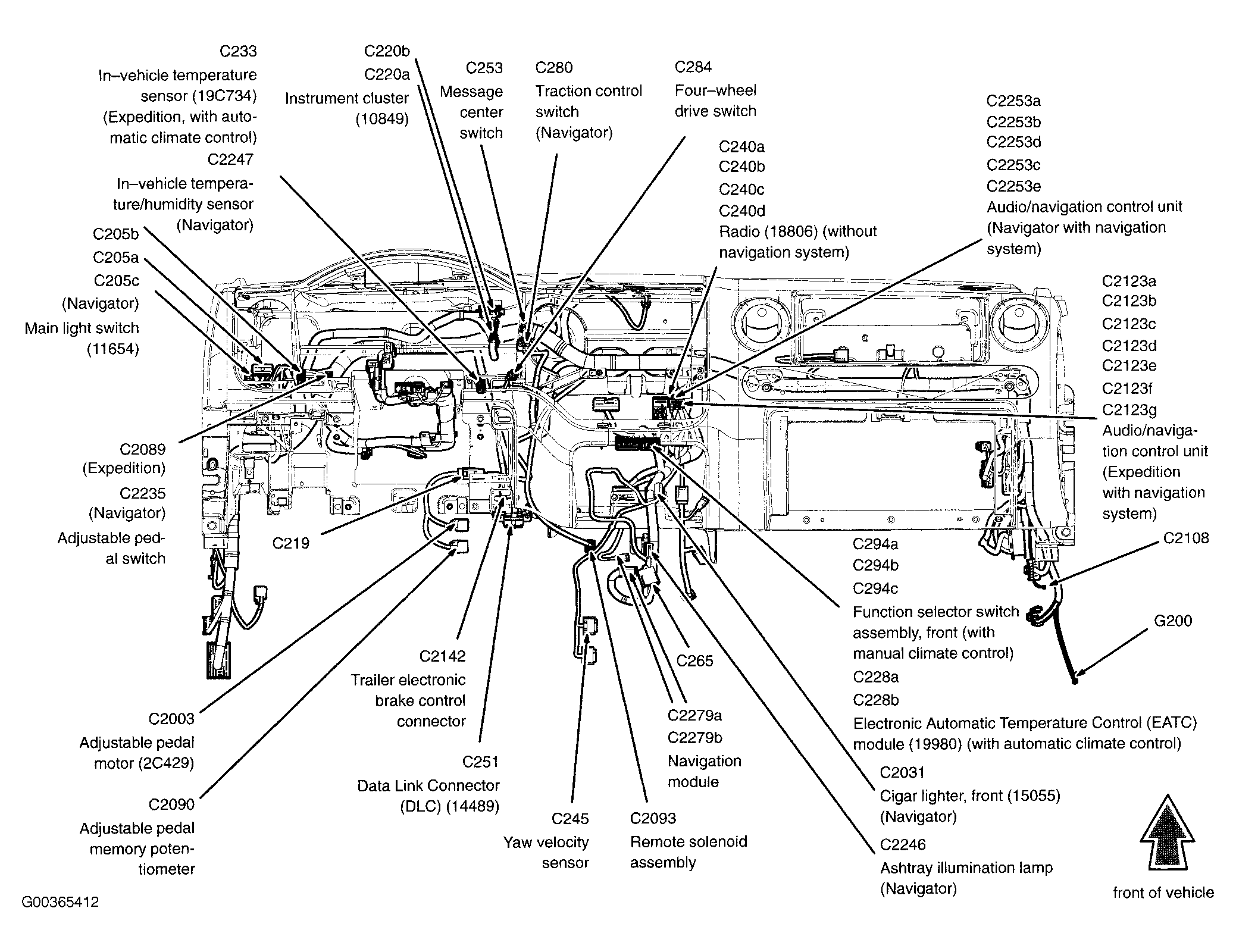

Fig 16: Front Of Dash

G00365412

Courtesy of FORD MOTOR CO.

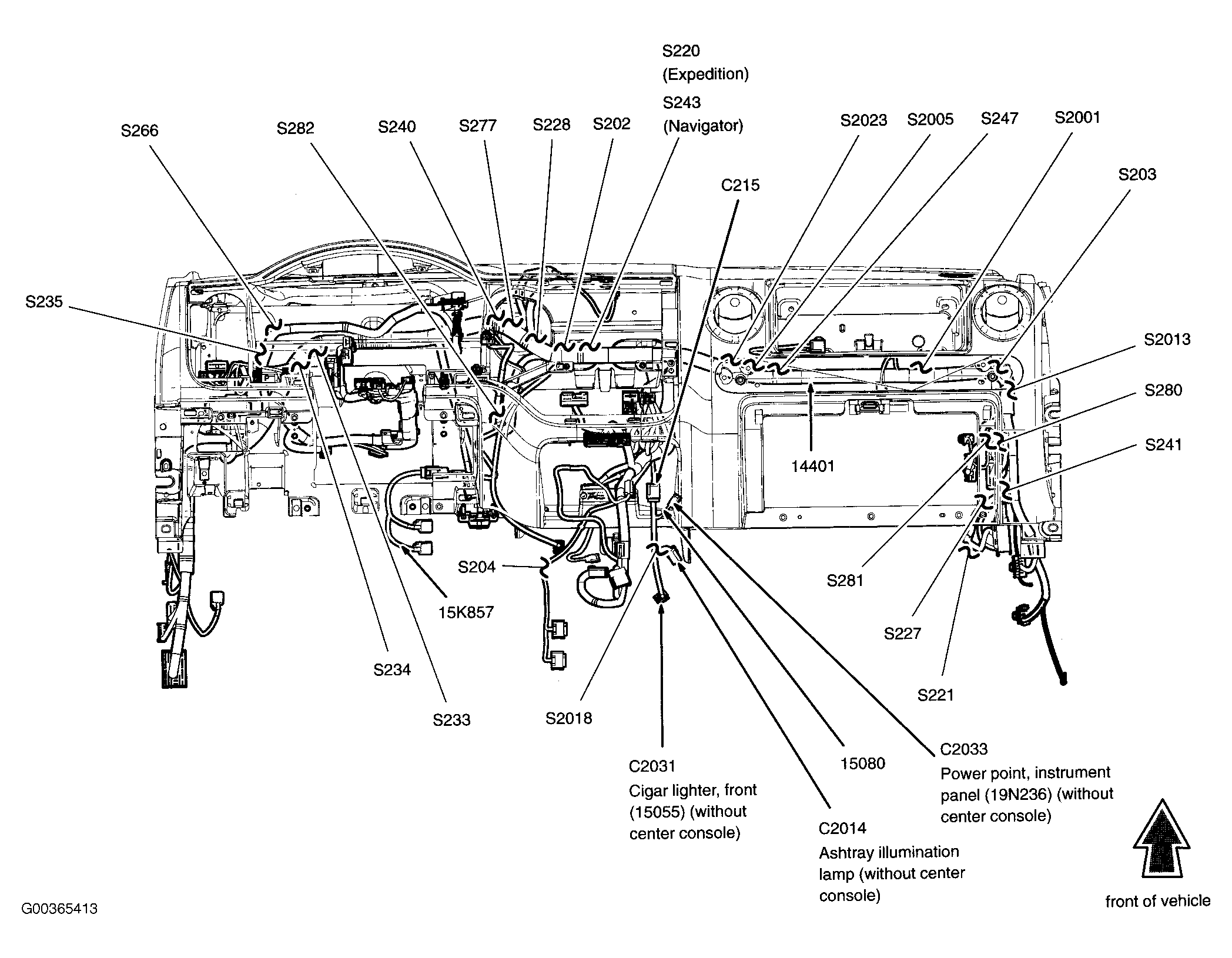

Fig 17: Front Of Dash

G00365413

Courtesy of FORD MOTOR CO.

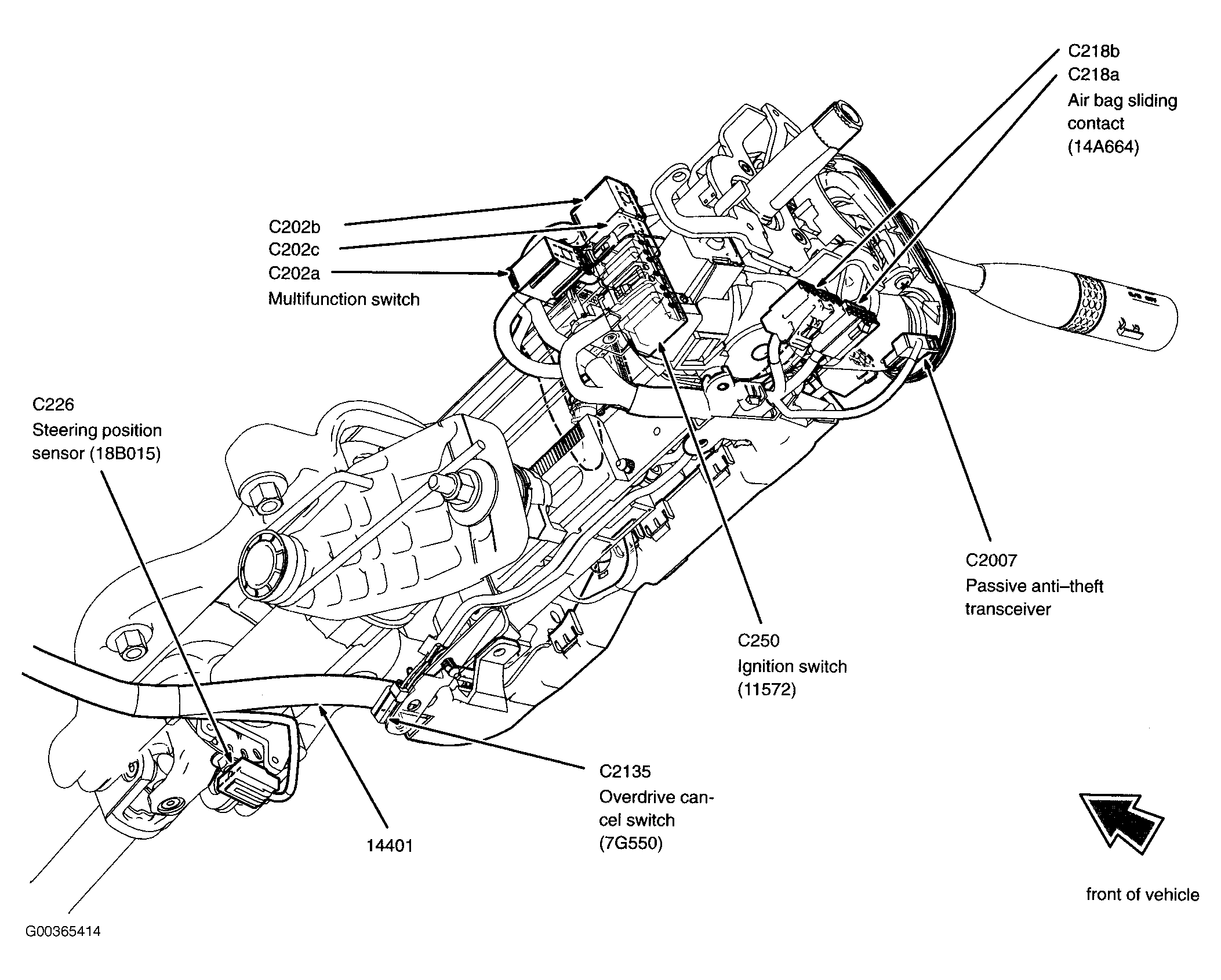

Fig 18: Steering Column

G00365414

Courtesy of FORD MOTOR CO.

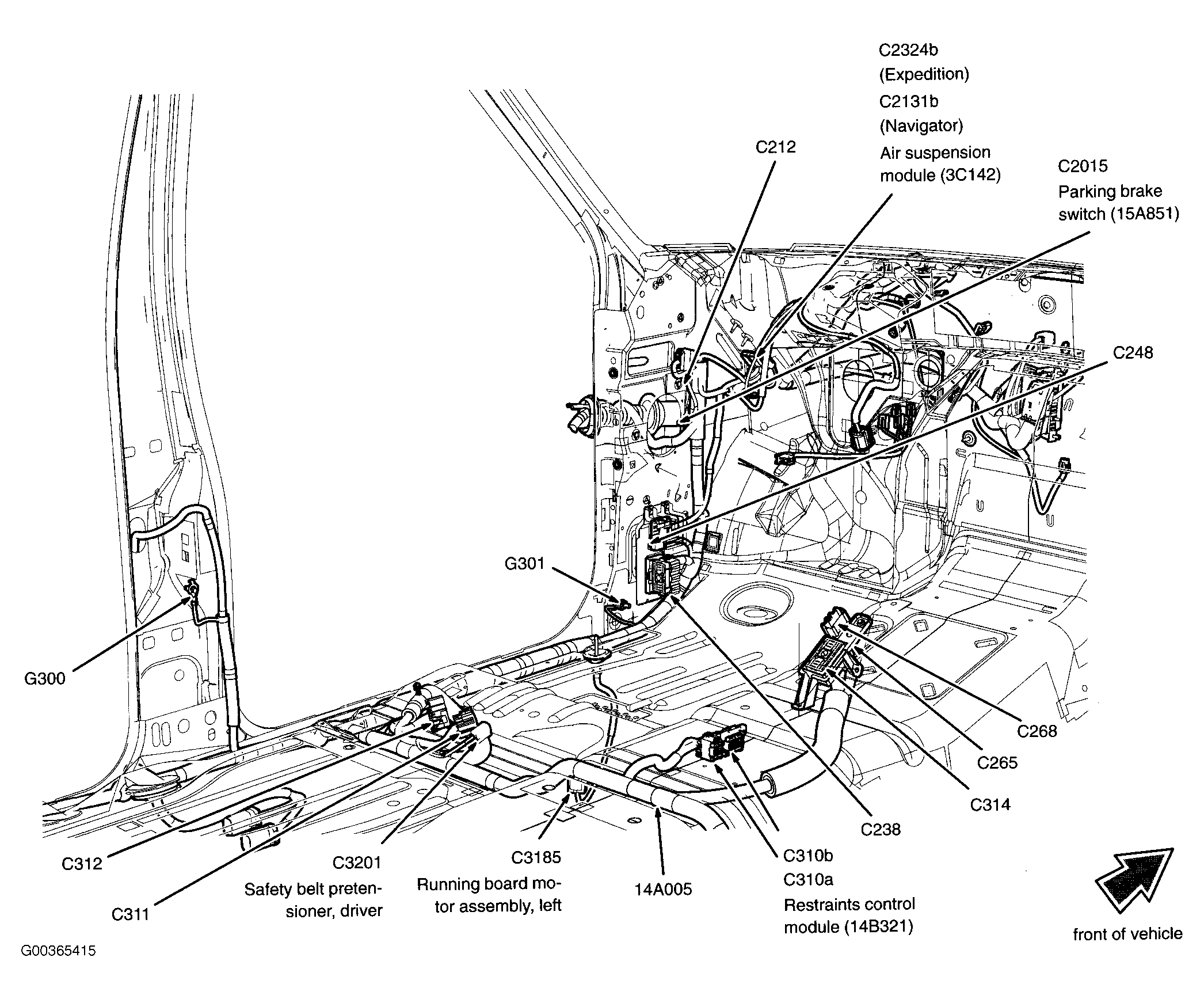

Fig 19: Left Front Floor & Kick Panel

G00365415

Courtesy of FORD MOTOR CO.

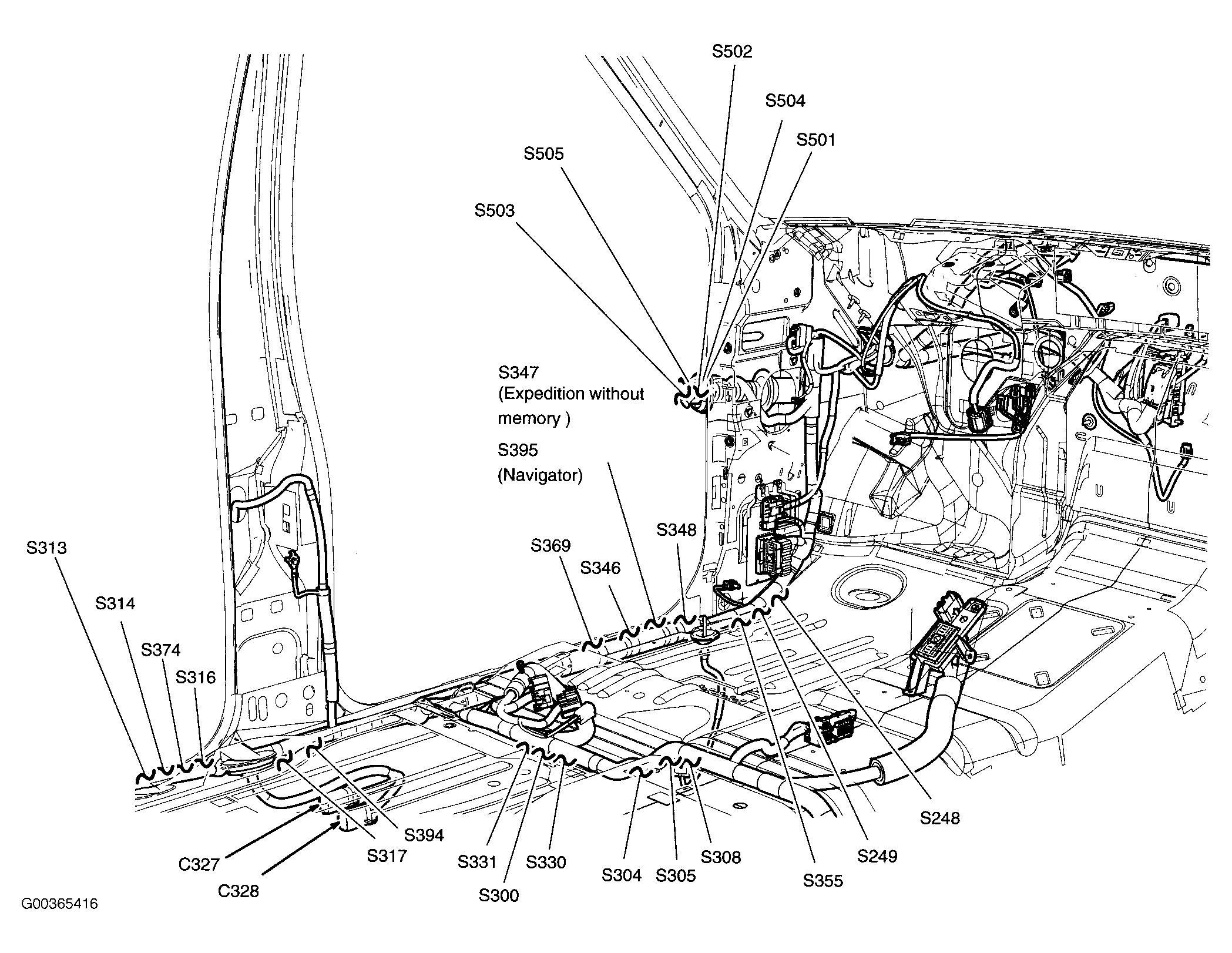

Fig 20: Left Front Floor & Kick Panel

G00365416

Courtesy of FORD MOTOR CO.

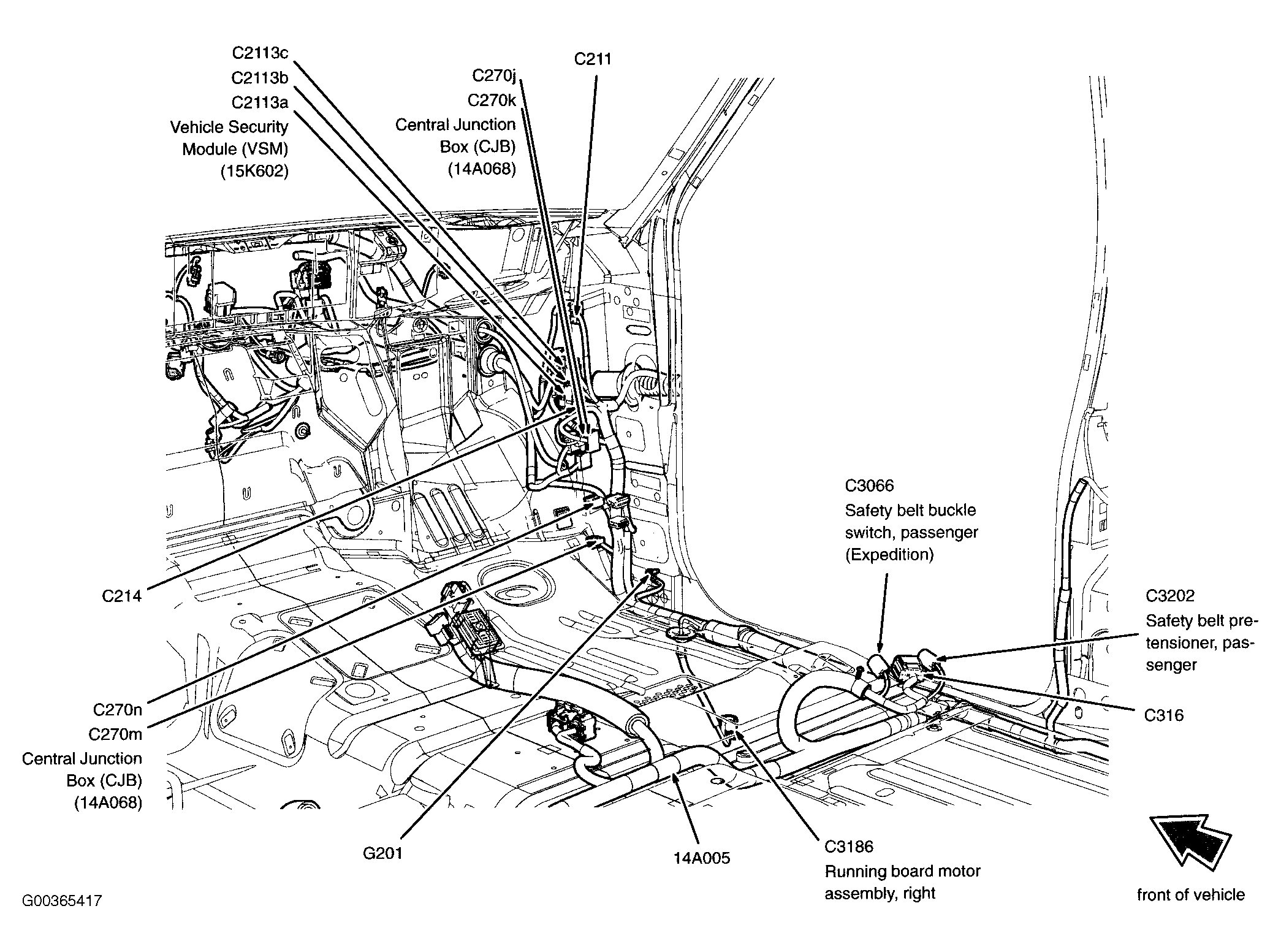

Fig 21: Right Front Floor & Kick Panel

G00365417

Courtesy of FORD MOTOR CO.

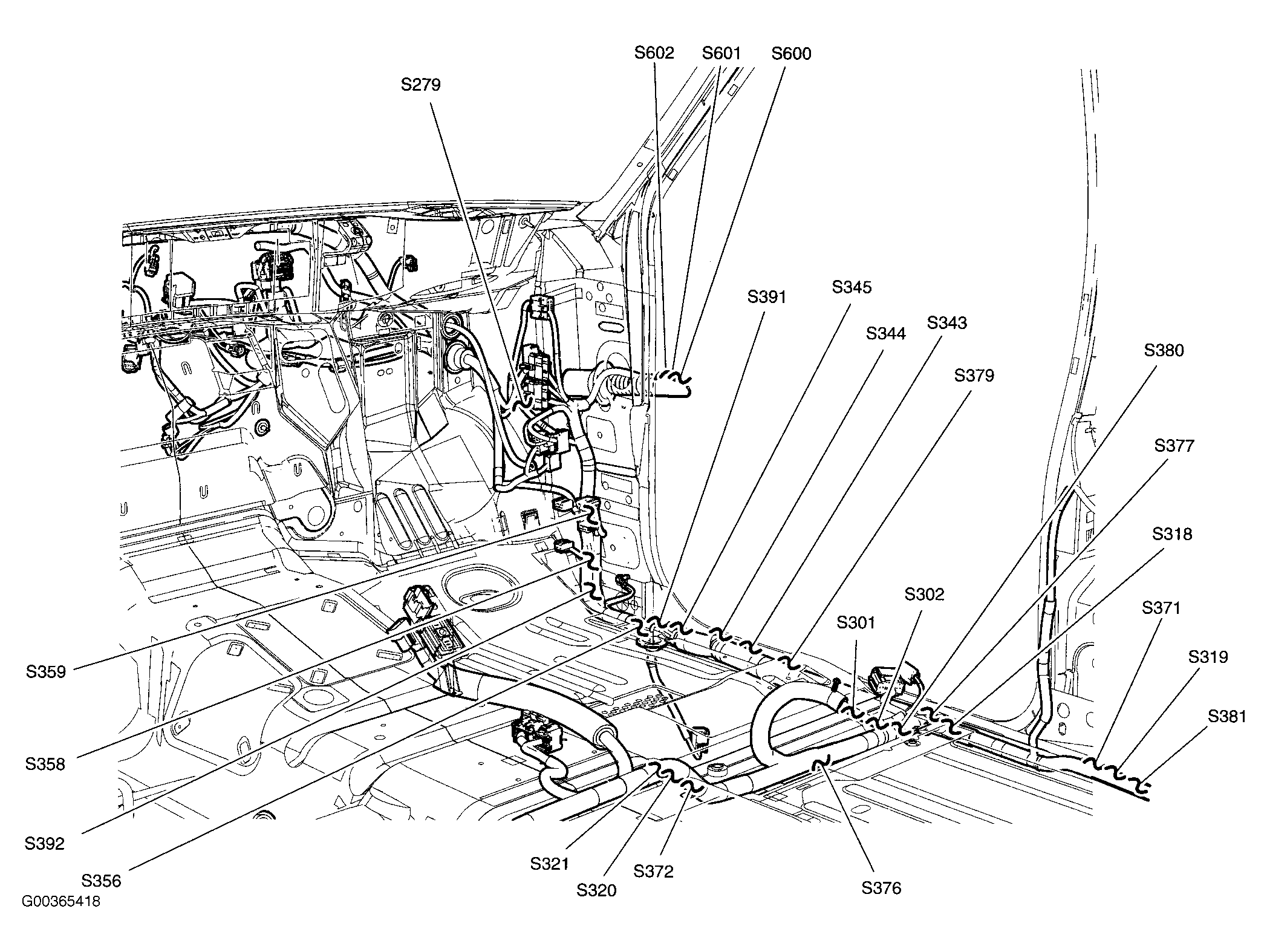

Fig 22: Right Front Floor & Kick Panel

G00365418

Courtesy of FORD MOTOR CO.

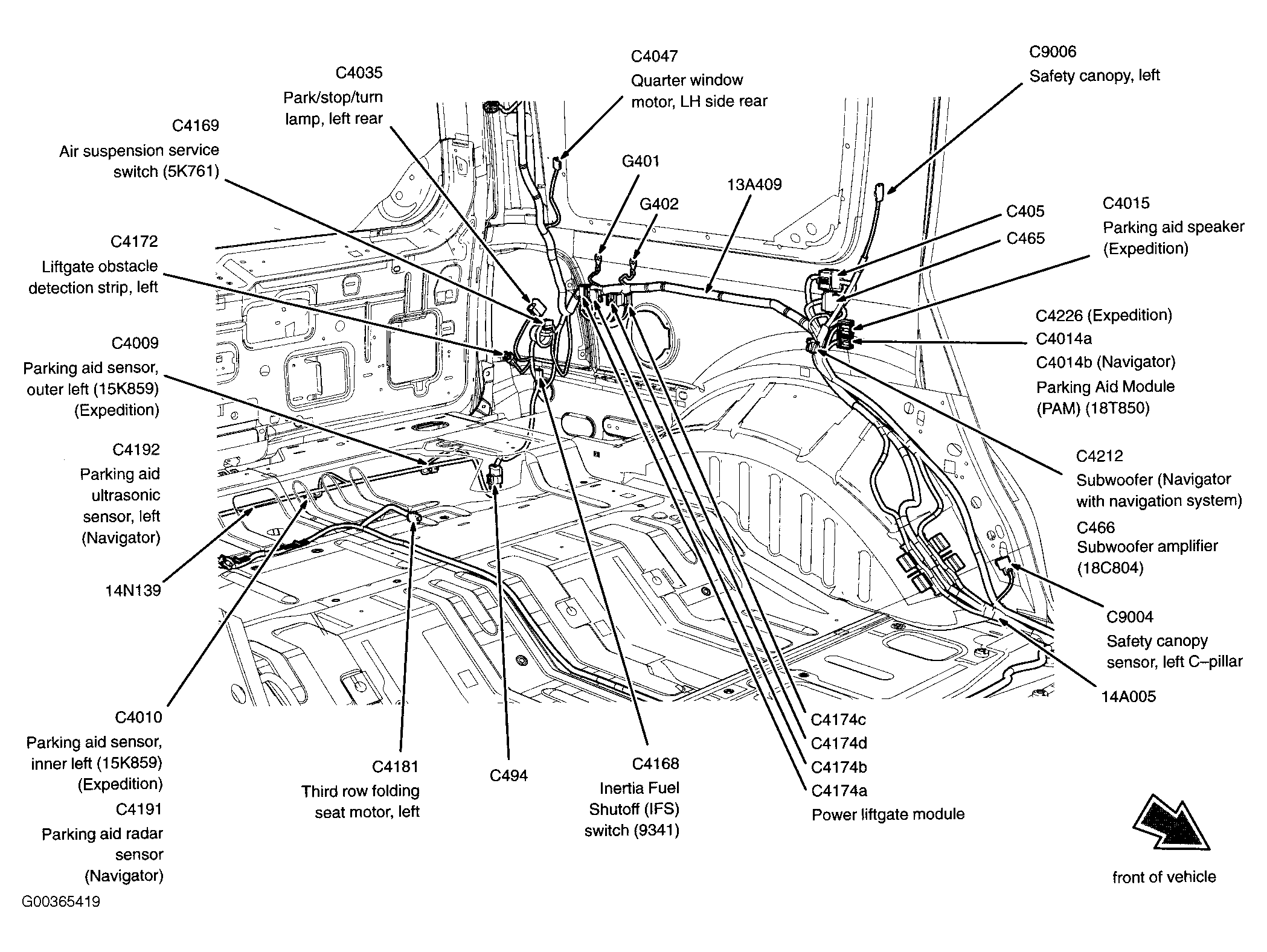

Fig 23: Left Rear Of Vehicle

G00365419

Courtesy of FORD MOTOR CO.

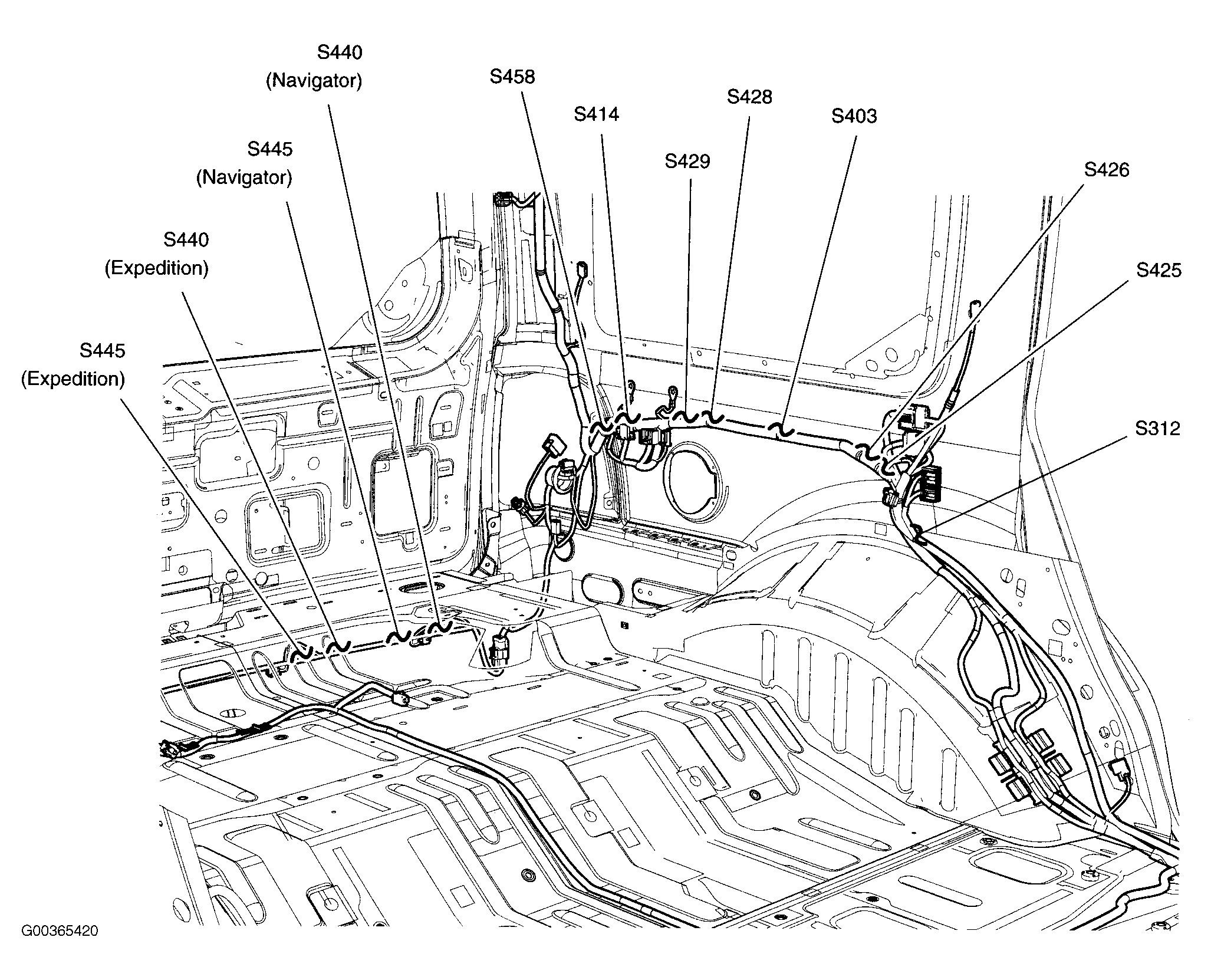

Fig 24: Left Rear Of Vehicle

G00365420

Courtesy of FORD MOTOR CO.

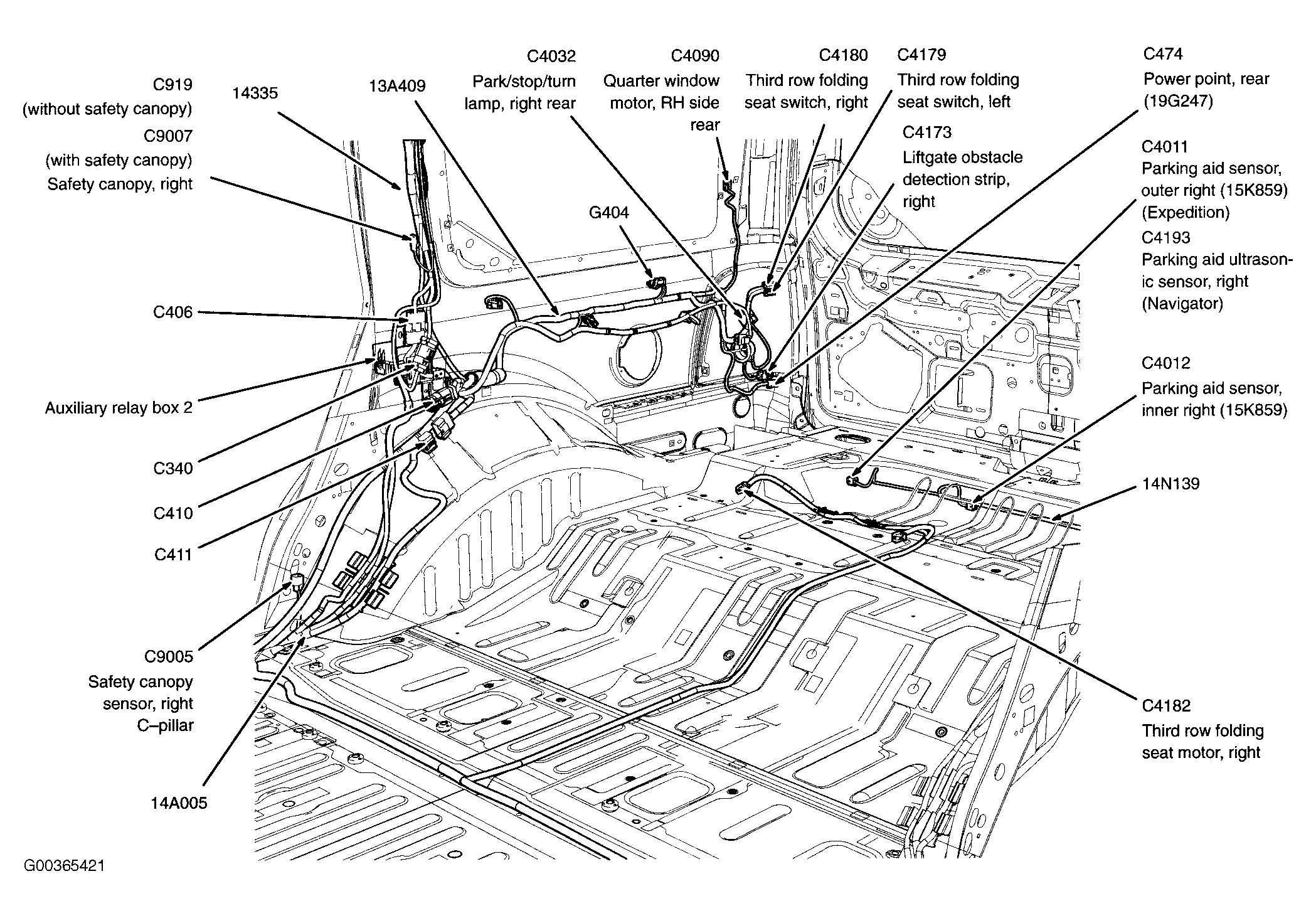

Fig 25: Right Rear Of Vehicle

G00365421

Courtesy of FORD MOTOR CO.

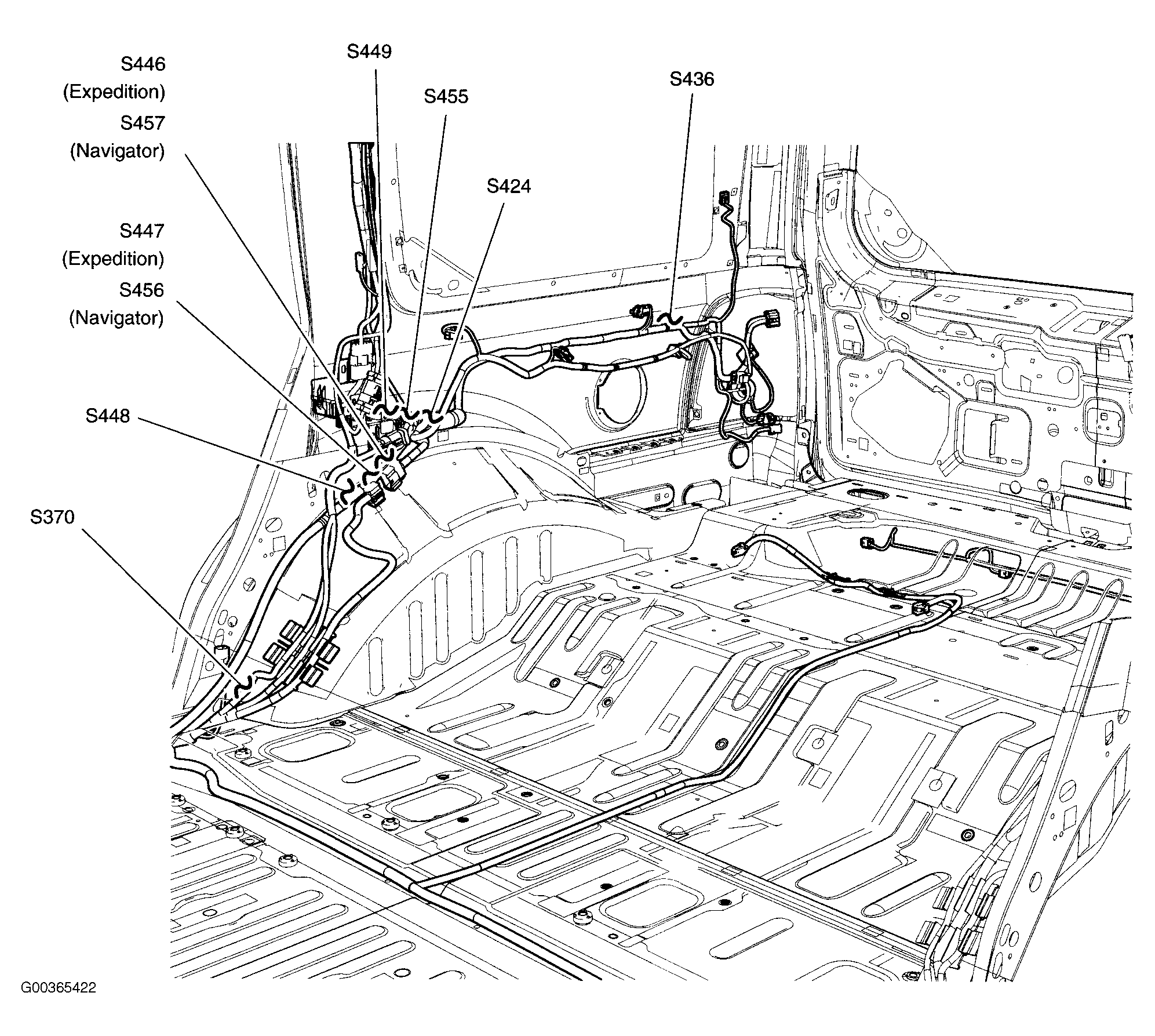

Fig 26: Right Rear Of Vehicle

G00365422

Courtesy of FORD MOTOR CO.

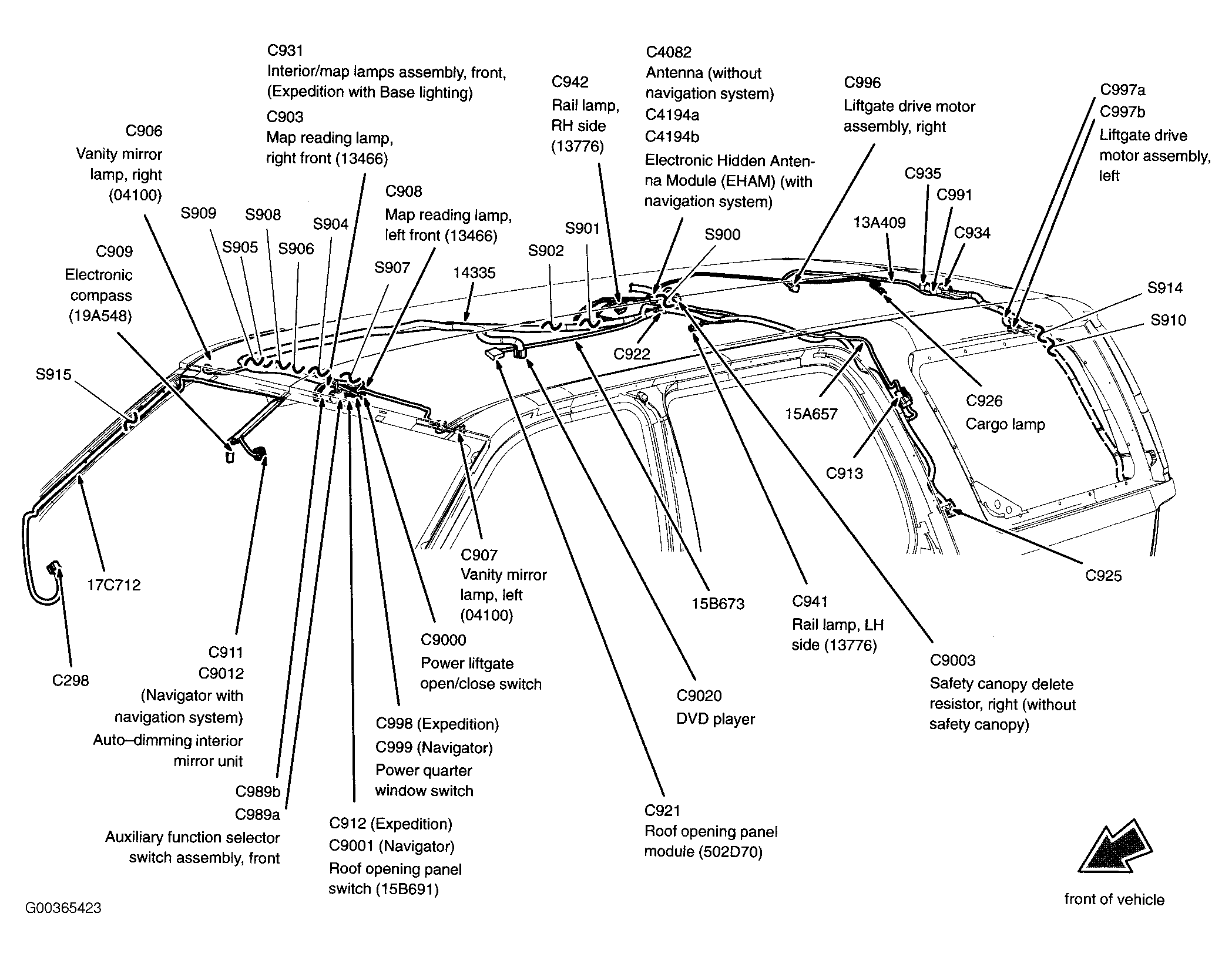

Fig 27: Roof

G00365423

Courtesy of FORD MOTOR CO.

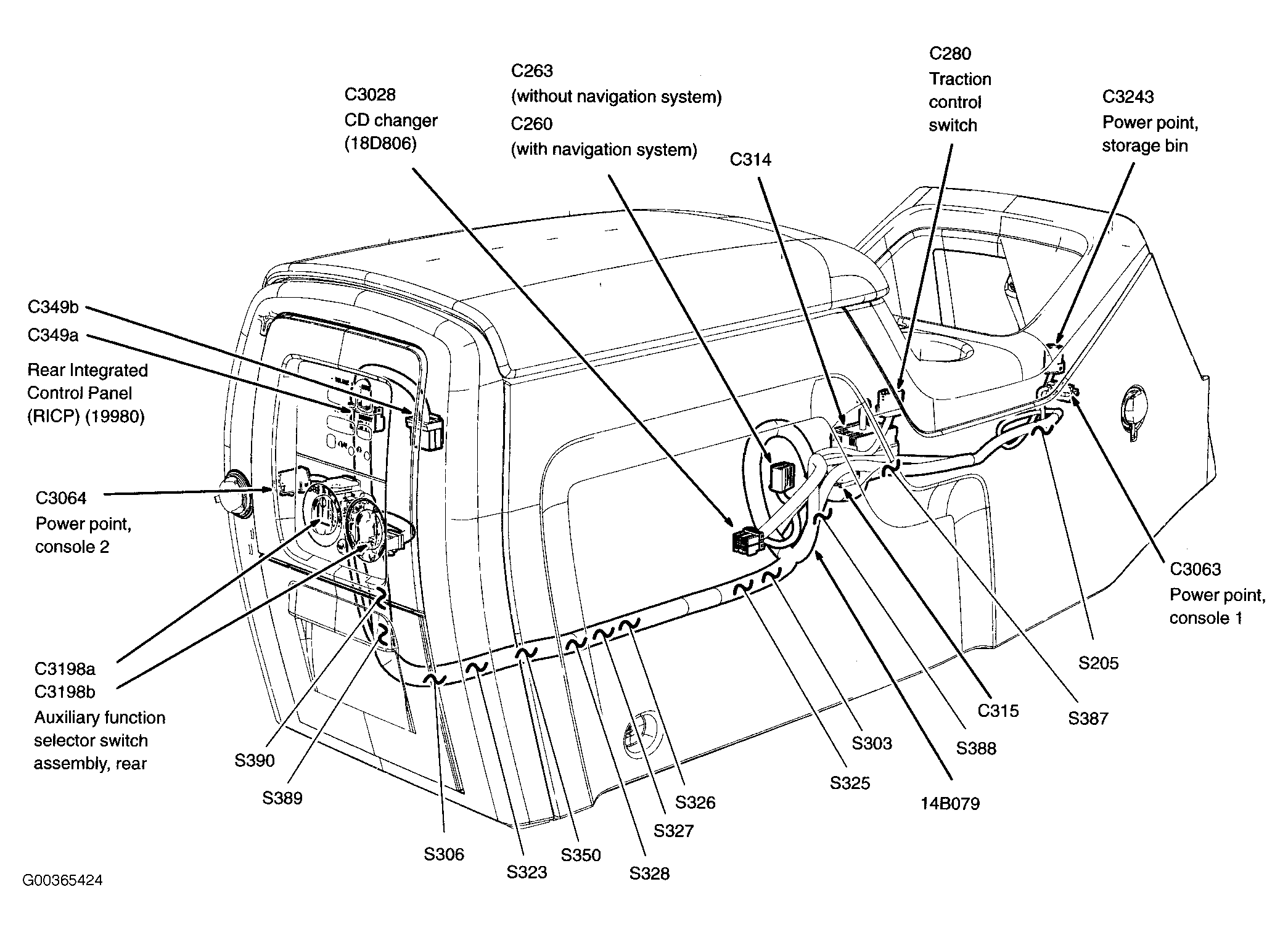

Fig 28: Center Console (Expedition)

G00365424

Courtesy of FORD MOTOR CO.

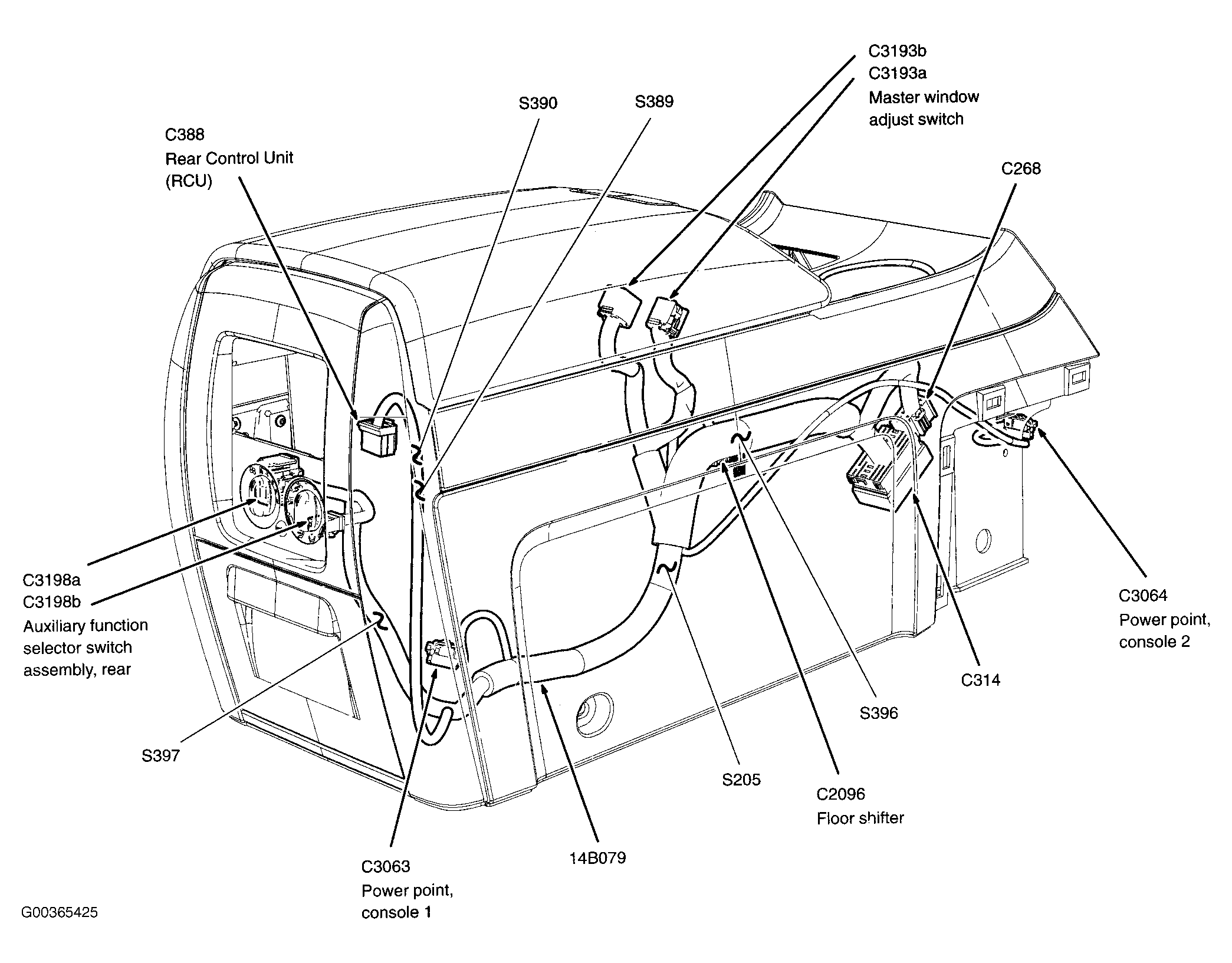

Fig 29: Center Console (Navigator)

G00365425

Courtesy of FORD MOTOR CO.

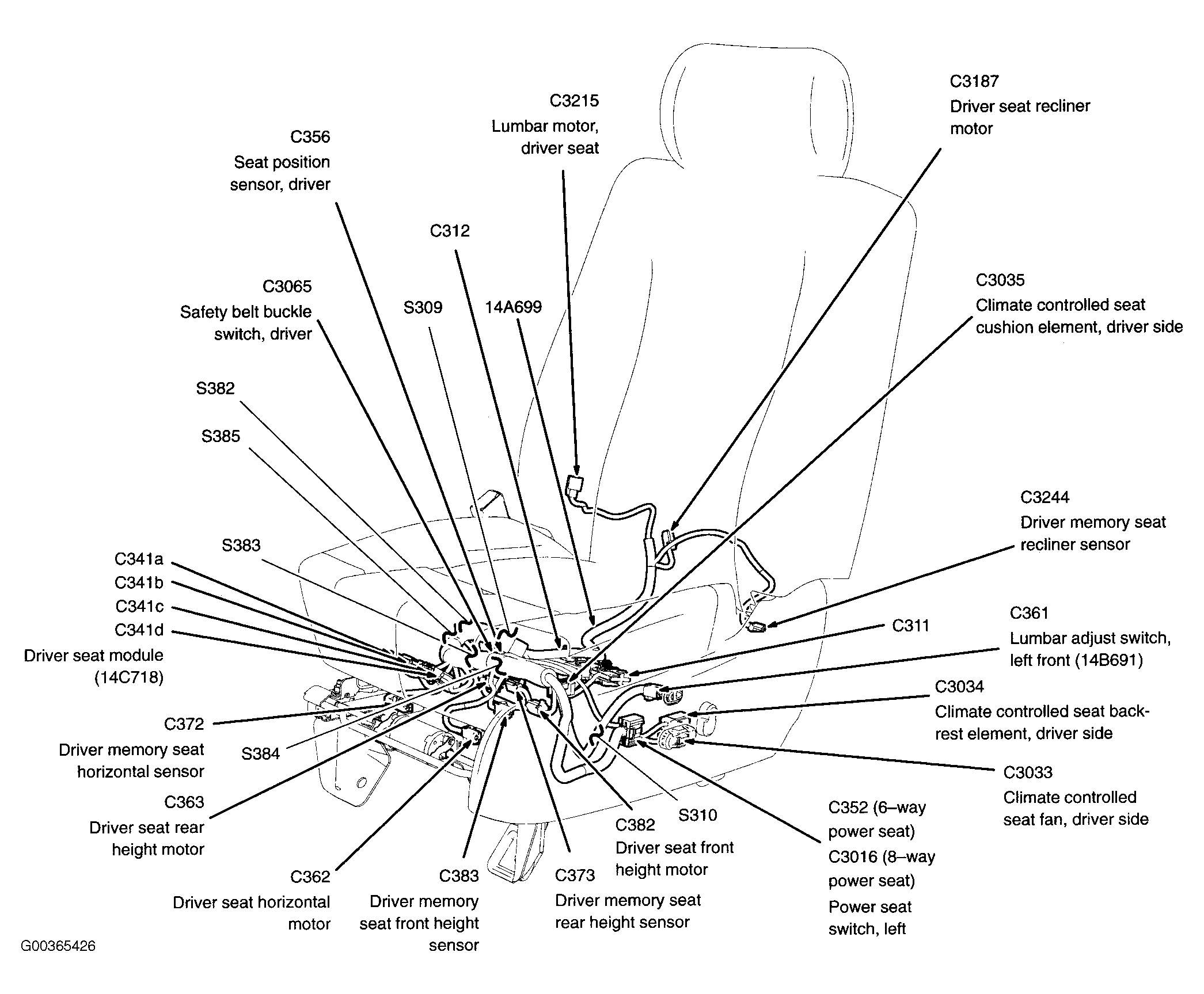

Fig 30: Driver Seat

G00365426

Courtesy of FORD MOTOR CO.

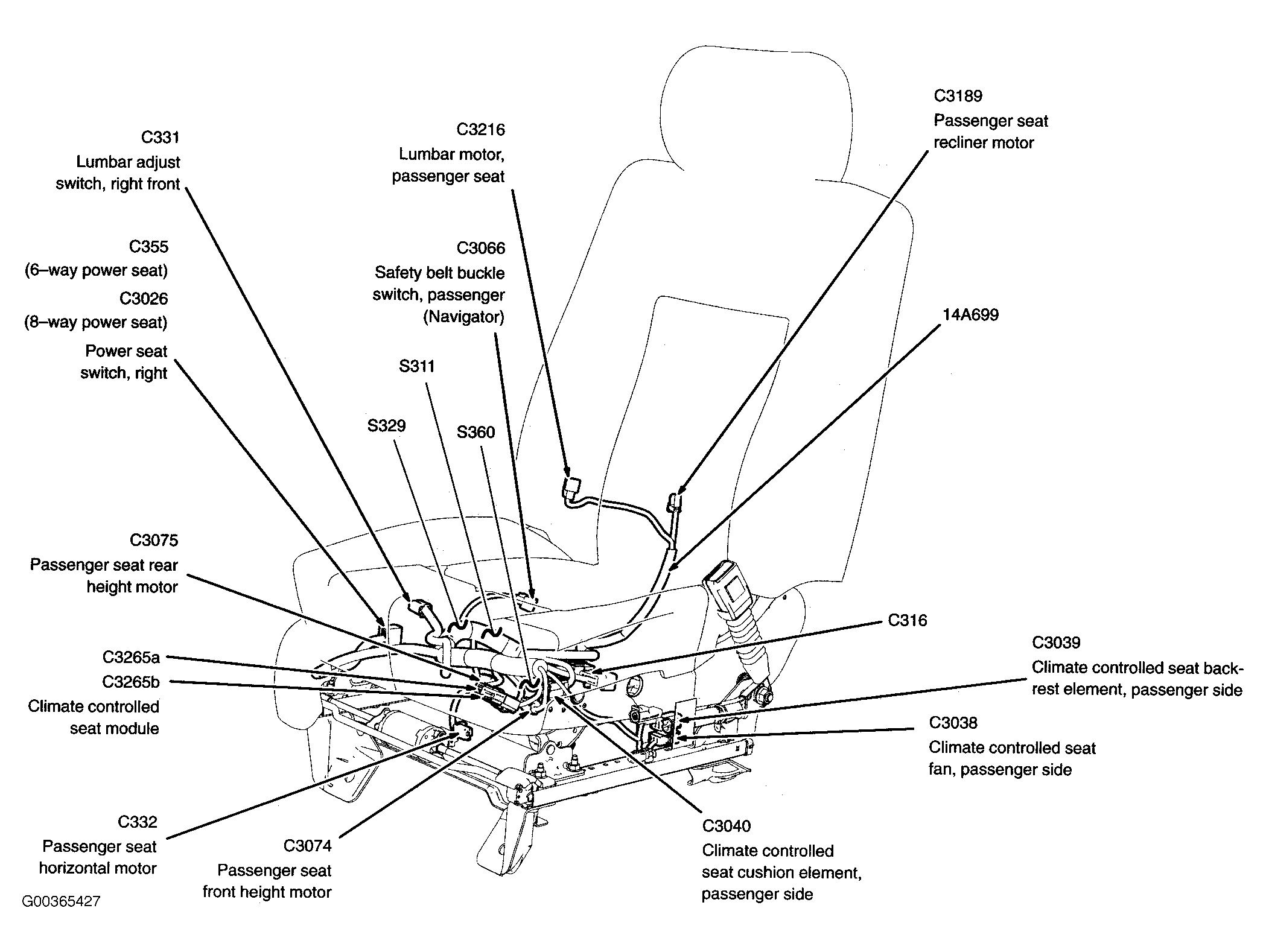

Fig 31: Passenger Seat

G00365427

Courtesy of FORD MOTOR CO.

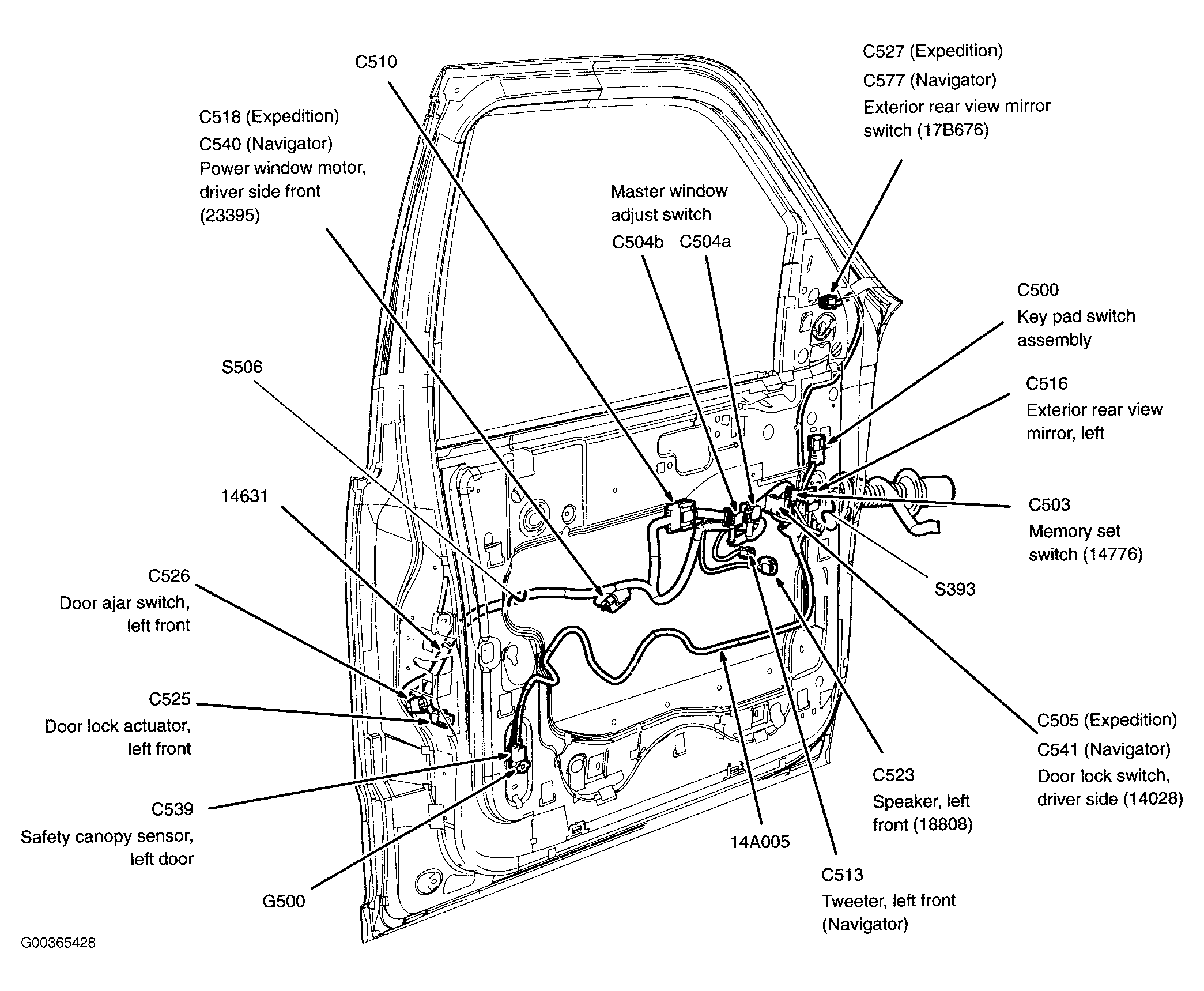

Fig 32: Left Front Door

G00365428

Courtesy of FORD MOTOR CO.

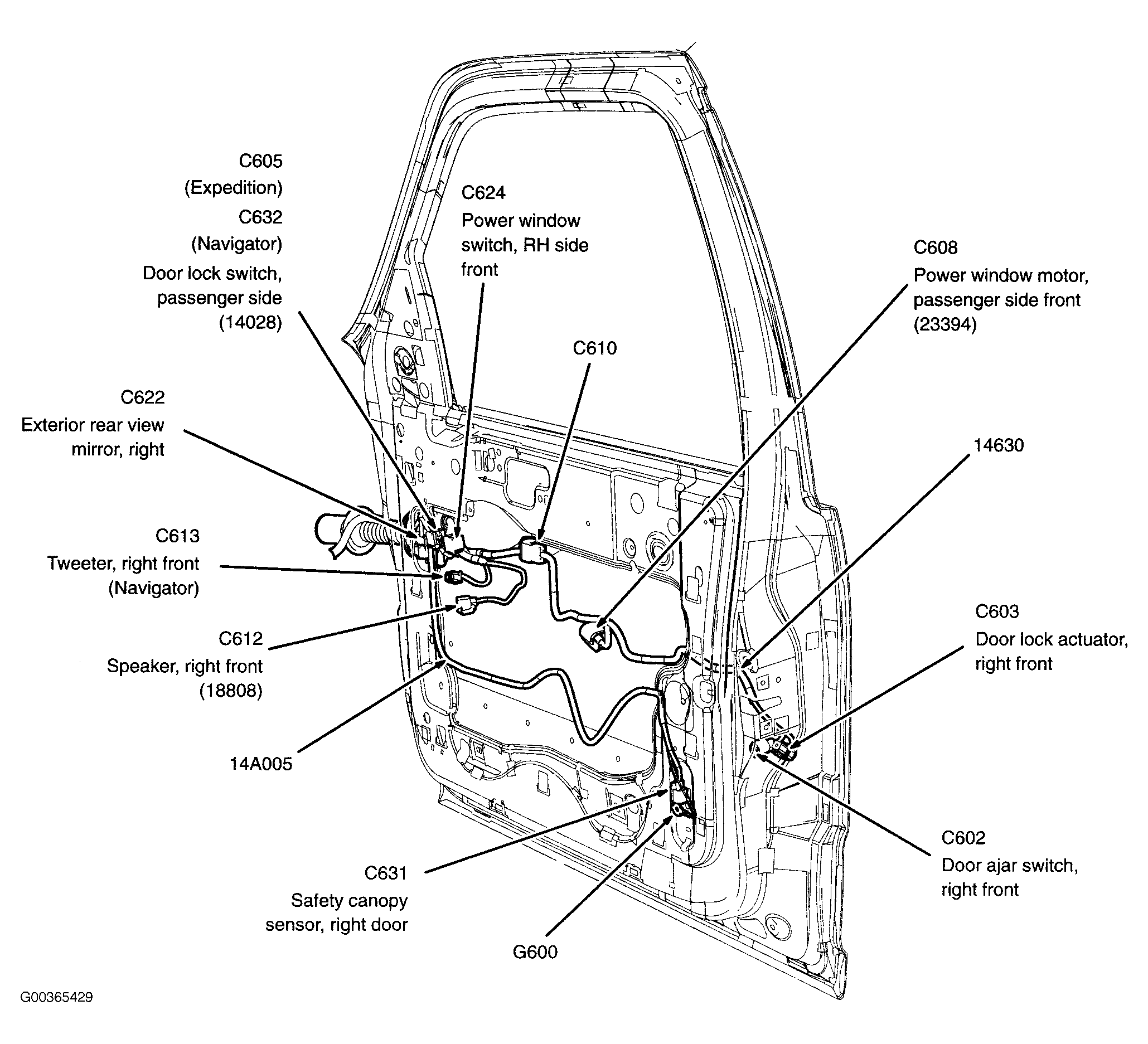

Fig 33: Right Front Door

G00365429

Courtesy of FORD MOTOR CO.

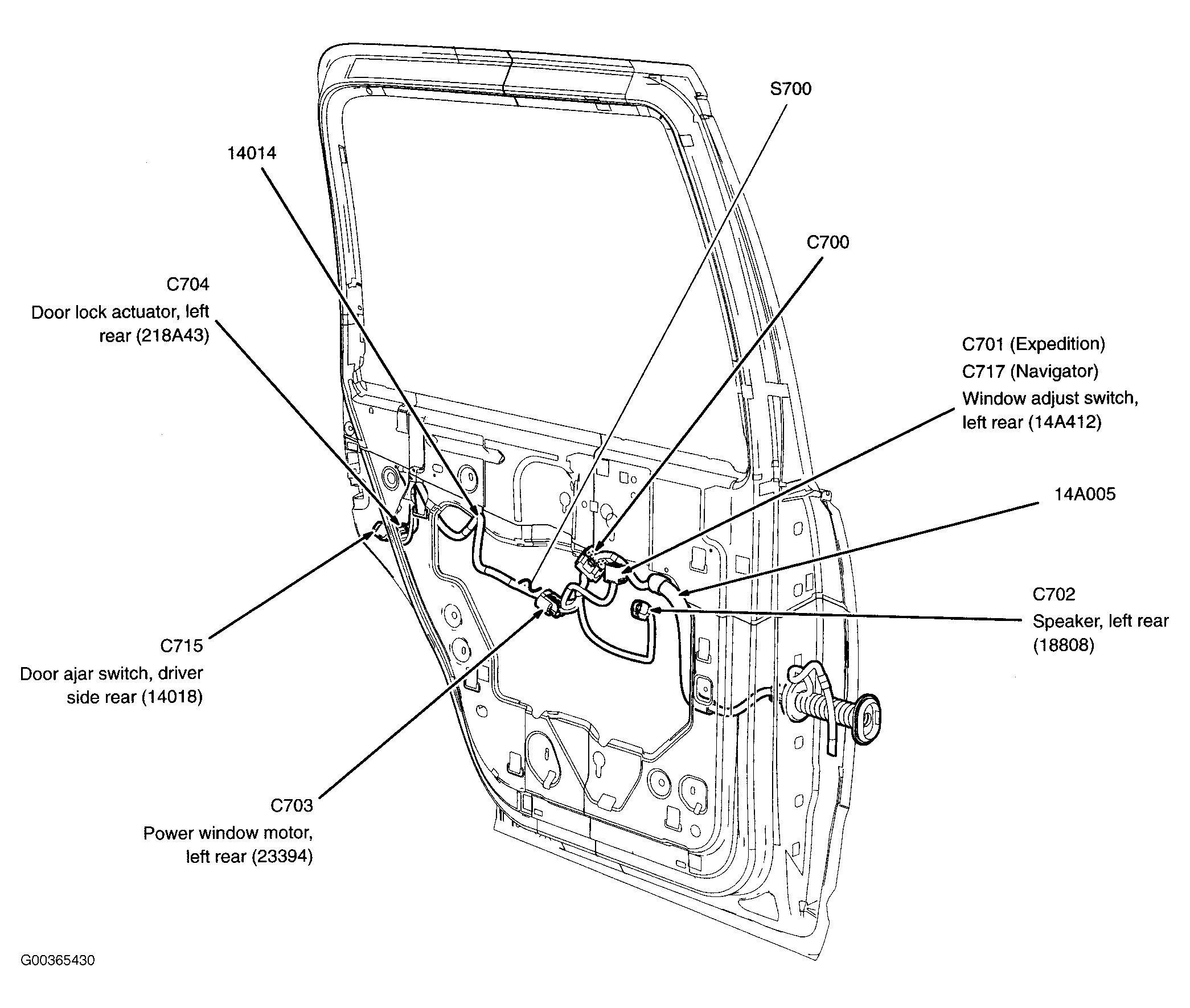

Fig 34: Left Rear Door

G00365430

Courtesy of FORD MOTOR CO.

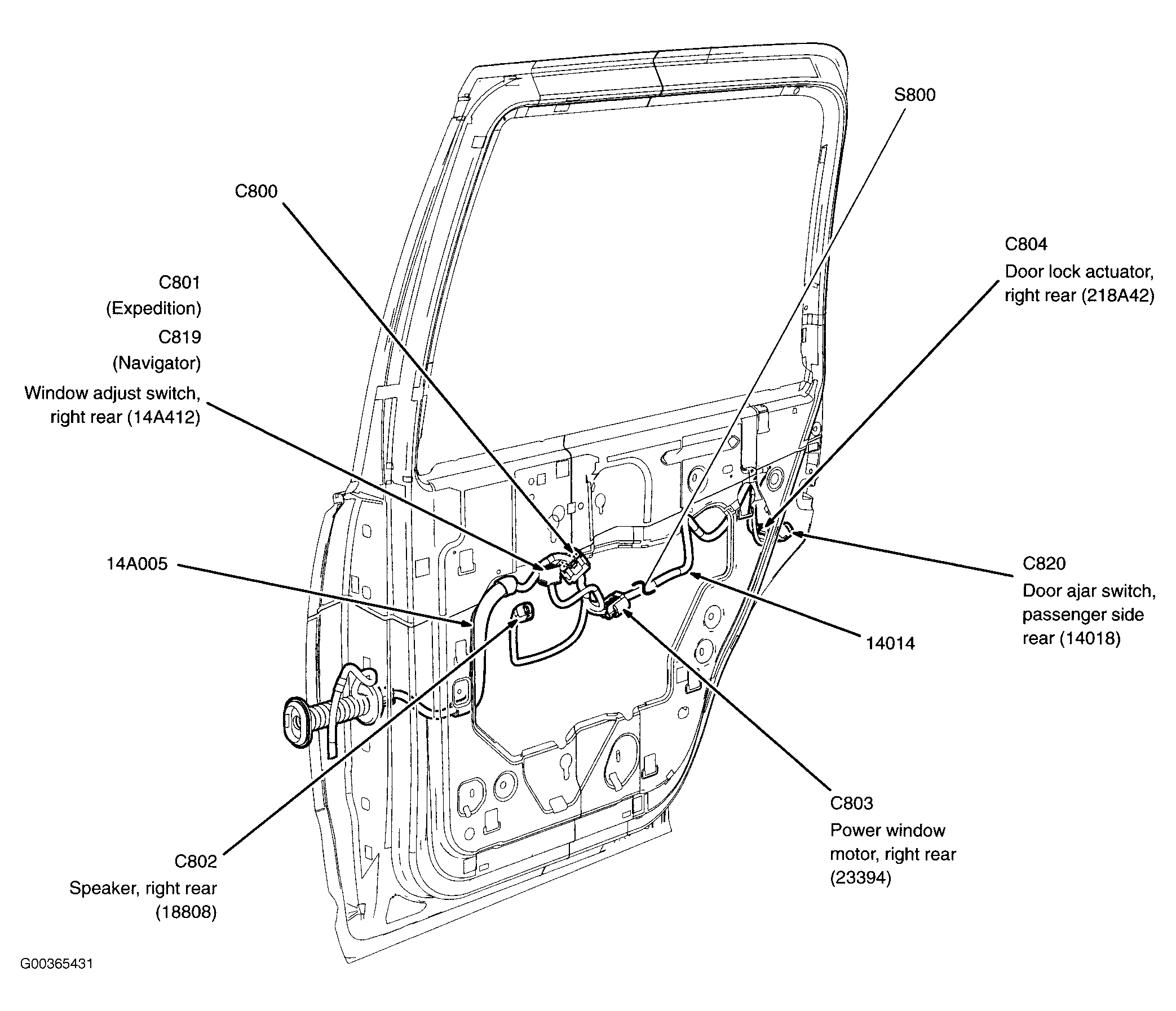

Fig 35: Right Rear Door

G00365431

Courtesy of FORD MOTOR CO.

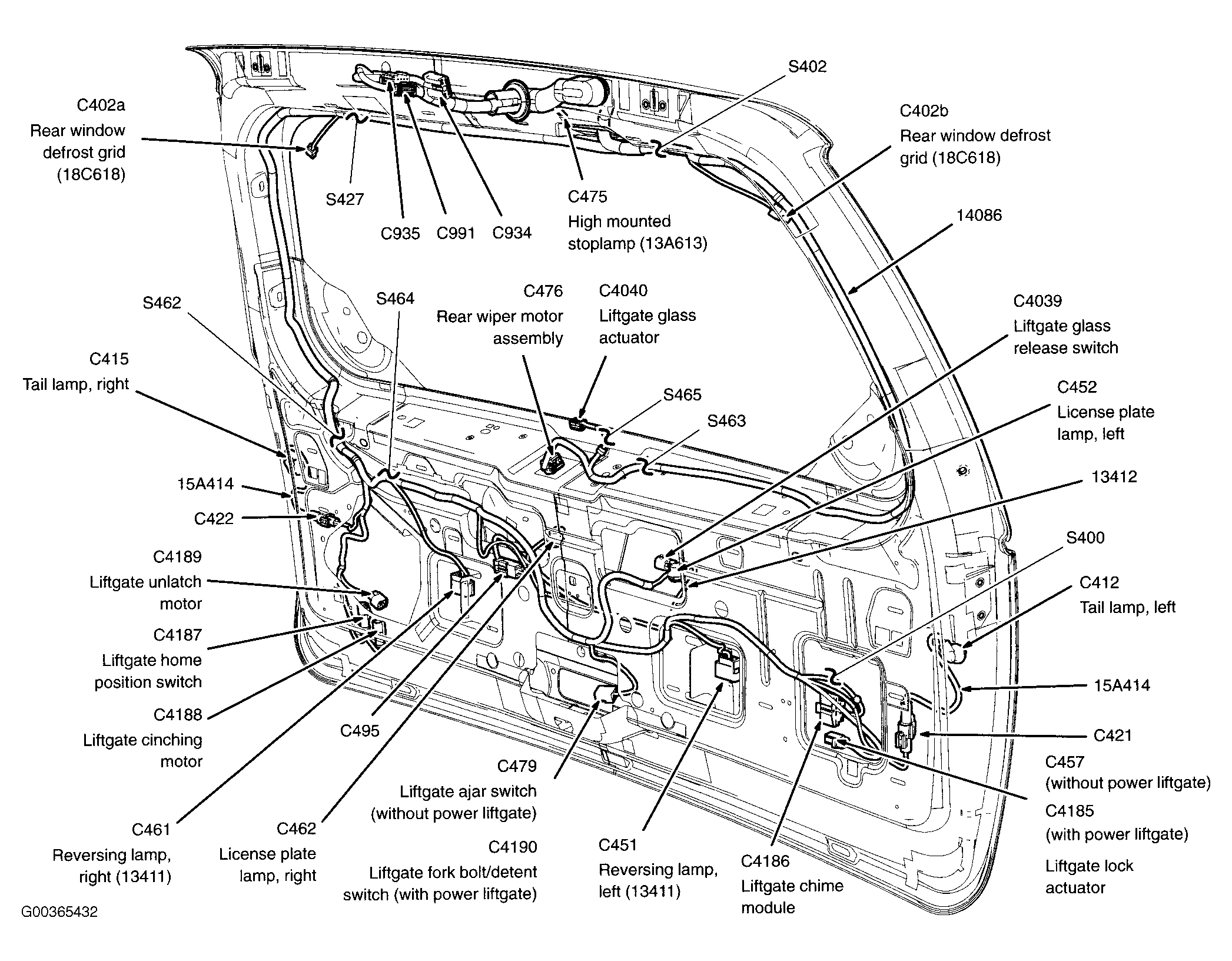

Fig 36: Liftgate

G00365432

Courtesy of FORD MOTOR CO.

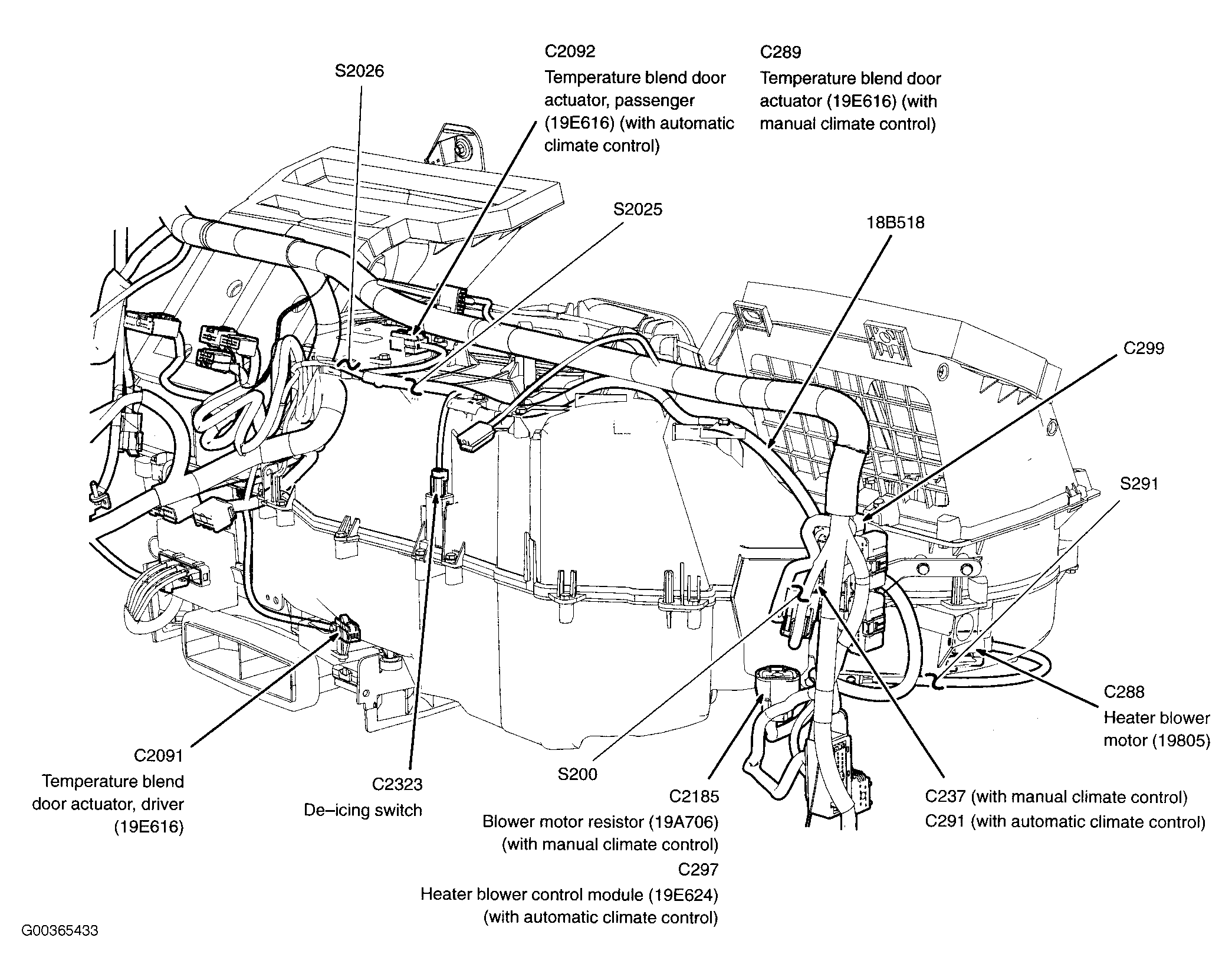

Fig 37: Climate Control System

G00365433

Courtesy of FORD MOTOR CO.

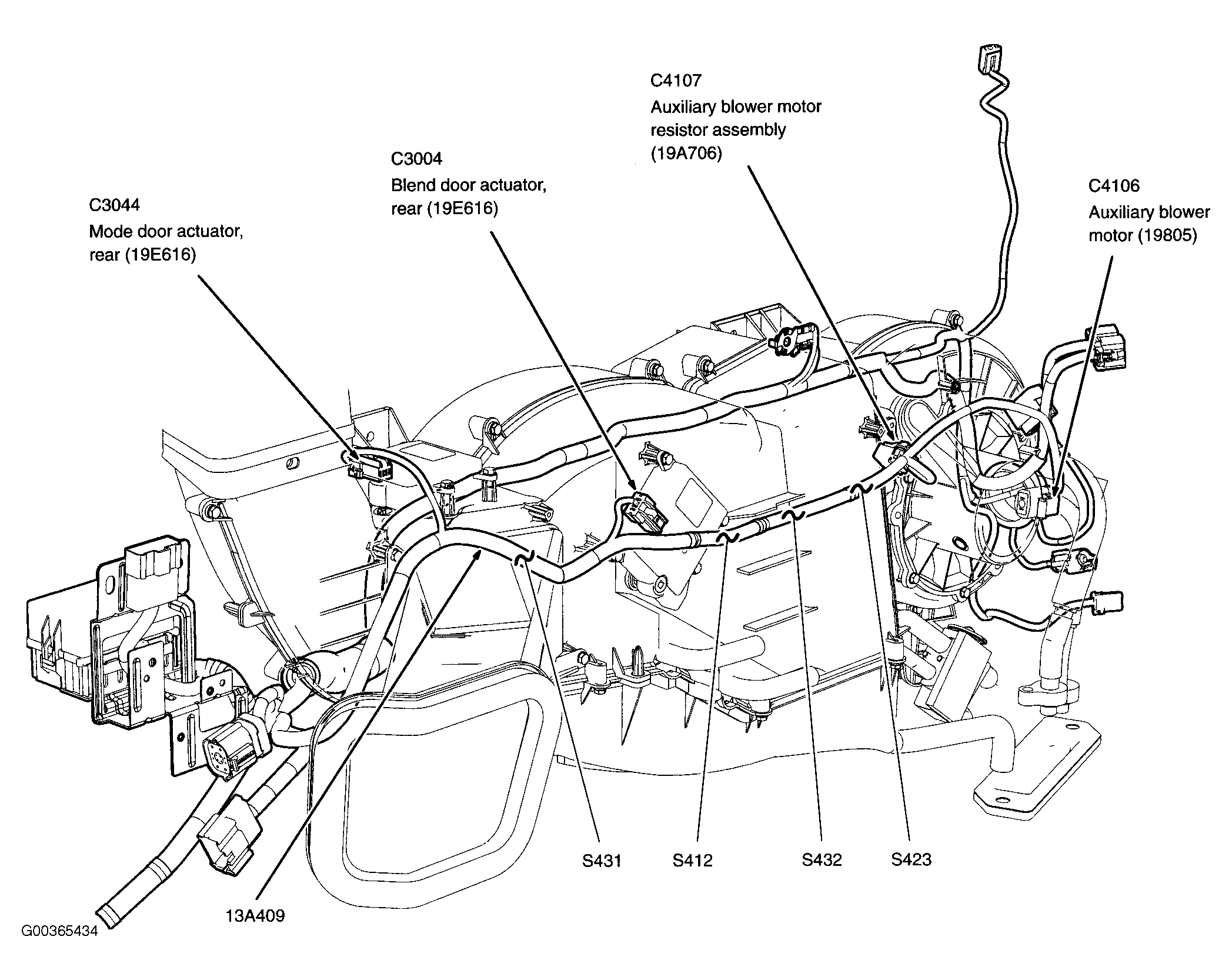

Fig 38: Auxiliary Climate Control

G00365434

Courtesy of FORD MOTOR CO.

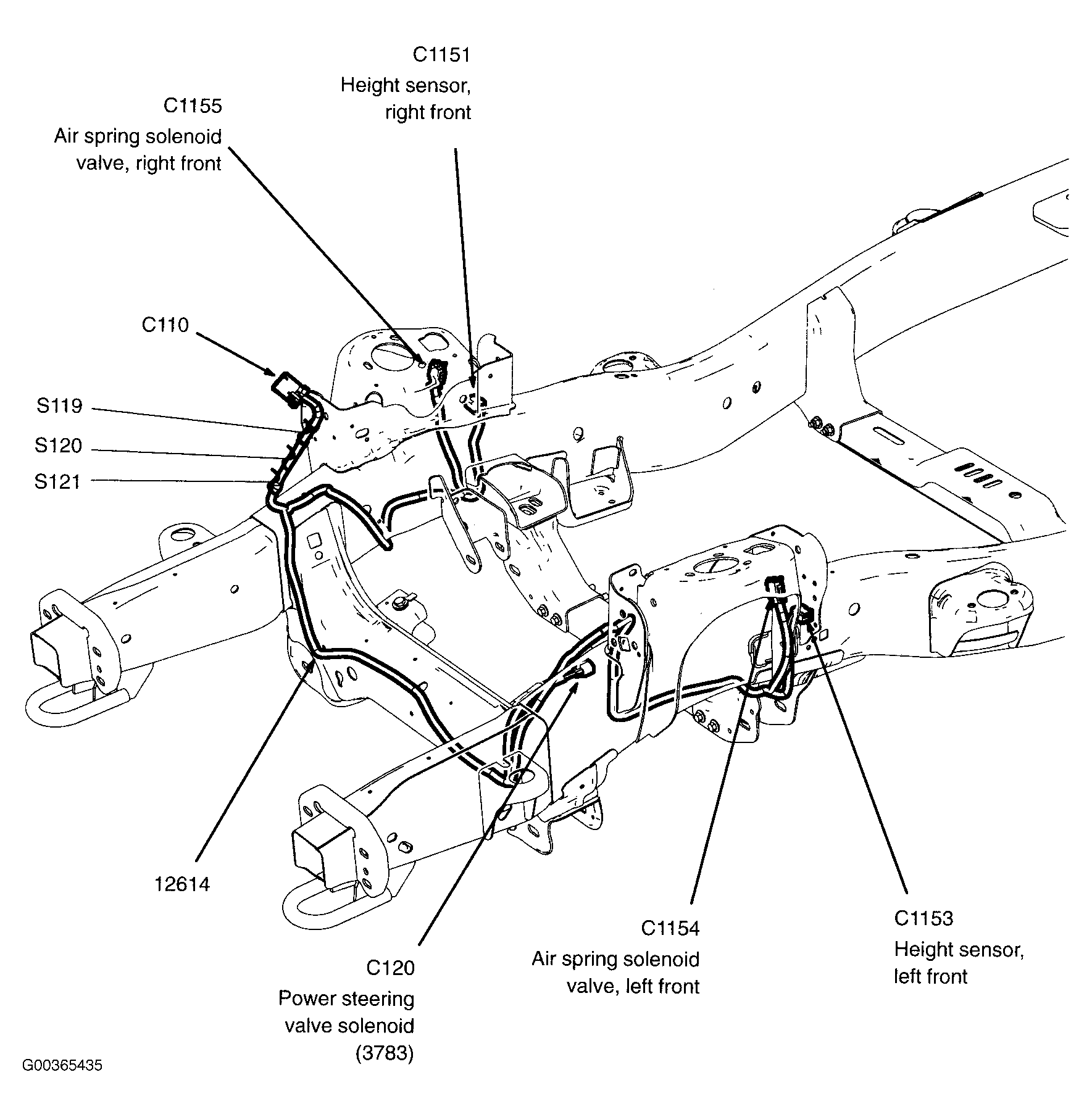

Fig 39: Front Of Chassis

G00365435

Courtesy of FORD MOTOR CO.

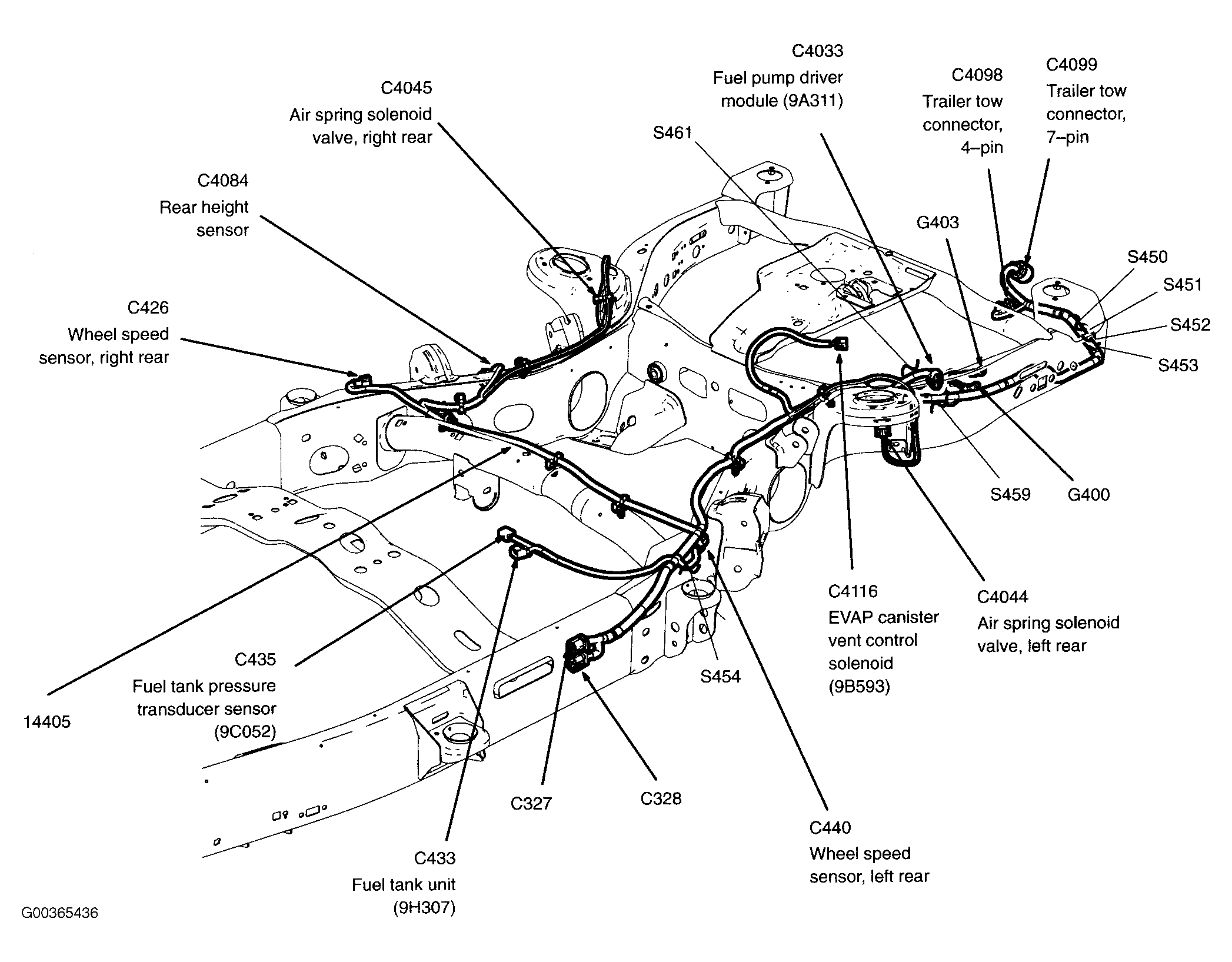

Fig 40: Rear Of Chassis

G00365436

Courtesy of FORD MOTOR CO.
