Connector Reference and Terminal Readings

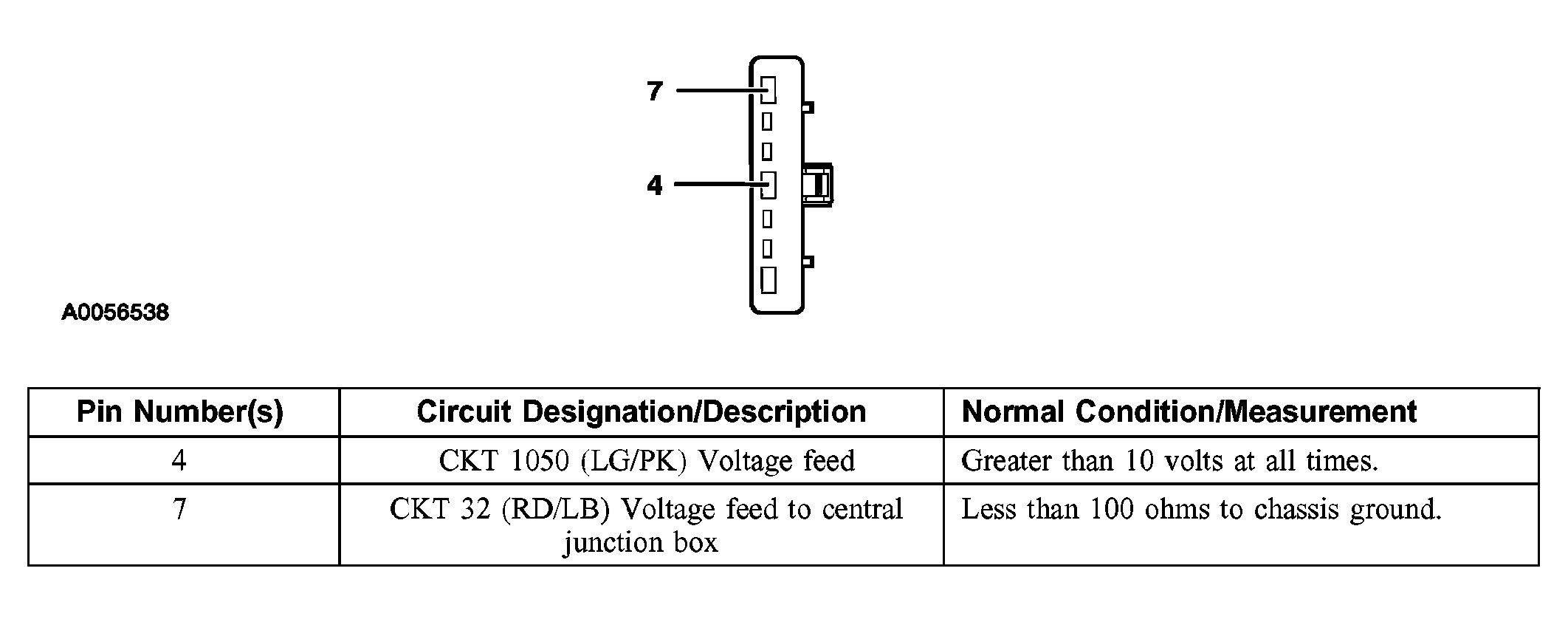

Fig 1: Identifying Ignition Switch C250 Connector Pins
G03929047Courtesy of FORD MOTOR CO.

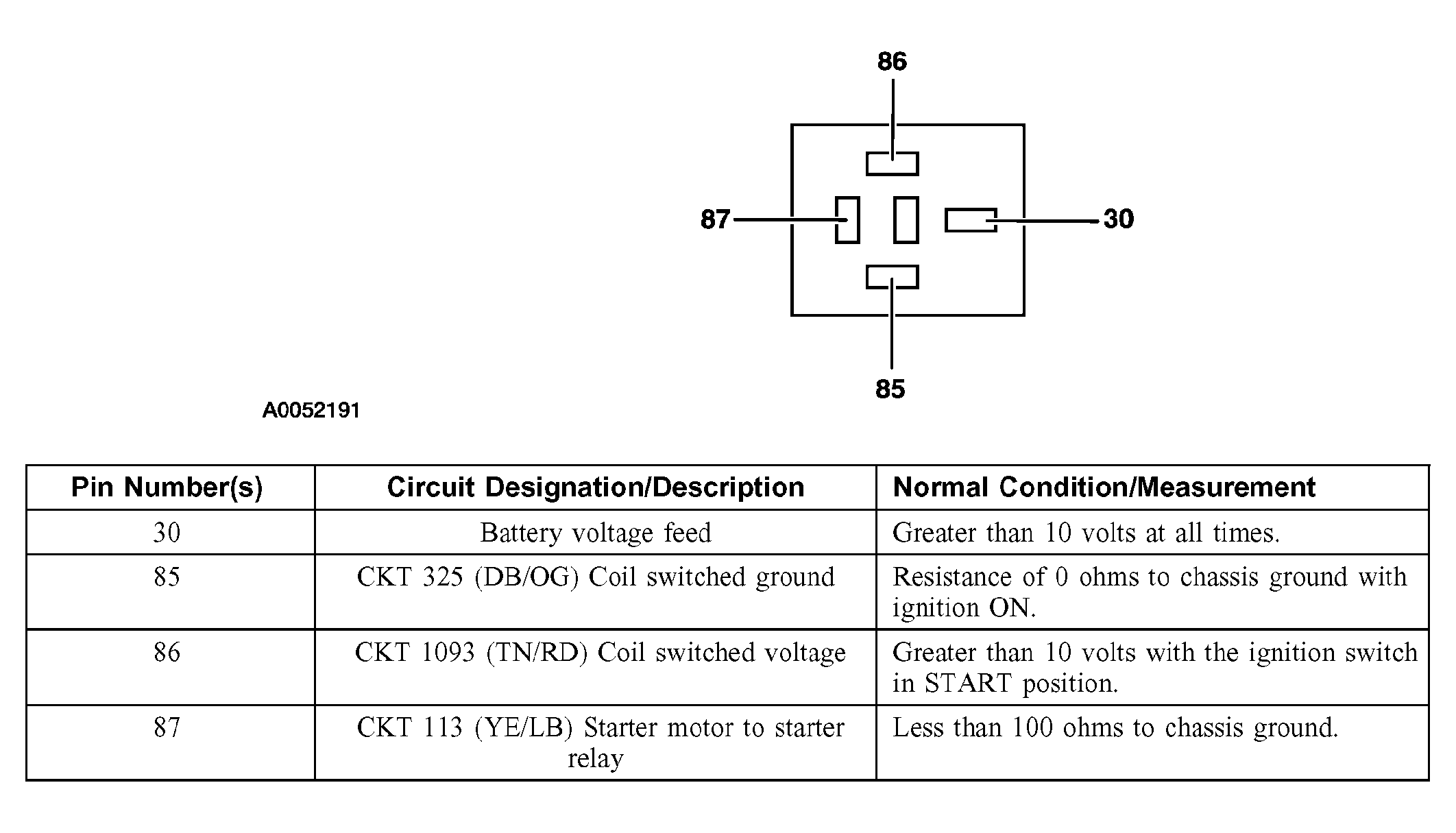

Fig 2: Identifying Starter Motor Relay Connector Pins
G03929048Courtesy of FORD MOTOR CO.

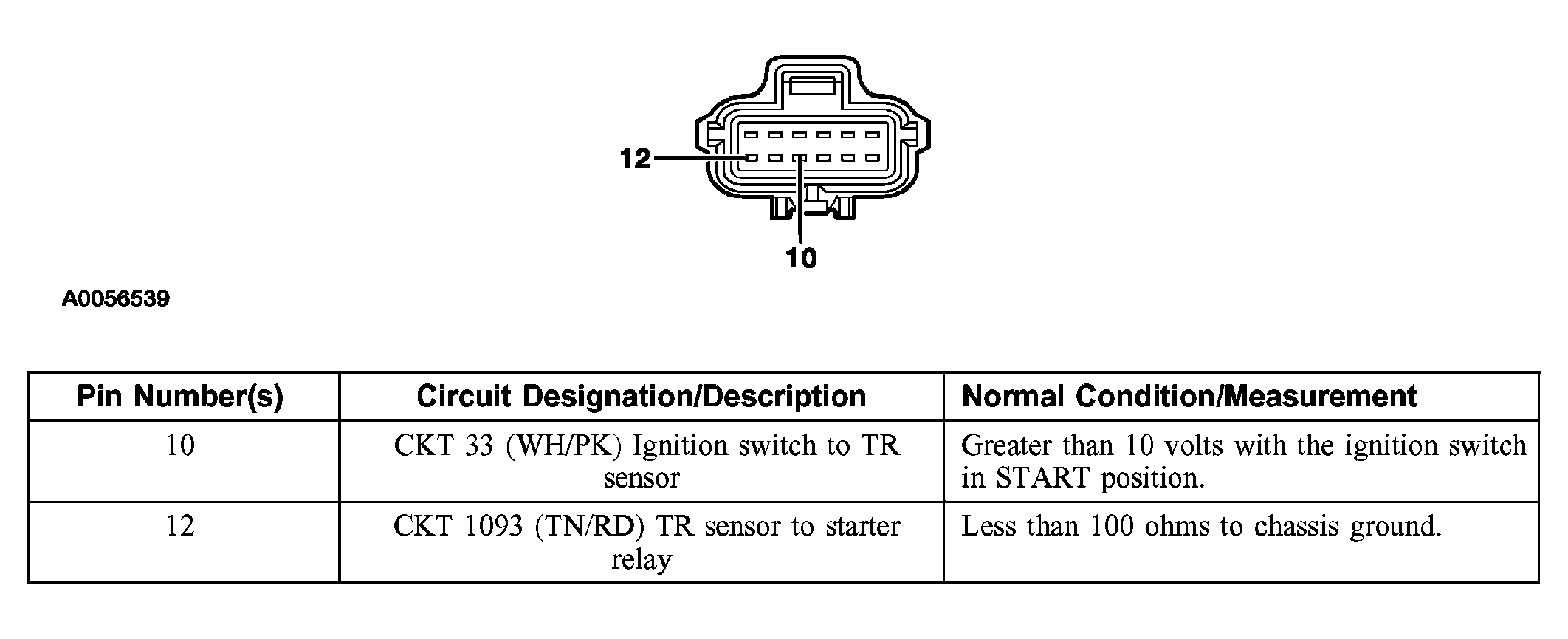

Fig 3: Identifying Digital Transmission Range (TR) Sensor C167 Connector Pins
G03929049Courtesy of FORD MOTOR CO.
