Engine Oil Pressure (EOP) Sensor

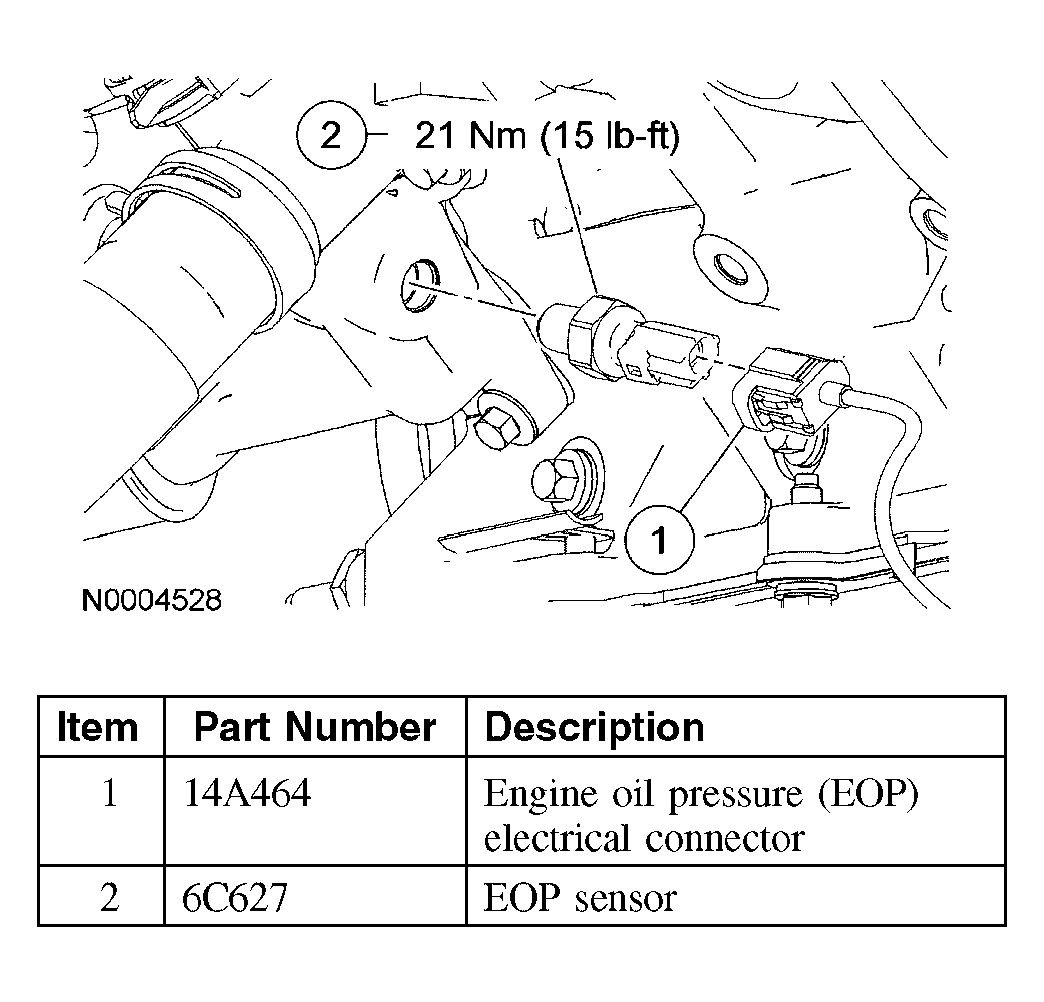

Fig 1: Removing/Installing Engine Oil Pressure (EOP) Sensor

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the engine oil pressure (EOP) sensor electrical connector.
Remove the EOP sensor.
- To install, tighten to 21 Nm (15 lb-ft).
To install, reverse the removal procedure.
