Removal and Installation

  1. Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
  2. Remove the wheel speed sensor (wheel removed for clarity).
    • Remove the wheel speed sensor bolt.

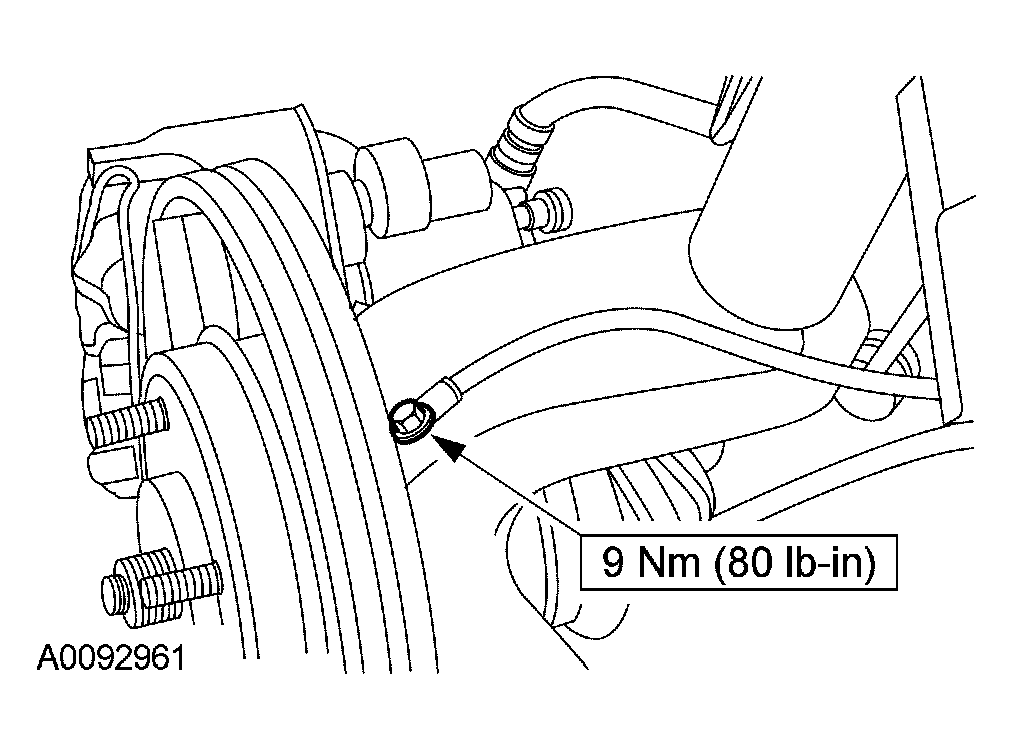

    Fig 1: Removing Wheel Speed Sensor Bolt
    G03950168Courtesy of FORD MOTOR CO.
  3. Disconnect the wheel speed sensor wiring harness.
    1. Disconnect the electrical connector.
    2. Remove the clips.

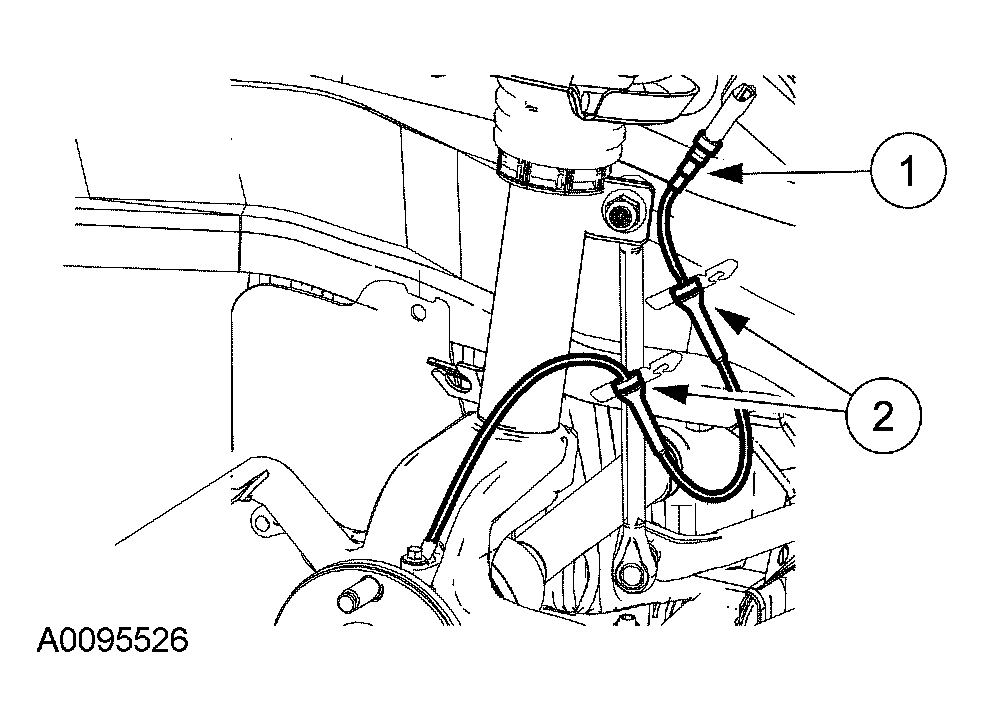

    Fig 2: Disconnecting Wheel Speed Sensor Wiring Harness
    G03950169Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
