Removal and Installation

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the instrument panel side trim.

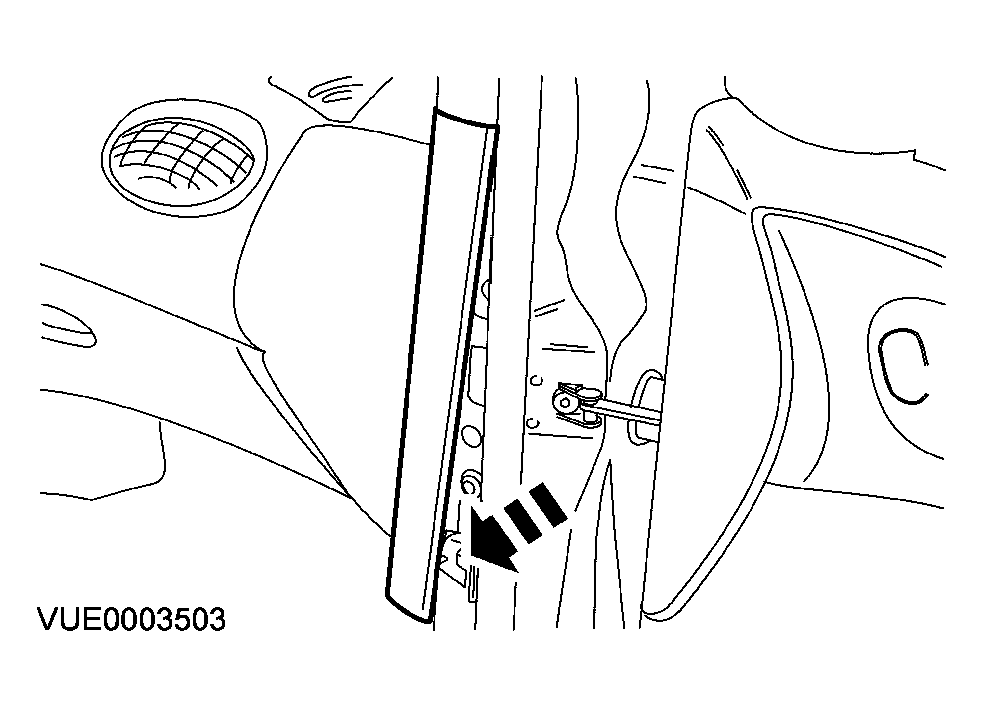

Fig 1: Removing Instrument Panel Side Trim Panel
Courtesy of FORD MOTOR CO.
Remove the cowl side trim panel.

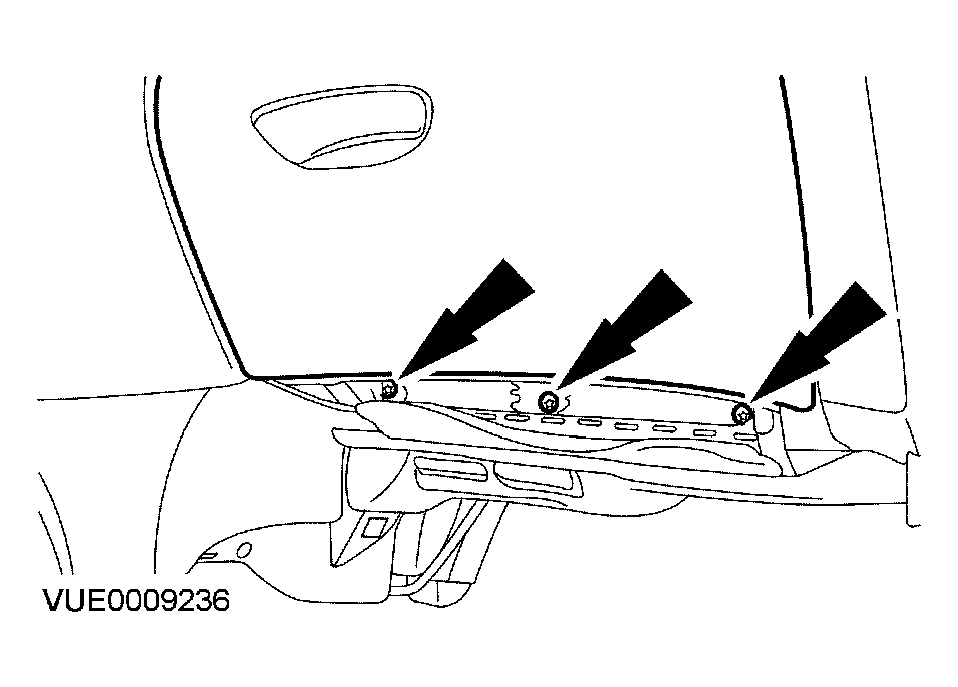

Fig 2: Identifying Trim Panel Screws
Courtesy of FORD MOTOR CO.
Remove the glove box.

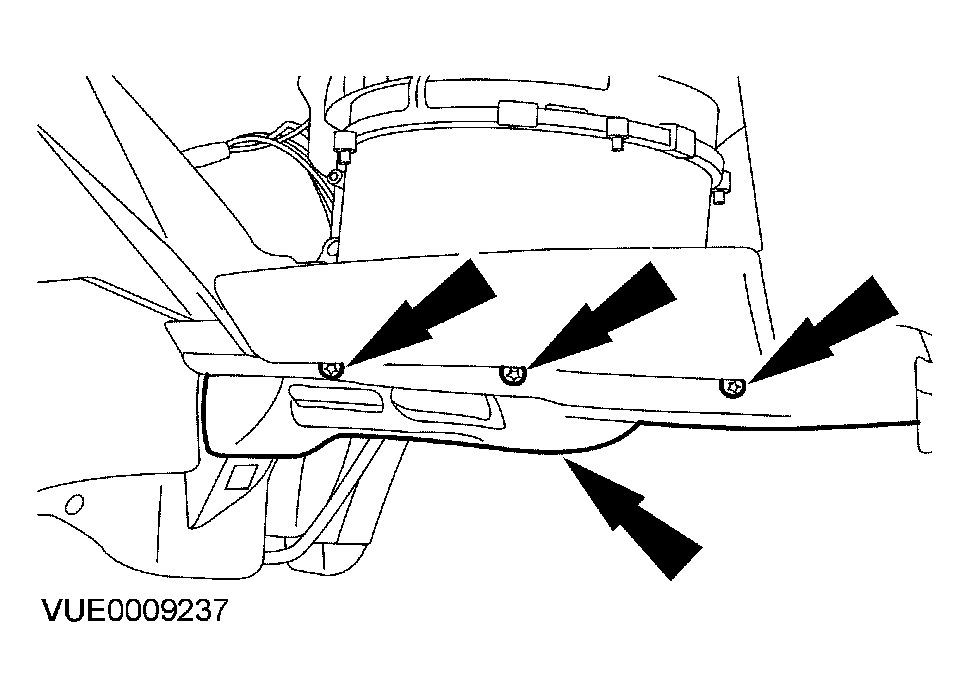

Fig 3: Removing Glove Box
Courtesy of FORD MOTOR CO.
Remove the passenger side lower footwell trim panel.

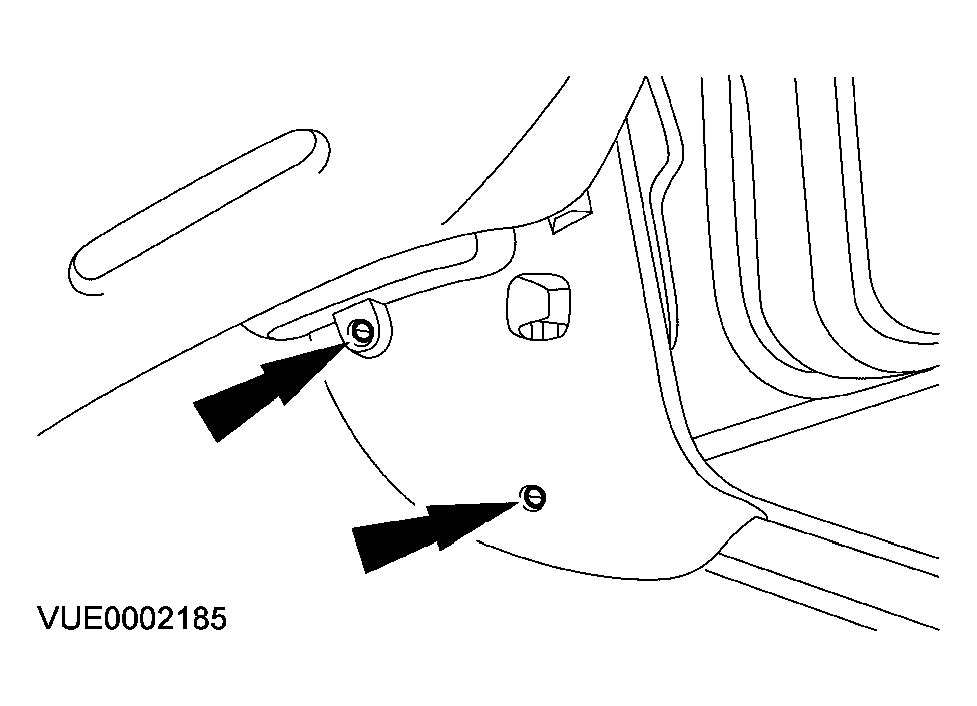

Fig 4: Removing Passenger Side Lower Footwell Trim Panel
Courtesy of FORD MOTOR CO.
Remove the generic electronic module (GEM).
1. Remove the two retaining nuts.
2. Remove the GEM module and the bracket and position aside.

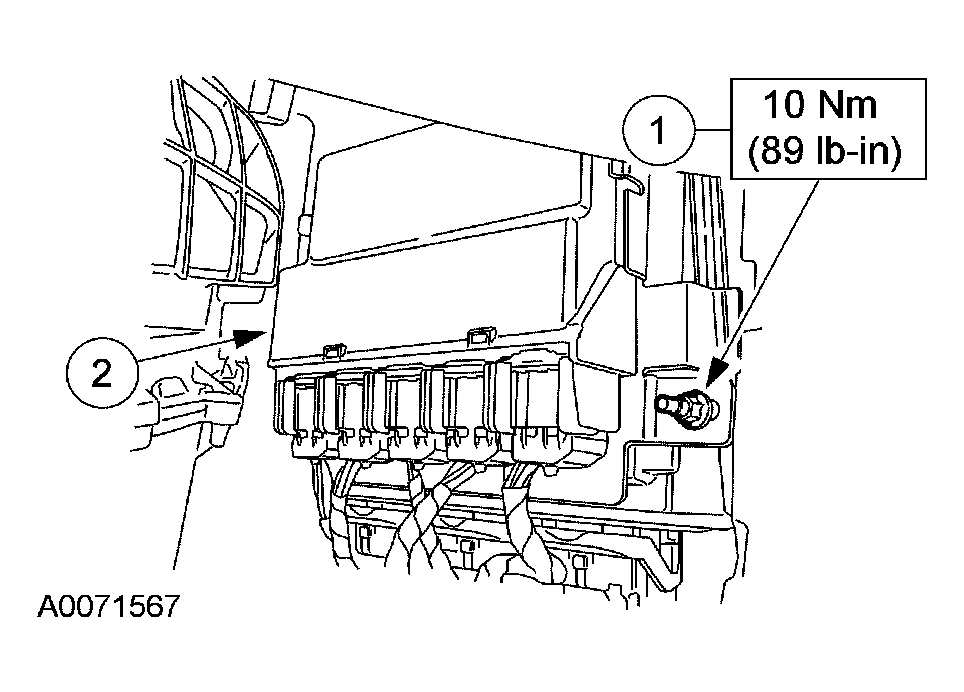

Fig 5: Removing Generic Electronic Module (GEM)
Courtesy of FORD MOTOR CO.
Disconnect the powertrain control (PCM) module electrical connectors and remove the PCM.

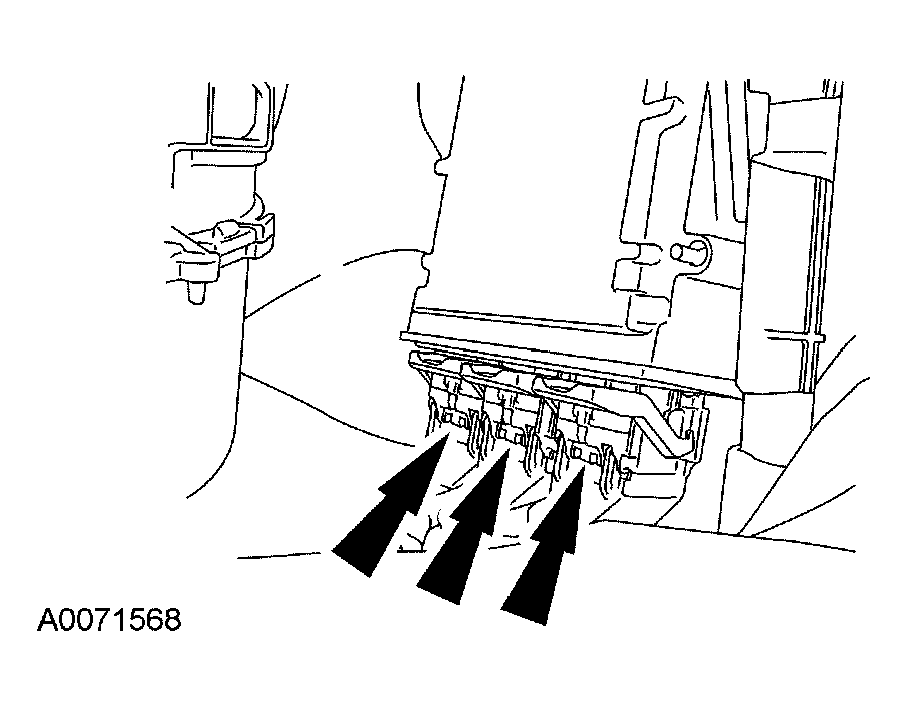

Fig 6: Disconnecting Powertrain Control Module Electrical Connectors
Courtesy of FORD MOTOR CO.

CAUTION: Make sure that the PCM electrical connectors do not unlock when installing the GEM module.
