Steering Wheel Rotation Sensor: Notes

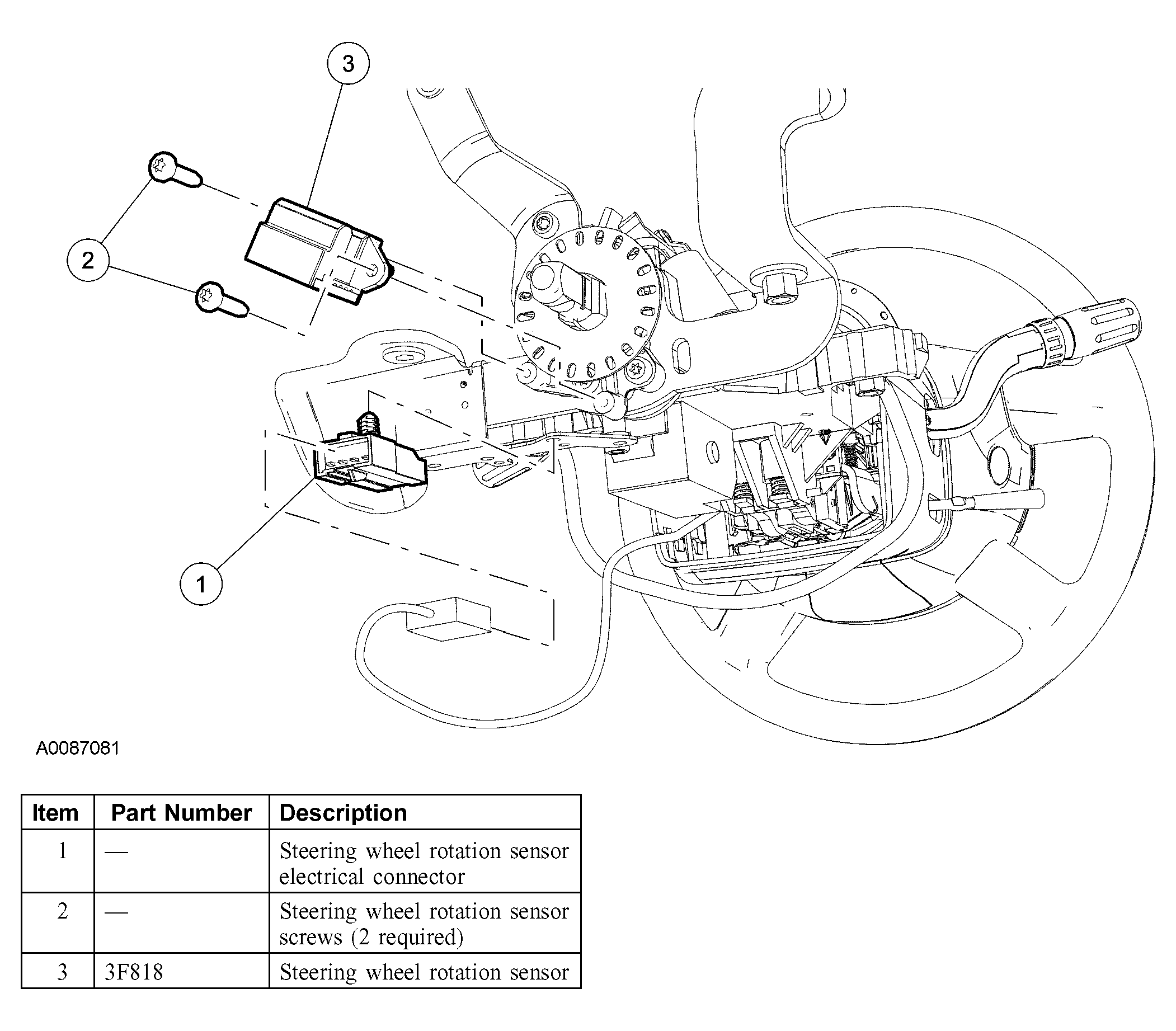

Fig 1: Removing & Installing Steering Wheel Rotation Sensor

Courtesy of FORD MOTOR CO.

NOTE: When installing a new steering wheel rotation sensor, the anti-lock brake system (ABS) module must be configured (using vehicle as-built data) and calibrated. Follow the diagnostic tool directions for the calibration procedures. For module configuration, refer to MODULE CONFIGURATION .
